Super Duplex Pipe

Super Duplex Pipe

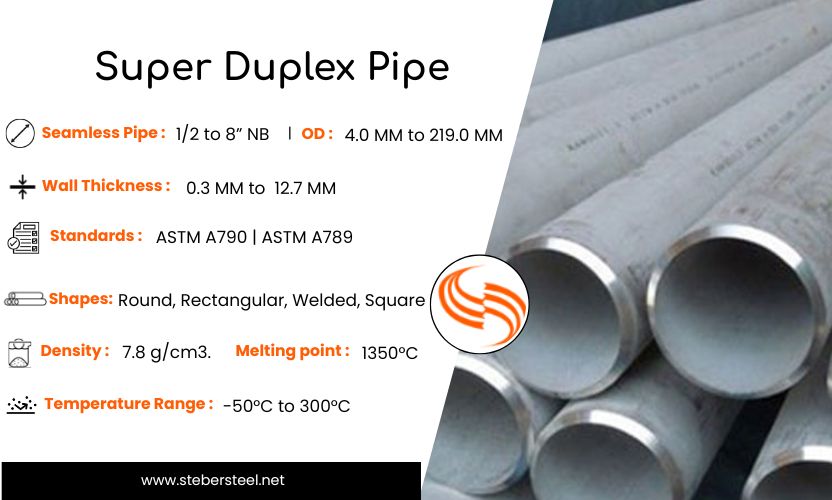

Super Duplex Pipe Highlights
Size:  1/8″NB – 24″NB
Outer Diameter 1/8″ NPS to 12″ NPS
Equivalent ASTM A790, ASTM A789
UNS No. S32750, S32760
Length 6 Meters, 12 Meters or Custom
Tolerance ±10%
WERKSTOFF NO. 1.4410 / 1.4501
End Plain, Beveled End
Certificate EN 10204 3.1 & 3.2

Super Duplex 2507 Pipe Manufacturer in India

Super Duplex Pipe

Super Duplex Pipe

ASTM A789 UNS S32760 Seamless Pipe

ASTM A789 UNS S32760 Seamless Pipee

ASTM A790 UNS S32750 Welded Tube

ASTM A790 UNS S32750 Welded Tube


Table of Contents


Super Duplex Pipe Specification

ASTM A789 UNS S32760 Seamless Pipe Sizes

  • OD : 6 - 250 MM
  • SCH: 5 to XXH
  • Length: Single, Double Random & Cut Length
  • Wall thickness: 0.5 – 20 MM
Sizes

SA 789 S32760 Welded Pipe Sizes

  • Wall thickness: 0.5 – 20 MM
  • OD : 4 to 219 MM
  • Length: Custom


Sizes

Steel Super Duplex Polished Pipe Manufacturing Types

  • ERW
  • Welded
  • Seamless
  • EFW
Types

SA 790 S32760 Hot Finished Seamless Pipe Packaging

  • Wooden Box
  • Bundled
  • Bubble Wraps


Packaging

SS Super Duplex Solution Annealed Pipe American Standards

  • ASTM A790
  • ASTM A789



American Standards

SDSS 2507 Cold Finished Seamless Pipe European Standards

  • EN 10296-2
  • EN 10312
  • EN 10297-2
  • EN 10217-7
  • EN 10216-5
European Standards

ASTM A790 UNS S32760 Round Pipe Schedule

  • Schedule 80, 60, 120
  • Schedule 10 , 20 , 40
  • Schedule STD , XS , XXS


Schedule

ASTM A789 UNS S32750 ERW Pipe End Types

  • Plain End
  • Groove Ends
  • Bevelled End
  • Threaded End

End Types

ASTM A790 UNS S32750 Welded Tube Surface Finish & Treatments

  • Pickled
  • Cleaned
  • Precleaned
  • Passivated
Surface Finish

SDSS Bright Annealed Pipe Documentation

  • Chemical and Mechanical Reports
  • Third Party Inspection
  • 100% Radiography Test Report
  • Chemical and Mechanical Reports
Documentation

ASTM A790 UNS S32760 Round Pipe Origin

  • Russia
  • Janpanese
  • American
  • European



Origin

SA 790 S32750 EFW Pipe Shapes

  • Rectangle
  • Round
  • Square
  • Hex



Shapes

Super Duplex 2507 Square Pipe Meet Standards

  • EN 10088-2
  • DIN 17458
  • ASME B36.19
  • EN 10217-7
  • EN 10088-3
  • EN 10216 – 2
  • NSF 61
  • ASME B36.19M
  • EN 10216 – 5
  • DIN 17456
Standards

Steel Super Duplex Polished Pipe Mechanical Test

  • 100% PMI Tested
  • Hardness Test
  • Reverse Flattening Test
  • Flaring Test (for Stainless Steel Super Duplex Seamless Pipe)
  • Tension Test
  • Flange Test (for SDSS Welded Pipe)

Mechanical Test

Super Duplex Steel Pipe Types

  • Seamless Pipe
  • Polish Pipe
  • Square Pipe
  • Welded Pipe
  • Round Pipe
  • Cold Finished Seamless Pipe
  • ERW Pipe
  • EFW pipe
  • Rectangular Pipe
  • Solution Annealed Pipe
  • Hot Finished Seamless Pipe
Types

ASTM A789 UNS S32760 Seamless Pipe Supplier in Mumbai As Per ANSI B36.19

International Standards of Super Duplex 2507 Square Pipe

Specification : ASTM A790 | ASME SA790
International Standards : ASME B36.10m / B36.10
UNS: S32750 / S32760

ASTM A790 UNS S32750 Welded Tube Weight Chart

Super Duplex Pipe Weight Chart

Nominal Pipe Size (NPS) W.T (Wall Thickness) Outside Daimeter Weight
(IN) (MM) SCH (IN) (MM) kg/m Lb/ft
48″ .375 9.525 STD 48.000 1219 284.112 19.738
.875 22.225 655.969 44.383
.500 12.700 XHY 377.822 253.650
42″ .312 7.925 42.000 1067 206.914 138.911
.500 12.700 XHY 33.097 221.610
36″ .250 6.350 36.000 914 142.180 95.453
.500 12.700 20 XHY 282.372 198.570
.312 7.925 10 177.133 118.918
30″ .250 6.350 3.000 762 118.318 79.433
.625 15.875 30 292.066 196.078
.438 11.125 205.983 138.286
.312 7.925 10 147.353 98.925
24″ .250 6.350 24.000 610 94.456 63.413
.625 15.875 232.410 156.028
.312 7.925 117.573 18.932
.438 11.125 164.176 11.219
20″ .250 6.350 2.000 508 78.547 52.733
.594 15.088 40 183.378 123.110
.688 17.475 211.368 141.901
.438 11.125 136.305 91.508
.312 7.925 97.719 65.604
18″ .219 5.563 18.000 457 61.948 41.588
.500 12.700 XHY 139.198 93.450
.375 9.525 STD 105.144 7.588
.281 7.137 79.208 53.176
16” .188 4.775 16.000 406 47.290 21.748
.438 11.125 108.433 72.797
.312 7.925 20 77.866 52.275
.250 6.350 10 62.639 42.053
14″ .188 4.775 14.000 356 41.308 27.732
.438 11.125 40 94.498 63.441
.312 7.925 67.939 45.611
.250 6.350 20 54.685 36.713
12″ .188 4.775 12.750 324 37.570 25.222
.406 1.312 79.727 53.525
.312 7.925 61.735 41.445
.250 6.350 49.713 33.375
10″ .188 4.775 1.750 273 31.588 21.207
.594 15.088 80 95.969 64.429
.438 11.125 71.852 48.238
.344 8.738 56.946 38.231
.250 6.350 20 41.759 28.035
8″ .188 4.775 8.625 219 25.233 16.940
.375 9.525 49.216 33.041
.277 7.036 30 36.786 24.696
.219 5.563 29.286 19.661
6″ .188 4.775 6.625 168 19.252 12.924
.500 12.700 48.719 32.708
.219 5.563 22.318 14.983
.375 9.525 37.285 25.031
.280 7.112 40 STD 58.263 18.974
4″ .237 6.020 4.500 114 16.073 1.790
3″ .216 5.486 40 STD 3.500 89 11.284 7.576
2 1/2″ .203 5.516 40 STD 2.875 73 8.629 5.793
2″ .154 3.912 40 STD 2.375 60 5.441 3.653
1 1/2″ .145 3.683 40 STD 1.900 48 4.048 2.718
1″ .133 3.378 40 STD 1.315 33 2.501 1.679
1/2″ .109 2.769 40 STD .840 21 1.268 .851
SDSS Round Pipe Schedule Chart and Pressure Rating

Super Duplex Steel Pipe Schedule Chart

Sizes in (Millimeter) Outside Daimeter in (Millimeter) STD 160 120 80 80S 40 40S XS 10S 5S
150 168.3 28.26 67.56 54.2 42.56 43.42 28.26 28.83 42.56 14.13 11.55
7.11 18.26 14.27 10.97 10.97 7.11 7.11 10.97 3.4 2.77
100 114.3 16.07 33.54 28.32 22.32 22.77 16.07 16.4 22.32 8.52 5.96
6.02 13.49 11.13 8.56 8.56 6.02 6.02 8.56 3.05 2.11
80 88.9 11.29 21.35 - 15.27 15.59 11.29 11.52 15.27 6.59 4.6
5.49 11.13 - 7.62 7.62 5.49 5.49 7.62 3.05 2.11
65 73 8.63 14.92 - 11.41 11.64 8.63 8.81 11.41 5.36 3.77
5.16 9.53 - 7.01 7.01 5.16 5.16 7.01 3.05 2.11
50 60.3 5.44 11.11 - 7.48 7.63 5.44 5.54 7.48 4.01 2.44
3.91 8.74 - 5.54 5.54 3.91 3.91 5.54 2.77 1.65
40 48.3 4.05 7.25 - 5.41 5.51 4.05 4.13 5.41 3.1 1.95
3.68 7.14 - 5.08 5.08 3.68 3.68 5.08 2.77 1.65
32 42.2 3.39 5.61 - 4.47 4.56 3.39 3.46 4.47 2.76 1.68
3.56 6.35 - 4.85 4.85 3.56 3.56 4.85 2.77 1.65
25 33.4 2.5 4.24 - 3.24 3.29 2.5 2.55 3.24 2.13 1.33
3.38 6.35 - 4.55 4.55 3.38 3.38 4.55 2.77 1.65
6 10.3 0.37 - - 0.47 0.48 0.37 0.36 0.47 0.28 -
1.73 - - 2.41 2.41 1.73 1.73 2.41 1.24 -

Super Duplex Pipe Pressure Rating

Sizes Pressure Ratings of Super Duplex Stainless Steel Pipe
Schedule 100°F 200° 300° 400° 500° 600° 650° 700° 750°
1″ 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1.5″ 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
40 2257 1947 1750 1608 1496 1425 1383 1354 1340
2″ 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
40 1902 1640 1474 1355 1260 1201 1165 1141 1129
3″ 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
40 1806 1558 1400 1287 1196 1140 1106 1084 1072
4″ 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
40 1531 1321 1187 1091 1014 967 938 919 909
5″ 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
40 1342 1158 1040 956 889 847 822 805 797
6″ 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
40 1219 1052 945 869 808 770 747 732 724
8″ 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
40 1073 926 832 765 711 678 657 644 637
10″ 160 3147 2714 2439 2242 2085 1986 1927 1880 1868
80 1609 1388 1247 1147 1066 1016 986 966 956
40 974 840 755 694 945 615 596 584 578
Stockist of Super Duplex Stainless Steel Square Pipe Provide 100% Radiography Test

Test Certificates of ASTM A789 UNS S32760 Seamless Pipe

  • EN 10204/3.1B
  • Third Party Inspection Report, etc
  • 100% Radiography Test Report
  • Raw Materials Certificate

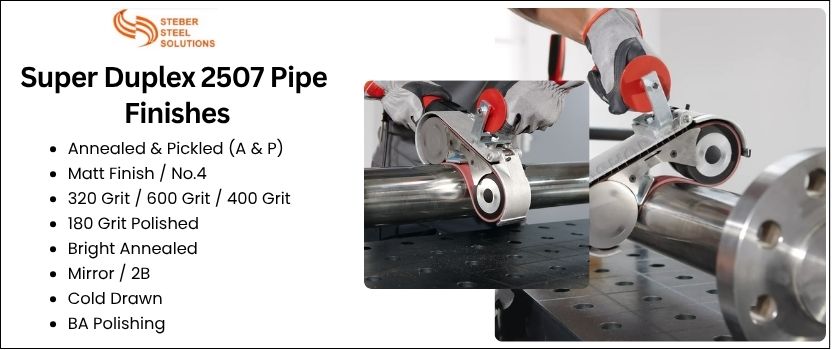

Super Duplex 2507 Pipe Finishes

Super Duplex 2507 Pipe Finishes

ASTM A789 UNS S32750 ERW Pipe Size Chart

A Large Selection of Sizes is Available From an Indian Super Duplex Pipe Manufacturer

Outside Daimeter in (Millimeter) Wall Thhiknes in (Millimeter) Inches Schedule Kg/m
219.08 23.012 8 160 112.97
219.08 8.18 8 40S 43.20
168.28 18.262 6 160 68.59
168.28 3.4 6 10S 14.04
141.30 15.882 5 160 49.87
141.30 6.55 5 40S 22.10
114.30 13.492 4 160 34.05
114.30 3.05 4 10S 8.50
101.60 8.08 3½ 80S 18.92
101.60 3.05 3½ 10S 7.53
88.90 11.132 3 160 21.67
88.90 3.05 3 10S 6.56
73.03 7.01 2½ 80S 11.59
73.03 3.05 2½ 10S 5.35
60.33 8.742 2 160 11.29
60.33 2.77 2 10S 3.99
48.26 5.08 1½ 80S 5.49
48.26 2.77 1½ 10S 3.16
42.16 6.352 1¼ 160 5.69
42.16 2.77 1¼ 10S 2.73
33.40 6.352 1 160 4.30
33.40 2.77 1 10S 2.13
26.67 3.91 3/4 80S 2.23
26.67 2.11 3/4 10S 1.30
21.34 3.73 1/2 80S 1.65
21.34 2.11 1/2 10S 1.02
17.15 3.20 3/8 80S 1.12
17.15 1.65 3/8 10S 0.64
13.72 3.02 1/4 80S 0.81
13.72 1.65 1/4 10S 0.50

Tolerances of SA 789 S32760 Welded Pipe

Outside Daimeter in (Millimeter) Tolerance in (Millimeter)
4 - 35 +/- 0.08
35 - 38 +/- 0.15
38 - 60 +/- 0.20
Above 60 +/- 0.25

SDSS Bright Annealed Pipe Size Range

Pipe Wall Thickn Outside Daimeter Length
NB Sizes SCH 5 / 10 / 40 / 80 / 160 1/8” - 8” Upto 6 Meter
S32750 Seamless Pipe As per requirement 5 - 203.2 (MM)
S32750 Welded Pipe 1.0 - 15.0 (MM) 5 - 1219.2 (MM)

Super Duplex Seamless Pipe Temperature Range

Gr. German VdTÜV ASME BPVC
2507 250°C/ 482°F 316°C/ 600°F
2205 280°C/ 536°F 316°C/ 600°F

Types of Super Duplex Stainless Steel Pipe

A Large Selection of Frequently Used Pipe Types Are Offered by Super Duplex Pipe Supplier in India

SA 789 S32760 Welded Pipe

SA 789 S32760 Welded Pipe

ASTM A789 UNS S32750 ERW Pipe

ASTM A789 UNS S32750 ERW Pipe

SA 790 S32750 EFW Pipe

SA 790 S32750 EFW Pipe

ASTM A790 UNS S32760 Round Pipe

ASTM A790 UNS S32760 Round Pipe

SA 789 S32750 Rectangular Pipe

SA 789 S32750 Rectangular Pipe

Super Duplex 2507 Square Pipe

Super Duplex 2507 Square Pipe

SDSS Bright Annealed Pipe

SDSS Bright Annealed Pipe

SS Super Duplex Solution Annealed Pipe

SS Super Duplex Solution Annealed Pipe

SDSS 2507 Cold Finished Seamless Pipe

SDSS 2507 Cold Finished Seamless Pipe

SA 790 S32760 Hot Finished Seamless Pipe

SA 790 S32760 Hot Finished Seamless Pipe

SAF 2507 Decorative Pipe

SAF 2507 Decorative Pipe

Steel Super Duplex Polished Pipe

Steel Super Duplex Polished Pipe

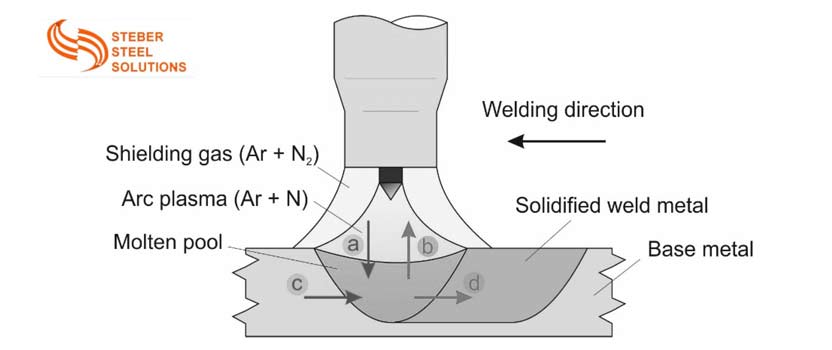

Super Duplex Pipe Welding

Super Duplex Pipe Welding

  • FCAW (Flux-cored arc welding)
  • GMAW or MIG/MAG (Gas metal-arc welding)
  • SAW (Submerged-arc welding)
  • SMAW or MMA (Shielded Metal-arc Welding)
  • GTAW or TIG (Gas Tungsten-arc Welding)

SDSS 2507 Cold Finished Seamless Pipe Chemical Composition

Grade Cu, (Copper) Mn, (Manganese) Cr, (Chromium) S, (Sulfur) Si, (Silicon) N, (Nitrogen) C, (Carbon) Ni, (Nickel) P, (Phosphorus) Mo, (Molybdenum) Other
ASTM A789 UNS S32750 0.50 1.20 24.0-26.0 0.020 0.80 0.24-0.32 0.030 6.0-8.0 0.035 3.0-5.0
ASTM A789 UNS S32760 0.50-1.00 1.00 24.0-26.0 0.010 1.00 0.20-0.30 0.030 6.0-8.0 0.030 3.0-4.0 W 0.50-1.0

Mechanical Properties of SS Super Duplex Solution Annealed Pipe

Grade Tensile Strength, in MPa [ksi] Yield Strength, in MPa [ksi] Elongation in 2 in, & 50 MM, Min Brinell Hardness
ASTM A789 UNS S32750 800 MPa, [116 ksi] Min 550 MPa, [80 ksi] Min 15 % 310 Max
ASTM A789 UNS S32760 750 MPa [109 ksi] Min 550 MPa, [80 ksi] Min 25 % 300 Max

Super Duplex Welded Pipe Equivalent Materials

STANDARDS WERKSTOFF NR. UNS
S32760 1.4410 S32760
S32750 1.4410 S32750

Applications of Super Duplex Pipe

Applications of Super Duplex Pipe

Physical Properties of Super Duplex Stainless Steel Pipe

Super Duplex Pipe Supplier in India Offers the Highest Quality Pipes With Outstanding Physical Features

Properties 600 (°F) 400 (°F) 200 (°F) 70 (°F) Unit
Density - - - 0.28 lbs/in3
Specific Heat .13 .12 .12 0.12 Btu/lb·°F
Thermal Expansion 8.0 7.5 7.5 - X10-6/°F
Elastic Modulus 26.2 27.0 28.2 29.0 103 ksi
Thermal Conductivity 132 120 108 96 Btu-in/h·ft2·°F
Poisson Ratio - - - 0.3 -

How Can I Choose the Best Super Duplex Steel Pipe Product ?

How Can I Choose the Best Super Duplex Steel Pipe Product ?

Super Duplex Pipe HSN Code

Types HSN Code
Seamless Pipes 7304
Welded Pipes 7306

Characteristics of ASTM A790 UNS S32760 Round Pipe

  • Good Weldability and Workability
  • Low Rate of Thermal Expansion
  • Good General Corrosion Resistance
  • Excellent Yield Strength
  • High Impact Strength
  • High Tensile Strength

Has in Stock the Following Brands of Super Duplex Stainless Steel Pipe

Outokumpo

Outokumpo

Jindal

Jindal

Posco

Posco

Thyssenkrupp

Thyssenkrupp

Nippon Steel

Nippon Steel

Acronis

Acronis

Deliver Ex Stock of Super Duplex Pipe to Below Countries

Country Name Flag Country Name Flag
South Africa South Africa Tunisia Tunisia
Ghana Ghana Zambia Zambia
Dubai Dubai Morocco Morocco
Nigeria Nigeria Algeria Algeria
Tanzania Tanzania UAE UAE
Angola Angola Kenya Kenya
Ethiopia Ethiopia Egypt Egypt
