Hastelloy C276 Pipe

Hastelloy C276 Pipe

Hastelloy C276 Pipe Highlights
Seamless Pipe 3 mm - 600 mm
Welded Pipe 6 mm - 200 mm
Temperature 1600°F to 2250°F
Lifespan Over 30 Years
Standards ASTM B622 | ASME SB 622
Density 8.89 g/cm3
Hardness Range 40 HRc

ASTM B619 UNS N10276 Seamless Pipe Supplier in India

Hastelloy C276 Pipe

Hastelloy C276 Pipe

Alloy C276 Welded Pipe

Alloy C276 Welded Pipe

UNS N06022 ERW Pipe

UNS N06022 ERW Pipe

Table of Contents


Refer Alloy C276 Welded Pipe Specification

Hastelloy C276 Pipe Specification

Hastelloy C276 Seamless Pipe

  • Thickness: 0.5 - 30 mm
  • OD: 3 - 600 mm
  • Length : 0.5 - 12 Metr.

Size

Nickel Alloy C276 Welded Pipe

  • OD : 6 - 200 mm
  • Thickness : 0.35 - 6 mm
  • Length : 0.5 - 12 Metr.

Thickness

Standards for Hastelloy Seam Welded Pipe

  • ASTM B622 | ASME SB 622
  • UNS : N10276
  • WNR : 2.4819

Standards

DIN 2.4819 Annealed Pipe Welding Method

  • SMAW
  • FCAW
  • TIG
  • GMAW
  • Submerged Arc weld

Welding Method

Surface Treatment of Hastelloy Alloy C276 Clad Pipe

  • Bright
  • Annealing
  • Cold Finish
  • Polished
  • Custom
Surface

Alloy C276 Exhaust Pipe Bending Method

  • Plain
  • Threaded
  • Grooved
  • Bevel Both
  • Bevel One

Bending

SWG of UNS N10276 Cold Drawn Pipe

  • 10
  • 12
  • 14
  • 16
  • 18
  • 20


Edges

2.4819 Hastelloy C276 Pipe Types

  • Coiled
  • Round
  • Hydraulic
  • U Shape
  • Hollow
  • Straight
  • Rectangular
  • Square
Types

Origin for Nickel C276 Hot Finished Pipe

  • Taiwan
  • European
  • US
  • Japanese
  • Indian
  • Thailand
  • Korea

Origin

UNS 0276 Seam Welded Pipe Marking

  • Manufacturing date
  • Origin of material
  • Material grade
  • ASTM/ ASME standard
  • Sizes
  • Manufacturer logo / name


Marking

Services for UNS N10276 Square Pipe

  • Beveling
  • Machining
  • Welding
  • Cut to Length
  • Threading



Services

Alloy Hastelloy C276 Rectangular Pipe Certification

  • Raw materials certificate
  • 100% radiography test report
  • Certificate of origin legalized
  • Third party inspection report
  • EN 10204/3.1B


Certification

Packaging of Werkstoff NR. 2.4819 Bright Annealed Pipe

  • Bundles with plastic wrapping
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools



Packaging

Alloy C276 Cold Finished Seamless Pipe Features

  • Resistant to Elevated Temperature
  • Heat Treatment
  • Resistance to Corrosion
  • Mechanical Properties
  • Workability


Features

Inspection Plan for WNR 2.4819 Solution Annealed Pipe

  • Third Party Inspection
  • Mechanical Report
  • Destructive & Non Destructive
  • Nabl Lab Test Approved
  • Visual Inspection
  • Chemical Testing

Inspection

View ASME SB 619 UNS N06022 ERW Pipe Dimension

Size Chart for Nickel Alloy C276 Welded Pipe

Nominal Pipe Sizes Thck. (Inch) Sch
2 2 40
1 1 40
0.5 1/2 40
2 2 10

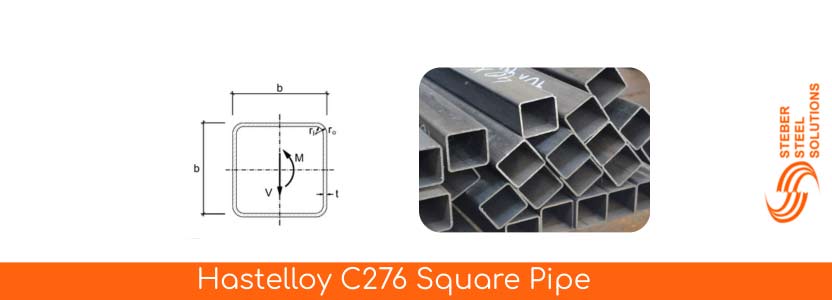

Hastelloy C276 Square Pipe Dimension

Hastelloy C276 Pipe Manufacturer in India, offers a Wide Ranges of Dimension in Pipe

Hastelloy C276 Square Pipe Dimension
Nominal Sizes mm kg/m Nominal Sizes mm kg/m
30 x 30 x 2.5 2.14 30 x 30 x 2.0 1.68
40 x 40 x 2.5 2.92 40 x 40 x 2.0 2.31
50 x 50 x 2.5 3.71 50 x 50 x 2.0 2.93
25 x 25 x 2.0 1.43 25 x 25 x 1.5 1.06
20 x 20 x 2.5 1.35 20 x 20 x 2.0 1.12
60 x 60 x 5.0 8.54 60 x 60 x 4.0 6.97
80 x 80 x 3.0 7.22 75 x 75 x 3.0 7.07
90 x 90 x 5.0 13.30 90 x 90 x 3.6 9.72
150 x 150 x 8.0 35.40 150 x 150 x 6.3 28.30
100 x 100 x 4.0 12.00 100 x 100 x 3.0 8.96
180 x 180 x 6.3 34.20 180 x 180 x 5 27.40
350 x 350 x 10 106.00 350 x 350 x 8 85.70
250 x 250 x 10 75.00 250 x 250 x 8 60.50
120 x 120 x 6.3 22.30 120 x 120 x 6.0 21.30
70 x 70 x 5.0 10.11 70 x 70 x 3.6 7.46
80 x 80 x 5.0 11.70 80 x 80 x 3.6 8.59
200 x 200 x 6 35.8 200 x 200 x 5 30.50
400 x 400 x 12 141.00 400 x 400 x 10 122.00
140 x 140 x 6.3 26.30 140 x 140 x 5.0 21.10
300 x 300 x 8 73.10 300 x 300 x 6.3 57.90

Which Are The Documentation That Are Required for Alloy C276 Exhaust Pipe ?

  • Reports of Raw Material Test
  • NABL approved Laboratory Test
  • Records of Material Traceability
  • QAP (Quality Assurance Plan)
  • Certification of Fumigation
  • Letter of Guaranted
  • Charts of Heat Treatment

Pressure Rating for Hastelloy 2.4819 Seam Welded Pipe

OutSide Diamete in Inch Wall Thck.
.028 .049 .083 .109 .035 .065 .095 .120
Working Pressure (Psig)
1" - - 2900 3900 - 2200 3400 4300
1/4" 3700 7000 - - 4800 9500 - -
3/4" - 2200 4000 - - 3000 4600 -
5/16" - 5400 - - 3700 7300 - -
1/2" - 3200 - - 2300 4400 - -
1/8" 7900 - - - 10100 - - -
3/8" - 4400 - - 3100 6100 - -

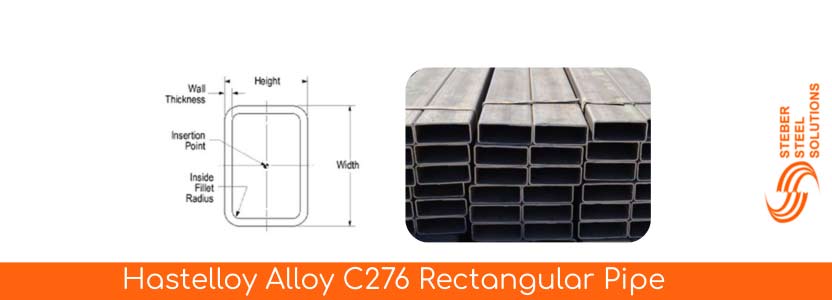

Hastelloy Alloy C276 Rectangular Pipe Sizes Ranges

Hastelloy Alloy C276 Rectangular Pipe Sizes Ranges
Nominal Pipe Sizes Thickness in mm Weight (Apprx.)
40 x 20 2.6 2.71
40 x 20 3.2 3.24
40 x 20 4 3.88
50 x 25 3.6 4.93
40 x 20 2 2.15
50 x 25 2.6 3.73
50 x 25 2.9 4.12
50 x 25 3.6 4.98
66 x 33 3.2 7.01
75 x 25 4.5 11.88
75 x 25 5.4 14.01
80 x 40 4 18.01
96 x 48 4.8 15.92
96 x 48 4 18.01
100 x 50 4.5 11.67
145 x 82 4 18.01
60 x 40 4.5 5.95
122 x 61 5.4 17.74
66 x 33 4.8 9.66
80 x 40 3.2 8.51
100 x 50 4.8 15.92
96 x 48 4.5 11.67
145 x 82 5.4 20.88
80 x 40 3.6 9.5
80 x 40 4.5 11.67
172 x 92 4.8mm 112.26

DIN 2.4819 Annealed Pipe Schedule Chart

Nominal Outside Diameter Schedule 10S Schedule 80S Schedule 40S Schedule 5C
Inch mm Pressure (Psi) Wall (Inches) Pressure (Psi) Wall (Inches) Pressure (Psi)> Wall (Inches) Pressure (Psi) Wall (Inches)
1/8 .405 18150 .049 35175 .095 25175 .068 - -
3/4 1.05 11850 .083 2200 .154 16150 .113 9275 .065
1 1.315 12450 .109 20425 .179 15175 .133 7425 .065
1 1/4 1.66 9850 .109 17250 .191 12650 .14 5875 .065
2 2.375 6875 .109 13775 .218 9750 .154 4100 .065
4 4.5 4000 .12 - - 7900 .237 2750 .083
5 5.563 3625 .134 - - 6950 .258 2950 .109
24 24 1550 .25 - - - - 1375 .218
10 1.75 2300 .165 - - 5100 .365 1875 .134
12 12.75 2125 .18 - - 4400 .375 1825 .156
16 16 1775 .188 - - - - 1550 .165
3/8 .675 14450 .065 28000 .126 20225 .091 - -
1/4 .540 18050 .065 33050 .119 24450 .088 - -
20 20 1625 .218 - - - - 1400 .188
1/2 .84 14825 .083 26250 .147 19475 .109 11600 .065
2 1/2 2.875 6250 .12 14400 .276 10600 .203 4325 .083
1 1/2 1.900 8600 .109 15800 .20 11450 .145 5125 .065
14 14 2025 .188 - - - - 1675 .156
6 6.625 3050 .134 - - 6350 .28 2475 .109
3 1/2 4 4500 .12 - - 8475 .226 3100 .083
3 3.5 5150 .12 - - 9250 .216 3550 .083
18 18 1575 .188 - - - - 1375 .165
8 8.625 2575 .148 - - 5600 322 1900 .109
30 30 1550 .312 - - - - 1250 .25

Most Common Types Of Hastelloy C276 Pipe

Hastelloy C276 Pipe Supplier in India, Offers the Most Common Types with Corrosion Resistant.

Hastelloy C276 Seamless Pipe

Hastelloy C276 Seamless Pipe

Nickel Alloy C276 Welded Pipe

Nickel Alloy C276 Welded Pipe

Hastelloy 2.4819 Seam Welded Pipe

Hastelloy 2.4819 Seam Welded Pipe

DIN 2.4819 Annealed Pipe

DIN 2.4819 Annealed Pipe

Hastelloy Alloy C276 Clad Pipe

Hastelloy Alloy C276 Clad Pipe

Alloy C276 Exhaust Pipe

Alloy C276 Exhaust Pipe

UNS N10276 Cold Drawn Pipe

UNS N10276 Cold Drawn Pipe

2.4819 Hastelloy C276 Cold Finished Pipe

2.4819 Hastelloy C276 Cold Finished Pipe

Nickel C276 Hot Finished Pipe

Nickel C276 Hot Finished Pipe

UNS 0276 Seam Welded Pipe

UNS 0276 Seam Welded Pipe

EN 2.4819 Round Pipe

EN 2.4819 Round Pipe

UNS N10276 Square Pipe

UNS N10276 Square Pipe

Alloy Hastelloy C276 Rectangular Pipe

Alloy Hastelloy C276 Rectangular Pipe

Werkstoff NR. 2.4819 Bright Annealed Pipe

Werkstoff NR. 2.4819 Bright Annealed Pipe

WNR 2.4819 Solution Annealed Pipe

WNR 2.4819 Solution Annealed Pipe

Alloy C276 Cold Finished Seamless Pipe

Alloy C276 Cold Finished Seamless Pipe

C276 Hastelloy Hot Finished Seamless Pipe

C276 Hastelloy Hot Finished Seamless Pipe



Alloy C276 Exhaust Pipe Thickness Chart

Nominal Pipe Sizes (Inch) Outside Diameter (O.D.) Wall Thickness
in mm mm in
3/4" 1.050 27 2.870 0.113
3.912 0.154
8" 8.625 219 4.775 0.188
5.563 0.219
5.156 0.203
6.350 0.250
1 1/4" 1.660 42 3.556 0.140
4.851 0.191
2" 2.375 60 3.912 0.154
5.537 0.218
3" 3.500 89 5.486 0.216
7.620 0.300
1/2" 0.840 21 2.769 0.109
3.734 0.147
1" 1.315 33 3.378 0.133
4.547 0.179
6" 6.625 168 4.775 0.188
5.563 0.219
5.516 0.203
12.700 0.500
7.112 0.280
6.350 0.250
9.525 0.375
7.925 0.312
10.973 0.432
1 1/2" 1.900 48 3.683 0.145
5.080 0.200
2 1/2" 2.875 73 5.516 0.203
7.010 0.276
4" 4.500 114 6.020 0.237
8.560 0.337
Manufacturer of Hastelloy Alloy C276 Round Pipe According To ASTM B622 Standard

Key Features for Alloy C276 Welded Pipe

Key Features for Alloy C276 Welded Pipe

Gauge Chart for 2.4819 Hastelloy C276 Cold Finished Pipe

Gauge No. B.W.G U.S.G
Inch mm mm Inch
12 .109 2.769 2.78 .1094
14 .083 2.108 1.98 .0781
16 .065 1.651 1.59 .0625
18 .049 1.245 1.27 .0500
20 .035 .889 .953 .0375
13 .095 2.413 2.38 .0938
15 .072 1.829 1.79 .0703
17 .058 1.473 1.43 .0563
19 .042 1.067 1.11 .0438
6 .203 5.156 5.16 .2031
24 .022 .559 .635 .0250
26 .018 .457 .478 .0188
28 .014 .356 .396 .0156
8 .165 4.191 4.37 .1719
10 .134 3.404 3.57 .1406
21 .032 .813 .873 .0344
23 .025 .635 .714 .0218
31 .010 .254 .277 .0109
33 .008 .203 .239 .0094
29 .013 .330 .358 .0141
7 .180 4.572 4.76 .1875
34 .007 .178 .218 .0086
27 .016 406 .437 .0172
25 .020 .508 .556 .0219
30 .012 .305 .318 .0125
22 .028 .711 .794 .0313
32 .009 .229 .259 .0102
9 .148 3.759 3.97 .1563
11 .120 3.048 3.18 .1250
35 .005 .127 198 .0078

Nickel C276 Hot Finished Pipe Weight Chart

Hastelloy C276 Pipe Supplier in India, offers an Excellent Weight for Pipes

Nominal Pipe Sizes in Inch -Sch Wall Thickness Outside Diameter Weight
mm Inch mm Inch kg/Mtr Lb/ft
3/4" 40 STD 2.870 0.113 27 1.050 1.684 1.131
80 STD 3.912 0.154 - - 2.195 1.474
4" - 6.020 0.237 114 4.500 16.073 10.790
- 8.560 0.337 - - 22.318 14.983
2 1/2" 40 STD 5.516 0.203 73 2.875 8.629 5.793
80 STD 7.010 0.276 - - 11.411 7.661
1 1/2" 40 STD 3.683 0.145 48 1.900 4.048 2.718
80 STD 5.080 0.200 - - 5.409 3.361
1/2" 40 STD 2.769 0.109 21 0.840 1.268 0.851
80 STD 3.734 0.147 - - 1.621 1.088
1" 40 STD 3.378 0.133 33 1.315 2.501 1.679
80 STD 4.547 0.179 - - 3.325 2.172
1 1/4" 40 STD 3.556 0.140 42 1.660 3.385 2.273
80 STD 4.851 0.191 - - 4.464 2.997
2" 40 STD 3.912 0.154 60 2.375 5.441 3.653
80 STD 5.537 0.218 - - 7.480 5.022
3" 40 STD 5.486 0.216 89 3.500 11.284 7.576
80 STD 7.620 0.300 - - 15.272 10.253
10" - 4.775 0.188 273 10.750 31.588 21.207
20 6.350 0.250 - - 41.759 28.035
- 5.563 0.219 - - 36.689 24.631
30 7.798 0.307 - - 51.002 34.240
40 STD 9.271 0.365 - - 63.301 40.483
- 8.738 0.344 - - 56.946 38.231
60 XHY 12.700 0.500 - - 81.530 54.735
- 11.125 0.438 - - 71.852 48.238
80 15.088 0.594 - - 95.969 64.429
6" - 4.775 0.188 168 6.625 19.252 12.924
- 5.563 0.219 - - 22.318 14.983
- 6.350 0.250 - - 25.354 17.021
- 5.516 0.203 - - 20.739 13.923
- 7.925 0.312 - - 31.334 21.036
40 STD 7.112 0.280 - - 58.263 18.974
80 XHY 10.973 0.432 - - 42.561 28.573
- 9.525 0.375 - - 37.285 25.031
- 12.700 0.500 - - 48.719 32.708
8" - 4.775 0.188 219 8.625 25.233 16.940
- 5.563 0.219 - - 29.286 19.661
- 5.156 0.203 - - 27.198 18.259
30 7.036 0.277 - - 36.786 24.696
20 6.350 0.250 - - 33.308 22.361
40 8.179 0.322 - - 42.352 28.554
60 10.312 0.406 - - 53.085 35.638
- 9.525 0.375 - - 49.216 33.041
80 XHY 12.700 0.500 - - 64.627 43.388

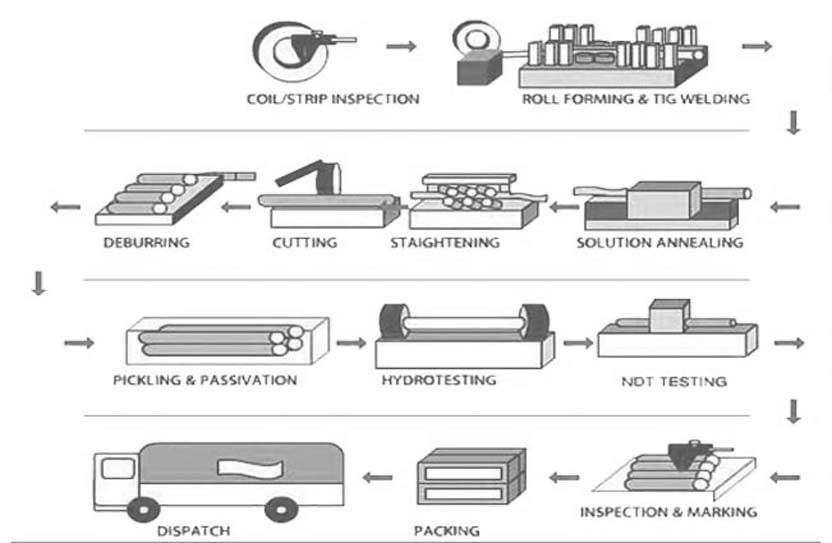

UNS N10276 Cold Drawn Pipe Manufacturing Process

UNS N10276 Cold Drawn Pipe Manufacturing Process

Equivalent Standard for Hastelloy C276 Pipe

Standard Werkstoff NR. UNS GOST JIS OR EN
Hastelloy C276 2.4819 N10276 ХН65МВУ NW 0276 ЭП760 NiMo16Cr15W
Buy WNR 2.4819 Rectangular Pipe in Polished and Pickled Surface For Various Applications

Werkstoff NR. 2.4819 Bright Annealed Pipe Surface Finishes

  • Polished
  • Bright
  • Mill Finish
  • Pickled Surface
  • Cold Finishes
  • Annealing

Keep Extock of Hastelloy C276 Pipe in Following Brands

Nippon Steel

Nippon Steel

Outokumpo

Outokumpo

Posco

Posco

Jindal

Jindal

Thyssenkrupp

Thyssenkrupp

Acronis

Acronis

Alloy Hastelloy C276 Rectangular Pipe Chemical Composition

Grade Si Cr S C Mo Fe Mn P Ni Co
Hastelloy C276 0.08 Max. 14.5 - 16.5 0.03 Max. 0.01 Max. 15 - 17 4 - 7 1.0 Max. 0.04 Max. Balance 2.5 Max.

Physical Properties for UNS N10276 Square Pipe

Density 8.89 g/cm³
0.321 lb/in³
Shear Modulus 79 GPa
11.4 103 ksi
Specific Heat 427 J/kg•°C
0.102 Btu/lb•°F
Thermal Conductivity 427 W/m•°C
67.9 Btu•in/ft²•h•°F
Poisson's Ratio 0.307
Melting Range 1325-1370 °C
2415-2500 °F
Young's Modulus 205 GPa
29.8 103 ksi
Permeability 1.0002 200 oersted (15.9 kA/m)

Mechanical Properties for WNR 2.4819 Bright Annealed Pipe

Grade Density Yield Strength (0.2%Offset) Tensile Strength Melting Point Elongation
Hastelloy C276 Pipe 8.89 g/cm3 MPa - 355, Psi - 52,000 MPa - 790, Psi - 1,15,000 2500°F (1370°C) 40%

Alloy C276 Cold Finished Seamless Pipe HSN Code

Grade HSN Code
Hastelloy C276 Pipe 75071200

What Are The Applications Hastelloy C276 Pipe ?

What Are The Applications Hastelloy C276 Pipe

See Where You Can Find Material Ex Stock

Country Name Flag Country Name Flag
Algeria Algeria Nigeria Nigeria
Zambia Zambia Ghana Ghana
Tunisia Tunisia South Africa South Africa
Kenya Kenya Angola Angola
Tanzania Tanzania Morocco Morocco
Egypt Egypt Ethiopia Ethiopia
