• An ISO 9001 and ISO 14001 Certified Company
Steber Steel Solutions

Stainless Steel Square Pipe

Stainless Steel Pipe

Stainless Steel Square Pipe Highlights
Size:  5.8mm to 50mm
Technique Hot Rolled
Tensile Strength 350 MPa
Shape Square
Specification EN 10088-3, 1.4301
Ends Beveled, Threaded ,Plain

SS 304 Box Pipe Supplier in India

Stainless Steel Square Pipe

Stainless Steel Square Pipe

Stainless Steel Polished Square Pipe

Stainless Steel Polished Square Pipe

SS 304 Box Pipe

SS 304 Box Pipe

Table of Contents

Stainless Steel Square Pipe Specification

Stainless Steel Square Pipe Sizes

  • Tolerance: - 0/+ 5mm
  • OD: 219.1 mm
  • WT: 1200 to 12000 mm

Sizes

SS 304 Welded Pipe Sizes

  • WT : 1 - 20 mm
  • OD: 1/4 to 36 inch
  • Length: Double Random, Single Random, Cut Length
Sizes

202 Stainless Steel Seamless Pipe Sizes

  • Length: 1/8 to 12 inch NPS
  • OD: 0.6 - 12.7 mm
  • Wall Thickness: Single Random, Cut Length, Double
Sizes

SS Square Welded Pipe Testing

  • Chemical
  • Mechanical
  • PMI
  • Chemical

Testing

Stainless Steel Square Hollow Pipe Manufacturing Process

  • Precision Rolled
  • Cold Formed
  • Hot Formed

Manufacturing

SS Box Section Thicked Wall Pipe

  • Wall Thickness: 2.5 to 100 mm
  • OD: 10 to 600mm
  • Length: 1/2 - 12 meter


Size

SS Square Pipe Documentation

  • Mill Test Certificates
  • Visual Inspection
  • PMI Test Reports

Documentation

316 Stainless Steel Square Pipe Standards

  • ASME SA312 ASTM A312
  • SUS, AISI, ASME, GB
  • UNS, API, DIN, EN,

Standards

SS Welded Square Pipe Origin

  • American
  • Russia
  • European
  • Janpanese
Origin

Stainless Steel 304l Square Pipe Finish

  • Bright
  • Polished
  • Annealing

Finish

SS Seamless Pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps

Packaging

Stainless Steel 316l Square Pipe Services

  • Heat Treatment
  • Shearing
  • Cutting

Services

Find Ex Stock of 316 Stainless Steel Square Pipe

Nominal SS Square Pipe Schedule 10 SS Square Pipe Schedule 5 SS Square Pipe Schedule 40
Inch MM Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft
1 26.70 2.77 2.090 0.637 1.65 1.290 0.393 3.38 2.500 0.762
1 / 2 21 2.11 0.999 0.305 1.65 0.801 0.244 2.77 1.270 0.387
1 1 / 4 33.40 2.77 2.690 0.820 1.65 1.650 0.503 3.56 3.380 1.030
3 / 4 21.30 2.11 1.280 0.390 1.65 1.020 0.311 2.87 1.680 0.512
2 48.30 2.77 3.920 1.200 1.65 3.340 0.728
3 1 / 2 101.60 3.05 7.400 2.260 2.11 5.190 1.580
1 1 / 2 42.20 2.77 3.110 0.948 1.65 1.900 0.579 3.68 4.050 1.230
3 88.90 3.05 6.450 1.970 2.11 4.510 1.380
2 1 / 2 73.00 3.05 5.260 1.600 2.11 3.690 1.130

Check 202 Stainless Steel Square Pipe Weight Chart

MM 0.90 0.65 0.95 0.80 1.20 1.00 2.00 1.50 2.50
25 x 25 0.221 0.277 0.232 0.450 0.343 0.652 0.553
12.5 x 12.5 0.102 0.075 0.107 0.091 0.133 0.112 0.163
30 x 30 0.267 0.335 0.280 0.516 0.415 0.796 0.673
50 x 50 0.565 0.473 0.930 0.703 1.372 1.153
20 x 20 0.176 0.220 0.184 0.354 0.271 0.508 0.433
40 x 40 0.358 0.450 0.376 0.738 0.559 1.084 0.898
38 x 38 0.340 0.427 0.358 0.700 0.531 1.027 0.866
Exporter of Stainless Steel Square Hollow Pipe are used for Railing Design
Stainless Steel Square Hollow Pipe Applications
View Stainless Steel Box Section Dimensions
Outside Dimension (Inches) Wall Thickness (Inches) Wall Thickness (Decimal)
1 18 0.0490
1 1/2 16 0.0650
1 1/4 14 0.0830
2 3/16 7 0.1880
3 14 0.0830
6 1/4 7 0.2500
2 14 0.0830
2 1/4 7 0.2500
4 1/4 7 0.2500
4 11 0.1200
1 16 0.0650
8 3/8 7 0.3750
2 1/2 7 0.1800
1 1/4 16 0.0650
3 1/4 7 0.2500
1 1/2 14 0.0830
4 7 0.1800
1 3/4 14 0.0830
3 11 0.1200
2 16 0.0650

SS Square Pipe Tolerance

NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl 1/64 1/32
Over 4 to 8, incl 1/16 1/32
Over 1-1/2 to 4, incl 1/32 1/32
Over 8 to 18, incl 3/23 1/32

316 Stainless Square Seamless Pipe Pressure Rating

Pressure Rating (psig)
Pipes Size
(inches)		 Pipes Schedule Temperature (oF)
100 300 200 500 400 650 600 750 700
1 1/2" 40 2257 1750 1947 1496 1608 1383 1425 1340 1354
  160 4619 3580 3984 3060 3291 2829 2916 2743 2772
  80 3182 2466 2744 2108 2267 1949 2009 1889 1909
10" 40 974 755 840 645 694 596 615 578 584
  160 3147 2439 2714 2085 2242 1927 1986 1868 1880
  80 1609 1247 1388 1066 1147 986 1016 956 966
1" 40 3048 2362 2629 2019 2171 1867 1924 1810 1824
  160 6140 4759 5296 4068 4375 3761 3876 3646 3684
  80 4213 3265 3634 2791 3002 2580 2659 2501 2528
5" 40 1342 1040 1158 889 956 822 847 797 805
  160 3414 2646 2945 2262 2433 2091 2155 2027 2049
  80 1981 1535 1709 1312 1411 1213 1250 1176 1189
8" 40 1073 832 926 711 765 657 678 637 644
  160 3175 2460 2738 2103 2262 1944 2004 1885 1905
  80 1692 1311 1459 1121 1205 1036 1068 1005 1015
2" 40 1902 1474 1640 1260 1355 1165 1201 1129 1141
  160 4499 3486 3880 2980 3205 2755 2840 2671 2699
  80 2747 2129 2369 1820 1957 1682 1734 1631 1648
4" 40 1531 1187 1321 1014 1091 938 967 909 919
  160 3601 2791 3106 2386 2566 2206 2273 2138 2161
  80 2213 1715 1909 1466 1577 1355 1397 1314 1328
3" 40 1806 1400 1558 1196 1287 1106 1140 1072 1084
  160 3840 2976 3312 2544 2736 2352 2424 2280 2304
  80 2553 1979 2202 1691 1819 1564 1612 1516 1532
6" 40 1219 945 1052 808 869 747 770 724 732
  160 3289 2549 2836 2179 2343 2014 2076 1953 1973
  80 1913 1483 1650 1267 1363 1172 1208 1136 1148

SS 304 Box Pipe Wall Thickness

NPS Designator Outside Diameter in. Schedule 40S in. Schedule XX in. Schedule 80S in. Schedule 10S in. Schedule 160 in.
1 1/4 1.660 0.140 .382 0.191 0.109 .250
1/2 0.840 0.109 .294 0.147 0.083 .188
1.0 1.315 0.133 .358 0.179 0.109 .250
3/4 1.050 0.113 .308 0.154 0.083 .218
2 2.375 0.154 .436 0.218 0.109 .343
8 8.625 0.322 .875 0.500 0.148 .906
1 1/2 1.900 0.145 .400 0.200 0.109 .281
3 3.500 0.216 .600 0.300 0.120 .438
2 1/2 2.875 0.203 .552 0.276 0.120 .375
4 4.500 0.237 .674 0.337 0.120 .534
3 1/2 4.000 0.226 .636 0.318 0.120
6 6.625 0.280 .864 0.432 0.134 .719
5 5.563 0.258 .750 0.375 0.134 .625

Various Types Of Stainless Steel Square Pipe

Genuine Stainless Steel Square Pipe Supplier in India supplies Various Types and Finishes

316 Stainless Steel Square Pipe

316 Stainless Steel Square Pipe

SS 304 Square Pipe

SS 304 Square Pipe

SS Box Section

SS Box Section

Stainless Steel Square Hollow Pipe

Stainless Steel Square Hollow Pipe

202 Seamless Square Pipe

202 Seamless Square Pipe

Stainless Steel Welded Square Pipe

Stainless Steel Welded Square Pipe

SS 316 Square Pipe Weight Chart

Size (mm) Weight (kg)
15 * 15 * 1.2 3.59
50 * 50 * 2 5.66
25 * 25 * 1.2 4.54
20 * 20 * 2 7.90
20 * 20 * 1.2 7.73
50 * 50 * 5 17.41
12 * 12 * 1.5 8.93
40 * 40 * 2 8.18
25 * 25 * 2 10.50
50 * 50 * 6 9.15
30 * 30 * 2 11.84
30 * 30 * 1.5 11.37
50 * 50 * 3 14.65
40 * 40 * 4 14.81
50 * 50 * 4 15.96

202 Stainless Steel Welded Pipe HS Code

HS Code
SS Square Pipe 73066100

Stainless Steel 316L Square Pipe Thickness Chart

Thickness
2.5 1.5 3 2 3.6 3.2 5 4 6.3 6 10 8 16 12.5 25
Size (mm) Kgs/m
20 x 20 1.37 1.13
350x350 106.00 166.00 131.00
25 x 25 1.74 1.11 2.04 1.43
60 x 60 5.34 3.63 8.54 6.97 10.30 15.63 12.50
30 x 30 2.14 1.34 2.51 1.74
50 x 50 3.71 2.28 4.39 3.00 6.97 5.72 8.31 10.50
40 x 40 2.92 1.81 3.45 2.37 5.47 4.46
80 x 80 6.06 7.22 11.70 9.48 13.80 21.90 17.80
70 x 70 5.28 6.28 7.46 10.10 8.23 12.00 18.75 15.00
90 X 90 8.16 13.30 10.70 15.70 25.10 20.10 30.30
75 x 75 6.75
120 x 120 18.00 14.5 21.30 33.70 27.90 40.90
100 x 100 9.10 14.80 12.00 17.60 27.90 22.90 34.20
150 x 150 22.70 28.30 27.00 43.60 35.40 67.00 53.60
140 x 140 21.00 26.00 40.60 33.00 48.70
150 x 150 22.70 28.30 27.00 43.60 35.40 67.00 53.60
160 X 160 28.90 46.30 37.60 72.00 56.60
250x250 46.83 75.00 60.50 92.70
180 x 180 27.97 33.26 53.00 43.00 65.20
300x300 55.30 90.70 74.18 142.00 112.00
200 x 200 31.18 37.09 59.30 48.00 90.30 73.00
400x400 75.80 122.00 97.80 191.00 151.00 293.00

Advantages of SS Hollow Pipe

  • Excellent Strength
  • Resistant to Corrosion
  • Recyclable
  • Customizable
  • Durability

SS Square Pipe Railing Schedule Chart

Supplier Stainless Steel Square Pipe are available in various Schedules

NB SIZES SCH 10 SCH 5 SCH 40 SCH 80 SCH 160
1/8″ * * * *
3/4″ * * * * *
1/4″ * * * *
1/2″ * * * * *
3/8″ * * * *
1 1/2″ * * * * *
1″ * * * * *
2 1/2″ * * * * *
1 1/4″ * * * * *
4″ * * * *
2″ * * * * *
5″ * * * *
3″ * * * * *
6″ * * * *

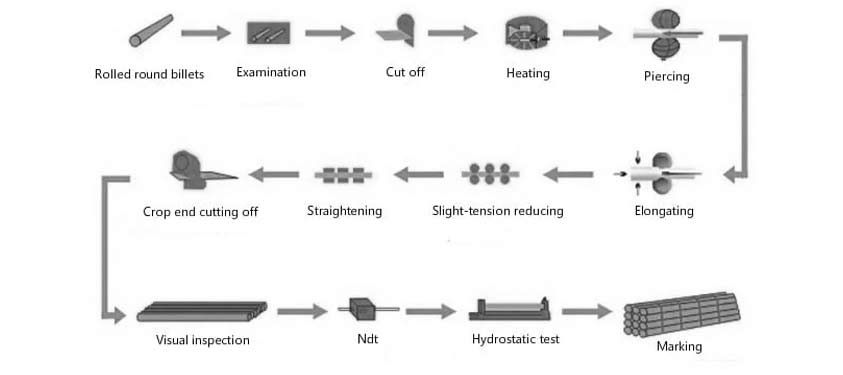

202 Stainless Steel Square Pipe Manufacturing Process

202 Stainless Steel Square Pipe Manufacturing Process

How to Install and Weld SS Square Pipe?

  • Ensure Proper Safety
  • Choose the Right Welding Materials( TIG , MIG)
  • Check for Proper Fitment
  • Inspection Welding Technique

Stainless Steel Square Pipe Equivalent Grades

Stainless Steel Square Pipe Manufacturer in India offers Pipe with equivalent material grades

Grade UNS No Euronorm Old British Japanese JIS Swedish SS
No Name BS En
304L S30403 1.4306 X 2 CrNi 18 9 304S12 - SUS 304L 2352
304 S30400 1.4301 X5 CrNi 18 9 304S15 58E SUS 304 2332
316L S31603 1.4404 X3CrNiMo17-13-3 304S11 58E SUS 316L 2348
316 S31600 1.4401 X5 CrNiMo 18 10 316S16 58H. 58J SUS 316 2347

SS 304 Box Pipe Chemical Composition

GRADES UNS Mn C S P Cr Si Mo Ni
TP316 S3160 2 0.08 0.03 0.045 16.0-18.0 1 2.0-3.0 11.0-14.0
TP304 S30400 2 0.08 0.03 0.045 18.0-20.0 1   8.0-11.0
TP316L S31603 2 0.035 0.03 0.045 16.0-18.0 1 2.0-3.0 10.0-14.0
TP304L S30403 2 0.035 0.03 0.045 18.0-20.0 1   8.0-13.0

Stainless Steel Square Hollow Pipe Mechanical Properties

Material Heat Tensile Strength Temperure Elongation %, Min Yield Strength
TP304L Solution 70(485) 1900 (1040) 35 25(170)
TP304 Solution 75(515) 1900 (1040) 35 30(205)
TP316L Solution 70(485) 1900(1040) 35 25(170)
TP316 Solution 75(515) 1900(1040) 35 30(205)

Physical Properties of Stainless Steel Seamless Square Pipe

Grades Density (g/cm³) Melting Point (°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Coefficient of Thermal Expansion (μm/m·°C)
SS 316 7.98 1375 to 1400 74.0 16.3 16.5
SS 304L 7.93 1400 to 1450 72.3 16.2 16.0
SS 304 7.93 1400 to 1450 0.072 16.2 17.2
SS 316L 7.98 1375to 1400 74.0 16.3 16.5
