Inconel Pipe
| Inconel Pipe Features | |
|---|---|
| Seamless Pipe | 3 mm - 600 mm |
| Welded Pipe | 6 mm - 200 mm |
| Melting Point | 1,290 - 1,350°C |
| Lifespan | 25 - 70 Years |
| Standards | ASTM B167/ ASME SB167 |
| Schedule | Sch 10 - XXH |
| Temperature Range | 980°C (1800°F) |
Inconel Seamless Pipe Supplier in India As Per ASTM B444 Standard
Inconel Pipe
Inconel Seamless Pipe
Inconel Cladding Pipe
Table of Contents
- Inconel Pipe Specification
- Inconel Steel Alloy Clad Pipe Weight Chart
- HSN Code for Inconel Cold Drawn Pipe
- Inconel Pipe Schedule Chart
- Alloy 718 Hot Finished Pipe Applications
- Inconel Steel Pipe Available Grades
- Inconel Alloy Welded Pipe Thickness Chart
- Various Types Of Inconel Pipe
- Finishes for Inconel Steel Seam Welded Pipe
- Size Chart for Inconel Seamless Pipe
- Which Are The Welding Methods that are Used for Inconel Steel Annealed Pipe ?
- Inconel Metal Hot Finished Pipe Pressure Rating
- What Are The Key Benefits of Inconel Alloy Welded Pipe at Higher Temperature Industries ?
- Challenges for ASME SB444 Inconel Alloy Welded Pipe in Welding & Machining Inconel ?
- Inconel Steel Alloy Round Pipe Gauge Chart
- What Are The Bending Methods for Inconel Steel Cold Finished Seamless Pipe ?
- Genuine Stockist of Inconel Pipe in following brand
- Chemical Composition of Inconel Metal Alloy Square Pipe
- Inconel Metal Rectangular Pipe Mechanical Properties
- Density for Inconel Alloy Bright Annealed Pipe
- Inconel Pipe Equivalent Standard
- Temperature Range for ASTM B444 Inconel Clad Pipe
- Explore Nearby Locations for the Quickest Delivery Options
Inconel Steel Pipe Manufacturter Provide Custom Specification in Mumbai
Inconel Pipe Specification
Inconel Seamless Pipe
- Thickness: 0.5 - 30 mm
- OD: 3 - 600 mm
- Length : 0.5-12 Metr
Inconel Alloy Welded Pipe
- OD : 6 - 200 mm
- Thickness : 0.35 - 6.00mm
- Length : 0.5 - 12 Metr
Standards of Inconel Metal Seam Welded Pipe
- ASTM B167/ ASME SB167
- UNS : N06600, N06601
- WNR : 2.4816
Inconel Steel Annealed Pipe Welding Method
- TIG
- SMAW
- GMAW
- FCAW
- Submerg Arc Weld
Surface Treatment of Inconel Steel Alloy Clad Pipe
- Bright
- Annealing
- Cold Finish
- Polished
- Custom
Inconel Metal Alloy Exhaust Pipe Manufacturing Method
- Cold & Hot Formed
- Precision Rolled
- Cold Drawn
SWG of Inconel Cold Drawn Pipe
- 10
- 12
- 14
- 16
- 18
- 20
Inconel Alloy Pipe Types
- Rectangular
- Hollow
- Pan Cake Coils
- Straight
- Coiled
- Hydraulic
- Round
- Square
Origin of Inconel Metal Hot Finished Pipe
- Taiwan
- European
- US
- Japanese
- Indian
- Thailand
- Korea
Inconel Steel Seam Welded Pipe Marking
- Manufacturing date
- Origin of material
- Material grade
- ASTM/ ASME standard
- Sizes
- Manufacturer logo / name
Services of Inconel Steel Alloy Round Pipe
- Forming
- Welding
- Polish
- Plate Leveling
- Beveling
- Bending
- Rolling
- Heat Treatment
- Forging
- Shearing
Inconel Metal Alloy Square Pipe Certification
- Raw materials certificate
- 100% radiography test report
- EN 10204/3.1B
- Certificate of origin legalized
- Third party inspection report
Inconel Rectangular Pipe Packaging
- Bundles with plastic wrapping
- Industrial packing techniques
- Wooden boxes/ crates/ pallets
- Big rolls with spools
Finish of Inconel Alloy Bright Annealed Pipe
- Cold
- Mill
- Annealing
- Bright
- Polished
- Pickling
Inconel Metal Solution Annealed Pipe Inspection Plan
- Destructive & Non-Destructive
- PMI
- Third Party Test
- Flaring Report
- Mechanical
- Chemical Testing
Inconel Cladding Pipe Weight Chart And HSN Code
Inconel Steel Alloy Clad Pipe Weight Chart
| Nominal Pipe Sizes in Inch | Sch | Outside Diameter | Wall Thickness | Weight | |||
|---|---|---|---|---|---|---|---|
| mm | in | mm | in | kg/Mtr | Lb/ft | ||
| 18" | 457 | 18.000 | 5.563 | 0.219 | 61.948 | 41.588 | |
| 10" | 273 | 10.750 | 4.775 | 0.188 | 31.588 | 21.207 | |
| 12" | 324 | 12.750 | 4.775 | 0.188 | 37.570 | 25.222 | |
| 20" | 508 | 20.000 | 6.350 | 0.250 | 78.547 | 52.733 | |
| 1/2" | 40 STD | 21 | 0.840 | 2.769 | 0.109 | 1.268 | 0.851 |
| 3/4" | 40 STD | 27 | 1.050 | 2.870 | 0.113 | 1.684 | 1.131 |
| 1" | 40 STD | 33 | 1.315 | 3.378 | 0.133 | 2.501 | 1.679 |
| 1 1/4" | 40 STD | 42 | 1.660 | 3.556 | 0.140 | 3.385 | 2.273 |
| 1 1/2" | 40 STD | 48 | 1.900 | 3.683 | 0.145 | 4.048 | 2.718 |
| 2" | 40 STD | 60 | 2.375 | 3.912 | 0.154 | 5.441 | 3.653 |
| 3" | 40 STD | 89 | 3.500 | 5.486 | 0.216 | 11.284 | 7.576 |
| 4" | 114 | 4.500 | 6.020 | 0.237 | 16.073 | 10.790 | |
| 6" | 168 | 6.625 | 4.775 | 0.188 | 19.252 | 12.924 | |
| 8" | 219 | 8.625 | 4.775 | 0.188 | 25.233 | 16.940 | |
| 16" | 406 | 16.000 | 4.775 | 0.188 | 47.290 | 21.748 | |
| 48" | STD | 1219 | 48.000 | 9.525 | 0.375 | 284.112 | 190.738 |
| 42" | 1067 | 42.000 | 7.925 | 0.312 | 206.914 | 138.911 | |
| 14" | 356 | 14.000 | 4.775 | 0.188 | 41.308 | 27.732 | |
| 24" | 610 | 24.000 | 6.350 | 0.250 | 94.456 | 63.413 | |
| 30" | 762 | 30.000 | 6.350 | 0.250 | 118.318 | 79.433 | |
| 2 1/2" | 40 STD | 73 | 2.875 | 5.516 | 0.203 | 8.629 | 5.793 |
| 36" | 914 | 36.000 | 6.350 | 0.250 | 142.180 | 95.453 | |
HSN Code for Inconel Cold Drawn Pipe
| Grade | HSN Code |
|---|---|
| Inconel Pipe | 75071200 |
Stockist of ASME SB444 Inconel Alloy Welded Pipe, Refer Schedule Chart
Inconel Pipe Schedule Chart
| Nominal PIpe Size (Inch) | Sch 80 | Sch 160 | Sch XXS | Sch 60 |
|---|---|---|---|---|
| 16" | 16 | 16 | 16 | 16 |
| 1/8" | 0.405 | 0.405 | 0.405 | 0.405 |
| 1/4" | 0.540 | 0.540 | 0.540 | 0.540 |
| 3" | 3.500 | 3.500 | 3.500 | 3.500 |
| 6" | 6.625 | 6.625 | 6.625 | 6.625 |
| 14" | 14 | 14 | 14 | 14 |
| 4" | 4.500 | 4.500 | 4.500 | 4.500 |
| 12" | 12.750 | 12.750 | 12.750 | 12.750 |
| 8" | 8.625 | 8.625 | 8.625 | 8.625 |
| 5" | 5.563 | 5.563 | 5.563 | 5.563 |
| 10" | 10.750 | 10.750 | 10.750 | 10.750 |
| 3 1/2" | 4 | 4 | 4 | 4 |
| 3/4" | 1.050 | 1.050 | 1.050 | 1.050 |
| 1" | 1.315 | 1.315 | 1.315 | 1.315 |
| 1/2" | 0.840 | 0.840 | 0.840 | 0.840 |
| 1 1/4" | 1.660 | 1.660 | 1.660 | 1.660 |
| 2" | 2.375 | 2.375 | 2.375 | 2.375 |
| 1 1/2" | 1.900 | 1.900 | 1.900 | 1.900 |
| 2 1/2" | 2.875 | 2.875 | 2.875 | 2.875 |
Inconel Steel Alloy Round Pipe Available in Cold and Hot Rolled Process Suitable For Harsh Conditions
Alloy 718 Hot Finished Pipe Applications
Inconel Steel Pipe Available Grades
Supplier of Inconel Pipe are available in various Grades
- Inconel 600
- Inconel 601
- Inconel 625
- Inconel 718
Inconel Alloy Welded Pipe Thickness Chart
| Nominal Pipe Sizes (mm) | Outside Diameter (O.D.) (mm) | Inside Diameter (I.D.) (mm) | Wall Thck. (mm) |
|---|---|---|---|
| 3.18 | 10.29 | 6.55 | 1.73 |
| 6.35 | 13.72 | 9.47 | 2.24 |
| 76.20 | 88.90 | 67.92 | 5.49 |
| 19.05 | 26.67 | 20.77 | 2.87 |
| 25.40 | 33.40 | 24.33 | 3.56 |
| 12.70 | 21.34 | 16.32 | 2.31 |
| 31.75 | 42.16 | 29.80 | 3.56 |
| 38.10 | 47.80 | 34.36 | 3.56 |
| 50.80 | 60.33 | 42.72 | 3.91 |
| 63.50 | 73.03 | 58.58 | 5.16 |
| 88.90 | 101.60 | 76.14 | 5.73 |
| 304.80 | 323.85 | 183.23 | 10.31 |
| 127.00 | 141.30 | 102.20 | 6.55 |
| 254.00 | 273.05 | 162.51 | 9.27 |
| 101.60 | 114.30 | 84.32 | 6.02 |
| 152.40 | 168.91 | 113.63 | 7.11 |
| 355.60 | 355.60 | 190.34 | 11.13 |
| 203.20 | 219.08 | 142.62 | 8.17 |
| 406.40 | 406.40 | 192.30 | 12.70 |
Various Types Of Inconel Pipe
Inconel Pipe Supplier in India, Providing The Variety of Commonly Best Pipes Types
Inconel Seamless Pipes
Inconel Alloy Welded Pipe
Inconel Metal Seam Welded Pipe
Inconel Steel Annealed Pipe
Inconel Steel Alloy Clad Pipe
Inconel Metal Alloy Exhaust Pipe
Inconel Cold Drawn Pipe
Inconel Alloy Cold Finished Pipe
Inconel Metal Hot Finished Pipe
Inconel Steel Seam Welded Pipe
Inconel Steel Alloy Round Pipe
Inconel Metal Alloy Square Pipe
Inconel Rectangular Pipe
Inconel Alloy Bright Annealed Pipe
Inconel Metal Solution Annealed Pipe
Inconel Steel Cold Finished Seamless Pipe
Inconel Steel Alloy Hot Finished Seamless Pipe
Finishes for Inconel Steel Seam Welded Pipe
- Cold Finish
- Mill
- Annealing
- Bright
- Polished
- Pickling
- Custom

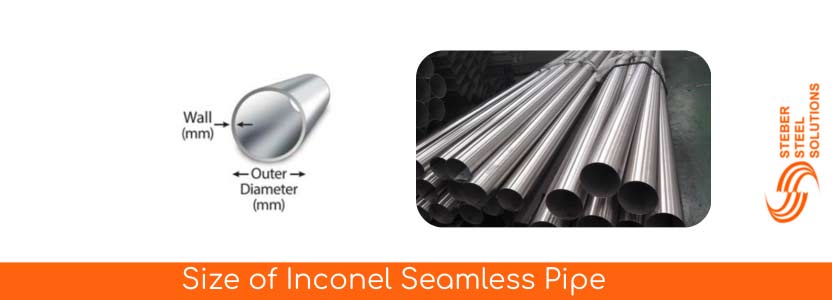

Size Chart for Inconel Seamless Pipe
Supplier of Inconel Pipe offers various Custom Sizes
| Outside Diameter (O.D.) | Sch | Kg-Metr. | Wall Thck. (mm) | |
|---|---|---|---|---|
| Inch | mm | |||
| 3/4 | 26.67 | 80S | 2.23 | 3.91 |
| 3 | 88.90 | 160 | 21.67 | 11.132 |
| 4 | 114.30 | 40S | 16.32 | 6.02 |
| 1¼ | 42.16 | 10S | 2.73 | 2.77 |
| 2 | 60.33 | 10S | 3.99 | 2.77 |
| 4 | 114.30 | 10S | 8.50 | 3.05 |
| 2 | 60.33 | 80S | 7.60 | 5.54 |
| 2 | 60.33 | 160 | 11.29 | 8.742 |
| 3 | 88.90 | 10S | 6.56 | 3.05 |
| 3/8 | 17.15 | 40S | 0.86 | 2.31 |
| 8 | 219.08 | 40S | 43.20 | 8.18 |
| 2 | 60.33 | 40S | 5.52 | 3.91 |
| 1¼ | 42.16 | 160 | 5.69 | 6.352 |
| 1 | 33.40 | 10S | 2.13 | 2.77 |
| 1 | 33.40 | 160 | 4.30 | 6.352 |
| 1¼ | 42.16 | 40S | 3.44 | 3.56 |
| 1¼ | 42.16 | 80S | 4.53 | 4.85 |
| 1½ | 48.26 | 80S | 5.49 | 5.08 |
| 1½ | 48.26 | 40S | 4.11 | 3.68 |
| 1/2 | 21.34 | 10S | 1.02 | 2.11 |
| 2½ | 73.03 | 80S | 11.59 | 7.01 |
| 1/4 | 13.72 | 80S | 0.81 | 3.02 |
| 3 | 88.90 | 40S | 11.47 | 5.49 |
| 3 | 88.90 | 80S | 15.51 | 7.62 |
| 1½ | 48.26 | 10S | 3.16 | 2.77 |
| 3½ | 101.60 | 10S | 7.53 | 3.05 |
| 4 | 114.30 | 80S | 22.67 | 8.56 |
| 6 | 168.28 | 160 | 68.59 | 18.262 |
| 5 | 141.30 | 40S | 22.10 | 6.55 |
| 3½ | 101.60 | 40S | 13.78 | 5.74 |
| 3/4 | 26.67 | 40S | 1.71 | 2.87 |
| 2½ | 73.03 | 10S | 5.35 | 3.05 |
| 4 | 114.30 | 160 | 34.05 | 13.492 |
| 1/4 | 13.72 | 40S | 0.64 | 2.24 |
| 8 | 219.08 | 80S | 65.63 | 12.7 |
| 3/8 | 17.15 | 80S | 1.12 | 3.20 |
| 5 | 141.30 | 160 | 49.87 | 15.882 |
| 6 | 168.28 | 80S | 43.21 | 10.97 |
| 5 | 141.30 | 80S | 31.44 | 9.53 |
| 1 | 33.40 | 80S | 3.29 | 4.55 |
| 3/8 | 17.15 | 10S | 0.64 | 1.65 |
| 8 | 219.08 | 120 | 91.30 | 18.23 |
| 6 | 168.28 | 120 | 54.75 | 14.27 |
| 3/4 | 26.67 | 10S | 1.30 | 2.11 |
| 3½ | 101.60 | 80S | 18.92 | 8.08 |
| 1/2 | 21.34 | 40S | 1.29 | 2.77 |
| 6 | 168.28 | 10S | 14.04 | 3.4 |
| 2½ | 73.03 | 40S | 8.77 | 5.16 |
| 6 | 168.28 | 40S | 28.69 | 7.11 |
| 1 | 33.40 | 40S | 2.54 | 3.38 |
| 1/4 | 13.72 | 10S | 0.50 | 1.65 |
| 8 | 219.08 | 160 | 112.97 | 23.012 |
Which Are The Welding Methods that are Used for Inconel Steel Annealed Pipe ?
Inconel Metal Hot Finished Pipe Pressure Rating
| Outside Diameter (O.D.) (Inch) | Thck. (Inch) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .109 | .083 | .049 | .035 | .065 | .095 | .120 | |
| Working Pressure (Psi) | ||||||||
| 1/8" | 7900 | - | - | - | 10100 | - | - | - |
| 5/16" | - | - | - | 5400 | 3700 | 7300 | - | - |
| 1/2" | - | - | - | 3200 | 2300 | 4400 | - | - |
| 1" | - | 3900 | 2900 | - | - | 2200 | 3400 | 4300 |
| 1/4" | 3700 | - | - | 7000 | 4800 | 9500 | - | - |
| 3/8" | - | - | - | 4400 | 3100 | 6100 | - | - |
| 3/4" | - | - | 4000 | 2200 | - | 3000 | 4600 | - |
What Are The Key Benefits of Inconel Alloy Welded Pipe at Higher Temperature Industries ?
Challenges for ASME SB444 Inconel Alloy Welded Pipe in Welding & Machining Inconel ?
- Welding :
- Compatibility of Filler Material
- Work Hardening & Higher Heat Retention
- Risk of Contamination and Oxidation
- Residual and Distortion Stresses
- Susceptibility of Cracking
- Requirements for Posted Welding Heat Treatment
- Machining :
- Higher Cutting Forces
- Difficulties in Chip Control
- Work Hardening
- Short Tool Life and Tool Wear
- Surface Finish is Poor
- Issues in Thermal Management
Inconel Steel Alloy Round Pipe Gauge Chart
| Gauge No. | U.S.G | B.W.G | ||
|---|---|---|---|---|
| mm | Inch | mm | Inch | |
| 6 | 5.16 | 0.2031 | 5.156 | 0.203 |
| 8 | 4.37 | 0.1719 | 4.191 | 0.165 |
| 12 | 2.78 | 0.1094 | 2.769 | 0.109 |
| 10 | 3.57 | 0.1406 | 3.404 | 0.134 |
| 14 | 1.98 | 0.0781 | 2.108 | 0.083 |
| 16 | 1.59 | 0.0625 | 1.651 | 0.065 |
| 7 | 4.76 | 0.1875 | 4.572 | 0.180 |
| 9 | 3.97 | 0.1563 | 3.759 | 0.148 |
| 11 | 3.18 | 0.1250 | 3.048 | 0.120 |
| 13 | 2.38 | 0.0938 | 2.413 | 0.095 |
| 15 | 1.79 | 0.0703 | 1.829 | 0.072 |
| 17 | 1.43 | 0.0563 | 1.473 | 0.058 |
| 19 | 1.11 | 0.0438 | 1.067 | 0.042 |
| 21 | 0.873 | 0.0344 | 0.813 | 0.032 |
| 23 | 0.714 | 0.0218 | 0.635 | 0.025 |
| 25 | 0.556 | 0.0219 | 0.508 | 0.020 |
| 27 | 0.437 | 0.0172 | 0.406 | 0.016 |
| 29 | 0.358 | 0.0141 | 0.330 | 0.013 |
| 31 | 0.277 | 0.0109 | 0.254 | 0.010 |
| 33 | 0.239 | 0.0094 | 0.203 | 0.008 |
| 26 | 0.478 | 0.0188 | 0.457 | 0.018 |
| 20 | 0.953 | 0.0375 | 0.889 | 0.035 |
| 18 | 1.27 | 0.0500 | 1.245 | 0.049 |
| 34 | 0.218 | 0.0086 | 0.178 | 0.007 |
| 22 | 0.794 | 0.0313 | 0.711 | 0.028 |
| 30 | 0.318 | 0.0125 | 0.305 | 0.012 |
| 32 | 0.259 | 0.0102 | 0.229 | 0.009 |
| 24 | 0.635 | 0.0250 | 0.559 | 0.022 |
| 28 | 0.396 | 0.0156 | 0.356 | 0.014 |
| 35 | 0.198 | 0.0078 | 0.127 | 0.005 |
What Are The Bending Methods for Inconel Steel Cold Finished Seamless Pipe ?
- Induction Bending
- Mandrel Bending
- Rotary Draw Bending
- Cold Bending
- Hot Bending
Genuine Stockist of Inconel Pipe in following brand
Thyssenkrupp
Nippon Steel
Aperam
Special Metals
Outokumpo
Sumitomo Metals
Chemical Composition of Inconel Metal Alloy Square Pipe
Inconel Pipe Manufacturer in India provides accurate chemical composition of Pipe
| Grades | Carbon monoxide | Nickel | Molybdenum | Sulfur | Silicon | Titanium | Aluminum | Chromium | Carbon | Manganese | Iron | Phosphorus | Niobium | Copper | Boron |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNS N06625 | 1.0 | 58.0 | 8.0-10.0 | 0.015 | 0.5 | 0.4 | 0.4 | 20.0-23.0 | 0.1 | 0.5 | 5.0 | 0.015 | 3.15-4.15 | - | - |
| UNS N06601 | 1.0 | 58.0 | 8.0-10 | 0.015 | 0.5 | 0.4 | 0.4 | 20.0-23.0 | 0.1 | 0.5 | 5.0 | 0.015 | 3.15-4.15 | - | - |
| UNS N06600 | - | 72.0 | - | 0.015 | 0.5 | - | - | 14.0-17.0 | 0.15 | 1.0 | 6.0-10.0 | - | - | 0.5 | - |
| UNS N07718 | 1.0 | 50.0-55.0 | 2.8-3.3 | 0.015 | 0.35 | 0.3 | 0.65-1.15 | 17.0-21.0 | 0.08 | 0.35 | Balance | 0.015 | 4.75-5.5 | 0.2-0.8 | 0.006 |
Inconel Metal Rectangular Pipe Mechanical Properties
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | ||
|---|---|---|---|---|---|
| Mpa | Psi | Psi | Mpa | % | |
| UNS N06600 | 655 | 95000 | 45000 | 310 | 40 |
| UNS N06625 | 930 | 135000 | 75000 | 517 | 42.5 |
| UNS N06601 | 550 | 80000 | 30000 | 205 | 30 |
| UNS N07718 | 930 | 135000 | 75000 | 482 | 45 |
Density for Inconel Alloy Bright Annealed Pipe
| Grades | Density |
|---|---|
| 718 | 8.2 g/cm3 |
| 625 | 8.4 g/cm3 |
| 600 | 8.47 g/cm3 |
Inconel Pipe Equivalent Standard
| Standards | Country | 625 | 600 | 718 | 601 | 625LCF |
|---|---|---|---|---|---|---|
| UNS | North America | N06625 | N06600 | N07718 | N06601 | N06626 |
| ASME | Australia | SB444 | SB167 | SB163 | SB167 | |
| WNR | Russia | 2.4856 | 2.4816 | 2.4856 | 2.4851 | 2.4856 |
| AFNOR | France | NC22DNB4M | NC15FE11M | - | NC23FeA | |
| AMS | United States | 5581 | 5580 | 5589/5590 | - | |
| BS | United Kingdom | NA 21 | NA 13 | - | NA 49 | |
| ASTM | America | B444 | B167 | B163 | B167 | |
| JIS | Japan | NCF 625 | NCF 600 | - | NCF 601 | NCF 625LCF |
| GOST | Russia | ХН75МБТЮ | МНЖМц 28-2,5-1,5 | - | XH60BT | |
| EN | Europe | NiCr22Mo9Nb | NiCr15Fe | - | NiCr23Fe |
Temperature Range for ASTM B444 Inconel Clad Pipe
| Grades | Temperature Range |
|---|---|
| 718 | -253°C - 704°C (-423°F - 1,300°F) |
| 625 | -128°C - 1,093°C (-200°F - 2,000°F) |
| 600 | -128°C - 1,093°C (-200°F - 2,000°F) |
Explore Nearby Locations for the Quickest Delivery Options
| Country Name | Flag | Country Name | Flag |
|---|---|---|---|
| Algeria |  |
Nigeria |  |
| Zambia |  |
Ghana |  |
| Tunisia |  |
South Africa |  |
| Kenya |  |
Angola |  |
| Tanzania |  |
Morocco |  |
| Egypt |  |
Ethiopia |  |
