Nickel Alloy Pipe
| Nickel Alloy Pipe Highlights | |
|---|---|
| Size : | 1/8” to 48” NB |
| Wall Thickness | 0.3 - 150 MM |
| SCH | SCH 10 - SCH 80 |
| Density | 8.9 g/cm 3 |
| Standard | ASTM B161 / ASME SB161 |
| Temperature Range |
|
| Melting Point | 1446 °C (2635 °F) |
| MTC | EN 10204 3.1 & 3.2 |
Nickel Alloy Seamless Pipe Supplier in India As Per B36.19 Standard
Nickel Alloy Pipe
Nickel Alloy Seamless Pipe
Pure Nickel Welded Pipe
Table of Contents
- Nickel Alloy Pipe Specification
- ASME SB161 UNS N02201 Square Pipe Test Certification
- Pure Nickel Pipe HSN Code
- Nickel Alloy Pipe Schedule Chart
- Ni 200 ERW Pipe Size Chart
- Thickness of Nickel 201 Seamless Pipe
- Nickel Alloy Pipe Available Grades
- High Nickel Alloy Round Pipe Pressure Rating
- Various Types Of Nickel Alloy Pipe
- Pure Nickel Welded Pipe Weight Chart
- WNR 2.4066 Bright Annealed Pipe Welding
- Pure Nickel 201 Welded Pipe Finish
- What are the Benefits of Nickel Alloy Pipes ?
- ASME SB161 UNS N02201 Square Pipe Design and Formula
- Nickel 201 UNS N02201 Clad Pipe Testings
- Nickel Alloy Welded Pipe Chemical Composition
- Nickel Alloy Pipe Equivalent
- Alloy 200 Nickel Rectangular Pipe Applications
- Ni 200 ERW Pipe Mechanical Properties
- Physical Properties of Nickel Alloy Seamless Pipe
- Supply Nickel Pipe in Following Brand
- The Time and Location of the Nickel-based Alloy Pipe Delivery

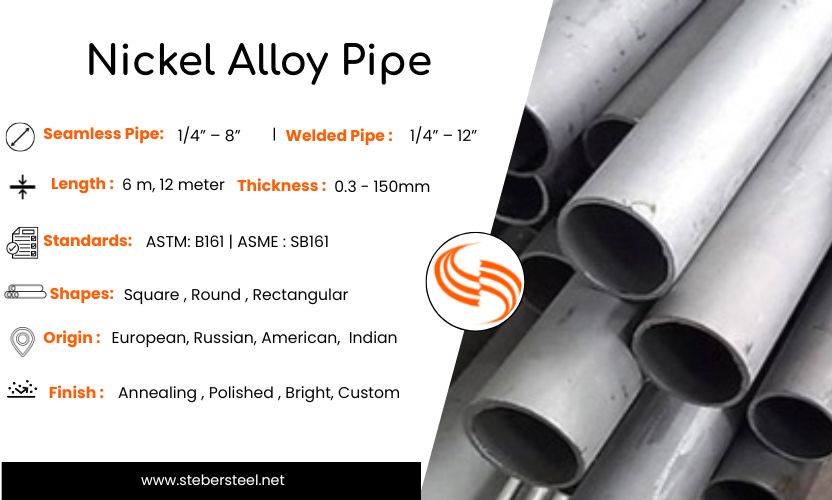

Nickel Alloy Pipe Specification
Nickel Alloy Seamless Pipe
- OD: 3 - 600 mm
- WT: 0.5 – 30 mm
- Length : 0.5 to 12 meter
Nickel Alloy Thick Walled Pipe
- OD : 10 to 600 mm
- WT : 2.5 to 100 mm
- Length : 1/2 - 12 m
Pure Nickel Welded Pipe
- Custom Size
- WT : 0.35 to 6 mm
- OD : 6 to 200 mm
- Length : 0.5 to 12 meter
Nickel Pipe Welding Method
- SMAW welding
- Submerged arc welding
- TIG welding
- MIG welding
Nickel Alloy Steel Pipe Grades
- Nickel 200 pipe
- Nickel 201 pipe
- Inconel pipe
- Monel pipe
- Hastelloy pipe
- Incoloy 800 pipe
Pure Nickel Pipe ASTM Standards
- ASTM B165/ ASME SB165
- ASTM B167/ ASME SB167
- ASTM B161/ ASME SB161
- ASTM B677, ASTM B722
- ASTM B444, AMS 5581
- ASTM B163/ ASME SB163
- ASTM B622, ASTM B729,
Super Nickel Alloy Cold Finished Pipe Finish
- Mill finish
- Custom
- Bright
- Pickling
- Annealing
- Polished
- Cold Finish
Nickel Pipe Material Types
- Round pipe
- Seamless pipe
- Square pipe
- Hot finished pipe
- Rectangular pipe
- Cold drawn pipe
- Exhaust pipe
- Welded pipe
High Nickel Alloy Round Pipe Origin
- European
- Japanese
- Thailand
- Indian
- Taiwan
- Korea
- US
Nickel Alloy Solution Annealed Pipe Marking
- Schedule or Wall Thickness
- Material Grade
- Manufacturer’s Name or Custom Logo – on Request
- Origin of material
- Specification
- Heat Number
- Nominal Size
Ni Alloy Alloy Exhaust Pipe Services
- Machining
- Threading
- Welding
- Beveling
- Cut-to-length services
High Nickel Rectangular Pipe Certification
- Raw materials certificate
- 100% radiography test report
- Certificate of origin legalized
- EN 10204/3.1B
- Third party inspection report
ASTM B162 Alloy 201 Cold Drawn Pipe Packaging
- Wooden Boxes
- PE Fabric Bundles
- Custom
- Crates (steel/wooden)
- Bundles (hexagonal)
Ni 200 Bright Annealed Pipe SWG
- 20 Swg.
- 18 Swg.
- 16 Swg.
- 14 Swg.
- 12 Swg.
- 10 Swg.
ASME SB161 UNS N0220 Seam Welded Pipe Manufacturing Types
- CDW
- EFW
- Seamless
- LSAW
- Electric Resistance Welded (ERW)
- Fabricated
Features of High Nickel Alloy Pipe
- High Strength & Durability
- Non-magnetic Properties
- Excellent Corrosion Resistance
- Good Formability & Weldability
- Excellent Electrical Conductivity
- Elevated Temperature Resistance
Nickel Alloy Clad Pipe Equipment
- Sand-blasting Machine
- Electric Bevelling Machine
- Press Machine
- Bending Machine
- Pushing Machine
Pure Nickel Round Pipe End Types
- Grooved Ends
- Plain Ends (PE)
- Threaded Ends (TE)
- BBE: Bevel Both Ends
- Bevelled Ends (BW)
- BLE: Bevel Large End
- TSE: Thread Small End
- POE: Plain One End
- TLE: Thread Large End
Pure Nickel 201 Welded Pipe Manufacturer in Mumbai With MTC As Per EN 10204 3.1/3.2
ASME SB161 UNS N02201 Square Pipe Test Certification
- 100% Radiography Test Report
- Laboratory Test Certificate from Govt. Approved Lab
- Third Party Inspection for Nickel Alloy Pipe
- Mill Test Certificates
- PMI Test Reports
- Fumigation Certificates
- Raw Materials Certificate
Check Ni 200 ERW Pipe Schedule Chart and HSN Code
Pure Nickel Pipe HSN Code
| Grade | HSN Code |
|---|---|
| Nickel Pipe | 75072000 |
Nickel Alloy Pipe Schedule Chart
| NB Sizes | Sch 160 | Sch 80 | Sch 40 | Sch 10 | Sch 5 |
|---|---|---|---|---|---|
| 6″ | √ | √ | √ | √ | √ |
| 5″ | √ | √ | √ | √ | |
| 4″ | √ | √ | √ | √ | √ |
| 3″ | √ | √ | √ | √ | √ |
| 2″ | √ | √ | √ | √ | √ |
| 1 1/2″ | √ | √ | √ | √ | √ |
| 1″ | √ | √ | √ | √ | √ |
| 1/2″ | √ | √ | √ | √ | √ |
| 3/8″ | √ | √ | √ | √ | |
| 1/8″ | √ | √ | √ | √ |
Polished High Nickel Alloy Round Pipe Stocks in Size 15NB to 150NB Inch
Ni 200 ERW Pipe Size Chart
| Nickel Alloy Pipe OD mm |
Pipe WT mm |
Sch | in. | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 10S | 1/4 | 0.50 |
| 17.15 | 2.31 | 40S | 3/8 | 0.86 |
| 21.34 | 2.11 | 10S | 1/2 | 1.02 |
| 21.34 | 3.73 | 80S | 1/2 | 1.65 |
| 26.67 | 2.11 | 10S | 3/4 | 1.30 |
| 26.67 | 3.91 | 80S | 3/4 | 2.23 |
| 33.40 | 2.77 | 10S | 1 | 2.13 |
| 33.40 | 4.55 | 80S | 1 | 3.29 |
| 42.16 | 2.77 | 10S | 1¼ | 2.73 |
| 42.16 | 4.85 | 80S | 1¼ | 4.53 |
| 48.26 | 2.77 | 10S | 1½ | 3.16 |
| 48.26 | 5.08 | 80S | 1½ | 5.49 |
| 60.33 | 2.77 | 10S | 2 | 3.99 |
| 73.03 | 3.05 | 10S | 2½ | 5.35 |
| 73.03 | 7.01 | 80S | 2½ | 11.59 |
| 88.90 | 5.49 | 40S | 3 | 11.47 |
| 88.90 | 7.62 | 80S | 3 | 15.51 |
| 101.60 | 3.05 | 10S | 3½ | 7.53 |
| 101.60 | 8.08 | 80S | 3½ | 18.92 |
| 114.30 | 3.05 | 10S | 4 | 8.50 |
| 114.30 | 8.56 | 80S | 4 | 22.67 |
| 141.30 | 6.55 | 40S | 5 | 22.10 |
| 168.28 | 3.4 | 10S | 6 | 14.04 |
| 168.28 | 10.97 | 80S | 6 | 43.21 |
| 168.28 | 18.262 | 160 | 6 | 68.59 |
| 219.08 | 12.7 | 80S | 8 | 65.63 |
Stockist of ASME SB161 UNS N02201 Square Pipe Offers Custom Thickness And Sizes
Thickness of Nickel 201 Seamless Pipe
| Types | Out diameter | Length | Wall thickness |
|---|---|---|---|
| NB Sizes (in stock) | 1/8” ~ 8” | Upto 6 Meters | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 |
| Nickel 200 Welded Pipe (in Stock + Custom Sizes) | 5.0mm ~ 1219.2mm | 1 ~ 15 mm | |
| Nickel 200 Seamless Pipe (Custom Sizes) | 5.0mm ~ 203.2mm | As per requirement |
Nickel Alloy Pipe Available Grades
- Nickel 201 Pipe
- Nickel 200 Pipe
- Monel Pipe
- Inconel Pipe
- Hastelloy Pipe
- Incoloy 825 Pipe
- Incoloy 800HT Pipe
- Incoloy 800H Pipe
- Incoloy 800 Pipe
High Nickel Alloy Round Pipe Pressure Rating
| Pipe O.D. (in.) |
Wall Thickness of Pipe (inches) | ||||
|---|---|---|---|---|---|
| Working Pressure (psig) | |||||
| .028 | .049 | .065 | .095 | .120 | |
| 1 | 2200 | 3400 | 4300 | ||
| 3/4 | 2200 | 3000 | 4600 | ||
| 1/2 | 3200 | 4400 | |||
| 3/8 | 4400 | 6100 | |||
| 5/16 | 5400 | 7300 | |||
| 1/4 | 3700 | 7000 | 9500 | ||
| 1/8 | 7900 | ||||
Various Types Of Nickel Alloy Pipe
Nickel Alloy Pipe Supplier in India, offers a variety of the most popular types
ASME SB161 UNS N0220 Seam Welded Pipe
WNR 2.4066 Annealed Pipe
Nickel Alloy Clad Pipe
Ni Alloy Alloy Exhaust Pipe
ASTM B162 Alloy 201 Cold Drawn Pipe
Super Nickel Alloy Cold Finished Pipe
DIN 2.4068 Hot Finished Pipe
Pure Nickel Round Pipe
Nickel 201 UNS N02201 Square Pipe
High Nickel Rectangular Pipe
Ni 200 Bright Annealed Pipe
Nickel Alloy Solution Annealed Pipe
Pure Nickel Welded Pipe Weight Chart
| NPS | Outside Diameter | Wall Thickness | Weight | ||||
|---|---|---|---|---|---|---|---|
| (MM) | (Inches) | (MM) | (Inches) | SCH | kg/m | Pound-foot | |
| 30″ | – | – | 19.050 | 0.750 | – | 348.988 | 234.293 |
| – | – | 12.700 | 0.500 | 20 XHY | 234.647 | 157.530 | |
| – | – | 11.125 | 0.438 | – | 205.983 | 138.286 | |
| – | – | 9.525 | 0.375 | STD | 176.731 | 118.648 | |
| – | – | 7.925 | 0.312 | 10 | 147.353 | 98.925 | |
| 762 | 30.000 | 6.350 | 0.250 | – | 118.318 | 79.433 | |
| 20″ | – | – | 17.475 | 0.688 | – | 211.368 | 141.901 |
| – | – | 15.088 | 0.594 | 40 | 183.378 | 123.110 | |
| – | – | 12.700 | 0.500 | 30 XHY | 155.106 | 104.130 | |
| – | – | 9.525 | 0.375 | 20 STD | 117.075 | 78.598 | |
| – | – | 7.925 | 0.312 | – | 97.719 | 65.604 | |
| 508 | 20.000 | 6.350 | 0.250 | – | 78.547 | 52.733 | |
| 18″ | – | – | 15.875 | 0.625 | – | 172.754 | 115.978 |
| – | – | 14.275 | 0.562 | 40 | 155.904 | 104.666 | |
| – | – | 9.525 | 0.375 | STD | 105.144 | 70.588 | |
| – | – | 7.925 | 0.312 | 20 | 87.792 | 58.939 | |
| 457 | 18.000 | 5.563 | 0.219 | – | 61.948 | 41.588 | |
| 12″ | – | – | 14.275 | 0.562 | – | 108.966 | 73.154 |
| – | – | 12.700 | 0.500 | – | 97.438 | 65.415 | |
| – | – | 10.312 | 0.406 | – | 79.727 | 53.525 | |
| – | – | 9.525 | 0.375 | – | 73.824 | 49.562 | |
| – | – | 6.350 | 0.250 | – | 49.713 | 33.375 | |
| 324 | 12.750 | 4.775 | 0.188 | – | 37.570 | 25.222 | |
| 10″ | – | – | 15.088 | 0.594 | 80 | 95.969 | 64.429 |
| – | – | 12.700 | 0.500 | 60 XHY | 81.530 | 54.735 | |
| – | – | 8.738 | 0.344 | – | 56.946 | 38.231 | |
| – | – | 7.798 | 0.307 | 30 | 51.002 | 34.240 | |
| – | – | 6.350 | 0.250 | 20 | 41.759 | 28.035 | |
| 273 | 10.750 | 4.775 | 0.188 | – | 31.588 | 21.207 | |
| 8″ | – | – | 12.700 | 0.500 | 80 XHY | 64.627 | 43.388 |
| – | – | 10.312 | 0.406 | 60 | 53.085 | 35.638 | |
| – | – | 6.350 | 0.250 | 20 | 33.308 | 22.361 | |
| – | – | 5.563 | 0.219 | – | 29.286 | 19.661 | |
| – | – | 5.156 | 0.203 | – | 27.198 | 18.259 | |
| 219 | 8.625 | 4.775 | 0.188 | – | 25.233 | 16.940 | |
| 4″ | – | – | 8.560 | 0.337 | – | 22.318 | 14.983 |
| 114 | 4.500 | 6.020 | 0.237 | – | 16.073 | 10.790 | |
| 3″ | – | – | 7.620 | 0.300 | 80 STD | 15.272 | 10.253 |
| 89 | 3.500 | 5.486 | 0.216 | 40 STD | 11.284 | 7.576 | |
| 2″ | – | – | 5.537 | 0.218 | 80 STD | 7.480 | 5.022 |
| 60 | 2.375 | 3.912 | 0.154 | 40 STD | 5.441 | 3.653 | |
| 1″ | – | – | 4.547 | 0.179 | 80 STD | 3.325 | 2.172 |
| 33 | 1.315 | 3.378 | 0.133 | 40 STD | 2.501 | 1.679 | |
| 1/2 | – | – | 3.734 | 0.147 | 80 STD | 1.621 | 1.088 |
| 21 | 0.840 | 2.769 | 0.109 | 40 STD | 1.268 | 0.851 | |
WNR 2.4066 Bright Annealed Pipe Welding
- Step 1: Select Filler Metal Alloy for Welding Process
- Step 2: Select Welding Parameters for the Welding Process
- Step 3: Joint Preparation
- Step 4: Inspection / Post-Weld Cleaning

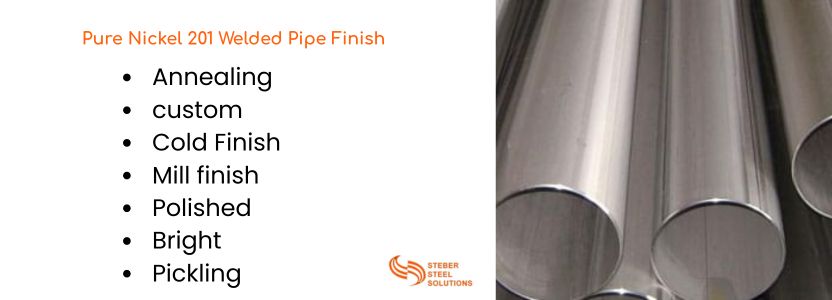

Pure Nickel 201 Welded Pipe Finish
What are the Benefits of Nickel Alloy Pipes ?
- Temperature Resistance
- Expansion at A Slow Pace
- Resistance to Corrosion
- Magnetic Field Permeability
- Memory Sculpture

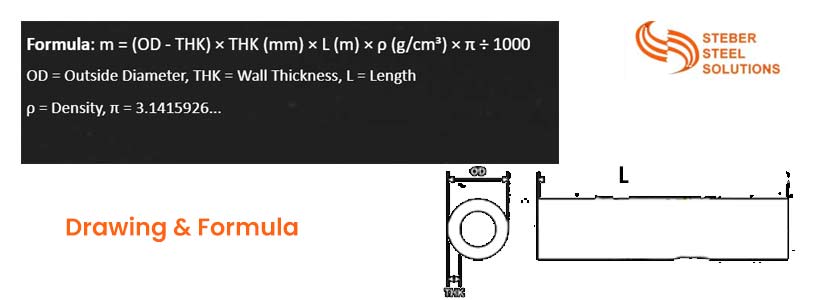

ASME SB161 UNS N02201 Square Pipe Design and Formula
Nickel 201 UNS N02201 Clad Pipe Testings
- Micro and MacroTest
- Mechanical Testing Such as Tensile of Area
- Flaring Test
- Flattening Test
- Intergranular Corrosion (IGC) Test
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Pitting Resistance Test
Nickel Alloy Welded Pipe Chemical Composition
| Grade | Molybdenum | Nickel | Manganese | Carbon | Iron | Silicon | Niobium | Carbon monoxide | Sulfur | Titanium | Phosphorus | Aluminum | Chromium | Copper | Boron |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nickel 201 | – | Balance | 0.35 | 0.15 | 0.40 | 0.35 | – | – | 0.01 | – | – | – | – | 0.25 | – |
| Nickel 200 | – | 99.0 | 0.35 | 0.15 | 0.4 | 0.1 | – | – | 0.01 | – | – | – | – | 0.25 | – |
| Inconel 718 | 2.8–3.3 | 50.0–55.0 | 0.35 | 0.08 | Balance | 0.35 | 4.75–5.5 | 1.0 | 0.015 | 0.3 | 0.015 | 0.65–1.15 | 17.0–21.0 | 0.2–0.8 | 0.006 |
| Inconel 600 | – | 72.0 | 1.0 | 0.15 | 6.0–10.0 | 0.5 | – | – | 0.015 | – | – | – | 14.0–17.0 | 0.5 | – |
| Inconel 625 | 8.0–10.0 | 58.0 | 0.5 | 0.1 | 5.0 | 0.5 | 3.15–4.15 | 1.0 | 0.015 | 0.4 | 0.015 | 0.4 | 20.0–23.0 | – | – |
| Inconel 601 | 8.0–10.0 | 58.0 | 0.5 | 0.1 | 5.0 | 0.5 | 3.15–4.15 | 1.0 | 0.015 | 0.4 | 0.015 | 0.4 | 20.0–23.0 | – | – |
| Monel k500 | – | 64.0 | 0.8 | 0.13 | 1.0 | – | – | – | – | 0.6 | – | 2.8 | – | 30.0 | – |
| Monel 400 | – | 65.0 | 1.0 | 0.12 | 1.5 | – | – | – | – | – | – | – | – | 32.0 | – |
| Hastelloy x | 8.00-10.00 | Balance | – | 0.05-0.15 | 17.00-20.00 | 1.0 | – | – | – | – | 0.04 | – | 20.50-23.00 | – | – |
| Hastelloy B3 | 28.5 | 65.0 | – | 0.01 | 1.5 | 1.0 | – | – | – | – | – | 0.50 | 1.5 | – | – |
| Hastelloy C22 | 12.50-14.50 | 50.015 | 0.50 | 0.01 | 2.00-6.00 | 0.08 | – | 2.50 | 0.02 | – | 0.02 | – | 20.00-22.50 | – | – |
| Hastelloy C276 | 15.00 – 17.00 | 50.99 | 1.00 | 0.010 | 4.00 – 7.00 | 0.08 | – | 2.50 | 0.03 | – | 0.04 | – | 14.50 – 16.50 | – | – |
| Hastelloy B2 | 26-30 | Balance | 1.00 | 0.02 | 2.0 | 0.1 | – | 1.0 | 0.03 | – | 0.04 | – | 1.0 | – | – |
| Incoloy 825 | – | 38.00-46.00 | 1.00 | 0.05 | 22.00 | 0.5 | – | – | 0.03 | 0.06-1.20 | – | 0.02 | 19.50-23.50 | 1.50-3.00 | – |
| Incoloy 800HT | – | 30.0-35.0 | 1.5 | 0.06-1.00 | 39.5 | 1.0 | – | – | 0.015 | – | – | – | 23.0 | – | – |
| Incoloy 800H | – | 30.0-35.0 | 1.5 | 0.05-1.00 | 39.5 | 1.0 | – | – | 0.015 | – | – | – | 23.0 | – | – |
| Incoloy 800 | – | 30.0-35.0 | 1.5 | 0.1 | 39.5 | 1.0 | – | – | 0.015 | – | – | – | 19.0-23.0 | – | – |
Nickel Alloy Pipe Equivalent
| Standards | Country | Nickel 201 | Nickel 200 | Inconel 718 | Inconel 625 | Inconel 601 | Inconel 600 | Monel k500 | Monel 400 | Hastelloy x | Hastelloy B2 | Hastelloy B3 | Hastelloy C22 | Hastelloy C276 | Incoloy 825 | Incoloy 800H | Incoloy 800HT | Incoloy 800 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WNR | Russia | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| UNS | North America | N02201 | N02200 | N07718 | N06625 | N06601 | N06600 | N05500 | N04400 | N06022 | N10665 | N10675 | N06022 | N10276 | N08825 | N08810 | N08811 | N08800 |
| ASME | Australia | SB162 | SB162 | SB163 | SB444 | SB167 | SB167 | SB165 | SB165 | SB622/SB619 | SB622/SB619 | SB622/SB619 | SB622/SB619 | SB622/SB619 | SB423 | SB407 | – | SB407 |
| ASTM | America | B162 | B162 | B163 | B444 | B167 | B167 | B165 | B165 | B622/B619 | B622/B619 | B622/B619 | B622/B619 | B622/B619 | B423 | B407 | – | B407 |
| BS | United Kingdom | NA 12 | NA 11 | – | NA 21 | NA 49 | NA 13 | – | NA 13 | – | – | – | – | – | NA 16 | NA 15(H) | NA 15(HT) | NA 15 |
| JIS | Japan | NW 2201 | NW 2200 | – | NCF 625 | NCF 601 | NCF 600 | – | NW 4400 | – | – | – | NW 6022 | NW 0276 | NCF 825 | NCF 800H | NCF 800HT | NCF 800 |
| AFNOR | France | – | N-100M | – | NC22DNB4M | NC23FeA | NC15FE11M | – | NU-30M | – | – | – | – | – | NFE30C20DUM | Z8NC33-21 | X8NiCrAlTi32-21 | Z8NC32-21 |
| GOST | Russia | НП-2 | НП-2 | – | ХН75МБТЮ | XH60BT | МНЖМц 28-2,5-1,5 | – | МНЖМц 28-2,5-1,5 | – | – | – | – | ХН65МВУ | ЭП703 | ЭИ670 | ЭИ670 | ЭИ670 |
| AMS | United States | – | – | 5589/5590 | 5581 | – | 5580 | – | 4574 | – | – | – | – | – | – | – | – | – |
| EN | Europe | LC-Ni 99 | Ni 99.2 | – | NiCr22Mo9Nb | NiCr23Fe | NiCr15Fe | – | NiCu30Fe | – | – | – | NiCr21Mo14W | NiMo16Cr15W | NiCr21Mo | X5NiCrAlTi31-20 | – | X10NiCrAlTi32-20 |
| DIN | German | 2.4068 | 2.4066 | 2.4668 | – | – | – | 2.4375 | 2.4360 | 2.4665 | 2.4617 | 2.4600 | 2.4602 | 2.4819 | – | 1.4958 / 1.4876 | 1.4859 / 1.4876 | 1.4876 |
Alloy 200 Nickel Rectangular Pipe Applications
Ni 200 ERW Pipe Mechanical Properties
| Grade | Yield Strength (0.2%Offset) | Tensile Strength | Elongation | ||
|---|---|---|---|---|---|
| (per square inch) | (megapascal) | (per square inch) | (megapascal) | % | |
| Nickel 201 | 21500 | 148 | 67000 | 462 | 45 |
| Nickel 200 | 21500 | 148 | 67000 | 462 | 45 |
| Inconel 718 | 75000 | 482 | 135000 | 930 | 45 |
| Inconel 625 | 75000 | 517 | 135000 | 930 | 42.5 |
| Inconel 601 | 30000 | 205 | 80000 | 550 | 30 |
| Inconel 600 | 45000 | 310 | 95000 | 655 | 40 |
| Monel k500 | 115000 | 790 | 160000 | 1100 | 20 |
| Monel 400 | 35000 | 240 | 80000 | 550 | 40 |
| Hastelloy x | – | 240 | – | 655 | 35-45 |
| Hastelloy B3 | 52000 | 350 | 115000 | 760 | 40 |
| Hastelloy C22 | 45000 | 310 | 100000 | 690 | 40 |
| Hastelloy C276 | 52000 | 355 | 115000 | 790 | 40 |
| Hastelloy B2 | 51000 | 350 | 110000 | 760 | 40 |
| Incoloy 825 | 220 | 32000 | 80000 | 550 | 30 |
| Incoloy 800HT | 30000 | 205 | 75000 | 520 | 30 |
| Incoloy 800H | 30000 | 205 | 75000 | 520 | 30 |
| Incoloy 800 | 30000 | 205 | 75000 | 520 | 30 |
Physical Properties of Nickel Alloy Seamless Pipe
| Density | NICKEL 200 | 0.321 Ib/in3 | 8.89g/cm3 |
|---|---|---|---|
| NICKEL 201 | |||
| Melting Range, °F | Alloy 200 | 2615 – 2635 | |
| Alloy 201 | |||
| Curie Temperature | UNS N02200 | 680°F | 360°C |
| UNS N02201 |
Supply Nickel Pipe in Following Brand
Bohler
Sumitomo Metals, Japan
Special Metals USA
The Time and Location of the Nickel-based Alloy Pipe Delivery
| Export to | Price variations and estimated delivery |
|---|---|
| Italy | 5 % extra | 28 days |
| Germany | 5 % extra | 21 days |
| Uk | 5 % extra | 30 days |
| France | 5 % extra | 28 days |
| Ukraine | 5 % extra | 60 days |
| Spain | 5 % extra | 30 days |
| Belgium | 5 % extra | 40 days |
| Netherland | 5 % extra | 30 days |
| Saudi Arabia | 5 % extra | 5-7 days from Ex- stock |
| Greece | 5 % extra | 45 days |
| Portugal | 5 % extra | 45 days |
| Czech Republic | 5 % extra | 45 days |
| Hungary | 5 % extra | 45 days |
