Steber Steel Solutions

ThyssenKrupp Plate Distributor

ThyssenKrupp Plate Distributor

Stockist Of ThyssenKrupp Sheet Provide Thickness Up To 12 Inch in India

Table of Contents


ThyssenKrupp Plate Specification

ThyssenKrupp Plate Cutting Length

  • 6,3 Meter (21 Feet)


Cutting Length

ThyssenKrupp Heavy Plate Thickness

  • Upto 250 MM (12 inches)
  • Exception Upto 300 MM (12 inches)
Thickness

ThyssenKrupp Steel Plate Cutting Straightness

  • ± 0.1 MM /3 meter Cutting Length Max

Cutting Straightness

Stainless Steel ThyssenKrupp Precision Strip Applications

  • Aircraft Construction
  • Medical Technology
  • Automotive & Transportation
  • Vessel Manufacture
  • Tanker Manufacture
Applications

ThyssenKrupp Hot-rolled Precision Strip Advantages

  • Simple to Clean
  • Strength
  • Aesthetics
  • Resistance to Corrosion
  • Reusable
Advantages

ThyssenKrupp Plate Material

  • Stainless Steel
  • Aluminum
  • Copper
  • Nickel


Material

ThyssenKrupp Hot-rolled Precision Strip Provide Width Upto 720mm With Round Edge in Mumbai

ThyssenKrupp Hot-dip Galvanized Steel Strip Sizes

Form of Product Length
From_to in MM		 Width
From_to in MM		 Thickness
From_to in MM
Cut Lenghts 500 – 7,500 15 – 120 1.40 – 6.00
Coils - 15 – 200 1.40 – 6.00

ThyssenKrupp Hot-dip Galvanized Steel Strip Available In DD11, DD12, S185, S235, S275, S355 Grades

ThyssenKrupp Hot-rolled Precision Strip Available Grades

Steel Family Steel Gr. Name
DIN EN 10025-2, General Structural Steel, Unalloyed S355, S275, S235, S185
DIN EN 10111, Mild Steel for Cold Forming DD12, DD11
Buy Premium Cut To Length ThyssenKrupp Heavy Plate At Factory Price in Mumbai

View the Most Recent ThyssenKrupp Plate Market Price List By, Click here

ThyssenKrupp Steel Plate Provide Bespoke Inspection Processes For Aerospace Application

Applications of ThyssenKrupp Plate

Applications of ThyssenKrupp Plate

Processing Services of ThyssenKrupp Sheets

  • Cutting Length Nominal Up to 6,3 M (21 Feet)
  • Exact or Near-net Shapes or Simple Sawing to Size
  • Plates Thickness Upto 250 MM (12 inches), for Exception Upto 300 MM (12 inches)
  • Angled Cuts
  • Full Lot Traceability
  • Straightness Cutting of Max. ± 0.1 MM /3 meter Cutting Length
  • PVC Coating When Required
  • Tolerance Reporting & Laser Inspection
  • High-speed Routing Aerospace Capabilities
  • Accuracy Angle of Max. ± 0.1 MM /1 meter Side Length

ThyssenKrupp Plate Available Material & Grades

Material Available Grades
Stainless Steel 201, 301, 304, 304L, 316, 316L
Aluminum Alloy 1100, Alloy 2024, Alloy 5052, Alloy 5083, Alloy 6013, Alloy 6061, Alloy 6063S, Alloy 7050, Alloy 7075, Alloy 7085
Copper  C10100, C11000
Nickel 718

Available Coatings and Ordering Groups for ThyssenKrupp Steel Plate

Weight for Zinc Coating in [g/m2] Ordering Group
Test1 Single Spot Average Value
400 500 Z600
320 400 Z400
240 300 Z300
180 225 Z226
120 150 Z160
95 120 Z120

Stainless Steel ThyssenKrupp Precision Strip Stocked Grades

Grades European Reference Advantages
Grade 304 1.4301
  • Good Formability
  • Good Corrosion Resistance
  • Non-magnetic
Grade 304L 1.4301
  • Non-magnetic
  • Good Corrosion Resistance
  • Good Formability
Grade 316 1.4404
  • Excellent Corrosion Resistance
  • Non-magnetic
  • Good Formability
Grade 430 1.4016
  • Low Cost Stainless Steel
  • Fabricates Well
  • Magnetic
Grade 409 1.4512
  • Suitable for Elevated Temperature Applications
  • Fabricates Well
  • Magnetic

Typical Uses Medical Components of Aluminum Thyssenkrupp Steel Plate

Finish Thickness
Hot Rolled, Pickled & Annealed 0.25 to 2.0

SS Thyssenkrupp Heavy Plate Mechanical Properties

Mechanical Properties of Austenitic Grades
Gr. European  Specification Form Types Tensile Strength in (MPa) Thickness Max in (mm) Proof Strength - 1% in (Min MPa)a Proof Strength - 0.2% in (Min MPa)a
304 1.4301 Hot rolled plate 520 - 720 75.0 250 210
Hot rolled strip 13.5
Cold rolled strip 540 - 750 6.0 260 230
304L 1.4307 Hot rolled plate 520 - 700 75.0 240 200
Hot rolled strip 13.5
Cold rolled strip 6.0 250 220
316 1.4401 Hot rolled plate 520 - 670 75.0 260 220
Hot rolled strip 530 - 680 13.5
Cold rolled strip 6.0 270 240
316L 1.4404 Hot rolled plate 520 - 670 75.0 260 220
Hot rolled strip 530 - 680 13.5
Cold rolled strip 6.0 270 240

Mechanical Properties of Ferritic Grades
Gr. European Specification Form Type Tensile Strength in (MPa) Thickness Max in (MM) Transverse Proof Strength - 0.2% in (Min MPa) Longitudinal Proof Strength - 0.2% in (Min MPa)
409 1.4512 Hot Rolled Strip 380 - 560 13.5 220 210
Cold Rolled Strip 8.0
430 1.4016 Hot Rolled Plate 430 - 600 25.0 260 240
Hot Rolled Strip 13.5
Cold Rolled Strip 8.0 280 260
439 1.4510 Hot Rolled Strip 420 - 600 13.5 240 230
Cold Rolled Strip 8.0
4509 1.4509 Cold Rolled Strip 430 - 630 8.0 250 230

Mechanical Properties of Martensitic Grades
Gr. European  Specification Heat Treatment Condition Form Type Tensile Strength in (Max MPa) Proof Strength - 0.2% in (Min MPa) Thickness Max in (MM)
420 1.4031 Quenched & Tempered Cold Rolled Strip - - 3.0
Annealed 760 - 8.0
Hot Rolled Strip - 13.5

Stainless Steel Hot-rolled Precision Strip Chemical Composition

Austenitic Grades

Gr. European Specification Cr, (Chromium) Ni, (Nickel) S, (Sulfur) C, (Carbon) Mo, (Molybdenum) S, (Silicon) P, (Phosphorus) Mn, (Manganese) N, (Nitrogen) Fe, (Iron)
201 1.4372 16.0 - 18.0 3.5 - 5.5 0.015 0.15 - 1.00 0.045 5.5 - 7.5 0.05 - 0.25 Balance
301 1.4310 16.0 - 19.0 6.0 - 9.5 0.015 0.05 - 0.15 0.80 2.00 0.045 2.00 0.10 Balance
304L 1.4307 17.5 - 19.5 8.0 - 10.5 0.015 0.03 - 1.00 0.045 2.00 0.1 Balance
304 1.4301 17.5 - 19.5 8.0 - 10.5 0.015 0.07 - 1.00 0.045 2.00 0.1 Balance
316L 1.4404 16.5 - 18.5 10.0 - 13.0 0.015 0.03 2.0 - 2.5 1.00 0.045 2.00 0.1 Balance
316 1.4401 16.5 - 18.5 10.0 - 13.0 0.015 0.07 2.0 - 2.5 1.00 0.045 2.00 0.1 Balance

Ferritic Grades

Gr. EN Specification Cr,
(Chromium)		 P,
(Phosphorus)		 C,
(Carbon)		 Mo,
(Molybdenum)		 S,
(Sulfur)		 Mn,
(Manganese)		 Ni, (Nickel) Si,
(Silicon)		 Nb,
(Niobium)		 Ti,
(Titanium)
4509 1.4509 17.5 - 18.5 0.040 0.030 - 0.015 1.00 - 1.00 - 0.1 - 0.6
439 1.4510 16.0 - 18.0 0.040 0.050 - 0.015 1.00 - 1.00 (3 x C + 0.3) to max 1 [4 x (C + N) + 0.15] to max 0.8
436 1.4513 16.0 - 18.0 0.040 0.025 0.80 - 1.40 0.015 1.00 0.020 1.00 - [4 x (C + N) + 0.15] to max 0.8
434 1.4113 16.0 - 18.0 0.040 0.080 - 0.015 1.00 - 1.00 - -
430 1.4016 16.0 - 18.0 0.040 0.080 - 0.015 1.00 - 1.00 - -
409 1.4512 10.5 - 12.5 0.040 0.030 - 0.015 1.00 - 1.00 - [6 x (C + N)] to max 0.65

Martensitic Grades

Gr. European  Specification Ni, (Nickel) C, (Carbon) P, (Phosphorus) S, (Sulfur) S, (Silicon) Cr, (Chromium) Mn, (Manganese) N, (Nitrogen) Fe, (Iron)
420 1.4031 8.0 - 10.5 0.07 0.045 0.015 1.00 17.5 - 19.5 2.00 0.1 Balance
420 1.4021 - 0.16 - 0.25 0.040 0.015 1.00 12.0 - 14.0 1.50 - Balance
410 1.4006 0.75 0.08 - 0.15 0.040 0.015 1.00 11.5 - 13.5 1.50 - Balance

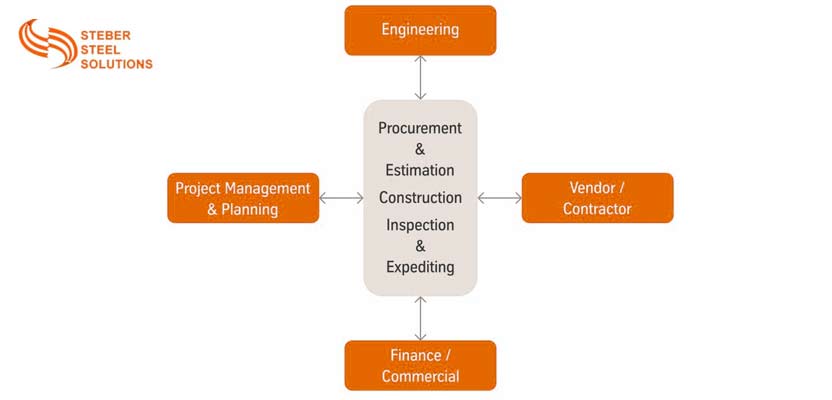

Procurement and Estimation Services of ThyssenKrupp Heavy Plate

Procurement and Estimation Services of ThyssenKrupp Heavy Plate

DIN EN 10 152 ThyssenKrupp Hot Strip Services Include

  • Coil Polishing
  • Coil Slitting
  • Laser Profiling
  • Cut to Length Non-standard Sheet Lengths
  • Bar Cutting

Surface Finish Thyssenkrupp Stainless Steel Heavy Plate

Surface Finish for Hot Rolled
Process Route Types Surface Finishes Symbol
Heat Treated, Hot Rolled,
Pickled		 Free of Scale 1D
Not Heat Treated, Hot Rolled, Not Descaled Covered With Rolling Scale 1U
Heat Treated, Hot Rolled,
Mechanically Descaled		 Free of Scale 1E
Heat Treated, Hot Rolled, Not Descaled Covered With Rolling Scale 1C

Surface Finish for Cold Rolled
Process Route Type Surface Finishes Symbol
Heat Treated, Cold Rolled, Skin Passed, Bright-pickled Smoother & More Reflective Than 2D 2A
Heat Treated, Cold Rolled, Skin Passed, Pickled Smoother than 2D 2B
Heat Treated, Cold Rolled, Not Descaled
 Scale From Heat Treatment Is Smooth 2C
Heat Treated, Cold Rolled, Pickled Smooth 2D
Heat Treated, Cold Rolled, Mechanically Descaled Free of Scale 2E
Work Hardened Bright 2H
Hardened & Tempered, Cold Rolled, Scale Free Free of Scale 2Q
Bright Annealedb, Cold Rolled Bright, Smooth, Reflective 2R

Surface Finish for Martensitic Grades
Route Type Process Surface Finishes Symbol
Patterned Design to Be
Agreed; 2nd
Surface Flat		 1M
Groundc See Footnoted 1G & 2G
Satin polishc 1K & 2K
Brushedc or Dull
Polishedc		 Smoother Than
Ground.
See Footnoted		 1J & 2J
Bright Polishedc See Footnoted 1P & 2P
Surface Coatedc 1S & 2S
Corrugated
 Design to Be Decided 2W
Patterned Design to Be
Agreed; 2nd
Surface Flat		 2M
Colouredc Colour to Be Agreed 2L
Heat Treated, Cold Rolled, Skin Passed on
Roughened Rolls		 Uniform Nonreflective Matt Surface 2F

Benefits of C10100 ThyssenKrupp Copper Plate

  • Aesthetics
  • Strength
  • Easy to Clean
  • Recyclable
  • Corrosion Resistance
