API 5L X52 Pipe Supplier offer ISO 3183 L360 PLS1 and PSL2 material

API 5L X52 Pipe Highlights
Size:	1/2” – 26”
ERW and HFW pipe	1/2” – 24”
Schedule	SCH XS, SCH80, SCH STD, SCH 40
End	Plain End, threaded End, Beveled End
Coating	Varnished, 3PE, FBE, 3LPE
Color Code	Green
EN Standard	10208-2, 10208-1, 10208-2, 10208-2s

API 5L X52 PSL2 Seamless Pipe Supplier in India

API 5L X52 Pipe

ISO 3183 L360 Carbon Steel Pipe

API 5L X52 PSL2 Seamless Pipe

Table of Contents

API 5L X52 Pipe Specification
X52 PSL1 Pipe Product Specification Level
X52 PSL2 Pipe Product Specification Level
Grade X52 PSL1 Pipe Line Temperature Range
Wall Thickness of API 5L X52 Grade B Pipe
X52 ERW Pipe Material Datasheet
API 5L X52 Seamless Pipe European Standard
Grade L360 X52 Spiral Welded Pipe Colour Code
Various Types Of API 5L X52 Pipe
X52 Grade PSL1 Line Pipe Testings
Suffix Letter of X52 Steel Pipe
API 5L X52 Pipe Dimensions
Grade L360 X52 Spiral Welded Pipe Ends
X52 PSL1 Pipe Absolute Roughness
API 5L X52 SCH 40 DSAW Pipe Manufacturing Process
L360 Pipe Welding
API 5L Grade X52 High Yield Pipe Markings
API 5L Grade X52 Pipe Coatings
API 5L X52 Pipe Pressure Rating
Stocking Distributors and Dealers of Following Brands
API 5L X52 Dsaw Pipe Impact Test
X52 Steel Pipe HSN Code
Carbon Steel X52 Pipe Delivery Condition
API 5L X52 ERW Pipe Applications
API 5L X52 Pipe Weight Chart
Maximum Angle of API 5L X52 PSL1 Welded Pipe
Grade X52 PSL2 Spiral Pipe OD Tolerance Chart
API 5L X52 Equivalent Material
API 5L X52 Pipe Chemical Composition
3PE Coating X52 Seamless pipe Mechanical Properties
Yield Stress of API 5L Grade X52 Carbon Steel Pipe
Supply Ready Stock of API 5L X52 Pipe to various Countries

API 5L X52 Pipe Specification

API 5L X52 Pipe Sizes

Seamless Pipe: 21.3 - 660mm ( Inch 1/2” – 26”)
ERW : 1/2” NB – 24” NB
SAW: 16" - 100" NB

API 5L X52 Steel Pipe PSL Level

API 5L X52 PSL1
API 5L X52 PSL2

L360 Pipe Thickness

SCH 40
SCH 80
SCH 160
SCH XS
SCH XXS

API 5L X52 Seamless Pipe Surface Coating

CWC (Concrete Weight Coated)
Natural
Black Painting
3PE (3LPE) X52 Grade PSL2 pipe
FBE API X52 pipe
3PP Grade L360 X52 pipe

X52 Welded Pipe Material Data

L360MB
X52 / L360 (N, M, Q, R)
X52M (Thermomechanical)
L360QB
X52Q (Quenched and Tempered)
X52N (Normalized)
L360GA
L360NB
X52R ( As Rolled)

ISO 3183 Carbon Steel Pipe Welding

TIG-welding
MAG-welding massive wire
Arc welding (E)
MAG-welding cored wire
Submerged arc welding

API 5L Grade X52 Pipe Standards

ISO 3183 L390
API 5L X52
ASME B36.10M

X52 Grade Line Pipe Origin

Russian
Ukraine
Indian
Japanese
Japan
European
Dubai
USA
UK

Grade X52 PSL2 Spiral Pipe Testings

Eddy current
IGC- Intergranular Corrosion Test
Hardness Test
(PMI)
Non Destructive Testing
Charpy V Impact Test
Ultrasonic

API 5L Grade X52 LSAW Pipe Documentation

Nominal Pipe Sizes
Specification
Heat Number
Manufacturing Process
Wall Thickness or Schedule No.
Material Grade

X52 PSL2 ERW Material End

TOE -Treaded One End
POE -Plain One End
PBE -Plain Both Ends
BLE -Bevel large end

API 5L Grade X52 PSL2 Epoxy Coated Pipe Manufacturing Process

SSAW
SAW
DSAW
LSAW
HFW and HSAW

X52 Steel Nace Pipe Material Test Certificate

NACE MR0175
EN 10204 3.2
EN 10204 3.1
NACE MR0103
Radiographic Testing (RT)

API 5L X52 SCH 40 DSAW Pipe Value Added Services

Heat Treatment
Galvanizing
Sand Blasting
Machining
Bending

X52 Grade PSL1 Line Pipe Packing

Wooden Boxes
Steel Strips Bundled
Plastic Bags
or as per Customers Requests

Supplier of ISO 3183 L360 Carbon Steel Pipe in PSL1 and PSL2

X52 PSL1 Pipe Product Specification Level

(PSL) Product Specification Level
Test Type	API 5L X52 PSL 1
API 5L X52 PSL2 Seamless NDT	In case of SR4
Charpy	Not required for X52
API 5L Grade X52 Pipe Certification	In case of SR15
Traceability	Traceable only until all tests for X52 Steel material are passed, unless SR15 is specified
Hydrostatic for Grade X52 PSL2 material	Mendentery

X52 PSL2 Pipe Product Specification Level

	PSL/ Product Specification Level
Test Types	API 5L X52 PSL 2
NDT for X52 Seamless Pipe	SR4 required
Charpy	Mandatory for Grade X52 PSL2 Pipe and other grades
API 5L X52 PSL2 material Certification	required (SR 15.1)
API 5L X52 PSL1 Pipeline Hydrostatic	Mendentery
Traceability	Traceable after completion of X52 Steel tests (SR 15.2) mandatory

API 5L X52 ERW Pipe with Special Coating for High Temperature

Grade X52 PSL1 Pipe Line Temperature Range

Supplier of API 5L X52 Pipe offers Excellent Temperature Range

Max service temperature	500 °C

Schedule 40, SCH60 and SCH80 API 5L Grade X52 Pipe for Sour Service

Wall Thickness of API 5L X52 Grade B Pipe

NPS (in)	Outside Diameter (in)	API 5L X52 Pipe Schedule
		Wall Thickness (in)
		SCH XXS	SCH 160	SCH 140	SCH 120	SCH 100	SCH XS	SCH 80	SCH 60	SCH 40	SCH 30	SCH 20	SCH STD
1/8	0.405						0.095	0.095		0.068			0.068
1/4	0.540						0.119	0.119		0.088			0.088
1/2	0.840	0.294	0.187				0.147	0.147		0.109			0.109
3/4	1.050	0.308	0.219				0.154	0.154		0.113			0.113
1	1.315	0.358	0.250				0.179	0.179		0.133			0.133
1 1/2	1.900	0.400	0.281				0.200	0.200		0.145			0.145
2	2.375	0.436	0.344				0.218	0.218		0.154			0.154
2 1/2	2.875	0.552	0.375				0.276	0.276		0.203			0.203
3	3.500	0.600	0.438				0.300	0.300		0.216			0.216
4	4.500	0.674	0.531		0.438		0.337	0.337		0.237			0.237
6	6.625	0.864	0.719		0.562		0.432	0.432		0.280			0.280
8	8.625	0.875	0.906	0.812	0.719	0.594	0.500	0.500	0.406	0.322	0.277	0.250	0.322
10	10.750	1.000	1.125	1.000	0.844	0.719	0.500	0.594	0.500	0.365	0.307	0.250	0.365
12	12.750	1.000	1.312	1.125	1.000	0.844	0.500	0.688	0.562	0.406	0.330	0.250	0.375
16	16.000		1.594	1.438	1.219	1.031	0.500	0.844	0.656	0.500	0.375	0.312	0.375
18	18.000		1.781	1.562	1.375	1.156	0.500	0.938	0.750	0.562	0.438	0.312	0.375
20	20.000		1.969	1.750	1.500	1.281	0.500	1.031	0.812	0.594	0.500	0.375	0.375
22	22.000		2.125	1.875	1.625	1.375	0.500	1.125	0.875		0.500	0.375	0.375
24	24.000		2.344	2.062	1.812	1.531	0.500	1.219	0.969	0.688	0.562	0.375	0.375
32	32.000									0.688	0.625	0.500	0.375
36	36.000									0.750	0.625	0.500	0.375
42	42.000									0.750	0.625	0.500

API 5L X52 Material Datasheet and European Standard

X52 ERW Pipe Material Datasheet

ASTM	Grade	Class	EN Material	EN No.	EN Standard
API 5L	X52	PSL 1	L360GA	1.0499	10208-1
		PSL 2	L360QB	1.8948	10208-2
		PSL 2	L360NB	1.0582	10208-2
		PSL 2	L360MB	1.0578	10208-2

API 5L X52 Seamless Pipe European Standard

Supplier of API 5L X52 Pipe as per EN 10217-2 Standards

EN 10217-2 (Grade X52 PSL2 welded pipe)
EN 10216-2 (X52 Carbon Steel seamless pipe)

Grade L360 X52 Spiral Welded Pipe Colour Code

Grade	Identification colour code
L360 or X52	Green

Various Types Of API 5L X52 Pipe

Supplier of API 5L X52 Pipe in India are available in Most Common Types and Ends

API 5L X52 ERW Pipe

L360 PSL1 High Yield Pipe

API 5L Grade X52 Welded Pipe

L360 PSL2 Nace Pipe

API 5L X52 PSL2 Carbon Steel Line Pipe

X52 SCH40 LSAW Pipe

API 5L Grade X52 DSAW Pipe

X52 Spiral Pipe

L360 Line Pipe

Grade X52 PSL2 Epoxy Coated Pipe

API 5L X52 Gr B Sour Service Pipe

Grade X52 Spiral Welded Pipe

X52 Grade PSL1 Line Pipe Testings

Hydrostatic Test
Flattening test
Bend Test
CVN impact test
Guided-bend test
DWT test

Suffix Letter of X52 Steel Pipe

Sample	Letter	Delivery condition
X52NR	NR	Normalized Rolling
X52N	N	Normalizing / Normalized formed or rolled
X52T	T	Tempering
X52CR	CR	controlled rolling
X52R	R	As rolled
X52A	A	Annealing
X52TMCP	TMCP	Thermo-mechanical control process
X52S	S	Sour Services with level PSL2 pipe for QS, NS, MS, eg API 5L X52 NS
X52M	M	Thermomechanical rolled or formed
X52Q	Q	Quenching
X52SR	SR	stress-relief annealing
X52ACC	ACC	accelerated cooling

API 5L X52 Pipe Dimensions

NB	DN	OD in Inches	SCHEDULE
NB	DN	OD in Inches	SCH 160	SCH 80	SCH 40	SCH 20	SCH 5
3/4″	1.05	20	0.219	X	0.113	X	.065
1″	1.315	25	0.25	X	0.133	X	.065
2″	2.375	50	0.344	X	0.154	X	.065
2.1/2″	2.875	65	0.375	X	0.203	X	.083
3″	3.5	80	0.438	X	0.216	X	.083
4″	4.5	100	0.531	X	0.237	X	.083
5″	5.563	125	0.625	X	0.258	X	.109
6″	6.625	150	0.719	X	0.28	X	.109
8″	8.625	200	0.906	0.593	0.322	0.25	.109
10″	10.75	250	1.125	0.718	0.365	0.25	.134
12″	12.75	300	1.312	0.843	0.406	0.25	.165

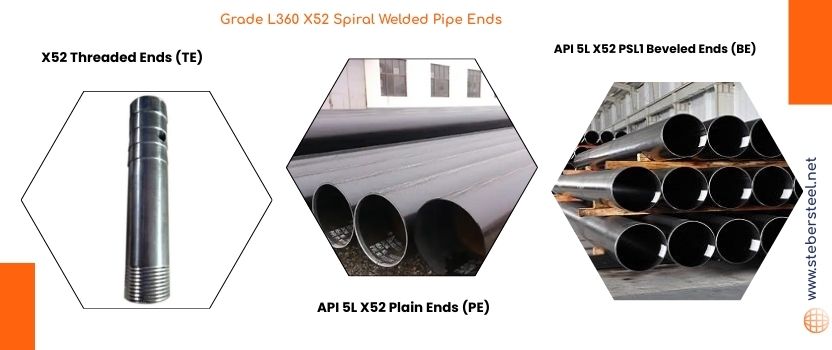

Grade L360 X52 Spiral Welded Pipe Ends

X52 PSL1 Pipe Absolute Roughness

API 5L X52 Pipe condition	Roughness in mm	Roughness in inch
severely corroded	00.4 - 3	00.016 - 0.12
lightly corroded	00.1 - 0.4	00.004 - 0.016
welded, and new	00.05 - 0.1	00.002 - 0.004
drawn, and new	00.02 - 0.1	00.0008 - 0.004
heavy scaling	1.5 - 4	00.06 - 0.16
bitumed coated	00.05	00.002
galvanized, and new	00.15	00.006
used, and cleaned	00.15 - 0.2	00.006 - 0.008
light scaling	1 - 1.5	00.04 - 0.06

API 5L X52 SCH 40 DSAW Pipe Manufacturing Process

API 5L X52 Electric Resistance Welding (ERW)
API 5L Grade 52 Welded
L360 Seamless(SMLS)
API 5L X52 PSL2 Spiral Submerged Arc Welding (SSAW )
X52 Grade PSL2 Sub-merged Arc Welding(SAW )
API 5L Grade X52 PSL1 Longitudinally Submerged Arc Welded (LSAW)
API X52 Double Submerged Arc Welded (DSAW)
API 5L X52 Grade X52 Carbon Steel High Frequency Induction Welding (HFIW)
Grade L360 X52 Horizontal Submerged Arc Welded (HSAW)
Spiral welded
Grade X52 PSL2 Hot Finished Welding (HFW)

L360 Pipe Welding

(SAW) MAG-welding cored/ massive wire
Tungsten inert gas (TIG) welding
Arc welding (E)
Submerged arc welding

API 5L Grade X52 High Yield Pipe Markings

End finish of X52 Pipes
Size of drift Hydrostatic test pressure
API 5L X52 PSL2 Grade and type
Plating of coupling
API 5L X52 Pipe Manufacturer’s name
Supplementary requirements
Heat treatment

Manufacture process
X52 Steel Pipe Type of thread
Weight
Monogram marking Impact test temperature
Impact test temperature
X52 Grade and type

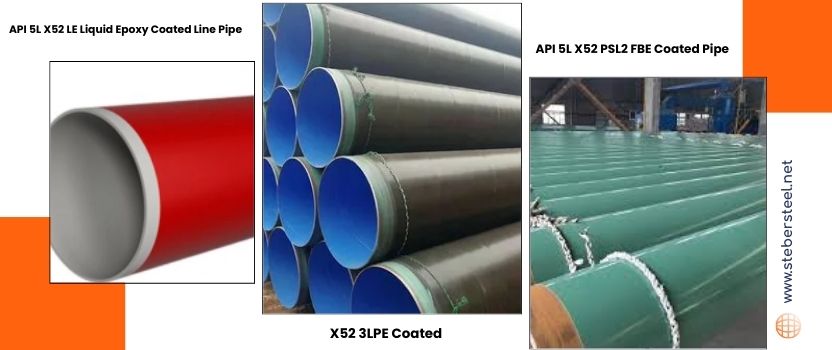

API 5L Grade X52 Pipe Coatings

API 5L X52 Pipe Pressure Rating

Nominal Size (mm)	Temperature (oC)
	Maximum Allowable Stress (MPa)
	260	350	370	400	4301	450
	130.2	117.1	115.7	89.6	74.4	59.9
15	32528	29255	28910	22372	18589	14972
20	26526	23860	23578	18245	15158	12209
80	14969	13222	13063	10108	8399	6766
100	12464	11210	11079	8571	7124	5739
200	6745	6063	5994	4637	3852	3100
300	4534	4072	4024	3114	2591	2088
400	3603	3238	3197	2474	2060	1660
500	2873	2574	2556	1977	1640	1323

Stocking Distributors and Dealers of Following Brands

USL Universal Specialities Limited

Baosteel

Jindal

Tenaris

ISMT Limited

Maharashtra Seamless Limited

API 5L X52 Dsaw Pipe Impact Test

OD (in.)
	Grade
	≤ L415 / X60	> L450 / X65	≤ L415 / X60	> L485 / X70	> L555 / X80	> L690 / X100	> L625 / X90
≤508	27	27	27	40	40	40	40
>508 – ≤762	27	27	27	40	40	40	40
>762 – ≤914	40	40	40	40	40	54	54
>1 219 – ≤1 422	40	54	40	54	54	81	68
>1 422 – ≤2134	40	68	40	68	81	108	95
>914 – ≤1 219	40	40	40	40	40	68	54

X52 Steel Pipe HSN Code

HSN Code	Grade
73079190	X52 Steel Pipe

Carbon Steel X52 Pipe Delivery Condition

PSL	Delivery Condition	Pipe grade
PSL1	As-rolled, normalizing formed, normalized,	A
	normalizing rolled, As-rolled, thermomechanical rolled, N and T, thermo-mechanical formed, normalizing formed, N,	X52
	normalizing rolled, normalizing formed, N and T , thermomechanical rolled,As-rolled, thermo-mechanical formed, N, or if agreed Q&T SMLS only	B
PSL 2	As-rolled	BR, X52R
	Q and T	BQ, X52Q
	normalizing formed, Normalizing rolled, normalized or N and T	BN,X52N,
	Thermomechanical rolled	X52M
	thermomechanical formed	BM, X52M
	(R, N, Q or M) for PSL2 grades

API 5L X52 ERW Pipe Applications

API 5L X52 Pipe Weight Chart

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	mm	inch	mm	inch	Schedule	Lb/ft	kg/Meter
1/2″	21	.0840	2.0769	0.0109	40 STD	0.0851	1.0268
3/4″	27	1.0050	2.0870	0.0113	40 STD	1.0131	1.0684
1″	33	1.0315	3.0378	0.0133	40 STD	1.0679	2.0501
1 1/4″	42	1.0660	3.0556	0.0140	40 STD	2.0273	3.0385
1 1/2″	48	1.0900	3.0683	0.0145	40 STD	2.0718	4.0048
2″	60	2.0375	3.0912	0.0154	40 STD	3.0653	5.0441
2 1/2″	73	2.0875	5.0516	0.0203	40 STD	5.0793	8.0629
3″	89	3.0500	5.0486	0.0216	40 STD	7.0576	11.0284
4″	114	4.0500	6.0020	0.0237		10.0790	16.0073
6″	168	6.0625	4.0775	0.0188		12.0924	19.0252
8″	219	8.0625	4.0775	0.0188		16.0940	25.0233
10″	273	10.0750	4.0775	0.0188		21.0207	31.0588
12″	324	12.0750	4.0775	0.0188		25.0222	37.0570
14″	356	14.0000	4.0775	0.0188		27.0732	41.0308
16”	406	16.0000	4.0775	0.0188		21.0748	47.0290
18″	457	18.0000	5.0563	0.0219		41.0588	61.0948
20″	508	20.0000	6.0350	0.0250		52.0733	78.0547
24″	610	24.0000	6.0350	0.0250		63.0413	94.0456
30″	762	30.0000	6.0350	0.0250		79.0433	118.0318
36″	914	36.0000	6.0350	0.0250		95.0453	142.0180
42″	1067	42.0000	7.0925	0.0312		138.0911	206.0914
48″	1219	48.0000	9.0525	0.0375	STD	190.0738	284.0112

Maximum Angle of API 5L X52 PSL1 Welded Pipe

Specified WT mm (in.)	Maximum Angle of Taper degrees
≥ 17.0 (0.669)	14.0
14.0 (0.551) to < 17.0 (0.669)	11.0
10.5 (0.413) to < 14.0 (0.551)	9.5
< 10.5 (0.413)	7.0

Grade X52 PSL2 Spiral Pipe OD Tolerance Chart

Specified OD (in)	Diameter Tolerance, inch d				Out-of-Roundness Tolerance inch
	Pipe except the end a		Pipe end a,b,c		Pipe except the End a	Pipe End a,b,c
	SMLS Pipe	Welded Pipe	SMLS Pipe	Welded Pipe	Pipe except the End a	Pipe End a,b,c
≥2.375 to 6.625					0.020D for	0.015D for
< 2.375	-0.031 to + 0.016		– 0.031 to + 0.016		0.048	0.036
					D/t≤75	D/t≤75
>6.625 to 24.000	+/- 0.0075D	+/- 0.0075D, but max of 0.125	+/- 0.005D, but max of 0.063		0.020D	0.015D
>24 to 56	+/- 0.01D	+/- 0.005D but max of 0.160	+/- 0.079	+/- 0.063	0.015D for but max of 0.060	0.01D for but max of 0.500
	+/- 0.01D	+/- 0.005D but max of 0.160	+/- 0.079	+/- 0.063	0.015D for but max of 0.060	0.01D for but max of 0.500
					D/t≤75	D/t≤75
>56	As agreed

API 5L X52 Equivalent Material

DIN / WNR	EN	API	Relevant grades
High Yield Pipe
1.0582 StE 360.7	L360NB	API 5L Grade X52	-
LINE PIPE
1.0562 StE 355	P355N	API 5L Grade X52	A53 Gr. B, A106 Gr. B, API 5L Gr. B X52

API 5L X52 Pipe Chemical Composition

Composition of PSL1

Steel Grade	Mass fraction, % based on product analyses and heat a,g
	Mn	C	S	P	Nb	V	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
X52	1.4	0.28	0.3	0.3	d	d	d
Welded Pipe
X52	1.4	0.26	0.3	0.3	d	d	d

Composition of PSL2

Steel Grade	Mass fraction, % based on heat and product analyses									Carbon Equiv a
	P	C	Mn	Si	S	Nb	Ti	V	Other	CE Pcm	CE IIW
	max	max b	max b	max	max	max	max	max	Other	max	max
Seamless and Welded Pipe
X52N	0.025	0.24	1.4	0.45	0.015	0.05	0.04	0.1	d,e,l	0.25	0.43
X52Q	0.025	0.18	1.5	0.45	0.015	0.05	0.04	0.05	e,l	0.25	0.43
Welded Pipe
X52M	0.025	0.22	1.4	0.45	0.015	d	d	d	e,l		0.43

3PE Coating X52 Seamless pipe Mechanical Properties

Pipe Grade	Tensile Properties - X52 Pipe of SMLS and Welded Pipes PSL 2						Seam of X52 Welded Pipe
	Tensile Strength a		Yield Strength a		Ratio a,c	Tensile Strength d	Elongation
	Rm PSI Min		Rt0,5 PSI Min		R10,5IRm	Rm (psi)	(in 2in)
							Af %
	Minimum	Maximum	Minimum	Maximum	Maximum	Minimum	Minimum
X52N, X52M, X52Q	66,700	110,200	52,200	76,900	0.93	66,700	f

Yield Stress of API 5L Grade X52 Carbon Steel Pipe

Material Grade	Tensile Properties - X52 PSL 1 Seamless and Welded Pipes			X52 Welded Pipe
	Tensile Strength a	Yield Strength a	Tensile Strength b	Elongation
	Rm PSI Minimum	Rt0,5 PSI Minimum	Rm PSI Minimum	(in 2in Af % min)
X52	66,700	52,200	66,700	c

Supply Ready Stock of API 5L X52 Pipe to various Countries

Country Name	Flag	Country Name	Flag
Ghana		Zambia
South Africa		Tunisia
Morocco		Tanzania
Nigeria		Algeria
Ethiopia		Egypt
Angola		Kenya
