Capillary Tube Manufacturer in India

Capillary Tube manufacturer in India

Capillary Tube Manufacturer in India Quick Overview
Length 1 To 6 Meter
Tensile strength 700 MPa
Condition Soft or Hard
Coil Weight About 30Kgs
Standards ASTM A213, A269,A632,A908
Type Seamless
MTC Certificate EN 10204 3.1 and 3.2

Stainless Steel 316 Medical Tube Manufacturer in India

Capillary Tube

Capillary Tube

Heparinized Capillary Tube

Heparinized Capillary Tube

Glass Capillary Tube

Glass Capillary Tube

Table of Contents


Capillary Tube Manufacturer In India Specification

Heparinized Capillary Tube Outside Diameter

  • 0.3-12.0 mm
Sizes

Glass Capillary Tube Wall Thickness

  • 0.08-0.2 mm
Sizes

Refrigerator Capillary Tube Manufacturing Types

  • Seamless
Types

U Shaped Capillary Tube Material

  • SS
  • Nickel Alloy
  • Copper
  • Carbon
  • Titanium

Trade Name

Plain Capillary Tube Grade

  • SS 304
  • SS 304L
  • SS 316
  • SS 316L


End Types

Open Ended Capillary Tube Standards

  • ASTM A213, A269, A632, A908
  • UNS: S30400,S30403,
    S31600,S31603
  • WNR: 1.4301,1.4306,
    1.4436,1.4404
Standards

Hematocrit Capillary Tube Finish

  • Bright
  • Bright
  • Annealing



Finish

HVAC Capillary Tube Testing

  • Chemical
  • Mechanical
  • Ultrasonic
  • Tensile
  • PMI
  • Flaring
  • Hardness
Testing

Compressor Capillary Tube Types

  • Seamless Pipe
  • Round Pipe




Types

Non Heparinized Capillary Tube Documentation

  • PMI Test Reports
  • MTC EN 10204 type 3.1
  • Visual Inspection
  • Mill Test Certificates

Documentation

Condition Delivery of NMR Capillary Tube

  • GBK – Annealed
  • BKW – Soft/ Cold-finished
  • BK- Hard/ Cold-finished
  • NBK – Normalized

Condition Delivery

Micro Capillary Tube Origin

  • Janpanese
  • Russia
  • Indian
  • American
  • European
Origin

Microhematocrit Capillary Tube Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled

Packaging

Glass Capillary Tubes Services

  • Cutting
  • Punching
  • Bending

Services

Nickel U Shaped Capillary Tubing Specification and Standard Size

Nickel U Shaped Capillary Tube Size

Capillary Tube Manufacturer In India Offers Cost-Effective Custom Sizes.

O.D. Nominal Pipe Size Wall Thickness I.D.
M DWV K L M DWV K L
3/8in 1/4in - - 0.035 0.030 - - 0.305 0.315
3-1/8in 3in 0.072 0.045 0.109 0.090 2.981 3.030 2.907 2.945
1/2in 3/8in 0.025 - 0.049 0.035 0.450 - 0.402 0.430
5/8in 1/2in 0.028 - 0.049 0.040 0.569 - 0.527 0.545
7/8in 3/4in 0.032 - 0.065 0.045 0.811 - 0.745 0.785
1-1/8in 1in 0.035 - 0.065 0.050 1.055 - 0.995 1.025
3/4in 5/8in - - 0.049 0.042 - - 0.652 0.666
1-3/8in 1-1/4in 0.042 0.040 0.065 0.055 1.291 1.295 1.245 1.265
2-1/8in 2in 0.058 0.042 0.083 0.070 2.009 2.041 1.959 1.985
2-5/8in 2-1/2in 0.065 - 0.095 0.080 2.495 - 2.435 2.465
1-5/8in 1-1/2in 0.049 0.042 0.072 0.060 1.527 1.541 1.481 1.505

Stainless Steel Capillary Tube Diameter

ID OD Temper Rating Max. Pressure Wall Thick.
0.012in 1/16in Hard 7,000 psi @ 72° F 0.025in
0.042in 1/16in 7,000 psi @ 72° F 0.01in
0.022in 1/16in 7,000 psi @ 72° F 0.02in
0.052in 1/16in 5,000 psi @ 72° F 0.005in
0.032in 1/16in 7,000 psi @ 72° F 0.015in

Glass Capillary Tube Wall Thickness

Capillary Tube Supplier In India Provides High-Quality Products.

Gauge Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm Regular Wall (RW) mm Thin Wall (TW) mm
25  -  - 0.115 – 0.140 0.089 – 0.114
19 0.070 – 0.108  - 0.166 – 0.216 0.102 – 0.140
14 0.114 – 0.165 0.076 – 0.134 0.216 – 0.292 0.165 – 0.229
24  - 0.051 – 0.102 0.114 – 0.140 0.089 – 0.114
23  - 0.051 – 0.102 0.140 – 0.165 0.089 – 0.114
22 0.077 – 0.102 0.051 – 0.102 0.140 – 0.165 0.096 – 0.121
21  - 0.051 – 0.102 0.140 – 0.165 0.102 – 0.127
26  -  - 0.089 – 0.114  -
30  -  - 0.064 – 0.089  -
16 0.096 – 0.133 0.070 – 0.121 0.204 – 0.254 0.127 – 0.165
15 0.096 – 0.134 0.070 – 0.121 0.204 – 0.254 0.127 – 0.165
29  -  - 0.064 – 0.089  -
18 0.083 – 0.121 0.051 – 0.102 0.191 – 0.241 0.127 – 0.165
27  -  - 0.089 – 0.115 0.064 – 0.089
28  -  - 0.076 – 0.102  -
20  -  - 0.108 – 0.165 0.108 – 0.134
17 0.083 – 0.127 0.057 – 0.102 0.177 – 0.229 0.115 – 0.152

Supplier Of Carbon Steel Micro Capillary Tube According To European Mills

Carbon Steel Micro Capillary Tube Equivalent

Material UNS NO WNR
SS 304L S30403 1.4306
SS 316L S31603 1.4404
SS 304 S30400 1.4301
SS 316 S31600 1.4436

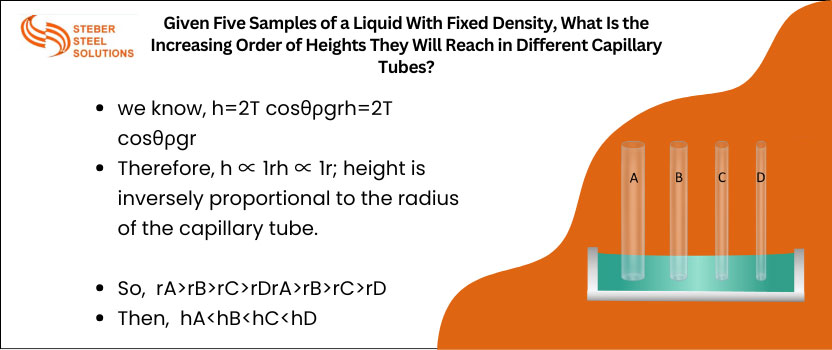

Given Five Samples of a Liquid With Fixed Density, What Is the Increasing Order of Heights They Will Reach in Different Capillary Tubes?

Given Five Samples of a Liquid With Fixed Density, What Is the Increasing Order of Heights They Will Reach in Different Capillary Tubes?

SS Needle Tubing Tolerance

Capillary Tube Supplier In India Delivers Products With Precise Tolerances.

Production name OD/mm OD tolerance/mm W.T tolerance/mm
Capillary tube 6.0-10.0 -0.03 -0.02
2.0-6.0 -0.02 -0.02
0.8-2.0 -0.02 -0.01
super capillary tube <0.8 +-0.02/or samler +-0.01/or smaller

Plain Capillary Tube Pressure Rating

AVE. WALL INCHES MIN YIELD STRENGTH (PSI) THEORETICAL YIELD POINT ** (PSI) THEORETICAL BURST PRESSURE * (PSI) COLLAPSE PRESSURE *** (PSI) MIN TENSILE STRENGTH (PSI) WORKING PRESSURE (PSI) 25% OF BURST
0.250 0.020 3,571 75,000 5,714 30,000 14,286 4,416
0.028 5,412 8,660 21,649 5,967
0.035 7,292 11,667 29,167 7,224
0.049 12,089 19,342 48,355 9,455
0.065 20,313 32,500 81,250 11,544
0.375 0.020 2,239 3,582 8,955 3,029
0.500 0.083 9,319 14,910 37,275 8,307
0.625 0.020 1,282 2,051 5,128 1,859
0.028 1,845 2,953 7,381 2,568
0.035 2,365 3,784 9,459 3,172
0.049 3,487 5,579 13,947 4,335
0.065 4,924 7,879 19,697 5,591
0.083 6,781 10,850 27,124 6,910
0.095 8,190 13,103 32,759 7,734
0.109 10,043 16,069 40,172 8,639
0.750 0.028 1,513 2,421 6,052 2,156
0.035 1,930 3,088 7,721 2,669
0.049 2,818 4,509 11,273 3,664
0.065 3,931 6,290 15,726 4,749
0.049 30,000 3,784 9,459 3,172 75,000 2,365
0.875 0.065 3,272 75,000 5,235 30,000 13,087 4,126
0.083 4,390 7,024 17,560 5,152
0.095 5,201 8,321 20,803 5,807
0.109 6,221 9,954 24,886 6,543
0.120 7,087 11,339 28,346 7,100

Oil Pressure Gauge Capillary Tube Advantages and Benefits

  • Precision in Fluid Movement
  • No Need for External Power
  • Versatility
  • Low Cost
  • Compact Design

The Transitional and Laminar Flow Capillary Nozzle

The Transitional and Laminar Flow Capillary Nozzle

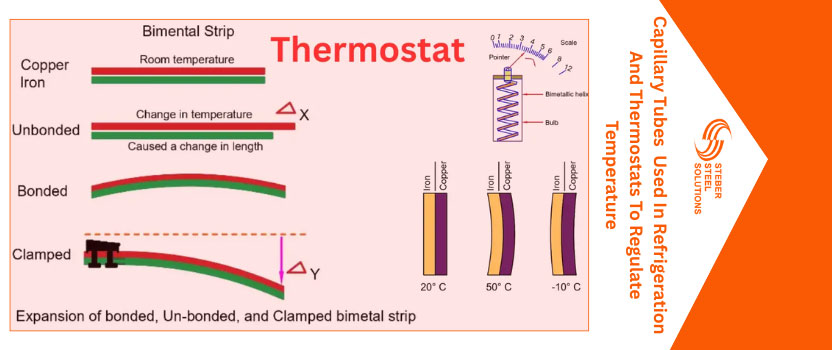

Copper Bimetallic Capillary Tubes Widely Used In Refrigeration And Thermostats To Regulate Temperature

Capillary Tubes Used In Refrigeration And Thermostats To Regulate Temperature

Capillary Tubes Used In Refrigeration And Thermostats To Regulate Temperature

SS Micro Tubing HSN Code

Grade HSN Code
Capillary Tube 74111000

Hypodermic Tubing Gauge Chart

Gauge OD Wall Thickness Inner Diameter
10 TW .133/.135 0.010 .122/.116
3 STD .258/.260 0.015 .226/.232
5 TW .218/.220 0.010 .196/.200
11 STD .119/.121 0.013 .092/.096
11 TW .119/.121 0.013 .092/.096
6 STD .202/.204 0.015 .170/.1765
6 V .187/.189 0.010 .165/.171
10 STD .133/.135 0.014 .104/.108
7 STD .179/.181 0.015 .147/.153
7 TW .179/.181 0.010 .158/.162
7 V .171/.173 0.011 .147/.153
8 STD .164/.166 0.015 .132/.138
6 TW .202/.204 0.010 .180/.186
8 TW .164/.166 0.010 .143/.147
4 STD .236/.240 0.020 .195/.201
5 STD .218/.220 0.015 .187/.191
8 V .155/.157 0.010 .133/.139
9 V .140/.142 0.011 .117/.121
9 STD .147/.149 0.015 .115/.121
9 TW .147/.149 0.010 .126/.130
8 XTW .164/.166 0.009 .145/.149
9 XTW .147/.149 0.006 .134/.138
10 XTW .133/.135 0.008 .1165/.120
10 V .125/.127 0.010 .104/.108
11 XTW .119/.121 0.007 .104/.108

When Does a Liquid Rise in a Capillary Tube?

  • If the contact angle (θ) is less than 90°
  • Then cos θ is positive
  • This makes the capillary rise (h) greater than 0
  • The liquid rises in the tube
  • The liquid wets the inner surface of the tube

HVAC Capillary Tube Value Added Process

  • Edge Preparation
  • Bending
  • Cutting to Length
  • Shearing
  • Sawing
  • Welding
  • Mechanical Processing
  • Polishing
  • Slitting
  • Blanking

Limits and effects of Partial Pressures of H2S and CO2 on NMR Capillary Tube

Parameter CO₂ Partial Pressure (bar) H₂S Partial Pressure (bar) Effect on Tubing
Moderate 0.1 – 0.5 0.1 – 0.5 Increased risk of stress corrosion cracking (SCC).
Very High ≥ 1.0 ≥ 1.0 Severe corrosion damage; risk of failure.
Low ≤ 0.1 ≤ 0.1 Minimal corrosion risk.
High 0.5 – 1.0 0.5 – 1.0 Significant risk of SCC and pitting.

What is Capillary Action?

What is Capillary Action?
Buy Ready Stock Of Titanium Grade 5 Plain Capillary Tube As Per International Standard

Various Types Of Capillary Tube

Capillary Tube Supplier in India Offers a Variety of the Most Popular Types

Refrigerator Capillary Tube

Refrigerator Capillary Tube

U Shaped Capillary Tube

U Shaped Capillary Tube

Plain Capillary Tube

Plain Capillary Tube

HVAC Capillary Tube

HVAC Capillary Tube

Compressor Capillary Tube

Compressor Capillary Tube

NMR Capillary Tube

NMR Capillary Tube

Micro Capillary Tube

Micro Capillary Tube

Microhematocrit Capillary Tube

Microhematocrit Capillary Tube

Stainless Steel Capillary Tubes

Stainless Steel Capillary Tubes

Plastic Capillary Tubes

Plastic Capillary Tubes

Bimetallic Capillary Tubes

Bimetallic Capillary Tubes

NMR Capillary Tube Chemical Composition

Grades Mo Ni P Mn Cr S C Si
SS 304 – 8.0-11.0 0.045 2 18.0-20.0 0.03 0.08 1
SS 304L – 8.0-13.0 0.035
SS 316 2.0-3.0 11.0-14.0 16.0-18.0 0.08
SS 316L 10.0-14.0 0.035

Micro Capillary Tube Mechanical Properties

Material Temperure Tensile Strength Yield Strength Elongation
Min. º F(º C) Ksi (MPa), Min. Ksi (MPa), Min. %, Min
TP 304L 1900 (1040) 70(485) 25(170) 35
TP 316L 70(485) 25(170)
TP 304 75(515) 30(205)
TP 316 75(515) 30(205)

Applications Of ASTM A269 TP316 Capillary Tube

Applications Of ASTM A269 TP316 Capillary Tube

Offers Ex Extock of Bimetallic Capillary Tubes in Following Brands

Supplier of Capillary Tube Manufacturer in India keep ready stock in Outokumpo, Posco brands

Jindal

Jindal

Nippon Steel

Nippon Steel

Aperam

Aperam

Thyssenkrupp

Thyssenkrupp

Tisco

Tisco

Arcelormittal

Arcelormittal

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

Stainless Steel Capillary Tubes Temper Selection

Capillary Tube Temper Type Tensile Strength Description
Annealed < 120,000 Psi Soft &highly formable.
1/2 Hard ≈ 120,000 to 140,000 Psi Moderate strength & formability.
3/4 Hard ≈ 140,000 to 160,000 Psi Heat treated for strength & ductility.
Full Hard ≈ 170,000 Psi Max hardness after cold drawing.
Needle Hard Cold worked condition for needle use.
