Heat Exchanger Tube Manufacturer in India

Heat Exchanger Tube

Heat Exchanger Tube Highlights
Sizes: 6.53 to 127 MM
Wall Thickness 1.5 to 6.0MM
Length 6 to 25 Meter
Outside Daimeter 12.7 - 127 MM
Standards
  • ASTM A178
  • ASME SA 178
  • ASME SA 209
  • ASME SA 213
  • ASME SB 423
  • ASTM E1955/M
Advantages Close Tolerances
Ends Plain / Bevel Ends
MTC EN 10204 3.1 & 3.2

ASTM A179 Tubes Supplier in India As Per International Standard

Heat Exchanger Tube

Heat Exchanger Tube

ASTM A179 U Tube

ASTM A179 U Tube

Stainless Steel Finned Tubes

Stainless Steel Finned Tubes


Table of Contents

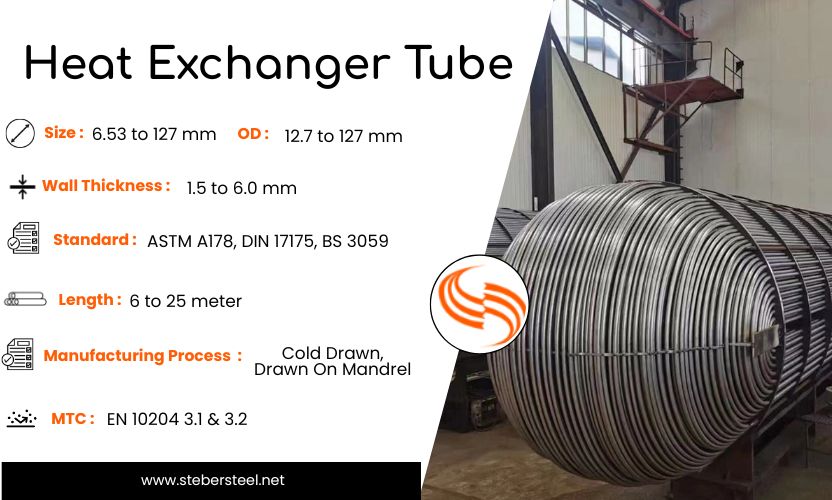

Heat Exchanger Tube Specification

Heat Exchanger Tube Sizes

  • 6.53 to 127 MM


Sizes

ASTM A179 U Tube Length

  • 6 to 25 meter


Length

Stainless Steel Finned Tubes Wall Thickness

  • 1.5 to 6.0 MM


Wall Thickness

Carbon Steel Precision Tubes Testing

  • Nondestructive Test
  • Flattening Test
  • Bend Test
  • Flattening Test
  • Radiography Test
  • Hardness Test
  • Tensile Mechanical Test
Testing

Stainless Steel 304 Seamless U Tube Delivery Condition

  • Cold Drawn
  • Pickled (AP)
  • Bright Annealed (BA)
  • Annealed
  • MF
  • Polished
Delivery Condition

Ni High Temperature Superheater Tube Certificates

  • MTC EN 10204 as per 3.1/ 3.2
  • Raw Materials Certificate
  • DFARS Compliant
  • Invoice
  • Third Party Inspection Report

Certificates

SS Reheater Tubes Standard

  • ASTM A178
  • ASME SA 178
  • ASME SA 209
  • ASME SA 213
  • ASME SB 423
  • ASTM E1955/M
  • ASTM E1032
Standard

Titanium grade 5 Fire Tube Heat Exchanger Packaging

  • Custom Packing
  • Crates
  • Rapped in Plastic
  • Wooden Boxes


Packaging

ASTM A106 Gr B Tube and Fin Condenser Manufacturing Technique

  • Hot Rolled
  • Cold Drawn
  • Cold Rolled



Manufacturing Technique

Nickel 200 Superheater Tubes Marking

  • Manufacturer Name/ Logo
  • Schedule or Wall Thickness
  • Specification
  • Nominal Size
  • Method of Manufacturing
  • Material Grade

Marking

C101 Shell and Coil Evaporator Origin

  • American
  • Janpanese
  • European
  • Russia



Origin

Titanium grade 2 Steam Generator Tubes Processing Service

  • Moulding
  • Decoiling
  • Bending
  • Cutting
  • Welding
  • Punching
Processing Service

Stainless Steel Heat Exchanger Tube Grades

  • 301
  • 304
  • 304L
  • 316L
  • 310
  • 316
  • 310S

Grades

Carbon Steel Heat Exchanger Tube Grades

  • ASTM A106 Gr. B
  • ASTM A53 B
  • ASTM A179
  • ASTM A333
  • ASTM A192
  • API 5L Gr B


Grades

Titanium Heat Exchanger Tube Grades

  • Titanium GR-1
  • Titanium GR-9
  • Titanium grade 2
  • Titanium GR-3
  • Titanium GR-7
  • Titanium GR-4
  • Titanium GR-12
  • Titanium grade 5
Grades

Nickel Alloy Heat Exchanger Tube Grades

  • Nickel 200
  • Nickel 201


Grades

Copper Steel Heat Exchanger Tube Grades

  • C101
  • C103
  • C106
  • C110
Grades

C110 Shell Tube Condenser Application

  • Fossil Fuel Plants
  • Steam Boilers
  • Heat Exchangers
  • Economiser
Application

Stainless Steel Finned Tubes Used For Heating And Cooling Of Fluids In Various Industries

Applications of Heat Exchanger Tube

Applications of Heat Exchanger Tube

Ready Stock Of Carbon Steel Precision Tubes Size Range 12.70 To 38.10 mm OD

ASTM A53 Gr B Double Tube Condenser Size Chart

Heat Exchanger Tube Manufacturer in India Provides A Large Selection Of Sizes

Nominal Size in (MM) Size Range in (Inches)
Outside Daimeter × Wall Thickness Outside Daimeter × Inside Daimeter × Wall
38.00 * 3.00 32.00
30.00 * 1.00 28.00
28.00 * 1.00 26.00
25.00 * 1.00 23.00
22.00 * 1.50 19.00
20.00 * 1.00 18.00
19.05 * 1.24 3/4 × 16.57 * 0.049
18.00 * 1.00 16.00
16.00 * 1.00 14.00
15.00 * 1.00 13.00
14.00 * 1.00 12.00
12.00 * 1.00 10.00
10.00 * 1.00 8.00
8.00 * 1.00 6.00
Nickel Alloy Shell And Tube Heat Exchanger Has Capacitive And Recuperative Construction Methods

Construction Methods of Nickel 200 Superheater Tubes

  • Components & Materials Used
  • Capacitive Heat Exchangers
  • Recuperative Heat Exchangers
Stockist Of Ti Straight Tube Heat Exchanger Provide High-efficient and Deep Drilling to Improve Production

Benifits of Titanium Straight Tube Heat Exchanger

  • Good Corrosion Resistance
  • Suitable for Low to Medium-pressure Applications
  • High Heat Transfer Efficiency
  • Moderate Strength Compared to Sa 210 Tube

Carbon Steel Precision Tubes Gauge Chart

OD (Outside Diameter) Gauge ( BWG )
10 11 12 13 14 15 16 18 20
(Inches) (Millimeter) Weight in kg/m -
5/16 0.313 7.950 – – – – – 0.28 0.25 0.21 0.15
5/8 0.625 15,875 – 0.97 0.89 0.80 0.71 0.64 0.58 0.45 0.33
3 1/2 3.500 88.900 7.17 6.44 5.86 5.15 4.51 3.93 3.56 2.69 –
3 3.000 76.200 6.10 5.49 5.00 4.39 3.85 3.35 3.04 2.31 –
3/4 0.750 19.050 1.31 1.20 1.12 0.98 0.88 0.77 0.72 0.55 0.40
2 3/8 2.375 60.325 4.78 4.30 3.93 3.44 3.02 2.63 2.38 1.81 –
2 1/4 2.250 57.150 4.51 4.06 3.70 3.26 2.87 2.48 2.26 1.73 –
2 1/2 2.500 63.500 5.04 4.54 4.14 3.66 3.18 2.78 2.52 1.91 –
2 2.000 50.800 3.97 3.59 3.27 2.89 2.53 2.20 1.99 1.52 –
1 3/4 1.750 44.450 3.44 3.10 2.84 2.50 2.20 1.92 1.74 1.32 0.97
1 1/4 1.250 31.750 2.40 2.16 1.96 1.76 1.53 1.35 1.23 0.94 0.68
1 1/8 1.125 28.575 2.11 1.92 1.76 1.56 1.37 1.21 1.10 0.83 0.61
1 1/2 1.500 38.100 2.92 2.63 2.40 2.17 1.87 1.64 1.49 1.13 0.82
1 1.000 25.400 1.92 1.68 1.55 1.37 1.21 1.06 0.97 0.74 0.54
1/4 0.250 6,350 – – – – – – 0.19 0.16 0.12

Titanium grade 5 Fire Tube Heat Exchanger Weight Chart

Outside Daimeter in (inches) Weight in Ft. Gage
1 0.686 16
1-1/2 1.769 12
1-1/2 1.619 13
1-1/4 1.448 12
1-1/4 1.328 13
2 2.409 12
2 2.201 13
2-1/2 5.047 7
2-1/2 3.859 10
2-1/2 3.600 11
2-1/2 3.050 12
3/4 0.534 16
3 4.652 10
3 4.189 11
3 3.691 12
3-1/4 6.697 7
3-1/4 5.092 10
3-1/2 5.127 11
4 6.326 10
5/8 0.435 16

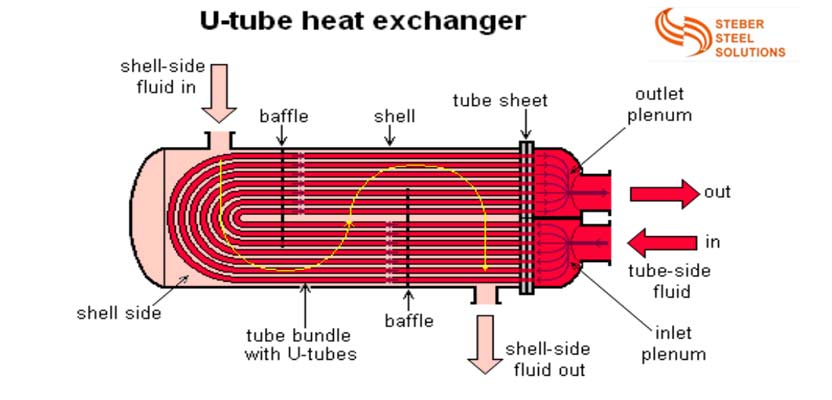

U Tube Heat Exchanger Design

U Tube Heat Exchanger Design

ASTM A106 Gr B Tube and Fin Condenser Tolerances Chart

Standards OD Sizes in (Inches) Tolerances Chart
Wall Thickness (W.T) Outer Diameter (O.D.)
Minus (-) Plus (+) Minus (-) Plus (+)
  4.001 to 5.000 0% 22% .025" .015"
  3.000 to 4.000 0% 22% .015" .015"
Min. Wall 2.500 to 2.999 0% 22% .012" .012"
Heat Exchanger Tube 2.000 to 2.499 0% 22% .010" .010"
Cold Finished Seamless 1.501 to 1.999 0% 22% .008" .008"
ASME-SA-213 1.000 to 1.500 0% 20% .005" .006"
ASTM-A-213 Under 1.000 0% 20% .004" .004"

Working Pressure of Ni High Temperature Superheater Tube

Heat Dissipated Dim. C (mm) Dim. B (mm) Dim. A Oil Flow Water Flow Weight
(kW) (Millimeter) (Millimeter) (Millimeter) (l/min) (l/min) (kg)
871 273 1826 2240 750 790 244
624 273 1318 1732 740 900 198
536 219 1866 2230 460 480 164
358 273 810 1224 920 1000 148
354 219 1358 1722 500 520 133
224 219 850 1214 550 650 101
223 273 430 844 960 1100 114
196 168 1886 2180 300 280 104
144 168 1378 1672 330 310 78
140 219 470 834 580 740 79
133 141 1398 1652 180 220 62
100 168 870 1164 390 360 60
82 141 890 1134 210 250 45
66 168 490 784 480 460 44
52 141 510 764 240 320 30
48 114 1408 1652 150 120 38
35 114 900 1144 170 140 27
22 89 920 1114 90 75 20
22 114 520 764 180 140 21
15 89 540 734 110 85 15
9 89 266 460 120 120 11

Material Grade List of Heat Exchanger Tube

Material ASTM Grades
Nickel Alloy Condenser Tube ASTM B163
  • Alloy 201
  • Alloy 200
Alloy Steel U Tube ASTM A213
  • T2
  • T5
  • T9
  • T11
  • T12
  • T23
  • T91
  • SA213-T22 Steel Tubes
Stainless Steel Boiler Tube ASTM A213 TP321/321H
  • 304/304L,304H, 304LN
  • 310S, 310H
  • 316/316L, 316H, 316Ti, 316LN
  • 317/317L
  • 321
  • 347, 347H, 347HFG

Nickel Alloy Shell Tube Electrodes Types

  • Mild Steel Electrode
  • Tungsten Electrode
  • E6013 Electrodes
  • 8018 Welding Rod
  • SMAW Electrode

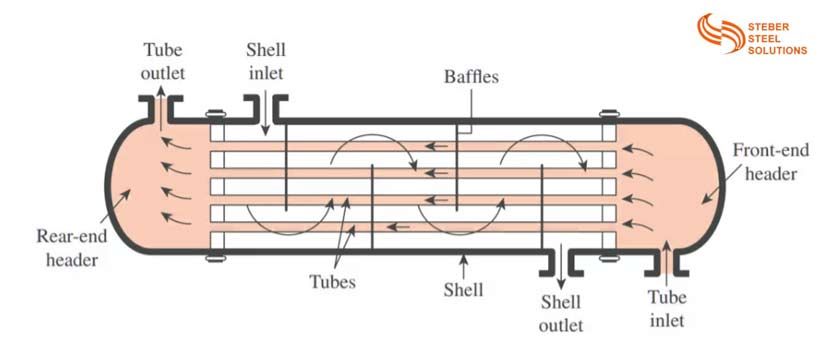

Components of Shell Tube and Fire Tube Heat Exchanger

Components of Shell Tube and Fire Tube Heat Exchanger
  • Shell
  • Tubes or Tube Bundle
  • Baffles
  • Tube Sheets
  • Inlet and Outlet Nozzles
  • Support Structures
  • Expansion Joints

Stainless Steel 304 Seamless U Tube Thickness Chart

OD (Outside Diameter) Wall Thickness
BWG (Inches) 20 18 16 14 13 12 11 10 9 8 7 6 5
[Millimeter] [Inches] [Millimeter] 0,89 1,24 1,65 2,11 2,41 2,77 3,05 3,40 3,76 4,19 4,57 5,16 5,59
76,20 3.000 kg/m  –  –  – 3,855 4,385 5,016 5,502 6,104 6,717 7,440 8,072 9,040 9,734
63,50 2.500  –  – 2,517 3,194 3,631 4,148 4,547 5,039 5,539 6,128 6,641 7,424 7,983
50,80 2.000  –  – 2,000 2,533 2,876 3,281 3,591 3,974 4,362 4,816 5,210 5,807 6,232
38,10 1.500  – 1,127 1,483 1,870 2,121 2,413 2,636 2,909 3,184 3,504 3,779 4,191 4,481
31,75 1.250  – 0,933 1,225 1,542 1,744 1,980 2,159 2,377 2,595 2,848 3,063 3,383 3,606
25,40 1.000  – 0,740 0,966 1,212 1,366 1,550 1,681 1,845 2,006 2,192 2,347  –  –
22,23 .875  – 0,643 0,836 1,045 1,177 1,326 1,439 1,577  –  –  –  –  –
19,05 .750 0,398 0,547 0,708 0,881 0,989 1,110 1,203 1,312 1,418  –  –  –  –
12,70 .500 0,259 0,351 0,450 0,551 0,612 0,678 0,726 0,780 0,829  –  –  –  –
15,88 .625 0,328 0,447 0,579 0,716 0,801 0,897 0,965 1,046 1,124  –  –  –  –

Types of Heat Exchanger Tube

Heat Exchanger Tube Supplier in India Offers a Different Types of Generally Used Tubes

Carbon Steel Precision Tubes

Carbon Steel Precision Tubes

Nickel Alloy Shell Tube

Nickel Alloy Shell Tube

Ti Straight Tube

Ti Straight Tube

SS Reheater Tubes

SS Reheater Tubes

Stainless Steel 304 Seamless U Tube

Stainless Steel 304 Seamless U Tube

316 SS Evaporator Tubes

316 SS Evaporator Tubes

Ni High Temperature Superheater Tube

Ni High Temperature Superheater Tube

Nickel 200 Superheater Tubes

Nickel 200 Superheater Tubes

Nickel 201 Solution Anneal Condenser Tube

Nickel 201 Solution Anneal Condenser Tube

Carbon Steel Super Heater Tube

Carbon Steel Super Heater Tube

ASTM A53 Gr B Double Tube Condenser

ASTM A53 Gr B Double Tube Condenser

ASTM A106 Gr B Tube and Fin Condenser

ASTM A106 Gr B Tube and Fin Condenser

Copper Heat Transfer Tube

Copper Heat Transfer Tube

C101 Shell and Coil Evaporator

C101 Shell and Coil Evaporator

C110 Shell Tube Condenser

C110 Shell Tube Condenser

Titanium Straight Tube Heat Exchanger

Titanium Straight Tube Heat Exchanger

Titanium grade 2 Steam Generator Tubes

Titanium grade 2 Steam Generator Tubes

Titanium grade 5 Fire Tube Heat Exchanger

Titanium grade 5 Fire Tube Heat Exchanger

316 SS Evaporator Tubes Surface Finishes

  • Bright
  • Polished
  • Smooth Finish
  • Annealing
  • Pickling

Equivalent Material of Stainless Steel Finned Tubes

Type of Stainless Steel ASTM Equivalent Standard
Grads (TP) UNS Afnor (NF) JIS EN / Din
Ferritic 430 S43000 Z 10 C 17 SUS 430 1.4016
410 S41000 Z 12 C 13 SUS 410 1.4002
405 S40500 Z 6 CAL 13 SUS 405 1.4002
Austenitic 304 S30400 Z 6 CN 18.09 SUS 304 1.4301
304H S30409 Z 6 CN 19.10 SUS 304H 1.4948
304L S30403 Z 2 CN 18.10 SUS 304L 1.4306
316 S31600 Z 6 CND 17.11 SUS 316 1.4401
316Ti S31635 Z 2 CND 17.12 – 1.4571
316L S31603 Z 2 CND 17.12 SUS 316L 1.4404
316H S31609 Z 10 CND 18.10 SUS 316H 1.4919
321 S32100 Z 6 CNT 18.10 SUS 321 1.4541
321H S32109 Z 10 CND 18.10 SUS 321H 1.4941
347 S34700 Z 6 CNNb 18.10 SUS 347 1.455

ASTM A213 T22 Evaporator Tubing Chemical Composition

Elements C, % Si, % Cr, % P, % Mo, % S, % Mn, %
Values 0.05 - 0.15 0.50 max 1.90 - 2.60 0.025 max 0.87 - 1.13 0.025 max 0.30 - 0.60

Stainless Steel Finned Tubes Inspection Methods

Stainless Steel Finned Tubes Inspection Methods

Mechanical Properties of ASTM A213 T22 Steam Generator Tubes

Heat Exchanger Tube Manufacturer in India Provides Premium Quality Tubes With Excellent Mechanical Properties

Tensile Strength, in MPa Yield Strength, in MPa Elongation, in % Hardness, in HB
415 Min 205 Min 30 Min 163 Max

Carbon Steel Super Heater Tube Leak Tester

  • G-160 Tube Testing Tool
  • G-250 Vacuum Tube Testing Tool
  • G-650 Joint Testing Tool

Heat Exchanger Tube HSN Code

Material HSN Code
Heat Exchanger Tube 84195010

Factors to Consider While Selecting a SS Reheater Tubes

  • Both the Temperature and the Flow Rates
  • Primary & Secondary Circuit Liquid Types

Tips for Selecting the Best Heat Exchanger for Your Requirements

Tips for Selecting the Best Heat Exchanger for Your Requirements

Advantages and Disadvantages of ASTM A179 U Tube

Advantages Disadvantages
Fins Increase the Outside Surface Area of the Tube Maintenance & Cleaning of the External Surfaces of the Tubes
Heat Is Able to Travel Through the Tube Wall Is Exclusively Used for Chemical Cleaning
A Fin Tube Heat Exchanger Offers Good Air Heat Exchanger Efficiency Mechanical Cleaning is Very Difficult Because of the Fins

Deliver Heat Exchanger Tube Ex Stock to the Countries Below

Country Name Flag Country Name Flag
Nigeria Nigeria Algeria Algeria
Ghana Ghana Zambia Zambia
South Africa South Africa Tunisia Tunisia
Dubai Dubai Morocco Morocco
Angola Angola Kenya Kenya
Tanzania Tanzania UAE UAE
Ethiopia Ethiopia Egypt Egypt
