Steber Steel Solutions

Clad Plate

Clad Plate

Clad Plate Quick Information
Thickness   6-150 mm
Length 15,000 max
Manufacturing Process Cold / Hot formed
Standards JIS G 3601, ASTM A264, SA-264, ASTM A265, SA-265

Supplier of SA 240 Grade 304 Plate in India

Clad Plate

Clad Plate

Hot Roll Bonded Clad Steel Plate

Hot Roll Bonded Clad Steel Plate

High Strength Clad Steel Plate

High Strength Clad Steel Plate

Table of Contents


Clad Plate Specification

Hot Roll Bonded Clad Steel Plate Thickness Range

  • 10-40 mm,6-70 mm
  • 6-150 mm
Thickness

Clad Plate Widths

  • 3,800 mm max



Widths

Clad Steel Plate Length

  • 15,000 max.



Length

Cladded Steel Plates Welding Method

  • TIG welding
  • Resistance welding
  • MIG welding


Welding Method

Explosion Bonded Clad Plate Surface Treatment

  • Color coated
  • PVC coated
  • Coated
  • Galvanised
  • Film coated
Surface

Cladded Wear Plate Bending Method

  • Rotary bending
  • Roll bending
  • Press braking


Bending

Cladding Pressure Plate Origin

  • Japanese
  • Taiwan
  • Indian
  • European
  • US
  • Korea
  • Thailand
Origin

Hot Roll Bonded Clad Steel Plate Markings

  • Material grade
  • Manufacturing date
  • ASTM/ ASME standard
  • Origin of material
  • Manufacturer logo / name
  • Sizes

Markings

Clad Steel Plate Standard

  • ASTM A264
  • ASTM A265
  • JIS G 3601
  • ASTM A263, SA-263




Standard

Cladding Material Plate Manufacturing Process

  • Cold
  • Hot formed


Manufacturing Process

Clad Layer

  • Stainless Steel
  • Duplex
  • Titanium


Layer

Cladded Plate Cuttings

  • Oxy-propane flame cutting
  • Laser cutting
  • Waterjet cutting
  • Plasma cutting

Cuttings

Stockist of Nippon Steel NAR-160M Three layer Structure Clad Plate in SUS304L Stainless Steel

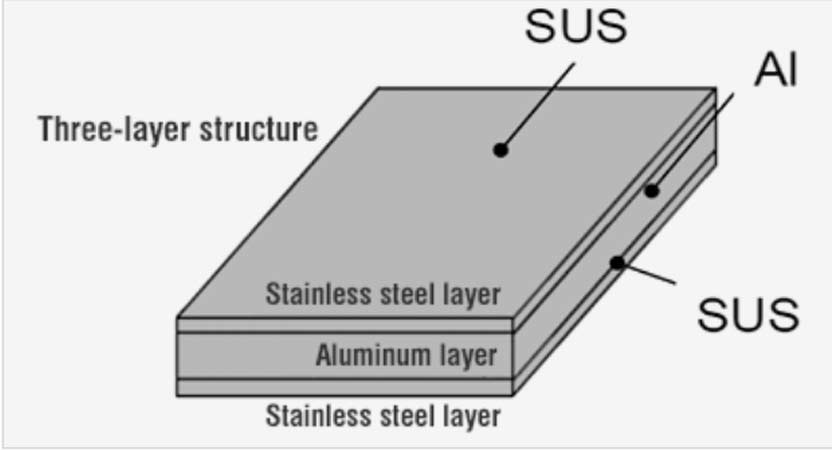

Three layer Structure Clad Plate

Three layer Structure Clad Plates

SUS SUS Al
Three-layer structure NAR-160M SUS304L A1100
Bilayer structure NAR-160M - A1100

Find maximum Thickness and Sizes in Stainless Steel Clad Plates at Mumbai

Stainless Steel Clad Plates Thickness Chart

Thickness   Width (mm)
Total (mm) Cladding material (mm) 1000 – 1500 3801 – 4000 3601 – 3800 3401 – 3600 3201 – 3400 3001 – 3200 2801 – 3000 1501 – 1800 2001 – 2200 1801 – 2000 2601 – 2800 2401 – 2600
90.1   –  100 4  – 12 10.5   4 4.5 5 5.5 6     8.5 6.5 7
80.1   –    90 4  – 12 11.5   4.5   5.5 6 6.5     9.5 7 7.5
70.1   –    80 3.5  – 10 13   5 6 6.5 7 7.5   10.5 11 8 9
60.1   –    70 3  – 10 14   5.5 7 7.5 8 8.5   12 13 9.5 10
50.1   –    60 3  –   9   7 8 9 9.5 10       11 12
40.1   –    50 3  –   8   8 10 10.5 11 12       13
38.1   –    40 2.5  –   8   10.5 12 13
36.1   –    38 2  –   8   11 13
34.1   –    36 2  –   8   12
32.1   –    34 2  –   8 15   12.5           14
30.1   –    32 2  –   8 16   13           15
28.1   –    30 2  –   7 17               16
26.1   –    28 2  –   7                     14
24.1   –    26 2  –   7                   14 15
22.1   –    24 2  –   6           14       15 16
20.1   –    22 2  –   6       14 15 16
18.1   –    20 2  –   6     14 15 16
16.1   –    18 2  –   6 14 15 16
12.1   –    16 1.5  –   6 16
10.1   –    12 1.5  –   5 16
8.1   –    10 1.5  –   4 15
6   –      8 1.5  –   3 13
High Strength Clad Steel Plate stockist in India Keep ready stock of 8mm to 200mm in Thickness, Width 1200 mm and Length 8000 mm

Supplier of Clad Plate are available in Cut to Sizes

High Strength Clad Steel Plate Size Chart

Width ≤500mm
Thickness 3.0~15.0mm
Manufacturer of Clad Plate Produce Tolerances according to ASTM A264 and ASTM A265

Clad Plate Standards

JIS G 3602 Nickel and nickel alloy clad steel plate
JIS G 3601 Stainless clad steel plate
JIS G 3603 Titanium Clad steel plate
ASTM A264/ SA-264 Stainless Chromium Steel-Clad Plate
ASTM A263/ SA-263 Stainless Chromium Steel-Clad Plate
ASTM A265/ SA-265

Nickel And Nickel-Base Alloy Clad Steel Plate

Various Types Of Clad Steel Plate

Clad Plate Supplier in India offers various Forms as per ASTM A264

Cladded Steel Plates

Cladded Steel Plates

SS Clad Plates

SS Clad Plates

Cladding Material Plate

Cladding Material Plate

Cladded Base Metal Plate

Cladded Base Metal Plate

Cladding Pressure Plate

Cladding Pressure Plate

Cladded Wear Plate

Cladded Wear Plate

Stainless Clad Steel Plate Shear Strength

Code Shaping Method UST Result (JIS G 0601) Before Shaping After Shaping
Crown Knuckle Flange
A1 Cold-press Good 338 340 365 366
A2 Cold-spinning 363 368 373
B1 Cold-press 352 357 364 372

High Strength Clad Steel Plate Temperature Range

Supplier of High Strength Clad Steel Plate withstands Excelllent temperature

Cladding material Base metal Temperature˚C
Austenitic stainless steel Low-carbon steel Non-quenched / tempered high tensile steel Cr-Mo steel 880±50
Chromium-base stainless steel 850±50

Cold-shaping Test of Stainless Clad Steel Plate

Code Material Shaping Method Plate Thickness (mm) Inner Diameter (mm) Type Height (mm) Flange Length (mm)
A1 SS400
SUS304		 Cold-press 12(10+2) 900 Regular half-ellipse 263 38
A2 〃 Cold-spinning 〃 〃 〃 〃 〃
B1 SM400B
SUS316		 Cold-press 16(13+3) 〃 〃 〃 〃

Clad Plate HSN Code

HS CODE 73269099

Cladded Wear Plate Hardness

Hardness 1500HV

Clad Plate Manfacturing Process

Clad Plate Manfacturing Process

Flatness Tolerance of Cladded Wear Plate

Flatness Tolerance ±3mm/M

Wear Properties of Explosion Bonded Clad Plate

HARDBANDING ALLOY HARDNESS (Rc) ASTM G65 -- WEIGHT LOSS
10+10-2 64.0 0.149 g/6000 revs
10+10-4 63.7 0.183 g/6000 revs
10+10-8 64.7 0.162 g/6000 revs

Dimensions of Clad Plate

Clad Plate Supplier offers variety of Dimensions

Coating material  Ferrites, austenites Copper and nickel alloys
Total thickness: 6-150 mm 6-65 mm
Widths: 3,800 mm max. 3,800 mm max.
Clad plate thickness: 1.5-10 mm 1.5-10 mm
Unit weight 2–18 tons 2–9 tons
Length: 15,000 max. (12,400 mm Q+T max.) 15,000 max. (max. 12,400 mm Q + T)
Surface area: At least 6 m² At least 6 m²

Clad Stainless Steel Plate Testings

  • Tensile Test
  • Ultrasonic Test
  • Bend Test
  • Corrosion Test
  • Shear Strength

Clad Steel Plate Applications

Clad Steel Plate Applications

Cold Rolled Clad Plates Chemical Composition

Type Si (max.) C (max.) S (max.) Mn (max.) P (max.) Cr (%) Ni (%) N (max.) Mo (%) Nb Ti
304 0.75 0.07 0.030 2.00 0.045 17.5–19.5 8.0–10.5 ≤0.10 - - -
304L 0.75 0.030 0.030 2.00 0.045 17.5–19.5 8.0–12.0 ≤0.10 - - -
316 0.75 0.08 0.030 2.00 0.045 16.0–18.0 10.0–14.0 ≤0.10 2.00–3.00 - -
316L 0.75 0.030 0.030 2.00 0.045 16.0–18.0 10.0–14.0 ≤0.10 2.00–3.00 - -
317 0.75 0.08 0.030 2.00 0.045 18.0–20.0 11.0–15.0 ≤0.10 3.0–4.0 - -
317L 0.75 0.030 0.030 2.00 0.045 18.0–20.0 11.0–15.0 ≤0.10 3.0–4.0 - -
321 0.75 0.08 0.030 2.00 0.045 17.0–19.0 9.0–12.0 ≤0.10 - - Min: 5x(C+N)% Max: 0.70
347 0.75 0.08 0.030 2.00 0.045 17.0–19.0 9.0–13.0 - - Min: 10xC% Max: -
