Titanium Sheet

Titanium Sheet

Titanium Sheet Highlights
Sheet Thickness 0.02 to 4.0 mm
Plate Thickness 4.5 to 100 mm
Welding Electrode Flat Tipped Tungsten Electrode
Cutting Method Water Jet Cutting
Forms Sheet,Coil,Shim Sheet,Plate, Strip, Foil
Process Edging, Grinding, Deburring
MTC Certificate EN 10204 3.1 & 3.2

Pure Titanium Plate Manufacturer in India Provide in Cut To Size To Avoid Wasteage

Titanium Sheet

Titanium Sheet

Ti Plate

Ti Plate

Pure Titanium Sheet Metal

Pure Titanium Sheet Metal

Table of Contents


Titanium Sheet Specification

Titanium Sheet Size

  • Length: 3000 to 12000 mm
  • Width: 900 to 2400 mm

Size

Ti Plates Thickness

  • Sheet : 0.02 to 4.0 mm
  • Plate : 4.5 to 100 mm

Thickness

Titanium Perforated Sheet Standards

  • ASME SB 265
  • ASTM B265
Standards

4x8 Titanium Sheet Welding Method

  • Resistance welding
  • TIG welding
  • MIG welding


Welding Method

Thin Titanium Sheet Surface Treatment

  • PVC coated
  • Galvanised
  • Color coated
  • Coated
  • Film coated
Surface

Titanium Sheet 1mm Bending Method

  • Bottoming
  • Air bending
  • Coining
  • Roll bending

Bending

2mm Titanium Sheet Edges

  • Slit edge
  • Rolled edge
  • Round
  • Square


Edges

Titanium Alloy Sheet Types

  • Strip
  • Sheet
  • Plate
  • Coil


Types

0.5 Mm Titanium Sheet Origin

  • Taiwan
  • European
  • US
  • Japanese
  • Indian
  • Thailand
  • Korea
Origin

Anodized Titanium Sheet Marking

  • Manufacturing date
  • Origin of material
  • Material grade
  • ASTM/ ASME standard
  • Sizes
  • Manufacturer logo / name



Marking

Titanium Sheet 2mm Services

  • Forming
  • Welding
  • Polish
  • Plate Leveling
  • Beveling
  • Bending
  • Rolling
  • Heat Treatment
  • Forging
  • Shearing
Services

4mm Titanium Sheet Certification

  • Raw materials certificate
  • 100% radiography test report
  • Certificate of origin legalized
  • Third party inspection report
  • EN 10204/3.1B




Certification

Titanium Sheet Stock Packaging

  • Bundles with plastic wrapping
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools


Packaging

Titanium Sheet Plate Cutting

  • Laser
  • Plasma
  • Waterjet
  • Oxy-propane


Cutting

Polished Titanium Sheet Inspection Plan

  • Third party inspection Test
  • Visual inspection Test
  • Mechanical Test
  • Chemical Test


Inspection

Buy Titanium Alloy Strips in Polished, Satin And Bright Annealed Finish

Pure Titanium Sheet Metal Surface Finishes

Finish Ma* Sheet Size mm Thickness mm
Bright 2000 * 1000 0.9
Super Mirror 2400 * 1200, 2500 * 1250 0.8, 1.2
Plain 2B 2000 * 1000 0.9
Embossed 2500 * 1250 0.8, 1.0
Brushed Finish 2000 * 1000, 2500 * 1250 0.9, 1.2

Ti Plate Grade 1 Sheet Size Chart

Titanium Sheet Supplier in India offers an Excellent Sizes.

Grade 1 ASTM B 265 + F67
thickness weight/m2
0.7 mm 3.16 kg
0.8 mm 3.61 kg
2.0 mm 9.02 kg
1.0 mm 4.51 kg
0.5 mm 2.26 kg
0.6 mm 2.71 kg
1.5 mm 6.77 kg
3.0 mm 13.53 kg

Ready Stock Of Titanium Perforated Sheet Available in 0.5, 1, 2 and 3 mm Sizes

Titanium Perforated Sheet Size Chart

Grade State Size (mm) Standard
Grade 2 & Grade 3 Bright 3 * 11 * (500~1000) ASTM F67
3.5 * 12 * (500~1000)
4 * 14 * (500~1000)
Grade 5 THK 3~60 ASTM F136

Process Of Bending Titanium Sheet Metal

Process Of Bending Titanium Sheet Metal

1mm Titanium Sheet Thickness Tolerance

Grade 2, 6AL-4V (Grade 5)
Spec. Thickness, in. Thickness Tol. (over(+)/under(-)) Inch
Over 0.016 to 0.026, incl. +/- 0.003in
Over 0.040 to 0.058, incl. +/- 0.004in
Over 0.058 to 0.072, incl. +/- 0.005in
Over 0.072 to 0.083, incl. +/- 0.005in
Over 0.083 to 0.098, incl. +/- 0.006in
Over 0.026 to 0.040, incl. +/- 0.004in
Over 0.114 to 0.130, incl. +/- 0.008in
Over 0.130 to 0.145, incl. +/- 0.010in
0.1875 to 0.375, excl. +/- 0.045in
0.375 to 0.750, excl. +/- 0.055in
0.750 to 1.000, excl. +/- 0.060in
Over 0.145 to 0.1875, excl. +/- 0.012in
2.000 to 3.000, excl. +/- 0.125in
3.000 to 4.000, excl. +/- 0.175in

Titanium Plate Weight

Thickness Weight( Kg/m2) Size (mm)
- - 2000 * 1000 3000 * 1500 2500 * 1250
3.50 28.00 56.00 126.00 87.50
3.00 24.00 48.00 108.00 75.00
6.50 52.00 104.00 234.00 162.50
2.50 20.00 40.00 90.00 62.50
5.00 40.00 80.00 180.00 125.00
4.25 34.00 68.00 153.00 106.25
2.00 16.00 32.00 72.00 50.00
1.50 12.00 24.00 54.00 37.50
8.00 64.00 128.00 288.00 200.00
2.25 18.00 36.00 81.00 56.25
.1.13 9.04 18.08 40.00 28.25
6.00 48.00 96.00 216.00 150.00
7.00 56.00 112.00 252.00 175.00
1.25 10.00 20.00 45.00 31.25
1.38 72.00 22.03 50.00 34.50
3.25 26.00 52.00 117.00 81.25
7.50 60.00 120.00 270.00 187.50
5.50 44.00 88.00 198.00 137.50
4.50 36.00 72.00 162.00 112.50
4.00 32.00 64.00 144.00 100.00
1.75 14.00 28.00 63.00 43.75
3.75 30.00 60.00 135.00 93.75
2.75 22.00 44.00 99.00 68.75
1.00 8.00 16.00 36.00 25.00

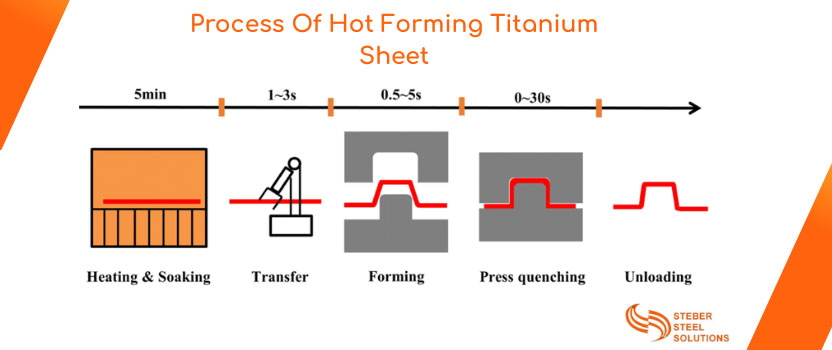

Process Of Hot Forming Titanium Sheet

Process Of Hot Forming Titanium Sheet

Titanium Sheet 0.5mm Features

  • Corrosion-resistant
  • Low Density
  • Lustrous
  • Durability
  • Extreme temperature resistants
Supplier Of Titanium Armor Plate Provide Laser And Water Jet Cutting Process

Cutting Titanium Sheet by Hand

Cutting Titanium Sheet by Hand

Titanium Cold Rolled Plate Laser Cutting Titanium Sheet Thickness

Grades Rolling Delivery States Thickness Range
5, 6 Hot Rolled R M 0.8 < t <4.0
Cold Rolled Y M 4.1 < t < 60
12 Hot Rolled R M 0.5 < t < 4.0
Cold Rolled Y M 4.1 < t < 60
1, 2, 3, 4, 7 Hot Rolled R M 0.3 < t < 4.0
Cold Rolled Y M 4.1 < t < 60

Titanium Sheet Metal HSN Code

Grade HSN Code
Titanium Sheet 810890

Titanium Plate Thickness

Grades Thickness dimensions
6AL-4V ANN, A70, CP1, 75A, A40, CP3,55A 3 mm 500*100
  200*100
  100*100
  1000*1000 (1 m²)
  200*200 or 400*100
  1000*200 or 2000*100
  500*200 or 1000*100
  1000*500 (0,50 m²)
  1000*400 or 2000*200

Various Types Of Ti Shim Stock

Titanium Sheet Supplier in India Offers a Variety of the Most Popular Types

Titanium Metal Coil

Titanium Metal Coil

Titanium Alloy Strip

Titanium Alloy Strip

Pure Titanium Foil

Pure Titanium Foil

Commercially Pure Ti Perforated Sheet

Commercially Pure Ti Perforated Sheet

CP Titanium Hot Rolled Plate

CP Titanium Hot Rolled Plate

Titanium Cold Rolled Plate

Titanium Cold Rolled Plate

Ti Shim Stock

Ti Shim Stock

Titanium Strip Gauge Chart

Titanium Sheet Supplier in India provide accurate Gauge.

Size (mm) Gauge Number Size (Inch)
.3175 30 .0125
3.571 10 .14062
.396 28 .01562
.476 26 .01875
4.365 8 .17187
2.778 12 .10937
1.587 16 .0625
.9525 20 .0375
1.270 18 .050
.635 24 .025
.7937 22 .03125
3.175 11 .125
3.968 9 .15625
1.984 14 .07812

Titanium Sheet Uses

Titanium Sheet Uses
Get Free Sample If Commercially Pure Ti Shim Stock With MTC As Per EN 10204 3.1/3.2

Ti Shim Stock Documentation

  • Material Test Certificate(MTC)
  • Copy of Invoice
  • Origin Certificate
  • Bill of Lading

Titanium Armor Plate Chemical Composition

Titanium Grade 1 2 5 3 4 9 7 12
O Max 0.18 0.25 0.20 0.35 0.40 0.15 0.25 0.25
Iron Max 0.20 0.30 0.40 0.30 0.50 0.25 0.30 0.30
Ni – – – – – – – 0.2~0.4
Al – – 5.5~6.75 – – 2.5~3.5 – –
Total Max 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
C Max 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
N Max 0.03 0.03 0.05 0.05 0.05 0.03 0.03 0.03
H Max 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.015
Mo – – – – – – – 0.6~0.9
V – – 3.5~4.5 – – 2.0~3.0 – –
Pd – – – – – – 0.12~0.25 –
Other Max 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1

Titanium Alloy Strip Mechanical Properties

Grade Tensisle Strength Yield Strength Elogation in 2 in. or 50mm min.,% Bend Test
Min Min Max Max Min Min Under 0.070 in. (1.8mm) Thickness 0.070 to 0.187 in. (1.8mm - 4.75mm) Thickness
Mpa Ksi Ksi Mpa Ksi Mpa
1 240 35 45 310 20 138 24 2T 1.5T
2 345 50 65 450 40 275 20 2.5T 2T
3 450 65 80 550 55 380 18 2.5T 2T
4 550 80 95 655 70 483 15 3T 2.5T
5 895 130 – – 120 828 10 5T 4.5T
7 345 50 65 450 40 275 20 2.5T 2T
9 620 90 – – 70 483 15 3T 2.5T
12 483 70 – – 50 345 18 2.5T 2T

Commercially Pure Ti Perforated Sheet Physical Properties

Properties Value
Thermal Conductivity at 20°C W/m-K 6.70
Melting Point °C 1640
°F 3000
Specific heat J/g-°C 0.5263
Modulus of elasticity KSI 16500
Youngs / shears modulus KSI 6380
Electrical conductivity ohm-cm 0.000178
Poisson’s ratio – 0.342
Density g/cm³ 4.43
Thermal expansion coefficients (0-100°C) 10-6/°C 8.6

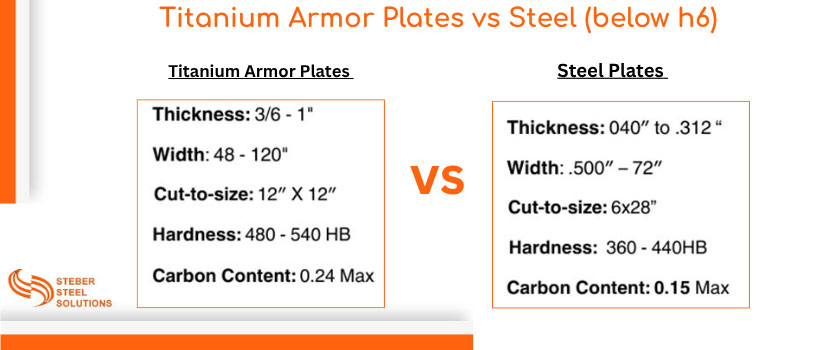

Titanium Armor Plates vs Steel (below h6)

Titanium Armor Plates vs Steel (below h6)

CP Titanium Hot Rolled Plate Equivalent

Standards Country Grade2 Grade12 Grade4 Grade9 Grade3 Grade5 Grade1 Grade7
UNS North America R50400 N53400 R50700 R56320 R50550 R56400 R50250 R52400
ASME Australia SB-348 SB-265 SB-265 SB-338 SB-863 SB-348 SB265 SB-265
SAE United States – Ti-3Al-1.5Mn – Ti-3Al-2.5V – Ti-6Al-4V (Beta) – –
DIN German 3.7035 3.7105 3.7065 3.7194 3.7055 3.7164 3.7025 3.7235
AS Australia – – – – – – – –
JIS Japan – – – – – – – –
BS United Kingdom IMI 125 – TA4 – DTD5023 TA10-13 2TA1 –
GOST Russia – – – – – – –
AFNOR France AIR:9182T40 – AlR:9182T60 – AIR:9182T50 TA6V; AIR:9183 AIR:9182T35 –
EN Europe 10204.3.1 10204.3.1 10204.3.1 10204.3.1 10204.3.1 10204 3.1 10204.3.1 10204.3.1
WNR Russia 3.7035 3.7105 3.7065 3.7194 3.7055 3.7164 3.7025 3.7235
ASTM America B348 B 265 B265 Ti-3Al-2.5V B863 B348 B-265, F-67 B265
AMS United States 4902 T-9046, 4901 4901 T-9046, T-9047 4900 4911 T-9046 CP4 / 4940. T-9046, 4901
ANSI America – – – – – – – –

Offers Extock of Titanium Metal Coil in Following Brands

Jindal

Jindal

Nippon Steel

Nippon Steel

Aperam

Aperam

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

Thyssenkrupp

Thyssenkrupp

Tisco

Tisco

Arcelormittal

Arcelormittal

Pure Titanium Foil Technical Data

Titanium Sheet Manufacturer In India Provides Seamless And Welded Options.

Number of units (dm²) Dimension of cuts (mm)
100 1000*1000 (1 m²)
2 200*100
1 100*100
5 500*100
20 1000*200 ou 2000*100
10 500*200 ou1000*100
50 1000*500 (0,50 m²)
200 2000*2000 (2 m²)
4 200*200 ou 400*100
40 1000*400 ou 2000*200

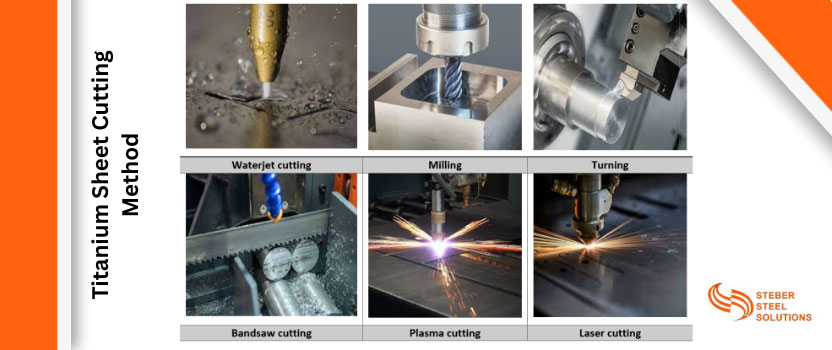

Titanium Sheet Cutting Method

Titanium Sheet Cutting Method
