Stainless Steel 316 Sheet
| Stainless Steel 316 Sheet Highlights | |
|---|---|
| Length | 1000mm – 6000mm |
| Width | 1000mm – 2000mm |
| Melting Point | 1375 – 1400°C |
| Technique | Cold Rolled / Hot Rolled |
| Standards | ASME SA240 , ASTM A240, JIS4304-2005, |
| Cutting | Waterjet cutting, Plasma cutting, Laser cutting |
| load capacity | 620 – 795 MPa |
| UNS S31600 | Werkstoff Nr. 1.4401 |
Supplier of SA 240 Grade 304 Plate in India
Stainless Steel 316 Sheet
ASTM A240 Grade 316 Strips
Stainless Steel 316 Plate
Table of Contents
- Stainless Steel 316 Sheet Specification
- SS 316 Sheet Standard Sizes
- Stainless Steel 316 Maximum Temperature
- SUS 316 Flat Sheet Finish
- ASTM A240 Grade 316 Plate Test Certificates
- UNS S31600 Cold Rolled Plate Weight Per Square Meter
- Stainless Steel 316 Sheet Ready Stock
- 316 Stainless Steel Sheet Gauge Thickness
- ASME SA240 Grade 316 Strip Tolerance
- Various Types Of Stainless Steel 316 Sheet
- How do you cut Stainless Steel 316 Plates?
- SS A240 316 Foil Thickness
- Polished 316 Stainless Steel Sheets Dimensions
- 316 SS Perforated Sheet Weight Chart
- AISI 316 Hot Rolled Plate Applications
- SS 316 Plate HSN Code
- Supply Stainless Steel 316 Sheet in Following Brands
- DIN 1.4401 Polished Plate Chemical Composition
- Brushed Stainless Steel 316 Sheet Physical Property
- SA 240 tp 316 Hot Rolled Plate Mechanical Properties
- ASTM A240 UNS S31600 Clad Plate Electrical Resistivity
- Stainless Steel 316 Sheet Equivalent Grades
- SS 316 Flat Sheet Linear Coefficient of Thermal Expansion
- Thermal Conductivity of Polished 316 Stainless Steel Sheet
- AISI 316 HR Coil Specific Heat

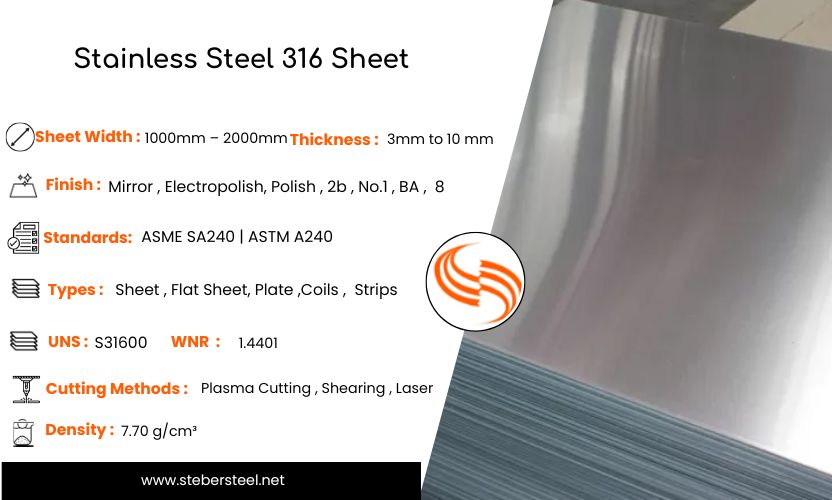

Stainless Steel 316 Sheet Specification
Stainless Steel 316 Plate Size
- Width:900 – 2400 mm
- Length:3000 – 12000 mm
- Thickness: 4.5 – 100 mm
ASTM A240 Type 316 Sheet
- Thickness: 0.02 – 4.0 mm
- Width:900 – 2400 mm
- Standard: ASTM A240 | ASME SA 240
Stainless Steel 316 Sheet Standards
- JIS4304-2005,
- EN10088-2-2005
- GB/T3280-2007
ASTM A240 UNS S31600 Clad Plate Welding Method
- TIG welding
- Resistance welding
- MIG welding
Werkstoff Nr. 1.4401 Rolling Sheets Surface Treatment
- Color coated
- PVC coated
- Film coated
- Galvanised
- Coated
SS 316 Flat Sheet Finish
- Mirror Finish
- Hair line
- Brushed finish
- 2B
ASME SA 240 Grade 316 Coil Services
- Plate Leveling
- Forming
- Beveling
- Welding
- Polish
- Rolling
- Forging
- Bending
- Heat Treatment
- Shearing
Stainless Steel 316 Perforated Sheet Marking
- Material grade
- Manufacturing date
- ASTM/ ASME standard
- Origin of material
- Manufacturer logo / name
- Sizes
SUS 316 Coil Certification
- EN 10204/3.1B
- Certificate of origin legalized
- Raw materials certificate
- Third party inspection report
- 100% radiography test report
AISI 316 Stainless Steel Sheet Edges
- V edge
- Broken corner
- Round
- Slit
- Square
- Custom
- Deburred
- Rolled
SS 316 Sheet Types
- rolling plate
- flat shim
- perforated plate
- clad plate
- coil
- sheet
- shim stock
- flat sheet
- strips
- plate
DIN 1.4401 Polished Plate Origin
- US
- Taiwan
- European
- Indian
- Japanese
- Korea
- Thailand
INOX 316 Strips Packaging
- Industrial packing techniques
- Bundles with plastic wrapping
- Big rolls with spools
- Wooden boxes/ crates/ pallets
20 Gauge 316 Stainless Steel Sheet Cutting
- Laser cutting
- Plasma cutting
- Oxy-propane flame cutting
- Waterjet cutting
SA240 gr 316 Cold Rolled Plate Inspection Plan
- Packing Condition
- UT testing
- Witnessed chemical analysis
- Dimension verification
- Visual inspection
- Hardness Testing
- PMI Testing
Manufacturer of ASTM A240 Grade 316 Plate in Mumbai, Check Standard Sizes
SS 316 Sheet Standard Sizes
| Sizes in mm | 3.4 | 3.96 | 4.75 | 6.35 | 7.92 | 9.53 | 12.7 | 19.1 | 22.2 | 28.6 | 38.1 | 44.5 | 50.8 | 76.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sizes in inch | .134 | .156 | .187 | .250 | .312 | .375 | .500 | .750 | .875 | 1.125 | 1.500 | 1.750 | 2 | 3 |
Check Maximum Temperature of Mirror Finish 316 Stainless Steel Strip Corrosive Environment
Stainless Steel 316 Maximum Temperature
| Temperature | 870°C. | 1600°F |
|---|
SS 316 Perforated Sheet Available in Polished, Embossed and Hairline Finish
SUS 316 Flat Sheet Finish
Stockist of SUS 316 Hot and Cold Rolled Plate With MTC As Per EN 10204 3.1/3.2 Certificate
ASTM A240 Grade 316 Plate Test Certificates
- MTC EN 10204 3.1/3.2
- Certificate of origin legalized
- 100% radiography test report
- Raw materials certificate
- Third party inspection report
UNS S31600 Cold Rolled Plate Weight Per Square Meter
| Thickness in mm | Weight Kg/m2 |
|---|---|
| 0,40 | 3,144 |
| 0,60 | 4,716 |
| 0,80 | 6,288 |
| 1,00 | 7,860 |
| 1,20 | 9,432 |
| 1,50 | 11,790 |
| 1,80 | 14,148 |
| 2,00 | 15,720 |
| 2,50 | 19,650 |
| 4,00 | 31,440 |
| 6,00 | 47,160 |
| 10,00 | 78,600 |
Stainless Steel 316 Sheet Ready Stock
| 6mm | 8mm |
| 5mm | 3/8 |
| 3mm | 1/8 |
| 2mm | 1/4 |
316 Stainless Steel Sheet Gauge Thickness
| Gauge | 30 | 28 | 26 | 24 | 22 | 20 | 18 | 16 |
|---|---|---|---|---|---|---|---|---|
| Thickness in inch | .0119 | .0149 | .0179 | .0239 | .0299 | .0359 | .0478 | .0598 |
| Thickness in millimeter | .3 | .4 | .5 | .6 | .8 | .9 | 1.2 | 1.5 |
ASME SA240 Grade 316 Strip Tolerance
| Plate Thickness (in) | Tolerance (in)* |
|---|---|
| 1 to 1-3/4 | +.070 / -.010 |
| 2 to 2-3/4 | +.125 / -.010 |
| 3 to 4 | +.175 / -.010 |
| 3/4 to 15/16 | +.060 / -.010 |
| 3/8 to 11/16 | +.055 / -.010 |
| 3/16 to 5/16 | +.045 / -.010 |
Various Types Of Stainless Steel 316 Sheet
Stainless Steel 316 Sheet Supplier in India provides various Different Types
ASME SA 240 Type 316 Coil
1.4401 AISI 316 Thin Strips
SUS 316 Clad Plate
INOX 316 Rolling Sheets
SS 316 Flat Sheet
Stainless Steel 316 Perforated Plate
UNS S31600 Hot Rolled Plate
ASTM A240 Gr 316 Cold Rolled Plate
A240 type 316 Polished Plate
AISI 316 Foil
SA 240 tp 316 Chequered Plate
How do you cut Stainless Steel 316 Plates?
- Shearing & Sawing
- Water Jet Cutting
- Plasma Cutting
- Laser Cutting
SS A240 316 Foil Thickness
| PRODUCT | FINISH | THICKNESS MM | MAX SHEET SIZE MM |
|---|---|---|---|
| Grade 316 | Plain 2B | 0.9 | 2000* 1000 |
| Brushed Finish | 0.9, 1.2 | 2000* 1000, 2500* 1250 | |
| Bright | 0.9 | 2000* 1000 | |
| Embossed | 0.8, 1.0 | 2500* 1250 | |
| Rimex Super Mirror | 0.8, 1.2 | 2400* 1200, 2500* 1250 |
Polished 316 Stainless Steel Sheets Dimensions
| Hole Centres (in mm) | Hole Dia (in mm) | Finish | O/A | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 1.5 | 0.75 | 2B | 23% | 0.6 | 2000 x 1000 |
| 2 | 1 | 23% | 1.0 | ||
| 2.6 | 1.5 | 30% | 1.0 | ||
| 3.5 | 2 | 30% | 1.0 | ||
| 3.5 | 2 | 30% | 1.0 | ||
| 5 | 3 | 33% | 1.0 | ||
| 5.6 | 4 | 46% | 1.0 | ||
| 8 | 6 | 51% | 1.0 | ||
| 8 | 5 | 35% | 1.0 | ||
| 10 | 8 | 58% | 1,0 |
316 SS Perforated Sheet Weight Chart
Stainless Steel 316 Sheet Manufacturer in India offers a Excellent weight chart for Sheets and Plates
| SS Gr.316L | SS 316 | ||
|---|---|---|---|
| Size (Inch) | Weight per sq. ft. | Size (mm) | Weight per plate (Kg) |
| 3/16 * 96 | 8.579 | 4000 * 2000 * 4.0 | 272.0 |
| 3/16 * 72 | 8.579 | 2500 * 1250 * 5.0 | 133.0 |
| 3/16 * 60 | 8.579 | 3000 * 1500 * 5.0 | 191.0 |
| 3/16 * 48 | 8.579 | 4000 * 2000 * 2.0 | 136.0 |
| 1/4 * 120 | 11.16 | 2500 * 1250 * 6.0 | 159.0 |
| 1/4 * 48 | 11.16 | 3000 * 1500 * 6.0 | 230.0 |
| 1/4 * 96 | 11.16 | 3000 * 1500 * 4.0 | 153.0 |
| 1/4 * 72 | 11.16 | 4000 * 2000 * 3.0 | 204.0 |
| 1/4 * 60 | 11.16 | 4000 * 2000 * 6.0 | 408.0 |
| 5/16 * 72 | 13.75 | 4000 * 2000 * 5.0 | 340.0 |
| 5/16 * 48 | 13.75 | 2500 * 1250 * 4.0 | 106.0 |
AISI 316 Hot Rolled Plate Applications
SS 316 Plate HSN Code
| Product | HSN CODE |
|---|---|
| SS 316 sheet | 73259930 |
Supply Stainless Steel 316 Sheet in Following Brands
Supplier of Stainless Steel 316 Sheet in Outokumpo, POSCO, Jindal and Aperam brand at Factory price
Baosteel
Outokumpo
Posco
Thyssenkrupp
Arcelormittal
Tisco
Jindal
Aperam
Nippon Steel
DIN 1.4401 Polished Plate Chemical Composition
| Chemical elements | Value % |
|---|---|
| Carbon (C) | 0.0 – 0.03 |
| Chromium (Cr) | 17.50 – 18.50 |
| Manganese (Mn) | 0.0 – 1.00 |
| Titanium (Ti) | 0.10 – 0.60 |
| Niobium (Columbium) (Nb) | 0.0 – 1.00 |
| Silicon (Si) | 0.0 – 1.00 |
| Phosphorous (P) | 0.0 – 0.04 |
| Sulphur (S) | 0.0 – 0.02 |
| Iron (Fe) | Balance |
Brushed Stainless Steel 316 Sheet Physical Property
| Physical properties | Value |
|---|---|
| Density | 7.70 g/cm³ |
| Melting point | 1505 °C |
| Modulus of elasticity | 220 GPa |
SA 240 tp 316 Hot Rolled Plate Mechanical Properties
| Mechanical properties | Value |
|---|---|
| Proof Stress | 230 Min MPa |
| Tensile Strength | 430-630 MPa |
| Elongation A50 mm | 18 Min % |
ASTM A240 UNS S31600 Clad Plate Electrical Resistivity
| Temperature | microhm-cm | microhm-in | |
|---|---|---|---|
| °C | °F | ||
| 20 | 68 | 29.1 | 74.0 |
Stainless Steel 316 Sheet Equivalent Grades
| Country | North America | Japan | Russia | United Kingdom | Russia | Europe | America | France | Australia | America | United States | United States | German | Australia |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD | UNS | JIS | WERKSTOFF NR. | BS | GOST | EN | ASTM | AFNOR | ASME | ANSI | AMS | SAE | DIN | AS |
| SS 316 | S31600 | SUS 316 | 1.4401 | 316S31 / 316S33 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | ASTM A240 | Z7CND17‐11‐02 | ASME SA -240 | ANSI SS 316 | AMS 5648 | SAE SS 316 | 1.4401 | – |
SS 316 Flat Sheet Linear Coefficient of Thermal Expansion
| Temperature | Mean coefficient of thermal expansion | ||
|---|---|---|---|
| °C | °F | in/in/°F | cm/cm°C |
| 20-100 | 68-212 | 9.2·10-6 | 16.5·10-6 |
| 20-500 | 68-932 | 10.1·10-6 | 18.2·10-6 |
| 20-1000 | 68-1832 | 10.8·10-6 | 19.5·10-6 |
Thermal Conductivity of Polished 316 Stainless Steel Sheet
| Coefficients | Temperature | ||
|---|---|---|---|
| W/m·K | Btu/(hr/ft²/hr/°F/ft) | °F | °C |
| 14.6 | 100.8 | 68-212 | 20-100 |
AISI 316 HR Coil Specific Heat
Stainless Steel 316 Sheet Supplier offers Superior Specific Heat
| Temperature | Btu/lb/°F | J/kg°K | |
|---|---|---|---|
| °F | °C | ||
| 200 | 93 | 0.116 | 450 |
| 68 | 20 | 0.108 | 450 |
