Hastelloy C276 Plate

Hastelloy C276 Plate

Hastelloy C276 Plate Highlights
Sheet Thickness 0.1 mm - 5 mm
Plate Thickness 2.5 mm - 100 mm
Welding Electrode 622 - AWS A5.11
Max. Operating Temperature Upto 1230°C (2250°F)
Tensile Strength 790 Mpa
Cutting Method Water Jet Cutting
MTC Certificate EN 10204 3.1

ASTM B575 UNS N10276 Sheet Supplier in India

Hastelloy C276 Plate

Hastelloy C276 Plate

UNS N10276 Sheet

UNS N10276 Sheet

Nickel C276 Strip

Nickel C276 Strip

Table of Contents


Hastelloy C276 Plate Specification

Hastelloy C276 Plate Sheet Size

  • Length: 3000 - 12000 mm
  • Width: 900 - 2400 mm
Size

UNS N10276 Sheet Plates Thickness

  • Sheet Thick : 0.02 - 4 mm
  • Plate Thick : 4.5 - 100 mm
Thickness

Standards of Nickel C276 Strip

  • ASTM B575
  • ASME SB 575
Standards

Alloy C276 Sheet Welding Method

  • PLASMA
  • GTAW
  • GMAW
  • SAW

Welding Method

Surface Treatment for ASTM B575 UNS N10276 Strip

  • Glossy
  • Mirror
  • Brushed
  • Sandblasted
Surface

Nickel Alloy C276 Plate Technique

  • Hot Rolled
  • Cold Rolled
  • Forged


Technique

Edges of Werkstoff NR. 2.4819 Coil

  • Round
  • Slit
  • Rolled
  • Square



Edges

Haynes Alloy C276 Foil Types

  • Sheet
  • Foil
  • Coil
  • Strip



Types

Origin of ASME SB575 NW 0276 Shim Sheet

  • Taiwan
  • European
  • US
  • Japanese
  • Indian
  • Thailand
  • Korea
Origin

Alloy C276 Plate Marking

  • Manufacturing date
  • Origin of material
  • Material grade
  • ASTM/ ASME standard
  • Sizes
  • Manufacturer logo / name




Marking

Services for Hastelloy C276 Hot Rolled Plate

  • Forming
  • Welding
  • Polish
  • Plate Leveling
  • Beveling
  • Bending
  • Rolling
  • Heat Treatment
  • Forging
  • Shearing
Services

Hastelloy Alloy C276 Cold Rolled Plate Certification

  • Raw materials certificate
  • 100% radiography test report
  • Certificate of origin legalized
  • Third party inspection report
  • EN 10204/3.1B




Certification

Packaging of Hastelloy C276 Foil

  • Bundles with plastic wrapping
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools
Packaging

C276 Clad Plate Cutting

  • Plasma
  • Oxy Propane
  • Waterjet
  • Laser

Cutting

Inspection Plan for Hastelloy C276 Strip

  • Third Party Test
  • Mechanical
  • Visual Test Inspection
  • Chemical Testing Report
Inspection

Nickel C276 Strip Manufacturer in Mumbai With MTC As Per EN 10204 3.1/3.2

Size Chart for UNS N10276 Sheet

Nominal Plate Sizes
mm Inch
3.4 0.134
4.75 0.187
3.18 0.125
3.96 0.156
6.35 0.25
9.53 0.375
22.2 0.875
25.4 1
31.8 1.25
38.1 1.5
44.5 1.75
19.1 0.75
7.92 0.312
15.9 0.6
76.2 3
50.8 2
28.6 1.125
63.5 2.5

Documentations That Are Required for ASTM B575 UNS N10276 Strip

  • Fumigation Certification
  • Commercial Invoice That Includes HS Code
  • Record Material Traceability
  • Quality Assurance Plan (QAP)
  • Charts of Heat Treatment
  • Raw Material Testing Reports
  • Certification of Origin

Nickel C276 Strip Gauge Chart

Gauge (mm) Gauge (Inch) Hastelloy C276 Plate
Weight in lb/ft2 Decimal in Inches
8 0.1719 6.93 0.1719
24 0.025 1.008 0.025
12 0.1094 4.41 0.1094
16 0.0625 2.52 0.0625
20 0.0375 1.512 0.0375
10 0.1406 5.67 0.1406
9 0.1563 0.1562
11 0.125 5.04 0.125
14 0.0781 3.15 0.0781
18 0.05 2.016 0.05
22 0.0313 1.26 0.0312
26 0.0188 0.756 0.0187

How Does The Hastelloy C276 Sheet Perform in The Marine Industries ?

How Does The Hastelloy C276 Sheet Perform in The Marine Industries

Weight Chart for ASTM B575 UNS N10276 Strip

Nominal Plate Thickness (Inch) Weight
kg/m² lbs/in²
3/4" 165.221356 0.235
1" 220.0607848 0.313
2 1/2" 551.2065664 0.784
2 1/4" 495.664068 0.705
1/2" 113.1942056 0.161
2" 440.8246392 0.627
1 3/4" 385.9852104 0.549
1 1/2" 330.442712 0.47
5/8" 137.8016416 0.196
7/8" 192.6410704 0.274
1 1/4" 274.9002136 0.391
1/4" 56.245568 0.08
3/16" 42.184176 0.06000
3/8" 85.0714216 0.121
2 3/4" 606.0459952 0.862
3" 661.5884936 0.941

Nickel Alloy C276 Plate Gauge Thickness Chart

Gauge Number Plate Sizes in Inch Sizes in mm
8 .17187 4.365
20 .0375 .9525
28 .01562 .396
12 .10937 2.778
10 .14062 3.571
24 .025 .635
16 .0625 1.587
9 .15625 3.968
11 .125 3.175
14 .07812 1.984
18 .050 1.270
22 .03125 .7937
26 .01875 .476
30 .0125 .3175

Nickel Alloy C276 Cold Rolled Plate Suitable For High Pressure And Temperature Environments

Features for Alloy C276 Sheet

  • Resistance to Corrosion
  • Excellent Pitting Resistance
  • Resistance Stress Corrosive Cracking

Werkstoff NR. 2.4819 Coil Thickness Tolerance

Thck. in Inch Sheet Thck. - (Inch)
Over .016 - .026, incl. +/- .003"
Over .072 - .083, incl. +/- .007"
Over .098 - .114, incl. +/- .009"
Over .130 - .145, incl. +/- .012"
.1875 - .375, excl. + .045", - 0"
.75 - 1, excl. + .060", - 0"
Over .040 - .058, incl. +/- .005"
Over .026 - .040, incl. +/- .004"
Over .058 - .072, incl. +/- .006"
Over .083 - .098, incl. +/- .008"
Over .114 - .130, incl. +/- .010"
Over .145 - .1875, excl. +/- .014"
.375 - .75, excl. + .055", - 0"

Tolerances on Width of Haynes Alloy C276 Foil

Nominal W (mm) Tolerance (mm)
Trimmed edge Mill edge
- + - +
Width > 1500 0 5 0 20
Width < 1200 3 0
1200 < Width < 1500 5 0

Popular Types Of Hastelloy C276 Plate

Hastelloy C276 Plate Supplier in India, Offers a Varieties of Most Popular Types.

Alloy C276 Sheet

Alloy C276 Sheet

ASTM B575 UNS N10276 Strip

ASTM B575 UNS N10276 Strip

Nickel Alloy C276 Plate

Nickel Alloy C276 Plate

Werkstoff NR. 2.4819 Coil

Werkstoff NR. 2.4819 Coil

Haynes Alloy C276 Foil

Haynes Alloy C276 Foil

ASME SB575 NW 0276 Shim Sheet

ASME SB575 NW 0276 Shim Sheet

Alloy C276 Plate

Alloy C276 Plate

Hastelloy C276 Hot Rolled Plate

Hastelloy C276 Hot Rolled Plate

Hastelloy Alloy C276 Cold Rolled Plate

Hastelloy Alloy C276 Cold Rolled Plate



ASME SB575 NW 0276 Shim Sheet Thermal Expansion Temperature Range

Temperature Thermal Expansion
°F °C in/in/°F cm/cm°C
200 93 6.8 x 10-6 12.24 x 10-6
600 316 7.2 x 10-6 12.96 x 10-6
1000 538 7.8 x 10-6 14.0 x 10-6
1400 760 8.5 x 10-6 15.3 x 10-6
1700 927 9.0 x 10-6 16.2 x 10-6
400 204 7.0 x 10-6 12.60 x 10-6
800 427 7.4 x 10-6 13.32 x 10-6
1200 649 8.2 x 10-6 14.8 x 10-6
1600 871 8.8 x 10-6 15.8 x 10-6
Stockist Of Werkstoff NR. 2.4819 Foil Includes Annealing, Hot And Rolling Production Process

Thickness Tolerances for Alloy C276 Plate

Width w (mm) 8<t <10 30<t <40 12.5<t <16 20<t <25 2.5<t <4.5 4.5<t <6 6<t <8 10<t <12.5 16<t <20 25<t <30
w < 1200 0.32 1.4 0.80 0.80 0.20 0.23 0.30 0.35 0.80 1
1800< w <2100 0.40 1.5 0.80 0.90 0.20 0.30 0.36 0.45 0.80 1.1
2700< w <3000 1 1.8 1 1.3 0.80 0.90 1 1.1 1.4
1200< w <1500 0.35 1.4 0.80 0.90 0.20 0.25 0.30 0.38 0.80 1
1500< w <1800 0.38 1.5 0.80 0.90 0.20 0.28 0.32 0.40 0.80 1.1
2400< w <2700 0.80 1.7 0.90 1.1 0.80 0.80 0.80 1 1.3
2100< w <2400 0.80 1.5 0.80 1 0.80 0.80 0.80 0.90 1.1

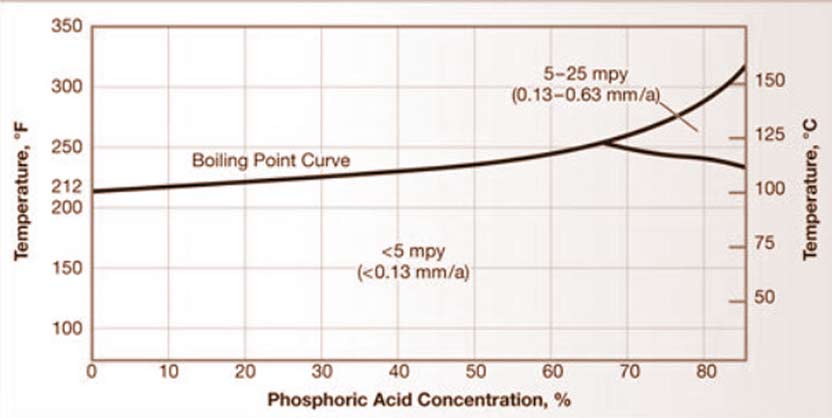

Alloy C276 Sheet ISO-corrosion Chart

Alloy C276 Sheet ISO-corrosion Chart

Hastelloy C276 Hot Rolled Plate Thickness

Wall Thck. in (Inch) 1 1/4" 1" 1 1/2" 2 1/2" 1 3/4" 2"
mm 31.8 25.4 38.1 63.5 44.5 50.8
Wall Thck. in (Inch) 1/4" 3/16" 3/8" 3/4" 1/2" 5/8"
mm 6.3 4.8 9.5 19 12.7 15.9
Supplier Of SB575 Alloy C276 HR Plate Manufactured As Per International Standard

International Standard for SB575 Alloy C276 HR Plate

  • VdTüV 400/12.98
  • DIN 17750
  • ISO 6208

Hastelloy C276 Plate Equivalent

Standard Werkstoff NR. UNS JIS GOST EN OR
Hastelloy c276 Plate 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

Maximum Pitting for Alloy C276 Sheet

Alloys Absorber Quencher Absorber
Duct 3.8 Bypass 18
Outlet 2.2 Outlet 17
Hastelloy® Alloy C-276 <2 (<0.05) nil nil
Duct 3 42 21.5

What Are The Qualities Does Hastelloy C276 Sheet have ?

What Are The Qualities Does Hastelloy C276 Sheet have

ASTM B575 UNS N10276 Strip Chemical Composition

Grade Cr Mo Ni Co Mn P C Si S Fe
Hastelloy C276 14.50 - 16.50 15 - 17 50.99 Min. 2.50 Max. 1 Max. 0.04 Max. 0.010 Max. 0.08 Max. 0.03 Max. 4 - 7

Mechanical Properties for Nickel Alloy C276 Plate

Grade Density Yield Strength (.2 % Offset) Melting Point Tensile Strength Elongation
Hastelloy C276 Plate 8.89 g/cm3 MPa - 355, Psi - 52,000 2500°F (1370°C) MPa - 790, Psi - 1,15,000 40%

Werkstoff NR. 2.4819 Coil Physical Properties

Grade Density Thermal Conductivity (W/m.K) Specific Heat (J/Kg.K) Melting Point Co-eff of Thermal Expansion (μm/m/°C)
0-100°C 24-93°C
Hastelloy C276 Plate 8.89 g/cm3 7.2 727 1371°C 11.2

Keep Extock of Hastelloy C276 Plate in Following Brands

Supplier of Hastelloy C276 Plate in Mumbai keep ready stock in Outokumpo, Posco brands

Jindal

Jindal

Nippon Steel

Nippon Steel

Aperam

Aperam

Thyssenkrupp

Thyssenkrupp

Tisco

Tisco

Arcelormittal

Arcelormittal

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

HSN Code for Haynes Alloy C276 Foil

Grade HSN Code
Hastelloy C276 Plate 75062000

Which Are The Cuttings Services for Hastelloy C276 Plate ?

  • Laser Cutting Progress
  • Water Jet Cutting
  • Plasma Cuttings

ASME SB575 NW 0276 Shim Sheet Electrical and Thermal Properties

Modulus of Elasticity Thermal Conductivity 212°F (100°C)
29.8 X 106 Psi 67 BTU/hr/ft2/ft/°F
205.0 GPa 9.8 W/m-°K
Melting Range Electrical Resistivity
2415°F to 2500°F 51 (µΩ) in at 75°C
1325°C to 1370 °C 1.30 (µΩ) cm at 24°C
Density Specific Heat
0.321 lbs/in3 0.102 BTU/lb-°F (70°F)
8.89 g/cm3 427 J/kg-°K (20°C)

Which Corrosive Substances are Hastelloy C276 Plate Resistant to ?

Which Corrosive Substances are Hastelloy C276 Resistant to

Haynes Alloy C276 Foil Thermal Conductivity

Temperature Range Thermal Conductivity2 3 Linear Coefficients of Thermal Expansion1 · 10-6
°F °C Btu/(hr/ft²/in/°F) W/m·K /°F /°C
-250 -157 4.2 7.3 - -
-100 -73 4.8 8.3 - -
70 21 5.7 9.9 - -
200 93 6.3 10.7 7.1 12.8
600 316 8.2 14.2 7.4 13.3
1400 760 12.0 20.8 8.5 15.3
1700 927 - - 9.0 16.2
1000 538 10.1 17.5 7.8 14.0
-200 -129 4.3 7.4 - -
0 -18 5.3 9.2 - -
100 38 5.8 10.0 - -
400 204 7.3 12.6 7.3 13.1
800 427 9.1 15.7 7.6 13.7
1200 649 11.0 19.0 8.2 14.8
1600 871 13.2 22.8 8.8 15.8
1800 982 14.6 25.3 - -

Corrosion Rate of Alloy C276 Plate

Grade Rate of Corrosion, mpy (mm/a)
Alloy C-276 0.3 (0.01)

Is Hastelloy Alloy C276 Sheet/ Plate Easier to Machine ?

No, Hastelloy Alloy C276 Sheet is Not Easier to Machine, Meanwhile it is Difficult to Moderate
