Inconel 625 Plate

Inconel 625 Plate

Inconel 625 Plate Highlights
Sheet Thickness 1 mm to 250 mm
Plate Thickness 2.5 mm to 100 mm
Temperature Range Upto 1800°F
Density 8.44 g/cm³
Hardness Range 29 HRC
Elongation 55% - 30%
MTC Certificate EN 10204/3.1B

ASTM B443 UNS N06625 Sheet Supplier in India

Inconel 625 Plate

Inconel 625 Plate

Alloy 625 Strip

Alloy 625 Strip

Nickel Alloy 625 Coil

Nickel Alloy 625 Coil

Table of Contents


Inconel 625 Plate Specification

ASTM B443 UNS N06625 Sheet Size

  • Length: 1000 - 15000 mm
  • Width: 600 - 3000 mm

Size

Alloy 625 Plates Thickness

  • Sheet Thick : 1 - 250 mm
  • Plate Thick : 2.5 - 100 mm

Thickness

Standards for AMS 5599 Sheet

  • ASTM B443 | ASME SB 443
  • UNS : N06625
  • WNR : 2.4856
Standards

Werkstoff Nr 2.4856 Plate Welding Method

  • PLASMA
  • GTAW
  • GMAW
  • SAW

Welding Method

Surface Treatment for Nickel Alloy 625 Coil

  • Glossy
  • Mirror
  • Brushed
  • Sandblasted

Surface

AMS 5869 Foil Welding Method

  • SAW
  • SMAW
  • PLASMA
  • GTAW
  • GMAW
Welding

Types of ASME SB443 625 Plates

  • Plate
  • Coil
  • Foils
  • Strips
  • Sheet
  • Clad Plate
  • Rolls
  • Shim Sheet
  • Annealed Plate

Types

Inconel Alloy 625 Plate Manufacturing Technique

  • Hot
  • Cold
  • Roll






Manufacturing Technique

Origin for 625 Inconel Hot Rolled Plate

  • Taiwan
  • European
  • US
  • Japanese
  • Indian
  • Thailand
  • Korea



Origin

Alloy 625 Cold Rolled Plate Marking

  • Manufacturing date
  • Origin of material
  • Material grade
  • ASTM/ ASME standard
  • Sizes
  • Manufacturer logo / name



Marking

Services of Inconel 625 Plate

  • Forming
  • Welding
  • Polish
  • Plate Leveling
  • Beveling
  • Bending
  • Rolling
  • Heat Treatment
  • Forging
  • Shearing
Services

Alloy 625 Strip Certification

  • Raw materials certificate
  • 100% radiography test report
  • Certificate of origin legalized
  • Third party inspection report
  • EN 10204/3.1B




Certification

Packaging for Nickel Alloy 625 Coil

  • Bundles with plastic wrapping
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools


Packaging

AMS 5599 Sheet Common Trade Names

  • Nickelvac 625
  • Inconel 625
  • 625 Alloy
  • Nickel 625
  • CarTech Pyromet® Alloy 625
  • ISO NW6625
Common Trade Names

Inspection Plan for Werkstoff Nr 2.4856 Plate

  • Destructive & Non Destructive
  • Chemical
  • Visual Inspecting
  • Flaring
  • Mechanical
  • Third Party Test
Inspection

Alloy 625 Strip Has High Strength And Excellent Creep Resistance At High Temperature

Size Chart for ASTM B443 UNS N06625 Sheet

Nominal Plate Sizes
Inch mm
0.125 3.18
0.156 3.96
0.600 15.9
0.312 7.92
1.250 31.8
3 76.2
0.750 19.1
2.500 63.5
2 50.8
1 25.4
1.500 38.1
0.500 12.7
0.250 6.35
0.875 22.2
0.134 3.40
1.750 44.5
0.375 9.53
0.187 4.75
1.125 28.6

What Are The Key Features for Inconel 625 Plate ?

  • Higher Strength
  • Stability in Metallurgical
  • Heat Resistance is Outstanding
  • Weldability
  • Resistance to Corrosion

Alloy 625 Strip Weight Chart

Gauge Inconel sheet
Weight (lb/ft2)
8 6.93
10 5.67
24 1.008
20 1.512
11 5.04
12 4.41
20 1.512
22 1.26
26 0.756
16 2.52
11 5.04
18 2.016
14 3.15

Gauge Chart for AMS 5599 Sheet

Gauge Inconel 625
Decimal (Inch)
8 0.1719
10 0.1406
12 0.1094
16 0.0625
24 0.0250
30 0.0125
20 0.0375
9 0.1562
11 0.1250
14 0.0781
18 0.0500
22 0.0312
26 0.0187

Manufacturer Of Nickel Alloy 625 Coil Ex-stock Range 0.1 to 5 mm Thickness

Werkstoff Nr 2.4856 Plate Thickness Chart

Nominal Plate Wall Thickness
mm Inch
4.8 3/16"
9.5 3/8"
12.7 1/2"
25.4 1"
19 3/4"
63.5 2 1/2"
50.8 2"
6.3 1/4"
15.9 5/8"
38.1 1 1/2"
31.8 1 1/4"
44.5 1 3/4"
76.2 3"

Thickness Tolerance for Nickel Alloy 625 Coil

Width w (mm) 10.0<t <12.5 2.5<t <4.5 6.0<t <8.0 16.0<t <20.0 25.0<t <30.0 4.5<t <6.0 8.0<t <10.0 12.5<t <16.0 20.0<t <25.0 30<t <40.0
1800< w <2100 0.45 0.20 0.36 0.80 1.1 0.30 0.40 0.80 0.90 1.5
2400< w <2700 0.80 0.80 1.0 1.3 0.80 0.80 0.90 1.1 1.7
1500< w <1800 0.40 0.20 0.32 0.80 1.1 0.28 0.38 0.80 0.90 1.5
2100< w <2400 0.80 0.80 0.90 1.1 0.80 0.80 0.80 1.0 1.5
w < 1200 0.35 0.20 0.30 0.80 1.0 0.23 0.32 0.80 0.80 1.4
1200< w <1500 0.38 0.20 0.30 0.80 1.0 0.25 0.35 0.80 0.90 1.4
2700< w <3000 1.0 0.90 1.1 1.4 0.80 1.0 1.0 1.3 1.8

Various Types Of Inconel 625 Plate

Inconel 625 Plate Supplier in India, Provides a Wide Ranges of Mostly Common Plates

ASTM B443 UNS N06625 Sheet

ASTM B443 UNS N06625 Sheet

Alloy 625 Strips

Alloy 625 Strips

AMS 5599 Sheet

AMS 5599 Sheet

Werkstoff Nr 2.4856 Plate

Werkstoff Nr 2.4856 Plate

Nickel Alloy 625 Coils

Nickel Alloy 625 Coils

AMS 5869 Foil

AMS 5869 Foil

ASME SB443 625 Shim Sheet

ASME SB443 625 Shim Sheet

Inconel Alloy 625 Plate

Inconel Alloy 625 Plate

625 Inconel Hot Rolled Plate

625 Inconel Hot Rolled Plate

Alloy 625 Cold Rolled Plate

Alloy 625 Cold Rolled Plate

Stockist of ASME SB443 N06625 Hot Rolled Plate As Per International Standard

AMS 5869 Foil Equivalent Material

Standards Countries Values
UNS North America N06625
ASTM America ASTM B443
JIS Japan NCF 625
GOST Russia ХН75МБТЮ
EN Europe NiCr23Fe
WNR Russia 2.4856
ASME Australia ASME SB443
BS United Kingdom NA 21
AFNOR France NC22DNB4MNiCr22Mo9Nb
AMS United States
  • AMS 5869
  • AMS 5599

Electrical and Thermal Properties of ASME SB443 625 Shim Sheet

Temp.
°F		 Thermal
Conductivityb,c(Btu•in/ft2-h•°F)		 Meal Linear
Expansiona(10-6in/in•°F)		 Electrical
Resistivityc(ohm-circ mil/ft)
2000 - - 806
0 64 - -
-100 58 - -
400 87 7.3 806
600 98 7.4 812
-250 50 - -
70 68 - 776
100 70 - 780
200 75 7.1 794
1200 132 8.2 830
1000 121 7.8 830
1400 144 8.5 824
1700 - 9.0 -
800 109 7.6 818
1600 158 8.8 818
-200 52 - -
1800 175 - 812

Inconel Alloy 625 Plate Modulus at Elevated Temperatures

Temp.
°F		 Modulus of Elasticity, 103 ksi Temp.
°C		 Poisson’s Ratio Modulus of Elasticity, GPa
Shear Tension Shear Tension
Annealed Solution-
Treated		 Annealed Solution-
Treated		 Annealed Solution-
Treated		 Annealed Solution-
Treated		 Annealed Solution-
Treated
400 11.1 10.8 28.7 28.1 204 0.286 0.303 76.5 74.5 197.9 193.7
70 11.8 11.3 30.1 29.7 21 0.278 0.312 81.4 78.0 207.5 204.8
200 11.6 11.1 29.6 29.1 93 0.280 0.311 80.0 76.5 204.1 200.6
600 10.8 10.4 27.8 27.2 316 0.290 0.300 74.5 71.7 191.7 187.5
800 10.4 10.0 26.9 26.2 427 0.295 0.302 71.7 68.9 185.5 180.6
1600 8.0 8.3 21.4 21.5 871 0.336 0.289 55.2 57.2 147.5 148.2
1000 9.9 9.6 25.9 25.1 538 0.305 0.312 68.3 66.2 178.6 173.1
1200 9.4 9.2 24.7 24.0 649 0.321 0.314 64.8 63.4 170.3 165.5
1400 8.7 8.8 23.3 22.8 760 0.340 0.305 60.0 60.7 160.6 157.2

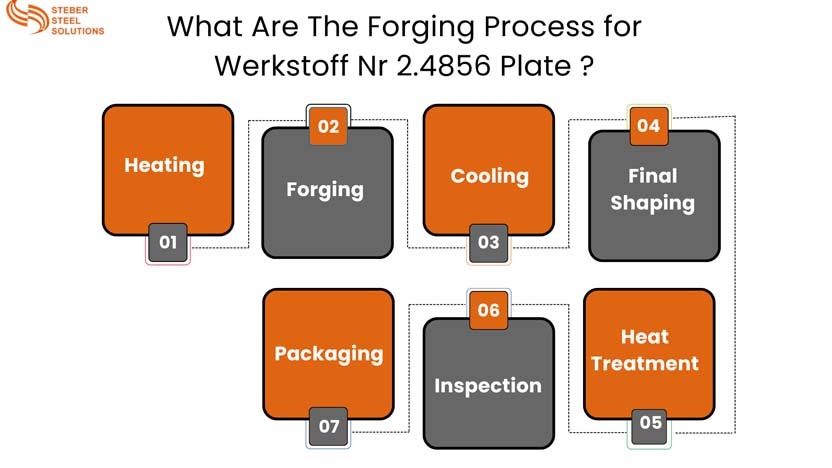

What Are The Forging Process for Werkstoff Nr 2.4856 Plate ?

What Are The Forging Process for Werkstoff Nr 2.4856 Plate

Corrosion Rate for Alloy 625 Cold Rolled Plate

Grade Corrosion Rate
Inconel 625 Plate 0.2mm/a 7.9mpy

Inconel 625 Plate Heat Treatment

Heat Treatment Temperature Cooling Method
Age Hardening 700 °C - 750°C Air
Solution Annealing 1000 °C - 1100°C Air or water
Stress Relieving 650 °C - 750°C Air
Forging 950 °C - 1150°C Air or slow
Annealing (Softening) 650 °C - 750°C Controlled Air
Buy Our High Quality Mirror Finish UNS N06625 CR Plate Stock At Best Price in Mumbai

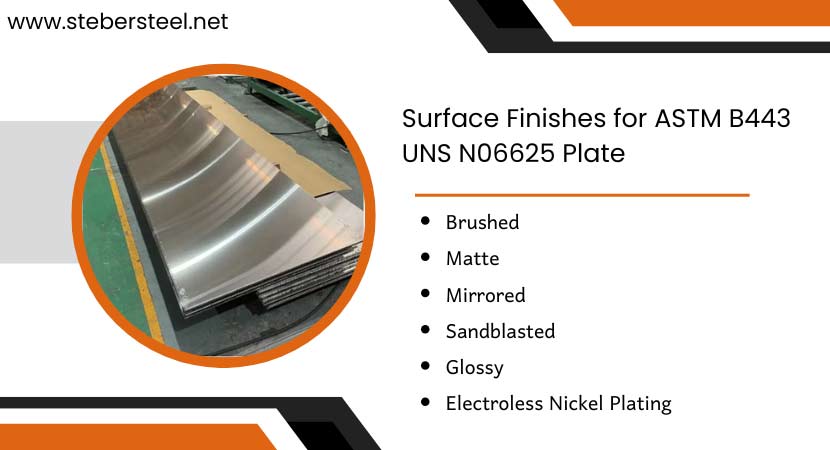

Surface Finishes for ASTM B443 UNS N06625 Plate

Surface Finishes for ASTM B443 UNS N06625 Plate

To Check The Best Market Value Price List for Inconel 625 Plate Click Here

Alloy 625 Strip Chemical Composition

Grade Fe C Co Ag Si Ti P Cr Mo Nb+Ta Ni Mn S
Inconel 625 5.00% max 0.10% max 1.00% max 0.40% max 0.50% max 0.40% max 0.01% max 20.00-23.00% 8.00-10.00% 3.15-4.15% 58.00% min 0.50% max 0.01% max

Mechanical Properties for Nickel Alloy 625 Coil

0.2% Proof Stress Tensile Strength Reduction of area Hardness Elongation
MPA MPA HRB
414 827 (Min.) 40% 145 (Min.) 30%

Inconel 625 Foil Physical Properties

Melting Range 1290 - 1350 °C
2350 - 2460 °F
Density 0.305 lb/in.3
8.44 g/cm3

Is Any Material Which Can Replace Inconel Alloy 625 ?

Is Any Material Which Can Replace Inconel Alloy 625

UNS N06625 Plate Room Temperature Mechanical Properties

Condition And Form Tensile
Strength		 Yield Strength
(0.2% Offset)		 Reduction
Of Area		 Hardness, Brinell Elongation
ksi MPa ksi MPa % %
Solution - Treated 100 - 120 689 - 827 40 - 60 276 - 414 - - 60 - 40
Annealed 120 - 150 827 - 1034 60 - 90 414 - 621 - 145 - 240 55 - 30
As - Rolled 120 - 160 827 - 1103 60 - 110 414 - 758 60 - 40 175 - 240 60 - 30
Annealed 120 - 150 827 - 1034 60 - 95 414 - 655 60 - 40 145 - 220 60 - 30
Solution - Treated 105 - 130 724 - 896 42 - 60 290 - 414 90 - 60 116 - 194 65 - 40
Annealed 120 - 140 827 - 965 60 - 75 414 - 517 - - 55 - 30

Toughness and Ductility of AMS 5599 Sheet

Test
Temperature,		 Impact Strength, Orientation
°C °F ft•lb J
29 85 48, 49, 50 65, 66, 68 Longitudinal
46, 49, 51.5 62, 66, 70 Transverse
-79 -110 39, 44, 49 53, 57, 60 Longitudinal
39, 42, 44 53, 57, 60 Transverse
-196 -320 35, 35, 35.5 47, 47, 48 Longitudinal
31, 32, 36 42, 43, 49 Transverse

Inconel 625 Plate HSN Code

Grade HSN Code
Inconel 625 Plate 75062000

ASTM B443 Sheet Tensile Properties at (1052°C)

Temperatur °C 760 538 982 RT 649 871 1093
°F 1400 1000 1800 RT 1200 1600 2000
Ultimate Tensile Strength MPa 490 816 106 923 811 239 60
ksi 71.0 118.4 15.3 133.9 117.7 34.7 8.7
0.2% Yield Strength MPa 371 388 68 491 380 204 35
ksi 53.8 56.3 9.9 71.2 55.1 29.6 5.0
Elongation % 135.0 54.2 154.5 47.5 109.3 160.6 128.3

Alloy 625 Strip Tensile Properties at (1050°C)

Temperatur °C 1093 871 427* 649 RT 538 760 982
°F 2000 1600 800* 1200 RT 1000 1400 1800
Ultimate Tensile Strength MPa 64 262 800 777 894 774 490 119
ksi 9.3 38.0 116.1 112.7 129.6 112.3 71.1 17.3
0.2% Yield Strength MPa 37 211 320 301 417 309 301 81
ksi 5.4 30.6 46.4 43.7 60.5 44.8 43.7 11.8
Elongation % 135.1 115.7 51.5 80.3 48 52.1 102.2 120.7

What Are The Applications of Inconel 625 Plate ?

What Are The Applications of Inconel 625 Plate
