ASTM A516 Grade 60 Plate

ASTM A516 Grade 60 Plate

ASTM A516 Grade 60 Plate At a Glance
Plate Thickness   5mm-150mm
Length 3000mm-18000mm
Impact tested -52° C
Density 7.80 g/cc
Standards ASME SA516 , ASTM A516, JIS G3103,EN10028-6
Tempering at 1200 F
Manufacturing Hot-Rolled

SA516 Gr 60 Sheet Supplier in India

ASTM A516 Grade 60 Plate

ASTM A516 Grade 60 Plate

A516 Grade 60 Boiler Plate

A516 Grade 60 Boiler Plate

SA 516 Grade 60 NACE Plate

SA 516 Grade 60 NACE Plate

Table of Contents


ASTM A516 Gr 60 Plate Manufacturer in Mumbai, Check Specification

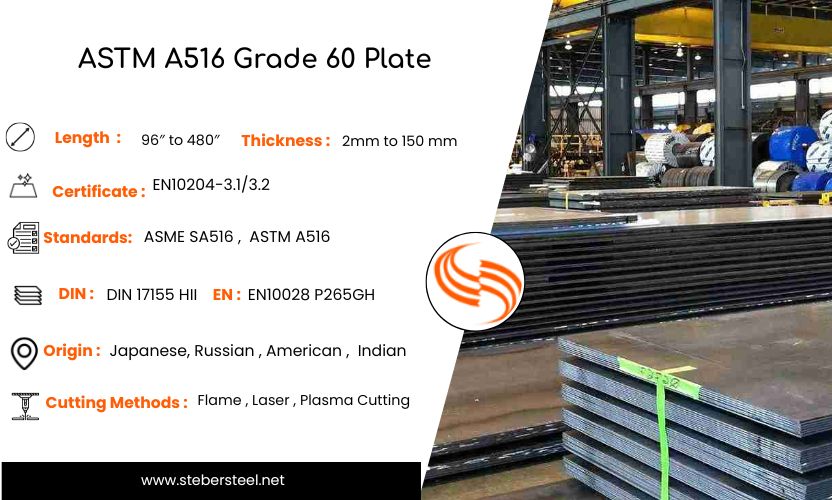

ASTM A516 Grade 60 Plate Specification

SA516 Grade 60 Plate Size

  • Length: 96″ to 480″
  • Width: 48″ to 120″
  • Thickness : 3/16″ to 6 (Inch)


Size

ASME SA 516 Gr 60 Pressure Vessel Plates

  • Length : up to 192″
  • Thickness : up to 2″
  • Diameter: up to 180″


Thickness

ASTM A516 Grade 60 Plate Standards

  • ASME SA516 | ASTM A516
  • EN ,DIN, BS,JIS, GB
  • NACE MR-0103, NACE MR-0175
  • JIS G3103, JIS G3115
Standards

A516 Grade 60 Boiler Plate European Standard

  • EN10028-2
  • EN 10028
  • EN10028-6
  • EN10028-3
  • EN10028-5





Welding Method

Sa 516 Gr 60 Material Supply Conditions

  • Fine Grained
  • Weldable
  • Normalized
  • As-rolled
  • HIC





Surface

Inspection & required Testing of ASTM A516 Grade 60 HIC Plates

  • Simulated Post Weld Heat Treat (SPWHT)
  • Charpy V-Notch Testing (CVN)
  • MTC EN 10204 3.1
  • Hydrogen Induced Cracking (HIC)
  • MTC EN 10204 3.2
  • Ultrasonic Testing (UT)
  • Rockwell Hardness (RW)
  • Brinell Hardness (BHN)
Bending

ASME SA 516 GR.60 NACE Plate Estimate Delivery Time

  • UAE : 8-10 days
  • Oman: 2-3 days
  • Egypt : 12-15 days
  • Saudi Arabia: 5-6 days
  • South Africa: 12- 14 days (Durban)



Edges

A516 Gr 60 Material Value Added Services

  • Finishing
  • Plasma cutting
  • Beveling
  • Coating
  • Flame Cutting
  • Oxy-Fuel Cutting
  • CNC machining
  • Flattening
  • Miter cuts
  • Tapping
Types

ASME SA516 Grade 60 Plates Origin

  • European
  • Indian
  • US
  • Korea
  • Japanese
  • Taiwan
  • Thailand



Origin

SA 516 gr 60N BQ Plate Temperature Range

  • Max tem: 340 deg celsius
  • Min temp : -45 deg celsius


Marking

Hardness

  • 22 HRC




Services

LTCS Grade 60 Plate Manufacturing Method

  • Hot rolling
  • Normalized


Certification

Buy Ultrasonic Tested SA 516 Gr 60 Carbon Steel Plate At Lowest Cost

SA 516 Gr 60 Carbon Steel Plate Supplementary Requirements

  • S8 – UT (Ultrasonic Testing) to A435
  • S5 – Impact Test (Charpy Notch)
  • S7 – Hot Tensile Test
  • S11 – UT to A577
  • S2 – Product Analysis
  • S9 – Magnetic Particle Examination
  • S4.1 – Additional Tensile Test
  • S12 – UT yo A578
  • S1 – Vacuum treatment
  • S6 – Dropweight Test
  • S3 – Simulated Post Weld Heat Treatment
  • S17 – Vacum Carbon Deoxidised Steel
A516 Grade 60 Pressure Vessel Steel Plate Material Properties and Yield Strength

SA516 Gr 60 Sheet Mechanical Properties

Description Of A516 Grade 60 pressure vessel steel ASME SA516 Grade 60 carbon steel plate
Elongation in 50mm (minimum) (%) 25
Elongation in 200mm (minimum)(%) 21
Yield strength (KSI) 32
Yield strength (MPa) 220

ASME SA 516 gr 60 Pressure Vessel Steel Plate Tensile Strength

Desc SA 516 Grade 60 plate
Tensile strength (KSI) 60-80
Tensile strength (MPa) 415-550
ASTM A516 Gr 60 Boiler Plate Suitable For Moderate And Low Temperature Service

SA 516 gr 60 HIC Plate Temperature Range

ASTM A516 Grade 60 Plate Supplier in India provides premium-grade Plates with high-temperature performance

Designation Lowest usual service temperature, (°C) Tensile Strength (MPa)
A516 Gr 60 -45 414 - 496

Various Types Of ASTM A516 Grade 60 Plate

ASTM A516 Grade 60 Plate Supplier in India offers Most Common Types with excellent Temperature

ASME SA 516 gr 60 Rolled Plate

ASME SA 516 gr 60 Rolled Plate

A516 60N BQ Plate

A516 60N BQ Plate

SA 516 gr 60 LTCS Plate

SA 516 gr 60 LTCS Plate

A516 60 Steel Pressure Vessel Plate

A516 60 Steel Pressure Vessel Plate

SA 516 Steel Plate Grade 60 HIC Plate

SA 516 Steel Plate Grade 60 HIC Plate

ASTM A516 Gr 60 CS Plate

ASTM A516 Gr 60 CS Plate

A516 Grade 60 NACE Plate Maximum Allowable Stress

Temperature *MAS
1000 2.5
950 4.0
850 8.7
800 10.8
700 15.3
650 15.8
500 17.1
400 17.1
300 17.1
200 17.1
150 17.1
-20~100 17.1

ASME SA 516 GR.60 Sheet Density

Manufacturer of ASTM A516 Grade 60 Plate withstand excellent Density and Material Properties

Density  english  metric
 A516 Grade 60 0.282 lb/in³ 7.80 g/cc

A516 60N HSN Code

Product HSN CODE
SA 516 Gr 60 72085110

ASTM A516 Grade 60 Plate Thickness Availability

Thickness in mm
4 mm 12 mm 40 mm
5 mm 8 mm 25 mm
6 mm 15 mm 50 mm
8 mm 16 mm  20 mm
60 mm 10 mm 32 mm

Welding of SA 516 gr 60 LTCS Plate

  • American welding society (AWS)
  • Gas-shielded flux-cored wires (FCAW-G)
  • Submerged ARC welding
  • Solid and metal-cored wires (AWS)

ASTM A516 Grade 60 Plate Dimensions

Grade 60 60
Product Temper leveled plate Mill plate
Thickness inch .100 to .500 .188 to 3.54
Width inch 48 to 96 72 to 129.9
Length inch 72 to 720 154 to 1020

ASME SA516 Grade 60 Rolled Plate Impact Test

Grade Min Average
Energy Absorption for
3 Specimens, foot*lbf		 Min Energy
Absorption for 1
Specimen, foot*lbf
Gr. 60 13 10

Delivery and Distributor of ASTM A516 Grade 60 Plate in Following Brands

Supplier of ASTM A516 Grade 60 Plate in Mumbai offers various Brands

Aperam

Aperam

Jindal

Jindal

Nippon Steel

Nippon Steel

Tisco

Tisco

Thyssenkrupp

Thyssenkrupp

Arcelormittal

Arcelormittal

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

Cutting Methods of A516 Grade 60 PVQ Plate

  • Shearing
  • Water jet cutting
  • Sawing
  • Laser cutting
  • Cutting
  • Slitting
  • Cut to length / width

SA 516 Gr 60 Plate Applications

SA 516 Gr 60 Plate Applications

ASTM A516 Grade 60 Equivalent

Standard Of A516 gr 60N Description Of SA 516 gr 60 low temperature
ASTM/ASME A/SA516 – Grade 60
British Standard BS1501-161-430A
European Norm EN10028 P265GH
DIN Standard DIN 17155 HII

A516 Grade 60 Chemical Composition

Composition Of SA 516 gr 60 LTCS Percentage %
Mo 0.08
V 0.02
Nb 0.01
S 0.008
Ti 0.03
C 0.18
Al 0.02 (Min)
Mn 0.95/1.50
Si 0.4
Ni 0.3
P 0.015
Cu 0.3
Cr 0.3
– –
