Hastelloy Plate
| Hastelloy Plate Quick Informations | |
|---|---|
| Sheet Thickness | 0.02 – 4.0 mm |
| Plate Thickness | 4.5 – 100 mm |
| Welding Electrode | SAW,GTAW |
| Cutting Method | Waterjet,Laser,Plasma |
| Life Span | 40 years |
| Process | Grinding,Edging |
| MTC Certificate | EN 10204 3.1 & 3.2 |
Hastelloy Alloy Sheet Supplier in India
Hastelloy Plate
Hastelloy Sheet
Hastelloy Sheet Metal
Table of Contents
- Hastelloy Plate Specification
- Hastelloy Plate Suppliers Size Chart
- Hastelloy Steel Strips Thickness
- Hastelloy Alloy Plate Thickness Tolerance
- ASTM B575 Hastelloy Coil Gauge Chart
- Hastelloy Material Plate Welding Procedure
- Weight Chart Of Hastelloy Cold Rolled Plate
- ASME SB575 Hastelloy Strip Flatness Tolerance
- What Are the Indicators That Hastelloy Plates Require Replacement or Refurbishment?
- Hastelloy® Sheet Tolerances On Length
- Hastelloy Plate Grades
- ASME SB575 Hastelloy Cold Rolled Plate HSN Code
- Hastelloy Annealed Plate Tolerances On Width
- Various Types Of Hastelloy Shim Stock
- Hastelloy Strip Dimension
- Corrosion Rate Of Hastelloy Rolling Sheets
- Hastelloy Sheet Metal Surface Finish
- Hastelloy Material Coil Codes
- Melting Range Of Hastelloy Plate
- Hastelloy Sheet Application
- Hastelloy Alloy Plate Chemical Composition
- Hastelloy® Plate Mechanical Properties
- Equivalent Of Hastelloy Hot Rolled Plates
- Keep Extock of Hastelloy Plate in Following Brands
- ASME SB575 Hastelloy Coil Thermal and Electrical Properties

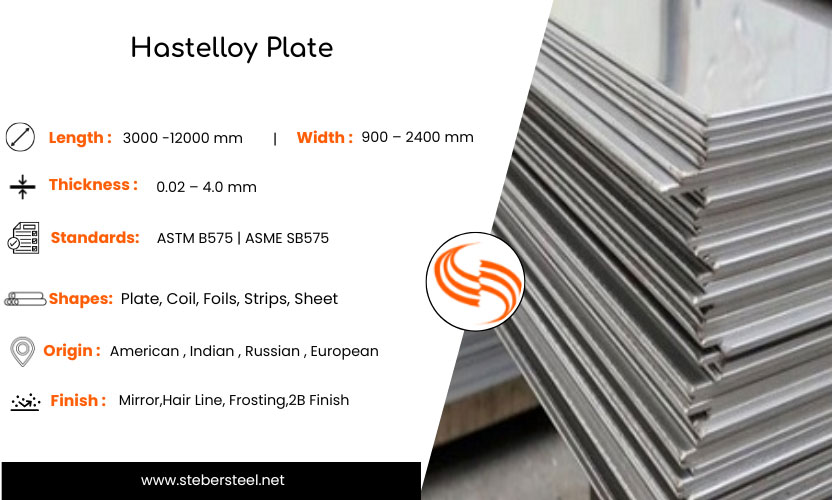

Hastelloy Plate Specification
Hastelloy Sheet Size
- Length: 3000 -12000 mm
- Width: 900 – 2400 mm
Hastelloy Plates Thickness
- Sheet : 0.02 – 4.0 mm
- Plate : 4.5 – 100 mm
Hastelloy Alloy Plate Standards
- ASTM B575
- ASME SB575
Hastelloy® Sheet Welding Method
- Resistance welding
- TIG welding
- MIG welding
Hastelloy Coil Surface Treatment
- PVC coated
- Galvanised
- Color coated
- Coated
- Film coated
Hastelloy Cold Rolled Plate Welding
- PLASMA
- SAW
- GTAW
- GMAW
ASME SB575 Coil Edges
- Slit edge
- Rolled edge
- Round
- Square
Hastelloy Material Strip Types
- Strip
- Sheet
- Plate
- Coil
Hastelloy Shim Stock Origin
- Taiwan
- European
- US
- Japanese
- Indian
- Thailand
- Korea
Hastelloy Rolling Sheets Marking
- Manufacturing date
- Origin of material
- Material grade
- ASTM/ ASME standard
- Sizes
- Manufacturer logo / name
Hastelloy Coil Services
- Forming
- Welding
- Polish
- Plate Leveling
- Beveling
- Bending
- Rolling
- Heat Treatment
- Forging
- Shearing
Hastelloy Plate Suppliers Certification
- Raw materials certificate
- 100% radiography test report
- Certificate of origin legalized
- Third party inspection report
- EN 10204/3.1B
Hastelloy Rolling Sheets Packaging
- Bundles with plastic wrapping
- Industrial packing techniques
- Wooden boxes/ crates/ pallets
- Big rolls with spools
Hastelloy Hot Rolled Plates Cutting
- Laser
- Plasma
- Waterjet
- Oxy-propane
ASTM B575 Hastelloy Plates Inspection Plan
- Third party inspection Test
- Visual inspection Test
- Mechanical Test
- Chemical Test
Hastelloy Plate Suppliers Size Chart
Hastelloy Plate Manufacturer in India supplying various grades and custom sizes.
| Hastelloy steel sheet size (mm) | Hastelloy alloy plate size (inches) |
|---|---|
| 7.92 | 0.312 |
| 28.6 | 1.125 |
| 38.1 | 1.5 |
| 50.8 | 2 |
| 6.35 | 0.25 |
| 12.7 | 0.5 |
| 9.53 | 0.375 |
| 25.4 | 1 |
| 76.2 | 3 |
| 15.9 | 0.6 |
| 44.5 | 1.75 |
| 63.5 | 2.5 |
| 22.2 | 0.875 |
| 3.4 | 0.134 |
| 3.18 | 0.125 |
| 4.75 | 0.187 |
| 3.96 | 0.156 |
| 19.1 | 0.75 |
| 31.8 | 1.25 |
Manufacturer of Hastelloy Steel Strips Produce Up To 3mm Thickness
Hastelloy Steel Strips Thickness
| Hastelloy plate Gauge Number | Hastelloy alloy plate in inch | Hastelloy® sheet in mm |
|---|---|---|
| 11 | .125 | 3.175 |
| 12 | .10937 | 2.778 |
| 14 | .07812 | 1.984 |
| 16 | .0625 | 1.587 |
| 18 | .050 | 1.270 |
| 8 | .17187 | 4.365 |
| 9 | .15625 | 3.968 |
| 10 | .14062 | 3.571 |
| 20 | .0375 | .9525 |
| 22 | .03125 | .7937 |
| 28 | .01562 | .396 |
| 24 | .025 | .635 |
| 26 | .01875 | .476 |
| 30 | .0125 | .3175 |
Hastelloy Alloy Plate Thickness Tolerance
| Thickness -l. | Thickness in inch |
|---|---|
| +/- .005in | Over .040 – .058, incl. |
| +/- .006in | Over .058 – .072, incl. |
| +/- .007in | Over .072 – .083, incl. |
| +/- .008in | Over .083 – .098, incl. |
| +/- .009in | Over .098 – .114, incl. |
| +/- .010in | Over .114 – .130, incl. |
| + .045in, – 0in | .1875 – .375, excl. |
| +/- .003in | Over .016 – .026, incl. |
| +/- .004in | Over .026 – .040, incl. |
| + .055in, – 0in | .375 – .75, excl. |
| +/- .012in | Over .130 – .145, incl. |
| +/- .014in | Over .145 – .1875, excl. |
| + .060in, – 0in | .75 – 1, excl. |
Stockist of Hastelloy Coil in Mumbai According To ASTM B575 Standard
ASTM B575 Hastelloy Coil Gauge Chart
Hastelloy Plate Supplier in India provide accurate Weight.
| Gauge | Gauge | Hastelloy Sheet | |
|---|---|---|---|
| inch | Weight in lb/ft2 | Gauge decimal in inches | |
| 10 | 0.1406 | 5.67 | 0.1406 |
| 11 | 0.125 | 5.04 | 0.125 |
| 12 | 0.1094 | 4.41 | 0.1094 |
| 14 | 0.0781 | 3.15 | 0.0781 |
| 16 | 0.0625 | 2.52 | 0.0625 |
| 18 | 0.05 | 2.016 | 0.05 |
| 24 | 0.025 | 1.008 | 0.025 |
| 8 | 0.1719 | 6.93 | 0.1719 |
| 9 | 0.1563 | 0.1562 | |
| 26 | 0.0188 | 0.756 | 0.0187 |
| 20 | 0.0375 | 1.512 | 0.0375 |
| 22 | 0.0313 | 1.26 | 0.0312 |
| 30 | 0.0125 | 0.0125 | |
Hastelloy Material Plate Welding Procedure
| Welding Procedure |
|---|
| Shielded Metal Arc Welding – SMAW |
| Gas Metal Arc Welding – GMAW |
| Gas Tungsten Arc Welding – GTAW |
Weight Chart Of Hastelloy Cold Rolled Plate
| Hastelloy® sheet gauge | Weight | Annealed Hastelloy plate gauge decimal | US standard gauge |
|---|---|---|---|
| lb/ft2 | inches | inches | |
| 24 | 1.008 | 0.025 | 0.025 |
| 22 | 1.26 | 0.0312 | 0.0313 |
| 20 | 1.512 | 0.0375 | 0.0375 |
| 18 | 2.016 | 0.05 | 0.05 |
| 8 | 6.93 | 0.1719 | 0.1719 |
| 30 | – | 0.0125 | 0.0125 |
| 26 | 0.756 | 0.0187 | 0.0188 |
| 16 | 2.52 | 0.0625 | 0.0625 |
| 11 | 5.04 | 0.125 | 0.125 |
| 10 | 5.67 | 0.1406 | 0.1406 |
| 14 | 3.15 | 0.0781 | 0.0781 |
| 12 | 4.41 | 0.1094 | 0.1094 |
| 9 | – | 0.1562 | 0.1563 |
ASME SB575 Hastelloy Strip Flatness Tolerance
| Alloy(s) | Permissible Variations from Flat in inch | Thickness, in. |
|---|---|---|
| Hastelloy Plate | .5625 | 3/8 – 1/2, excl. |
| .5625 | 1 – 2, excl. | |
| .5625 | 1/2 – 3/4, excl. | |
| .5625 | 3/4 – 1, excl. | |
| 1.0625 | 3/16 – 1/4, excl. | |
| .75 | 1/4 – 3/8, excl. | |
| .3125 | 2 – 4, excl. |
What Are the Indicators That Hastelloy Plates Require Replacement or Refurbishment?
- Corrosion or Pitting
- Cracks or Fractures
- Weakening Strength
- Discoloration
- Damaged Welds
- Reduced Thickness
Hastelloy® Sheet Tolerances On Length
| Hastelloy Sheet Nominal Length (mm) | Tolerance(mm) | |
|---|---|---|
| – | + | |
| 2,000 < L < 8,000 | 0.005 times length | 0 |
| L > 8,000 | 40 | 0 |
| L < 2,000 | 10 | 0 |
Get ASME SB575 Hastelloy Cold Rolled Plate In All Grades Without Sacrificing Quality
Hastelloy Plate Grades
| Hastelloy Plate Grades |
|---|
| C-22 |
| C-22HS |
| C-276 |
| B |
| B-2 |
| B-3 |
| C |
| C-4 |
| C-2000 |
| G-3 |
| G-30 |
| G-35 |
| N |
| S |
| W |
| X |
ASME SB575 Hastelloy Cold Rolled Plate HSN Code
| Grade | HSN Code |
|---|---|
| Hastelloy Plate | 75062000 |
Hastelloy Annealed Plate Tolerances On Width
| Hastelloy Alloy Plate Nominal W (mm) | Tolerance (mm) | |||
|---|---|---|---|---|
| Trimmed edge | Mill edge | |||
| + | – | + | – | |
| 1200 < Width < 1500 | 5 | 0 | 20 | 0 |
| Width > 1500 | 5 | 0 | 20 | 0 |
| Width < 1200 | 3 | 0 | 20 | 0 |
Various Types Of Hastelloy Shim Stock
Hastelloy Plate Supplier in India Offers a Variety of the Most Popular Types
ASME SB575 Coil
Hastelloy Material Strip
Hastelloy Perforated Sheet
ASTM B575 Hot Rolled Plate
Hastelloy Shim Stock
Hastelloy Rolling Sheets
Hastelloy Strip Dimension
| Hastelloy strip Nominal Width (mm) | Tolerance (mm) | |||
|---|---|---|---|---|
| Mill edge | Trimmed edge | |||
| + | – | + | – | |
| 1200 < W < 1500 | 20 | 0 | 5 | 0 |
| W > 1500 | 20 | 0 | 5 | 0 |
| W < 1200 | 20 | 0 | 3 | 0 |
Corrosion Rate Of Hastelloy Rolling Sheets
| Hastelloy material | Corrosion Rate, (mm/a) | Comments |
|---|---|---|
| Alloy C-276 | 0.3 (0.01) mpy | Iridescent tarnish film |
Ready Stock Of Hastelloy Annealed Plate Available In Mirror, Hair Line, Frosting and 2B Finish

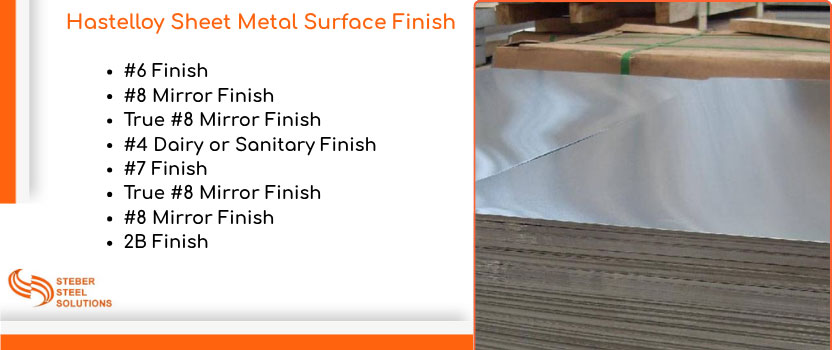

Hastelloy Sheet Metal Surface Finish
Hastelloy Material Coil Codes
| ASME | B31.1 | 1000°F (538°C)6 | |
|---|---|---|---|
| B16.5 | 1250°F (677°C)4 | ||
| Section lll | Class 2 | 800°F (427°C)2 | |
| Class 1 | – | ||
| Class 3 | 800°F (427°C)2 | ||
| Section Vlll | Div. 2 | 1250°F (677°C)3 | |
| Div. 1 | 1250°F (677°C)3 | ||
| Section l | 1000°F (538°C)1 | ||
| Section Xll | 650°F (343°C)3 | ||
| B16.34 | 1250°F (677°C)5 | ||
| B31.3 | 1250°F (677°C)7 | ||
| VdTÜV (doc #) | 844°F (450°C)8, #400 |
||
Melting Range Of Hastelloy Plate
| Hastelloy Plate |
| °F : 2415-2500, °C: 1325-1370 |
Hastelloy Sheet Application
Hastelloy Plate Supplier in India offering excellent resistance to acidic environment.
Hastelloy Alloy Plate Chemical Composition
| Grade | C max | Cr | Mn max | Mo | Si max | S max | Co max | Ni min | Fe | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 | 14.50 – 16.50 | 1.00 | 15.00 – 17.00 | 0.08 | 0.03 | 2.50 | 50.99 | 4.00 – 7.00 | 0.04 max |
| C22 | .010 | 20.00 – 22.50 | .50 | 12.50 – 14.50 | .08 | .02 | 2.50 | 50.015 | 2.00 – 6.00 | 0.02 max |
| B2 | 0.02 | 1.0 max | 1.00 | 26 – 30 | 0.1 | 0.03 | 1.0 | Balance | 2.0 max | 0.04 max |
| B3 | 0.01 | 1.5max | 3.0 | 28.5 | 0.10 | 0.03 | 0.20 | 65.0 | 15 | 0.2 max |
Hastelloy® Plate Mechanical Properties
| Grade | Density | Tensile Strength | Melting Point | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| B | 9.24 g/cm3 | 795 Mpa | 345 Mpa | 45 % | |
| C276 | 8.89 g/cm3 |
|
1370 °C (2500 °F) |
|
40 % |
| B2 | 9 .2 g/cm3 |
|
1370 °C (2500 °F) |
|
40 % |
| C22 | 8.69 g/cm3 |
|
1399 °C (2550 °F) |
|
45 % |
Equivalent Of Hastelloy Hot Rolled Plates
| STANDARD | UNS | WERKSTOFF NR. | JIS | OR | EN | GOST |
|---|---|---|---|---|---|---|
| B3 | N10675 | 2.4600 | NW 6022 | NiCr21Mo14W | ||
| B2 | N10665 | 2.4617 | ||||
| C22 | N06022 | 2.4602 | ||||
| C4 | N06455 | 2.4610 | ||||
| C276 | N10276 | 2.4819 | NW 0276 | ЭП760 | NiMo16Cr15W | ХН65МВУ |
Keep Extock of Hastelloy Plate in Following Brands
Jindal
Nippon Steel
Aperam
Thyssenkrupp
Tisco
Arcelormittal
Baosteel
Outokumpo
Posco
ASME SB575 Hastelloy Coil Thermal and Electrical Properties
| Grade | Specific Heat | Thermal Conductivity | Mean Coefficient of Thermal Expansion | Electrical Resistivity |
|---|---|---|---|---|
| C4 | 408 J/kg•°C | 10.1(100°C) λ/(W/m•°C) | 10.9(100°C) a/10-6°C-1 | 1.24 μΩ•m |
