Stainless Steel 304 Sheet
| Stainless Steel 304 Sheet Highlights | |
|---|---|
| Plate Thickness | Up to 6mm |
| Sheet Thickness | 0.2mm – 5mm |
| Temperature | 2,550 °F – 2,650 °F |
| lifespan | 50-100 years |
| Standards | ASME SA240 , ASTM A240, JIS4304-2005, EN10088-2-2005 |
| Cutting | Waterjet cutting, Plasma cutting, Laser cutting |
| Thermal expansion | 17.2×10 ^-6/K |
Supplier of SA 240 Grade 304 Plate in India
Stainless Steel 304 Sheet
ASTM A240 Type 304 Plate
AISI 304 Coil
Table of Contents
- Stainless Steel 304 Sheet Specification
- ASTM A240 Type 304 Plates Weight Chart
- Various Types Of Stainless Steel 304 Sheet
- AISI 304 Perforated Sheet Thickness Tolerance
- Stainless Steel 304 Sheet Gauge Chart
- DIN 1.4301 Strip Dimensions
- How much HeatRresistance does this 304 Stainless Steel Plate have?
- SS 304 Plate HSN Code
- Brushed Stainless Steel 304 Sheet Cutting Techniques
- SUS 304 Flat Sheet Impact Properties
- UNS S30400 Coil Thermal Processing
- INOX 304 Polished Plate Magnetic Permeability
- A240 SS 304 Cold Rolled Plate Electrical Resistivity
- Corrosion Resistance of ASME SA 240 Type 304 Perforated Plate
- Time Elevated Temperature Tensile Strength of 304 SS Thin Strips
- SA 240 Tp 304 Flat Sheet Applications
- Stainless Steel 304 Sheet Equivalent
- ASME SA240 1.4301 Rolling Sheets Mechanical Properties
- Physical Properties of Stainless Steel 304 Plate
- ASTM A240 UNS S30400 Clad Plate Density
- Offer 304 Stainless Steel Sheet to the various Countries
Stainless Steel 304 Sheet Specification
Stainless Steel 304 Sheet Size
- Length: 1000mm – 6000mm
- Width: 1000mm – 2000mm
ASTM A240 Type 304 Plates Thickness
- Sheet Thickness : 0.2mm – 5mm
- Plate Thickness : Up to 6mm
SS 304 Plate Standards
- ASME SA240 | ASTM A240
- EN ,DIN, BS,JIS, GB
DIN 1.4301 Strip Welding Method
- Resistance welding
- TIG welding
- MIG welding
AISI 304 Perforated Sheet Surface Treatment
- PVC coated
- Galvanised
- Color coated
- Coated
- Film coated
SA 240 Grade 304 Hot Rolled Plate Bending Method
- Roll bending
- Rotary bending
- Press braking
UNS S30400 Coil Edges
- Broken corner
- Slit
- V edge
- Custom
- Round
- Deburred
- Square
- Rolled
SS 304 Sheet Types
- flat shim
- clad plate
- coil
- rolling plate
- shim stock
- flat sheet
- sheet
- perforated plate
- plate
- rolling sheets
- strips
ASME SA 240 Grade 304 Thin Strips Origin
- Taiwan
- European
- US
- Japanese
- Indian
- Thailand
- Korea
A240 tp304 Clad Plate Marking
- Manufacturing date
- Origin of material
- Material grade
- ASTM/ ASME standard
- Manufacturer logo / name
SA 240 tp 304 Foil Services
- Forming
- Welding
- Polish
- Plate Leveling
- Beveling
- Bending
- Rolling
- Heat Treatment
- Forging
- Shearing
SUS 304 Perforated Sheet Certification
- Raw materials certificate
- 100% radiography test report
- Certificate of origin legalized
- Third party inspection report
- EN 10204/3.1B
AISI 304 Rolling Sheets Packaging
- Bundles with plastic wrapping
- Industrial packing techniques
- Wooden boxes/ crates/ pallets
- Big rolls with spools
ASTM A240 Type 304 Slitting Coil Cutting
- Laser cutting
- Oxy-propane flame cutting
- Plasma cutting
- Waterjet cutting
Stainless Steel 304 Cold Rolled Plate Inspection Plan
- UT testing
- Dimension verification
- Witnessed chemical analysis
- Visual inspection
- Packing Condition
- PMI Testing
- Hardness Testing
Manufacturer of SS 304 and ASTM A240 Type 304 Plates are available in Cut to Size
Manufacturer of Stainless Steel 304 Sheet keep Ex Stock of Sizes
| 3000MM * 1500MM * 3MM | 3000MM * 1500MM * 6MM |
| 2500MM * 1250MM * 3MM | 2500MM * 1250MM * 6MM |
| 4000MM * 2000MM * 3MM | 4000MM * 2000MM * 6MM |
| 2000MM * 1000MM * 3MM | 2000MM * 1000MM * 6MM |
| 2500MM * 1250MM * 4MM | 2500MM * 1250MM * 8MM |
| 2500MM * 1250MM * 5MM | 3000MM * 1500MM * 10MM |
| 4000MM * 2000MM * 4MM | 2000MM * 2000MM * 10MM |
| 2000MM * 1000MM * 4MM | 2000MM * 1000MM * 8MM |
| 2000MM * 1000MM * 5MM | 2500MM * 1250MM * 10MM |
| 3000MM * 1500MM * 4MM | 3000MM * 1500MM * 8MM |
Refer Thickness and Weight Chart of UNS S30400 Coil
Thickness Chart
| Size Range | Thickness | Thickness | Approx Weight per Sheet | Surface Area per Unit weight | ||
|---|---|---|---|---|---|---|
| inches | mm | kg | lbs | kg/m² | lbs/ft² | |
| 36 x 96 | 0.0235 | 0.5969 | 10.95807 | 24.19 | 4.921056 | 1.008 |
| 30 x 120 | 0.0235 | 0.5969 | 11.4156 | 25.20 | 4.921056 | 1.008 |
| 48 x 96 | 0.0235 | 0.5969 | 14.61378 | 32.26 | 4.921056 | 1.008 |
| 36 x 120 | 0.0178 | 0.45212 | 10.27404 | 22.68 | 3.690792 | 0.756 |
| 48 x 120 | 0.0235 | 0.5969 | 18.26496 | 40.32 | 4.921056 | 1.008 |
| 36 x 96 | 0.015 | 0.381 | 6.84936 | 15.12 | 3.07566 | 0.630 |
| 30 x 96 | 0.0291 | 0.73914 | 11.4156 | 25.20 | 6.15132 | 1.260 |
| 36 x 96 | 0.0291 | 0.73914 | 13.69872 | 30.24 | 6.15132 | 1.260 |
| 48 x 96 | 0.0178 | 0.45212 | 10.95807 | 24.19 | 3.690792 | 0.756 |
| 36 x 96 | 0.0355 | 0.9017 | 16.43937 | 36.29 | 7.381584 | 1.512 |
| 36 x 120 | 0.0235 | 0.5969 | 13.69872 | 30.24 | 4.921056 | 1.008 |
| 48 x 120 | 0.0291 | 0.73914 | 22.83573 | 50.41 | 6.15132 | 1.260 |
| 30 x 96 | 0.0235 | 0.5969 | 9.13248 | 20.16 | 4.921056 | 1.008 |
| 36 x 120 | 0.0291 | 0.73914 | 17.1234 | 37.80 | 6.15132 | 1.260 |
| 30 x 120 | 0.0355 | 0.9017 | 17.1234 | 37.80 | 7.381584 | 1.512 |
| 36 x 144 | 0.0291 | 0.73914 | 20.55261 | 45.37 | 6.15132 | 1.260 |
| 48 x 144 | 0.0235 | 0.5969 | 21.92067 | 48.39 | 4.921056 | 1.008 |
ASTM A240 Type 304 Plates Weight Chart
| Size (mm) | Weight per sheet (Kg) |
Size (mm) | Weight per sheet (Kg) |
|---|---|---|---|
| 2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
| 2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
| 2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
| 2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
Stockist of AISI 304 Perforated Sheet in 2B and #4 Brushed Finish
| Standard | Finish Types | Width (milimeter) | Thickness (milimeter) |
|---|---|---|---|
| SS 304 | 2B PE,No. 4 PE, | 914, 1219, 1500 | 1.20 |
| No. 4 PE, 2B | 914, 1219 | 0.70 | |
| 2B, , 2B PE, BA PE | 914, 1219 | 0.90 | |
| No. 4 PE, 2B | 914, 1219 | 0.55 | |
| 2B PE, No. 4 PE | 914, 1219, 1500 | 2.00 | |
| 2B PE | 914, 1219, 1500 | 1.60 | |
| 2B PE | 914, 1219, 1500 | 2.50 | |
| 2B PE, No. 4 PE, 2B | 914, 1219, 1500 | 1.50 | |
| No. 4 PE, 2B PE, 2B | 914, 1219, 1500 | 3.00 |
Various Types Of Stainless Steel 304 Sheet
Stainless Steel 304 Sheet Supplier in India provides various Forms like Plate, Sheets , Coils etc
ASTM A240 TP 304 Clad Plate
AISI 304 Flat Sheet
SUS 304 Perforated Sheet
EN 1.4301 Strips
ASME SA 240 Grade 304 Foil
304 Stainless Steel Cold Rolled Plate
UNS S30400 Hot Rolled Plate
SS 304 Rolling Plate
A240 Type 304 Polished Plate
AISI 304 Perforated Sheet Thickness Tolerance
| Gauge | Thickness Tolerance | Thickness |
|---|---|---|
| 14 gauge | ± 0.007 | ± 0.18mm | 0.078″ | 1.98mm |
| 11 gauge | ± 0.005 | ± 0.13mm | 0.120″ | 3.05 mm |
| 16 gauge | ± 0.006 | ± 0.15mm | 0.063″ | 1.59mm |
| 12 gauge | ± 0.009 | ± 0.23mm | 0.109″ | 2.78mm |
| 20 gauge | ± 0.004 | ± 0.10mm | 0.038″ | 0.95mm |
| 18 gauge | ± 0.005 | ± 0.13mm | 0.050″ | 1.27mm |
| 24 gauge | ± 0.003 | ± 0.08mm | 0.025″ | 0.64 mm |
| 22 gauge | ± 0.004 | ± 0.10mm | 0.031″ | 0.79 mm |
Stainless Steel 304 Sheet Gauge Chart
| Gauge Number | Millimeter | Inches |
|---|---|---|
| 8 | 4.269 | 0.1681 |
| 9 | 3.891 | 0.1532 |
| 14 | 1.9939 | 0.0785 |
| 10 | 3.51 | 0.1382 |
| 11 | 3.1318 | 0.1233 |
| 16 | 1.6129 | 0.0635 |
| 12 | 2.753 | 0.1084 |
| 18 | 1.31 | 0.0516 |
| 20 | 1.005 | 0.0396 |
| 22 | 0.853 | 0.0336 |
| 24 | 0.701 | 0.0276 |
| 26 | 0.551 | 0.0217 |
| 28 | 0.474 | 0.0187 |
| 30 | 0.398 | 0.0157 |
DIN 1.4301 Strip Dimensions
Stainless steel 304 Sheet Supplier offer a range of Dimensions
| Grade | Width (mm) | Thickness (mm) | Finish |
|---|---|---|---|
| 304 | 1500 | 5 | 2B |
How much HeatRresistance does this 304 Stainless Steel Plate have?
| Grade | Heat Treatment |
|---|---|
| 304 | 800-1580°F |
SS 304 Plate HSN Code
| Product | Country | HSN CODE |
|---|---|---|
| STAINLESS STEEL 304 COLD ROLLED Plate | Germany | 72199090 |
| SS 304 SHEET | China | |
| HOT ROLLED OF STAINLESS STEEL 304 PLATE | South Korea | 72192212 |

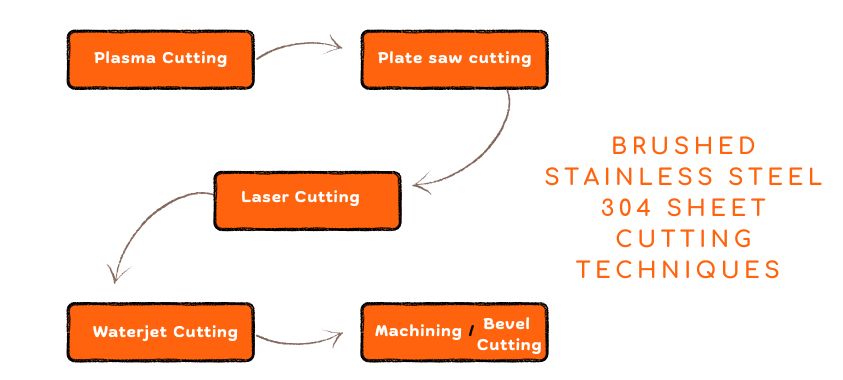

Brushed Stainless Steel 304 Sheet Cutting Techniques
Stainless Steel 304 Sheet Supplier offering water jet and laser cutting methods
SUS 304 Flat Sheet Impact Properties
| Room Temp | -320 F | -108F | -423F |
|---|---|---|---|
| 25 | 30 | 35 | 26 |
UNS S30400 Coil Thermal Processing
| Thermal Processing | |
|---|---|
| Annealing | 1010ºC to 1120ºC |
| Hot-working | 1150ºC to 1260ºC |
| Stress relieving | 450ºC to 600ºC |
INOX 304 Polished Plate Magnetic Permeability
| Magnetic Permeability | 1.02 Max @ 200 H H/m annealed |
A240 SS 304 Cold Rolled Plate Electrical Resistivity
| Temperature (°C) | Temperature (°F) | microhm-in | microhm-cm |
|---|---|---|---|
| 200 | 392 | 33.8 | 86 |
| 20 | 68 | 28.3 | 72 |
| 400 | 752 | 39.4 | 100 |
| 100 | 212 | 30.7 | 78 |
| 800 | 1472 | 47.6 | 121 |
| 600 | 1112 | 43.7 | 111 |
| 900 | 1652 | 49.6 | 126 |
Corrosion Resistance of ASME SA 240 Type 304 Perforated Plate
| Environment | 304 Stainless Steel (µm/year) |
|---|---|
| Marine | 0.0076 |
| Rural | 0.0025 |
| Marine-Industrial | 0.0076 |
Time Elevated Temperature Tensile Strength of 304 SS Thin Strips
| Grade | 900°C | 700°C | 500°C | 300°C | 100°C |
|---|---|---|---|---|---|
| 304 | 70 | 240 | 400 | 480 | 530 |
SA 240 Tp 304 Flat Sheet Applications
Stainless Steel 304 Sheet Equivalent
| Country | Europe | North America | Japan | Russia | Russia | United Kingdom | America | France | United States | Australia | United States | America | German |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STANDARD | EN | UNS | JIS | WERKSTOFF NR. | GOST | BS | ASTM | AFNOR | AMS | ASME | SAE | ANSI | DIN |
| SS 304 | X5CrNi18-10 | S30400 | SUS 304 | 1.4301 | 08Х18Н10 | 304S31 | ASTM A-240 | Z7CN18‐09 | AMS 5513 | ASME SA -240 | SAE 304 | ANSI SS 304 | 1.4301 |
ASME SA240 1.4301 Rolling Sheets Mechanical Properties
| Grade | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 40 | 205 | 515 | 92 | 201 |
Physical Properties of Stainless Steel 304 Plate
| Grade | Elastic Modulus (GPa) | Thermal Conductivity (W/m.K) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Electrical Resistivity (nΩ.m) | Specific Heat 0-100°C (J/kg.K) | |||
|---|---|---|---|---|---|---|---|---|
| at 100°C | at 500°C | 0-100°C | 0-315°C | 0-538°C | ||||
| 304 | 193 | 16.2 | 21.5 | 17.2 | 17.8 | 18.4 | 720 | 500 |
ASTM A240 UNS S30400 Clad Plate Density
| Property | Value | Temperature |
|---|---|---|
| Density | 7.9 – 8.2 g/cm³ | 23.0 °C |
