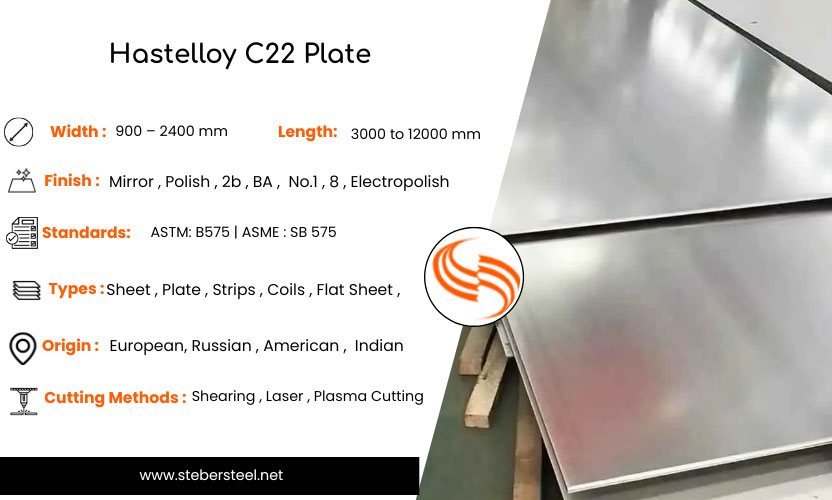

Hastelloy C22 Plate

Hastelloy C22 Plate

Hastelloy C22 Plate Highlights
Sheet Thickness 0.1 - 5.0 mm
Plate Thickness 4.5 - 100 mm
Welding Electrode AWS A5.11 ENiCrMo-10
Life Span 25-30 years
Forms Sheet,Shim Sheet, Strip, Foil,Plate, Coil
Process Edging, Grinding, Deburring
MTC Certificate EN 10204 3.1 & 3.2

Nickel Alloy N06022 Sheet Supplier in India As Per ASTM B575

Hastelloy C22 Plate

Hastelloy C22 Plate

Alloy C22 Sheet

Alloy C22 Sheet

ASTM B575 UNS N06022 Alloy Plate

ASTM B575 UNS N06022 Alloy Plate

Table of Contents


Manufacturer Of ASTM B575 UNS N06022 In Mumbai, Check Specification

Hastelloy C22 Plate Specification

Alloy C22 Sheet Size

  • Length: 3000 - 12000 mm
  • Width: 900 - 2400 mm


Size

Hastelloy C22 Plates Thickness

  • Sheet Thick : 0.1 - 5.0 mm
  • Plate Thick : 4.5 - 100 mm

Thickness

Nickel Alloy C22 Coil Standards

  • ASTM: B575 | ASME : SB 575
  • Other: ISO 6208, DIN 17750
  • UNS: N06022 | WNR: 2.4602
Standards

Hastelloy Alloy C22 Strip Welding Method

  • Resistance welding
  • TIG welding
  • MIG welding



Welding Method

Alloy Hastelloy C22 Annealed Plate Surface Treatment

  • PVC coated
  • Galvanised
  • Color coated
  • Coated
  • Film coated
Surface

WNR 2.4602 Rolling Sheets Bending Method

  • Cold Bending
  • Hot Bending
  • Roll Bending



Bending

Nickel C22 Plate Edges

  • Slit edge
  • Rolled edge
  • Round
  • Square



Edges

Hastelloy 2.4602 Sheet Types

  • Strip
  • Sheet
  • Plate
  • Coil


Types

UNS 6022 Sheet Origin

  • Taiwan
  • European
  • US
  • Japanese
  • Indian
  • Thailand
  • Korea
Origin

Haynes Alloy C22 Coil Marking

  • Manufacturing date
  • Origin of material
  • Material grade
  • ASTM/ ASME standard
  • Sizes
  • Manufacturer logo / name



Marking

ASME SB575 NW 6022 Strip Services

  • Forming
  • Welding
  • Polish
  • Plate Leveling
  • Beveling
  • Bending
  • Rolling
  • Heat Treatment
  • Forging
  • Shearing
Services

Alloy C22 Sheet Certification

  • Raw materials certificate
  • 100% radiography test report
  • Certificate of origin legalized
  • Third party inspection report
  • EN 10204/3.1B




Certification

Alloy C22 Plate Packaging

  • Bundles with plastic wrapping
  • Industrial packing techniques
  • Wooden boxes/ crates/ pallets
  • Big rolls with spools


Packaging

Haynes Alloy C22 Foil Cutting

  • Laser
  • Plasma
  • Waterjet
  • Oxy-propane

Cutting

Werkstoff NR. 2.4602 Coil Inspection Plan

  • Third party inspection Test
  • Visual inspection Test
  • Mechanical Test
  • Chemical Test

Inspection

ASTM B575 UNS N06022 Strip Size Chart

Hastelloy C22 Plate Manufacturer in India supplying various grades and custom sizes.

Hastelloy Alloy C22  Sheet size (mm) size (inches)
7.92 0.312
6.35 0.25
12.7 0.5
44.5 1.75
63.5 2.5
9.53 0.375
15.9 0.6
22.2 0.875
31.7 1.25
28.6 1.125
19.1 0.75
25.3 1
3.4 0.134
3.18 0.125
4.75 0.187
3.96 0.156
76.2 3
38.1 1.5
50.8 2

Nickel Alloy C22 Strip Dimension

Hastelloy C22 Plate Supplier in India offers an Excellent Dimensions.

Nominal Width (mm) Tolerance (milimeter)
Trimmed edge Mill edge
+ – – +
W > 1500 5 0 0 20
1200 < W  < 1500 5 0 0 20
W < 1200 3 0 0 20

Get Accurate Alloy C22 Strip Weight For Various Industrial Application

Werkstoff NR. 2.4602 Coil Weight Chart

Hastelloy C22 Plate Supplier in India provide accurate Weight for Plate & Sheet

US standard gauge Weight Nickel alloy C22 plate gauge Alloy C22 Plate gauge decimal
inches lb/ft2 inches
0.0188 0.756 26 0.0187
0.0313 1.26 22 0.0312
0.0375 1.512 20 0.0375
0.05 2.016 18 0.05
0.0125 – 30 0.0125
0.0625 2.52 16 0.0625
0.025 1.008 24 0.025
0.0781 3.15 14 0.0781
0.1094 4.41 12 0.1094
0.1406 5.67 10 0.1406
0.1563 – 9 0.1562
0.125 5.04 11 0.125
0.1719 6.93 8 0.1719

Hastelloy C22 Plate Applications

Hastelloy C22 Plate Applications

Haynes Alloy C22 Foil Value Added Services

  • Cutting to Length
  • Polishing
  • Sawing
  • Welding
  • Shearing
  • Edge Preparation
  • Mechanical Processing
  • Bending
  • Blanking
  • Slitting

UNS N06022 Sheet Gauge Chart

Gauge Gauge Alloy C22 Sheet Plate
inch weight in lb/ft2 gauge decimal in inches
12 0.1094 4.41 0.1094
26 0.0188 0.756 0.0187
30 0.0125 0.0125
14 0.0781 3.15 0.0781
20 0.0375 1.512 0.0375
22 0.0313 1.26 0.0312
16 0.0625 2.52 0.0625
11 0.125 5.04 0.125
18 0.05 2.016 0.05
8 0.1719 6.93 0.1719
9 0.1563 0.1562
10 0.1406 5.67 0.1406
24 0.025 1.008 0.025
Stockist Of ASME SB575 N06022 Shim Sheet Provide Bright, Polished and 2B Finish

ASME SB575 NW 6022 Shim Sheet Surface Finishes

  • Glossy
  • Bright
  • Polished
  • Mirror
  • Sandblasted
  • Brushed
  • Electroless nickel plating
  • Matte

DIN 2.4602 Shim Stock HSN Code

Grade HSN Code
Hastelloy C22 Plate 75062000

WNR 2.4602 Rolling Sheets Thickness Tolerance

Width (mm) width < 1200 1800 < width < 2100 1500 < width < 1800 2700 < width < 3000 2100 < width < 2400 2400 < width < 2700
4.5 < t < 6 0.23 0.3 0.28 0.7 0.7 0.7
6 < t < 8 0.3 0.36 0.32 0.9 0.7 0.7
8 < t < 10 0.32 0.4 0.38 1 0.7 0.7
12.5 < t < 16 0.7 0.7 0.7 1 0.7 0.9
2.5 < t < 4.5 0.2 0.2 0.2
16 < t < 20 0.7 0.7 0.7 1.1 0.9 1
25 < t < 30 1 1.1 1.1 1.4 1.1 1.3
20 < t < 25 0.7 0.9 0.9 1.3 1 1.1
30 < t < 40 1.4 1.5 1.5 1.8 1.5 1.7

Nickel C22 Plate Welding Procedure

Welding procedure
Gas Metal Arc Welding – GMAW
Shielded Metal Arc Welding – SMAW
Gas Tungsten Arc Welding – GTAW

Hastelloy 2.4602 Sheet Modulus of Elasticity

Form Condition Average Dynamic Modulus of Elasticity,10(6) psi (MPa) Test Temp, °F(°C)
Plate Heat-treated at 2050 °F (1121 °C)& Rapid Quenched 26.6 (183) 800 (427)
21.1 (145) 1800 (982)
25.7 (177) 1000 (538)
27.6 (190) 600 (316)
22.4 (154) 1600 (871)
24.8 (171) 1200 (649)
29.9 (206) Room
28.5 (196) 400 (204)
29.4 (203) 200 (93)
23.6 (163) 1400 (760)

C22 Hastelloy Alloy Plate Thickness

Hastelloy C22 sheet Gauge Number Alloy C22 plate in inch Alloy C22 Sheet in mm
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Various Types Of Alloy C22 Sheet

Hastelloy C22 Plate Supplier in India Offers a Variety of the Most Popular Types

UNS N06022 Sheet

UNS N06022 Sheet

Nickel Alloy C22 Coil

Nickel Alloy C22 Coil

Hastelloy Alloy C22 Strip

Hastelloy Alloy C22 Strip

Alloy Hastelloy C22 Annealed Plate

Alloy Hastelloy C22 Annealed Plate

Werkstoff NR. 2.4602 Cold Rolled Plate

Werkstoff NR. 2.4602 Cold Rolled Plate

DIN 2.4602 Shim Stock

DIN 2.4602 Shim Stock

WNR 2.4602 Rolling Sheets

WNR 2.4602 Rolling Sheets

ASME SB 575 Alloy C22 Rolling Plate

ASME SB 575 Alloy C22 Rolling Plate

EN 2.4602 Hot Rolled Plates

EN 2.4602 Hot Rolled Plates

UNS 6022 Sheet Tolerances on Width

Nominal W (mm) Tolerance (mm)
Trimmed edge Mill edge
+ – + –
1200 < W < 1500 5 0 20 0
W > 1500 5 0 20 0
W < 1200 3 0 20 0

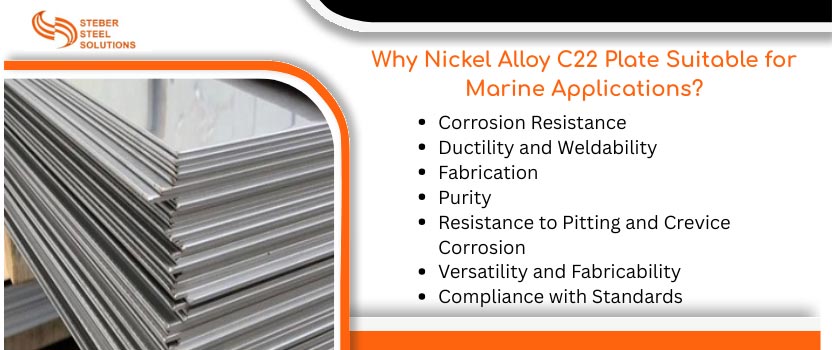

Why Nickel Alloy C22 Plate Suitable for Marine Applications?

Why Nickel Alloy C22 Plate Suitable for Marine Applications?

ASME SB575 NW 6022 Strip Tolerances on Length

Nominal length (mm) Tolerance(mm)
– +
2,000  <  length < 8,000 0.005 times length 0
length> 8,000 40 0
length< 2,000 10 0

Alloy Hastelloy C22 Annealed Plate Equivalent

Standards Value Country
UNS N06022 North America
JIS NW 6022 Japan
BS – United Kingdom
GOST – Russia
ANSI – America
SAE – United States
AFNOR – France
EN NiCr21Mo14W Europe
WNR 2.4602 Russia
ASTM ASTM B575 America
ASME ASME SB575 Australia
AMS – United States
AS – Australia
DIN 17750 German

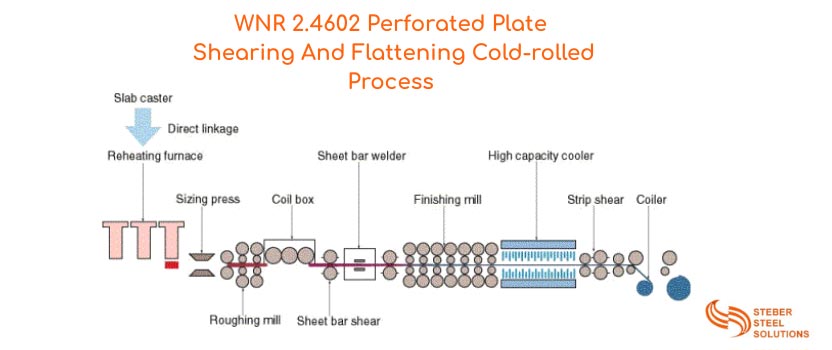

WNR 2.4602 Perforated Plate Available in Shearing And Flattening Cold-rolled Process

WNR 2.4602 Perforated Plate Shearing And Flattening Cold-rolled Process

WNR 2.4602 Perforated Plate Shearing And Flattening Cold-rolled Process

How Does Nickel C22 Plate Perform in Sulfuric Acid Environments?

  • Superior Corrosion Resistance
  • Resistance to Pitting & Crevice Corrosion
  • Elevated Temperatures
  • Sulfuric Acid with Impurities
  • Sulfuric Acid Environments

Hastelloy C22 Sheet Chemical Composition

Grade C Mn Co Si Cr P Fe Mo S Ni
C22 0.010 max 0.50 max 2.50 max 0.08 max 20 – 22.50 0.02 max 2 – 6 12.50 – 14.50 0.02 max 50.015 min*

Nickel Alloy C22 Plate Mechanical Properties

Tensile Strength Hastelloy C22 yield strength – (0.2 % Offset) Density Elongation Melting Point
  • 1,00,000 Psi
  • 690 MPa
  • 45000 Psi
  • 310 MPa
 8.69 gram/cm3 45 %
  • 1399 °C
  • 2550 °F

Werkstoff NR. 2.4602 Sheet Physical properties

Properties Values
Electrical Resistivity 730.7 ohm•circ mil/ft
1.215 microhm•m
Density 0.311 lb/in³
8.61 g/cm³
Permeability ≤1.001 200 oersted (15.9 kA/m)
Coefficient of Expansion 6.9 70-200°F,106 in/in•°F
12.42 21-193°C, μm/m•°C
Young's Modulus 30.3 103 ksi
209 GPa
Melting Range 2464-2529 °F
1351-1387 °C
Specific Heat 0.091 Btu/lb•°F
381 J/kg•°C

Hastelloy C22 Hot Rolled Plate Corrosion Rate

Producers Alloy 22 G28A Alloy 22 G28B
Haynes International 0.61 0.178
Special Metals 1.50 0.50
ThyssenKrupp VDM 0.90 0.17

Offers Ex Extock of Hastelloy C22 Sheet in Following Brands

Jindal

Jindal

Nippon Steel

Nippon Steel

Aperam

Aperam

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

Thyssenkrupp

Thyssenkrupp

Tisco

Tisco

Arcelormittal

Arcelormittal

Nickel Alloy C22 Coil Thermal and Electrical Properties

Description Unit 800 °F 600 °F 70 °F 400 °F 1000 °F
Density lbs/in3 0.314
Thermal Expansion X10-6/°F 7.4 7 6.9 7.7
Yield Strength ksi 35 36 54 41 34
Elastic Modulus 102 ksi 26.6 27.6 29.9 28.5 25.7
Poisson Ratio – 0.3
Thermal Conductivity Btu-in/h·ft2·°F 125 110 69 94 139
Tensile Strength ksi 92 95 114 98 88
Specific Heat Btu/lb·°F 0.114 0.111 0.098 0.106 0.118

Hastelloy Alloy C22 Strip Hardness Type

  • Hard
  • Quarter Hard
  • Half Hard
  • Spring Hard
  • Soft

EN 2.4602 Hot Rolled Plates Technical Datasheet

Dimension (mm) KG P/M2
3 * 1200 * 3000 27.0
2.0 * 1219 * 3048 18.0
0.5 * 1000 * 2000 4.5
0.9 * 1219 * 3048 8.1
3.18 * VARIOUS ANN 28.6
1.6 * 1200 * 3048 14.4
1.2 * 1219 * 3048 10.8
0.7 * 1219 * 3048 6.3
