Welspun Pipe Distributor
Table of Contents
- Welspun Pipe Specification
- Welspun Ductile Iron Pipes Sizes
- Welspun Carbon Steel Line Pipes Coating
- Product Specification for Welspun Ductile Iron Pipes
- Welspun Stainless Steel Pipes Product Range
- Welspun HSAW Pipe Core Strength
- Value Added Services of Welspun DI Pipe
- Welspun Stainless Steel Pipes Available Grades
- Welspun Alloy Steel Pipes Available Grades
- Welspun HFIW Pipes of Value Chain for Oil & Gas Industry
- Various Certificates of Welspun High Frequency Welded Pipe
- Welspun Ductile Iron Pipes Grades
- Applications of Welspun Pipe
Get Ready Stock Of Welspun Carbon Steel Line Pipes At Dealer Price in India
View the Most Recent Welspun Pipe Market Price List By, Click here
Welspun Pipe Specification
Welspun Ductile Iron Pipe Size
- DN 80 to DN 1200 MM
Welspun DI Pipes Class
- K7 & K9
- C Class
Welspun Ductile Iron Pipes Length
- 5.5 m / 6 m
High Frequency Welding (HFW) Sizes
- Length : Upto 18.5 m
- WT : 2 to 12.7 mm
- OD : 1 1/4 to 16 Inch
- Grade : Upto API 5L X-80
Longitudinal Submerged Arc Welding (L-SAW) Sizes
- Length : Upto 18.5 m
- WT : 6 to 45 mm
- OD : 16 to 56 Inch
- Grade : Upto 5L X-80
Helically Submerged Arc Welding (H-SAW) Sizes
- Length : Upto 18 m
- WT : 5 to 27 mm
- OD : 18 to 143 Inch
- Grade : Upto API 5L X-80
Welspun Carbon Steel Line Pipes Certificates
- ISO 9001: 2015
- ISO 14001: 2015
- ISO 45001: 2018
Welspun Pipe Value Added Services
- Soft Annealed (Stress Relieved)
- Annealed
- Normalized
- Spheroidised Annealed
Welspun High Frequency Welded Pipe Applications
- Petrochemical
- Automotive
- Pharmaceutical
- Aerospace
- Energy & Power
Welspun Tubes Grades
- ISO 2531
- ISO 7186
- IS 8329
- BS EN 598
- BS EN 545
- AWWA C151
Welspun High Frequency Welded Pipe Type of Joints
- Flanged Joints
- push on Flexible Joints
- Restrained Joints
Welspun Line Pipes Coating
- Internal Coating
- External Coating
Stockist Of Welspun Ductile Iron Pipes Provide Size Range DN 80 to DN 1200 mm in Mumbai

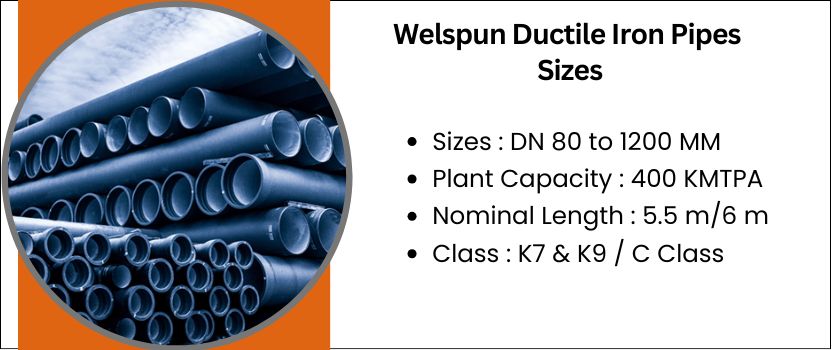

Welspun Ductile Iron Pipes Sizes
Welspun Pipe Distributor in India Offers a Various Range of Size
Welspun HSAW Pipe Provide Internal And External Coating As Per Requirement
Welspun Carbon Steel Line Pipes Coating
| Type | Coating | Available |
|---|---|---|
| Internal Coating | Internal Lining of Cement Mortar With Epoxy / Bitumen Seal Coat | As per Customer's Requreirement |
| External Coating | Metalic Coating (Zinc/Zinc Aluminium) |
Welspun High Frequency Welded Pipe Available in API 5L Grades As Per International Standards
Product Specification for Welspun Ductile Iron Pipes
| Produced in | Little Rock (Arkansas), in USA | Little Rock (Arkansas), in USA | Little Rock (Arkansas), in USA |
|---|---|---|---|
| Sizes | Diameter : 10 to 20 Inch | Diameter : 24 to 60 Inch | Pipe Diameter External Coating : 4 to 60 Inch |
| Length : Upto 24 M | Length : Upto 24 M | Pipe Length : Upto 24 M | |
| WT : 4 to 12.7 MM (0.157 to 0.500 Inch) | WT : 8 to 25.4 MM (0.315 to 1 Inch) | Pipe Diameter Internal Coating : 24 to 60 Inch | |
| Installed Capacity (Total) | MTPA 175,000 | MTPA 350,000 | 9.10 Million sqm PA |
| Specifications & Material Grades |
API 5L up to Gr. X-70, PSL 2 | API 5L up to Gr. X-80, API 2B |
External Fusion Bonded Epoxy in Single and Dual Layers |
| Coating Systems | As Per All Other International Standards & Customized Specifications | ||
Buy Welspun Stainless Steel Pipes in Hot and Cold Finished Process
Welspun Stainless Steel Pipes Product Range
| Properties | Cold Finished (Pipe) | Cold Finished (Tube) | Hot Finished- Hollow | |||
|---|---|---|---|---|---|---|
| Maximum | Minimum | Maximum | Minimum | Maximum | Minimum | |
| Length | 30 m | --- | 30 m | --- | 12.0 m | 4.0 m |
| Wall Thickness for (ANSI Size) | Schedule XX | Schedule 10 | --- | --- | Schedule 160 | Schedule 40 |
| Outside Daimeter for (ISO/EN Size) | 168.3 | 13.72 (MM) | 102 (MM) | 6.0 (MM) | 168.3 | 48.3 (MM) |
| Wall Thickness for (ISO/EN Size) | 17.12 (MM) | 1.24 (MM) | 5.54 (MM) | 0.6 (MM) | 13.49 (MM) | 3.68 (MM) |
| Outside Daimeter for (ANSI Pipe) | 6.0” NB * | 1/4” NB | --- | --- | 6.0” NB * | 1.5” NB |

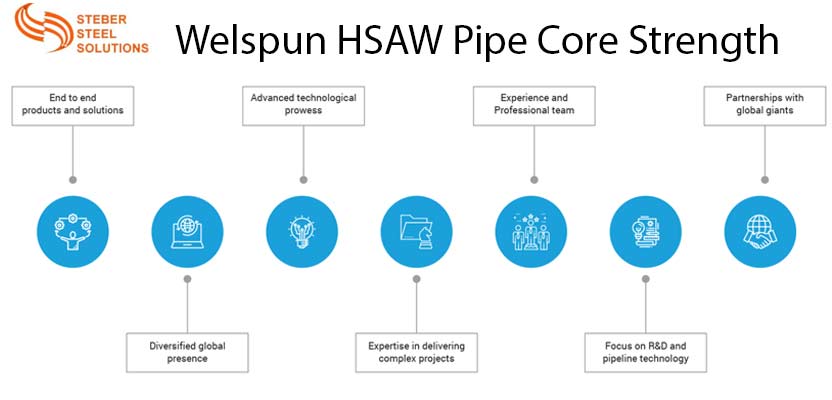

Welspun HSAW Pipe Core Strength
Value Added Services of Welspun DI Pipes
- Spheroidised Annealed
- Annealed
- Soft Annealed (Stress Relieved)
- Normalized
Welspun Stainless Steel Pipes Available Grades
| Material | Grades |
|---|---|
| Ferritic Stainless Steel | 13Cr, 409, 430, 430Ti, 430F |
| Austenitic Stainless Steel | 303, 304, 304L, 304H, 309, 309S, 310, 310S, 316, 316Ti, 316L, 316H, 317, 317L, 321, 321H, 347, 347H |
| Martensitic Stainless Steel | 403, 414, 410, 420, 416, 431 |
| Precipitation Hardening, Duplex & Super Duplex Stainless Steel | F6NM, 15-5PH, 17-4PH, 1.4418, F-55, F-51, F-60, F-53 |
| Nickel Alloy / Super Alloy | INCONEL 625, 617, 600 INCOLOY 825, 800, 903 |
Welspun Alloy Steel Pipes Available Grades
| Material | Grades |
| Bearing Steel | SAE 52100, SKF Gr3, 100CrMnSi64, 100CrMn6, 100CrMo7, 100Cr6, Gr 24K, Gr 24, Gr17OK, SAE 33I0 |
| Micro Alloyed Steel | 38MnSiVS6, C70S6 etc |
| Chrome - Moly Steel | SAE 4145/4140/4135/4130 42CrMo4, En19 |
| Creep Resistant Steel | F5, F9, F11, F12, F22, F91, F92, FI, H, 9Cr1Mo |
| Case Carburizing Steel | 20MnCr5/16MnCr5 SAE 8822/8620/8627/8619/8625/8622 |
| Boron Steel | 15B22, 43B17, 15B41, 94B17H, 20MnCr5(B) |
| High Nickel Steel | En36C/18X2H4BA, 19NiCrMo4, 5HS64, 20X2H4A, SAE9310 |
| Tool & Die Steel | H13, H11, DIN 1.2714, AISI 01, S7 |

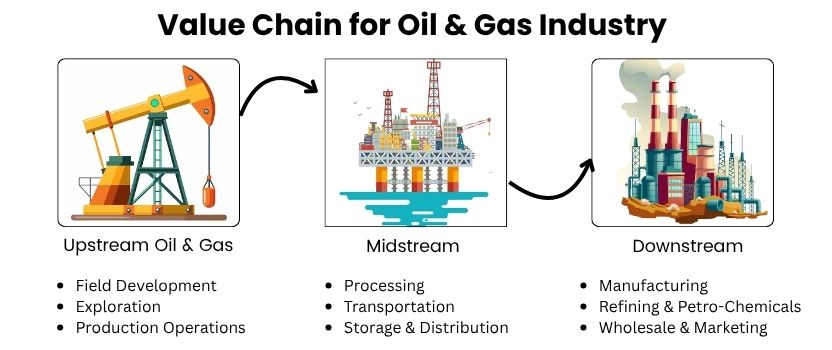

Welspun HFIW Pipes of Value Chain for Oil & Gas Industry
Various Certificates of Welspun High Frequency Welded Pipe
- ISO 9001: 2015
- ISO 14001: 2015
- ISO 45001: 2018
Welspun Ductile Iron Pipes Grades
- IS 8329
- ISO 2531
- ISO 7186
- BS EN 545
- BS EN 598
- AWWA C151
Applications of Welspun Pipe
