Stainless Steel 304L Flanges

Stainless Steel 304L Flanges

Stainless Steel 304L Flanges At a Glance
Size:  1/2 to 48"
ASME Standard ASTM A182, ASME B16.5 ,ASME B16.47, ASME B16.36
Pressure PN25, PN10, PN6, PN64, PN16, PN40
Thread Types BSPT, MNPT , BSPP, NPT
MTC Certificate EN 10204 3.1, 3.2
Brand SMT
Face Types Flat Face , Raise Face , Ring Type Joint

ASTM A182 F304L Blind Flange Manufacturer in India

Stainless Steel 304L Flanges

Stainless Steel 304L Flanges

SUS 304L Blind Flange

SUS 304L Blind Flange

SS 304L Slip on Flange

SS 304L Slip on Flange


Table of Contents


Stainless Steel 304L Flanges Specification

SS 304L Flanges Sizes

  • NPS: 1/2 - 48 inch
  • Class : 5NB – 1500NB
  • SCH: Sch 5 - SCH XXS



Sizes

SUS 304L Socket Weld Flanges Threads

  • BSPT
  • NPT
  • BSPP
  • FNPT, MNPT

Threads

Stainless Steel 304L Flanges Standards

  • ASME SA 182 | ASTM A182
  • UNS : S30403
  • WNR: 1.4307


Standards

WNR 1.4307 Orifice Flanges Origin

  • Janpanese
  • Korean
  • European
  • Indian

Origin

304L SS Pipe Flanges Face Types

  • RF
  • RTJ
  • T&G
  • FF

Face Types

DIN 1.4307 Blind Flanges Testing

  • Tensile
  • Hardness test
  • PMI
  • Pressure

Testing

304L Stainless Steel Flange Types

  • Lap Joint Flange
  • Slip On
  • Plate Flanges
  • Weld Neck
  • Socket Weld
  • Blind


Types

SS 304L SORF Flange Process

  • Forging
  • Rolling
  • Cutting
  • Casting




Process

SS UNS S30403 Lap Joint Flange EN type

  • EN-TYPE 14 (socket weld)
  • EN-TYPE 01/12 (slip on)
  • EN-TYPE 11 (weld neck)
  • EN-TYPE 21 (long weld neck)
  • EN-TYPE 02/04 (lap joint)
  • EN-TYPE 13 (threaded)
  • EN-TYPE 05 (blind)

Finish

AISI 304L Reducing Flange Pressure Class

  • 2500 Lbs
  • 1500 Lbs
  • 900 Lbs
  • 600 Lbs
  • 300 Lbs
  • 150 Lbs


Pressure Class

ASTM A182 F304L Plate Flanges Markings

  • Origin of material
  • Manufacturers logo
  • ASTM standard
  • Grade
  • Pressure class
  • Face type
  • Sizes

Markings

ASME SA182 F304L Weld Neck flanges Din Standards

  • DIN 2631
  • DIN 2635
  • DIN 2632
  • DIN 2634
  • DIN 2633


Delivery

Manufacturer of ASTM A182 Grade F304L Weld Neck Flange Available in PN6 to PN40

ASTM A182 Grade F304L Weld Neck Flange Pressure Ratings

ANSI/ASME B16.34 Pressure Chart
Temperature (°F) 2500# 1500# 900# 600# 400# 300# 150#
200 5000 3000 1800 1200 800 600 230
400 4140 2485 1490 995 660 495 190
600 3640 2185 1310 875 580 435 140
700 3540 2125 1275 850 565 425 110
800 3360 2015 1210 805 540 405 80
900 3240 1945 1165 780 520 390 50
1000 2675 1605 965 640 430 320 20
1200 1285 770 465 310 205 155 20
1250 945 565 340 225 150 115 20
1300 715 430 255 170 115 85 20
1400 400 240 145 95 65 50 20
1450 285 170 105 70 45 35 15
1500 230 135 80 55 35 25 10

Stockist of 304L Stainless Steel Socket Weld Flange in Mumbai, Check Dimensions

SS 304L Flange Dimensions

Nominal Pipe Size(in.) Class 300
No.
of
Bolts		 Diameter of
Flange
(in.)		 Diameter of
Bolts
(in.)		 Bolt
Circle
(in.)		 Diameter of
Bolt Holes
(in.)
3/4 4 4-5/8 5/8 3-1/4 0.75
1/2 4 3-3/4 1/2 2-5/8 0.62
1/4 4 3-3/8 1/2 2-1/4 0.62
1 4 4-7/8 5/8 3-1/2 0.75
1-1/4 4 5-1/4 5/8 3-7/8 0.75
2 8 6-1/2 5/8 5 0.75
3-1/2 8 9 3/4 7-1/4 0.88
4 8 10 3/4 7-7/8 0.88
6 12 12-1/2 3/4 10-5/8 0.88
8 12 15 7/8 13 1
12 16 20-1/2 1-1/8 17-3/4 1.25
14 20 23 1-1/8 20-1/4 1.25
18 24 28 1-1/4 24-3/4 1.38
24 24 36 1-1/2 32 1.62
Saudi Aramco Approved SS 304L SORF Flange As Per ASME B16.5 Standards

304L Stainless Steel Flange Standards

Manufacturer of Stainless Steel 304L Flanges in India as per GOST 12820 80 and ASME B16.5

  • JIS B2220 Flange
  • Australian Flanges
  • ISO Flanges
  • BS 4504 Flanges
  • SABS / SANS 1123 Flanges
  • Korean FLANGE
  • AWWA C207 Flanges
  • BS 10 Flanges
  • GOST 12820 80 Flanges
  • API Flanges
  • EN 1092-1 Flange
  • MSS SP-44 Flange
Buy SA 182 Gr F304L Threaded Flange in Flat and Raised Flange At Factory Price

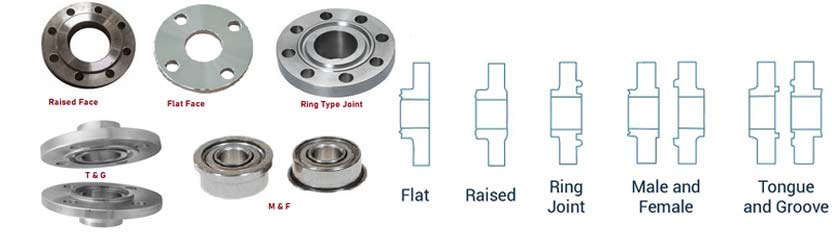

SUS 304L Blind Flange Face Types

SUS 304L Blind Flange Face Types

Stainless Steel 304L Flanges Size Chart

Supplier of Stainless Steel 304L Flanges offers a range of sizes

Nominal Pipe Size Thickness of Flange Outside Diameter of Flange Diameter of Hub at Base Diameter of Raised Face Radius of Fillet Diameter or Bore Depth of Socket Diameter of Hub at Bevel
Slip-on Socket Lap Joint
Q O X R r W B Z H
24 1-7/8 32 26-1/8 27-1/4 1/2 24.25 24.25 2-1/2 24.00
20 1-11/16 27-1/2 22 23 1/2 20.20 20.25 2-1/8 20.00
18 1-9/16 25 19-7/8 21 1/2 18.18 18.20 1-15/16 18.00
16 1-7/16 23-1/2 18 18-1/2 1/2 16.16 16.19 1-3/4 16.00
14 1-3/8 21 15-3/4 16-1/4 1/2 14.14 14.18 1-5/8 14.00
12 1-1/4 19 14-3/8 15 1/2 12.88 12.92 1-9/16 12.75
10 1-3/16 16 12 12-3/4 1/2 10.88 10.92 1-5/16 10.75
8 1-1/8 13-1/2 9-11/16 10-5/8 1/2 8.72 8.75 1-1/4 8.63
6 1 11 7-9/16 8-1/2 1/2 6.72 6.75 1-1/16 6.63
5 15/16 10 6-7/16 7.5/16 7/16 5.66 5.69 15/16 5.56
4 15/16 9 5-5/16 6-3/16 7/16 4.57 4.60 15/16 4.50
3 15/16 7-1/2 4-1/4 5 3/8 3.57 3.60 13/16 3.50
2 3/4 6 3-1/16 3-5/8 5/16 2.44 2.46 11/16 2.38
1-1/2 11/16 5 2-9/16 2-7/8 1/4 1.95 1.97 5/8 1.90
1 9/16 4-1/4 1-15/16 2 1/8 1.36 1.38 1/2 1.32
1/2 7/16 3-1/2 1-3/16 1-3/8 1/8 .88 .90 3/8 .84

ASME SA182 F304L Slip on Flange Threads

  Threads
UNF Unified National Fine
  Metric Thread
NPT National Pipe Thread
BSPP British Standard Pipe Parallel

Various Types Of Stainless Steel 304L Flanges

Leading Stainless Steel 304L Flanges Supplier in India are available in Blind, Slip on, Plate and Weld Neck Flange

ASME SA182 F304L Orifice Flanges

ASME SA182 F304L Orifice Flanges

INOX 304L Forged Flange

INOX 304L Forged Flange

AISI 304L Threaded Flange

AISI 304L Threaded Flange

WNR 1.4307 Socket Weld Flange

WNR 1.4307 Socket Weld Flange

Stainless Steel 304L Reducing Flange

Stainless Steel 304L Reducing Flange

UNS S30403 Lap Joint Flange

UNS S30403 Lap Joint Flange

ASTM A182 F304L Plate Flanges

ASTM A182 F304L Plate Flanges

304L Stainless Steel Weld Neck Flange

304L Stainless Steel Weld Neck Flange

WNR 1.4307 Reducing Flange Hardness

Rockwell B 92 (maximum)
Brinell 201

UNS S30403 Plate Flanges Test Certificate

  • Heat Treatment Charts
  • Fumigation Certificates
  • NABL approved Laboratory Test Reports
  • MTC as per EN 10204 3.1 and EN 10204 3.2
  • Guarantee Letter
  • Material Traceability Records
  • Raw Material Test Reports
  • Quality Assurance Plan (QAP)
  • NACE MR0103, NACE MR0175
  • Commercial Invoice including HS Code

AISI 304L Threaded Flange Schedule Chart

Size (NPS) OD SCH 10 SCH 20 SCH 30 SCH 40 EXT Hvy SCH 60 SCH 80 SCH 100 SCH 120 SCH 140 SCH 160
1 ¼ 1.66 0.109 - - 0.14 0.191 - 0.191 - - - 0.25
1 1.315 0.109 - - 0.133 0.179 - 0.179 - - - 0.25
2 ½ 2.875 0.12 - - 0.203 0.276 - 0.276 - - - 0.375
2 2.375 0.109 - - 0.154 0.218 - 0.218 - - - 0.344
3 3.5 0.12 - - 0.216 0.3 - 0.3 - - - 0.438
3 ½ 4 0.12 - - 0.226 0.318 - 0.318 - - - -
5 5.563 0.134 - - 0.258 0.375 - 0.375 - 0.5 - 0.625
6 6.625 0.134 - - 0.28 0.432 - 0.432 - 0.562 - 0.719
10 10.75 0.165 0.25 0.307 0.365 0.5 0.5 0.594 0.719 0.844 1 1.125
12 12.75 0.18 0.25 0.33 0.406 0.5 0.562 0.688 0.844 1 1.125 1.312
16 16 0.25 0.312 0.375 0.5 0.5 0.656 0.844 1.031 1.219 1.438 1.594
20 20 0.25 0.375 0.5 0.594 0.5 0.812 1.031 1.281 1.5 1.75 1.969

Stainless Steel 304L Flanges Weight Chart

Size OD WT min Hub Diam. Raised Face Diameter Length Hub.Y Thread Length Bolt Circle Diam. Bolt Holes Diam. No. of Bolts Diam. of Bolts (inch) KG LB
inch dn O C X G Y T BC BH BN BD
1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

SUS 304L Weld Neck Flange Bolt Chart

Size (inch) Machine Bolt Length ISO Stud Size
1/2 50 M14
1 1/2 65
1 55
3/4 50
2 70 M16
2 1/2 75
3 75
3 1/2 75
4 75
5 85 M20
6 85
8 90
10 100 M24
12 100
14 115 M27
16 115
18 125 M30
20 140

A182 F304L WNRF Flange Applications

A182 F304L WNRF Flange Applications

ASTM A182 F304L Socket Weld Flange Heat Treatment

Name Of Grade Austenitizing & Solutioning Types Of Heat Treatment Quenching Cooling Tempering
temperature (Temp.), minimum. (°F) Types Of Treat Cool Media Temp.
Stainless Steel 304L Flanges 1900 [1040] Solution Liquid 500 [260]
treat and

SA 182 Gr F304L Threaded Flange Gasket Table

Gasket I.D.
 NPS Gasket O.D.
900 LB 600 LB 400 LB 300 LB 150 LB
12.75 12 19.625 18.00 16.50 16.625 16.125
10.75 10 17.125 15.75 14.125 14.25 13.375
6.62 6 11.375 10.50 9.75 9.875 8.75
5.56 5 9.75 9.50 8.375 8.50 7.75
4.50 4 8.125 7.625 7.00 7.125 6.875
3.50 3 6.625 5.875 5.875 5.875 5.375
2.88 2 1/2 6.50 5.125 5.125 5.125 4.875
2.38 2 5.625 4.375 4.375 4.375 4.125
1.91 1 1/2 3.875 3.75 3.75 3.75 3.375
1.66 1 1/4 3.50 3.25 3.25 3.25 3
1.31 1 3.125 2.875 2.875 2.875 2.625
1.06 3/4 2.75 2.625 2.625 2.625 2.25
0.84 1/2 2.50 2.125 2.125 2.125 1.875

F304L Stainless Steel Flange Torque Chart

Size in inch 1 1/2 1 2 1 1/4 3 2 1/2 4 3 1/2 5 6 8 10 12 14 16 18 20 24
Size in mm 40 25 50 32 80 65 100 90 125 150 200 250 300 350 400 450 500 600
Max. Radial Projection Deeper Than the Bottom of the Serrations, mm 1.5 1.5 1.5 1.5 1.5 1.5 3 3 3 3 4.5 4.5 4.5 4.5 4.5 6 6 6
No Deeper Than the Bottom of the Serrations, mm 3 3 3 3 4.5 3 6 6 6 6 8 8 8 8 10 12 12 12

SA 182 Gr F304L Spectacle Blind Flanges Impact Test

Impact Test 65 – 100ft-lbs

SS 304L Flange HSN Code

Product HSN Code
SS 304L Flanges 73072100

SS UNS S30403 Pipe Flanges Welding Requirement

Stainless steel grade SS 304l flanges Post Weld Heat Treatment Temperature range (Minimum) Electrodes
A240 F304L (Plate) A182 F304L (Forged)
 1900 [1040] + WQ (water quench) E 308L-15 or 16

Stainless Steel 304L Flanges Equivalent Grades

ASTM A182 F304L Grade ASTM A240 F304L
Forged Flange/ Rolled Austenitic stainless steel 304L Plate/ orifice flange
Grade (USA) JIS (Japan) AFNOR (France)
304L SUS304L Z2CN18-10 Z3CN18-10
BS (England) SS (Sweden) GOST (Russia)
BS 304S11 SIS 2352 03KH18N11
Werkstoff No UNI (Italy) UNS
1.4306 X2CrNi18-11 UNS S30403
Grade (European) INOX
X2CrNi19-11 304L
PN (Poland) SFS (Finland) AISI
00H18N10 720 304L

SS 304L Weld Neck Flange Mechanical Properties

Melting Point Density Yield Strength (0.2%Offset) Tensile Strength Elongation
1400 °C (2550 °F) 8.0 g/cm3 Psi – 30000 , MPa – 205 Psi – 75000 , MPa – 515 35 %

ASTM A182 F304L Forged Flange Physical Properties

Grade thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Thermal Expansion Mean Coefficient (m/m/0C) Elastic Modulus (GPa) Electrical Resistivity (n.m)
0-1000C at 5000C - at 1000C 0-5380C -
304L 17.8 18.4 17.2 193 16.2

AISI 304L RTJ Flange Chemical Composition

Grade Mn C P S Si Ni Cr N Mo
SS 304L 2.0 max 0.035 max 0.045 max 0.03 max 1.0 max 8 – 13 18 – 20 - -

Export Stainless Steel 304L Flanges to below Countries

Country Name Flag Country Name Flag
Algeria Algeria Nigeria Nigeria
Tunisia Tunisia South Africa South Africa
Kenya Kenya Angola Angola
Tanzania Tanzania Morocco Morocco
Egypt Egypt Ethiopia Ethiopia
Zambia Zambia Ghana Ghana
