Inconel Flanges

Inconel Flanges

Quick Information for Inconel Flanges
Specification ASTM B564 / ASME SB564
Sizes  1/2" to 60" NB
Dimensional Standard ASME B16.5, ASME B16.47, MSS SP44
Class 150 to 2500 Class
UNS No. N06600
Thread Types BSPP, NPT, BSPT, MNPT
MTC: EN 10204 3.1 & 3.2
Available Grades Inconel 600 & Inconel 625 Flanges
WERKSTOFF NR. 2.4816
Production Process Forging, Casting, Cutting, Rolling

ASTM B564 Inconel Blind Flanges Supplier in India

Inconel Flanges

Inconel Flanges

ASTM B564 Inconel Blind Flanges

ASTM B564 Inconel Blind Flanges

Inconel Alloy Weld Neck Flange

Inconel Alloy Weld Neck Flange


Table of Contents


Inconel Flanges Specification

Inconel Flanges Sizes

  • 1/2″ to 48″
  • PN 2.5 – PN 400
  • 15NB – 1200NB



Sizes

Inconel Metal Pipe Flange Standards

  • ASTM B564
  • ASME SB564
  • ASME B16.5
  • ASME B16.47 Series A & B
  • MSS SP-44
Standards

Inconel Slip on Flange Thread Types

  • FNPT, MNPT
  • MPT, BSP
  • NPT, FPT
  • BSPT
  • BSPP
Thread Types

Inconel Alloy Spectacle Blind Flange Types

  • Blind Flange
  • Lap Joint Flange
  • Weld Neck Flange
  • Slip On Flange
  • Plate Flange
  • Socket Weld Flange



Types

ASTM B564 Inconel Reducing Flange Manufacturing Methods

  • CNC Machining
  • Forged
  • Milling
  • Rolled
  • Drilling
  • Turning
  • Stamping

Manufacturing Methods

ASTM B564 Inconel Hot Forged Flange Finish

  • Cold Water Finish / Mirror Finish
  • Serrated Finish
  • Smooth Finish
  • Stock Finish – 125- to 250-μin
  • Zinc Plated
  • Concentric Serrated
  • Spiral Serrated

Finish

Applications of ASME SB564 Inconel Hot Forged Flange

  • Power Generation Plant
  • Industrial Pressure Vessels
  • Petrochemical Plants
  • Nuclear Energy Sector
  • Construction & Mechanical System


Applications

ASME SB 564 Inconel Lap Joint Flange Meet Requirements

  • NACE MR0103
  • NACE TM-0284
  • ISO 15156
  • Sour Service
  • NACE MR0175



Certificate

Value Added Services of Inconel Alloy SORF Flange

  • Threading
  • Forging
  • Minor Fabrication
  • Casting
  • Metal Stampings
  • CNC Machined
  • Drilling
  • Electroplating
Services

Inconel Slip on Flange Origin

  • Korean
  • European
  • Janpanese
  • American



Origin

High Temp Alloy Plate Flanges Face Types

  • M&F
  • RTJ
  • FF
  • T&G
  • RF


Face Types

Inconel Metal Weld Flanges Testing Requirements

  • Shell Pressure Test
  • Hardness Test
  • Visual Inspection
  • Material Inspection
  • Tensile Test
  • Impact Test
Testing Requirements

Inconel Alloy Weld Neck Flange Pressure Class

  • Class 150
  • Class 1500
  • Class 2500
  • Class 900
  • Class 300
  • Class 600


Pressure Class

Inconel Flanges Marking

  • Sizes
  • ASTM / ASME Standard
  • Face Type
  • Manufacturing Date
  • Origin of Material
  • Pressure Class
  • Manufacturers Logo / Name
  • Grade

Markings

ASTM B564 Inconel Reducing Flange ASME Standards

  • ASME B16.47
  • ASME B16.20
  • ASME B16.36
  • ASME B16.5



Standards

Inconel Alloy Weld Neck Flange Manufacturer in Mumbai As Per ASME B16.5 Standard

Standards of Inconel Slip on Flange

  • ASME B16.5
  • ASME B16.36
  • ASME B16.47
  • ASME B16.48

High Temp Alloy Socket Weld Flange Available in 1/2 To 60 Inch NB

ASTM B564 Inconel Blind Flanges Thickness Chart

Sizes SORF (Slip On) BLRF (Blind) SWRF (Socket Weld) WRNR (Weld Neck) NPT (Threaded) Loose (Lap Joint)
24 220 430 220 268 220 275
22 185 355 185 225 185 245
20 165 285 165 197 165 195
18 130 220 130 165 130 160
16 106 180 98 140 98 140
14 90 140 90 114 90 105
12 64 123 64 88 64 64
10 43 70 43 54 43 43
8 30 47 30 42 30 30
6 19 27 19 26 19 19
5 15 20 15 21 15 15
4 13 17 13 16.5 13 13
3½ 11 13 11 12 12 11
3 9 9 9 11.5 9 9
2½ 8 7 8 10 8 8
2 5 5 5 6 5 5
1½ 3 4 3 4 3 3
1 2 2 2 3 2 2
½ 1 2 2 2 1 1
Stockist of ASME SB 564 Inconel Threaded Flange Offers Class Up To 2500

Pressure Rating of ASME SB564 Inconel Hot Forged Flange

Temp In (℃) Class 2500 Class 1500 Class 900 Class 600 Class 300 Class 150
700 73.0 43.8 26.3 17.5 8.8 –
650 117.3 70.4 42.2 28.1 14.1 –
600 178.5 107.0 64.2 42.9 21.6 –
550 208.0 124.9 74.8 49.8 25.0 –
500 235.0 140.9 84.7 56.5 28.2 2.8
450 281.8 169.0 101.4 67.7 33.7 4.6
400 304.9 183.1 109.8 73.3 36.5 6.5
350 335.3 201.1 120.7 80.4 40.3 8.4
300 357.1 214.4 128.6 85.7 42.9 10.2
250 386.2 231.8 139.0 92.7 46.3 12.1
200 402.8 241.7 145.0 96.7 48.3 13.8
100 429.4 257.6 154.6 103.0 51.5 17.7
50 430.9 258.6 155.1 103.4 51.7 19.5
-29 to 38 430.9 258.6 155.1 103.4 51.7 20.0
Buy Flat And Raised Face ASME SB564 Inconel Hot Forged Flange At Factory Price

Inconel Flanges Face Types

Face Types Classes Diagram Thickness
Male Female Face (M&F) Class 150 to 600 Male Female Face SCH 40 to SCH 80
Tongue Groove Face (T&G) Tongue Groove Face
Lap Joint Face (LJ) Class 150 to 2500 Lap Joint Face SCH 40/ 80/ 120
Ring Type Joint (RTJ) Ring Type Joint SCH 10 to SCH 180
Flat Face (FF) Flat Face
Raised Face (RF) Raised Face

View the Most Recent Inconel Flanges Market Price List By, Click here

High Temp Alloy Plate Flanges Dimensions

An Indian Supplier of Inconel Flanges Provides a Variety of Flange Dimensions

Nominal Pipe Size
(Inches) 		Dimensions of Inconel Flange
Bolt Holes Daimeter
(in.) 		Flange Daimeter
(in.) 		Bolts Daimeter
(in.) 		Number
of
Bolts		 Bolt
Circle
(Inches)
24 1.38 32 1-1/4 20 29-1/2
20 1.25 27-1/2 1-1/8 20 25
18 1.25 25 1-1/8 16 22-3/4
16 1.12 23-1/2 1 16 21-1/4
14 1.12 21 1 12 18-3/4
12 1 19 7/8 12 17
10 1 16 7/8 12 14-1/4
8 0.88 13-1/2 3/4 8 11-3/4
6 0.88 11 3/4 8 9-1/2
5 0.88 10 3/4 8 8-1/2
4 0.75 9 5/8 8 7-1/2
3-1/2 0.75 8-1/2 5/8 8 7
3 0.75 7-1/2 5/8 4 6
2-1/2 0.75 7 5/8 4 5-1/2
2 0.75 6 5/8 4 4-3/4
1-1/2 0.62 5 1/2 4 3-7/8
1 0.62 4-1/4 1/2 4 3-1/8
1/2 0.62 3-1/2 1/2 4 2-3/8

Types of ASTM B564 Inconel Hot Forged Flange

A List of Some of the More Common Types of Inconel Flanges Provided by an Indian Supplier

High Temp Alloy Socket Weld Flange

High Temp Alloy Socket Weld Flange

ASME SB 564 Inconel Threaded Flange

ASME SB 564 Inconel Threaded Flange

ASME SB564 Inconel Hot Forged Flange

ASME SB564 Inconel Hot Forged Flange

Inconel Slip on Flange

Inconel Slip on Flange

ASTM B564 Inconel Reducing Flange

ASTM B564 Inconel Reducing Flange

ASME SB 564 Inconel Lap Joint Flange

ASME SB 564 Inconel Lap Joint Flange

High Temp Alloy Plate Flanges

High Temp Alloy Plate Flanges

Inconel Alloy SORF Flange

Inconel Alloy SORF Flange

Inconel Metal BLRF Flange

Inconel Metal BLRF Flange

Inconel Metal Pipe Flange

Inconel Metal Pipe Flange

Inconel Orifice Flange

Inconel Orifice Flange

Inconel Alloy Spectacle Blind Flange

Inconel Alloy Spectacle Blind Flange

Inconel Alloy Weld Neck Flange Stress Corrosion Cracking

Heat Treatment The Environment
Annealed Water, 21 ppm O2, 316°C
Annealed High-Temperature Degassed Water
Cold Worked 288°C Water, 100 ppm O2
Annealed Polythionic Acid
Annealed Lead with Oxygenated Water

Manufacturing Standard of High Temp Alloy Socket Weld Flange

Method of Manufacturing ASME / ASTM Standards
Inconel Forged Flanges
  • ASME SB564
  • ASTM B564
ASME SB 564 Inconel Cast Flange
  • ASME SA494 CY40
  • ASTM A494 CY40
  • ASME SA494 CW6MC
  • ASTM A494 CW6MC
ASTM B564 Inconel Plate Flange
  • ASME SB168 UNS N06600
  • ASTM B168 UNS N06600
  • ASME SB168 UNS N06601
  • ASTM B168 UNS N06601
  • ASME SB168 UNS N06625
  • ASTM B168 UNS N06625
Inconel Alloy Machined Flanges (Produced With Bar Stock)
  • ASME SB166
  • ASTM B166

ASME SB 564 Inconel Threaded Flange Weight Chart

Pipe Normal Dia (IN) OD of Flange Thread Length Flange Thickness (Min) Length Hub.Y Hub Diameter Bolt
Holes Diameter		 Bolt
Circle Diameter		 Raised Face Diameter No.
of Bolts		 Dia of
Bolts
(inch)		 LB KG
24" 600 813.00 82.60 47.80 82.60 663.40 35.10 749.30 692.20 20 1 1/4" 214 97
20" 500 698.50 73.20 42.90 73.20 558.80 31.80 635.00 584.20 20 1 1/8" 167 76
18" 450 635.00 68.30 39.60 68.30 505.00 31.80 577.90 533.40 16 1 1/8" 126 57
16" 400 597.00 63.50 36.60 63.50 457.20 28.50 539.80 469.90 16 1" 103 47
14" 350 533.50 57.20 35.10 57.20 400.10 28.50 476.30 412.80 12 1" 86 39
12" 300 482.50 55.60 31.80 55.60 365.30 25.40 431.80 381.00 12 7/8" 64 29
10" 250 406.50 49.30 30.20 49.30 304.80 25.40 362.00 323.90 12 7/8" 39.5 18
8" 200 343.00 44.50 28.40 44.50 246.10 22.40 298.50 269.70 8 3/4" 28.6 13
6" 150 279.50 39.60 25.40 39.60 192.00 22.40 241.30 215.90 8 3/4" 18.5 8.4
5" 125 254.00 36.60 23.90 36.60 163.60 22.40 215.90 185.70 8 3/4" 15.4 7
4" 100 228.50 33.30 23.90 33.30 134.90 19.10 190.50 157.20 8 5/8" 13 5.9
3-1/2" 90 216.00 31.80 23.90 31.80 122.20 19.10 177.80 139.70 8 5/8" 11.2 5.1
3" 80 190.50 30.20 23.90 30.20 108.00 19.10 152.40 127.00 4 5/8" 9 4.1
2" 50 152.50 25.40 19.10 25.40 77.70 19.10 120.70 91.90 4 5/8" 5.1 2.3
1" 25 108.00 17.50 14.20 17.50 49.30 15.80 79.30 50.80 4 1/2" 1.8 0.8
1/2" 15 89.00 15.70 11.20 15.70 30.20 15.80 60.50 35.10 4 1/2" 0.9 0.4

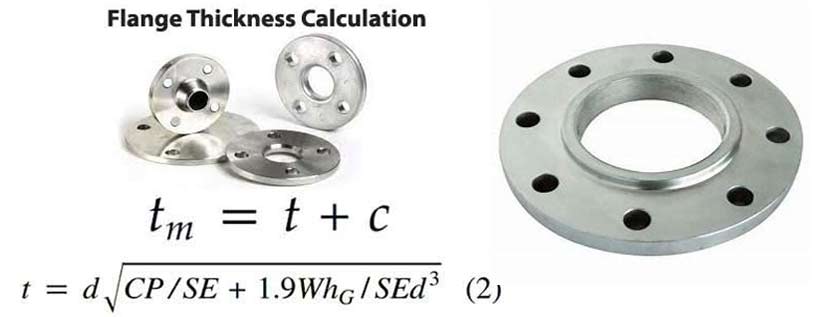

Thickness Calculation of Inconel Flanges

Thickness Calculation of Inconel Flanges

Inconel Metal Weld Flanges Corrosion Environment

Nonoxidizing Acids Boiling
Alloy H3PO4 85% H3PO4 55% HCOOH 40% H2SO4 10% HC1 10%
Alloy 625 110 10 7 44 620
Alloy 600 1,800 – 10 360 4,400

Comparison Time for Corrosion Cracking of Inconel Alloy Forged Flange

Alloy Cracking Time
Inconel 625 in 1,008 h No Cracking
Inconel 600 1,011 h No Cracking

Inconel Flanges Available Grades

  • Inconel 600 Flanges
  • Inconel 625 Flanges

Pitting and Crevice Corrosion for Inconel Orifice Flange

Gr. Type Test % Mo PREa Max depth (mm) No. of days
Inconel 625 PTFE 9 40.8 4 (0.11) 180
MCAc 0 90
Inconel 600 Washers 0 16 34 (0.86) 30

ASME SB 564 Inconel Lap Joint Flange Service Temperature

Material Service Temperature
Inconel Flanges 1095 °C
2000 °F

Number and Diameter of Bolt Holes for Inconel Slip on Flange

Pressure Classes Hole
Class 150 Inconel Metal Flange 25.4 MM / 12 H
Class 300 High Temp Alloy Flange 28.6 MM / 16 H
Class 400 Inconel Flange 34.9 MM / 16 H
Class 600 ASTM B564 Inconel Flange 34.9 MM / 20 H
Class 900 Inconel Alloy Flange 38.1 MM / 20 H
Class 1500 ASME SB 564 Inconel Flange 54 MM / 16 H
Class 2500 Inconel Flange 73 MM / 12 H

Benefits of Inconel Flanges Use in Industrial Applications

  • Easy to Fabricate & Install
  • High-Temperature Resistance
  • Excellent Resistance to Oxidation and Scaling
  • Corrosion Resistance
  • Cost-Effectiveness
  • Strength and Durability

Corrosion Tests of ASME SB 564 Inconel Forged Pipe Flange

Grade Tests Temperature Corrosion Rate, mpy , (mm/a) Test Duration
Inconel 600 Flanges Hydrogen Fluoride Gas 500–600 °C (932–1112°F) 0.7 mpy , (0.02 mm/a) 36 Hours

Which Factors to Consider When Choosing ASTM B564 Inconel Flanges ?

Factors to Consider When Choosing ASTM B564 Inconel Flanges

Inconel Alloy Weld Neck Flange Chemical Composition

Gr. S, (Sulfur) C, (Carbon) Si, (Silicon) Ni, (Nickel) Cr, (Chromium) Cu, (Copper) Mn, (Manganese) Fe, (Iron)
Inconel 600 Flange 0.015 Max 0.15 Max 0.50 Max 72 Min 14-17 0.5 Max 1.00 Max 6-10
Inconel 625 Flange 0.015 Max 010 Max 0.50 Max 58 20.0-23.0 0.05 Max 0.50 Max 5
Inconel 601 Flange 0.015 Max 0.10 Max 0.50 Max 58-63 Min 21-25 1 1.00 Max –
Inconel 718 Flange 0.015 Max 0.08 Max 0.35 Max 50-55 17.0-21.0 0.30 Max 0.35 Max Balance

Mechanical Properties of ASTM B564 Inconel Reducing Flange

Inconel Flanges Manufacturer in India Possesses Exceptional Mechanical Properties

Gr. Yield Strength in (0.2% Offset) Tensile Strength Elongation
(Mpa) (Psi) (Mpa) (Psi) %
Inconel 718 Flange 482 Mpa 75000 Psi 930 Mpa 135000 Psi 45 %
Inconel 625 Flange 517 Mpa 75000 Psi 930 Mpa 135000 Psi 42.5 %
Inconel 601 Flange 205 Mpa 30000 Psi 550 Mpa 80000 Psi 30 %
Inconel 600 Flange 310 Mpa 45000 Psi 655 Mpa 95000 Psi 40 %

Applications of Inconel Flanges

Applications of Inconel Flanges

High Temp Alloy Socket Weld Flange Equivalent Material

STANDARD EN, (Europe) BS, (United Kingdom) UNS, (North America) JIS, (Japan) GOST, (Russia) AFNOR, (France) WERKSTOFF NR., (Russia)
Inconel 718 Flange – – N02200 – – – 2.4668
Inconel 625 Flange NiCr22Mo9Nb NA 21 N06625 NCF 625 ХН75МБТЮ NC22DNB4M 2.4856
Inconel 601 Flange NiCr23Fe NA 49 N06601 NCF 601 XH60BT NC23FeA 2.4851
Inconel 600 Flange NiCr15Fe NA13 N06600 NCF 600 МНЖМц 28-2,5-1,5 NC15FE11M 2.4816

Manufacturing Process of Inconel Flanges

Manufacturing Process of Inconel Flanges

Physical Properties of Inconel Alloy SORF Flange

Grades Melting Point Density
°F °C g/cm3
Inconel 718 Flange 2460 1350 8.2
Inconel 625 Flange 2460 1350 8.4
Inconel 601 Flange 2571 1411 8.1
Inconel 600 Flange 2580 1413 8.47

Deliver Inconel Flanges Ex Stock to the Countries Below

Country Name Flag Country Name Flag
Ghana Ghana Zambia Zambia
Dubai Dubai Morocco Morocco
Ethiopia Ethiopia Egypt Egypt
Tanzania Tanzania UAE UAE
Nigeria Nigeria Algeria Algeria
South Africa South Africa Tunisia Tunisia
Angola Angola Kenya Kenya
