Inconel 625 Flanges

Inconel 625 Flanges

Inconel 625 Flanges Quick Information
Size: 1/2 to 48"
Schedule Sch 5 - XXS
Thread Types MNPT ,BSPT, NPT, BSPP
Pressure Class 150 Lbs - 2500 Lbs
Connection Flanged
Production method Casting,Forging, Rolling

ASTM B564 UNS N06625 Slip On Flange Manufacturer in India

Inconel 625 Flange

Inconel 625 Flange

UNS N06625 Slip On Flange

UNS N06625 Slip On Flange

Alloy 625 Blind Flange

Alloy 625 Blind Flange

Table of Contents


Alloy 625 Blind Flange Specification And Pressure Rating

Inconel 625 Flanges Specification

Alloy 625 Forgings Flange Sizes

  • NPS: 1/2″ to 48″
  • SCH: Sch 5 - SCH XXS
  • Class : 5NB - 2500NB

Sizes

Threads of UNS N06625 Pipe Flange

  • NPT
  • FNPT, MNPT
  • BSPP
  • BSPT
Threads

Inconel 625 Flanges Standards

  • ASTM B564 | ASME SB564
  • UNS: N06625
  • WNR: 2.4856

Standards

Origin of Nickel Alloy 625 Weld Flanges

  • Korean
  • Indian
  • Janpanese
  • European

Origin

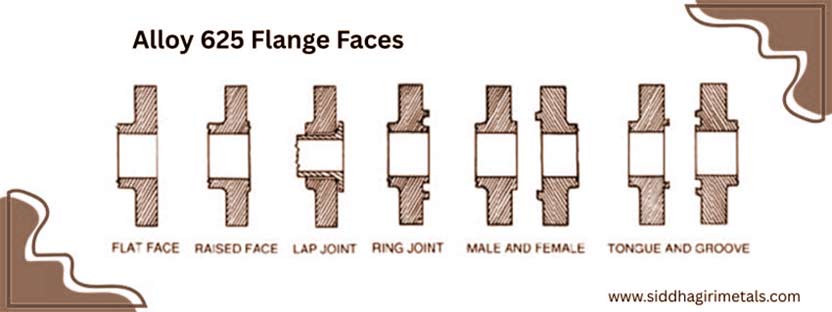

ASTM B564 Inconel 625 Hot Forged Flange Face Types

  • RTJ
  • RF
  • FF
  • T&G
Face Types

Testing for Inconel N06625 Forged Pipe Flange

  • Hardness test
  • Pressure
  • Tensile
  • PMI
Testing

Inconel 2.4816 Blind Flange Types

  • Slip On
  • Weld Neck
  • Lap Joint Flange
  • Blind
  • Plate Flanges
  • Socket Weld

Types

Process of Inconel 6625 Weld Neck Flange

  • Rolling
  • Casting
  • Forging
  • Cutting



Process

Ni Alloy 625 Socket Weld Flange EN type

  • EN-TYPE 01/12 (slip on)
  • EN-TYPE 11 (weld neck)
  • EN-TYPE 14 (socket weld)
  • EN-TYPE 02/04 (lap joint)
  • EN-TYPE 21 (long weld neck)
  • EN-TYPE 05 (blind)
  • EN-TYPE 13 (threaded)
Finish

Pressure Class for Inconel Alloy 625 Threaded Flange

  • 150 Lbs
  • 300 Lbs
  • 600 Lbs
  • 900 Lbs
  • 1500 Lbs
  • 2500 Lbs
Pressure Class

Inconel 625 Slip On Flange Markings

  • Manufacturers logo
  • ASTM standard
  • Origin of material
  • Pressure class
  • Grade
  • Sizes
  • Face type
Markings

Approx Delivery Time in UAE of Alloy 625 Reducing Flange

  • 3-7 Days
  • 1-3 Days




Delivery

Pressure Rating Chart for Alloy 625 Forgings Flange

Temperature Working pressures in bar
Class 150 Class 600 Class 1500 Class 300 Class 900 Class 2500
-29 to 38°C 20.0 103.4 258.6 51.7 155.1 430.9
250°C 12.1 92.7 231.8 46.3 139.0 386.2
50°C 19.5 103.4 258.6 51.7 155.1 430.9
325°C 9.3 82.6 206.6 41.4 124.0 344.3
375°C 7.4 77.6 194.1 38.9 116.5 323.2
425°C 5.5 70.0 175.1 35.2 105.1 291.6
150°C 15.8 100.3 250.8 50.3 150.6 418.2
538°C 1.4 50.0 125.5 25.2 75.2 208.9
575°C - 47.9 119.7 24.0 71.8 199.5
625°C - 36.6 91.2 18.3 54.9 152.0
675°C - 23.0 57.6 11.5 34.6 96.0
475°C 3.7 63.4 158.2 31.7 95.1 263.9
100°C 17.7 103.0 257.6 51.5 154.6 429.4
200°C 13.8 96.7 241.7 48.3 145.0 402.8
300°C 10.2 85.7 214.4 42.9 128.6 357.1
350°C 8.4 80.4 201.1 40.3 120.7 335.3
400°C 6.5 73.3 183.1 36.5 109.8 304.9
450°C 4.6 67.7 169.0 33.7 101.4 281.8
500°C 2.8 56.5 140.9 28.2 84.7 235.0
550°C - 49.8 124.9 25.0 74.8 208.0
600°C - 42.9 107.0 21.6 64.2 178.5
650°C - 28.1 70.4 14.1 42.2 117.3
700°C - 17.5 43.8 8.8 26.3 73.0

UNS N06625 Pipe Flange Weight

Standard Class Bolt Circle Diameter Diameter Bolt Size Number of Bolts Diameter of Bolt Hole
AS4087 PN14 67 95 M12 4 14
ISO 7005 (DIN) PN6s 55 80 M10 4 11
PN16s 65 95 M12 4 14
PN25s 65 95 M12 4 14
PN10s 65 95 M12 4 14
PN20s 60.5 90 M14 4 16
PN40s 65 95 M12 4 14
AS 2129 Table C 67 95 13 4 14
Table E 67 95 13 4 14
Table Hs 83 114 16 4 17
Table D 67 95 13 4 14
Table Fs 67 95 13 4 14
Table Js 83 114 16 4 17
ANSI B16.5s ANSI 150s 60 89 13 4 16
ANSI 1500s 83 121 19 4 22
ANSI 600s 67 95 13 4 16
ANSI 300s 67 95 13 4 16
ANSI 900s 83 121 19 4 22

Which Are The Testing Methods for Alloy 625 Forgings Flange ?

Which Are The Testing Methods for Alloy 625 Forgings Flange

Thickness Chart for ASTM B564 UNS N06625 Forged Flange

Normal Pipe Size (Inch) Outside Daimeter (O.D.) Sch 10 EXT Hvy Outside Daimeter Sch 100 Sch 20 Sch 40 Sch 80 Sch 120 Sch 160 Sch 60 Sch 140 Sch 30 STD Wall Outside Daimeter XX Hvy
½ 0.84 0.083 0.147 - - 0.109 0.147 - 0.188 - - - 0.109 0.294
1 1.315 0.109 0.179 - - 0.133 0.179 - 0.25 - - - 0.133 0.358
2 ½ 2.875 0.12 0.276 - - 0.203 0.276 - 0.375 - - - 0.203 0.552
3 ½ 4 0.12 0.318 - - 0.226 0.318 - - - - - 0.226 0.636
5 5.563 0.134 0.375 - - 0.258 0.375 0.5 0.625 - - - 0.258 0.75
8 8.625 0.148 0.5 0.594 0.25 0.322 0.5 0.719 0.906 0.406 0.812 0.277 0.322 0.875
12 12.75 0.18 0.5 0.844 0.25 0.406 0.688 1 1.312 0.562 1.125 0.33 0.375 1
16 16 0.25 0.5 1.031 0.312 0.5 0.844 1.219 1.594 0.656 1.438 0.375 0.375 -
20 20 0.25 0.5 1.281 0.375 0.594 1.031 1.5 1.969 0.812 1.75 0.5 0.375 -
24 24 0.25 0.5 1.531 0.375 0.688 1.219 1.812 2.344 0.969 2.062 0.562 0.375 -
30 30 0.312 0.5 - 0.5 - - - - - - 0.625 0.375 -
40 40 - 0.5 - - - - - - - - - 0.375 -
48 48 - 0.5 - - - - - - - - - 0.375 -
1 ½ 1.9 0.109 0.2 - - 0.145 0.2 - 0.281 - - - 0.145 0.4
¾ 1.05 0.083 0.154 - - 0.113 0.154 - 0.219 - - - 0.113 0.308
1 ¼ 1.66 0.109 0.191 - - 0.14 0.191 - 0.25 - - - 0.14 0.382
2 2.375 0.109 0.218 - - 0.154 0.218 - 0.344 - - - 0.154 0.436
3 3.5 0.12 0.3 - - 0.216 0.3 - 0.438 - - - 0.216 0.6
4 4.5 0.12 0.337 - - 0.237 0.337 0.438 0.531 - - - 0.237 0.674
6 6.625 0.134 0.432 - - 0.28 0.432 0.562 0.719 - - - 0.28 0.864
10 10.75 0.165 0.5 0.719 0.25 0.365 0.594 0.844 1.125 0.5 1 0.307 0.365 1
14 14 0.25 0.5 0.938 0.312 0.438 0.75 1.094 1.406 0.594 1.25 0.375 0.375 -
18 18 0.25 0.5 1.156 0.312 0.562 0.938 1.375 1.781 0.75 1.562 0.438 0.375 -
22 22 0.25 0.5 - - - - - - - - - 0.375 -
26 26 - 0.5 - - - - - - - - - 0.375 -
36 36 0.312 0.5 - 0.5 0.75 - - - - - 0.625 0.375 -
42 42 - 0.5 - - - - - - - - - 0.375 -

Inconel Alloy 625 Weld Neck Flange Supplier of ASME B16.5 Standard

DIN 2.4816 Forged Steel Flanges Equivalent Standard

Grade Werkstoff NR. UNS JIS BS AFNOR EN GOST
Inconel 625 2.4856 N06625 NCF 625 NA 21 NC22DNB4M NiCr22Mo9Nb ХН75МБТЮ

Various Types Of Inconel 625 Flanges

Inconel 625 Flanges Supplier in India, Provides Wide Range of the Various Types of Flanges

Inconel 625 Flanges

Inconel 625 Flanges

Alloy 625 Forgings Flange

Alloy 625 Forgings Flange

UNS N06625 Pipe Flange

UNS N06625 Pipe Flange

ASTM B564 UNS N06625 Forged Flange

ASTM B564 UNS N06625 Forged Flange

DIN 2.4816 Forged Steel Flanges

DIN 2.4816 Forged Steel Flanges

Nickel Alloy 625 Weld Flanges

Nickel Alloy 625 Weld Flanges

ASTM B564 Inconel 625 Hot Forged Flange

ASTM B564 Inconel 625 Hot Forged Flange

Inconel N06625 Forged Pipe Flange

Inconel N06625 Forged Pipe Flange

Inconel 2.4816 Blind Flange

Inconel 2.4816 Blind Flange

Inconel 6625 Weld Neck Flange

Inconel 6625 Weld Neck Flange

Ni Alloy 625 Socket Weld Flange

Ni Alloy 625 Socket Weld Flange

Inconel Alloy 625 Threaded Flange

Inconel Alloy 625 Threaded Flange

Inconel 625 Slip On Flange

Inconel 625 Slip On Flange

Alloy 625 Reducing Flange

Alloy 625 Reducing Flange

SB 564 UNS N06625 Lap Joint Flange

SB 564 UNS N06625 Lap Joint Flange

ASTM B564 N06625 Plate Flanges

ASTM B564 N06625 Plate Flanges



Thread Types of UNS N06625 Pipe Flange

  • MPT
  • NPT
  • BSPT (Female)
  • FPT
  • MNPT (Male)
  • BSPP (Male & Female)
  • FNPT (Female)
  • BSP
Ready Stock Of ASTM B564 Inconel 625 Forged Flange Size Range 1/2 to 48 Inch in Mumbai

Nickel Alloy 625 Weld Flanges Size Chart

Diameter 95 95 95 114 95 121 80 95 95 95 95 114 89 95 121 95 90 95
Bolt Size 13 M12 13 16 13 19 M10 M12 M12 13 13 16 13 13 19 M12 M14 M12
Number of Bolts 4
Bolt Circle Diameter 67 67 67 83 67 83 55 65 65 67 67 83 60 67 83 65 60.5 65
Diameter of Bolt Hole 14 14 14 17 16 22 11 14 14 14 14 17 16 16 22 14 16 14

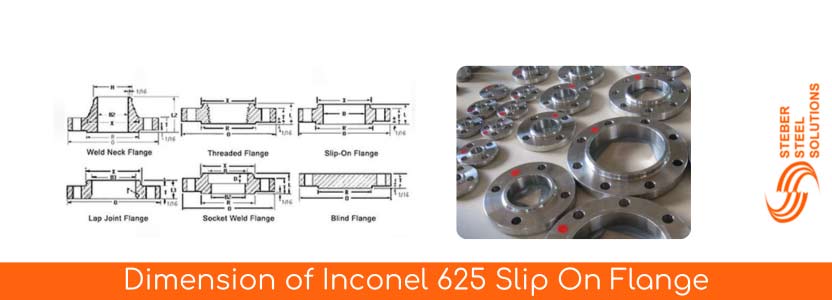

Dimension of Inconel 625 Slip On Flange

Dimension of Inconel 625 Slip On Flange
Normal Pipe Size (Inch) Outside Daimeter (O.D.) Diameter of Raised Face Radius of Fillet Hub at Bevel Diameter Hub at Base Diameter Thickness Of Flanges Socket Deptd Bore And Diameter Lengtd Tdru Hub
Loose (Lap Joint) SORF (Slip-on) SWRF (Socket) Loose (Lap Joint) SORF (Slip-On) NPT (Threaded) SWRF (Socket) Weld Neck (WN)
O R r H X Q Z B W Y Y Y
1/2 3-1/2 1-3/8 1/8 .84 1-3/16 7/16 3/8 .90 .88 5/8 5/8 1-7/8
3/4 3-7/8 1-11/16 1/8 1.05 1-1/2 1/2 7/16 1.11 1.09 5/8 5/8 2-1/16
1 4-1/4 2 1/8 1.32 1-15/16 9/16 1/2 1.38 1.36 11/16 11/16 2-3/16
1-1/4 4-5/8 2-1/2 3/16 1.66 2-5/16 5/8 9/16 1.72 1.70 13/16 13/16 2-1/4
1-1/2 5 2-7/8 1/4 1.90 2-9/16 11/16 5/8 1.97 1.95 7/8 7/8 2-7/16
2 6 3-5/8 5/16 2.38 3-1/16 3/4 11/16 2.46 2.44 1 1 2-1/2
2-1/2 7 4-1/8 5/16 2.88 3-9/16 7/8 3/4 2.97 2.94 1-1/8 1-1/8 2-3/4
3 7-1/2 5 3/8 3.50 4-1/4 15/16 13/16 3.60 3.57 1-3/16 1-3/16 2-3/4
3-1/2 8-1/2 5-1/2 3/8 4.00 4-13/16 15/16 7/8 4.10 4.07 1-1/4 1-1/4 2-13/16
4 9 6-3/16 7/16 4.50 5-5/16 15/16 15/16 4.60 4.57 1-5/16 1-5/16 3
5 10 7.5/16 7/16 5.56 6-7/16 15/16 15/16 5.69 5.66 1-7/16 1-7/16 3-1/2
6 11 8-1/2 1/2 6.63 7-9/16 1 1-1/16 6.75 6.72 1-9/16 1-9/16 3-1/2
8 13-1/2 10-5/8 1/2 8.63 9-11/16 1-1/8 1-1/4 8.75 8.72 1-3/4 1-3/4 4
10 16 12-3/4 1/2 10.75 12 1-3/16 1-5/16 10.92 10.88 1-15/16 1-15/16 4
12 19 15 1/2 12.75 14-3/8 1-1/4 1-9/16 12.92 12.88 2-3/16 2-3/16 4-1/2
14 21 16-1/4 1/2 14.00 15-3/4 1-3/8 1-5/8 14.18 14.14 3-1/8 2-1/4 5
16 23-1/2 18-1/2 1/2 16.00 18 1-7/16 1-3/4 16.19 16.16 3-7/16 2-1/2 5
18 25 21 1/2 18.00 19-7/8 1-9/16 1-15/16 18.20 18.18 3-13/16 2-11/16 5-1/2
20 27-1/2 23 1/2 20.00 22 1-11/16 2-1/8 20.25 20.20 4-1/16 2-7/8 5-11/16
24 32 27-1/4 1/2 24.00 26-1/8 1-7/8 2-1/2 24.25 24.25 4-3/8 3-1/4 6

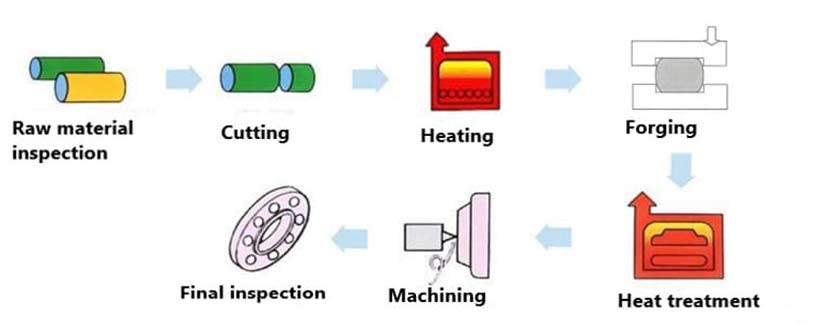

Manufacturing Process for ASTM B564 UNS N06625 Forged Flange

Manufacturing Process for ASTM B564 UNS N06625 Forged Flange

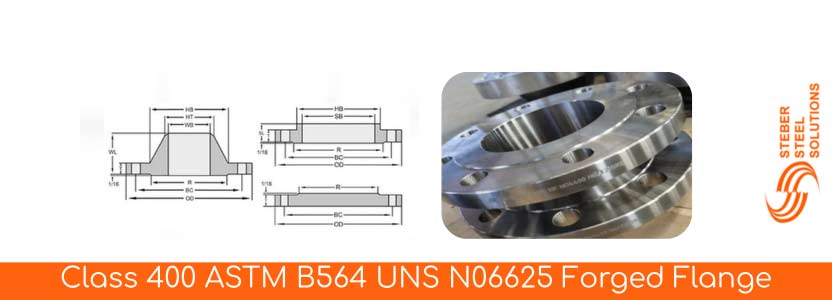

Class 400 ASTM B564 UNS N06625 Forged Flange Dimensions

Class 400 ASTM B564 UNS N06625 Forged Flange Dimensions
Nominal Flange Sizes In Inch Outside Diameter (O.D.) No. of Bolt Holes RF Diameter (R) Bolt Circle (BC) SO Bore ID (SB) Diameter of Holes Min. Thickness (T) Dia. Hub Top (HT) Dia. Hub Base (HB) SO LTH (SL) WN LTH (WL)
1⁄2" 3.75 4 1.38 2.62 0.88 0.63 0.56 0.84 1.5 0.88 2.06
1" 4.88 4 2.00 3.50 1.36 0.75 0.69 1.32 2.12 1.06 2.44
11⁄2" 6.12 4 2.88 4.50 1.95 0.88 0.88 1.90 2.75 1.25 2.75
21⁄2" 7.50 8 4.12 5.88 2.94 0.88 1.12 2.88 3.94 1.62 3.12
31⁄2" 9.00 8 5.50 7.25 4.07 1.00 1.38 4.00 5.25 1.94 3.38
3⁄4" 4.62 4 1.69 3.25 1.09 0.75 0.62 1.05 1.88 1.00 2.25
11⁄4" 5.25 4 2.50 3.88 1.70 0.75 0.81 1.66 2.50 1.12 2.62
2" 6.50 8 3.62 5.00 2.44 0.75 1.00 2.38 3.31 1.44 2.88
3" 8.25 8 5.00 6.62 3.57 0.88 1.25 3.50 4.62 1.81 3.25
4" 10.00 8 6.19 7.88 4.57 1.00 1.38 4.50 5.75 2.00 3.50
6" 12.50 12 8.50 10.62 6.72 1.00 1.62 6.63 8.12 2.25 4.06
10" 17.50 16 12.75 15.25 10.88 1.25 2.12 10.75 12.62 2.88 4.88
14" 23.00 20 16.25 20.25 14.14 1.38 2.38 14.00 16.75 3.31 5.88
18" 28.00 24 21.00 24.75 18.18 1.50 2.62 18.00 21.00 3.88 6.50
22" 33.00 24 25.25 29.25 22.22 1.75 2.88 22.00 25.25 4.25 6.75
12" 20.50 16 15.00 17.75 12.88 1.38 2.25 12.75 14.75 3.12 5.38
5" 11.00 8 7.31 9.25 5.66 1.00 1.50 5.56 7.00 2.12 4.00
20" 30.50 24 23.12 27.00 20.20 1.62 2.75 20.00 23.12 4.00 6.62
16" 25.50 20 18.50 22.50 16.16 1.50 2.50 16.00 19.00 3.69 6.00
8" 15.00 12 10.62 13.00 8.72 1.12 1.88 8.63 10.25 2.69 4.62
24" 36.00 24 27.25 32.00 24.25 1.88 3.00 24.00 27.62 4.50 6.88

Inconel N06625 Forged Pipe Flange Gasket Size

Normal Flange Sizes (Inch) Inside Diameter (I.D.)
 Outside Diameter (O.D.)
150 LB 900 LB 400 LB 300 LB 600 LB
1/2" 0.84 1.875 2.50 2.125 2.125 2.125
2 1/2" 2.88 4.875 6.50 5.125 5.125 5.125
1" 1.31 2.625 3.125 2.875 2.875 2.875
4" 4.50 6.875 8.125 7.00 7.125 7.625
6" 6.62 8.75 11.375 9.75 9.875 10.50
10" 10.75 13.375 17.125 14.125 14.25 15.75
1 1/2" 1.91 3.375 3.875 3.75 3.75 3.75
1 1/4" 1.66 3 3.50 3.25 3.25 3.25
3/4" 1.06 2.25 2.75 2.625 2.625 2.625
2" 2.38 4.125 5.625 4.375 4.375 4.375
3" 3.50 5.375 6.625 5.875 5.875 5.875
5" 5.56 7.75 9.75 8.375 8.50 9.50
8" 8.62 11 14.125 12.00 12.125 12.625
12" 12.75 16.125 19.625 16.50 16.625 18.00
Werkstoff 2.4856 Pipe Flange Available in RF, FF And RTJ Flange

UNS N06625 Pipe Flange Face Type

UNS N06625 Pipe Flange Face Type
Face Types Type
Tongue Face C
Spigot E
Grooved Face D
Recess F
Raised Face B
O-Ring Groove H
Ring Recess G
Flat Face A

Chemical Composition for Inconel 2.4816 Blind Flange

Grade Manganese Carbon Iron Sulfur Chromium Silicon Copper Nickel
Inconel 625 0.50 010 5 0.015 20.0-23.0 0.50 0.05 58

Inconel 6625 Weld Neck Flange Mechanical Properties

Grade Yield Strength (0.2%Offset) Tensile Strength Elongation
Mpa Psi Mpa Psi
Inconel 625 517 75000 930 135000 42.5%

Physical Properties for Ni Alloy 625 Socket Weld Flange

Element Density Melting Point Tensile Strength Elongation Yield Strength (0.2%Offset)
Fahrenheit Celsius Psi Mpa Psi Mpa
Inconel 625 8.4 g/cm3 2460°F 1350°C 135000 930 42.5% 75000 517

What Are The Applications for Inconel 625 Flanges ?

What Are The Applications for Inconel 625 Flanges

Inconel Alloy 625 Threaded Flange HSN Code

Grade HSN Code
Inconel 625 Flanges 75072000

Crevice and Pitting Corrosion for Alloy 625 Reducing Flange

Grade Crucial Crevice Temperature in Acidified 6% FeCl3 Crucial Pitting Temperature in Acidified 6% FeCl3
Celsius Fahrenheit Celsius Fahrenheit
Inconel 625 40°C 104°F 100°C 212°F

Offer Inconel 625 Flange to the various Countries

Country Name Country Name
Algeria Nigeria
Zambia Ghana
Tunisia South Africa
Kenya Angola
Tanzania Morocco
Egypt Ethiopia
