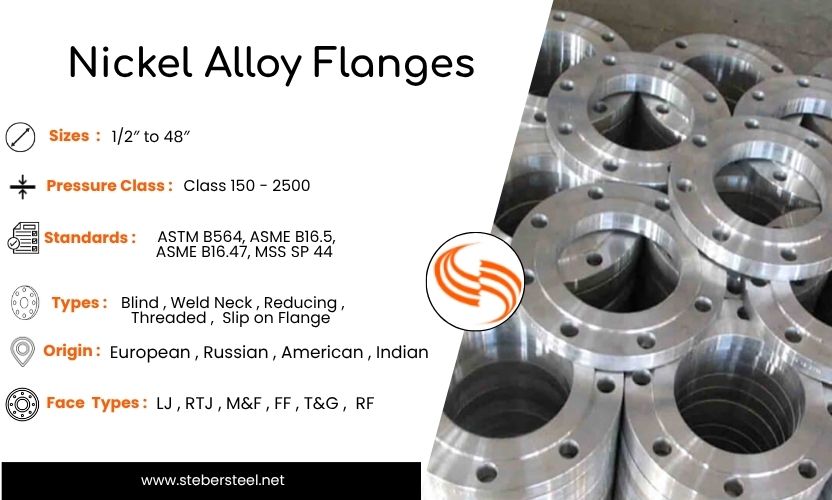

Quick Information of Nickel Alloy Flanges
Specification ASTm B564 / ASME SB564
Size Range : 1/2 to 48"
Class 150 to 2500 Class
UNS N02201
Dimensional Standard ASME B16.5 , ASME B16.36 , ASME B16.47
Temperature Range 1446 ºC (2635 ºF)
WERKSTOFF NR. 2.4068
MTC: EN 10204 3.1 & 3.2
Thread Types BSPP, NPT, BSPT, MNPT
Production Process Forging, Casting, Cutting, Rolling

Alloy 200 Slip On Flange Supplier in India

Nickel Alloy Flanges

Nickel Alloy Flanges

Alloy 200 Slip On Flange

Alloy 200 Slip On Flange

High Nickel Alloy 201 Blind Flange

High Nickel Alloy 201 Blind Flange


Table of Contents


Nickel Alloy Flanges Specification

Nickel Alloy Flanges Sizes

  • 1/2″ to 48″
  • PN 2.5 – PN 400
  • 15 NB – 1200 NB



Sizes

Ni Alloy SORF Flange Standards

  • ASTM B564
  • ANSI B16.5
  • ASME B16.47 Series A & B
  • MSS SP-44

Standards

DIN 2.4068 Plate Flanges Thread Types

  • MPT, BSP
  • BSPT
  • NPT, FPT
  • BSPP
  • FNPT, MNPT
Thread Types

Applications of High Nickel Alloy 201 Blind Flange

  • Power Generation Plant
  • Industrial Pressure Vessels
  • Petrochemical Plants
  • Nuclear Energy Sector
  • Construction & Mechanical Systems

Applications

Nickel 200 Lap Joint Flange Meet Requirements

  • Sour service
  • NACE MR0175
  • NACE MR0103
  • ISO 15156
  • NACE TM-0284


Meet Requirements

Value Added Services of Alloy 200 Slip On Flange

  • Threading
  • Minor Fabrication
  • Metal Stampings
  • CNC Machined
  • Drilling
  • Electroplating
  • Casting

Services

DIN 2.4066 BLRF Flange Origin

  • European
  • Korean
  • Janpanese
  • American



Origin

Nickel 201 Reducing Flange Face Types

  • RTJ
  • M&F
  • RF
  • T&G
  • FF


Face Types

Nickel 200 Lap Joint Flange Testing Requirements

  • Tensile Test
  • Hardness Test
  • Material Inspection
  • Impact Test
  • Visual Inspection
  • Shell Pressure Test
Testing Requirements

Nickel 201 Reducing Flange Pressure Class

  • Class 900
  • Class 1500
  • Class 2500
  • Class 150
  • Class 600
  • Class 300

Pressure Class

Ni 200 Spectacle Blind Flange Marking

  • Origin of Material
  • Pressure Class
  • Manufacturers Logo / Name
  • Face Type
  • Material Grade
  • ASTM/ ASME Standard
  • Manufacturing Date
Marking

ASTM B564 UNS N02200 Reducing Flange Grade

  • Nickel Alloy 200 Flange
  • Nickel Alloy 201 Flange




Coating Methods

Nickel Alloy Weld Flanges Types

  • Slip On Flange
  • Socket Weld Flange
  • Weld Neck Flange
  • Lap Joint Flange
  • Plate Flange
  • Blind Flange



Types

High Nickel Alloy Forged Flange Manufacturing Methods

  • Milling
  • Forged
  • Rolled
  • Turning
  • Stamping
  • Drilling
  • CNC Machining

Manufacturing Methods

ASME SB 564 N02201 Threaded Flange Finish

  • Smooth Finish
  • Stock Finish – 125- to 250-μin
  • Zinc Plated
  • Concentric Serrated
  • Serrated Finish
  • Spiral Serrated
  • Cold Water Finish / Mirror Finish

Finish

Ex-stock Of High Nickel Alloy 201 Blind Flange As Per ASTM A182 Standard

Manufacturing Standards of High Nickel Alloy 201 Blind Flange

Manufacturing Methods ASME / ASTM Standard
Pure Nickel Alloy Cast Flange
  • ASME SA484 CU 5MCuC
  • ASTM A484 CU 5MCuC
Nickel Based Alloy Forged Flanges
  • ASME SB564
  • ASTM B564
Super Nickel Alloy Plate Flange
  • ASME SB 162 UNS N02200
  • ASTM B 162 UNS N02200
Ni Alloy Machined Flanges (Made From Bar Stock)
  • ASME SB160
  • ASTM B160

Manufcaturer ASTM B564 UNS N02200 Socket Weld Flange Provide MNPT, NPT, BSPP Thread

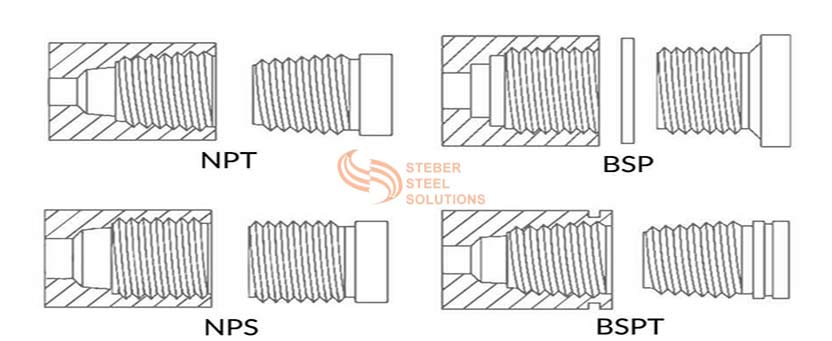

ASTM B564 UNS N02200 Socket Weld Flange Thread Types

ASTM B564 UNS N02200 Socket Weld Flange Thread Types
Buy ASME SB 564 N02201 Threaded Flange At Lowest Price With Free Cutting Service

Value Added Services of Nickel 200 Lap Joint Flange

  • Annealed
  • Threading
  • Polishing
  • Cutting
  • Drilling Holes
  • Machining (CNC)
  • Heat Treatment (Hardening & Tempering)
  • Pickled
  • Grooving
Stockist Of Nickel 200 Lap Joint Flange Provide Pressure Class Up To PN 100

ASTM B564 UNS N02201 Weld Neck Flange Pressure Rating

Temperature in °C Working Pressures by Classes, bar for Ni 200 Flanges
2500 # 1500 # 900 # 600 # 400 # 300 # 150 #
650 39.4 23.6 14.2 9.5 6.3 4.7 -
625 42.8 25.7 15.4 10.3 6.8 5.1 -
600 55.3 33.2 19.9 13.3 8.9 6.6 -
575 78.6 47.2 28.3 18.9 12.6 9.4 -
550 116.2 69.7 41.8 27.9 18.6 13.9 -
538 137.9 82.7 49.6 33.1 22.1 16.5 1.4
500 235.0 140.9 84.7 56.5 37.6 28.2 2.8
475 263.9 158.2 95.1 63.4 42.3 31.7 3.7
450 281.8 169.0 101.4 67.7 45.1 33.7 4.6
425 291.6 175.1 105.1 70.0 46.5 35.2 5.5
400 304.9 183.1 109.8 73.3 48.9 36.5 6.5
375 323.2 194.1 116.5 77.6 51.6 38.9 7.4
350 335.3 201.1 120.7 80.4 53.6 40.3 8.4
325 344.3 206.6 124.0 82.6 55.0 41.4 9.3
300 357.1 214.4 128.6 85.7 57.0 42.9 10.2
250 386.2 231.8 139.0 92.7 61.7 46.30 12.1
200 405.4 243.4 145.8 97.2 64.8 48.6 13.8
150 418.2 250.8 150.6 100.3 66.8 50.3 15.8
100 429.4 257.6 154.6 103.0 68.7 51.5 17.7
50 430.9 258.6 155.1 103.4 68.9 51.7 19.5
-29 ~ 38 430.9 258.6 155.1 103.4 68.9 51.7 20.0

Weight Chart of Nickel 201 Reducing Flange

Pipe Normal Daimeter Outside Daimeter of Flange Thickness Of Flange (Min) Daimeter of Hub Thread Length Length Hub.Y No. of Bolts Raised Face Diameter Bolt Holes Daimeter Daimeter of Bolts (inch) Bolt Circle Daimeter KG LB
Inches DN O C X T Y BN G BH BD BC
24″ 600 813.00 47.80 663.40 82.60 82.60 20 692.20 35.10 1 1/4″ 749.30 97 214
20″ 500 698.50 42.90 558.80 73.20 73.20 20 584.20 31.80 1 1/8″ 635.00 76 167
18″ 450 635.00 39.60 505.00 68.30 68.30 16 533.40 31.80 1 1/8″ 577.90 57 126
16″ 400 597.00 36.60 457.20 63.50 63.50 16 469.90 28.50 1″ 539.80 47 103
14″ 350 533.50 35.10 400.10 57.20 57.20 12 412.80 28.50 1″ 476.30 39 86
12″ 300 482.50 31.80 365.30 55.60 55.60 12 381.00 25.40 7/8″ 431.80 29 64
10″ 250 406.50 30.20 304.80 49.30 49.30 12 323.90 25.40 7/8″ 362.00 18 39.5
8″ 200 343.00 28.40 246.10 44.50 44.50 8 269.70 22.40 3/4″ 298.50 13 28.6
6″ 150 279.50 25.40 192.00 39.60 39.60 8 215.90 22.40 3/4″ 241.30 8.4 18.5
5″ 125 254.00 23.90 163.60 36.60 36.60 8 185.70 22.40 3/4″ 215.90 7 15.4
4″ 100 228.50 23.90 134.90 33.30 33.30 8 157.20 19.10 5/8″ 190.50 5.9 13
3-1/2″ 90 216.00 23.90 122.20 31.80 31.80 8 139.70 19.10 5/8″ 177.80 5.1 11.2
3″ 80 190.50 23.90 108.00 30.20 30.20 4 127.00 19.10 5/8″ 152.40 4.1 9
2-1/2″ 65 178.00 22.40 90.40 28.40 28.40 4 104.60 19.10 5/8″ 139.70 3.7 8.1
2″ 50 152.50 19.10 77.70 25.40 25.40 4 91.90 19.10 5/8″ 120.70 2.3 5.1
1-1/4″ 32 117.50 15.70 58.70 20.60 20.60 4 63.50 15.80 1/2″ 88.90 1.2 2.6
1-1/2″ 40 127.00 17.50 65.00 22.40 22.40 4 73.20 15.80 1/2″ 98.60 1.5 3.3
1″ 25 108.00 14.20 49.30 17.50 17.50 4 50.80 15.80 1/2″ 79.30 0.8 1.8
1/2″ 15 89.00 11.20 30.20 15.70 15.70 4 35.10 15.80 1/2″ 60.50 0.4 0.9

Nickel Alloy Flanges Face Types

Face Types Diagram Marking
Raised Face Raised Face RF
Lap Joint Face Lap Joint Face LJ
Male Female Face Male Female Face M&F
Flat Face Flat Face FF
Tongue Groove Face Tongue Groove Face T&G
Ring Type Joint Ring Type Joint RTJ

Alloy 200 Slip On Flange Pressure Temperature Rating

Temp in (°F) Pressure Temperature Rating of Alloy 200 Slip On Flange
2500 1500 900 600 400 300 150
1500 230 135 80 55 35 25 10
1450 285 170 105 70 45 35 15
1400 400 240 145 95 65 50 20
1350 515 310 185 125 80 60 20
1300 715 430 255 170 115 85 20
1250 945 565 340 225 150 115 20
1200 1285 770 465 310 205 155 20
1150 1655 995 595 400 265 200 20
1100 2145 1285 770 515 345 255 20
1050 2570 1545 925 615 410 310 20
1000 2675 1605 965 640 430 320 20
950 3180 1910 1145 765 510 380 35
900 3240 1945 1165 780 520 390 50
850 3300 1980 1190 790 530 395 65
800 3360 2015 1210 805 540 405 80
750 3460 2075 1245 830 555 415 95
700 3540 2125 1275 850 565 425 110
650 3580 2150 1290 860 575 430 125
600 3640 2185 1310 875 580 435 140
500 3880 2330 1395 930 620 465 170
400 4140 2485 1490 995 660 495 190
300 4500 2700 1620 1080 720 540 205
200 5000 3000 1800 1200 800 600 230
-20 to 100 6000 3600 2160 1440 960 720 275

Types of Pure Nickel Forged Pipe Flang

Supplier of Nickel Alloy Flanges in India Offer a Variety of Flange Types to Meet Customer Needs

ASTM B564 UNS N02200 Socket Weld Flange

ASTM B564 UNS N02200 Socket Weld Flange

ASME SB 564 N02201 Threaded Flange

ASME SB 564 N02201 Threaded Flange

Nickel 200 Lap Joint Flange

Nickel 200 Lap Joint Flange

DIN 2.4066 BLRF Flange

DIN 2.4066 BLRF Flange

Nickel 2.4066 SWRF Flange

Nickel 2.4066 SWRF Flange

ASME SB 564 UNS N02200 SORF Flange

ASME SB 564 UNS N02200 SORF Flange

Nickel 200 UNS N02200 Weld Flange

Nickel 200 UNS N02200 Weld Flange

ASTM B564 N02200 Forged Flange

ASTM B564 N02200 Forged Flange

ASTM B564 UNS N02200 Pipe Flange

ASTM B564 UNS N02200 Pipe Flange

ASTM B564 UNS N02201 Weld Neck Flange

ASTM B564 UNS N02201 Weld Neck Flange

Nickel 201 Reducing Flange

Nickel 201 Reducing Flange

DIN 2.4068 Plate Flanges

DIN 2.4068 Plate Flanges

Super Nickel Alloy Orifice Flange

Super Nickel Alloy Orifice Flange

Ni 200 Spectacle Blind Flange

Ni 200 Spectacle Blind Flange

Pure Nickel Alloy Raised Face Flange

Pure Nickel Alloy Raised Face Flange

Pitting and Crevice Corrosion of DIN 2.4068 Plate Flanges

Gr. Max Depth (MM) PREa Test of Type No. of days % Mo
Nickel Alloy Flange 63 (1.60) – Washers 30 0

ASME SB 564 UNS N02200 SORF Flange Dimensions

Flanges of Various Dimensions Are Offered by an Indian Manufacturer of Nickel Alloy Flanges

NPS (Normal Pipe Size) Of Flanges O.D. (Outside Daimeter ) Thick of RF (Raised Face)
(T)		 (I.D.) Inside Diameter Holes Of Bolts
(B)		 Raised Face
(R)		 RF
(Raised Face)		 H T1 Bolts Holes
No.		 BC (Circle Of Bolt) Thick Of FF (Flat Face)
(T2)
24 36.00 4.19 24.25 1.62 27.25 .063 27.62 2.69 24 32.00 4.13
22 33.00 4.00 22.22 1.63 25.25 .063 25.25 2.57 24 29.25 3.94
20 30.50 3.75 20.20 1.38 23.00 .063 23.12 2.44 24 27.00 3.69
18 28.00 3.50 18.18 1.38 21.00 .063 21.00 2.32 24 24.75 3.44
16 25.50 3.25 16.16 1.38 18.50 .063 19.00 2.19 20 22.50 3.19
14 23.00 3.00 14.14 1.25 16.25 .063 16.75 2.06 20 20.25 2.94
12 20.50 2.88 12.88 1.25 15.00 .063 14.75 1.94 16 17.75 2.82
10 17.50 2.62 10.88 1.12 12.75 .063 12.62 1.82 16 15.25 2.56
8 15.00 2.44 8.72 1.00 10.62 .063 10.25 1.56 12 13.00 2.38
6 12.50 2.06 6.72 0.88 8.50 .063 8.12 1.38 12 10.62 2.00
5 11.00 2.00 5.66 0.88 7.31 .063 7.00 1.32 8 9.25 1.94
4 10.00 1.88 4.57 0.88 6.19 .063 5.75 1.19 8 7.88 1.82
3-1/2 9.00 1.75 4.07 0.88 5.50 .063 5.25 1.13 8 7.25 1.69
3 8.25 1.69 3.57 0.88 5.00 .063 4.62 1.06 8 6.62 1.63
2-1/2 7.50 1.50 2.94 0.88 4.12 .063 3.94 0.94 8 5.88 1.44
2 6.50 1.31 2.44 0.75 3.62 .063 3.31 0.82 8 5.00 1.25
1-1/4 5.25 1.06 1.70 0.75 2.50 .063 2.50 0.69 4 3.88 1.00
1-1/2 6.12 1.19 1.95 0.88 2.88 .063 2.75 0.75 4 4.50 1.13
1 4.88 1.06 1.36 0.75 2.00 .063 2.12 0.63 4 3.50 1.00
1/2 3.75 0.88 0.88 0.62 1.38 .063 1.50 0.50 4 2.62 0.82

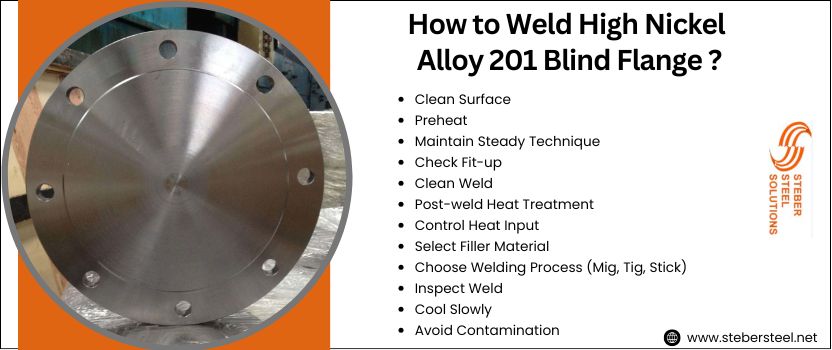

How to Weld High Nickel Alloy 201 Blind Flange ?

High Nickel Alloy 201 Blind Flange Welding

DIN 2.4066 BLRF Flange Number and Diameter of Bolt Holes

Pressure Classes Hole (H)
Class 2500 Nickel Based Alloy Flange 73 (MM) / 12 H
Class 1500 Nickel Flange 54 (MM) / 16 H
Class 900 Pure Nickel Alloy Flange 38.1 (MM) / 20 H
Class 600 High Performance Nickel Alloy Flange 34.9 (MM) / 20 H
Class 400 Nickel Alloy Flange 34.9 (MM) / 16 H
Class 300 Super Nickel Alloy Flange 28.6 (MM) / 16 H
Class 150 High Nickel Alloy Flange 25.4 (MM) / 12 H

ASME SB 564 N02201 Threaded Flange Sizes

Ni alloy Flanges
(Nominal Diameter) ‘DN’ In MM
Inches DN Inches DN
1/2 15 12 300
1 25 14 350
1 1/2 40 15 375
1 1/4 32 16 400
2 50 18 450
2 1/2 65 20 500
3 80 24 600
3/4 20 28 700
4 100 30 750
5 125 32 800
8 200 36 900

How Can Nickel Alloy Flanges Be Installed and Maintained Correctly for Longevity ?

  • Ensure Proper Alignment
  • Follow Manufacturer Guidelines
  • Use Correct Gaskets
  • Tighten Bolts in a Cross-pattern
  • Clean Flanges and Surfaces
  • Avoid Over-tightening
  • Use Corrosion Inhibitors
  • Monitor Flange Connections
  • Store Flanges Properly
  • Inspect Flanges for Defects
  • Regularly Re-tighten Bolts

Mechanical Properties of Nickel Alloy Weld Flanges

An Indian Supplier of Nickel Alloy Flanges Provides Flanges With Exceptional Mechanical Properties

Gr. Yield Strength in (0.2%Offset) Tensile Strength Elongation
Mpa, (Psi) Mpa, (Psi) %
Nickel 201 Flanges 148 Mpa, (21500 Psi) 462 Mpa, (67000 Psi) 45 %
Nickel 200 Flanges 148 Mpa, (21500 Psi) 462 Mpa, (67000 Psi) 45 %

High Nickel Alloy Forged Flange Chemical Composition

Gr. Cu, (Copper) Ni, (Nickel) C, (Carbon) Si, (Silicon) Fe, (Iron) Mn, (Manganese) S, (Sulfur)
Nickel 201 Flanges 0.25 99.0 0.02 0.35 0.40 0.35 0.01
Nickel 200 Flanges 0.25 99.0 0.15 0.35 0.40 0.35 0.01

Applications of Nickel Alloy Flanges

Applications of Nickel Alloy Flanges

Pure Nickel Alloy Forged Flange Equivalent Material

Gr. UNS JIS GOST BS AFNOR WERKSTOFF NR. EN
Nickel 200 Flanges N02200 NW 2200 НП-2 NA 11 N-100M 2.4066 Ni 99.2
Nickel 201 Flanges N02201 NW 2201 НП-2 NA 12 – 2.4068 LC-Ni 99

Physical Properties of Nickel Based Alloy Pipe Flange

Elements Density Melting Point
g/cm3 °F °C
Nickel 201 Flanges 8.9 g/cm3 2635 °F 1446 °C
Nickel 200 Flanges 8.9 g/cm3 2635 °F 1446 °C

Nickel Alloy Flanges HS Code

Grade HS Code
Nickel Alloy Flanges 75072000

Key Features of Ni Alloy Plate Flanges

  • Durability
  • High Temperature Range
  • Varsatility
  • Corrosion Resistance

Nickel Alloy Flanges We Delivered to the Countries Below

Country Name Flag Country Name Flag
Ghana Ghana Zambia Zambia
Dubai Dubai Morocco Morocco
Ethiopia Ethiopia Egypt Egypt
Tanzania Tanzania UAE UAE
Nigeria Nigeria Algeria Algeria
South Africa South Africa Tunisia Tunisia
Angola Angola Kenya Kenya
