Stainless Steel 316L Sheet

Stainless Steel 316L Sheet

Stainless Steel 316L Sheet Product Description
Plate Thickness   Up to 10 mm
Sheet Thickness 4.5 to 100mm
Melting Point 1375 – 1400°C
Edges Round, Rolled , Slit , Square
Standards ASTM A240, ASME SA240, AMS 5524
Cutting Laser cutting, Waterjet cutting, Plasma cutting
Brands Aperam, Jindal Stainless, Thyssenkrup

Supplier of En 1.4404 Plate in India

Stainless Steel 316l Sheet

Stainless Steel 316l Sheet

EN 1.4404 Plate

EN 1.4404 Plate

316l Stainless Steel Strips

316l Stainless Steel Strips

Table of Contents


Stainless Steel 316L Sheet Specification

Stainless Steel 316L Sheet Size

  • Length: 3000 to 12000 mmm
  • Width: 900 to 2400 mm

Size

ASTM A240 Type 316L Plate Thickness

  • Sheet Thickness : 0.02 to 4mm , 4.5 to 100 mm
  • Plate Thickness : 10 mm
Thickness

SS 316L Perforated Sheet Standards

  • ASTM A240 | ASME SA240
  • BS, EN , JIS, DIN, GB

Standards

SUS 316L Coil Welding Method

  • TIG welding
  • Resistance welding
  • MIG welding


Welding Method

316l Stainless Steel Plate Surface Treatment

  • PVC coated
  • Galvanised
  • Color coated
  • Coated
  • Film coated
Surface

SA 240 tp 316L Shim Stock Bending Method

  • Rotary bending
  • Roll bending
  • Press braking


Bending

DIN 1.4404 Polished Plate Edges

  • V edge
  • Broken corner
  • Slit
  • Deburred
  • Custom
  • Round
  • Rolled
  • Square



Edges

SS 316L Sheet Types

  • flat shim
  • sheet
  • clad plate
  • coil
  • strips
  • rolling plate
  • rolling sheets
  • shim stock
  • perforated plate
  • flat sheet
  • plate

Types

UNS S31603 Cold rolled Plate Origin

  • Taiwan
  • Indian
  • European
  • US
  • Japanese
  • Korea
  • Thailand




Origin

SS 1.4404 Perforated Sheet Packaging

  • Industrial packing techniques
  • Bundles with plastic wrapping
  • Big rolls with spools
  • Wooden boxes/ crates/ pallets



Packaging

2b Finish 316L SS Chequered Plate Cutting

  • Oxy-propane flame cutting
  • Laser cutting
  • Waterjet cutting
  • Plasma cutting



Cutting

316l Stainless Steel Sheet Inspection Plan

  • Visual inspection
  • UT testing
  • Dimension verification
  • Packing Condition
  • Witnessed chemical analysis
  • PMI Testing
  • Hardness Testing
Inspection

INOX 316L Rolling Sheets Marking

  • Origin of material
  • Manufacturing date
  • Sizes
  • Material grade
  • Manufacturer logo / name
  • ASTM/ ASME standard




Marking

Stainless Steel 316L Plate Services

  • Plate Leveling
  • Forming
  • Rolling
  • Welding
  • Polish
  • Forging
  • Beveling
  • Shearing
  • Bending


Services

ASME SA240 Grade 316L Clad Plate Certification

  • Third party inspection report
  • Raw materials certificate
  • 100% radiography test report
  • EN 10204/3.1B
  • Certificate of origin legalized





Certification

Stockist of ASTM A240 Type 316L Strip and Coil as per NACE MR 0175 Standard

Manufacturer of Stainless Steel 316L Sheet as per AMS 5524 and EN10088-2-2005 Standard

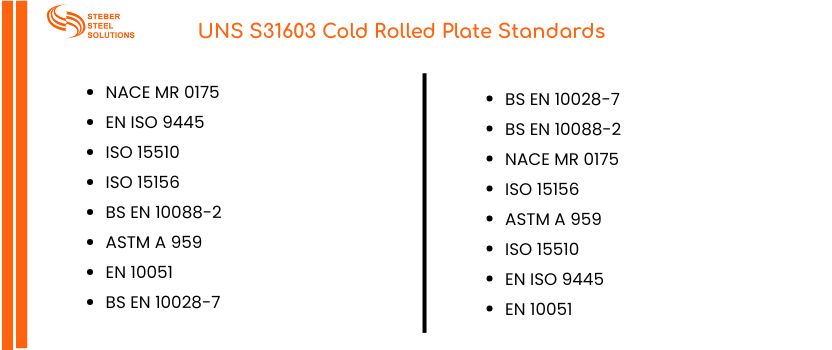

UNS S31603 Cold Rolled Plate Standards

UNS S31603 Cold Rolled Plate Standards

Refer Dimension and Thickness Chart of AISI 316L Plate

Dimensions

Grade Width (mm) Thickness (mm) Finish
316L SS 2000 10 –

316l Stainless Steel Sheet Thickness

Size Range Thickness Thickness Appro*Weight per Sheet Surface Area per Unit weight
mm inches kg lbs kg/m² lbs/ft²
36 *96 0.45212 0.0178 8.22195 18.15 3.690792 0.756
48 *96 0.5969 0.0235 14.61378 32.26 4.921056 1.008
30 *96 0.73914 0.0291 11.4156 25.20 6.15132 1.260
36 *120 0.45212 0.0178 10.27404 22.68 3.690792 0.756
48 *120 0.5969 0.0235 18.26496 40.32 4.921056 1.008
36 *96 0.5969 0.0235 10.95807 24.19 4.921056 1.008
48 *96 0.45212 0.0178 10.95807 24.19 3.690792 0.756
30 *120 0.73914 0.0291 14.2695 31.50 6.15132 1.260
48 *144 0.73914 0.0291 27.40197 60.49 6.15132 1.260
30 *96 0.5969 0.0235 9.13248 20.16 4.921056 1.008
48 *120 0.45212 0.0178 13.69872 30.24 3.690792 0.756
30 *120 0.5969 0.0235 11.4156 25.20 4.921056 1.008
36 *96 0.9017 0.0355 16.43937 36.29 7.381584 1.512
48 *144 0.5969 0.0235 21.92067 48.39 4.921056 1.008
36 *144 0.5969 0.0235 16.43937 36.29 4.921056 1.008
48 *120 0.73914 0.0291 22.83573 50.41 6.15132 1.260
36 *96 0.73914 0.0291 13.69872 30.24 6.15132 1.260
48 *96 0.73914 0.0291 18.26496 40.32 6.15132 1.260
30 *96 0.9017 0.0355 13.69872 30.24 7.381584 1.512
Manufacturer of ASME SA240 UNS S31603 Plate in Mumbai, Check SS 316L Plate Density

SS 316L Plate Density

Density
7990 kg/m³ 8.0 g/cm³
Supplier of DIN 1.4404 Polished Plate offers NDT Testings and Custom Sizes at Dealer Price

Supplier of Stainless Steel 316L Sheet conducts various Testing Methods

Testings(Destructive and Non-Destructive)

  • Firmness test
  • analysis
  • Hydrostatic analysis
  • Prompt test
  • Large-scale test
  • Small tests
  • Chemical examination-Spectro analysis
  • Eddy current examining
  • Mechanical examining like tensile, Elongation and reduction of area.
  • X-ray test
  • Pitting protection test
  • Positive material recognition

SS 316L Perforated Sheet Sizes

Stainless Steel 316l Perforated Sheet Round Hole (R)
Square Hole (C)
Pitch (mm) Hole Size(mm) % Open Area Thickness (mm) Sheet Size
T2.00 R1.00 23 0.80 2m x 1m
T9.00 R6.00 40 3.00 2m x 1m
T1.50 R0.75 23 0.60 2m x 1m
U8.00 C5.00 39 1.00 2m x 1m
T21.00 R15.00 46 1.50 2m x 1m
T9.00 R6.00 40 0.60 2m x 1m
T2.50 R1.50 33 0.60 2m x 1m
U12.00 C10.00 70 1.00 2m x 1m
T15.00 R10.00 40 1.00 2m x 1m
T3.50 R2.00 30 1.00 2m x 1m
T9.00 R6.00 40 1.50 2m x 1m
T5.00 R3.00 33 1.00 2m x 1m
T28.00 R20.00 46 2.00 2m x 1m
T4.00 R2.50 36 0.60 2m x 1m
T8.00 R5.00 35 2.00 2m x 1m
T6.00 R3.00 23 3.00 2m x 1m
T15.00 R10.00 40 1.50 2m x 1m
U12.00 C10.00 70 1.50 2m x 1m
T6.00 R4.00 40 1.00 2m x 1m
T8.00 R5.00 35 1.50 2m x 1m
T15.00 R10.00 40 2.00 2m x 1m
T7.00 R5.00 46 1.00 2m x 1m

Stainless Steel 316L Plain Sheet Sizes

Supplier of 316l Stainless Steel Plate provides Custom Sizes

PRODUCT THICKNESS MM FINISH MAX SHEET SIZE MM
Grade 316l Stainless Steel 0.9 Plain 2B 2000 x 1000
Bright 2000 x 1000 0.9
Brushed Finish 2000 x 1000, 2500 x 1250 0.9, 1.2
Embossed 2500 x 1250 0.8, 1.0
Rimex Super Mirror 2400 x 1200, 2500 x 1250 0.8, 1.2

ASME SA240 UNS S31603 Plate Surface Finish

Polished and brushed finishes

ASTM Equivalent EN Designation
No. 3 1G-2G
No. 6 1K-2K
No. 7-8 1P-2P
No. 4 1J-2J

Mill finishes

ASTM Equivalent EN Designation
No. 2B 2B
– 2Q
TR 2H
No. 1 1D
BA 2R
No. 2D 2D

Patterned & coloured finishes

ASTM Equivalent EN Designation
No. 2D 2F
– 2L
– 2W
– 1M
– 1S-2S
– 2M

Various Types Of Stainless Steel 316L Sheet

Supplier of Stainless Steel 316L Sheet offers a variety of Shapes like Plate, Sheets , Coils and Strips etc

ASTM A240 Type 316l Coil

ASTM A240 Type 316l Coil

ASTM A240 Tp 316l Perforated Sheet

ASTM A240 Tp 316l Perforated Sheet

ASME SA240 Grade 316l Clad Plate

ASME SA240 Grade 316l Clad Plate

SUS 316l Hot Rolled Plate

SUS 316l Hot Rolled Plate

Aisi 316l Cold Rolled Plate

Aisi 316l Cold Rolled Plate

SA 240 SS 316l Chequered Plate

SA 240 SS 316l Chequered Plate

SS 316l Flat Sheet

SS 316l Flat Sheet

Din 1.4404 Foil

Din 1.4404 Foil

Uns S31603 Chequered Plate

Uns S31603 Chequered Plate

SA 240 SS 316l Polished Plate

SA 240 SS 316l Polished Plate

DIN 1.4404 Polished Plate Welding

  • Laser Beam Welding
  • Submerged Arc Welding (SAW)
  • TIG-Welding
  • MAG-Welding Solid Wire
  • Arc Welding (E)

AISI 316L Plate Tolerance

Gauge LB/Sq In. LB/Sq. Ft. Gauge Tolerance
72″ Wide 96″ Wide
3/8 0.3750 0.11456 16.496 +.055″ -.010″ +.060″ -.010″
7/16 0.4375 0.13250 19.080
1/2 0.5000 0.15044 21.633
9/16 0.5625 0.16838 24.247
5/8 0.6250 0.18633 26.831
11/16 0.6875 0.20427 29.415
3/16 0.1875 0.05958 8.579 +.045″ -.010″ +.050″ -.010″
7/32 0.2187 0.06854 9.870
1/4 0.2500 0.07750 11.162
5/16 0.3125 0.09546 13.746
1 1.0000 0.29628 42.665 +.070″ -.010″ +.075 -.010″
1-1/8 1.1250 0.33217 47.833
1-1/4 1.2500 0.36806 53.001
1-3/8 1.3750 0.40395 58.169
1-1/2 1.5000 0.43984 63.337
1-3/4 1.7500 0.51161 73.672
3/4 0.7500 0.22308 32.123 +.060″ -.010″ +.065″ -.010″
13/16 0.8125 0.24102 34.707
7/8 0.8750 0.25897 37.291
15/16 0.9375 0.27691 39.875
3 3.0000 0.87709 126.301 +.150″ -.010″ +.160″ -.010″
3-1/2 3.5000 1.02064 146.972
4 4.0000 1.16850 168.264 +.180″ -.010″ +.200″ -.010
2 2.0000 0.58339 84.008 +.125″ -.010″ +.150″ -.010″
2-1/8 2.1250 0.62229 89.610
2-1/4 2.2500 0.65817 94.777
2-1/2 2.5000 0.72995 105.113
2-3/4 2.7500 0.80173 115.449

Brushed Stainless Steel 316L Sheet Weight Chart

Size (mm) Weight per
sheet (Kg)		 Size (mm) Weight per
sheet (Kg)
2000 *1000 * 1.0 16.4 3000 * 1500 * 2.0 73.7
2000 *1000 * 0.9 14.7 2000 * 1000 * 2.0 32.7
2500 *1250 * 0.9 23.0 2500 * 1250 * 2.0 51.2
2000 *1000 * 1.5 24.6 3000 * 1500 * 3.0 112.0
3000 *1500 * 1.0 36.8 2500 * 1250 * 2.5 63.9
2500 *1250 * 0.7 17.9 3000 * 1500 * 1.5 55.3
2500 *1250 * 1.0 25.6 2000 * 1000 * 2.5 40.9
2000 *1000 * 1.2 19.6 3000 * 1500 * 2.5 92.1
2000 *1000 * 0.7 11.5 2500 * 1250 * 1.5 38.4
2500 *1250 * 1.2 30.7 2000 * 1000 * 3.0 49.6
3000 *1500 * 1.2 44.2 2500 * 1250 * 3.0 77.5

A240 gr 316L Coil Forging

Finishing 1700 - 1750°F (927 - 955°C)
Initial 2100 - 2200°F (1150 - 1205°C)

Impact Resistance of SA 240 tp 316L Strip

Temperature Energy Absorbed
°F °C Ft-lb J
75 23 65 - 100 88 - 134

Stainless Steel 316L Hot Rolled Plate Gauge Chart

Gauge No. Inch mm
30 .0125 Inch .3175 mm
8 .17187 Inch 4.365 mm
28 .01562 Inch .396 mm
9 .15625 Inch 3.968 mm
26 .01875 Inch .476 mm
10 .14062 Inch 3.571 mm
22 .03125 Inch .7937 mm
20 .0375 Inch .9525 mm
24 .025 Inch .635 mm
11 .125 Inch 3.175 mm
18 .050 Inch 1.270 mm
12 .10937 Inch 2.778 mm
16 .0625 Inch 1.587 mm
14 .07812 Inch 1.984 mm

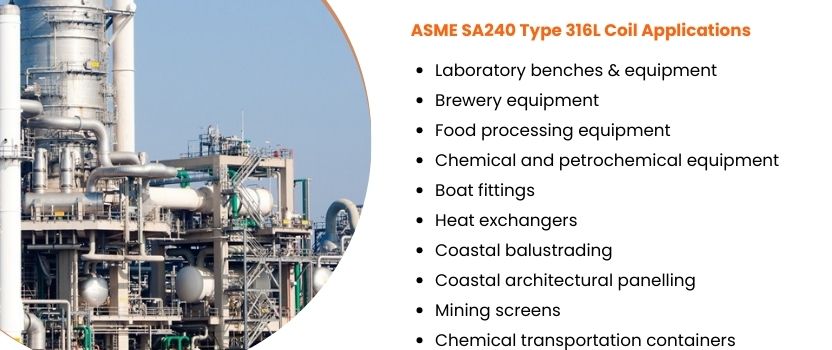

ASME SA240 Type 316L Coil Applications

ASME SA240 Type 316L Coil Applications

Fabrication Process of ASTM A240 UNS S31603 Clad Plate

  • Plasma cutting
  • Forming
  • Waterjet cutting
  • Plate saw cutting
  • Plate leveling
  • Laser cutting
  • Welding
  • Shearing
  • Machining

Provide Ready Extock of Stainless Steel 316L Sheet in Following Brands

Baosteel

Baosteel

Outokumpo

Outokumpo

Posco

Posco

Jindal

Jindal

Nippon Steel

Nippon Steel

Aperam

Aperam

Thyssenkrupp

Thyssenkrupp

Tisco

Tisco

Arcelormittal

Arcelormittal

SS 316L Sheet HSN Code

Product HSN code
SS 316L sheet 72192112

Stainless Steel 316L Temperature Range

Temperature Range
1175°C 2150°F

Physical Properties of SS 316L Flat Sheet

Grade Specific heat 0-1000C (J/kg.K) Electrical resistivity (n.m) Thermal conductivity (W/m.K) Elastic modulus (GPa) Mean coefficient of thermal expansion (m/m/0C)
at 1000C at 5000C 0-1000C 0-3150C 0-5380C
316L SS sheet 500 740 16.3 21.5 193 15.9 16.2 17.5

Stainless Steel 316L Sheet Equivalent Material

Country Japan North America United Kingdom Russia Russia Europe America France Australia America United States United States German Australia
STANDARD JIS UNS BS WERKSTOFF NR. GOST EN ASTM AFNOR ASME ANSI AMS SAE DIN AS
SS 316L SUS 316L S31603 316S11 / 316S13 1.4404 / 1.4435 03Ch17N14M3 / 03Ch17N14M2 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 ASTM A240 Z3CND17‐11‐02 / Z3CND18‐14‐03 ASME SA -240 ANSI SS 316L AMS 5653 SAE SS 316L 1.4404 / 1.4435 –

2b Finish SS 316L Chequered Plate Chemical Composition

Chemical composition
Grade The element max (%)
C Mn S P Cr Ni Si
ASTM A240 316L 0.030 2.00 0.030 0.045 16.0-18.0 10.0-14.0 0.75
Mo N Cb Cu – – –
2.0-3.0 0.10 – – – – –

316l Stainless Steel Plate Mechanical Properties

Grade Mechanical properties
Elongation Tensile Hardness, max Yield
ASTM A240 316L Min  % Mpa Brinell Rockwell B Min Mpa
40% 485 217 95 170

Supplying Stainless Steel 316L Sheet in various Countries

Country Name Flag Country Name Flag
Tunisia Tunisia South Africa South Africa
Algeria Algeria Nigeria Nigeria
Kenya Kenya Angola Angola
Zambia Zambia Ghana Ghana
Egypt Egypt Ethiopia Ethiopia
Tanzania Tanzania Morocco Morocco
