Monel Plate
| Monel Plate Quick Information | |
|---|---|
| Plate Length | 3000 – 12000 mm |
| Plate Thickness | 4.5 – 100 mm |
| Hardness type | Half Hard, Soft, Hard |
| BWelding Method | SAW, SMAW , PLASMA |
| Brands | Outokumpu, Nippon Yakin, ATI, VDM |
| Forms | Sheet, Coil, Foil, Clad plate |
ASTM B127 UNS N04400 Sheet Supplier in India
Monel Plate
Monel Metal Sheet
K-monel Strip
Table of Contents
- Monel Plate Specification
- Standards Of Monel Sheet
- Monel 400 Coil Weight Chart
- Ready To Dispatch Exstock of Monel Plate in Following Brands
- Monel Alloy Cold Rolled Plate Size Chart
- Various Types Of Monel Plate
- Monel Alloy K500 Flat Sheet Gauge Chart
- Thickness Tolerance Of K-monel Strip
- Werkstoff NR.2.4360 Hot Rolled Plate Impact Strength
- UNS N05500 Foil Shear Strength
- Value Added Services Of ASME SB127 K500 Coil
- What Are The Features Of Monel Polished Plate?
- Monel Annealed Plate Temperature Range
- Monel Sheet Metal Length Tolerance
- Width Tolerance Chart Of Alloy K500 Shim Sheet
- Monel Alloy 400 Plate Corrosion Rate
- HSN Code Of Monel Plate
- Thermal Properties Of Monel K500 Strip
- Alloy 400 Coil Fatigue Strength
- Applications Of Monel 400 Sheet
- Cold Rolled Monel Material Coil Equivalent Standards
- Chemical Composition Of Monel Alloy Strip
- Monel Alloy 400 Plate Mechanical Properties
- Monel Sheet Physical Properties
Monel Plate Specification
Monel Plate Sizes
- Length:3000 – 12000 mm
- Thickness: 4.5 – 100 mm
- Width:900 – 2400 mm
Monel Metal Sheet Size
- Length:3000 -12000 mm
- Thickness: 0.02 – 4.0 mm
- Width:900 – 2400 mm
Monel Alloy K500 Perforated Sheet Sizes
- Width:1000- 2000mm
- Thickness:0.3-15mm
- Length:1000- 6000mm
Monel Alloy Coil Sizes
- Length:2000 – 6000mm
- Thickness: 2.5-10.0 mm
- Width:610-2000 mm
Monel Alloy 400 Flat Sheet Edges
- Slit
- Square
- Rolled
- Round
Brushed Stainless Steel Sheet Processsing
- Custom
- Deburring
- Grinding
- Edging
Werkstoff NR. 2.4375 Perforated Plate Standards
- EN10088-2-2005
- JIS4304-2005
- GB/T3280-2007
- ASTM B127
- ASME SB127
Monel Shim Stock Packaging
- Wooden boxes/ crates/ pallets
- Industrial packing techniques
- Big rolls with spools
- Bundles with plastic wrapping
DIN 2.4375 Foil Cutting
- Laser cutting
- Plasma cutting
- Oxy-propane flame cutting
- Waterjet cutting
Monel Cold rolled Plate Origin
- Thailand
- US
- European
- Japanese
- Korea
- Taiwan
- Indian
Monel Rolling Plate Finish
- 8K
- Brushed finish
- hair line
- Brush
- NO.1
- BA
- Checkered
- 2D, 2B
- Mirror Finish
Monel Plate Types
- shim stock
- flat shim
- clad plate
- coil
- rolling plate
- strips
- flat sheet
- perforated plate
- sheet
Werkstoff NR. 2.4375 Chequered Plate Inspection Methods
- UT testing
- Visual Inspection
- PMI testing
- Witnessed Chemical Analysis
- Dimension Verification
- Hardness Testing
- Packing Condition
Monel Coil Certification
- 100% Radiography Test Report
- Third Party Inspection Report
- Certificate of Origin legalized
- EN 10204/3.1B,
- Raw Materials Certificate
ASME SB127 Monel 400 Strips Heat Treatment
- +NT: Normalized and tempered
- +P: Precipitation hardened
- +AT: Solution annealed
- +QT: Quenched and tempered (oil/ water)
- +A: Annealed (soft/ full/ spheroidizing)
- +N: Normalized
Monel K500 Strips Manufacturer in Mumbai As Per ASTM B127 Standard
Standards Of Monel Sheet
Monel Plate Manufacturer In India Manufactures Plate As Per International Standards
- ASTM B127
- ASME SB127
- UNS: N04400/N05500
- WNR: 2.4360/ 2.4375
Alloy 400 Coil Stockist, Refer Weight Chart
Monel 400 Coil Weight Chart
| Thick(inches) | Plate Weight/Unit Area |
|---|---|
| 3/16 | 0.06000 lbs/in² |
| 3/8 | 0.121 lbs/in² |
| 5/8 | 0.196 lbs/in²1 |
| 7/8 | 0.274 lbs/in² |
| 1 | 0.313 lbs/in² |
| 1 1/2 | 0.47 lbs/in² |
| 1 3/4 | 0.549 lbs/in² |
| 2 | 0.627 lbs/in² |
| 2 1/2 | 0.784 lbs/in² |
| 3 | 0.941 lbs/in² |
Ready To Dispatch Exstock of Monel Plate in Following Brands
Supplier of Monel Plate in Mumbai keep ready stock in Outokumpo,Nippon Yakin
Outokumpo
Nippon Steel
Special Metals(SMC)
HAYNES International
VDM
Columbus Stainless
Contact Today For Immediate Delivery For Monel Alloy K500 Shim Sheet
Monel Alloy Cold Rolled Plate Size Chart
Monel Plate Supplier In India Offers Plate In Custom Size ANd Dimensions
| Sizes in Stock | |
|---|---|
| Size ( inches) | Size (mm ) |
| .134" | 3.40 |
| .125" | 3.18 |
| .187" | 4.75 |
| .156" | 3.96 |
| .312" | 7.92 |
| .250" | 6.35 |
| .500" | 12.7 |
| .375" | 9.53 |
| .600" | 15.9 |
| .875" | 22.2 |
| .750" | 19.1 |
| 1" | 25.4 |
| 1.250" | 31.8 |
| 1.125" | 28.6 |
| 1.750" | 44.5 |
| 1.500" | 38.1 |
| 2.500" | 63.5 |
| 2" | 50.8 |
| 3" | 76.2 |
SABIC Approved Werkstoff NR.2.4360 Hot Rolled Plate Supplier Provide Free Sample Before Order
Various Types Of Monel Plate
Monel Plate Supplier in India Offers Plate, Sheet, Coil, Foil At Discounted price
Monel 400 Coil
Monel K500 Clad Plate
Monel Rolling Sheets
Monel Alloy K500 Flat Sheet
ASTM B127 UNS N04400 Perforated Plate
Alloy 400 Hot Rolled Plate
Monel Alloy Cold Rolled Plate
Nickel Alloy K500 Polished Plate
Monel Alloy 400 Chequered Plate
Monel Alloy K500 Flat Sheet Gauge Chart
| Gauge | Monel Plate |
|---|---|
| Gauge Decimal (inch) | |
| 30 | 0.0125 |
| 26 | 0.0187 |
| 24 | 0.0250 |
| 22 | 0.0312 |
| 20 | 0.0375 |
| 18 | 0.0500 |
| 16 | 0.0625 |
| 14 | 0.0781 |
| 12 | 0.1094 |
| 11 | 0.1250 |
| 10 | 0.1406 |
| 9 | 0.1562 |
| 8 | 0.1719 |
Thickness Tolerance Of K-monel Strip
| Widthw(mm) | 2400< w <2700 | 1800< w <2100 | 1200< w <1500 | 2100< w <2400 | w < 1200 |
| 25.0<t <30.0 | 1.3 | 1.1 | 1 | 1.1 | 1 |
| 16.0<t <20.0 | 1 | 0.80 | 0.8 | 0.9 | 0.8 |
| 10.0<t <12.5 | 0.8 | 0.45 | 0.38 | 0.8 | 0.35 |
| 6.0<t <8.0 | 0.8 | 0.36 | 0.3 | 0.8 | 0.3 |
| 2.5<t <4.5 | – | 0.20 | 0.2 | – | 0.20 |
Werkstoff NR.2.4360 Hot Rolled Plate Impact Strength
| Temperature, °F | Notch | Impact Strength, ft•lb | Orientation |
|---|---|---|---|
| -423 | V | 121-216 | Trans. |
| -423 | V | 141-219 | Long. |
| -423 | Keyhole | 72-75 | Trans. |
| -423 | Keyhole | 81-87 | Long. |
| -440 | V | 171-193 | Trans. |
| -440 | V | Unbroken | Long. |
| -440 | Keyhole | 91-116 | Trans. |
| -440 | Keyhole | 123-146 | Long. |
UNS N05500 Foil Shear Strength
| Temper | Shear Strength, ksi | Thickness, in. | Hardness, Rb | Tensile Strength, ksi | Ratio Shear Strength/ Tensile Strength |
|---|---|---|---|---|---|
| Hot-Rolled, Annealed | 48.75 | 0.042 | 65 | 73.0 | 0.67 |
| Cold-Rolled, Annealed | 49.50 | 0.029 | 60 | 76.8 | 0.65 |
Value Added Services Of ASME SB127 K500 Coil
- Forging
- Cladding
- Annealed
- Cutting
- Rolling
- Bending
- Annealed

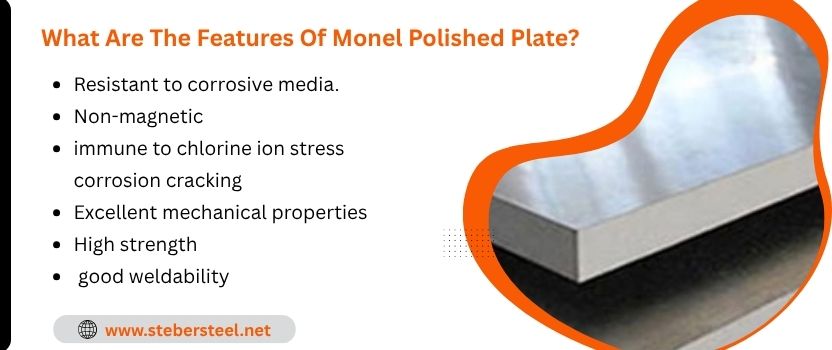

What Are The Features Of Monel Polished Plate?
Monel Annealed Plate Temperature Range
| Alloy | Melting Point Range (°C) |
|---|---|
| Monel K500 | 1350-1400 |
| Monel 400 | 1300-1350 |
| Monel 405 | 1300-1350 |
Monel Sheet Metal Length Tolerance
| Tolerance(mm) | ||
| length (mm) | Plus | Minus |
| 2,000 < L < 8,000 | 0.005 times L | 0 |
| L < 2,000 | 10 | 0 |
| L > 8,000 | 40 | 0 |
Width Tolerance Chart Of Alloy K500 Shim Sheet
| Tolerance (mm) | ||||
| Mill edge | Trimmed edge | |||
| width (mm) | Plus | Minus | Plus | Minus |
| 1200 < w < 1500 | 20 | 0 | 5 | 0 |
| w < 1200 | 20 | 0 | 3 | 0 |
| w > 1500 | 20 | 0 | 5 | 0 |
Monel Alloy 400 Plate Corrosion Rate
| Metal | UNS | Weight % | Temp, oC, OF | Time | Corrosion rate |
|---|---|---|---|---|---|
| oC | oF | ||||
| Monel 400 | N04400 | 48 % | 550 oC | 1020 of | 35 days |
HSN Code Of Monel Plate
| Product | HS code |
|---|---|
| Monel plate | 75022020 |
Thermal Properties Of Monel K500 Strip
| Temperature | Electrical Resistivity | Thermal Conductivity | Specific Heat | Mean Linear Expansion | |
|---|---|---|---|---|---|
| °C | °F | ohm-circ mil/ft | Btu-in/h/ft | Btu/lb/°F | in/in/°F x 10-6 |
| -200 | -320 | 205 | – | – | – |
| -130 | -200 | – | 130 | 0.078 | 6.4 |
| -70 | -100 | – | 139 | 0.088 | -6.7 |
| 100 | 200 | 332 | 167 | 0.105 | 7.7 |
| 300 | 600 | 346 | 215 | 0.114 | 8.8 |
| 400 | 800 | 355 | 238 | – | 8.9 |
| 600 | 1200 | 379 | 287 | – | 9.3 |
| 800 | 1600 | 403 | 335d | – | 9.8 |
| 1000 | 2000 | 427 | – | – | 10.3d |
Alloy 400 Coil Fatigue Strength
| Temper | Tensile Strength, ksi | Fatigue Strength (10⁶ cycles), ksi | Ratio, Fatigue Strength/Tensile Strength |
|---|---|---|---|
| Quarter-Hard | 76.5 | 24.5 | 0.32 |
| Annealed | 74.7 | 21.0 | 0.28 |
| Full-Hard | 126.0 | 39.0 | 0.31 |
| Half-Hard | 84.2 | 28.5 | 0.34 |
Applications Of Monel 400 Sheet
Cold Rolled Monel Material Coil Equivalent Standards
| STANDARD | JIS | WERKSTOFF NR. | AFNOR | UNS | EN | GOST | BS |
|---|---|---|---|---|---|---|---|
| Monel K500 | – | 2.4375 | – | N05500 | – | – | – |
| Monel 400 | NW 4400 | 2.4360 | NU-30M | N04400 | NiCu30Fe | МНЖМц 28-2,5-1,5 | NA 13 |
Chemical Composition Of Monel Alloy Strip
| Element | Monel K-500 | Monel 400 |
|---|---|---|
| Ni | 63.0% Min | 63.0% Min |
| Cu | 20.0% – 30.0% | 28.0% – 34.0% |
| Fe | 2.5% | 2.5% |
| Mn | 1.0% | 2.0% |
| C | 0.30% | 0.30% |
| Si | 0.5% | 0.5% |
| P | 0.03% | 0.03% |
| S | 0.015% | 0.024% |
Monel Alloy 400 Plate Mechanical Properties
| Property | Monel K-500 | Monel 400 |
|---|---|---|
| Tensile Strength | 860-1035 MPa | 485-620 MPa |
| Yield Strength | 690-830 MPa | 205-415 MPa |
| Elongation | 20% Min | 35% Min |
| Hardness (Rockwell B) | 95-100 HRB | 75-95 HRB |
| Modulus of Elasticity | 205,000 ksi | 195,000 ksi |
| Poisson’s Ratio | 0.30 | 0.31 |
Monel Sheet Physical Properties
| Property | Monel K-500 | Monel 400 |
|---|---|---|
| Density | 8.80 g/cm³ | 8.80 g/cm³ |
| Electrical Resistivity | 0.48 µΩ·m | 0.49 µΩ·m |
| Melting Point | 1,315°C | 1,300°C |
| Specific Heat | 0.380 J/g·K | 0.385 J/g·K |
| Thermal Conductivity | 30 W/m·K | 35 W/m·K |
