DMV GmbH Pipe Distributor
Ex-stock Of DMV GmbH Seamless Steel Tube in India At Lowest Price
Table of Contents
- DMV GmbH Pipe Specification
- DMV GmbH Seamless Steel Tube Size Rang
- Applications of DMV GmbH Pipe
- DMV GmbH Stainless Steel Tubes Production Process
- Materials for DMV GmbH Instrumentation Tubes
- High Temperature Nickel Based Alloys Tolerances
- Wall Thickness of Heat Exchanger Tubes
- DMV GmbH Nuclear Tubes Dimensional Range
- Mechanical Properties of DMV GmbH Mechanical Tubing
- Critical Service Conditions of DMV GmbH Bimetallic Tubes
- DMV GmbH Hot Finished Tubes Wall Thickness
- Our Quality Approvals for DMV GmbH Furnace Tubes
- DMV GmbH Boiler Tubes Corrosion and Heat Resistant
- DMV GmbH Instrumentation Tubes Dimensions
- SOTEP Service Range for DMV GmbH Oil and Gas Tubes
- DMV GmbH Mechanical Tubes and Pipes Production Techniques
- Application Depending Area of Temperatures for DMV GmbH Pipe
- DMV GmbH Boiler Tubes Advantages for Component Manufacturing Industries
DMV GmbH Pipe Specification
DMV GmbH Pipe Sizes
- OD : 1.6 to 280 MM
- (From 0.163 up to 11 Inch)
- WT : 0.5 up to 50 MM
- (From 0.02 up to 1.97 Inch)
DMV GmbH Seamless Steel Tube Sizes
- OD : from 1.6 mm
- WT : from 0.05 mm
- Lengths : up to 40 m
DMV GmbH Boiler Tubes Materials
- Nickel-based Alloys
- Martensitic Grades
- Austenitic & Super Austenitic Stainless Steel Grades
- Cobalt-based Alloy
- Duplex & Super Duplex Grades
DMV GmbH Instrumentation Tubes Service Range
- Bending
- Electropolishing
- Precision Cutting
- Surface Treatment
- Machining
- Welding
- Forming
DMV GmbH Heat Exchanger Tubes Applications
- Aerospace Industry
- Nuclear Industry
- Biotechnology
- Oil & Gas Exploration
- Ship-yard Industry
- Naval Engineering
- Automotive Industry
- Food Processing Industry
DMV GmbH Nuclear Tubes Advantages
- Paper Production Plants
- Textile Production Plants
- Automotive Production
- Chemical & Petrochemical Plants
- General Engineering
- Food Production Equipment
- Anti-friction & Slide Bearing Production
Stockist Of DMV GmbH Stainless Steel Tubes And Pipes Stock Range 1.6 to 280 MM in Mumbai
DMV GmbH Seamless Steel Tube Size Range
| Sizes | From 1.6 to 280 mm |
|---|---|
| Lengths | up to 40 meter |
| Outside Diameter | From 1.6 mm |
| Wall Thickness | From 0.05 mm |
DMV GmbH Nuclear Tubes Available in U-bent And Straight Type For Waste Treatment
Applications of DMV GmbH Pipe
DMV GmbH Mechanical Tubing Available In Hot Extrusion And Cold Drawing Process
DMV GmbH Stainless Steel Tubes Production Process
| Process | Outside Diameters | Wall Thickness | ||
|---|---|---|---|---|
| Millimeter | Inches | Millimeter | Inches | |
| Hot Extrusion | 32 upto 273 MM | 1.26 upto 10.752 Inch | 3.4 upto 50 MM | 0.134 upto 1.97 Inch |
| Cold Drawing | 1.6 to 51 MM | 0..165 to 2 Inch | 0.05 to 2 MM | 0.002 upto 0.08 inch |
DMV GmbH Hot Finished Tubes Stocks In SS, DSS, Cobalt And Nickel Based Alloy Material
Materials for DMV GmbH Instrumentation Tubes
- Martensitic Grades
- Nickel-based Alloys
- Austenitic & Super Austenitic Stainless Steel Grades
- Cobalt-based Alloys
- Duplex & Super Duplex Grades
High Temperature Nickel Based Alloys Tolerances
| OD | Cold Finished Tubes | Hot Extruded | ||
|---|---|---|---|---|
| Tolerance Class of EN ISO 1127 | D4 | D3 | D2 | D2 |
| Permissible Deviation | + 0,5% | + 0.75% | + 1.0% | + 1.0% |
| (Minimum + 0.1 mm (+0.0039")) | (Minimum + 0,3 mm (+0.0012")) | (Minimum + 0,5 mm (+0.0197")) | (Minimum + 0,5 mm (+0.0197")) | |
| WT | HOT EXTRUDED | COLD FINISHED | ||
|---|---|---|---|---|
| Tolerance Class of EN ISO 1127 | > 5 mm (0.1969") | <5mm (0.1969") | ||
| T2 | T1 | T4 (on request) | T3 | |
| Permissible Deviation | + 12,5% | + 15.0% | + 7.5% | + 10% |
| (Minimum + 0.4 mm (+0.0157")) | (Minimum + 0,6 mm (+0.0236")) | (Minimum + 0.05 mm (+0.002")) | (Minimum + 0,2 mm (+0.0074")) | |
Wall Thickness of Heat Exchanger Tubes
| Sizes | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness (WT) | |||||||||
| 12BWG | 15BWG | 16BWG | 14BWG | ||||||
| OD | 0.109" | 0.059" | 0.072" | 0.078" | 0.065" | 0.098" | 0.091" | 0.083" | |
| Inches | Millimeter | 2.77 | 1.5 | 1.82 | 2 | 1.65 | 2.5 | 2.32 | 2.11 |
| 1.05" | 26.7 | X | X | ||||||
| 1" | 25.4 | X | X | X | X | X | |||
| 0.98" | 25 | X | X | X | |||||
| 0.83" | 21.3 | X | |||||||
| 0.78" | 20 | X | X | X | |||||
| 3/4" | 19.05 | X | X | X | X | X | |||
DMV GmbH Nuclear Tubes Dimensional Range
| Dimensional Range | Re-Draw Raw Materials | CardioEquipment | Trauma Life Science | |||
|---|---|---|---|---|---|---|
| Wall Thickness (WT) | Inches | Millimeter | Inches | Millimeter | Inches | Millimeter |
| Maximum | 20 | 0.787 | 0.080 | 2.0 | 0.169 | 5.0 |
| Minimum | 3.2 | 0.126 | 0.004 | 0.1 | 0.039 | 1.0 |
| Outside Diameter (OD) | Inches | Millimeter | Inches | Millimeter | Inches | Millimeter |
| Maximum | 2.5 | 63.5 | 1.0 | 25 | 0.787 | 20 |
| Minimum | 1.5 | 38 | 0.063 | 1.6 | 0.238 | 6.0 |
Mechanical Properties of DMV GmbH Mechanical Tubing
| Designation of DMV | Mechanical Prop. at RT Min. | Chemical Composition Typical 1) | Density | Equivalent Standard Nearest | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yield Strength Rp0.2 | Tensile Strength Rm | Ni | C max | Cr | Cu | Mo | Others | EN | UNS | |||||
| ksi | MPa | ksi | MPa | lb/in3 | g/cm3 | |||||||||
| DMV 316L | 25 | 170 | 70 | 485 | 12.0 | 0.03 | 17.0 | 2.25 | 0.29 | 8.0 | 1.4404 | S31603 | ||
| DMV 17 4 PH | 165 | 1140 | 170 | 1170 | 4.0 | 0.07 | 17.0 | 4.0 | 7.9 | 1.4542 | S17400 | |||
| DMV 304 | 30 | 205 | 75 | 515 | 9.5 | 0.06 | 18.5 | 7.9 | 1.4301 | S30400 | ||||
| DMV 316Ti | 30 | 205 | 75 | 515 | 11.5 | 0.08 | 17.0 | 2.25 | 8.0 | 1.4571 | S31635 | |||
| DMV 316LVM | 32 | 220 | 87 | 600 | 14.0 | 0.025 | 17.5 | <0.10 | 2.8 | N <0.10 | 7.9 | 1.4541 | S31673 | |
Critical Service Conditions of DMV GmbH Bimetallic Tubes
- High Pressure
- Aggressive Media (Acids or Basic)
- High & Low Temperatures
- High Precision – Tolerances and Surface Finish

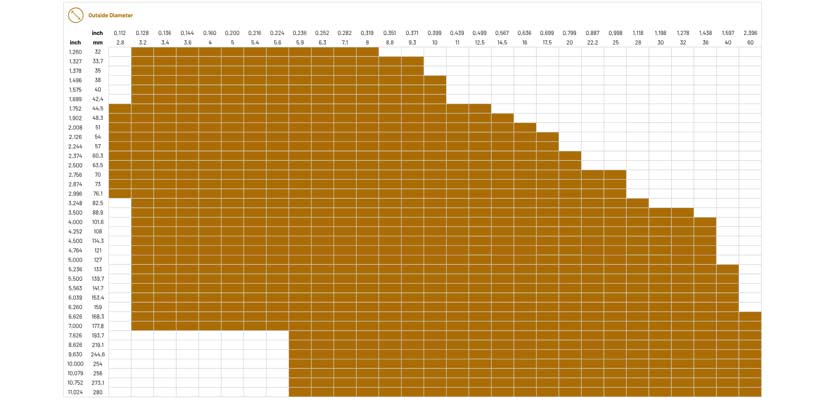

DMV GmbH Hot Finished Tubes Wall Thickness
Our Quality Approvals for DMV GmbH Furnace Tubes
| OMS / Facility | France, (Montbard) | Usa, (Houston) | Germany, (Remscheid) | France, (Issoudun) | Italy, (Costa Volpino) |
|---|---|---|---|---|---|
| ISO 19443 | ✔ | ... | |||
| ISO 14001 | ✔ | ✔ | ✔ | ||
| AS 9100 | ✔ | ||||
| ISO 9001 | ✔ | ✔ | ✔ | ✔ | ✔ |
| ISO 17025 | ✔ | ||||
| ISO 50001 | ✔ | ||||
| ISO 45001 | ✔ | ||||
| AD 2000 | ✔ | ✔ | ✔ | ✔ | |
| API 5LC | ✔ | ✔ | |||
| PED 2014/68/EU | ✔ | ✔ | ✔ | ✔ | ✔ |
| API 5CRA | ✔ | ✔ | ✔ | ||
| PER 2016/1105 | ✔ | ✔ | ✔ | ||
| ASME III | ✔ | ✔ |
DMV GmbH Boiler Tubes Corrosion and Heat Resistant
| DMV Designation | Attribute | Typical Chemical Composition 1) | Nearest Equivalent Standard | Min. Mechanical Prop. at RT | Density | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cr | C Max | Ni | Cu | Mo | Others | JIS | EN | UNS | Rp0.2 Yield Strength | Rm Tensile Strength | ||||||
| ksi | MPa | ksi | MPa | lb/in3 | g/cm3 | |||||||||||
| DMV 304 | Corrosion Resistant | 18.5 | 0.06 | 9.5 | SUS 304 | 1.4301 | S30400 | 30 | 205 | 75 | 515 | 0.29 | 7.9 | |||
| DMV 304L | 19.0 | 0.03 | 11.0 | SUS 304L | 1.4306 | S30403 | 25 | 170 | 70 | 485 | 0.29 | 7.9 | ||||
| DMV 304H | Heat Resistant | 18.5 | 0.08 2) | 9.5 | 1.4948 | S30409 | 30 | 205 | 75 | 515 | 0.29 | 7.9 | ||||
| DMV 310S | Corrosion Resistant | 25.0 | 0.015 | 21.0 | 1.4845 | S31008 | 30 | 205 | 75 | 515 | 0.29 | 7.9 | ||||
| DMV 310N | Heat Resistant | 25.0 | 0.10 2) | 20.0 | N 0.20; Nb 0.40 | 1.4952 | S31042 | 43 | 295 | 95 | 655 | 0.29 | 8.0 | |||
| DMV 316 | Corrosion Resistant | 17.0 | 0.06 | 11.5 | 2.25 | SUS 316 | 1.4401 | S31600 | 30 | 205 | 75 | 515 | 0.29 | 8.0 | ||
| DMV 316L | 17.0 | 0.03 | 12.0 | 2.25 | 1.4404 | S31603 | 25 | 170 | 70 | 485 | 0.29 | 8.0 | ||||
| DMV 317L | 18.0 | 0.03 | 14.5 | 3.5 | SUS 317L | 1.4438 | S31703 | 30 | 205 | 75 | 515 | 0.29 | 8.0 | |||
| DMV 321H | Heat Resistant | 18.5 | 0.08 2) | 11.0 | Ti > 4 x C < 0.6 | 1.4940 | S32109 | 25 | 170 | 70 | 480 | 0.29 | 7.9 | |||
| DMV 347H | 18.5 | 0.08 2) | 11.0 | Nb > 8 x C < 1.0 | 1.4912 | S34709 | 30 | 205 | 75 | 515 | 0.29 | 7.9 | ||||
DMV GmbH Instrumentation Tubes Dimensions
| Product: Instrumentation Tubes | ||
|---|---|---|
| Outside Daimeter Range | Inches | Millimeter |
| Max | 2.0 | 50.8 |
| Min | 1/16 | 1.6 |
| Wall Thickness Range | Inches | Millimeter |
| Max | 0.188 | 4.77 |
| Min | 0.028 | 0.71 |
SOTEP Service Range for DMV GmbH Oil and Gas Tubes
- Electropolishing
- Machining
- Welding
- Precision Cutting
- Bending
- Forming
- Surface Treatment
DMV GmbH Mechanical Tubes and Pipes Production Techniques
| Types | Methods | Sizes |
|---|---|---|
| Hot Extrusion | Hot Finish | OD : 42 up to 300 MM & (1.65 upto 11.81 Inch) |
| WT : 2.7 upto 50 MM & (0.11 upto 1.97 Inch) | ||
| Cold Pilgering | Cold Finish | OD : 6 to 244.5 MM & (0.24” to 9.62”) |
| WT : 0.5 to 30 MM & (0.02” to 1.18”) | ||
| Cold Drawing | Cold Finish | OD : 6 to 244.5 MM & (0.24” to 9.62”) |
| WT : 0.05 to 6 MM & (0.002” to 0.24”) |
Application Depending Area of Temperatures for DMV GmbH Pipe
| Temperatures | Applications |
|---|---|
| 500 °C (932 °F) | Chemical Processes |
| 700 °C (1,292 °F) | Power Plant Applications |
| 1,000 °C (1,832 °F) | Furnace Engineering |
DMV GmbH Boiler Tubes Advantages for Component Manufacturing Industries
- Automotive Production
- Food Production Equipment
- General Engineering
- Textile Production Plants
- Chemical & Petrochemical Plants
- Anti-friction & Slide Bearing Production
- Paper Production Plants
