Stainless Steel 316L Pipe

Stainless Steel 316L Pipe

Stainless Steel 316L Pipe Highlights
Size:  6NB – 1200NB
Outer Diameter 1/8″ NPS to 12″ NPS
Specifications ASME SA312 |ASTM A312
End Plain End, threaded End, Beveled End
Types Rectangle, Round, Square, Hex
Surface Finish Mirror Finish, Annealed, Pickled
Certificate EN 10204 Type 3.1 Certificate

ASTM A312 TP316L Seamless Pipe Supplier in India

Stainless Steel 316L Pipe

Stainless Steel 316L Pipe

ASTM A312 TP316L Seamless Pipes

ASTM A312 TP316L Seamless Pipes

316L Stainless Steel ERW Pipes

316L Stainless Steel ERW Pipes


Table of Contents


Stainless Steel 316L Pipe Specification

SS 316L Seamless Pipe Sizes

  • OD: 1/8″ – 12″ NPS
  • 6NB – 1200NB
  • Wall thickness: 0.6 – 12.7 mm
  • Length: Single, Double Random & Cut Length
Sizes

ASTM A312 TP316L Welded Pipe Sizes

  • 1/8” – 36” NB
  • OD 1/4” – 36”
  • Wall thickness: 0.8 – 12.7 m
  • Length: up to 26 Meters

Sizes

Stainless Steel 316L Pipe Manufacturing Types

  • Seamless
  • EFW
  • ERW
  • Welded

Types

SUS 316L Round Pipe Surface Finish

  • BA (Bright Annealed)
  • AP (Annealed and Pickled)
  • Polished
  • 2B, 2D, No 4 and Mirror Finish
Surface Finish

AISI 316L Square Pipe End Types

  • Plain End
  • Threaded End
  • Bevelled End
  • Groove Ends
End Types

UNS S31603 Rectangular Pipe Schedule

  • Schedule 10 , 20 , 40
  • Schedule 80, 60, 120
  • Schedule STD , XXS

Schedule

INOX AISI 316L ERW Pipe Standards

  • EN 10216 – 5
  • EN 10088-2
  • DIN 17458
  • NSF 61
  • EN 10216 – 2
  • DIN 17456
  • ASME B36.19
  • EN 10217-7
  • ASME B36.19M
  • EN 10088-3
Standards

316L Stainless Steel Pipe Testing

  • Mechanical
  • Ultrasonic
  • Chemical
  • PMI
  • Tensile
  • Hardness
  • Flaring



Testing

316L SS Pipe Types

  • Seamless Pipe
  • Welded Pipe
  • ERW Pipe
  • EFW pipe
  • Round Pipe
  • Square Pipe
  • Rectangular Pipe
  • Polish Pipe



Types

SA 312 TP 316L Polish Pipe Documentation

  • MTC EN 10204 type 3.1
  • PMI Test Reports
  • Mill Test Certificates
  • Visual Inspection

Documentation

A312TP316L Welded Pipe Shapes

  • Round
  • Rectangle
  • Hex
  • Square

Shapes

INOX AISI 316L Cold Rolled Pipe Origin

  • Russia
  • Janpanese
  • American
  • European

Origin

SUS316L Stainless Steel Bright Annealed Pipe Packaging

  • Bubble Wraps
  • Wooden Box
  • Bundled

Packaging

ASME SA 213 TP316 Hot Rolled Pipe Fluids

  • Gasses
  • Liquids
  • Corrosive fluids
  • Oxygen service

Fluids

ASTM A312 TP316L Rectangular Pipe Services

  • Punching
  • Cutting
  • Welding
  • Bending

Services

Various Types Of SS 316L Pipe

Supplier of Stainless Steel 316L Pipe in India are available in Various Types and Ends

ASTM A312 TP316 Welded Pipe

ASTM A312 TP316 Welded Pipe

Stainless Steel 316 EFW pipe

Stainless Steel 316 EFW pipe

SS 316 Round Pipe

SS 316 Round Pipe

AISI 316 Square Pipe

AISI 316 Square Pipe

UNS S31600 Rectangular Pipe

UNS S31600 Rectangular Pipe

DIN 1.4401 Polish Pipe

DIN 1.4401 Polish Pipe

ASME SA 213 TP316 Hot Rolled Pipe

ASME SA 213 TP316 Hot Rolled Pipe

INOX AISI 316 Cold Rolled Pipe

INOX AISI 316 Cold Rolled Pipe

SA 312 TP 316 Bright Annealed Pipe

SA 312 TP 316 Bright Annealed Pipe

Manufacturer of 316L Stainless Steel ERW Pipes, View Sizes and Pressure Rating

Stainless Steel 316L Pipe Sizes in mm

Stainless Steel 316L Pipe Supplier in India are available in variety of Sizes

Nominal Pipe Size (NPS) Outside Diameter (OD)
mm mm inch
15 mm 21.3 mm 1/2 Inch
3 mm 10.3 mm 1/8 Inch
20 mm 26.7 mm 3/4 Inch
6 mm 13.7 mm 1/4 Inch
25 mm 33.4 mm 1 Inch
10 mm 17.1 mm 3/8 Inch
65 mm 73.0 mm 2.1/2 Inch
32 mm 42.2 mm 1.1/4 Inch
80 mm 88.9 mm 3 Inch
40 mm 48.3 mm 1.1/2 Inch
100 mm 114.3 mm 4 Inch
50 mm 60.3 mm 2 Inch
200 mm 219.1 mm 8 Inch
125 mm 141.3 mm 5 Inch
250 mm 273.1 mm 10 Inch
150 mm 168.3 mm 6 Inch
350 mm 355.6 mm 14 Inch
300 mm 323.8 mm 12 Inch
450 mm 457.2 mm 18 Inch
400 mm 406.4 mm 16 Inch
600 mm 610.0 mm 24 Inch
500 mm 508.0 mm 20 Inch

316L Stainless Steel Pipe Pressure Rating

Pipe Size
(inches)		 Pipe Schedule Temperature (°F)
100 400 200 600 300 700 500 750 650
1" 80 4213 3002 3634 2659 3265 2528 2791 2501 2580
2" 80 2747 1957 2369 1734 2129 1648 1820 1631 1682
1.5" 80 3182 2267 2744 2009 2466 1909 2108 1889 1949
5" 40 1342 956 1158 847 1040 805 889 797 822
4" 80 2213 1577 1909 1397 1715 1328 1466 1314 1355
6" 40 1219 869 1052 770 945 732 808 724 747
3" 80 2553 1819 2202 1612 1979 1532 1691 1516 1564
8" 40 1073 765 926 678 832 644 711 637 657
4" 40 1531 1091 1321 967 1187 919 1014 909 938
10" 40 974 694 840 615 755 584 945 578 596
5" 160 3414 2433 2945 2155 2646 2049 2262 2027 2091
8" 160 3175 2262 2738 2004 2460 1905 2103 1885 1944
6" 160 3289 2343 2836 2076 2549 1973 2179 1953 2014
10" 160 3147 2242 2714 1986 2439 1880 2085 1868 1927

ASTM A312 Grade TP316L Welded Pipe Widely Used In Petrochemical Industry

316L Stainless Steel Rectangular Pipe Applications

316L Stainless Steel Rectangular Pipe Applications
Check Corrosion Resistance DIN 1.4404 Rectangular Pipe Schedule Chart

ASTM A312 TP316L Seamless Pipes Schedule Chart

NOMINAL PIPE SIZE OD SCH 10 SCH 40 SCH 5 SCH 80
1" 1.315 0.109 0.133 0.065 0.179
1/2" 0.84 0.083 0.109 0.065 0.147
1-1/2" 1.9 0.109 0.145 0.065 0.2
3/4" 1.05 0.083 0.113 0.065 0.154
1-1/4" 1.66 0.109 0.14 0.065 0.191
2-1/2" 2.875 0.12 0.203 0.083 0.276
2" 2.375 0.109 0.154 0.083 0.218
3-1/2" 4 0.12 0.226 0.083 0.318
3" 3.5 0.12 0.216 0.083 0.3
4" 4.5 0.12 0.237 0.083 0.337
Buy Full Finish and Pickled Condition SUS 316L Round Pipe at Factory Price

Surface Finish

Surface Finish External Surface(OD) Internal Surface(ID)
Roughness Average(RA) Roughness Average(RA)
μm μ inch μ inch μm
MP Mechanical Polish 0.8 32 40, 25,32,20 1,0.5,0.8,0.6
AP Annealed & Pickled 1.0 or Not defined 40 or Not defined Not defined Not defined
EP Electro Polish 0.8 32 5, 15,7,10 0.38,0.20, 0.25;0.13
BA Beight Annealed 0.8 32 20, 40,25,32, 1,0.5,0.8,0.6

SS UNS S31603 Pipe Corrosion Resistance

Corrosion Resistance above  60 °C

SS 316l Pipe Thickness Thickness

039 = .039" Thick
028 = .028" Thick
065 = .065" Thick
035 = .035" Thick
083 = .083" Thick
049 = .049" Thick
109 = .109" Thick

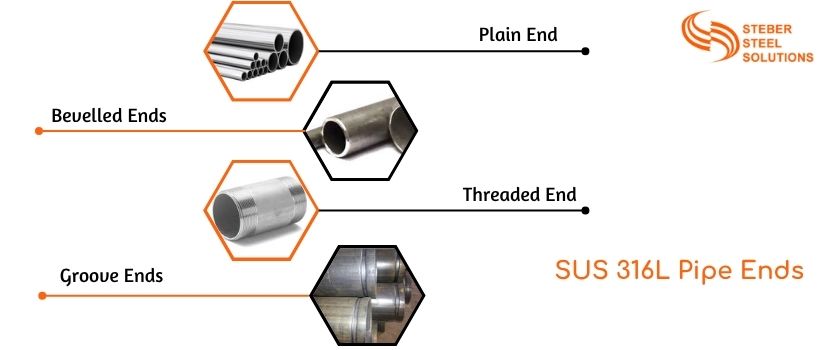

SUS 316L Pipe Ends

SUS 316L Pipe Ends

AISI 316L Welded Pipe Allowable Stress

Strength Ksi Mpa
Tensile 75 515

Welding Electrodes of ASME SA 213 TP316L Round Pipe

Material Stick welding electrode grade
AISI 316L pipe E316

UNS S31603 Hot Rolled Pipe Tolerance

Stainless Steel 316L Pipe OD ASTM A312 TP316L Pipe Tolerance
38 to 60mm +/- 0.20mm
4 to 35mm +/- 0.08mm
60 and above +/- 0.25mm
35 to 38mm +/- 0.15mm

What is Temperature Range of SA 312 TP 316L ERW Pipe?

Stainless Steel 316L Pipe Supplier in India offers most common types with high strength and temperature.

Grade EN Specification Temperature Limit
316L 1.4404 1375 - 1400°C

SS 316l Pipe JIS Standard

Manufacturer of Stainless Steel 316L Pipe are available in various Standards

Japan Standard Types
JIS G3468 Large diameter 316L welded Marine Grade Stainless Steel Pipe
JIS G3459 UNS S31603 Pipe
JIS G3448 Light gauge316L SS Pipe

316L SS Seamless Pipe HSN Code

HSN Code Grade
73041110 Stainless Steel 316L Pipe

DIN 1.4404 Square Pipe Weight Chart

Nominal Pipe Size (NPS) Outside Diameter (OD) SCH 5 S XXS SCH 40 S SCH 160 S SCH 10 S SCH 80 S SCH 20 S
mm inch mm WT mm Kg/m Weight WT mm Kg/m Weight WT mm Kg/m Weight WT mm Kg/m Weight WT mm Kg/m Weight WT mm Kg/m Weight WT mm Kg/m Weight
15 1/2 21.3 1.65 00.80 7.47 2.55 2.77 1.27 4.75 1.94 2.11 1.00 3.73 1.62 2.30 1.07
3 1/8 10.3 1.2 00.20 - - 1.73 00.37 - - 1.24 00.28 2.41 00.47 1.5 00.33
10 3/8 17.1 1.2 00.47 - - 2.31 00.840 - - 1.65 00.63 3.20 1.10 2.00 00.74
6 1/4 13.7 1.2 00.37 - - 2.24 00.630 - - 1.65 00.49 3.02 00.80 2.00 00.58
32 1.1/4 42.2 1.65 1.65 9.70 7.77 3.56 3.39 6.35 5.61 2.77 2.70 4.85 4.47 3.00 2.90
300 12 323.8 3.96 31.25 25.40 186.97 9.53 73.88 33.32 238.76 4.57 36.00 12.7 132.05 6.35 49.7
20 3/4 26.7 1.65 1.03 7.82 3.64 2.87 1.69 5.56 2.90 2.11 1.28 3.91 2.20 2.55 1.52
50 2 60.3 1.65 2.40 11.07 13.44 3.91 5.44 8.74 11.11 2.77 3.93 5.54 7.48 3.00 4.24
25 1 33.4 1.65 1.30 9.09 5.45 3.38 2.50 6.35 4.24 2.77 2.09 4.55 3.24 2.55 1.94
65 2.1/2 73.0 2.11 3.69 14.02 20.39 5.16 8.63 9.53 14.91 3.05 5.26 7.01 11.41 4.00 6.81
40 1.1/2 48.3 1.65 1.91 11.1 10.18 3.68 4.05 7.14 7.25 2.77 3.11 5.08 5.41 3.00 3.55
100 4 114.3 2.11 5.84 17.12 41.03 6.02 16.07 13.49 33.54 3.05 8.36 8.56 22.32 4.50 12.18
80 3 88.9 2.11 4.51 15.24 27.68 5.49 11.29 11.1 21.30 3.05 6.45 7.62 15.27 4.00 8.37
150 6 168.3 2.77 11.32 21.95 79.22 7.11 28.26 18.25 67.53 3.40 13.84 10.97 42.56 6.35 25.36
125 5 141.3 2.77 9.47 19.05 57.43 6.55 21.8 15.88 49.11 3.40 11.57 9.53 30.97 5.00 16.80
250 10 273.1 3.40 22.63 25.40 155.15 9.27 60.31 28.58 172.33 4.19 27.78 12.7 96.01 6.35 41.77
200 8 219.1 2.77 14.79 22.23 107.92 8.18 42.55 23.01 111.27 3.76 19.96 12.7 64.64 6.35 33.31

ASTM A312 TP316L EFW Pipe Hardness

English
Metric
Rockwell B Hardness 80 80
Brinell Hardness 149 149
Vickers Hardness 155 155

Offers Ex Extock of Stainless Steel 316L Pipe in Following Brands

Outokumpo

Outokumpo

Jindal

Jindal

Posco

Posco

Thyssenkrupp

Thyssenkrupp

Nippon Steel

Nippon Steel

Acronis

Acronis

ASME SA 213 TP316L Rectangular Pipe Mechanical Properties

Melting Point Density Yield Strength (0.2%Offset) Tensile Strength Elongation
1399 °C (2550 °F) 8.0 g/cm3 Psi - 30000 , MPa - 205 Psi - 75000 , MPa - 515 35 %

Stainless Steel 316L Pipe Equivalent Grades

STANDARD BS(United Kingdom) WERKSTOFF NR.( Russia) GOST(Russia) UNS(North America) JIS(Japan) EN(Europe) AFNOR(France)
SS 316L 316S11 / 316S13 1.4404 / 1.4435 03Ch17N14M3 / 03Ch17N14M2 S31603 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 Z3CND17-11-02 / Z3CND18-14-03

Physical Properties of SS 316 Round Pipe

Physical Properties (Room Temperature)
Specific Heat (0-100°C) 500 J.kg-1.°K-1
Thermal Expansion 15.9 mm/m/°C
Thermal Conductivity 16.3 W.m -1.°K-1
Electrical Resistivity 7.4 μohm/cm
Modulus Elasticity 193 GPa

AISI 316 Cold Rolled Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min
