Stainless Steel 304L Pipe

Stainless Steel 304L Pipe

Stainless Steel 304L Pipe Highlights
Specifications ASTM A312 | ASME SA312
Standard Size: 1/8″to 16″
Outer Diameter 1/8″ NPS to 12″ NPS
Surface Finish Mirror Finish, Annealed, Pickled
Types Rectangle, Round, Square, Hex
End Plain, Threaded, Beveled End
DN DN 6 to DN 750
Elongation 40%
MTC MTC EN 10204 3.1 & 3.2

ASTM A312 TP304L Seamless Pipe Supplier in India

Stainless Steel 304L Pipe

Stainless Steel 304L Pipe

ASTM A312 TP304L Square Pipe

ASTM A312 TP304L Square Pipe

Stainless Steel 304L Rectangular Pipe

Stainless Steel 304L Rectangular Pipe


Table of Contents


Stainless Steel 304L Pipe Specification

Stainless Steel 304L Pipe Sizes

  • OD: 1/8″ – 12″ NPS
  • 6NB – 1200 NB
  • Length: Single, Double Random & Cut Length
  • Wall thickness: 0.6 – 12.7 MM
Sizes

Stainless Steel 304L Welded Pipe Sizes

  • OD 1/4” – 36”
  • 1/8” – 36” NB
  • Wall thickness: 0.8 – 12.7 MM
  • Length: up to 26 Meters

Sizes

AISI 304L Schedule 10 Pipe Manufacturing Types

  • ERW
  • Seamless
  • Welded
  • EFW

Types

SA 312 TP 304L Electropolished Pipe Services

  • Bending
  • Cutting
  • Punching
  • Welding
Services

Stainless Steel 304L Rectangular Pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps

Packaging

ASME SA 213 TP304L Structural Pipe Fluids

  • Oxygen service
  • Liquids
  • Gasses
  • Corrosive fluids

Fluids

UNS S30403 Round Pipe Surface Finish

  • 2B, 2D, No 4 and Mirror Finish
  • AP (Annealed and Pickled)
  • BA (Bright Annealed)
  • Polished
Surface Finish

SUS 304L EFW Pipe End Types

  • Groove Ends
  • Threaded End
  • Bevelled End
  • Plain End
End Types

WNR 1.4306 ERW Pipe Schedule

  • Schedule 80, 60, 120
  • Schedule 10 , 20 , 40
  • Schedule STD , XXS

Schedule

ASTM A213 TP304L Polished Pipe Documentation

  • Visual Inspection
  • MTC EN 10204 type 3.1
  • Mill Test Certificates
  • PMI Test Reports
Documentation

ASTM A312 TP304L Square Pipe Origin

  • American
  • Janpanese
  • European
  • Russia

Origin

SS 304L Seamless Pipe Shapes

  • Square
  • Round
  • Hex
  • Rectangle

Shapes

SS 304L Seamless Pipe Standards

  • EN 10216 – 2
  • EN 10088-3
  • EN 10088-2
  • ASME B36.19M
  • DIN 17458
  • EN 10217-7
  • ASME B36.19
  • EN 10216 – 5
  • DIN 17456
  • NSF 61
Standards

ASTM A312 TP304L Square Pipe Testing

  • PMI
  • Flaring
  • Ultrasonic
  • Hardness
  • Chemical
  • Tensile
  • Mechanical



Testing

Stainless Steel 304L Pipe Types

  • Polish Pipe
  • Round Pipe
  • Welded Pipe
  • EFW pipe
  • Rectangular Pipe
  • Seamless Pipe
  • Square Pipe
  • ERW Pipe


Types

Manufacturer of UNS S30403 ERW Pipe As Per ASME B36.19

Meet Standards of ASME SA 213 TP304L Structural Pipe

  • ASME B36.19M
  • ASME B36.19
  • EN 10216 – 5
  • EN 10216 – 2
  • DIN 17458
  • DIN 17456
  • NSF 61
  • EN 10088-2
  • EN 10217-7
  • EN 10088-3

Get DIN 1.4307 Welded Pipe Range Between 1 to 3 mm Thick At Lowest Pric

Stainless Steel 304L Pipe Thickness Chart

NPS WT OD Weight Weight
(MM) (INCHES) (MM) (INCHES) SCH Lb/ft kg/Mtr
42″ 7.925 0.312 1067 42.000 138.911 206.914
9.525 0.375 STD 166.708 248.319
30″ 6.350 0.250 762 30.000 79.433 118.318
17.475 0.688 215.380 320.817
7.137 0.281 89.189 132.851
24″ 6.350 0.250 610 24.000 63.413 94.456
19.050 0.750 186.233 277.401
7.137 0.281 71.183 106.029
20″ 6.350 0.250 508 20.000 52.733 78.547
17.475 0.688 141.901 211.368
7.163 0.282 59.386 88.458
18″ 5.563 0.219 457 18.000 41.588 61.948
15.875 0.625 115.978 172.754
6.350 0.250 47.393 70.593
12″ 4.775 0.188 324 12.750 25.222 37.570
14.275 0.562 73.154 108.966
5.563 0.219 29.309 43.657
4″ 6.020 0.237 114 4.500 10.790 16.073
8.560 0.337 14.983 22.318
3″ 5.486 0.216 89 3.500 40 STD 7.576 11.284
7.620 0.300 80 STD 10.253 15.272
2″ 3.912 0.154 60 2.375 40 STD 3.653 5.441
5.537 0.218 80 STD 5.022 7.480
1 1/2″ 3.683 0.145 48 1.900 40 STD 2.718 4.048
5.080 0.200 80 STD 3.361 5.409
1″ 3.378 0.133 33 1.315 40 STD 1.679 2.501
4.547 0.179 80 STD 2.172 3.325
1/2″ 2.769 0.109 21 0.840 40 STD 0.851 1.268
3.734 0.147 80 STD 1.088 1.621
Exporter of SUS 304L Round Pipe Are Available in Custom Dimensions

Stainless Steel 304L Welded Pipe Dimensions

SS 304L Pipes Outer Dia in
(MM)		 Pipes Wall Thick in
(MM)		 Inches Schedule Kg/m
73.03 7.01 2½ 80S 11.59
60.33 2.77 2 10S 3.99
21.34 3.73 1/2 80S 1.65
42.16 6.352) 1¼ 160 5.69
42.16 4.85 1¼ 80S 4.53
48.26 5.08 1½ 80S 5.49
33.40 6.352) 1 160 4.30
33.40 4.55 1 80S 3.29
21.34 2.11 1/2 10S 1.02
26.67 3.91 3/4 80S 2.23
17.15 3.20 3/8 80S 1.12
17.15 1.65 3/8 10S 0.64
13.72 3.02 1/4 80S 0.81
13.72 1.65 1/4 10S 0.50
Check Pressure Rating of 304L Schedule 10 Stainless Steel Rectangular Pipe

Pressure Rating of ASME SA 213 TP304L Structural Pipe

Pipe Outer Dia
(INCHES)		 .120 .109 .095 .083 .065 .049 .035 .028
Working Pressure in (psig)
5/16 3700 7300 5400
3/4 4600 3000 2200 4000
3/8 3100 6100 4400
1 3900 3400 4300 2200 2900
1/8 10100 7900
1/4 4800 9500 7000 3700
1/2 2300 4400 3200

ASTM A213 TP304L Polished Pipe Schedule Chart

NPS (Nominal Pipe Size) OD (Outer Diameter) SCH 80 SCH 40 SCH 10 SCH 5
4″ 4.5 0.337 0.237 0.12 0.083
3/4″ 1.05 0.154 0.113 0.083 0.065
3-1/2″ 4 0.318 0.226 0.12 0.083
3″ 3.5 0.3 0.216 0.12 0.083
2-1/2″ 2.875 0.276 0.203 0.12 0.083
2″ 2.375 0.218 0.154 0.109 0.083
1-1/4″ 1.66 0.191 0.14 0.109 0.065
1-1/2″ 1.9 0.2 0.145 0.109 0.065
1″ 1.315 0.179 0.133 0.109 0.065
1/2″ 0.84 0.147 0.109 0.083 0.065

Types of Stainless Steel 304L Rectangular Pipe

Stainless Steel 304L Pipe Supplier in India Offer a Variety of Types and Ends.

SS 304L Seamless Pipe

SS 304L Seamless Pipe

ASTM A213 TP304L Polished Pipe

ASTM A213 TP304L Polished Pipe

WNR 1.4306 ERW Pipe

WNR 1.4306 ERW Pipe

Stainless Steel 304L Welded Pipe

Stainless Steel 304L Welded Pipe

UNS S30403 Round Pipe

UNS S30403 Round Pipe

ASME SA 213 TP304L Structural Pipe

ASME SA 213 TP304L Structural Pipe

SUS 304L EFW Pipe

SUS 304L EFW Pipe

AISI 304L Schedule 10 Pipe

AISI 304L Schedule 10 Pipe

SA 312 TP 304L Electropolished Pipe

SA 312 TP 304L Electropolished Pipe

Stainless Steel 304L Pipe Weight Chart

The SS 304L Pipe Supplier in India Provides a Great Pipe Weight Chart.

Gauge 18 16 14 11  3/8  1/4
Inches 0.049 0.065 0.083 0.120 0.375 0.250
6 9.46 28.53 18.77
5/8 0.38 0.40
5 8.02 23.53 16.35
4 6.26 18.52 12.68
3-1/2 5.67 10.89
3 3.29 4.97 9.35
3/4 0.50 65.00 0.81 1.13
2-1/2 2.72 3.88 7.67
2 1.30 1.69 2.14 3.06 6.01
1-3/4 1.13 1.49 1.88 2.66
1-1/4 0.82 1.08 1.37 1.93
1-1/2 0.97 1.27 1.61 2.26 4.41
1 0.63 0.83 1.03 1.45
1/2 0.30 0.39

Welding Electrodes of ASTM A213 TP304L Polished Pipe

Material Grade of Stick Welding Electrode
Welding of AISI 304L SS Pipe ER308

Stainless Steel 304L Pipe Chemical Composition

Gr. C, (Carbon) Si, (Silicon) Cr, (Chromium) S, (Sulfur) N, (Nitrogen) P, (Phosphorous) Ni, (Nickel) Mn, (Manganese)
304L Pipe 0.03 Max 1.00 Max 17.50 - 19.50 0.015b 0.10 0.045 max 8.00 - 10.50 2.0 Max

SUS 304L Square Pipe Mechanical Properties

Gr. Tensile Strength in (Mpa) Elongation in (5inch 50 MM) Yield Strength in 0.2% Proof (Mpa) Hardness
Brinell(HB) Rockwell B(HR B)
SS 304L Pipe 485 Mpa 40 % 170 Mpa 201 HB 92 HR B

Physical Properties of Stainless Steel 304L Welded Pipe

Gr. Specific Heat 0-1000C (J/kg.K) Melting Point in °C Density in (kg/m3) Elastic Modulus in (GPa) Electrical Resistivity in (n.m) Mean Coefficient of Thermal Expansion in (m/m/0C) Thermal Conductivity in (W/m.K)
0-5380C 0-3150C 0-1000C at 5000C at 1000C
304L Pipe 500 1450 °C 8000 Kg/m3 193 GPa 720 18.4 17.8 17.2 21.5 16.2

Stainless Steel 304L Pipe Equivalent Grades

Gr. WERKSTOFF NR. GOST ASTM AFNOR EN JIS UNS BS
SS 304L Pipe 1.4306 / 1.4307 03Х18Н11 ASTM A312 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11 SUS 304L S30403 3304S11

Heat Treatment of UNS S30403 Welded Pipe

Grade Heat Treatment
SS 304L Pipe 1010- 1120°C

Applications of Stainless Steel 304L Pipe

Applications of Stainless Steel 304L Pipe

ASME SA 213 TP304L Structural Pipe Tolerance

Outside Daimeter of SS 304L Pipe A312TP304L Pipe Tolerance
60 & above +/- 0.25 m
38 to 60 (MM) +/- 0.20 (MM)
35 to 38 (MM) +/- 0.15 (MM)
4 to 35 (MM) +/- 0.08 (MM)

Advantages of Stainless Steel 304L Pipe

  • Corrosion Resistance
  • Strength
  • Versatility
  • Weldability
  • Low Maintenance

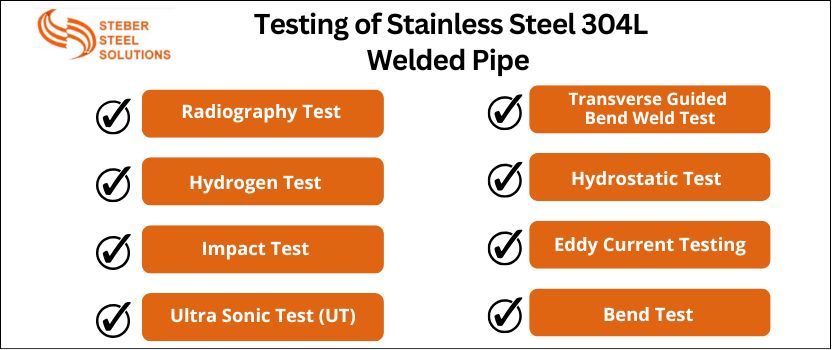

Testing of Stainless Steel 304L Welded Pipe

Testing of Stainless Steel 304L Welded Pipe

Stainless Steel 304L Pipe HSN Code

Grade Hs Code
SS 304l Pipe 72193390

Manufacturing Process of 304L Stainless Steel Pipe

  • Straightening
  • Quality Testing
  • Cold Drawing
  • Heat Treatment
  • Finishing

Surface Finish of SA 312 TP 304L Electropolished Pipe

Surface Finish Internal Surface (ID) External Surface (OD)
Roughness Average (RA) Roughness Average (RA)
μ inch μm μ inch μm
(BA) Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
(MP) Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
(AP) Annealed & Pickled Not Defined Not Defined 40 & Not Defined 1.0 & Not Defined
(EP) Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8
