• An ISO 9001 and ISO 14001 Certified Company
Steber Steel Solutions

Carbon Steel Pipe

Carbon Steel Pipe Specification

Carbon Steel Pipe Quick Information
OD 1/8” to 60”
Thickness SCH10 to SCH160
Ends Plain Ends, Threaded Ends, Beveled Ends
Coating 3PE coated, Fusion bonded epoxy coating, Blacking painting
Process ERW/LSAW
Section Shape Round/Square / Rectangular
Delivery Time 2-3 Days

Carbon Steel Seamless Pipe Supplier in India

Carbon Steel Pipe

Carbon Steel Pipe

CS Seamless Pipe

CS Seamless Pipe

Carbon Steel ERW Pipe

Carbon Steel ERW Pipe

Table of Contents


Carbon Steel ERW Pipe Sizes And Stocking Range

Carbon Steel Pipe Sizes

OD*,
mm		 WT*,
mm		 ISO
thread		 ID*, mm (nominal) Kg/m
13.5 2.35 1/4 in. 8.8 0.66
17.2 3/8 in. 12.5 0.87
21.3 2.65 1/2 in. 16 1.24
26.9 3/4 in. 21.6 1.61
30 2 26 1.40
33.7 2.6 28.5 23
42.4 3.25 1¼ in. 35.9 3.19
44.5 2.9 38.7 32
48.3 2.6 1½ in. 43.1 2.98
50 5 40 5.61
54 2 50 2.60
60.3 2.6 2 in. 55.1 3.76
70 2.9 64.2 4.87
76.1 70.3 5.32
88.9 45 3 in. 80.8 8.61
108 4 100 10.42
121 113 11.72
159 4.5 150 17.41

Manufacturer of Medium CS Welded Pipe Provide Accurate Specification in Mumbai

Carbon Steel Pipe Specification

CS Pipe

  • Pipe: 1/2 - 36 ”
  • OD: 1/2” - 60”
  • Tube: 1/2” - 6”

Size

Low Carbon Steel Welded Pipe

  • Wall Thickness: 2.5-20mm
  • OD: 21.3-2540mm
  • Length : 12000mm
Thickness

High CS Seamless Pipe

  • Wall Thickness: 1.0 - 40 mm
  • OD: 10.3 - 610 mm
  • Length : 12000 mm

Sizes

Carbon Steel Pipe Indian Standards

  • IS 3589
  • IS 1239
  • IS 3601
  • IS 4923

Standards

Schedule 40 Low Carbon Steel Pipe BS Standards

  • BS 1965-1
  • BS 3601
  • BS 1387


Standards

High CS Rectangular Pipe SWG

  • 10 Swg.
  • 12 Swg.
  • 16 Swg.
  • 18 Swg.
  • 20 Swg.
Pipe

Black Steel Round Pipe Manufacturing Technique

  • Cold formed
  • Hot formed
  • Precision rolled
  • Cold drawn



Technique

Quenching Carbon Steel Square Pipe Testings

  • Ultrasonic gaging
  • Liquid penetrant examination
  • Geometric accuracy
  • Radiographic inspection



Testings

Carbon Alloy Hot Finished Pipe Origin

  • Taiwan
  • US
  • European
  • Thailand
  • Japanese
  • Korea
  • Indian
Origin

Carbon Steel Schedule 40 Pipe Marking

  • Material grade
  • Manufacturing date
  • Manufacturer logo / name
  • Origin of material
  • Sizes
  • ASTM/ ASME standard
Marking

Carbon Metal Redrawn Tube Services

  • Threading
  • Machining
  • Cut-to-length services
  • Welding
  • Beveling

Services

Medium CS Cold Finished Pipe Documentation

  • MTC
  • Country of origin certificate (Original)
  • Copy of invoice
  • EN 10204/3.1B
  • Bill of lading.
Certification

Carbon Steel Welded Pipe Packaging

  • Wooden boxes
  • Crates (steel/wooden)
  • Bundles (hexagonal)
  • PE fabric bundles
  • Custom


Packaging

CS ERW Pipe Meet the Requirements

  • IBR
  • ISO 15156
  • NACE TM-0284
  • NORSOK
  • NACE MR0103
  • NACE MR0175

Requirements

Carbon Steel Seamless Pipe Manufacturing Type

  • EFW
  • LSAW
  • Seamless
  • Welded
  • ERW
  • Redrawn
  • CDW
Manufacturing
Schedule 40 Low Carbon Steel Pipe Weight Chart

Weight Chart of CS Welded Pipes

Pipe size ID OD Weight WT Section Modulus Standard to XXHY Gallon Sched
6 6.407 6.625 7.59 0.109 3.5769 1.6748 5
5 5.187 5.563 10.80 0.188 4.1161 1.0979
4 4.260 4.5 5.62 0.120 1.7612 .7404 10
3 1/2 3.760 4.0 4.98 0.120 1.3776 .5768 10
3 3.260 3.50 4.34 0.120 1.0411 .4336
2 1/2 2.635 2.875 3.53 0.120 .6870 .2833 10
2 2.157 2.375 2.64 0.109 .4205 .1898 10
1 1/2 1.610 1.90 2.72 0.145 .3262 STD .1058 40
1 1/4 1.380 1.66 2.27 0.140 .2346 STD .0777 40
1/2 0.622 0.84 0.85 0.109 .0407 STD .0158 40
1 1.049 1.315 1.68 0.133 .1328 STD .0449 40
High Yield Carbon Steel Pipe Schedule Chart And Pressure Rating

Carbon Steel Pipe Schedule Chart

NB 15 20 32 40 65 80 100 150 200 300 400
Size 1/2” 3/4” 1 1/4” 1 1/2” 2 1/2” 3” 4” 6” 8” 12” 16”
OD mm 21.34 26.67 42.16 48.26 73.03 88.9 114.3 168.3 219.1 323.9 406.4
5S mm 1.7 1.7 1.7 1.7 2.1 2.1 2.1 2.8 2.8 4 4.2
10S mm 2.1 2.1 2.8 2.8 3.1 3.1 3.1 3.4 3.8 4.6 4.8
S20 mm – – – – – – – – 6.4 6.4 7.9
S40 mm 2.77 2.87 3.56 3.68 5.16 5.49 6.02 7.11 8.18 10.3 12.7
S80 mm 3.73 3.91 4.85 5.08 7.01 7.62 8.56 11 12.7 17.5 21.4
S60 mm – – – – – – – – 10.3 14.3 16.7
S100 mm – – – – – – – – 15.1 21.4 26.2
S140 mm – – – – – – – – 20.6 28.6 36.5
S160 mm 4.78 5.56 6.35 7.14 9.53 11.1 13.5 18.3 23 33.3 40.5
XXS mm 7.47 7.82 9.7 10.2 14 15.2 17.1 22 22.2 25.4

PTFE Lined CS Pipe Pressure Ratings

NPS OD Sch
(inches) (inches) 10 STD XS 60 100 XXS 160
1/2 0.84 – 6358 8575 – – 17150 10908
1 1.315 – 4956 6670 – – 13340 9316
2 2.375 – 3177 4498 – – 8995 7097
2 1/2 2.875 – 3460 4704 – – 9408 6391
3/8 0.675 – 6606 9147 – – – –
3 1/2 4 – 2769 3896 – – – –
4 4.5 – 2581 3670 – – 7339 5782
8 8.625 – 1829 2841 2307 3375 4971 5147
12 12.75 – 1441 1922 2160 3244 3843 5042
18 18 681 1021 1361 2042 3147 – 4848
20 20 613 919 1225 1989 3138 – 4824
24 24 510 766 1021 1978 3126 – 4786
30 30 510 613 817 – – – –
34 34 450 540 – – – – –
42 42 – 438 – – – – –

High Yield Carbon Steel Pipe

  • API 5L Grade B Pipe
  • API 5L X42 Pipe
  • API 5L X46 Pipe
  • API 5L X52 Pipe
  • API 5L X56 Pipe
  • API 5L X60 Pipe
  • API 5L X65 Pipe

Grades of Low CS Pipe

Supplier of Carbon Steel Pipe offers various Grades

Low Carbon Steel Standards
Low Carbon-Manganese Steel 150M19
S355
S275
S235
ST52-3
LF2
Grade UNS Designation number
1022 G10220
1020 G10200
1018 G10180
1010 G10100

Carbon Steel ERW Pipe Gauge Chart

Carbon steel tube gauge chart ( Od in mm ) B.W.G. 10 12 13 14 16 18 19 20 22 24
Wall Thickness mm 3.404 2.769 2.413 2.108 1.651 1.245 1.067 0.889 0.711 0.559
50.8 43.992 45.262 45.974 46.584 47.498 48.31 48.666 49.022 49.378 49.682
38.1 31.292 32.562 33.274 33.884 34.798 35.61 35.966 36.322 36.678 36.982
31.75 24.942 26.212 26.924 27.534 28.448 29.26 29.616 29.972 30.328 30.632
28.575 21.767 23.037 23.749 24.359 25.273 26.085 26.441 26.797 27.153 27.457

Various Types Of Carbon Steel Pipe

Carbon Steel Pipe Supplier in India, with various Types like seamless , welded , erw and tubes

CS Welded Pipe

CS Welded Pipe

Carbon Steel Tube

Carbon Steel Tube

SCH 40 Carbon Steel Exhaust Tubing

SCH 40 Carbon Steel Exhaust Tubing

CS Seam Welded Pipe

CS Seam Welded Pipe

Black Steel Annealed Pipe

Black Steel Annealed Pipe

Low Carbon Steel Clad Pipe

Low Carbon Steel Clad Pipe

Medium Carbon Steel Exhaust Pipe

Medium Carbon Steel Exhaust Pipe

Killed Carbon Steel Cold Drawn Pipe

Killed Carbon Steel Cold Drawn Pipe

CS Cold Finished Pipe

CS Cold Finished Pipe

Large Diameter Carbon Steel Square Tubing

Large Diameter Carbon Steel Square Tubing

Epoxy Coated Carbon Steel Hot Finished Pipe

Epoxy Coated Carbon Steel Hot Finished Pipe

PTFE Lined CS Round Pipe

PTFE Lined CS Round Pipe

Quenching Carbon Steel Rectangular Pipe

Quenching Carbon Steel Rectangular Pipe

Normalized Carbon Steel Bright Annealed Pipe

Normalized Carbon Steel Bright Annealed Pipe

Carbon Alloy Solution Annealed Pipe

Carbon Alloy Solution Annealed Pipe

Black CS Pipe Absolute Roughness

Type of Low CS Pipe  Roughness [inch] Roughness [mm]
galvanized, new .006 .15
Carbon Steel, drawn, new .0008 - .004 .02 - 1
lightly corroded .004 - .016 .1 - 4
welded, new .002 - .004 .05 - 1
light scaling .04 - .06 1 - 1.5
High Tensile Steel, used, cleaned .006 - .008 .15 - 2
heavy scaling .06 - .16 1.5 - 4
bitumed coated .002 .05
severely corroded .016 - .12 .4 - 3

Carbon Steel Welded Pipe HSN Code

Grade HSN Code
CS Welded Pipe 73051129

Carbon Alloy Hot Finished Seamless Pipe Welding

  • Manual Welding
  • Continuous Wire Feeding
  • Consumable Electrode
  • Fluxing
  • Gas Metal Arc Welding (GMAW)
  • Gas Tungsten Arc Welding (GTAW)
  • Submerged Arc Welding (SAW)
  • Non-Consumable Electrode
  • Flux Cored Arc Welding (FCAW)
  • Shielded Metal Arc Welding (SMAW)
  • Plasma Arc Welding (PAW)
  • Gas Shielded

How to Select Pipe Schedule for Carbon Steel Pipe ?

Carbon Steel Pipe Schedule
  • Identify the Pipe Requirements
  • Consider Safety Factors
  • Calculate Pressure Ratings
  • Quality Assurance
  • Operating Conditions
  • Determine Pipe Strength
  • Ensure Compliance
  • Optimize Pipe Size

High Carbon Steel Round Pipe Dimensions

Nominal Pipe Size [inches] OD[] OD[inches] WT[mm] WT[inches] Weight [kg/m] Weight [lb/foot]
32 813.0 32 17.48 .688 342.91 23.08
24 61.0 24 17.48 .688 255.41 171.29
20 508.0 20 15.09 .594 183.42 123.11
18 457.0 18 14.27 .562 155.80 104.67
14 355.6 14 11.13 .375 94.55 54.57
10 273.0 1.750 9.27 .365 6.31 4.48
6 168.3 6.625 7.11 .280 28.26 18.97
4 114.3 4.5 6.02 .237 16.07 1.79
3 88.9 3.500 5.49 .216 11.29 7.58
2 1/2 73.0 2.875 5.16 .203 8.63 5.79
2 6.3 2.375 3.91 .154 5.44 3.65
1 33.4 1.315 3.38 .133 2.50 1.68
1/2 21.3 .840 2.77 .109 1.27 .85
1/8 1.3 .405 1.73 .068 .37 .24

Leading Carbon Steel Pipe Stockist and Brands

Jindal

Jindal

Tenaris

Tenaris

Baosteel

Baosteel

Maharastra Seamless Limited

Maharastra Seamless Limited

Indian Seamless Metal Tubes

Indian Seamless Metal Tubes

Nippon Steel

Nippon Steel

CS Pipe JIS Standard

Carbon Steel Pipe Manufacturer in India as per JIS and Din Standards

Standards/code Available specificationsr Manufacturing
method
JIS G 3452
SGP		 15A～500A
15A～100A		 Forge welded
ERW

DIN Standard of Carbon Steel Seamless Pipes

Standard Types Grade
DIN 2440 Seamless Tubes St33.2
DIN 2393 Seamless Pipes for Structural Purpose RSt34-2,RSt44-2, RSt37-2, St52
DIN 17175 Seamless Tubes for Elevated Temperature St35.8, St45.8, 15Mo3,10CrMo910, STB410, 13CrMo44, STPL340,WB36 , STB510
DIN 1629 / DIN 2391 Seamless Tubes St37.0, St44.0, St52.3 St52.0

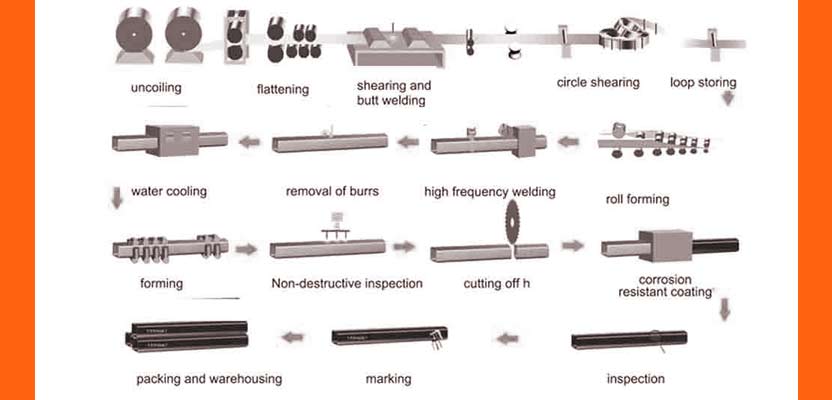

Carbon Steel Pipe Manufacturing Process

Carbon Steel Pipe Manufacturing Process

Quenching CS Pipe Melting Point

Supplier of Carbon Steel Pipe withstand Excellent Melting Points

1425-1540°C (2597-2800°F) Melting Point

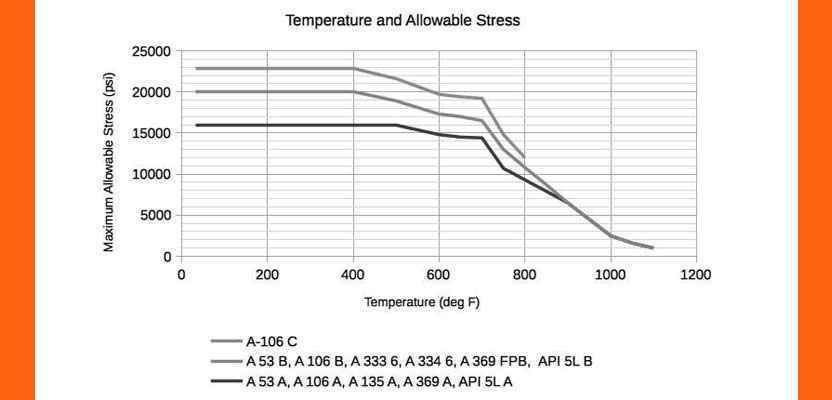

Carbon Steel Pipe Allowable Stress

Carbon Steel Pipe Allowable Stress

Carbon Metal Cold Drawn Pipe Modulus Of Elasticity

MECHANICAL PROPERTIES METRIC ENGLISH
Modulus of Elasticity 200 GPa 29000 ksi

Galvanized Carbon Steel Pipe Applications

Galvanized Carbon Steel Pipe Applications Process

CS ERW Pipe Burst Pressure

Pipes Dimension
(inches)		 Bursting Pressure
(psi)
1 8090
3/4 8610
2 5185
3 4940
4 5270
6 4220
8 3720
10 3380
12 2930

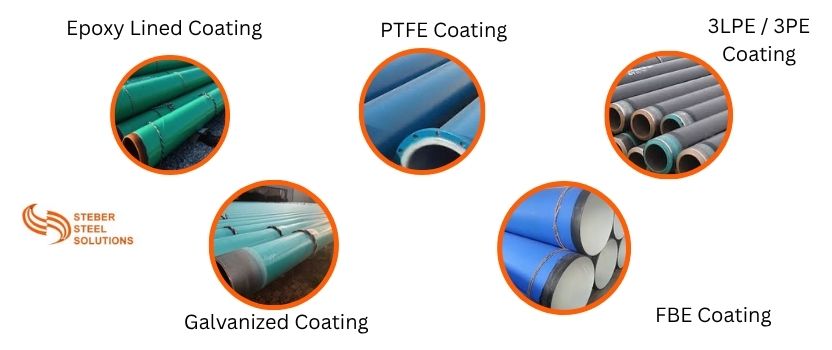

Plain Carbon Steel Round Pipe Coating

Plain Carbon Steel Round Pipe Coating

Killed CS Pipe Dimension Tolerance

Types Outer Diameter Thickness
SEAMLESS 1/4 ~ 36 inch 1.25mm ~ 50mm
ERW 1/8 ~ 24 inch Max 26.5mm
SSAW 16 ~ 64 inch 3mm ~ 25mm
LSAW 219 ~ 3120 mm 3mm ~ 25mm

Carbon Steel Galvanized Pipe Chemical Composition

All carbon steel grades chemical composition percent ( % )
ASTM S
Max		 C
Max		 Ni Mn
Max		 Mo Si
Max		 Cu Cr Others
A53 A .00 .25 .40 max .96 .15 max .40 max .40 max .08 max
– B .06 .30 004 max 1.20 .15 max
A335 P1 .025 .10.20 .30-.80 .44-.65 .10.50 . . .
– P2 .10.20 . .30-.61 .44-.65 .10.30 . .50-.81 .
– P5 .15 . .30-.60 .45-.65 .50 . 4.00-6.00 .
– P9 .15 . .90-1.10 .25-1.00 . 8.00-1.0 .
– P11 .15 . .44-.65 .50-1.00 . 1.00-1.50 .
– P12 .15 . .30-.61 044-.65 .50 .80-125 .
– P15 – .05-.15 . .30-.60 044-.65 1.15-1.65 . .
– P21 .025 .15 – .30-1.06 .050 – 2.65-3.35 .
– P22 .025 .15 087-1.13 .050 . 1.90-260 .
– P91 .010 .08-.12 .40 max .85-1.05 020-.50 – 8.00-9.50 .18-.25
A333 3 .025 .19 3.18-3.82 .31-.64 . .18-.37 .
– 4 .12 .47-.98 .50-1.05 .18-037 .40-.75 .44-101 A .30-.40 %
– 6 .30 .29-1.06 . .10 min . . .
– 7 .19 2.00-2.57 .90 . .13..32 . . .
– 8 .13 8.40-9.60 .90 . .13-.32 . . .
– 9 .20 1,60-224 .40-1.06 . .75-125 . .
A106 A .25 .40 max 027-.93 .15 max .10 min 040 max .40 max .08 max
– B .30 029-1.05
– C .35 .29-1.05

Carbon Steel Pipe Equivalent

Standards Country ASTM A53 grade b pipe ASTM A333 grade 3 pipe ASTM A106 grade b pipe ASTM A106 grade c pipe
UNS North America K03005 – – –
ASTM America ASTM A53 ASTM A333 ASTM A106 ASTM A 106
WNR Russia – – – –
JIS Japan STPG410 – – –
ASME Australia ASME SA 53 ASME SA 333 ASME SA 106 ASME SA 106
EN Europe 1.0408/1.0040 – EN 10216-2/ EN P235GH –
BS United Kingdom – – NFA A 49-215 NFA A 49-213
DIN German DIN 1629 /1626 – DIN 17175 DIN 17175
Standards Country SS400 pipe S355j2g3 pipe ASTM A333 grade 6 pipe DIN 1630 st 52.4 pipe
UNS North America – – – –
ASTM America ASTM A36 / A283C – ASTM A333 –
WNR Russia – – – –
BS United Kingdom – NFA A 49-643 NFA A 36-2051 NFA 49-211
ASME Australia ASME SA 36 / SA 283C – ASME SA 333 –
EN Europe – EN 10025 EN 10216-4 EN 10216-3
DIN German – DIN 23932/23942 DIN 17178 DIN 1630
Standards Country SAE 1541 steel pipe S275jr steel pipe S355jr pipe
ASME Australia – ASME SA 53/ SA 106 –
ASTM America – ASTM A53/ A106 –
EN Europe –  EN10219 / EN10210 –

Schedule 40 Low CS Pipe Mechanical Properties

Mechanical properties
ASTM Yelld Strength
mini – Mpa / Psi		 Tensile
Strength		 Impact test at
CF		 Elong mini
– 205-30000 300-48000 - 38
A53 240-35000 415-00000 29.5
– 205-30000 330-48000 L35-725
A335 206-30000 415-60000 L30-120
– 205-30000 415-60000
–
–
– 415-65000 585-85000 – L20
A 333 240-35000 450-65000 -75-100 L30-722
– 515-75000 690-100000 -195 320 L22
– 315-46000 435-63000 -75-100 128
– 205-30000 380-55000 - L30-720
– 205-30000 380-55000 L30-120
– 205-30000 415-60000
–
– L30-720
A312 170-25000 485-70000 L35-125
– 205-30000 515-75000
– 205-30000
–
– 240-35000 450-65000 -100-150 L30-120
– 415-60000 -100-150 L30-116.5
– 45 50 L30 – T165
A 106 240-35000 - L30-16.5
– 275-40000 485-70000 L30-116.5
– 205-30000 515-75000 L35-125
– 170-25000 485-70000
– 205-30000 515-75000
– 515-75000

Offer High Yield Carbon Steel Pipe to the Countries Below

Country Name Flag Country Name Flag
Algeria Algeria Nigeria Nigeria
Zambia Zambia Ghana Ghana
Tunisia Tunisia South Africa South Africa
Kenya Kenya Angola Angola
Tanzania Tanzania Morocco Morocco
Egypt Egypt Ethiopia Ethiopia
