• An ISO 9001 and ISO 14001 Certified Company
Steber Steel Solutions

Copper Nickel Pipe

Copper Nickel Pipe

Copper Nickel Pipe Quick Overview
Seamless Pipe OD 4 to 219mm
Welded Pipe OD 5.0 - 1219.2 mm
Process ERW,Welded,Seamless
Pipe End Beveled, Threaded End, Plain
Standards ASTM: B466 | ASME : SB466
Pipe Length Custom
MTC Certificate EN 10204 3.1 and 3.2

Cupro Nickel 90/10 Seamless Pipe Supplier in India

Copper Nickel Pipe

Copper Nickel Pipe

Copper Nickel 90/10 Seamless Pipe

Copper Nickel 90/10 Seamless Pipe

90/10 Copper Nickel Welded Pipe

90/10 Copper Nickel Welded Pipe

Table of Contents


Copper Nickel Pipe Specification

Copper Nickel 90/10 Seamless Pipe Sizes

  • OD : 4 to 219mm
  • Wall thickness: 0.5 to 20mm
  • Length: Single, Double Random & Cut Length


Sizes

Cu-ni 70/30 Welded Pipe Sizes

  • Length : up to 26 Meters
  • OD : 5.0 - 1219.2 mm
  • Wall thickness: 0.5 - 20mm



Sizes

ASME SB171 Cupro Nickel Pipe Manufacturing Types

  • Seamless
  • EFW
  • ERW
  • Welded
  • DSAW, LSAW, SSAW
Types

90-10 Copper Nickel Pipe Other Trade Name

  • Cunifer 70/30, Alloy 715, CuNi 70/30
  • Cunifer 90/10, cuni 90/10 , CDA 706
Trade Name

Cupro nickel 70/30 Seamless Tube End Types

  • Threaded End
  • Plain End
  • Groove Ends
  • Bevelled End
End Types

UNS C71500 Welded Pipe Schedule

  • Schedule STD , XXS
  • Schedule 80, 60, 120
  • Schedule 10 , 20 , 40

Schedule

70/30 Cu-Ni Welded Tube Standards

  • ASTM: B466 | ASME : SB466
  • UNS: C70600 ,C71500
  • WNR: 2.0882, 2.0872




Standards

Copper Nickel 90/10 Tube Testing

  • Chemical
  • Mechanical
  • Ultrasonic
  • Tensile
  • PMI
  • Flaring
  • Hardness
Testing

UNS C70600 Seamless Pipe Types

  • Welded Pipe
  • Seamless Pipe
  • Round Pipe
  • ERW Pipe
  • EFW pipe


Types

WNR 2.0882 Seamless Tube Documentation

  • PMI Test Reports
  • MTC EN 10204 type 3.1
  • Visual Inspection
  • Mill Test Certificates

Documentation

Condition Delivery of Cu ni 90 10 Tube

  • GBK – Annealed
  • BKW – Soft/ Cold-finished
  • BK- Hard/ Cold-finished
  • NBK – Normalized

Condition Delivery

UNS C70600 Tubing Origin

  • Janpanese
  • Russia
  • Indian
  • American
  • European
Origin

90 10 Copper Nickel Seam Welded Pipe Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled

Packaging

Cunifer Solution Annealed Pipe Finish

  • Bright
  • Bright
  • Annealing


Finish

Copper Nickel Pipe Services

  • Cutting
  • Punching
  • Bending
  • Welding

Services

70/30 Copper Nickel Class 200 Seamless Pipe Size Range

Pipe Type WT OD Length
Seamless Pipe As per need 5 - 203.2 mm Upto 6 m
Welded Pipe 1.0 - 15.0 mm 5 - 1219.2 mm
NB Sizes SCH 10 / 5 / 80 / 40 / 160 1/8” - 8”

Manufacturer of CuNi 70/30 Welded Pipe in Mumbai With MTC

CuNi 70/30 Welded Pipe Certificates

  • Fumigation Certificates
  • PMI Test Reports
  • 100% Radiography Test Report
  • HS Code Commercial Invoice
  • Destructive Test Report
  • NABL Approved Lab Reports
  • Raw Materials Certificate
  • EN 10204/3.1B, 10204 3.1 & 10204 3.2 MTC
  • Laboratory Test Certificate
  • Visual Inspection Reports
  • Mechanical Reports
  • Non Destructive Test Reports
  • Chemical Reports
  • Form A for Generalized System of Preferences
  • Heat Treatment Charts

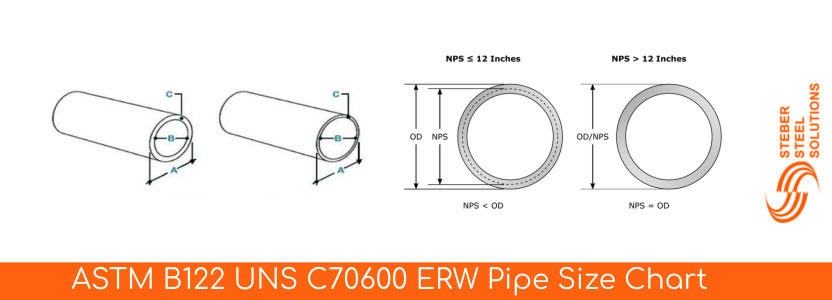

Refer ASTM B122 UNS C70600 ERW Pipe Size Chart

ASTM B122 UNS C70600 ERW Pipe Size Chart

ASTM B122 UNS C70600 ERW Pipe Size Chart
OD Wall Thickness Theoretical Weight
Size WT Kg/m Lb/Ft
inch mm mm inch
Cu-Ni Seamless Pipes
6 168,3 3,4 0,134 15,75 10,58
8 219,1 20,60 13,84
1 1/5 42,17 1,83 0,72 2,08 1,38
1 1/3 48,27 2,38 1,61
2 60,33 2,11 0,084 3,44 2,33
2 1/2 73,02 4,21 2,83
3 88,8 2,41 0,094 5,84 3,92
3 1/1 101,6 6,71 4,52
5 141,3 3,18 0,125 12,34 8,29
4 114,3 2,78 0,108 8,69 5,83
1/7 10,28 1,48 0,057 0,37 0,24
1/3 13,72 1,65 0,065 0,56 0,38
3/7 17,15 0,72 0,48
1/2 21,34 0,91 0,61
3/2 26,67 1,16 0,78
1 33,4 1,47 0,99
 Copper Nickel Seamless -Welded Pipes
11 273,04 3,5 0,136 25,76 17,31
20 508 4,57 0,18 64,62 43,42
12 323,9 3,96 0,156 35,58 23,91
 CuNi Welded Pipes
30 762 6,35 0,25 134,77 90,56
23 611 4,58 0,17 77,77 52,23

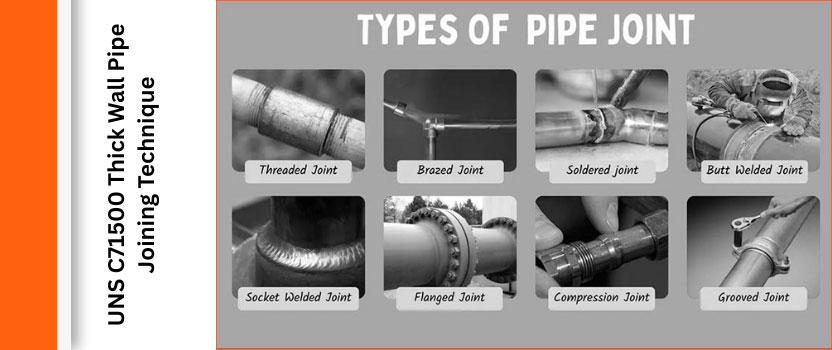

UNS C71500 Thick Wall Pipe Joining Technique

UNS C71500 Thick Wall Pipe Joining Technique

Schedule Chart Of UNS C70600 Tubing

6" IPS 1/2" IPS
SCH 5 - 160 - XXH SCH 5 - 160 - XXH
5" IPS 3/8" IPS
SCH 10 - 160 - XXH SCH 10 - 80
8 ” IPS 3/4" IPS
SCH 5 - 160 - XXH SCH 10 - 160 - XXH
4" IPS 1/4" IPS
SCH 10 - 160 - XXH SCH 10 - 80
12" IPS 1-1/4" IPS
SCH 10 - 80 SCH 10 - 160 - XXH
3 1/2" IPS 1/8" IPS
SCH 10 - 80 SCH 5 - 160 - XXH
14" IPS 1-1/2" IPS
SCH 10 - 40 SCH 10 - 160 - XXH
18" IPS 2 1/2" IPS
SCH 40 SCH 10 - 160 - XXH
10" IPS 1" IPS
SCH 10 - 160 - XXH SCH 40 - 80
16" IPS 2" IPS
SCH 10 - 40 SCH 10 - 160 - XXH

Cu Ni 90 10 Seamless Tube Surface Finish

Surface Finish Internal Surface Exterbal Surface
Roughness Average Roughness Average
μ inch μm μ inch μm
MP Mechanical Polish 0.8, 0.5, 1.0, 0.6 32, 20, 40, 25 32 0.8
BA Beight Annealed 1.0, 0.8, 0.6, 0.5 32, 20, 40, 25
EP Electro Polish 0.25, 0.13, 0.38, 0.20 10, 15, 7,5
AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined

WNR 2.0872 Welded Tube Annealing and Hot Working

Annealing Temp Hot Working Temp
Between 649 & 816°C Between 927 & 1038°C

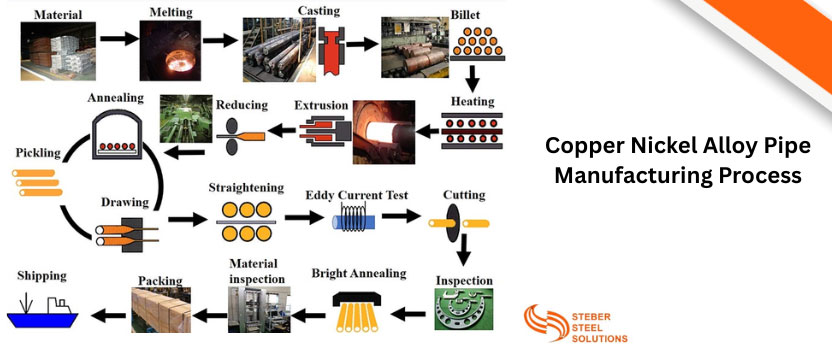

Copper Nickel Alloy Pipe Manufacturing Process

Copper Nickel Alloy Pipe Manufacturing Process

Copper Nickel 70/30 Exhaust Pipe EEMUA 144 Sizes

ØD EEMUA 144
20 bar 16 bar
WT Weight WT Weight
actual nominal actual actual
mm inch ND mm Kg/m mm Kg/m
12 0.25 1 0.31 1 0.31
20 0.5 15 2 1.01 2 1.01
16 0.38 10 2 0.79 2 0.79
25 0.75 20 2 1.3 2 1.3
508 20 500 11 153.54 8.5 119.24
457.2 18 450 9.5 119.45 8 100.93
38 1.25 32 2.5 2.5 2.5 2.5
30 1 25 2.5 1.93 2.5 1.93
44.5 1.5 40 2.5 2.95 2.5 2.95
76.1 2.5 65 2.5 5.17 2.5 5.17
108 4 100 3 8.85 3 8.85
159 6 150 3.5 15.29 3 13.14
219.1 8 200 4.5 27.12 4 24.17
193.7 7 175 3.5 18.7 3 16.07
10 0.125 1 0.26 1 0.26
267 10 250 5.5 40.39 4.5 33.18
368 14 350 8 80.89 6.5 65.99
57 2 50 2.5 3.83 2.5 3.83
88.9 3 80 2.5 6.07 2.5 6.07
133 5 125 3 10.95 3 10.95
323.9 12 300 7 62.3 5.5 49.18
419.1 16 400 9 103.64 7 81
Check 90/10 Copper Nickel Round Pipe Weight Chart

90/10 Copper Nickel Round Pipe Weight Chart

Size WT OD Weight Weight
mm inch inch mm kg/m Lb/ft
1in 3.378 0.0133 1.315 33 2.501 1.679
3/4in 2.870 0.0113 1.050 27 1.684 1.131
8in 4.775 0.0188 8.625 219 25.233 16.940
2 1/2in 5.516 0.0203 2.875 73 8.629 5.793
12in 4.775 0.0188 12.750 324 37.570 25.222
10in 4.775 0.0188 10.0750 273 31.588 21.207
48in 9.525 0.0375 48.000 1219 284.112 190.0738
42in 7.925 0.0312 42.000 1067 206.914 138.911
14in 4.775 0.0188 14.000 356 41.308 27.732
24in 6.350 0.0250 24.000 610 94.456 63.413
36in 6.350 0.0250 36.000 914 142.180 95.453
18in 5.563 0.0219 18.000 457 61.948 41.588
1/2in 2.769 0.0109 0.0840 21 1.268 0.0851
16” 4.775 0.0188 16.000 406 47.290 21.748
1 1/4in 3.556 0.0140 1.660 42 3.385 2.273
2in 3.912 0.0154 2.375 60 5.441 3.653
6in 4.775 0.0188 6.625 168 19.252 12.924
4in 6.020 0.0237 4.500 114 16.073 10.0790
20in 6.350 0.0250 20.0000 508 78.547 52.733
1 1/2in 3.683 0.0145 1.900 48 4.048 2.718
3in 5.486 0.0216 3.500 89 11.284 7.576
30in 6.350 0.0250 30.0000 762 118.318 79.433

Copper Nickel Pipe HSN Code

Grade HSN Code
Copper Nickel Pipe 74122090

Cuni 70/30 Extruded Tube Fabrication Data

Properties Value
Oxyacetylene Welding Fair
Butt Weld Excellent
Soldering
Brazing
Gas Shielded Arc Welding
Machinability Rating 20
Seam Weld Good
Capacity Being Cold Worked
Coated Metal Arc Welding
Spot Weld
Capacity Being Hot Formed

How To Properly Weld Copper Nickel Pipe?

  • Clean Pipe Thoroughly
  • Use Suitable Filler Material
  • Preheat If Necessary
  • Control Heat Input
  • Maintain Proper Shielding Gas
  • Welding Technique (TIG/MIG)
  • Avoid Overheating
  • Post-Weld Cleaning
  • Inspect Weld Quality

UNS C71500 Cold Drawn Pipe Pressure Rating

OD (in.) WT of Pipe (inch)
.109 .035 .028 .049 .065 .095 .120 .083
3/8 - 3100 - 4400 6100 - - -
3/4 - - - 2200 3000 4600 - 4000
1/2 - 2300 - 3200 4400 - - -
1 3900 - - - 2200 3400 4300 2900
1/8 - 10100 7900 - - - - -
5/16 - 3700 - 5400 7300 - - -
1/4 - 4800 3700 7000 9500 - - -

Various Types Of Copper Nickel Pipe

Copper Nickel Pipe Supplier in India, offers various Common Types

Cuni 90/10 Tube

Cuni 90/10 Tube

UNS C70600 Tubing

UNS C70600 Tubing

Cu Ni 90/10 Seamless Tube

Cu Ni 90/10 Seamless Tube

WNR 2.0872 Welded Tube

WNR 2.0872 Welded Tube

Cu-Ni 90/10 Exhaust Tubing

Cu-Ni 90/10 Exhaust Tubing

90/10 Copper Nickel Seam Welded Pipe

90/10 Copper Nickel Seam Welded Pipe

Copper Nickel Alloy 90/10 Annealed Pipe

Copper Nickel Alloy 90/10 Annealed Pipe

ASTM B122 UNS C70600 Clad Pipe

ASTM B122 UNS C70600 Clad Pipe

Copper Nickel 70/30 Exhaust Pipe

Copper Nickel 70/30 Exhaust Pipe

70/30 Copper Nickel Annealed Tube

70/30 Copper Nickel Annealed Tube

Cuni 70/30 Extruded Tube

Cuni 70/30 Extruded Tube

UNS C71500 Cold Drawn Pipe

UNS C71500 Cold Drawn Pipe

Cu Ni 70/30 Cold Finished Pipe

Cu Ni 70/30 Cold Finished Pipe

WNR 2.0882 Redrawn Tube

WNR 2.0882 Redrawn Tube

Cu-Ni 70/30 Square Tubing

Cu-Ni 70/30 Square Tubing

70/30 Copper Nickel Hot Finished Pipe

70/30 Copper Nickel Hot Finished Pipe

Copper Nickel Alloy 70/30 Seam Welded Pipe

Copper Nickel Alloy 70/30 Seam Welded Pipe

ASTM B122 UNS C71500 Round Pipe

ASTM B122 UNS C71500 Round Pipe

ASME SB122 Copper Nickel 70/30 Square Pipe

ASME SB122 Copper Nickel 70/30 Square Pipe

Cupro Nickel 70/30 Rectangular Pipe

Cupro Nickel 70/30 Rectangular Pipe

ASME SB122 Copper Nickel Bright Annealed Pipe

ASME SB122 Copper Nickel Bright Annealed Pipe

Cunifer Solution Annealed Pipe

Cunifer Solution Annealed Pipe

Cupro Nickel Alloy Cold Finished Seamless Pipe

Cupro Nickel Alloy Cold Finished Seamless Pipe

Cu Ni Alloy Hot Finished Seamless Pipe

Cu Ni Alloy Hot Finished Seamless Pipe

WNR 2.0882 Redrawn Tube Temperature & Working Pressure

Properties Value
16 bar/ 232 psi -29°C/-20°F up to +75°C/+167°F
20 bar/ 290 psi up to +38°C/+100°F

Copper Nickel Alloy Pipe Applications

Copper Nickel Alloy Pipe Applications

ASME SB122 Copper Nickel 70/30 Square Pipe Tolerance

Diameter -lerances
Inch (mm)
Over 6 - 8 Inch (152 - 203mm), incl 0.010 (0.25)
Over 3 - 4 Inch (76.2 - 102mm), incl 0.006 (0.15)
Over 5 - 6 Inch (127 - 152mm), incl 0.009 (0.23)
Over 10 - 12 Inch (254 - 305mm), incl 0.015 (0.38)
Over 4 - 5 Inch (102 - 127mm), incl 0.008 (0.20)
Over 8 - 10 Inch (203 - 254mm), incl 0.013 (0.33)
Over 12 Inch (305 mm) 0.5 %
Over 2 - 3 Inch (50.8 - 76.2 mm), incl 0.005 (0.13)
For Condensers and Heat Exchangers Mostly Buy WNR 2.0882 Cold Drawn Pipe At Best Price

Copper Nickel Pipe Chemical Composition

DIN 86019 2.1972 ( CuNi10Fe1.6Mn)
S P Cu Ni Mn C Pb Fe Zn
Max. 0.005 Max. 0.02 Rem. 9.0-11.0 0.5-1.0 Max. 0.05 Max. 0.01 1.5-1.8 Max 0.05
ASTM B466  C70600
P Zn Cu Ni Fe Mn C Pb S
Max 0.02 Max 0.50 Balance 9.0 – 11.0 1.0 – 1.8 Max 1.0 Max 0.05 Max 0.02 Max 0.02

Cu Ni Alloy Hot Finished Seamless Pipe Mechanical Properties

Grade Density Hardness Melting Point Elongation Yield Strength (0.2%Offset) Tensile Strength
lb/in3 HB F % Mpa Mpa
70/30 0.323 80-120 2260 30 – 310
90/10 70-120 30 195 280

ASME SB122 Copper Nickel Bright Annealed Pipe Physical properties

Property Metric Units
Themal Conductivity W/m. °K 40
Thermal Capacity J/kg. °K 380
Melting Point (Liquidus) °C 11,500
Coefficient of Thermal E*pansion °C 17.1 * 10 -6
Density gm/cm³ 8.94
Electrical Resistivity microhm.cm 0.190
Modulu of Rigidity GPa 52
Modulus of Elasticity GPa 140

Cunifer Solution Annealed Pipe Equivalent

Standards Country 70/30 90/10
ASME Australia SB122 SB122
JIS Japan – –
UNS North America C71500 C70600
BS United Kingdom – –
GOST Russia – –
AFNOR France – –
ASTM America B122 B432
DIN German 2.0882 2.0872
EN Europe – –
SAE United States – –
WNR Russia 2.0882 2.0872
AMS United States – –
ANSI America – –
AS Australia – –

How Does Copper Nickel Pipe Resist Corrosion?

  • High Copper Content
  • Protective Oxide Layer
  • Pitting Resistance
  • Biofouling Resistance
  • Nickel Alloying
  • Low Galvanic Corrosion
  • Stress Corrosion Resistance
  • Fresh & Saltwater Durability
  • Heat Resistance

Offers Ex Extock of Copper Nickel Welded Pipe in Following Brands

Nippon Steel

Nippon Steel

Outokumpo

Outokumpo

Posco

Posco

Jindal

Jindal

Thyssenkrupp

Thyssenkrupp

Acronis

Acronis

Cu Ni Alloy Hot Finished Seamless Pipe Standard Comparison Chart

  ASTM B466 C70600 EEMUA 234 UNS 7060X BS 2871 CN 102 MIL-T-16420K C70600 JIS H 3300 C7060 DIN 86019 CuNi10Fe1.6Mn 2.1972
Cu% Balance Balance Balance Min.86.5 Cu+Ni +Fe+Mn Min.99.5 Balance
Mn% max.1.0 0.5-1.0 0.5-1.0 max1.0 0.2-1.0 0.5-1.0
Pb% max.0.02 max.0.01 max.0.01 max.0.02 max.0.05 max.0.03
Fe% 1.0-1.8 1.5-2.0 1.0-2.0 1.0-1.8 1.0-1.8 1.5-1.8
Ni% 9.0-11.0 10.0-11.0 10.0-11.0 9.0-11.0 9.0-11.0 9.0-11.0
C% max.0.05 max.0.05 max.0.05 max.0.05 max.0.05
Zr% max.0.03
Zn% max.0.50 max.0.20 max.0.05 max.0.50 max.0.15
P% max.0.02 max.0.02 max.0.02 max.0.02
S% max.0.02 max.0.02 max.0.05 max.0.02 max.0.015
Others max.0.30 max.0.30 max.0.30

Offer Cunifer Pipe to the various Countries

Country Name Flag Country Name Flag
Algeria Algeria Nigeria Nigeria
Zambia Zambia Ghana Ghana
Tunisia Tunisia South Africa South Africa
Kenya Kenya Angola Angola
Tanzania Tanzania Morocco Morocco
Egypt Egypt Ethiopia Ethiopia
