Inconel 600 Pipe

Inconel 600 Pipe

Inconel 600 Pipe Quick Overview
Seamless Pipe OD 3-600mm
Welded Pipe OD 6-200mm
Temperature (-130°C to 650°C)
Pipe End Beveled, Plain, Threaded End
Standards ASTM B167 | ASME SB167
Pipe Length Custom
MTC Certificate EN 10204 3.1 and 3.2

ASTM B167 UNS N06600 Seamless Pipe Supplier in India

Inconel 600 Pipe

Inconel 600 Pipe

Alloy 600 SMLS Pipes

Alloy 600 SMLS Pipes

UNS N06600 Welded Pipe

UNS N06600 Welded Pipe

Inconel 600 Pipe Specification

Alloy 600 Seamless Pipe Sizes

  • OD : 3- 600mm
  • Wall thickness: 0.5-30mm
  • Length: 0.5- 12 meter


 Sizes

Inconel 600 Welded Pipe Sizes

  • Length : 0.5- 12 meter
  • OD : 6-200mm
  • Wall thickness: 0.35-6.00mm


Sizes

UNS N06600 Welded Pipe Manufacturing Types

  • Seamless
  • EFW
  • ERW
  • Welded
  • DSAW, LSAW, SSAW
 Types

Nickel Alloy 600 Annealed Pipe Other Trade Name

  • Inconel Alloy 600
  • Sanicro® 70


Trade Name

Werkstoff NR. 2.4816 Clad Pipe End Types

  • Threaded End
  • Plain End
  • Groove Ends
  • Bevelled End
End Types

UNS N06600 Exhaust Pipe Schedule

  • Schedule STD , XXS
  • Schedule 80, 60, 120
  • Schedule 10 , 20 , 40

Schedule

AMS 5580 Cold Drawn Pipe Standards

  • ASTM B167 | ASME SB167
  • UNS: N06600
  • WNR: 2.4816
  • Other: BS 3072-3076, DIN 17750, DIN 17754


Standards

EN 2.4816 Cold Finished Pipe Testing

  • Chemical
  • Mechanical
  • Ultrasonic
  • Tensile
  • PMI
  • Flaring
  • Hardness
Testing

DIN 2.4816 Hot Finished Pipe Types

  • Welded Pipe
  • Seamless Pipe
  • Round Pipe
  • ERW Pipe
  • EFW pipe


Types

WNR 2.4816 Seam Welded Pipe Documentation

  • PMI Test Reports
  • MTC EN 10204 type 3.1
  • Visual Inspection
  • Mill Test Certificates


Documentation

Condition Delivery of 2.4816 Inconel 600 Round Pipe

  • GBK – Annealed
  • BKW – Soft/ Cold-finished
  • BK- Hard/ Cold-finished
  • NBK – Normalized


Condition Delivery

Nickel 600 Square Pipe Origin

  • Janpanese
  • Russia
  • Indian
  • American
  • European


Origin

UNS 6600 Rectangular Pipe Packaging

  • Wooden Box
  • Bubble Wraps
  • Bundled


Packaging

ASTM B167 UNS N06600 Bright Annealed Pipe Finish

  • Bright
  • Bright
  • Annealing

Finish

ASME SB167 UNS N06600 Solution Annealed Pipe Services

  • Cutting
  • Punching
  • Bending
  • Welding
 Services

Manufacturer of Alloy 600 ERW Pipe Provide Custom Sizes At Lowest Price in Mumbai

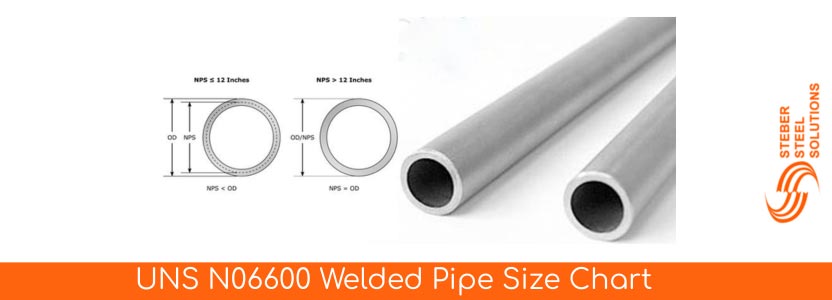

UNS N06600 Welded Pipe Size Chart

Inconel 600 Pipe Manufacturer in India supplying various grades and custom sizes.

UNS N06600 Welded Pipe Size Chart
Size (in.) WT (mm) OD (in.) OD (mm) WT (in.)
14inch 11.13 14.0 355.6 0.437
12inch 10.31 12.75 323.8 0.406
20inch 15.09 20.0 508.0 0.594
18inch 14.27 18.0 457.0 0.562
10inch 9.27 10.75 273.0 0.365
8inch 8.18 8.625 219.1 0.322
6inch 7.11 6.625 168.3 0.28
5inch 6.55 5.563 141.3 0.258
4inch 6.02 4.5 114.3 0.237
1 / 4inch 2.24 0.54 13.7 0.088
1/8inch 1.73 0.41 10.3 0.068
3 1 / 2inch 5.74 4.0 101.6 0.226
3inch 5.49 3.5 88.9 0.216
16inch 12.7 16.0 406.4 0.5
2 1 / 2inch 5.16 2.885 73.0 0.203
2inch 3.91 2.375 60.3 0.154
1inch 3.38 1.32 33.4 0.133
3/4inch 2.88 1.05 26.7 0.113
1 / 2inch 2.77 0.84 21.3 0.109
1 1 / 2inch 3.68 1.9 48.3 0.145
1 1 / 4inch 3.56 1.66 42.2 0.14
3/8inch 2.31 0.68 17.1 0.091

Alloy 600 SMLS Pipes Schedule Chart

  • IPS 1/2inch
  • OD .840inch
SCH 5, 10, 40, 80, 160, XXH
  • IPS 6inch
  • OD 6.625inch
SCH 5, 10, 40, 80, 120, 160, XXH
  • IPS 3/4inch
  • OD 1.050inch
SCH 10, 40, 80, 160, XXH
  • IPS 8 ”
  • OD 8.625inch
SCH 5, 10, 40, 80, 120, 160, XXH
  • IPS 1-1/2inch
  • OD 1.900inch
SCH 10, 40, 80, 160, XXH
  • IPS 14inch
  • OD 14.000inch
SCH10 (.188), SCH40 (.375)
  • IPS 2 1/2inch
  • OD 2.875inch
SCH 10, 40, 80, 160, XXH
  • IPS 18inch
  • OD 18.000inch
SCH-40 (.375)
  • IPS 1/8inch
  • OD .405inch
SCH 40, 80
  • IPS 3 1/2inch
  • OD 4.000inch
SCH 10, 40, 80, 160, XXH
  • IPS 3/8inch
  • OD .675inch
SCH 10, 40, 80
  • IPS 5inch
  • OD 5.563inch
SCH 10, 40, 80, 160, XXH
  • IPS 1inch
  • OD 1.315
SCH 5, 10, 40, 80, 160, XXH
  • IPS 10inch
  • OD 10.750inch
SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
  • IPS 1/4inch
  • OD .540inch
SCH 10, 40, 80
  • IPS 4inch
  • OD 4.500inch
SCH 10, 40, 80, 160, XXH
  • IPS 2inch
  • OD 2.375inch
SCH 10, 40, 80, 160, XXH
  • IPS 16inch
  • OD 16.000inch
SCH10(.188), SCH40(.375)

Dimensions of ASTM B167 UNS N06600 ERW Pipe

NPS OD Weight WT Weight
mm in. kg/m mm in. lb/ft
1 1 / 2inch 48 1.900 4.048 3.683 0.145 2.718
5.409 5.080 0.200 3.361
1 1 / 4inch 42 1.660 3.385 3.556 0.140 2.273
4.464 4.851 0.191 2.997
2 1 / 2inch 73 2.885 8.629 5.516 0.203 5.793
11.411 7.010 0.276 7.661
2inch 60 2.375 5.441 3.912 0.154 3.653
7.480 5.537 0.218 5.022
3inch 89 3.500 11.284 5.486 0.216 7.576
3/4inch 27 1.050 1.684 2.880 0.113 1.131
2.195 3.912 0.154 1.474
1 / 2inch 21 0.840 1.268 2.769 0.109 0.851
1.621 3.734 0.147 1.088
1inch 33 1.315 2.501 3.378 0.133 1.679
3.325 4.547 0.179 2.172
15.272 7.620 0.300 10.253
4inch 114 4.500 16.073 6.020 0.237 10.790
22.318 8.560 0.337 14.983
6inch 168 6.625 19.252 4.775 0.188 12.924

Nickel Alloy 600 Annealed Pipe Size Chart

Inconel 600 pipe OD mm Pipe WT mm Sch inches kilogram-meter
114.30 3.05 10S 4 8.50
42.16 4.85 80S 4.53
33.40 2.77 10S 1 2.13
42.16 6.352 160 5.69
48.26 5.08 80S 5.49
60.33 2.77 10S 2 3.99
48.26 3.68 40S 4.11
60.33 5.54 80S 2 7.60
21.34 2.11 10S 1/2 1.02
114.30 6.02 40S 4 16.32
33.40 6.352 160 1 4.30
60.33 8.742 160 2 11.29
33.40 4.55 80S 1 3.29
26.67 3.91 80S 3/4 2.23
42.16 2.77 10S 2.73
42.16 3.56 40S 3.44
219.08 23.012 160 8 112.97
73.03 7.01 80S 11.59
17.15 2.31 40S 3/8 0.86
26.67 2.87 40S 3/4 1.71
101.60 8.08 80S 18.92
73.03 3.05 10S 5.35
73.03 5.16 40S 8.77
114.30 13.492 160 4 34.05
13.72 1.65 10S 1/4 0.50
13.72 2.24 40S 1/4 0.64
168.28 3.4 10S 6 14.04
141.30 9.53 80S 5 31.44
219.08 12.7 80S 8 65.63
168.28 7.11 40S 6 28.69
17.15 3.20 80S 3/8 1.12
21.34 2.77 40S 1/2 1.29
88.90 5.49 40S 3 11.47
219.08 8.18 40S 8 43.20
88.90 7.62 80S 3 15.51
141.30 15.882 160 5 49.87
21.34 3.73 80S 1/2 1.65
168.28 10.97 80S 6 43.21
33.40 3.38 40S 1 2.54
88.90 3.05 10S 3 6.56
13.72 3.02 80S 1/4 0.81
60.33 3.91 40S 2 5.52
48.26 2.77 10S 3.16
219.08 18.23 120 8 91.30
141.30 6.55 40S 5 22.10
17.15 1.65 10S 3/8 0.64
101.60 5.74 40S 13.78
26.67 2.11 10S 3/4 1.30
88.90 11.132 160 3 21.67
101.60 3.05 10S 7.53
168.28 14.27 120 6 54.75
168.28 18.262 160 6 68.59
114.30 8.56 80S 4 22.67

AMS 5580 Cold Drawn Pipe Gauge Chart

Gauge No. B.W.G U.S.G
mm inch mm inch
9 3.759 0.148 3.97 0.1563
10 3.404 0.134 3.57 0.1406
11 3.048 0.120 3.18 0.1250
12 2.769 0.109 2.78 0.1094
34 0.178 0.007 0.218 0.0086
35 0.127 0.005 0.198 0.0078
13 2.413 0.095 2.38 0.0938
14 2.108 0.083 1.98 0.0781
6 5.156 0.203 5.16 0.2031
7 4.572 0.180 4.76 0.1875
8 4.191 0.165 4.37 0.1719
15 1.829 0.072 1.79 0.0703
16 1.651 0.065 1.59 0.0625
17 1.473 0.058 1.43 0.0563
18 1.245 0.049 1.27 0.0500
22 0.711 0.028 0.794 0.0313
23 0.635 0.025 0.714 0.0218
24 0.559 0.022 0.635 0.0250
19 1.067 0.042 1.11 0.0438
20 0.889 0.035 0.953 0.0375
21 0.813 0.032 0.873 0.0344
25 0.508 0.020 0.556 0.0219
26 0.457 0.018 0.478 0.0188
30 0.305 0.012 0.318 0.0125
31 0.254 0.010 0.277 0.0109
32 0.229 0.009 0.259 0.0102
27 0.406 0.016 0.437 0.0172
28 0.356 0.014 0.396 0.0156
29 0.330 0.013 0.358 0.0141
33 0.203 0.008 0.239 0.0094

Distributor of Nickel Alloy 600 Welded Pipe Offer Dye Penetrant, UT And X-Ray Testing

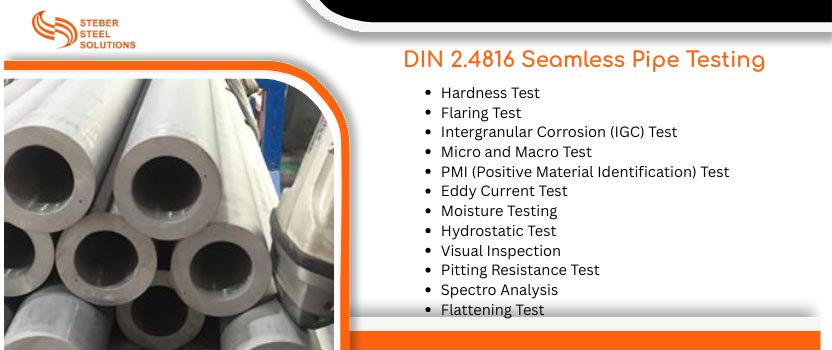

DIN 2.4816 Seamless Pipe Testing

DIN 2.4816 Seamless Pipe Testing

Inconel Alloy 600 Seam Welded Pipe Pressure Rating

OD of the Pipe(inches) Pipe wall Thickness (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (pounds per square inch gauge)
1/8 7900 10100
5/16 3700 5400 7300
3/4 2200 3000 4000 4600
1/2 2300 3200 4400
3/8 3100 4400 6100
1/4 3700 4800 7000 9500
1 2200 2900 3400 3900 4300
Stockist of Werkstoff NR. 2.4816 Square Pipe According to American Standard

Nickel 600 Square Pipe Equivalent

Standards Value Country
UNS N06600 North America
ASTM B167 America
ASME SB167 Australia
JIS NCF 600 Japan
BS NA 13 United Kingdom
WNR 2.4816 Russia
GOST МНЖМц 28-2,5-1,5 Russia
AFNOR NC15FE11M France
AMS 5580 United States
ANSI America
SAE United States
EN NiCr15Fe Europe
AS Australia
DIN German

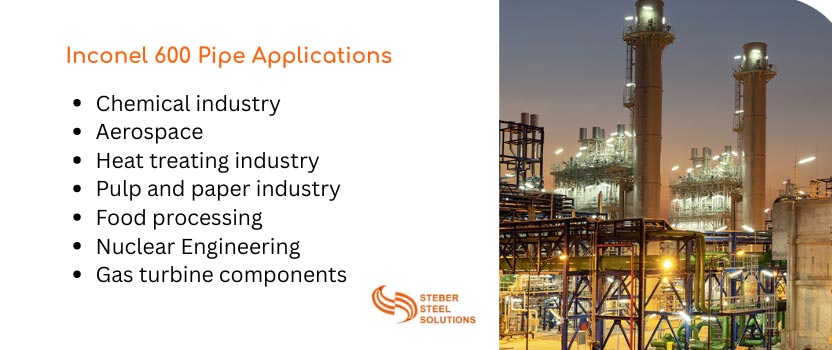

Inconel 600 Pipe Applications

Inconel 600 Pipe Supplier in India offering excellent resistance to acidic environment.

Inconel 600 Pipe Applications

What is the Specialty of Inconel 600 Schedule 40 Pipe?

  • Specific Wall Thickness
  • Balance of Strength and Flexibility
  • Oxidation Resistance
  • Pressure Resistance
  • Reduced Flexibility
  • Corrosion Resistant
  • Temperature Range

Werkstoff NR. 2.4816 Clad Pipe Weight Chart

Inconel 600 Pipe Supplier in India provide accurate Weight for Pipe

Nominal Pipe Size Outside Diameter Weight Weight
Sched millimeter inches pound-foot kilogram-meter
1/2 40 STD 21 0.840 0.851 1.268
80 STD 1.088 1.621
3/4inch 40 STD 27 1.050 1.131 1.684
80 STD 1.474 2.195
1inch 40 STD 33 1.315 1.679 2.501
80 STD 2.172 3.325
1 1/4inch 40 STD 42 1.660 2.273 3.385
80 STD 2.997 4.464
1 1/2inch 40 STD 48 1.900 2.718 4.048
80 STD 3.361 5.409
2inch 40 STD 60 2.375 3.653 5.441
80 STD 5.022 7.480
2 1/2inch 40 STD 73 2.875 5.793 8.629
80 STD 7.661 11.411
3inch 40 STD 89 3.500 7.576 11.284
80 STD 10.253 15.272
4inch 114 4.500 10.790 16.073
14.983 22.318
6inch 168 6.625 12.924 19.252
13.923 20.739
14.983 22.318
17.021 25.354
40 STD 18.974 58.263
21.036 31.334
25.031 37.285
80 XHY 28.573 42.561
32.708 48.719
10inch 273 10.750 21.207 31.588
24.631 36.689
20 28.035 41.759
30 34.240 51.002
38.231 56.946
40 STD 40.483 63.301
48.238 71.852
60 XHY 54.735 81.530
80 64.429 95.969
12inch 324 12.750 25.222 37.570
29.309 43.657
33.375 49.713
37.420 55.739
41.445 61.735
49.562 73.824
53.525 79.727
65.415 97.438
73.154 108.966
14inch 356 14.000 27.732 41.308
32.233 48.012
20 36.713 54.685
41.172 61.327
45.611 67.939
STD 54.568 81.281
40 63.441 94.498
XHY 72.090 107.381
89.278 132.983
8inch 219 8.625 16.940 25.233
18.259 27.198
19.661 29.286
20 22.361 33.308
30 24.696 36.786
40 28.554 42.352
33.041 49.216
60 35.638 53.085
80 XHY 43.388 64.627
16” 406 16.000 21.748 47.290
36.910 54.980
10 42.053 62.639
47.174 70.268
20 52.275 77.866
57.519 85.677
30
STD
62.578 93.213
72.797 108.433
40
XHY
82.770 123.289
18inch 457 18.000 41.588 61.948
47.393 70.593
53.176 79.208
20 58.939 87.792
STD 70.588 105.144
30 82.152 122.369
XHY 93.450 139.198
40 104.666 155.904
115.978 172.754
20inch 508 20.000 52.733 78.547
59.386 88.458
65.604 97.719
20 STD 78.598 117.075
91.508 136.305
30 XHY 104.130 155.106
40 123.110 183.378
129.328 192.640
141.901 211.368
30inch 762 30.000 79.433 118.318
89.189 132.851
10 98.925 147.353
STD 118.648 176.731
138.286 205.983
20 XHY 157.530 234.647
30 196.078 292.066
215.380 320.817
234.293 348.988
36inch 914 36.000 95.453 142.180
107.196 159.672
10 118.918 177.133
STD 142.678 215.525
166.353 247.790
20 XHY 198.570 282.372
236.128 351.723
259.467 386.487
282.353 420.576
42inch 1067 42.000 138.911 206.914
STD 166.708 248.319
XHY 221.610 33.097
330.413 492.163
24inch 610 24.000 63.413 94.456
71.183 106.029
18.932 117.573
20 STD 64.618 140.938
110.219 164.176
XHY 125.490 186.923
156.028 232.410
40 171.293 255.148
186.233 277.401
48inch STD 1219 48.000 190.738 284.112
222.487 331.404
XHY 253.650 377.822
378.473 563.750
440.383 655.969

UNS 6600 Rectangular Pipe Welding Consumables

FILLERS INCONEL Filler Metal 82 INCOFLUX 4
WELDING ELECTRODES INCONEL 182

In What Form is Inconel 600 Available at Mega Mex ?

  • Sheet
  • Plate
  • Bar
  • Pipe & Tube (welded & seamless)
  • Wire
  • Fittings
  • Various Types Of Inconel 600 Pipe

    Inconel 600 Pipe Supplier in India Offers a Variety of the Most Popular Types

    Inconel 600 Seamless Pipe

    Inconel 600 Seamless Pipe

    Inconel Alloy 600 Seam Welded Pipe

    Inconel Alloy 600 Seam Welded Pipe

    Nickel Alloy 600 Annealed Pipe

    Nickel Alloy 600 Annealed Pipe

    Werkstoff NR. 2.4816 Clad Pipe

    Werkstoff NR. 2.4816 Clad Pipe

    UNS N06600 Exhaust Pipe

    UNS N06600 Exhaust Pipe

    AMS 5580 Cold Drawn Pipe

    AMS 5580 Cold Drawn Pipe

    EN 2.4816 Cold Finished Pipe

    EN 2.4816 Cold Finished Pipe

    DIN 2.4816 Hot Finished Pipe

    DIN 2.4816 Hot Finished Pipe

    WNR 2.4816 Seam Welded Pipe

    WNR 2.4816 Seam Welded Pipe

    2.4816 Inconel 600 Round Pipe

    2.4816 Inconel 600 Round Pipe

    Nickel 600 Square Pipe

    Nickel 600 Square Pipe

    UNS 6600 Rectangular Pipe

    UNS 6600 Rectangular Pipe

    ASTM B167 UNS N06600 Bright Annealed Pipe

    ASTM B167 UNS N06600 Bright Annealed Pipe

    ASME SB167 UNS N06600 Solution Annealed Pipe

    ASME SB167 UNS N06600 Solution Annealed Pipe

    ASTM B167 GR. UNS N06600 Cold Finished Seamless Pipe

    ASTM B167 GR. UNS N06600 Cold Finished Seamless Pipe

    Inconel 600 Hot Finished Seamless Pipe

    Inconel 600 Hot Finished Seamless Pipe

    ASME SB167 UNS N06600 Solution Annealed Pipe Chemical Composition

    Ni + Co Cu Fe Mn Cr C Si S
    72.0 min .50 max 6.0-10.0 1.00 max 14.0-17.0 .15 max .50 max .015 max

    SCH160 Inconel 600 Pipe Mechanical Properties

    Product Form Condition Tensile (ksi) .2% Yield (ksi) Elongation (%) Hardness (HRB)
    Tube & Pipe Hot-Finished 75-100 30-50 35-55
    Tube & Pipe Hot-Finished 80-100 25-50 35-55 88 Max

    EN 2.4816 Cold Finished Pipe Physical properties

    70°F 200°F 1000°F 400°F 800°F 600°F
    Density lbs/in3 0.306 - - - - -
    Elastic Modulus 103 ksi 31.1 30.5 25.7 29.7 27.8 28.8
    Specific Heat Btu/lb·°F 0.106 0.111 0.118 0.116 0.126 0.121
    Poisson Ratio - 0.327 0.319 - 0.312 0.301 0.307
    Thermal Expansion X10-6/°F 5.8 7.4 7.7 7.7 8.1 7.9
    Thermal Conductivity Btu-in/h·ft2 ·°F 103 109 139 121 145 133

    What is Cutting speed of Inconel 600 Pipe?

    • Cutting Feed: 0.1 mm/r - 0.3 mm/r
    • Cutting Speed: 20 m/min - 80 m/min
    • Cutting Edge of Tool Inclination: 0° to 4°

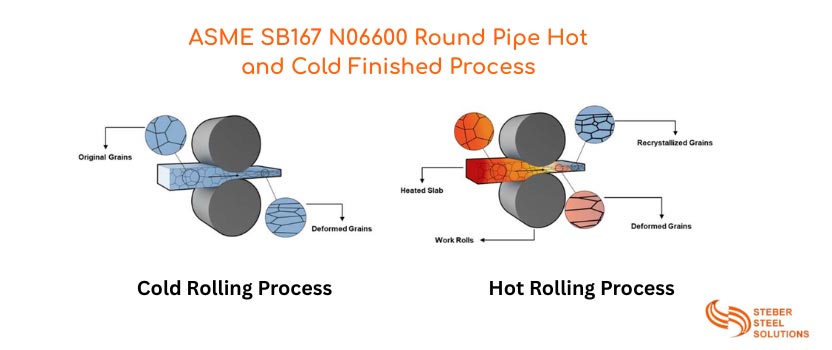

    ASME SB167 N06600 Round Pipe Available in Hot and Cold Finished Process

    ASME SB167 N06600 Round Pipe Hot and Cold Finished Process

    ASME SB167 N06600 Round Pipe Hot and Cold Finished Process

    Inconel 600 Schedule 40 Pipe HSN Code

    Grade HSN Code
    Inconel 600 Pipe 75071200

    2.4816 Inconel 600 Round Pipe Wall Thickness

    NB OD (inch) 80 10 40 80s & E.H. 160 40s & Std 10s
    10 10.750 .593 .165 .365 .500 1.125 .365 .165
    9 9.625 - - - .500 - .342 -
    4 1/2 5 - - - .355 - .247 -
    4 4.500 .337 .120 .237 .337 .531 .237 .120
    3 1/2 4 .318 .120 .226 .318 - .226 .120
    3 3.500 .300 .120 .216 .300 .437 .216 .120
    2 1/2 2.875 .276 .120 .203 .276 .375 .203 .120
    7 7.625 - - - .500 - .301 -
    6 6.625 .432 .134 .280 .432 .718 .280 .134
    2 2.375 .218 .109 .154 .218 .343 .154 .109
    1 1/2 1.900 .200 .109 .145 .200 .281 .145 .109
    8 8.625 .500 .148 .322 .500 .906 .322 .148
    5 5.563 .375 .134 .258 .375 .625 .258 .134
    1 1/4 1.660 .191 .109 .140 .191 .250 .140 .109
    1/2 .840 .147 .083 .109 .147 .187 .109 .083
    3/8 .675 .126 .065 .091 .126 - .091 .065
    1/4 .540 .119 .065 .088 .119 - .088 .065
    1 1.315 .179 .109 .133 .179 .250 .133 .109
    3/4 1.050 .154 .083 .113 .154 .218 .113 .083
    1/8 .405 .095 .049 .068 .095 - .068 .049

    Offers Ex Extock of Inconel 600 Pipe in Following Brands

    Nippon Steel

    Nippon Steel

    Outokumpo

    Outokumpo

    Posco

    Posco

    Jindal

    Jindal

    Thyssenkrupp

    Thyssenkrupp

    Acronis

    Acronis

    Nickel Alloy 600 ERW Pipe Temperature

    Property 1093°C 21°C 538°C 982°C 760°C 649°C 871°C
    Charpy Impact (V-notch /J) - 61 63.7 160 62.4 52.9 108.5
    Elasticity Modulus (x105 MPa) 1.4 2.1 1.77 - 1.63 1.69 1.53
    Thermal Expansion Coefficient (µm/m⁰C) 16.7 - 15.1 - 15.6 15.5 16.4
    Tensile Strength (MPa) - 641.2 579.2 51.7 189.6 448.2 103.4
    Yield Strength (0.2%/MPa) - 255.1 196.5 27.6 117.2 182.7 62
    Thermal Conductivity /kcal/(hr.m.°C) - 12.8 19.6 - 19.3 21.3 23.8

    Offer Inconel 600 Pipe to the various Countries

    Country Name Flag Country Name Flag
    Algeria Algeria   Nigeria Nigeria
    Zambia Zambia Ghana Ghana
    Tunisia Tunisia South Africa South Africa
    Kenya Kenya Angola Angola
    Tanzania Tanzania Morocco Morocco
    Egypt Egypt Dubai Ethiopia
