API 5L X60 Pipe and Hot Rolled L415 PSL2 Seamless Pipe Specification

Grade L415 X60 Pipe Highlights
Specification Level	API 5L X60 PSL1, PSL2
Size:	1/2″to 100″NB
Length	6, 12 Meters
Standards	API 5L ISO 3183
End	Plain End, threaded End, Beveled End
Dimensional Standard	ASME B36.10M
Color Code	Red
Lifespan	30 Years & More
Types	Square, Hex, Rectangle, Round
MTC	EN 10204 Type 3.1 Certificate

Hot Rolled L415 PSL2 Seamless Pipe Supplier in India With MTC

API 5L X60 Pipe

API 5L X60 PSL1 Seamless Pipe

API 5L X60 PSL2 Welded Pipe

Table of Contents

API 5L X60 Pipe Specification
API 5L X60 ERW Pipe Suffix Letter Meaning
API 5L X60 PSL1 Seamless Pipe Coating
Applications of API 5L X60 Pipe
API 5L X60 ERW Pipe Pressure Rating Chart
Color of API 5L X60 Pipe
API 5L X60 PSL2 Welded Pipe Weight Chart
Marking Examples of API 5L Grade X60 DSAW Pipe
API 5L X60 Pipe Roughness
Types of API 5L X60 Seamless Pipes
Chemical Composition of API 5l X60 PSL1
Chemical Composition of API 5l X60 PSL2
API 5L X60 ERW Pipe Equivalent Grades
Mechanical Properties of API 5L Grade X60 PSL1
Mechanical Properties of API 5L X60 PSL2 Material

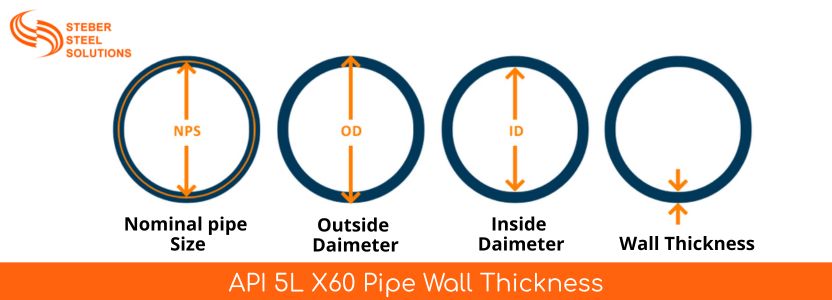

API 5L X60 Pipe Wall Thickness
CVN Absorbed Energy of X60 Steel CW Pipe

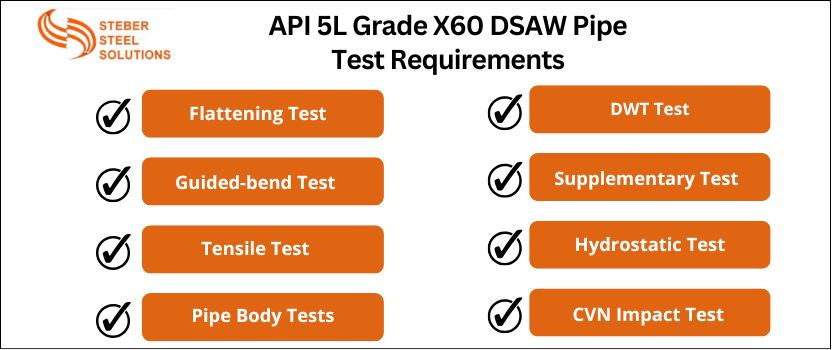

API 5L Grade X60 DSAW Pipe Test Requirements
Maximum Angle of API 5L X60 Pipe
API X60 Galvanized Pipe Manufacturing Process
Inspection Documents of ISO 3183 L415 Spiral Pipe
API 5L X60 Pipe HSN Code
ISO 3183 L415 Spiral Pipe Welding Process
Tolerance of API 5L Grade X60 DSAW Pipe

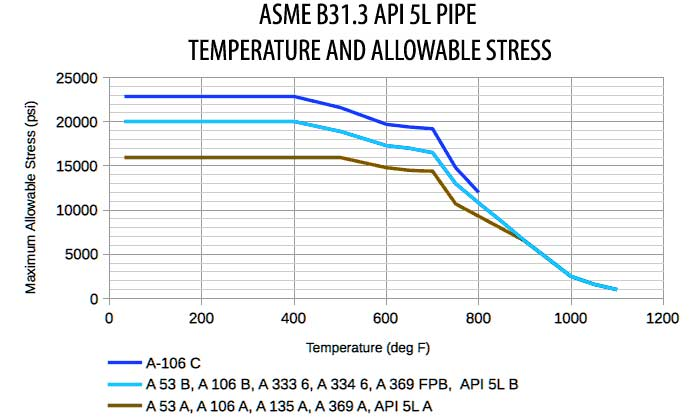

API 5L Grade X60 DSAW Pipe Temperature Range
Outside Diameter Tolerances of X60 Steel CW Pipe
Stocking the Following Brands Distributors and Dealers
Provide a Ready Supply of Api 5l X60 Pipe to Different Countries

Manufacturer of API 5L Grade X60 PSL1 ERW Pipe Produce 1/2 to 20 Inch OD

API 5L X60 Pipe Specification

API 5L X60 Pipe Sizes

Seamless Pipe: 21.3 - 660 MM ( Inch 1/2” – 26”)
SAW: 16" - 100" NB
ERW : 1/2” NB – 24” NB

API 5L X60 Steel Pipe PSL Level

API 5L X60 PSL1
API 5L X60 PSL2

X60 Conduit Pipe Thickness

SCH XXS
SCH XS
SCH 160
SCH 80
SCH 40

API 5L X60 PSL1 Seamless Pipe Surface Coating

3PP Grade API 5L X60 pipe
3PE (3LPE) API 5L X60 Grade B pipe
Natural
CWC (Concrete Weight Coated)
Black Painting
FBE API 5L X 60 pipe

ISO 3183 L415 Spiral Pipe Welding Process

MAG-welding cored wire
Submerged arc welding (SAW)
TIG-welding
Arc welding (E)
MAG-welding massive wire

API 5L X60 ERW Pipe Material Data

X60R ( As Rolled)
X60 / L360 (N, M, Q, R)
X60M (Thermomechanical)
X60Q (Quenched and Tempered)
L360MB
X60N (Normalized)
L360QB
L360GA
L360NB

API 5L X60 Pipe Standards

ISO 3183 L415
API 5L X60
ASME B36.10M

X60 Steel CW Pipe Origin

USA
Ukraine
Dubai
Indian
European
Russian
UK
Japan
Japanese

API 5L Grade X60 DSAW Pipe Testings

Ultrasonic
Eddy current
Non Destructive Testing
Hardness Test
IGC- Intergranular Corrosion Test
Charpy V Impact Test
(PMI)

X60 Hot Dipped Galvanized Pipe Manufacturing Process

HFW and HSAW
SAW
LSAW
SSAW
DSAW

X60 Conduit Pipe Material End

BLE -Bevel large end
POE -Plain One End
TOE -Treaded One End
PBE -Plain Both Ends

ISO 3183 L415 Spiral Pipe Documentation

Material Grade
Nominal Pipe Sizes (NPS)
Specification of ASTM A53 Grade B Steel Pipe
Manufacturing Process
Wall Thickness or Schedule No.
Heat Number

API 5L Gr X60 Black Pipe Packing

or as per Customers Requests
Steel Strips Bundled
Wooden Boxes
Plastic Bags

API 5L X 60 Zinc-coated Pipe Material Test Certificate

NACE MR0103
EN 10204 3.2
Radiographic Testing (RT)
NACE MR0175
EN 10204 3.1

API 5L X60 PSL1 Seamless Pipe Value Added Services

Machining
Bending
Sand Blasting
Galvanizing
Heat Treatment

Stockist of X60 Pipe in Mumbai Provide R, N, Q, M and S Delivery Condition

API 5L X60 ERW Pipe Suffix Letter Meaning

Suffix Letter Means
Letter	Delivery Condition
R	As Rolled
S	Sour Service Use
N	Normalized Formed, Normalizing Rolled, Normalized
M	Thermomechanical Rolled & Thermomechanical Formed
Q	Tempered & Quenched

API 5L Gr X60 PSL1Welded Pipe Exporter Offers FBE, Black Painting, 3LPE and 3PE Coating

API 5L X60 PSL1 Seamless Pipe Coating

X60 High Yield Pipe Material Widely Used In Petroleum Industries

Applications of API 5L X60 Pipe

API 5L X60 ERW Pipe Pressure Rating Chart

NPS in (MM)	SCH NO.		WT in (MM)	Temp in (oC)
				450	4301)	400	370	350	260	-29 - 38
				Max Allowable Stress in (MPa)
				59.9	74.4	89.6	115.7	117.1	130.2	137.8
300		160	33.32	11630	14441	17383	22461	22730	25273	26740
	XS		12.70	4230	5250	6318	8165	8268	9191	9722
		20	6.35	2088	2591	3114	4024	4072	4534	4795
		140	28.58	9866	12244	14744	19051	19278	21435	22682
		30	8.38	2763	3431	4134	5540	5402	6008	6359
		100	21.44	7283	9040	10879	14062	14227	15819	16736
	XXS	120	25.4	8702	10804	13008	16811	17011	18913	20015
		80	17.48	5884	7303	8792	11362	11492	12850	13525
	STD		9.53	3149	3914	4706	6084	6153	6842	7241
		60	14.27	4768	5925	7131	9212	9322	10363	10969
		40	10.31	3417	4244	5015	6601	6676	7421	7854
250		160	28.58	11844	14703	17700	22875	23143	25734	27229
		20	6.35	2480	3080	3707	4789	4844	5388	5698
	XXS	140	25.4	10438	12960	15599	20153	20394	16474	23998
		30	7.8	3059	3796	4568	5905	5974	6642	7028
	XS	60	12.7	5043	6263	7538	9736	9853	10955	11596
	STD	40	9.27	3652	4527	5450	7048	7131	7923	8385
150	XXS	160	18.26	12319	15296	18410	23784	24074	26768	28325
		120	14.27	9460	11747	14138	18265	18448	20553	21745
	XS	80	10.97	7165	8895	10707	13842	14007	15571	16474
	STD	40	7.11	4568	5370	6828	8819	8924	9928	10550
100	XXS		17.12	17549	21786	26230	33892	34298	38129	40348
		120	11.13	10995	13601	16371	21159	21407	23805	25190
	XS	80	8.56	8289	12094	12388	16012	16198	18010	19058
	STD	40	6.02	5739	7124	8571	11079	11210	12464	13187
80	STD	40	5.49	6766	8399	10108	13063	13222	14969	15558
	XS	80	7.62	9563	11871	14290	18472	18693	20780	21986
		160	11.13	14386	17859	21497	27780	28111	31253	33079
	XXS		15.24	20436	25369	30536	39459	39928	44392	46976
50	XXS		11.07	22096	27429	33017	42670	43173	48003	50793
	STD	40	3.91	7124	8847	10645	13759	13925	15468	16378
		160	8.74	16908	20987	25266	32652	33037	36731	38866
	XS	80	5.54	10287	12774	15378	19871	20105	22351	23653
40	XXS		10.16	25569	31742	38205	49374	49966	55547	58779
	STD	40	3.68	8454	10550	12636	16329	16529	18375	19444
		160	7.14	17308	21483	25858	33416	33816	37599	39738
	XS	80	5.08	11919	14800	17811	23019	23295	25900	27402
25	STD	40	3.38	11417	14173	17060	22048	22310	24804	26251
	XS	80	4.55	15785	19595	23584	30474	30862	34285	36283
		160	6.35	22827	28339	34112	44082	44606	49594	52481
	XXS		9.09	33506	41595	50070	64704	65476	72793	77030
20	XXS		7.82	36152	44881	54024	69809	70643	78539	83107
	STD	40	2.87	12209	15158	18245	23578	23860	26526	28070
		160	5.56	25293	31398	37799	48843	49429	54955	58152
	XS	80	3.91	17142	21283	25617	33106	33506	37247	39418
15	XS	80	3.73	20918	25969	31260	40396	40878	45466	48092
	XXS		7.47	42739	53053	63857	82522	83507	92836	98245
		160	4.78	27333	33929	40837	52777	53404	59378	62830
	STD	40	2.77	14972	18589	22372	28910	29255	32528	34416

Color of API 5L X60 Pipe

Gr.	Identifying Colour Code
API 5l X60 Pipe	Red

API 5L X60 PSL2 Welded Pipe Weight Chart

An Outstanding Pipe Weight Chart is Provided by the API 5L X60 Pipe Supplier in India

NPS	Outside Daimeter		Wall Thickness			Weight	Weight
NPS	(MM)	(INCHES)	(MM)	(INCHES)	SCH	Lb/ft	kg/Mtr
48″	1219	48.000	9.525	0.375	STD	190.738	284.112
			19.050	0.750		378.473	563.750
			12.700	0.500	XHY	253.650	377.822
42″	1067	42.000	7.925	0.312		138.911	206.914
			12.700	0.500	XHY	221.610	33.097
			19.050	0.750		330.413	492.163
			9.525	0.375	STD	166.708	248.319
30″	762	30.000	6.350	0.250		79.433	118.318
			15.875	0.625	30	196.078	292.066
			7.925	0.312	10	98.925	147.353
			12.700	0.500	20 XHY	157.530	234.647
			9.525	0.375	STD	118.648	176.731
20″	508	20.000	6.350	0.250		52.733	78.547
			15.088	0.594	40	123.110	183.378
			12.700	0.500	30 XHY	104.130	155.106
			9.525	0.375	20 STD	78.598	117.075
10″	273	10.750	4.775	0.188		21.207	31.588
			15.088	0.594	80	64.429	95.969
			12.700	0.500	60 XHY	54.735	81.530
			6.350	0.250	20	28.035	41.759
			9.271	0.365	40 STD	40.483	63.301
			7.798	0.307	30	34.240	51.002
4″	114	4.500	6.020	0.237		10.790	16.073
			8.560	0.337		14.983	22.318
3″	89	3.500	5.486	0.216	40 STD	7.576	11.284
			7.620	0.300	80 STD	10.253	15.272
2 1/2″	73	2.875	5.516	0.203	40 STD	5.793	8.629
			7.010	0.276	80 STD	7.661	11.411
2″	60	2.375	3.912	0.154	40 STD	3.653	5.441
			5.537	0.218	80 STD	5.022	7.480
1 1/4″	42	1.660	3.556	0.140	40 STD	2.273	3.385
			4.851	0.191	80 STD	2.997	4.464
1″	33	1.315	3.378	0.133	40 STD	1.679	2.501
			4.547	0.179	80 STD	2.172	3.325
1/2″	21	0.840	2.769	0.109	40 STD	0.851	1.268
			3.734	0.147	80 STD	1.088	1.621

Marking Examples of API 5L Grade X60 DSAW Pipe

Annex G
Name/Manufacturer
Wall Thickness
API Spec 5L
Tested
Identification Number
Outside Diameter
Pipe Type
Customer Inspection Representative

API 5L X60 Pipe Roughness

API 5L X60 Pipe Condition	Roughness in (Inches)	Roughness in (MM)

Used, & Cleaned	00.006 - 0.008	00.15 - 0.2
Heavy Scaling	00.06 - 0.16	1.5 - 4
Drawn, & New	00.0008 - 0.004	00.02 - 0.1
Light Scaling	00.04 - 0.06	1 - 1.5
Welded, & New	00.002 - 0.004	00.05 - 0.1
Severely Corroded	00.016 - 0.12	00.4 - 3
Galvanized, & New	00.006	00.15
Lightly Corroded	00.004 - 0.016	00.1 - 0.4
Bitumed Coated	00.002	00.05

Types of API 5L X60 Seamless Pipes

An Extensive Variety of Pipes With Common Uses Are Offered by an API 5L X60 Pipe Supplier in India

X60 Conduit Pipe

API 5L X60 ERW Pipe

X60 Hot Dipped Galvanized Pipe

API 5L X 60 Zinc-coated Pipe

API 5L Grade X60 DSAW Pipe

API 5L Gr X60 Black Pipe

X60 Steel CW Pipe

API X60 Galvanized Pipe

X60 Carbon Steel LSAW Pipe

ISO 3183 L415 Spiral Pipe

API 5L X60 Grade B Type F Pipe

API 5L X60 Gr B Type S Pipe

API 5L X60 Type E Pipe

Grade L415 X60 Type F CW Pipe

API 5L X60 Type S Seamless Pipe

Chemical Composition of API 5l X60 PSL1

Grade	Mass Fraction %
	Titanium	Niobium	Carbon	Manganese	Sulfur	Vanadium	Phosphorus
	Max	Max	Max b	Max B	Max	Max	Min	Max
X60 PSL1 Welded Pipe
L415 or X60	f	f	0.26e	1.40e	0.030	f	–	0.030
X60 PSL1 Seamless Pipe
L415 or X60	f	f	0.28e	1.40e	0.030	f	–	0.030

Chemical Composition of API 5l X60 PSL2

Grade	Mass Fraction in %										Carbon Equivalent %
Grade	Vanadium	Niobium	Carbon b	Sulfur	Silicon	Titanium	Phosphorus	Titanium	Manganese b	Other	CEP cm	CEllW
X60 PSL2 Welded Pipe
L415M or X60M	g	g	0.12f	0.015	0.45f	g	0.025	g	1.60f	l,h	0.25	0.43
X60 PSL2 Seamless Pipe
L415N or X60N	0.10 f	g	0.24f	0.015	0.45f	0.04f	0.025	0.04f	1.40f	l,h,g	As Per Agreed
L415Q or X60Q	g	0.5f	0.18f	0.015	0.45f	g	0.025	g	1.70f	l,h	0.25	0.43

API 5L X60 ERW Pipe Equivalent Grades

WNR / DIN	Relevant grades	API	EN
LINE PIPE
1.8902 StE 420	A53 Gr. B, A106 Gr. B, API 5L Gr. B X60	API 5L Grade X60	P420N
High Yield Pipe
1.8972 StE 415.7	-	API 5L Grade X60	L415NB

API 5L X60	Line pipe specifications
Material Grade	PSL2	L415Q or X60Q L415N or X60N
Material Grade	PSL1	L415 or x60

Mechanical Properties of API 5L Grade X60 PSL1

Grade	X60 PSL1 Seamless/Welded Pipe Body Tensile Strength			Weld Seam of SAW, LW, EW, COW, EW Pipe
	Elongation (on 50 mm or 2 in.)At%	TensileaRm Mpa (psi)	Yield StrengthaRt0.5 Mpa (psi)	TensilebRm Mpa(psi)
	Min	Min	Min	minimum
L415 or X60	c	520 Mpa (75,400 psi)	415 Mpa (60,200 psi)	520 Mpa (75,400 psi)

Mechanical Properties of API 5L X60 PSL2 Material

Gr.	X60 PSL2 Welded / Seamless Pipe Body						LW, SAW, COW, EW, and EW Pipe Weld Seam
	Yield StrengthaRt0.5 Mpa (psi)		TensileaRm Mpa(psi)		Elongation (on 50 MM & 2 in.)At%	Ratioa,cRt0.5/Rm	TensilebRm Mpa (psi)
	Max	Min	Max	Min	Min	Max	Min
X60Q, X60N, X60M	565 Mpa (81,900 psi)	415 Mpa (60,200 psi)	760 Mpa (110,200 psi)	520 Mpa (75,400 psi)	f	0.93	520 Mpa (75,400 psi)

API 5L X60 Pipe Wall Thickness

NPS		OD (OUTSIDE DIAMETER)	Nominal WT (Wall Thickness)
DN	OD	ASME	STD	SCH60	SCH40	SCH30	SCH20	SCH10	XS	SCH 160	SCH140	SCH 120	SCH 100	SCH80	XXS
750	30"	762	9.53			15.88	12.7	7.92	12.7
700	28"	711.2	9.53			15.88	12.7	7.92	12.7
650	26"	660.4	9.53				12.7	7.92	12.7
600	24"	609.6	9.53	24.61	17.48	14.7	9.53	6.35	12.7	59.54	52.37	46.02	38.89	30.96
550	22"	558.8	9.53	22.23		12.7	9.53	6.35	12.7	53.98	47.63	41.28	34.93	28.58
500	20'	508	9.53	20.62	15.09	12.7	9.53	6.35	12.7	50.01	44.45	38.1	32.54	26.19
450	16"	457.2	9.53	19.05	14.27	11.13	7.92	6.35	12.7	45.24	39.67	34.93	39.36	23.83
400	14"	406.4	9.53	16.66	12.7	9.53	7.92	6.35	12.7	40.19	36.53	30.96	26.19	21.44
350	12"	355.6	9.53	15.09	11.13	9.53	6.35	4.57	12.7	35.71	31.75	27.79	23.83	19.05
300	10"	232.8	9.53	14.27	10.31	8.38	6.35	4.19	12.7	33.32	28.58	25.4	21.44	17.48	25.4
250	8"	273	9.27	12.7	9.27	7.8	6.35	3.76	12.7	28.58	25.4	21.44	18.26	15.09	25.4
200	7"	219.1	8.18	10.31	8.18	7.04		3.76	12.7	23.01	20.62	18.26	15.09	12.7	22.23
150	6"	168.3	7.11		7.11			3.4	10.97	18.26		14.27		10.97	21.95
125	5"	141.3	6.55		6.55			3.4	9.53	15.88		12.7		9.53	19.05
100	4"	114.3	6.02		6.02	4,78		3.05	8.56	13.49		11.3		8.56	17.12
90	3-1/2'	101.6	5.74		5.74	4.78		3.05	8.08					8.08
80	3"	88.9	5.49		5.49	4.78		3.05	7.62	11.13				7.62	15.25
65	2-1/2"	73	5.16		5.16	4.78		3.05	7.01	9.53				7.01	14.02
50	2"	60.3	3.91		3.91	3.18		2.77	5.54	8.74				5.54	11.07
40	1-1/2"	48.3	3.68		3.68	3.128		2.77	5.08	7.14				5.08	10.15
32	1-1/4"	42.2	3.56		3.56	2.97		2.77	4.85	6.35				4.85	9.7
25	1"	33.4	3.38		3.38	2.9		2.77	4.55	6.35				4.55	9.09
20	3/4"	26.7	2.87		2.87	2.41		2.11	3.91	5.56				3.91	7.82
15	1/2"	21.3	2.77		2.77	2.41		2.11	3.73	4.78				3.73	7.47

CVN Absorbed Energy of X60 Steel CW Pipe

Outside Dia D (MM) (INCHES.)	Complete CVN Absorbing Energy Minimum KV J (ft·lbf)
Outside Dia D (MM) (INCHES.)	Gr. X60
> 1422 (56.000) to 2134 (84.000)	40 (30)
> 1219 (48.000) to 1422 (56.000)
> 914 (36.000) to 1219 (48.000)
> 762 (30.000) to 914 (36.000)
> 508 (20.000) to 762 (30.000)	27 (20)
≤ 508 (20.000)	27 (20)

API 5L Grade X60 DSAW Pipe Test Requirements

Maximum Angle of API 5L X60 Pipe

Specified WT t Millimetre (In.)	Max Taper Angle in Degrees
≥ 17.0 (0.669)	14.0
10.5 (0.413) to < 14.0 (0.551)	9.5
< 10.5 (0.413)	7.0
14.0 (0.551) to < 17.0 (0.669)	11.0

API X60 Galvanized Pipe Manufacturing Process

Symbol	Types	Symbol	Types
HFW	Hot Finished Welding	MAW	Hand-Welding or Manual Arc Welding
HFS	Hot Finished Seamless	EFW	Electric Fusion Weldin
HFIW	High Frequency Induction Welding	OAW	Oxy Acetylene Welding
CDS	Cold Drawn or Finished Seamless	SAW	Sub-merged Arc Welding
ERW	Electric Resistance Welding	CEW	Cold Drawn Electric Resistance Welding
BWP	Butt Welded Pipes

Inspection Documents of ISO 3183 L415 Spiral Pipe

Certificate 3.1.A
Nondestructive Inspection
Certificate 3.1.C
Certificate 3.1.B
Certificate 3.2
Supplementary Testing
Hydrostatic Test
Tensile Test
Nondestructive Weld Inspection

API 5L X60 Pipe HSN Code

Grade	HSN Code
API 5L X60 Pipe	73041910

ISO 3183 L415 Spiral Pipe Welding Process

Tolerance of API 5L Grade X60 DSAW Pipe

Wall Thick in t (MM)	Tolerance That Is Acceptable
Seamless Pipe:
t ≤ 4	+0.6 MM / -0.5 MM
4< t < 25	+15 % t / - 12.5 % t
t ≥ 25	+ 3.75 MM or +10% t/ - 3.0 MM & + / - 10% t (Whichever is Higher)
Welded Pipe:
t ≤ 10	+1.0 MM / -0.5 MM
10 < t < 20	+10 %/ -5 %
t ≥ 20	+2.0 MM / - 1.0 MM

API 5L Grade X60 DSAW Pipe Temperature Range

Outside Diameter Tolerances of X60 Steel CW Pipe

Specified Outside Dia D (in)	Tolerance for Diameter, (Inches) d				Tolerance for Out-of-Roundness (Inches)
	Pipe except the end a		Pipe end a,b,c		Pipe End a,b,c	Pipe except the End a
	Welded Pipe	SMLS Pipe	Welded Pipe	SMLS Pipe	Pipe End a,b,c	Pipe except the End a
>24 to 56	+/- 0.005D but max of 0.160	+/- 0.01D	+/- 0.063	+/- 0.079	0.01D for but max of 0.500	0.015D for but max of 0.060
					By Agreement	By Agreement
					D/t≤75	D/t≤75
					For	For
					for	for
					D/t≤75	D/t≤75
>6.625 to 24.000		+/- 0.0075D	+/- 0.005D, but max of 0.063		0.015D	0.020D
≥2.375 to 6.625					0.015D for	0.020D for
					D/t≤75	D/t≤75
					By Agreement of	By Agreement of
					D/t≤75	D/t≤75
< 2.375	-0.031 to + 0.016		– 0.031 to + 0.016		0.036	0.048
>56	As Agreed

Stocking the Following Brands Distributors and Dealers

Maharashtra Seamless Limited

USL Universal Specialities Limited

ISMT Limited

Baosteel

Jindal

Tenaris

Provide a Ready Supply of Api 5l X60 Pipe to Different Countries

Country Name	Flag	Country Name	Flag
Angola		Kenya
Ethiopia		Egypt
South Africa		Tunisia
Nigeria		Algeria
Morocco		Dubai
Ghana		Zambia
Tanzania		UAE
