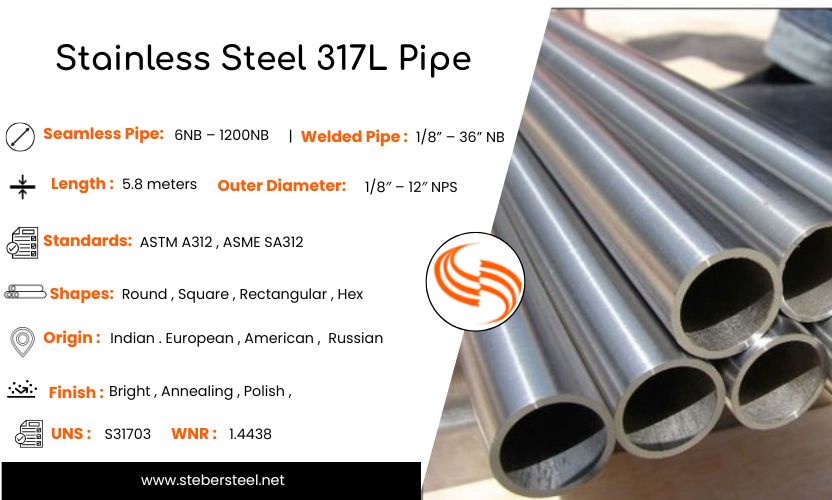

Stainless Steel 317L Pipe

Stainless Steel 317L Pipe

Stainless Steel 317L Pipe Highlights
Specifications ASTM A312 | ASME SA312
Size: 6 MM to 610 MM
End Beveled, Threaded, Plain End
Schedule SCH 20 to XXS
Surface Finish Pickled, Passivated, Precleaned, Cleaned
Shape Square, Round, Hex, Rectangle
Density 7.9 (g/cm3)
Material Group ISO Group M
Melting Point 1400°C
DN DN 6 to DN 750
MTC MTC EN 10204 Type 3.1

ASTM A312 TP317L ERW Pipe

Stainless Steel 317L Pipe

Stainless Steel 317L Pipe

UNS S31703 Square Pipe

UNS S31703 Square Pipe

DIN 1.4438 Rectangular Pipe

DIN 1.4438 Rectangular Pipe


Table of Contents


Stainless Steel 317L Pipe Specification

SS 317L Seamless Pipe Sizes

  • 6NB – 1200NB
  • OD : 1/8″ – 12″ NPS
  • Length: Single, Double Random & Cut Length
  • WT : 0.6 – 12.7 mm
Sizes

AISI 317L Welded Pipe Sizes

  • Length: up to 26 Meters
  • OD 1/4” – 36”
  • 1/8” – 36” NB
  • Wall thickness: 0.8 – 12.7 m

Sizes

Stainless Steel 317L Pipe Manufacturing Types

  • Welded
  • EFW
  • Seamless
  • ERW

Types

DIN 1.4438 Rectangular Pipe Origin

  • European
  • Janpanese
  • American
  • Russia

Origin

INOX AISI 317L Hot Finished Pipe Documentation

  • Visual Inspection
  • Mill Test Certificates
  • MTC EN 10204 type 3.1
  • PMI Test Reports
Documentation

INOX 317L Round Pipe Shapes

  • Square
  • Rectangle
  • Hex
  • Round

Shapes

DIN 1.4438 Rectangular Pipe Schedule

  • Schedule 80, 60, 120
  • Schedule 10 , 20 , 40
  • Schedule STD , XXS

Schedule

INOX 317L Round Pipe Surface Finish

  • 2B, 2D, No 4 and Mirror Finish
  • AP (Annealed and Pickled)
  • Polished
  • BA (Bright Annealed)
Surface Finish

UNS S31703 Square Pipe End Types

  • Groove Ends
  • Threaded End
  • Bevelled End
  • Plain End
End Types

INOX AISI 317L Hot Finished Pipe Services

  • Welding
  • Cutting
  • Bending
  • Punching

Services

1.4438 Stainless Steel Annealed Pipe Fluids

  • Oxygen service
  • Liquids
  • Corrosive fluids
  • Gasses

Fluids

SA 312 TP 317L Electropolished Pipe Packaging

  • Bundled
  • Wooden Box
  • Bubble Wraps

Packaging

SUS 317L EFW Pipe Types

  • Round Pipe
  • Polish Pipe
  • Welded Pipe
  • ERW Pipe
  • Square Pipe
  • Rectangular Pipe
  • Seamless Pipe
  • EFW pipe


Types

SS 317L Seamless Pipe Testing

  • Chemical
  • Ultrasonic
  • Hardness
  • Tensile
  • PMI
  • Flaring
  • Mechanical



Testing

317L Stainless Steel ERW Pipe Standards

  • EN 10088-3
  • EN 10216 – 5
  • ASME B36.19M
  • EN 10088-2
  • EN 10217-7
  • ASME B36.19
  • DIN 17456
  • DIN 17458
  • EN 10216 – 2
  • NSF 61
Standards

Get 317L SS Seamless Pipe in Cut to Size As Per Requirement

SS 317L Seamless Pipe Size Chart in mm

Stainless Steel 316L Pipe Supplier in India are available in variety of Sizes

NPS OD SCH 80S SCH 40S SCH 10S SCH 5S
30 762 7.92 6.35
28 711.2
26 660.4
24 609.6 12.7 9.53 6.35 5.54
22 558.8 5.54 4.78
20 508 12.7 9.53 5.54 4.78
18 457.2 12.7 9.53 4.78 4.19
16 406.4 12.7 9.53 4.78 4.19
14 355.6 12.7 9.53 4.78 3.96
12 323.85 12.7 9.53 4.57 3.96
10 273.05 12.7 9.27 4.19 3.4
8 219.08 12.7 8.18 3.76 2.77
6 168.28 10.97 7.11 3.4 2.77
5 141.3 9.53 6.55 3.4 2.77
4 114.3 8.56 6.02 3.05 2.11
3.5 101.6 8.08 5.74 3.05 2.11
3/8 17.15 3.2 2.31 1.65
3/4 26.67 3.91 2.87 2.11 1.65
3 88.9 7.62 5.49 3.05 2.11
2.5 73.03 7.01 5.16 3.05 2.11
2 60.33 5.54 3.91 2.77 1.65
1.5 48.26 5.08 3.68 2.77 1.65
1.25 42.16 4.85 3.56 2.77 1.65
1 33.4 4.55 3.38 2.77 1.65
1/4 13.72 3.02 2.24 1.65
1/2 21.34 3.73 2.77 2.11 1.65

Buy UNS S31703 Welded Pipe With Pressure Range Between 30000 PSI

Pressure Rating of UNS S31703 Square Pipe

Nominal Pipe Sizes in (Inches) SCH 750 700 650 600 500 300 100
8 160 596 615 1944 2004 2103 2460 3175
80 1005 1015 1036 1068 1121 1311 1692
40 637 644 657 678 711 832 1073
6 160 1953 1973 2014 2076 2179 2549 3289
80 1136 1148 1172 1208 1267 1483 1913
40 724 732 747 770 808 945 1219
5 160 2027 2049 2091 2155 2262 2646 3414
80 1176 1189 1213 1250 1312 1535 1981
40 797 805 822 847 889 1040 1342
4 160 2138 2161 2206 2273 2386 2791 3601
80 1314 1328 1355 1397 1466 1715 2213
40 909 919 938 967 1014 1187 1531
3 160 2280 2304 2352 2424 2544 2976 3840
80 1516 1532 1564 1612 1691 1979 2553
40 1072 1084 1106 1140 1196 1400 1806
2 160 2671 2699 2755 2840 2980 3486 4499
80 1631 1648 1682 1734 1820 2129 2747
40 1129 1141 1165 1201 1260 1474 1902
1 1/2 160 2743 2772 2829 2916 3060 3580 4619
80 1889 1909 1949 2009 2108 2466 3182
40 1340 1354 1383 1425 1496 1750 2257
1 160 3646 3684 3761 3876 4068 4759 6140
80 2501 2528 2580 2659 2791 3265 4213
40 1810 1824 1867 1924 2019 2362 3048
Check Dimension and Weight Chart of ASTM A312 Grade 317L Round Pipe

Stainless Steel 317L Pipe Dimensions

Multiple Pipe Dimensions Are Available From an SS 317L Pipe Manufacturer in India.

Dimensions Wall Thickness Dimensions Wall Thickness
(Millimetre) (Millimetre) (Millimetre) (Millimetre)
100 * 100 3 30 * 30 2
100 * 100 2 30 * 30 1.50
80 * 80 3 30 * 30 1.20
80 * 80 2 25 * 25 3
70 * 70 3 25 * 25 2
60 * 60 3 25 * 25 1.50
60 * 60 2 25 * 25 1.20
50 * 50 3 20 * 20 2
50 * 50 2 20 * 20 1.50
50 * 50 1.50 20 * 20 1.20
40 * 40 3 15 * 15 1.50
40 * 40 2 15 * 15 1.20
40 * 40 1.50 12.7 * 12.7 1.50
40 * 40 1.20 12.7 * 12.7 1.20

Weight Chart of 317L Stainless Steel ERW Pipe

An Excellent Pipe Weight Chart is Provided by an Stainless Steel 317L Pipe Supplier in India.

WT (Wall Thickness) Weight
(Millimetre) kg/m
3 2.20
2 1.84
2 1.49
2 1.19
1.50 0.65
1.20 0.53
1.50 0.55
1.20 0.44
1.50 1.37
1.20 0.71
1.50 0.88
1.50 1.14
1.20 1.10
1.20 0.92
PED Approved 317L Stainless Steel Rectangular Pipe Available in Ultrasonic and PMI Tested

Test Requirements of Stainless Steel 317L Pipe

  • Hydrostatic Tests
  • Metalography Test
  • Visual Inspection
  • CVN Impact Testing
  • Rockwell & BHN Hardness Testers
  • TPP
  • DP / MP / RF ECT Testing
  • Ultrasonic Testing
  • Eddy Current Test

ASTM A312 TP317L Schedule 10 Pipe Temperature

Melting Range 2500 to 2590 °F
1371 to 1421 °C
Heated at 149 to 1260 °C & (2100 to 2300°F)
Resistant to 600°F

Types of 317L Stainless Steel Pipe

There Are Several Types and Ends of Stainless Steel 317L Pipe Available From Indian Suppliers.

317L Stainless Steel ERW Pipe

317L Stainless Steel ERW Pipe

SS 317L Seamless Pipe

SS 317L Seamless Pipe

AISI 317L Welded Pipe

AISI 317L Welded Pipe

UNS S31703 Stainless Steel Decorative Pipe

UNS S31703 Stainless Steel Decorative Pipe

SA 312 TP 317L Electropolished Pipe

SA 312 TP 317L Electropolished Pipe

SUS 317L EFW Pipe

SUS 317L EFW Pipe

INOX 317L Round Pipe

INOX 317L Round Pipe

ASTM A312 TP317L Schedule 10 Pipe

ASTM A312 TP317L Schedule 10 Pipe

1.4438 Stainless Steel Annealed Pipe

1.4438 Stainless Steel Annealed Pipe

SUS317L Stainless Steel Polished Pipe

SUS317L Stainless Steel Polished Pipe

INOX AISI 317L Hot Finished Pipe

INOX AISI 317L Hot Finished Pipe

317L SS Cold-Finished Pipe

317L SS Cold-Finished Pipe

Stainless Steel 317L Tubes

Stainless Steel 317L Tubes

317L Stainless Steel Square Pipe Schedule Chart

18.000" OD 2.875" OD
SCH 40 SCH 10 - 160 - XXH
16.000" OD 2.375" OD
SCH 10 - 40 SCH 10 - 160 - XXH
- 3.500" OD
- SCH 5 - 160 - XXH
14.000" OD 1.900" OD
SCH 10 - 40 SCH 10 - 160 - XXH
12.750" OD 1.660" OD
SCH 10 - 80 SCH 10 - 160 - XXH
10.750" OD 1.315" OD
SCH 10 - 80 SCH 5 - 160 - XXH
8.625" OD 1.050" OD
SCH 5 - 160 - XXH SCH 10 - 160 - XXH
6.625" OD .840" OD
SCH 5 - 160 - XXH SCH 5 - 160 - XXH
5.563" OD .675" OD
SCH 10 - 160 - XXH SCH 10 - 80
4.500" OD .540" OD
SCH 10 - 160 - XXH SCH 10 - 80
4.000" OD .405" OD
SCH 10 - 160 - XXH SCH 40 - 80

Welding Electrodes of SS 317L Seamless Pipe

Material Grade of Stick Welding Electrode
SA 312 TP 317L Pipe Welding E316

Stainless Steel 317L Pipe Chemical Composition

Gr. Nickel Carbon Iron Manganese Sulfur Molybdenum Silicon Chromium Phosphorus
317L SS Pipe 11-15 0.03 Balance 2.00 0.030 3.0-4.0 1.0 18-20 0.045

Allowable Stress of AISI 317L ERW Pipe

Strength Mpa Ksi
Tensile Strength 515 (Mpa) 75 (Ksi)

ASTM A312 TP317L Schedule 10 Pipe Mechanical Properties

Grade Tensile Strength in (Mpa) Hardness in (HB) Yield Strength in (Mpa) Elongation in (%)
SS 317L 595 Mpa 85 260 Mpa 55%

317L Stainless Steel Pipe Equivalent

Grade UNS Werkstoff Nr. EN JIS
SS317L Pipe S31703 1.4438 X2CrNiMo18-15-4 SUS 317L

Applications of Stainless Steel 317L Pipe

Applications of Stainless Steel 317L Pipe

DIN 1.4438 Rectangular Pipe Tolerance

NPS (Nominal Pipe Size) Tolerance
– +
≥ 20, Seamless, t/D> 5% 12.5 15.0
≥ 20, Welded 17.5
≥ 20, Seamless, t/D≤ 5% 22.5
3~18, t/D≤ 5% 22.5
3~18, t/D> 5% 15.0
1/8-2 1 /2 20.0

Heat Capacity of INOX 317L Round Pipe

Temp (°F) J / kg °C Temp (°C) Btu / lb °F
68 485 20 0.11
200 500 100 0.12
400 515 200
600 525 300 0.13
800 540 400
1000 555 500
1100 575 600 0.14

Stainless Steel 317L Pipe Working Pressure

Outside Daimeter (Inches) Fraction WT (in) OD (in) Decimal Max Working Pressure (BAR) Max Working Pressure (PSI)
5/16 0.065 0.3125 607 8807
5/8 0.109 0.6250 495 7180
3/16 0.049 0.1875 799 11588
3/8 0.109 0.3750 913 13234
1/8 0.049 0.1250 1356 19661
1/4 0.065 0.2500 794 11516
1/2 0.109 0.5000 642 9309

SUS 317L Seamless Pipe OD Tolerance

Nominal Pipe Size Oouter Daimeter Tolerance
+ –
Inch mm Inch mm
> 34 - 48 3/16(0.187) 4.8 1/32(0.031) 0.8
> 26 - 34 5/32(0.156) 4
> 18 - 26 1/8(0.125) 3.2
> 8 - 18 3/32(0.093) 2.4
> 4 - 8 1/16(0.062) 1.6
1/8 - 1 1 /2 1/64(0.015) 0.4
> 1 1 /2 - 4 1/32(0.031) 0.8

Physical Properties of 317L Stainless Steel ERW Pipe

Grade Melting Point Elastic Modulus (GPa) Density (kg/m3) Electrical Resistivity (n.m) Heat 0 - 1000 C (J/kg.K)

Thermal Expansion Mean Coefficient in (m/m/0C)

 Thermal Conductivity in (W/m.K)
0 - 5380 C 0 - 3150 C 0 - 1000 C at 5000 C at 1000 C
317L 1454 °C (2650 °F) 193 GPa 8000 kg/m3 720 500 18.4 17.8 17.2 21.5 16.2

Stainless Steel 317L Pipe HS Code

Material HS code
SS 317L Pipe 73061100
