Stainless Steel 304 Pipe
| Stainless Steel 304 Pipe Highlights | |
|---|---|
| Specifications | ASTM A312 | ASME SA312 |
| Standard Size: | 1/8″to 16″ |
| Schedule | SCH 20 to XXS |
| End | Plain, Threaded, Beveled End |
| Types | Round, Square, Rectangle, Hex |
| Surface Finish | Pickled, Annealed, Mirror Finish, |
| MTC | MTC EN 10204 Type 3.1 |
| Material Group | ISO Group M |
| Elongation | 40% |
ASTM A312 TP304 Seamless Pipe Supplier in India
Stainless Steel 304 Pipe
SS 304 Seamless Pipe
Stainless Steel 304 ERW Pipe
Table of Contents
- Stainless Steel 304 Pipe Specification
- SS 304 Seamless Pipe Size Chart
- Test Certificates of 304 Stainless Steel Rectangular Pipe
- Stainless Steel 304 ERW Pipe Thickness Chart
- Stainless Steel 304 Pipe Schedule Chart
- Surface Finish of UNS S30400 Round Pipe
- Types of Stainless Steel 304 Pipe
- Stainless Steel 304 Square Pipe Pressure Rating
- Welding Electrodes of INOX 304 Electropolished Pipe
- Stainless Steel 304 Pipe Weight Chart
- Tolerance Chart of WNR 1.4301 Welded Pipe
- Applications of Stainless Steel 304 Pipe
- ASTM A312 TP304 Seamless Pipe Chemical Composition
- Heat Treatments of AISI 304 Round Pipe
- Stainless Steel 304 ERW Pipe Mechanical Properties
- Physical Properties of Stainless Steel 304 Pipe
- SS 304 Seamless Pipe Equivalent Material
- Stainless Steel 304 Pipe HSN Code
- SS 304 Seamless Pipe with 100% X-Ray Testing
- Standard Lengths of SUS 304 Welded Pipe
- Carries the Following Brands of Stainless Steel 304 Pipe in Stock.
- Ship Ex Stock 304 Stainless Steel Pipe to the Countries Below

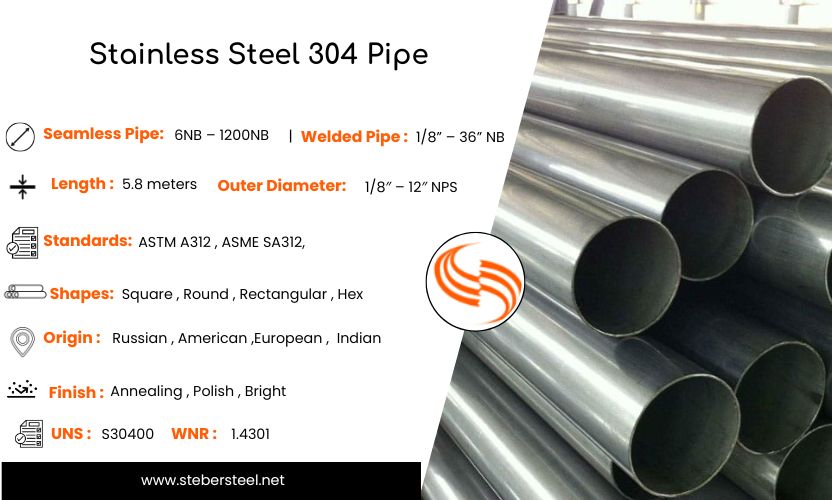

Stainless Steel 304 Pipe Specification
SS 304 Seamless Pipe Sizes
- OD: 1/8″ – 12″ NPS
- 6 – 1200 NB
- Length: Single, Double Random & Cut Length
- Wall thickness: 0.6 – 12.7 MM
ASTM A312 TP304 Welded Pipe Sizes
- 1/8” – 36” NB
- OD 6.35 – 114.3 MM
- OD 1/4” – 36”
- Length: up to 26 Meters
- WT : 0.8 – 12.7 MM
UNS S30400 Round Pipe Manufacturing Types
- Welded
- EFW
- Seamless
- ERW
WNR 1.4301 Welded Pipe Surface Finish
- 2B, 2D, No 4 and Mirror Finish
- AP (Annealed and Pickled)
- BA (Bright Annealed)
- Polished
AISI 304 Polished Pipe End Types
- Groove Ends
- Threaded End
- Plain End
- Bevelled End
304 Stainless Steel Rectangular Pipe Schedule
- Schedule 80, 60, 120
- Schedule 10 , 20 , 40
- Schedule STD , XXS
UNS S30400 Round Pipe Standards
- EN 10088-3
- EN 10216 – 5
- ASME B36.19M
- NSF 61
- EN 10217-7
- ASME B36.19
- EN 10088-2
- DIN 17456
- EN 10216 – 2
- DIN 17458
WNR 1.4301 Welded Pipe Testing
- Flaring
- Ultrasonic
- Hardness
- Mechanical
- Tensile
- Chemical
- PMI
SS 304 Schedule 10 Pipe Types
- Polish Pipe
- Seamless Pipe
- Square Pipe
- Welded Pipe
- Round Pipe
- ERW Pipe
- EFW pipe
- Rectangular Pipe
INOX 304 Electropolished Pipe Documentation
- Mill Test Certificates
- MTC EN 10204 type 3.1
- Visual Inspection
- PMI Test Reports
SUS 304 EFW Pipe Shapes
- Square
- Round
- Hex
- Rectangle
304 Stainless Steel Rectangular Pipe Origin
- American
- Janpanese
- European
- Russia
Stainless Steel 304 Structural Pipe Packaging
- Bundled
- Wooden Box
- Bubble Wraps
Stainless Steel 304 Square Pipe Fluids
- Oxygen service
- Liquids
- Corrosive fluids
- Gasses
Stainless Steel 304 Pipe Services
- Bending
- Welding
- Cutting
- Punching
Get Ex Stock of SUS 304 ERW Pipe in Mumbai
SS 304 Seamless Pipe Size Chart
Supplier of Stainless Steel 304 Pipes in India Offer a Range of Sizes.
| AISI 304 Welded Pipe Outside Daimeter in (MM) |
Inches. | Schedule | Pipe Wall Thickness in (MM) |
Kg/m |
|---|---|---|---|---|
| 219.08 | 8 | 80S | 12.7 | 65.63 |
| 168.28 | 6 | 80S | 10.97 | 43.21 |
| 141.30 | 5 | 80S | 9.53 | 31.44 |
| 114.30 | 4 | 160 | 13.492) | 34.05 |
| 101.60 | 3½ | 40S | 5.74 | 13.78 |
| 88.90 | 3 | 40S | 5.49 | 11.47 |
| 73.03 | 2½ | 80S | 7.01 | 11.59 |
| 60.33 | 2 | 40S | 3.91 | 5.52 |
| 48.26 | 1½ | 40S | 3.68 | 4.11 |
| 42.16 | 1¼ | 160 | 6.352) | 5.69 |
| 33.40 | 1 | 40S | 3.38 | 2.54 |
| 26.67 | 3/4 | 10S | 2.11 | 1.30 |
| 21.34 | 1/2 | 10S | 2.11 | 1.02 |
| 17.15 | 3/8 | 40S | 2.31 | 0.86 |
| 13.72 | 1/4 | 10S | 1.65 | 0.50 |
Check UNS S30400 Welded Pipe MTC Test Certificate as Per ASME SA312
Test Certificates of 304 Stainless Steel Rectangular Pipe
- Manufacturer Test Certificate
- From Govt. Approved Lab. Laboratory Test Certificate
- Third Party Inspection
- (Form III-D) IBR Test Certificate
Refer Thickness and Schedule Chart of WNR 1.4301 Rectangular Pipe
Stainless Steel 304 ERW Pipe Thickness Chart
| NPS (Nominal Pipe Size) | WT (SCH 10) | OD (Outside Diameter) |
|---|---|---|
| 24" | 0.218" (5.54 MM) | 24.000" (609.60 MM) |
| 20" | 0.218" (5.54 MM) | 20.000" (508.00 MM) |
| 18" | 0.188" (4.78 MM) | 18.000" (457.20 MM) |
| 16" | 0.188" (4.78 MM) | 16.000" (406.40 MM) |
| 14" | 0.188" (4.78 MM) | 14.000" (355.60 MM) |
| 12" | 0.180" (4.57 MM) | 12.750" (323.85 MM) |
| 10" | 0.165" (4.19 MM) | 10.750" (273.05 MM) |
| 8" | 0.148" (3.76 MM) | 8.625" (219.08 MM) |
| 6" | 0.134" (3.40 MM) | 6.625" (168.28 MM) |
| 5" | 0.134" (3.40 MM) | 5.563" (141.30 MM) |
| 4" | 0.120" (3.05 MM) | 4.500" (114.30 MM) |
| 3/8" | 0.065" (1.65 MM) | 0.675" (17.15 MM) |
| 3-1/2" | 0.120" (3.05 MM) | 4.000" (101.60 MM) |
| 3/4" | 0.083" (2.11 MM) | 1.050" (26.67 MM) |
| 3" | 0.120" (3.05 MM) | 3.500" (88.90 MM) |
| 2" | 0.109" (2.77 MM) | 2.375" (60.33 MM) |
| 1-1/4" | 0.109" (2.77 MM) | 1.660" (42.16 MM) |
| 1-1/2" | 0.109" (2.77 MM) | 1.900" (48.26 MM) |
| 1" | 0.109" (2.77 MM) | 1.315" (33.40 MM) |
| 1/8" | 0.049" (1.24 MM) | 0.405" (10.29 MM) |
| 1/4" | 0.065" (1.65 MM) | 0.540" (13.72 MM) |
| 1/2" | 0.083" (2.11 MM) | 0.840" (21.34 MM) |
Stainless Steel 304 Pipe Schedule Chart
| Nominal Bore | (OD) Outside Diameter | SCH-XXS | SCH-160S | SCH-80S | SCH-40S | SCH-10S | SCH-5S | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (INCHES) | (MM) | (MM) | Weight (MM) | Weight (Kg/mt) | Weight (Kg/mt) | Weight (MM) | Weight (MM) | Weight (Kg/mt) | Weight (MM) | Weight (Kg/mt) | Weight (MM) | Weight (Kg/mt) | Weight (MM) | Weight (Kg/mt) |
| 24 | 600 | 609.6 | – | – | 808.22 | 59.54 | 30.96 | 442.08 | 17.48 | 255.41 | 6.35 | 94.45 | 5.54 | 82.47 |
| 20 | 500 | 508.0 | – | – | 564.68 | 49.99 | 26.19 | 311.2 | 15.09 | 183.42 | 5.54 | 68.71 | 4.78 | 59.25 |
| 18 | 450 | 457.2 | – | – | 466.40 | 45.71 | 23.8 | 254.36 | 14.27 | 155.80 | 4.78 | 53.42 | 4.19 | 46.80 |
| 16 | 400 | 406.4 | – | – | 365.11 | 40.46 | 21.41 | 203.33 | 12.7 | 123.30 | 4.78 | 47.29 | 4.19 | 41.56 |
| 14 | 350 | 355.6 | – | – | 281.70 | 35.71 | 19.05 | 158.08 | 11.13 | 94.59 | 4.78 | 41.3 | 3.96 | 34.36 |
| 12 | 300 | 323.9 | 25.40 | 186.97 | 238.76 | 33.32 | 12.7 | 132.0 | 9.52 | 73.88 | 4.57 | 36.00 | 3.96 | 31.25 |
| 10 | 250 | 273.1 | 25.40 | 155.15 | 172.4 | 28.6 | 12.7 | 96.0 | 9.27 | 60.5 | 4.19 | 27.78 | 3.40 | 22.63 |
| 8 | 200 | 219.1 | 22.23 | 107.8 | 111.2 | 23.0 | 12.7 | 64.6 | 8.18 | 42.6 | 3.76 | 19.96 | 2.77 | 14.79 |
| 6 | 150 | 168.3 | 21.95 | 79.22 | 67.56 | 18.2 | 10.97 | 42.7 | 7.11 | 28.3 | 3.40 | 13.84 | 2.77 | 11.32 |
| 5 | 125 | 141.3 | 19.05 | 57.43 | 49.11 | 15.88 | 9.53 | 31.97 | 6.55 | 21.8 | 3.40 | 11.57 | 2.77 | 9.47 |
| 4 | 100 | 114.3 | 17.12 | 41.03 | 33.54 | 13.49 | 8.56 | 22.3 | 6.02 | 16.07 | 3.05 | 8.36 | 2.11 | 5.84 |
| 3 | 80 | 88.9 | 15.24 | 27.65 | 21.3 | 11.1 | 7.62 | 15.2 | 5.49 | 11.30 | 3.05 | 6.45 | 2.11 | 4.51 |
| 2 1/2 | 65 | 73.0 | 14.2 | 20.39 | 14.9 | 9.53 | 7.01 | 11.4 | 5.16 | 8.63 | 3.05 | 5.26 | 2.11 | 3.69 |
| 2 | 50 | 60.3 | 11.07 | 13.44 | 11.1 | 8.74 | 5.54 | 7.48 | 3.91 | 5.44 | 2.77 | 3.93 | 1.65 | 2.40 |
| 1 1/2 | 40 | 48.3 | 10.16 | 9.54 | 7.25 | 7.14 | 5.08 | 5.41 | 3.68 | 4.05 | 2.77 | 3.11 | 1.65 | 1.91 |
| 1 | 25 | 33.4 | 9.09 | 5.45 | 4.24 | 6.35 | 4.55 | 3.24 | 3.38 | 2.50 | 2.77 | 2.09 | 1.65 | 1.30 |
| 3/4 | 20 | 26.7 | 7.82 | 3.63 | 2.89 | 5.54 | 3.91 | 2.20 | 2.87 | 1.68 | 2.11 | 1.28 | 1.65 | 1.03 |
| 1/2 | 15 | 21.3 | 7.47 | 2.55 | 1.94 | 4.75 | 3.75 | 1.62 | 2.77 | 1.27 | 2.11 | 1.00 | 1.65 | 0.800 |
| 3/8 | 10 | 17.1 | – | – | – | – | 3.20 | 1.10 | 2.31 | 0.845 | 1.65 | 0.63 | 1.24 | 0.490 |
| 1/4 | 6 | 13.7 | – | – | – | – | 3.02 | 0.80 | 2.24 | 0.631 | 1.65 | 0.49 | 1.24 | 0.390 |
| 1/8 | 3 | 10.3 | – | – | – | – | 2.41 | 0.47 | 1.73 | 0.37 | 1.24 | 0.28 | 1.24 | 0.276 |
Stockist of AISI 304 Round Pipe Offers Polish and Annealed Finish
Surface Finish of UNS S30400 Round Pipe
| Surface Finish | Exterbal Surface in (OD) | Internal Surface in (ID) | |||
| RA (Roughness Average) | RA (Roughness Average) | ||||
| μm | μ INCH | μm | μ INCH | ||
| Electro Polish | (EP) | 0.8 | 32 | 0.38,0.25,0.20;0.13 | 15,10,7,5 |
| Annealed & Pickled | (AP) | 1.0 or Not Defined | 40 or Not Defined | Not Defined | Not Defined |
| Mechanical Polish | (MP) | 0.8 | 32 | 1.0,0.8,0.6,0.5 | 40,32,25,20 |
| Beight Annealed | (BA) | 0.8 | 32 | 1.0,0.8,0.6,0.5 | 40,32,25,20 |
Types of Stainless Steel 304 Pipe
There Are Several Types and Ends of Stainless Steel 304 Pipe Available From Indian Supplier.
WNR 1.4301 Welded Pipe
Stainless Steel 304 Square Pipe
UNS S30400 Round Pipe
SUS 304 EFW Pipe
304 Stainless Steel Rectangular Pipe
AISI 304 Polished Pipe
INOX 304 Electropolished Pipe
Stainless Steel 304 Structural Pipe
SS 304 Schedule 10 Pipe
Stainless Steel 304 Square Pipe Pressure Rating
| Pipe Sizes in (INCHES) |
Wall Thickness in (INCHES) |
Outside Dai in (INCHES) |
Pipe SCH | Pressure Rating in (psig) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Temp in (oF) | ||||||||||||
| 750 | 700 | 650 | 600 | 500 | 400 | 300 | 200 | 100 | ||||
| Allowable Stress in (psi) | ||||||||||||
| 12600 | 12900 | 13200 | 13500 | 14400 | 15500 | 16700 | 16700 | 16700 | ||||
| 10" | 1.125 | 10.750 | 160 | 1727 | 1768 | 1809 | 1850 | 1974 | 2124 | 2289 | 2289 | 2289 |
| 0.594 | 10.750 | 80 | 874 | 895 | 916 | 937 | 999 | 1075 | 1159 | 1159 | 1159 | |
| 0.365 | 10.750 | 40 | 528 | 540 | 553 | 565 | 603 | 649 | 699 | 699 | 699 | |
| 8" | 0.906 | 8.625 | 160 | 1734 | 1775 | 1817 | 1858 | 1982 | 2133 | 2298 | 2298 | 2298 |
| 0.500 | 8.625 | 80 | 919 | 941 | 963 | 985 | 1050 | 1131 | 1218 | 1218 | 1218 | |
| 0.322 | 8.625 | 40 | 582 | 596 | 610 | 623 | 665 | 716 | 771 | 771 | 771 | |
| 6" | 0.719 | 6.625 | 160 | 1797 | 1840 | 1883 | 1925 | 2054 | 2211 | 2382 | 2382 | 2382 |
| 0.432 | 6.625 | 80 | 1040 | 1065 | 1090 | 1115 | 1189 | 1280 | 1379 | 1379 | 1379 | |
| 0.280 | 6.625 | 40 | 661 | 677 | 693 | 709 | 756 | 814 | 877 | 877 | 877 | |
| 5" | 0.625 | 5.563 | 160 | 1866 | 1911 | 1955 | 2000 | 2133 | 2296 | 2474 | 2474 | 2474 |
| 0.375 | 5.563 | 80 | 1077 | 1103 | 1129 | 1154 | 1231 | 1325 | 1428 | 1428 | 1428 | |
| 0.258 | 5.563 | 40 | 728 | 746 | 763 | 780 | 832 | 896 | 965 | 965 | 965 | |
| 4" | 0.531 | 4.500 | 160 | 1970 | 2017 | 2064 | 2111 | 2552 | 2424 | 2611 | 2611 | 2611 |
| 0.337 | 4.500 | 80 | 1204 | 1233 | 1262 | 1291 | 1377 | 1482 | 1596 | 1596 | 1596 | |
| 0.237 | 4.500 | 40 | 831 | 851 | 871 | 891 | 950 | 1023 | 1102 | 1102 | 1102 | |
| 3" | 0.438 | 3.500 | 160 | 2103 | 2153 | 2203 | 2253 | 2403 | 2587 | 2787 | 2787 | 2787 |
| 0.300 | 3.500 | 80 | 1391 | 1425 | 1458 | 1491 | 1590 | 1712 | 1844 | 1844 | 1844 | |
| 0.216 | 3.500 | 40 | 982 | 1005 | 1028 | 1052 | 1122 | 1208 | 1301 | 1301 | 1301 | |
| 2" | 0.344 | 2.375 | 160 | 2477 | 2536 | 2595 | 2654 | 2831 | 3047 | 3283 | 3283 | 3283 |
| 0.218 | 2.375 | 80 | 1498 | 1534 | 1569 | 1605 | 1712 | 1843 | 1985 | 1985 | 1985 | |
| 0.154 | 2.375 | 40 | 1034 | 1059 | 1083 | 1108 | 1182 | 1272 | 1371 | 1371 | 1371 | |
| 1 1/2" | 0.281 | 1.900 | 160 | 2536 | 2597 | 2657 | 2717 | 2899 | 3120 | 3362 | 3362 | 3362 |
| 0.200 | 1.900 | 80 | 1738 | 1779 | 1821 | 1862 | 1986 | 2138 | 2303 | 2303 | 2303 | |
| 0.145 | 1.900 | 40 | 1229 | 1258 | 1287 | 1317 | 1404 | 1512 | 1629 | 1629 | 1629 | |
| 1" | 0.250 | 1.315 | 160 | 3390 | 3471 | 3552 | 3632 | 3874 | 4170 | 4493 | 4493 | 4493 |
| 0.179 | 1.315 | 80 | 2310 | 2365 | 2420 | 2475 | 2640 | 2841 | 3061 | 3061 | 3061 | |
| 0.133 | 1.315 | 40 | 1664 | 1703 | 1743 | 1783 | 1902 | 2047 | 2205 | 2205 | 2205 | |
Welding Electrodes of INOX 304 Electropolished Pipe
| Material | Gr. of stick welding electrode |
|---|---|
| Welding of SUS 304 Pipe | E308 |
Stainless Steel 304 Pipe Weight Chart
| Designation of Dia | O/D | Nominal WT (Wall Thickness) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIA | SCH.XXS | SCH.160 | SCH. 140 | SCH 120 | SCH 100 | SCH 80 S | SCH 80 | |||||||||
| (A) | (B) | Meter in (MM) | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick | Weight in (Kg/Mtr) | Wall Thick |
| 550 | 22 | 558.8 | – | – | 682.57 | 53.97 | 609.3 | 47.62 | 535.17 | 41.27 | 457.83 | 34.92 | 173.66 | 12.7 | 379.7 | 28.57 |
| 500 | 2C | 508 | – | – | 573.31 | 49.99 | 515.94 | 44.45 | 448.3 | 38.1 | 387.41 | 32.54 | 157.51 | 12.7 | 315.97 | 26.19 |
| 450 | 18 | 457.2 | – | – | 466.67 | 45.24 | 414.74 | 39.67 | 369.34 | 34.93 | 314.54 | 29.36 | 141.35 | 12.7 | 258.29 | 23.8 |
| 400 | 16 | 406.4 | – | – | 370.74 | 40.46 | 338.32 | 36.53 | 290.88 | 30.94 | 249.34 | 26.19 | 125.2 | 12.7 | 206.4 | 21.41 |
| 350 | 14 | 355.6 | – | – | 286.04 | 35.71 | 257.47 | 31.75 | 227.88 | 27.76 | 197.74 | 23.8 | 109.04 | 12.7 | 160.54 | 19.05 |
| 300 | 12 | 323.9 | 189.82 | 25.4 | 242.4 | 33.32 | 211.31 | 28.58 | 189.82 | 25.4 | 162.14 | 21.41 | 98.95 | 12.7 | 133.88 | 17.45 |
| 250 | 10 | 273.1 | 155.5 | 25.4 | 174.95 | 28.58 | 157.51 | 25.4 | 134.9 | 21.41 | 116.38 | 18.24 | 82.8 | 12.7 | 97.27 | 15.06 |
| 200 | 8 | 219.1 | 108 | 22.23 | 112.97 | 23.01 | 102.47 | 20.62 | 91.73 | 18.24 | 76.93 | 15.06 | 65.63 | 12.7 | – | – |
| 150 | 6 | 168.3 | 79.1 | 21.95 | 68.53 | 18.24 | – | – | 55.03 | 14.27 | – | – | 43.21 | 10.97 | – | – |
| 125 | 5 | 141.3 | 58.31 | 19.05 | 49.87 | 15.88 | – | – | 40.9 | 12.7 | – | – | 31.44 | 9.53 | – | – |
| 100 | 4 | 114.3 | 41.66 | 17.12 | 34.05 | 13.49 | – | – | 28.75 | 11.13 | – | – | 22.66 | 8.56 | – | – |
| 90 | 31/2 | 101.6 | 34.56 | 16.15 | – | – | – | – | – | – | – | – | 18.92 | 8.08 | – | – |
| 80 | 3 | 88.9 | 28.11 | 15.24 | 21.67 | 11.13 | – | – | – | – | – | – | 15.51 | 7.62 | – | – |
| 65 | 21/2 | 73 | 20.72 | 14.02 | 15.15 | 9.53 | – | – | – | – | – | – | 11.59 | 7.01 | – | – |
| 50 | 2 | 60.3 | 13.65 | 11.07 | 11.26 | 8.71 | – | – | – | – | – | – | 7.6 | 5.54 | – | – |
| 40 | 11/2 | 48.3 | 9.69 | 10.16 | 7.35 | 7.14 | – | – | – | – | – | – | 5.49 | 5.08 | – | – |
| 32 | 11/4 | 24.2 | 7.88 | 9.7 | 5.69 | 6.35 | – | – | – | – | – | – | 4.53 | 4.85 | – | – |
| 25 | 1 | 33.4 | 5.53 | 9.09 | 4.3 | 6.35 | – | – | – | – | – | – | 3.29 | 4.55 | – | – |
| 20 | 3/4 | 26.7 | 3.69 | 7.82 | 2.93 | 5.54 | – | – | – | – | – | – | 2.93 | 3.91 | – | – |
| 15 | 1/2 | 21.3 | 2.59 | 7.47 | 1.97 | 4.75 | – | – | – | – | – | – | 1.64 | 3.73 | – | – |
| 10 | 3/8 | 17.2 | – | – | – | – | – | – | – | – | – | – | 1.12 | 3.2 | – | – |
| 8 | 1/4 | 13.7 | – | – | – | – | – | – | – | – | – | – | 0.82 | 3.02 | – | – |
| 6 | 1/8 | 10.3 | – | – | – | – | – | – | – | – | – | – | 0.47 | 2.41 | – | – |
Tolerance Chart of WNR 1.4301 Welded Pipe
| 304 Stainless Pipe OD | Tolerance of ASTM A312 TP304 Pipe |
|---|---|
| 4 to 35 (MM) | +/- 0.08 (MM) |
| 35 to 38 (MM) | +/- 0.15 (MM) |
| 38 to 60 (MM) | +/- 0.20 (MM) |
| 60 & Above | +/- 0.25 (MM) |
Applications of Stainless Steel 304 Pipe
ASTM A312 TP304 Seamless Pipe Chemical Composition
| Element | SS | Silicon, (Si) | Nitrogen. (N) | Carbon, (C) | Chromium, (Cr) | Manganese, (Mn) | Nickel. (Ni) | Sulfur. (S) | Iron. (Fe) | Phosphorous. (P) |
|---|---|---|---|---|---|---|---|---|---|---|
| Content | 304 | 0.75 Max | – | 0.08 Max | 18-20 | 2 Max | 8-11 | 0.030 Max | Balance | 0.040 |
Heat Treatments of AISI 304 Round Pipe
| Gr. | Heat Treating Temprature | Cooling / Testing Requirements |
|---|---|---|
| TP 304 | 1900 °F [1040 °C] | C |
Stainless Steel 304 ERW Pipe Mechanical Properties
| Grade | Rockwell B (HR B) Max | Elongation(% in 50mm) Min | Hardness Brinell (HB) Max | Yield Strength 0.2% Proof (MPa) Min | Tensile Strength (MPa) Min |
|---|---|---|---|---|---|
| SS304 Pipe | 92 HR B | 40 % | 201 HB | 205 MPa | 515 MPa |
Physical Properties of Stainless Steel 304 Pipe
The Highest Quality Pipes With Exceptional Physical Attributes Are Offered by an Indian Manufacturer of Stainless Steel 304 Pipes
| Grade | Density in (Kg/M3) | Electrical Resistivity in (n.m) | Elastic Modulus in (G.P.a) | Specific Heat 0-1000C in (J/kg.k) | Mean Coefficient of Thermal Expansion in (m/m/0C) | Thermal Conductivity in (W/m.K) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-3150C | 0-5380C | 0-1000C | 1000C | 5000C | |||||
| Stainless Steel 304 Pipe | 8000 | 720 | 193 | 500 | 17.8 | 18.4 | 17.2 | 16.2 | 21.5 |
SS 304 Seamless Pipe Equivalent Material
| STANDARD | GOST | JIS | AFNOR | BS | UNS | EN | WERKSTOFF NR. |
|---|---|---|---|---|---|---|---|
| SS 304 | 08X18H10 | SUS 304 | Z7CN18-09 | 304S31 | S30400 | X5CrNi18-10 | 1.4301 |
Stainless Steel 304 Pipe HSN Code
| Grade | HSN Code |
|---|---|
| 304 SS Pipe | 73044900 |
SS 304 Seamless Pipe with 100% X-Ray Testing
Standard Lengths of SUS 304 Welded Pipe
| 109 | .109" Thickness |
| 083 | .083" Thickness |
| 065 | .065" Thickness |
| 049 | .049" Thickness |
| 039 | .039" Thickness |
| 035 | .035" Thickness |
| 28 | .028" Thickness |
Carries the Following Brands of Stainless Steel 304 Pipe in Stock.
Posco
Jindal
Outokumpo
Thyssenkrupp
Acronis
Nippon Steel
Ship Ex Stock 304 Stainless Steel Pipe to the Countries Below
| Country Name | Flag | Country Name | Flag |
|---|---|---|---|
| Ghana |  |
Zambia |  |
| South Africa |  |
Tunisia |  |
| Morocco |  |
Tanzania |  |
| Nigeria |  |
UAE |  |
| Ethiopia |  |
Egypt |  |
| Angola |  |
Kenya |  |
| Dubai |
|
Algeria |  |
