API 5L Line Pipe Supplier in India According To International Standard

API 5L Pipe

API 5L Pipe

API 5L Line Pipe

API 5L Line Pipe

API 5L PSL2 ERW Pipe

API 5L PSL2 ERW Pipe


Table of Contents


API 5L PSL2 ERW Pipe Specification and Size Chart

API 5L Pipe Specification

API 5L Pipe Sizes

  • Seamless Pipe: 1/2” – 26”
  • SAW: 16" - 100" NB
  • ERW : 1/2” NB – 24” NB


Sizes

API 5L Galvanized Pipe PSL Level

  • PSL1
  • PSL2


PSL Level

API 5L PSL2 ERW Pipe Thickness

  • SCH XXS
  • SCH 160
  • SCH 80
  • SCH 40
Thickness

HIC Tested API Pipe Surface Coating

  • CWC (Concrete Weight Coated)
  • 3PP Grade L360 X52 pipe
  • Black Painting
  • Natural
  • FBE API X52 pipe
  • 3PE (3LPE) X52 Grade PSL2 pipe


Surface Coating

API 5L Line Pipe Material Data

  • L360MB
  • X52 / L360 (N, M, Q, R)
  • X52M (Thermomechanical)
  • L360QB
  • X52Q (Quenched and Tempered)
  • X52N (Normalized)
  • L360GA
  • L360NB
  • X52R ( As Rolled)
Material Data

CS API 5L Seamless Pipe Welding Process

  • MAG-welding massive wire
  • TIG-welding
  • MAG-welding cored wire
  • Arc welding (E)
  • Submerged arc welding





Welding Process

API 5L PSL2 Nace Pipe Standards

  • ISO 3183 L390
  • API 5L X52
  • ASME B36.10M





Standards

PSL 1 API 5L Sour Service Pipe Origin

  • Indian
  • Russian
  • Ukraine
  • Japan
  • Japanese
  • Dubai
  • European
  • UK
  • USA
Origin

PSL 2 API 5L Pipe Line Testings

  • Charpy V Impact Test
  • Eddy current
  • (PMI)
  • IGC- Intergranular Corrosion Test
  • Hardness Test
  • Ultrasonic
  • Non Destructive Testing

Testings

API Carbon Steel Seamless Pipe Documentation

  • Specification of Pipe
  • Nominal Pipe Sizes (NPS)
  • Manufacturing Process
  • Heat Number
  • Material Grade
  • Wall Thickness or Schedule No.
Documentation

API 5L Schedule 40 Pipe End

  • POE -Plain One End
  • TOE -Treaded One End
  • BLE -Bevel large end
  • PBE -Plain Both Ends




End

API 5L High Yield Pipe Manufacturing Process

  • DSAW
  • SSAW
  • SAW
  • HFW and HSAW
  • LSAW



Manufacturing Process

HIC Tested API Epoxy Coated Pipe Certificate

  • EN 10204 3.2
  • Radiographic Testing (RT)
  • NACE MR0103
  • NACE MR0175
  • EN 10204 3.1
Material Test Certificate

Carbon Steel API 5L Pipe Value Added Services

  • Sand Blasting
  • Heat Treatment
  • Galvanizing
  • Machining
  • Bending
Value Added Services

API Spec 5L Pipe Packing

  • Steel Strips Bundled
  • Plastic Bags
  • Wooden Boxes
  • or as per Customers Requests


Packing

API 5L PSL2 ERW Pipe Size Chart

Supplier of API 5L Pipe are available in various Sizes

OD NPS Wall Thickness
STD XXS XS Sch160 Sch80 Sch40
10.3 1/8″ 1.73 2.41 2.41 1.73
17.1 3/8″ 2.31 3.2 3.20 2.31
26.7 3/4″ 2.87 7.82 3.91 5.56 3.91 2.87
42.2 1 1/4″ 3.56 9.7 4.85 6.35 4.85 3.56
60.3 2″ 3.91 11.07 5.54 8.74 5.54 3.91
88.9 3″ 5.49 15.24 7.62 11.13 7.62 5.49
114.3 4″ 6.02 17.12 8.58 13.49 8.56 6.02
168.3 6″ 7.11 21.95 10.97 18.28 10.97 7.11
273 10″ 9.27 25.4 12.7 28.58 15.09 9.27
355.6 14″ 9.53 12.7 35.71 19.05 11.13
610 24″ 9.53 12.7 59.54 30.96 17.48

API 5L Galvanized Pipe OD And Thickness Tolerance

API 5L Carbon Steel Pipe Thickness Tolerance

Wall thickness Unit Welded pipe c,d SMLS pipe b
inch ≤ 0.197 > 0.197 to < 0.591 ≥ 0.591 ≤ 0.157 >0.157 to < 0.948 ≥ 0.984
Tolerances a inch +/- 0.020 +/- 0.1 t +/- 0.060 -1.2 + 0.150 t / – 0.125 t + 0.146 / + 0.1 t – 0.120 / – 0.1 t
API 5L LSAW Pipe Schedule Chart In MM

API 5L Pipe Schedule Chart

API 5L Pipe Manufacturer in India provides Schedules from SCH 5 to SCH XXS

Outside Diameter
O.D. (in)		 NPS
(in)		 Pipe Schedule
Wall Thickness (in)
SCH 10 SCH 20 SCH 40 SCH STD SCH 60 SCH XS SCH 100 SCH 120 SCH 160 SCH XXS
.405 1/8 .068 .068 .095
.675 3/8 .091 .091 .126
.840 1/2 .109 .109 .147 .187 .294
1.315 1 .133 .133 .179 .250 .358
1.900 1 1/2 .145 .145 .200 .281 .400
2.875 2 1/2 .203 .203 .276 .375 .552
4 3 1/2 .226 .226 .318
4.500 4 .237 .237 .337 .438 .531 .674
6.625 6 .280 .280 .432 .562 .719 .864
1.750 10 .250 .365 .365 .500 .500 .719 .844 1.125 1
12.750 12 .250 .406 .375 .562 .500 .844 1 1.312 1
16 16 .250 .312 .500 .375 .656 .500 1.031 1.219 1.594
18 18 .250 .312 .562 .375 .750 .500 1.156 1.375 1.781
22 22 .250 .375 .375 .875 .500 1.375 1.625 2.125
24 24 .250 .375 .688 .375 .969 .500 1.531 1.812 2.344
32 32 .312 .500 .688 .375
36 36 .312 .500 .750 .375
42 42 .500 .750 .375
API 5L Galvanized Pipe Manufacturing Process And Pressure Rating

API 5L Galvanized Pipe Manufacturing Process

Manufacturing Process
 Electric Resistance Welding (ERW) Seamless(SMLS)
Welded Spiral Submerged Arc Welding (SSAW )
 Longitudinally Submerged Arc Welded (LSAW) Sub-merged Arc Welding(SAW )
Carbon Steel High Frequency Induction Welding (HFIW)  Double Submerged Arc Welded (DSAW)
Horizontal Submerged Arc Welded (HSAW) Hot Finished Welding (HFW)
Spiral welded

API 5L Galvanized Pipe Pressure Rating

NPS in mm 600 500 400 300 100 40 15
Schedule no. 10 80 160 10 60 100 160 10 60 160 20 40 60 100 160 40 120 40 160 40 80
Wall Thickness in mm 6.35 30.96 59.54 6.35 20.62 32.54 50.01 6.35 16.66 40.49 6.35 10.31 14.27 21.44 33.32 6.02 11.13 3.68 7.14 2.77 3.73
Temperature (oC) -67 Max. Allowable Stress (MPa) 2529 12691 25279 3038 10080 16171 25450 3810 10176 25824 4795 7854 10969 16736 26740 13187 25190 19444 39738 34416 48092
  4301   1364 6856 13649 1640 5443 8730 13766 2060 5498 13945 2591 4244 5925 9040 14441 7124 13601 10550 21483 18589 25969
  450   1102 5519 10996 1323 4382 7035 11093 1660 4430 11238 2088 3417 4768 7283 11630 5739 10995 8454 17308 14972 20918
  400   1647 8254 16433 1977 6552 10514 16577 2474 6614 16784 3114 5015 7131 10879 17383 8571 16371 12636 25858 22372 31260
  370   2129 10659 21235 2556 8468 13580 21421 3197 8550 21697 4024 6601 9212 14062 22461 11079 21159 16329 33416 28910 40396
  350   2150 10783 21489 2574 8564 13746 21675 3238 8654 21952 4072 6676 9322 14227 22730 11210 21407 16529 33816 29255 40878
  260   2391 12002 23888 2873 9522 15287 24094 3603 9618 24404 4534 7421 10363 15819 25273 12464 23805 18375 37599 32528 45466
  205   2529 12691 25279 3038 10080 16171 25450 3810 10176 25824 4795 7854 10969 16736 26740 13187 25190 19444 39738 34416 48092

API 5L Pipe Grades

Supplier of API 5L Pipe in Different Grades

API 5L GRADE B Pipe API 5L X42 Pipe
API 5L X65 Pipe API 5L X60 Pipe
API 5L X52 Pipe

API 5L LSAW Pipe Standard

Standard 46th Edition
Product specification level PSL1/ PSL2
Types welded and Seamless
Material Carbon Steel
Application Steam, oil,water, gas,petroleum plants and natural gas

HIC Tested API Pipe Mill Tolerance

Wall Thickness Out of Roundness Length Tolerance OD in inches
Length Tolerance DRL SRL OD > 12.75 OD > 1.575 and ≤ 12.75 OD ≤ 1.575
±12.5% Up to 1% of OD ±0.5 38 to 40 feet 17 to 24 ±1% of OD ±0.75% of OD ±0.5 mm

API 5L Seamless Pipe Dimensions

NB OD (inches) DN Pipes
SCH 5 SCH 10 SCH 20 SCH 30 SCH 60 SCH 80 SCH 120 SCH 160
3/4" 1.05 20 .065 .11 x .095 x x x .219
1" 1.315 25 .065 .114 .25
2" 2.375 50 .065 .12 x .344
2.1/2" 2.875 65 .083 .375
4" 4.5 100 .083 .531
5" 5.563 125 .109 .625
8" 8.625 200 .109 .15 .25 .277 .406 .593 .812 .906
12" 12.75 300 .165 .18 .25 .33 .5 .843 1.125 1.312

PSL 1 API 5L Sour Service Pipe Meaning of API Suffix Letters

Letters used with different API grades Delivery condition
NR Normalized Rolling
N Normalizing / Normalized formed or rolled
R As rolled
T Tempering
S Sour Services with level PSL2 pipe for NS, QS, MS
Q Quenching
CR controlled rolling
ACC accelerated cooling
A Annealing
M Thermomechanical rolled or formed
SR stress-relief annealing
TMCP Thermo-mechanical control process

API 5L Pipe Weight Chart

NPS OD Weight Weight
inch mm in Lb/foot kg/Mtr
48 1219 48 190.738 284.112
42 1067 42 138.911 206.914
36 914 36 95.453 142.18
30 762 30 79.433 118.318
20 508 20 52.733 78.547
18 457 18 41.588 61.948
14 356 14 27.732 41.308
12 324 12.75 25.222 37.57
10 273 10.75 21.207 31.588
8 219 8.625 16.94 25.233
6 168 6.625 12.924 19.252
4 114 4.5 10.79 16.073
2 1/2 73 2.875 5.793 8.629
2 60 2.375 3.653 5.441
1 33 1.315 1.679 2.501
3/4 27 1.05 1.131 1.684
1/2 21 0.84 0.851 1.268

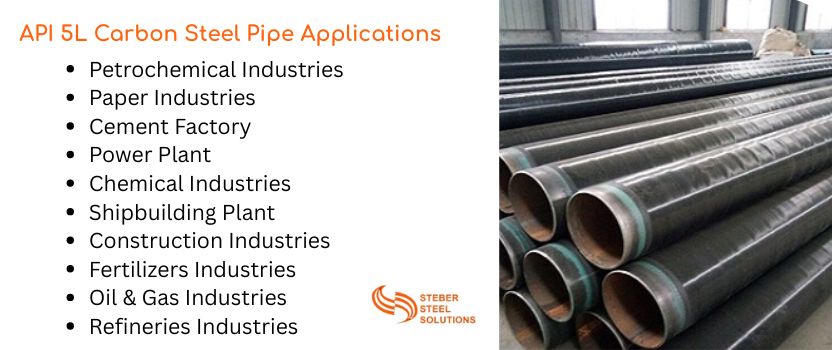

API 5L Carbon Steel Pipe Applications

API 5L Carbon Steel Pipe Applications

API 5L PSL1

Product Specification Level (PSL)
Test Types API 5L PSL 1 (Offshore/ Onshore sour services)
Charpy Testing Not required
Certification In case of SR15
PSL2/ PSL1 Seamless NDT In case of SR4
Hydrostatic for 3LPE Coated material Mendentery
Traceability Traceable only until all tests for material are passed, unless SR15 is specified

API 5L PSL2


PSL/ Product Specification Level
Test Types PSL 2 (Offshore/ Onshore sour services)
PSL2/ PSL1 material Certification required (SR 15.1)
NDT for Seamless Pipe SR4 required
Charpy Test Mendentery for 3LPE Coated Pipe and other grades
Traceability Traceable after completion of tests (SR 15.2) mandatory
Carbon Steel Pipeline Hydrostatic Mendentery

Various Types Of API 5L Pipe

Supplier of API 5L Pipe in India offers Forms in various Sizes at Factory Price in Mumbai

API 5L Seamless Line Pipe

API 5L Seamless Line Pipe

API 5L PSL1 Spiral Welded Pipe

API 5L PSL1 Spiral Welded Pipe

Carbon Steel API 5L Sour Service Pipe

Carbon Steel API 5L Sour Service Pipe

API 5L Epoxy Coated Pipe

API 5L Epoxy Coated Pipe

API Carbon Steel Seamless Pipe

API Carbon Steel Seamless Pipe

PSL 2 API 5L LSAW Pipe

PSL 2 API 5L LSAW Pipe

3LPE Coated API 5L DSAW Pipe

3LPE Coated API 5L DSAW Pipe

CS API 5L HIC Pipeline

CS API 5L HIC Pipeline

PSL 1 API 5L Nace Pipe

PSL 1 API 5L Nace Pipe

API Welded Pipe

API Welded Pipe

API 5L Schedule 40 Pipe

API 5L Schedule 40 Pipe

3LPE Coated API 5L DSAW Pipe Allowable Stress

Grade B X70 X65 PSL2 X60 X52 X42
Yield Strength Min MPa 241 483 448 414 358 290
Allowable Stress MPa 120.5 to 173 242 to 348 224 to 323 207 to 298 179 to 258 145 to 209

API 5L Spiral Pipe Impact Test

IMPACT TEST
IND. ABSORBED ENERGY AVG ABSORBED ENERGY
MIN (JOULES) MIN (JOULES)
20 27

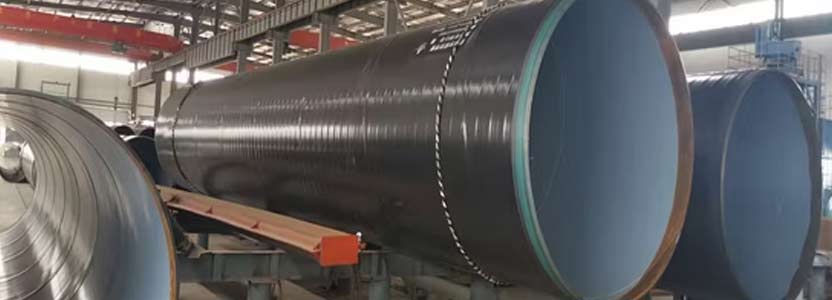

Spiral Welded API Carbon Steel Pipe Welding

Spiral Welded API Carbon Steel Pipe Welding
  • Tungsten inert gas (TIG) welding
  • (SAW) MAG-welding cored/ massive wire
  • Submerged arc welding
  • Arc welding (E)

API 5L CS Spiral Welded Pipe Temperature Range

Normal Opeating Temperature up to 121°C up to 250°F
High-Temperature up to 204°C up to 400°F

API 5L High Yield Pipe Coatings

Fusion Bonded Epoxy Coating (FBE Coating) 3LPE Coating
Phenolic Epoxy Coating Api 5l Dsaw Pipe Coating
Food Grade Epoxy Coatings PTFE Coating
Halar Coatings Any Liquid Epoxy Coating
Elastomeric Polyurethane Coating Internal & External Coating

Distributors and Dealers of API 5L Pipe Brands

Arcelormittal

Arcelormittal

JFE

JFE

Jindal

Jindal

TATA Steel

TATA Steel

ISMT Limited

ISMT Limited

Maharashtra Seamless Limited

Maharashtra Seamless Limited

HIC Tested API Pipe HSN Code

HSN Code Grade
73061929 API 5l Pipe

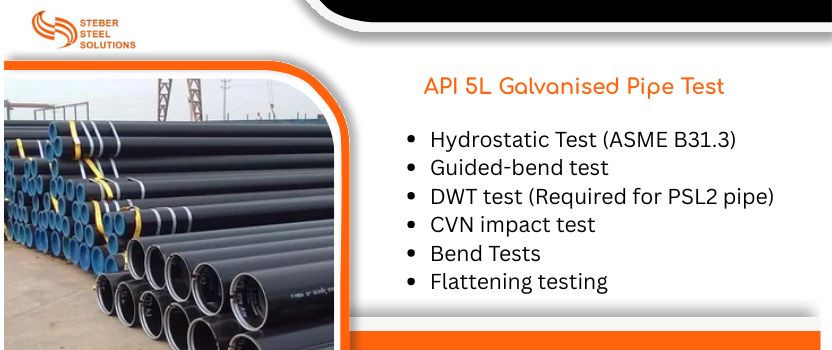

Which Tests are offered by API 5L Galvanised Pipe?

API 5L Galvanised Pipe Test

Mechanical Properties of API 5L Schedule 40 PSL1 Pipe

PSL2 Pipe

Grade Yield Strength(Min.) Tensile Strength(Min.)
Ksi MPa MPa Ksi
B 35 241 414 60
X65 65 448 455 66
X60 60 414 434 63
X56 56 386 414 60
X52 52 359 455 66
X46 46 317 434 63
X42 42 290 414 60

Mechanical Properties of PSL2 Pipe

Grade Tensile Strength Yield Strength
Min Max Min Max
Ksi MPa Ksi MPa Ksi MPa Ksi MPa
B 60 414 110 758 35 241 65 448
X65 77 531 110 758 65 448 87 600
X60 75 517 110 758 60 414 82 565
X56 71 490 110 758 56 386 79 544
X52 66 455 110 758 52 359 77 531
X46 63 434 110 758 46 317 76 524
X42 60 414 110 758 42 290 72 496

Carbon Steel API 5L Pipe Chemical Composition PSL1

PSL1

GRADE
Chemical Composition
P (Max) Mn (Max) C (Max) S (Max)
A25 CL     I 0.030 0.60 0.21 0.030
CL   II 0.030 0.60 0.21 0.030
A 0.030 0.90 0.22 0.030
B 0.030 1.20 0.28 0.030
X70 0.030 1.65 0.28 0.030
X65 0.030 1.45 0.28 0.030
X60 0.030 1.40 0.28 0.030
X56 0.030 1.40 0.28 0.030
X52 0.030 1.40 0.28 0.030
X46 0.030 1.40 0.28 0.030
X42 0.030 1.30 0.28 0.030

Chemical Composition PSL2

GRADE Chemical Composition
Mn
(Max)		 C
(Max)		 S
(Max)		 P
(Max)
B 1.20 0.22 0.015 0.025
X80 1.90 0.22 0.015 0.025
X70 1.65 0.22 0.015 0.025
X65 1.45 0.22 0.015 0.025
X60 1.40 0.22 0.015 0.025
X56 1.40 0.22 0.015 0.025
X52 1.40 0.22 0.015 0.025
X46 1.40 0.22 0.015 0.025
X42 1.30 0.22 0.015 0.025

Supply Ex Stock of API 5L Pipe to various Countries

Country Name Flag Country Name Flag
Ghana Ghana Zambia Zambia
South Africa South Africa Tunisia Tunisia
Morocco Morocco Tanzania Tanzania
Nigeria Nigeria Algeria Algeria
Ethiopia Ethiopia Egypt Egypt
Angola Angola Kenya Kenya
