API 5L Grade B Pipe, Get L245 Seamless Pipe Up To 60 Inch Price List

API 5L Grade B Material Highlights
Specification Level	API 5L Grade B PSL1, PSL2
Size:	NPS 1/2″ to 60″ Daimeter
Length	20 FT, 40 FT, DRL, SRL
Standards	10208-2, EN 10208-2, API Spec.5L
Manufacturing Types	Seamless, ERW, LSAW, DSAW, HSAW
Dimensional Standard	ASME B36.10M
Equivalent	Grade A-L210
Equivalent	Grade B-L245
Wall Thickness	SCH 20 to SCH 160
Melting Point	1420-1520 °C
MTC	EN 10204 3.1 & 3.2

ISO 3183 L245 Seamless Pipe Supplier In India Provide Best Price

API 5L Grade B Pipe

ISO 3183 L245 Seamless Pipe

API 5L Grade B Schedule 40 ERW Pipe

Table of Contents

API 5L Grade B Pipe Specification
API 5L Grade B Pipe Schedule Chart
Thickness Chart of API 5L Grade B Seamless Pipe
API 5L Grade B Pipe Weight Chart
ISO 3183 L245 Seamless Pipe Coating
Inspection Document List of API 5L Grade B ERW Pipe
API 5L Gr B PSL1 LSAW Pipe Pressure Rating
Types of CS API 5L Gr B Line Pipe
API 5L Grade B Pipe Sizes
Yield & Tensile Strength of API5LB Carbon Steel Seamless Pipe
API 5L Grade B PSL2 High Yield Pipe Delivery Conditions
Applications of API 5L Grade B Pipe
ISO 3183 L245 Seamless Pipe Chemical Composition
Mechanical Properties of API 5L Grade B Welded Pipe
API 5L Gr B Nace Pipe Equivalent Material
Dimensional Tolerance of API 5L Gr B PSL2 DSAW Pipe

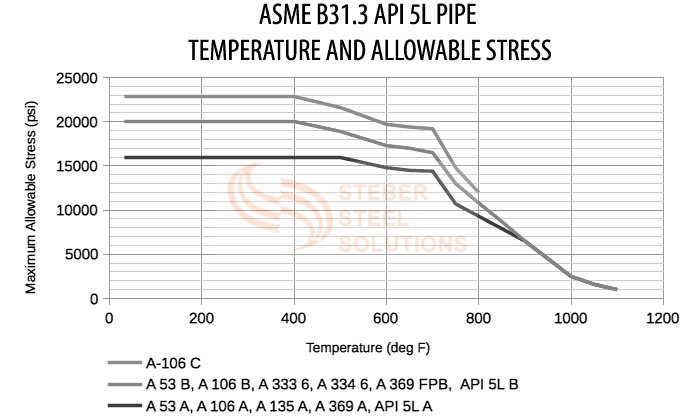

API 5L Grade B Seamless Pipe Temperature Range
API 5L Grade B Pipe Dimensions
API 5L Grade B Material Hardness
Welding Process of API 5L Grade B ERW Pipe
API 5L Grade B Carbon Steel Pipe Roughness
API 5L Gr B Pipe HSN Code
The Following Brands of API 5L Grade B Pipe Ex-stock Are Available
Deliver API 5L Gr B Pipe Ex Stock to the Following Countries

API 5L Grade B Schedule 40 ERW Pipe Specifications

API 5L Grade B Pipe Specification

API 5L Gr B Pipe Sizes

Seamless Pipe: 21.3 - 660MM (Inch 1/2” – 26”)
SAW: 16" - 100" NB
ERW : 1/2” NB – 24” NB

API 5L Grade B Material PSL Level

API 5L Gr B PSL1
API 5L Gr B PSL2

API 5L Gr B PSL2 Sour Service Pipe Thickness

Ex-Standard (XS)
Schedule 5
SCH 10 to SCH 30
SCH 120 to SCH 160
SCH 40 SCH 80
Double Extra Strong (XSS)

API 5L Grade B PSL2 High Yield Pipe Manufacturing Methods

JCOE (for ISO 3183 LSAW pipe)
Cold finished or cold drawn
Hot rolled

API 5L Grade B Material End

TOE -Treaded One End
POE -Plain One End
PBE -Plain Both Ends
BLE -Bevel large end

ISO 3183 L245 Seamless Pipe Material Data

Grade A L210
Grade B L245 (N, M, Q, R)

API 5L Grade B Welded Pipe Surface Coating

CWC (Concrete Weight Coated)
FBE CS API 5L Gr B pipe
Natural
3PP ISO 3183 pipe
Black Painting
3PE (3LPE) L245 Grade B pipe
Bitumen

API 5L Gr B PSL2 DSAW Pipe Welding Process

Submerged arc welding (SAW)
TIG-welding
MAG-welding cored wire
MAG-welding massive wire
Arc welding (E)

ISO 3183 HSAW Pipe Uses & Applications

Petroleum Industry
H2S Corrosive Environment
Oil & Gas Line Pipe Industries
Natural Gas
CS API 5L Gr B Line Pipe

API 5L Gr B PSL1 LSAW Pipe Material Test Certificate

NACE MR0175
EN 10204 3.2
NACE MR0103
NACE MR0175
Radiographic Testing (RT)

API 5L Grade B Welded Pipe Value Added Services

Galvanizing
Bending
Sand Blasting
Heat Treatment
Machining

API 5L Grade B Schedule 40 ERW Pipe Packing

Wooden Boxes
Steel Strips Bundled
Plastic Bags
or as per Customers Requests

API 5L Grb HIC Pipeline Origin

Japan
Indian
Dubai
Japanese
European
Ukraine
Russian
USA
UK

API 5L Gr B PSL1 LSAW Pipe Testings

Charpy V Impact Test
Non Destructive Testing
Ultrasonic
Hardness Test
Eddy current
IGC- Intergranular Corrosion Test
(PMI)

API 5L Grade B Pipe Standards

ISO 3183 L245
API 5L Grade B
ASME B36.10M

Manufacturer of Carbon Steel API 5L Gr B Galvanized Pipe in Mumbai, View Schedule Chart

API 5L Grade B Pipe Schedule Chart

Nominal Pipe Size (Inches)	Outside Daimeter (Inches)	Schedule
Nominal Pipe Size (Inches)	Outside Daimeter (Inches)	SCH 160	SCH 140	SCH 120	SCH 100	SCH 80	SCH 60	SCH 40	SCH STD	SCH 30	SCH 20	SCH 10	SCH XXS
42	42.000							0.750	0.375	0.625	0.500
36	36.000							0.750	0.375	0.625	0.500	0.312
34	34.000							0.688	0.375	0.625	0.500	0.312
32	32.000							0.688	0.375	0.625	0.500	0.312
30	30.000								0.375	0.625	0.500	0.312
24	24.000	2.344	2.062	1.812	1.531	1.219	0.969	0.688	0.375	0.562	0.375	0.250
22	22.000	2.125	1.875	1.625	1.375	1.125	0.875		0.375	0.500	0.375	0.250
20	20.000	1.969	1.750	1.500	1.281	1.031	0.812	0.594	0.375	0.500	0.375	0.250
18	18.000	1.781	1.562	1.375	1.156	0.938	0.750	0.562	0.375	0.438	0.312	0.250
16	16.000	1.594	1.438	1.219	1.031	0.844	0.656	0.500	0.375	0.375	0.312	0.250
14	14.000	1.406	1.250	1.094	0.938	0.750	0.594	0.438	0.375	0.375	0.312	0.250
12	12.750	1.312	1.125	1.000	0.844	0.688	0.562	0.406	0.375	0.330	0.250		1.000
10	10.750	1.125	1.000	0.844	0.719	0.594	0.500	0.365	0.365	0.307	0.250		1.000
8	8.625	0.906	0.812	0.719	0.594	0.500	0.406	0.322	0.322	0.277	0.250		0.875
6	6.625	0.719		0.562		0.432		0.280	0.280				0.864
5	5.563	0.625		0.500		0.375		0.258	0.258				0.750
4	4.500	0.531		0.438		0.337		0.237	0.237				0.674
3 1/2	4.000					0.318		0.226	0.226
3	3.500	0.438				0.300		0.216	0.216				0.600
2 1/2	2.875	0.375				0.276		0.203	0.203				0.552
2	2.375	0.344				0.218		0.154	0.154				0.436
1 1/2	1.900	0.281				0.200		0.145	0.145				0.400
1	1.315	0.250				0.179		0.133	0.133				0.358
1/2	0.840	0.187				0.147		0.109	0.109				0.294

API 5L Gr B PSL2 Sour Service Pipe Weight Chart and Thickness

Thickness Chart of API 5L Grade B Seamless Pipe

Wall Thickness in Millimetre & (Inches)	Tolerances Millimetre & (Inches)
SMLS Pipes
≥ 25,0 (0.984)	+3,7 (0.146) & + 0,1 t Whichever is higher - 3,0 (0.120) or - 0,1 t
> 4,0 ( 0.157) to < 25,0 (0.984)	+ 0,150 - 0,125
≤ 4,0 ( 0.157)	+ 0,6 (0.024) - 0,5 (0.020)

API 5L Grade B Pipe Weight Chart

An Excellent Pipe Weight Chart is Provided by an API 5L Grade B Pipe Supplier in India

Nominal Pipe Size (NPS)	Wall Thickness		Outside Daimeter			Weight	Weight
Nominal Pipe Size (NPS)	(Millimetre)	(Inches)	(Millimetre)	(Inches)	Schedule	Lb/ft	kg/Mtr
48″	22.225	0.875				440.383	655.969
	19.050	0.750				378.473	563.750
	12.700	0.500			XHY	253.650	377.822
	11.125	0.438				222.487	331.404
	9.525	0.375	1219	48.000	STD	190.738	284.112
42″	19.050	0.750				330.413	492.163
	12.700	0.500			XHY	221.610	33.097
	9.525	0.375			STD	166.708	248.319
	7.925	0.312	1067	42.000		138.911	206.914
36″	19.050	0.750				282.353	420.576
	17.475	0.688				259.467	386.487
	15.875	0.625				236.128	351.723
	12.700	0.500			20 XHY	198.570	282.372
	11.125	0.438				166.353	247.790
	9.525	0.375			STD	142.678	215.525
	7.925	0.312			10	118.918	177.133
	7.137	0.281				107.196	159.672
	6.350	0.250	914	36.000		95.453	142.180
30″	19.050	0.750				234.293	348.988
	17.475	0.688				215.380	320.817
	15.875	0.625			30	196.078	292.066
	12.700	0.500			20 XHY	157.530	234.647
	11.125	0.438				138.286	205.983
	9.525	0.375			STD	118.648	176.731
	7.925	0.312			10	98.925	147.353
	7.137	0.281				89.189	132.851
	6.350	0.250	762	30.000		79.433	118.318
20″	17.475	0.688				141.901	211.368
	15.875	0.625				129.328	192.640
	15.088	0.594			40	123.110	183.378
	12.700	0.500			30 XHY	104.130	155.106
	11.125	0.438				91.508	136.305
	9.525	0.375			20 STD	78.598	117.075
	7.925	0.312				65.604	97.719
	7.163	0.282				59.386	88.458
	6.350	0.250	508	20.000		52.733	78.547
18″	15.875	0.625				115.978	172.754
	14.275	0.562			40	104.666	155.904
	12.700	0.500			XHY	93.450	139.198
	11.125	0.438			30	82.152	122.369
	9.525	0.375			STD	70.588	105.144
	7.925	0.312			20	58.939	87.792
	7.137	0.281				53.176	79.208
	6.350	0.250				47.393	70.593
	5.563	0.219	457	18.000		41.588	61.948
16”	12.700	0.500			40 XHY	82.770	123.289
	11.125	0.438				72.797	108.433
	9.525	0.375			30 STD	62.578	93.213
	8.738	0.344				57.519	85.677
	7.925	0.312			20	52.275	77.866
	7.137	0.281				47.174	70.268
	6.350	0.250			10	42.053	62.639
	5.563	0.219				36.910	54.980
	4.775	0.188	406	16.000		21.748	47.290
14″	15.875	0.625				89.278	132.983
	12.700	0.500			XHY	72.090	107.381
	11.125	0.438			40	63.441	94.498
	9.525	0.375			STD	54.568	81.281
	7.925	0.312				45.611	67.939
	7.137	0.281				41.172	61.327
	6.350	0.250			20	36.713	54.685
	5.563	0.219				32.233	48.012
	4.775	0.188	356	14.000		27.732	41.308
12″	14.275	0.562				73.154	108.966
	12.700	0.500				65.415	97.438
	10.312	0.406				53.525	79.727
	9.525	0.375				49.562	73.824
	7.925	0.312				41.445	61.735
	7.137	0.281				37.420	55.739
	6.350	0.250				33.375	49.713
	5.563	0.219				29.309	43.657
	4.775	0.188	324	12.750		25.222	37.570
10″	15.088	0.594			80	64.429	95.969
	12.700	0.500			60 XHY	54.735	81.530
	11.125	0.438				48.238	71.852
	9.271	0.365			40 STD	40.483	63.301
	8.738	0.344				38.231	56.946
	7.798	0.307			30	34.240	51.002
	6.350	0.250			20	28.035	41.759
	5.563	0.219				24.631	36.689
	4.775	0.188	273	10.750		21.207	31.588
8″	12.700	0.500			80 XHY	43.388	64.627
	10.312	0.406			60	35.638	53.085
	9.525	0.375				33.041	49.216
	8.179	0.322			40	28.554	42.352
	7.036	0.277			30	24.696	36.786
	6.350	0.250			20	22.361	33.308
	5.563	0.219				19.661	29.286
	5.156	0.203				18.259	27.198
	4.775	0.188	219	8.625		16.940	25.233
6″	12.700	0.500				32.708	48.719
	10.973	0.432			80 XHY	28.573	42.561
	9.525	0.375				25.031	37.285
	7.925	0.312				21.036	31.334
	7.112	0.280			40 STD	18.974	58.263
	6.350	0.250				17.021	25.354
	5.563	0.219				14.983	22.318
	5.516	0.203				13.923	20.739
	4.775	0.188	168	6.625		12.924	19.252
4″	8.560	0.337				14.983	22.318
4″	6.020	0.237	114	4.500		10.790	16.073
3″	7.620	0.300			80 STD	10.253	15.272
3″	5.486	0.216	89	3.500	40 STD	7.576	11.284
2″	3.912	0.154	60	2.375	40 STD	3.653	5.441
	5.537	0.218			80 STD	5.022	7.480
1 1/2″	5.080	0.200			80 STD	3.361	5.409
1 1/2″	3.683	0.145	48	1.900	40 STD	2.718	4.048
1″	4.547	0.179			80 STD	2.172	3.325
1″	3.378	0.133	33	1.315	40 STD	1.679	2.501
1/2″	3.734	0.147			80 STD	1.088	1.621
1/2″	2.769	0.109	21	0.840	40 STD	0.851	1.268

3LPE Coated API 5L Grade B PSL1 Carbon Steel Pipe Stockist in India With MTC

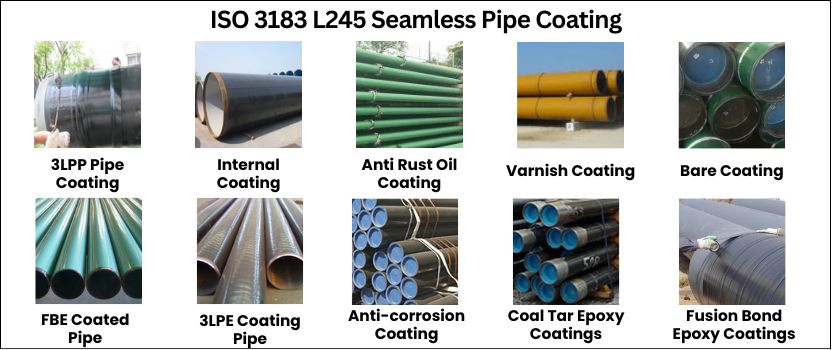

ISO 3183 L245 Seamless Pipe Coating

Inspection Document List of API 5L Grade B ERW Pipe

PSL	Conditions
PSL 1	Certificate 3.1.A Certificate 3.1.C Nondestructive Inspection Pipe Certification Certificate 3.1.B Hydrostatic Test
PSL 2	DWT Test Hydrostatic Test Inspection Certificate 3.1.A Inspection Certificate 3.1.C Inspection Certificate 3.1.B Inspection Certificate 3.2 Nondestructive Inspection Inspection Certificate 3.1

API 5L Gr B PSL1 LSAW Pipe Pressure Rating

Nominal Pipe Size in (Millimetre)	SCH No.		Wall Thickness in (Millimetre)	450	4301)	400	370	350	260	-29 – 38
Nominal Pipe Size in (Millimetre)	SCH No.		Wall Thickness in (Millimetre)	59.9	74.4	89.6	115.7	117.1	130.2	137.8
500		160	50.01	11093	13766	16577	21421	21675	24094	25450
		120	38.10	8302	10307	12409	16033	16226	18037	19085
		40	15.09	3183	3948	4754	6146	6215	6911	7317
	XS	30	12.70	2666	3314	3989	5154	5216	5801	6139
	STD	20	9.53	1991	2474	2976	3852	3893	4327	4582
		10	6.35	1323	1640	1977	2556	2574	2873	3038
400		160	40.49	11238	13945	16784	21697	21952	24404	25824
		120	30.96	8440	10480	12616	16302	16481	18341	19409
	XS	40	12.70	3349	4126	5009	6470	6545	7283	7703
	STD	30	9.53	2501	3100	3734	4830	4885	5429	5746
		20	7.92	2074	2577	3100	4004	4051	4507	4768
		10	6.35	1660	2060	2474	3197	3238	3603	3810
300		160	33.32	11630	14441	17383	22461	22730	25273	26740
	XXS	120	25.4	8702	10804	13008	16811	17011	18913	20015
		100	21.44	7283	9040	10879	14062	14227	15819	16736
		60	14.27	4768	5925	7131	9212	9322	10363	10969
	XS		12.70	4230	5250	6318	8165	8268	9191	9722
		40	10.31	3417	4244	5015	6601	6676	7421	7854
	STD		9.53	3149	3914	4706	6084	6153	6842	7241
		20	6.35	2088	2591	3114	4024	4072	4534	4795
200		160	23.01	11892	14765	17769	22964	23240	25838	27340
	XXS		22.23	11458	14221	17115	22124	22386	24877	26334
		120	18.26	9288	11527	13876	17935	18148	20174	21345
		100	15.09	7593	9426	11341	14655	14834	16488	17452
	XS	80	12.70	6338	7868	9474	12237	12388	13766	14572
		60	10.31	5105	6339	7627	9860	9977	11093	11741
	STD	40	8.18	4024	4995	6008	7765	7855	8737	9246
		20	6.35	3100	3852	4637	5994	6063	6745	7138
150	XXS	160	18.26	12319	15296	18410	23784	24074	26768	28325
		120	14.27	9460	11747	14138	18265	18448	20553	21745
	XS	80	10.97	7165	8895	10707	13842	14007	15571	16474
	STD	40	7.11	4568	5370	6828	8819	8924	9928	10550
100	XXS		17.12	17549	21786	26230	33892	34298	38129	40348
		160	13.49	13208	16750	20160	26058	26368	29310	31019
		120	11.13	10995	13601	16371	21159	21407	23805	25190
	XS	80	8.56	8289	12094	12388	16012	16198	18010	19058
	STD	40	6.02	5739	7124	8571	11079	11210	12464	13187
50	XXS		11.07	22096	27429	33017	42670	43173	48003	50793
		160	8.74	16908	20987	25266	32652	33037	36731	38866
	XS	80	5.54	10287	12774	15378	19871	20105	22351	23653
	STD	40	3.91	7124	8847	10645	13759	13925	15468	16378
25	XXS		9.09	33506	41595	50070	64704	65476	72793	77030
		160	6.35	22827	28339	34112	44082	44606	49594	52481
	XS	80	4.55	15785	19595	23584	30474	30862	34285	36283
	STD	40	3.38	11417	14173	17060	22048	22310	24804	26251
20	XXS		7.82	36152	44881	54024	69809	70643	78539	83107
		160	5.56	25293	31398	37799	48843	49429	54955	58152
	XS	80	3.91	17142	21283	25617	33106	33506	37247	39418
	STD	40	2.87	12209	15158	18245	23578	23860	26526	28070
15	XXS		7.47	42739	53053	63857	82522	83507	92836	98245
		160	4.78	27333	33929	40837	52777	53404	59378	62830
	XS	80	3.73	20918	25969	31260	40396	40878	45466	48092
	STD	40	2.77	14972	18589	22372	28910	29255	32528	34416

Types of CS API 5L Gr B Line Pipe

There Are Several Types of API 5L Grade B Pipe Supplier in India

Carbon Steel API 5L Gr B Galvanized pipe

API 5L Gr B PSL2 Sour Service Pipe

L245 Grade B SAW Pipe

API 5L Grade B Welded Pipe

CS API 5L Gr B Line Pipe

API 5L Grade B PSL2 High Yield Pipe

API 5L Grb HIC Pipeline

ISO 3183 HSAW Pipe

API 5L Gr B Nace Pipe

API 5L Gr B PSL1 LSAW Pipe

Carbon Steel API 5L Gr B Sour Service Pipe

API 5L Gr B PSL2 DSAW Pipe

API 5L Grade B Pipe Sizes

API 5L Grade B Pipe Outside Daimeter (MM)	Pipe Wall Thickness (MM)	Kg/m	Inches	Schedule
219.08	23.012)	112.97	8	160
219.08	8.18	43.20	8	40S
168.28	18.262)	68.59	6	160
168.28	7.11	28.69	6	40S
168.28	3.4	14.04	6	10S
141.30	15.882)	49.87	5	160
141.30	9.53	31.44	5	80S
114.30	8.56	22.67	4	80S
101.60	8.08	18.92	3½	80S
101.60	5.74	13.78	3½	40S
101.60	3.05	7.53	3½	10S
88.90	11.132)	21.67	3	160
88.90	5.49	11.47	3	40S
88.90	3.05	6.56	3	10S
73.03	7.01	11.59	2½	80S
73.03	5.16	8.77	2½	40S
73.03	3.05	5.35	2½	10S
60.33	8.742)	11.29	2	160
60.33	2.77	3.99	2	10S
48.26	5.08	5.49	1½	80S
48.26	2.77	3.16	1½	10S
42.16	6.352)	5.69	1¼	160
42.16	3.56	3.44	1¼	40S
42.16	2.77	2.73	1¼	10S
33.40	6.352)	4.30	1	160
33.40	4.55	3.29	1	80S
33.40	2.77	2.13	1	10S
26.67	3.91	2.23	3/4	80S
26.67	2.11	1.30	3/4	10S
21.34	3.73	1.65	1/2	80S
21.34	2.77	1.29	1/2	40S
21.34	2.11	1.02	1/2	10S
17.15	3.20	1.12	3/8	80S
17.15	1.65	0.64	3/8	10S
13.72	3.02	0.81	1/4	80S
13.72	1.65	0.50	1/4	10S

Yield & Tensile Strength of API5LB Carbon Steel Seamless Pipe

Gr.	Strength	PSL 2	PSL 1
API 5L Grade B	Tensile Strength (Max)	110,000 (Psi)	Na
	Tensile Strength (Min)	60,000 (Psi)	60,000 (Psi)
	Yield Strength (Max)	65,000 (Psi)	Na
	Yield Strength (Min)	35,000 (Psi)	35,000 (Psi)
API 5L Grade A	Tensile Strength (Min)	–	48,000 (Psi)
	Yield Strength (Max)	–	Na
	Yield Strength (Min)	–	30,000 (Psi)

API 5L Grade B PSL2 High Yield Pipe Delivery Conditions

Delivery Conditions	Suffix Letter
Annealing	A
Normalizing / Normalized Formed or Rolled	N
Normalized Rolling	NR
Tempering	T
Stress-relief Annealing	SR
Thermomechanical Rolled or Formed	M
Controlled Rolling	CR
As Rolled	R
Quenching	Q
Accelerated Cooling	ACC
Thermo-mechanical Control Process	TMCP

Applications of API 5L Grade B Pipe

ISO 3183 L245 Seamless Pipe Chemical Composition

PSL	S, (Sulfur)	C, (Carbon)	Mn, (Manganese)	P, (Phosphorus)
PSL	Max	Max	Max	Max
API 5L Gr B PSL1	0.030	0.26	1.20	0.030
API 5L Gr B PSL2	0.015	0.22	1.20	0.025

Mechanical Properties of API 5L Grade B Welded Pipe

PSL	Elongation	Yield Strength(Min.)		Tensile Strength (Min.)
PSL	Elongation	Ksi	MPa	Ksi	MPa
API 5L Gr B PSL1	E=1944 A 0.2 /U 0.9	35	241	60	414

PSL	Elongation	Tensile Strength
		Min		Max
		Ksi	MPa	Ksi	MPa
API 5L Gr B PSL 2	E=1944 A 0.2 / U 0.9	60	414	110	758

API 5L Gr B Nace Pipe Equivalent Material

Standard	WELDED	SEAMLESS	Other Standards
PSL2	EN 10217-1 P265	EN 10216-1 P265	BS 3601 430
PSL1	EN 10217-1 P265	EN 10216-1 P265	BS 3601 430

Dimensional Tolerance of API 5L Gr B PSL2 DSAW Pipe

Dimensional Tolerance
Outside Daimeter Tolerance		Tolerance of Wall Thickness
Outside Daimeter Tolerance		A, B
D>=60.3 (MM)	+0.75/-0.40 (MM)	D>=73 (MM)	+15%/-12.5%
D<60.3 (MM)	+0.41/-0.40 (MM)	D<73 (MM)	+20%/-12.5%

API 5L Grade B Seamless Pipe Temperature Range

API 5L Grade B Pipe Dimensions

An Indian Manufacturer of API 5L Grade B Pipe Offers Pipes in Multiple Dimensions

NB	Outside Daimeter (In)	DN	API 5L Gr B Material SCH
NB	Outside Daimeter (In)	DN	SCH 160	SCH 120	SCH 100	SCH 80	SCH 60	SCH 40	SCH 30	SCH 20	SCH 10	SCH 5
12"	12.75	300	1.312	1.125	1.0	0.843	0.5	0.406	0.33	0.25	0.18	0.165
10"	10.75	250	1.125	1.0	0.843	0.718	0.5	0.365	0.307	0.25	0.17	0.134
8"	8.625	200	0.906	0.812	0.718	0.593	0.406	0.322	0.277	0.25	0.15	0.109
6"	6.625	150	0.719		0.562			0.28			0.13	0.109
5"	5.563	125	0.625		0.5			0.258			0.12	0.109
4"	4.5	100	0.531		0.437			0.237			0.12	0.083
3"	3.5	80	0.438		0.35			0.216			0.12	0.083
3/4"	1.05	20	0.219		0.17			0.113	0.095		0.11	0.065
2.1/2"	2.875	65	0.375		0.3			0.203			0.12	0.083
2"	2.375	50	0.344		0.25			0.154			0.12	0.065
1.1/2"	1.9	40	0.281		0.225			0.145	0.125		0.11	0.065
1"	1.315	25	0.25		0.2			0.133	0.114		0.11	0.065

API 5L Grade B Material Hardness

Propertise	Values
Hardness	237 HB Max
Hardness	(22HRC max)

Welding Process of API 5L Grade B ERW Pipe

API 5L Grade B Carbon Steel Pipe Roughness

Conditions of API 5L Grade B Pipe	Roughness	Roughness
Conditions of API 5L Grade B Pipe	(Inches)	(Millimetre)
Lightly Corroded	00.004 - 0.016	00.1 - 0.4
Galvanized, & New	00.006	00.15
Light Scaling	00.04 - 0.06	1 - 1.5
Drawn, & New	00.0008 - 0.004	00.02 - 0.1
Severely Corroded	00.016 - 0.12	00.4 - 3
Welded, & New	00.002 - 0.004	00.05 - 0.1
Bitumed Coated	00.002	00.05
Used, & Cleaned	00.006 - 0.008	00.15 - 0.2
Heavy Scaling	00.06 - 0.16	1.5 - 4

API 5L Gr B Pipe HSN Code

Grade	HSn Code
API 5L Gr B Pipe	73061911

The Following Brands of API 5L Grade B Pipe Ex-stock Are Available

USL Universal Specialities Limited

ISMT Limited

Maharashtra Seamless Limited

Jindal

Tenaris

Baosteel

Deliver API 5L Gr B Pipe Ex Stock to the Following Countries

Country Name	Flag	Country Name	Flag
Nigeria		Algeria
Tanzania		UAE
Ethiopia		Egypt
Dubai		Morocco
South Africa		Tunisia
Angola		Kenya
Ghana		Zambia
