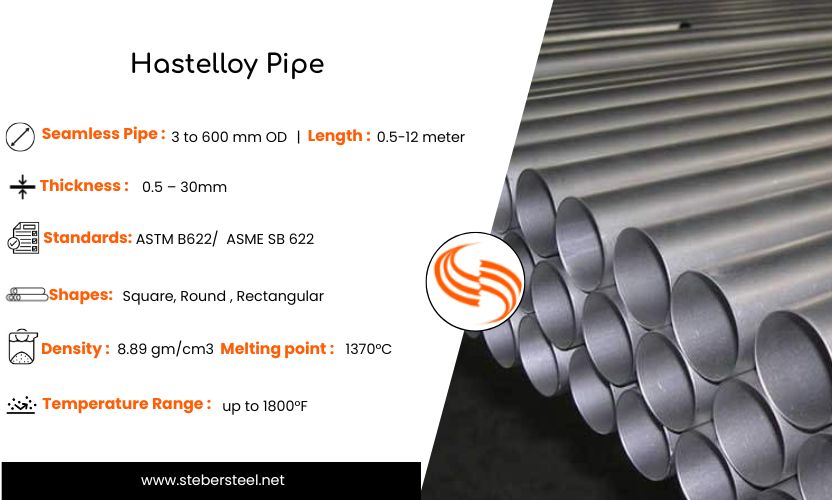

Hastelloy Pipe

Hastelloy Pipe

Hastelloy Pipe Highlights
Seamless Pipe 3 - 600mm
Length 0.5 to 12 meter
Density 8.89 gm/cm3
Grades Hastelloy c276 , C22, X, B2 , B3 Pipe
Standards ASTM B622/B619 , ASME SB 622/B619
Temperature range up to 1800°F (982°C).

ASTM B622 Seamless Pipe Supplier in India

Hastelloy Rectangular Pipe

Hastelloy Rectangular Pipe

Alloy Hastelloy C22 Bright Annealed Pipe

Alloy Hastelloy C22 Bright Annealed Pipe

Hastelloy Solution Annealed Pipe

Hastelloy Solution Annealed Pipe

Table of Contents


Hastelloy Pipe Specification

Hastelloy Seamless Pipe

  • OD: 3-600mm
  • WT: 0.5 – 30mm
  • Length : 0.5-12 meter


Size

Hastelloy Alloy Welded Pipe

  • OD : 6-200mm
  • WT : 0.35 – 6.00mm
  • Length : 0.5-12 meter

Length

Hastelloy Thick Walled Pipe

  • OD : 10 – 600 mm
  • WT :2.5 – 100 mm
  • Length:1/2 to 12 meter

Sizes

Alloy c22 Pipe Welding Method

  • Submerged arc welding
  • TIG welding
  • MIG welding
  • SMAW welding

Welding Method

Hastelloy Pipe Grades

  • Hastelloy pipe
  • Hastelloy c276 pipe
  • Hastelloy c22 pipe
  • Hastelloy x pipe
  • Hastelloy b2 pipe
  • Hastelloy b3 pipe
Grades

Hastelloy Pipe Standards

  • ASME SB 622/B619
  • ASTM B622/B619




Standards

Hastelloy C22 Alloy Round Pipe Finish

  • Custom
  • Pickling
  • Mill finish
  • Polished
  • Bright
  • Annealing



Finish

Hastelloy Alloy Pipe Types

  • Seamless pipe
  • Hot finished pipe
  • Cold drawn pipe
  • Round pipe
  • Welded pipe
  • Square pipe
  • Exhaust pipe
  • Rectangular pipe


Types

UNS N06022 Pipe Origin

  • Japanese
  • European
  • Indian
  • Taiwan
  • Thailand
  • US
  • Korea



Origin

DIN 2.4602 Round Pipe Marking

  • Material grade
  • Origin of material
  • ASTM/ ASME standard
  • Manufacturing date
  • Sizes
  • Manufacturer logo / name




Marking

Hastelloy Rectangular Pipe Services

  • Plate Leveling
  • Welding
  • Bending
  • Polish
  • Heat Treatment
  • Forming
  • Forging
  • Shearing
  • Rolling

Services

Nickel Alloy C22 Cold Finished Seamless Pipe Certification

  • 100% radiography test report
  • EN 10204/3.1B
  • Raw materials certificate
  • Certificate of origin legalized
  • Third party inspection report




Certification

Alloy Hastelloy C22 Annealed Pipe Packaging

  • PE Fabric Bundles
  • Wooden Boxes
  • Crates (steel/wooden)
  • Custom
  • Bundles (hexagonal)



Packaging

Hastelloy Metal Alloy Bright Annealed Pipe SWG

  • 20 Swg.
  • 18 Swg.
  • 16 Swg.
  • 14 Swg.
  • 12 Swg.
  • 10 Swg.

SWG

Haynes Alloy Exhaust Pipe Manufacturing Types

  • EFW
  • Seamless
  • CDW
  • Fabricated
  • Electric Resistance Welded (ERW)
  • LSAW

Manufacturing Types

Hastelloy ERW Pipe Manufacturer in Mumbai, View Schedule Chart

Hastelloy Cold Drawn Pipe Schedule Chart

Pipe Size (inches) XS Wall Thickness (inches) SCH 120 Wall Thickness (inches) SCH 80 Wall Thickness (inches) SCH 40 Wall Thickness (inches) XXS Wall Thickness (inches)
1/2" 0.147 0.188 0.147 0.109 0.294
1-1/2" 0.200 0.281 0.200 0.145 0.400
3/4" 0.154 0.219 0.154 0.113 0.308
1" 0.179 0.250 0.179 0.133 0.358
2" 0.218 0.344 0.218 0.154 0.436
4" 0.337 0.531 0.337 0.237 0.674
6" 0.432 0.562 0.432 0.280 0.864

Stockist of Hastelloy Cold Drawn Pipe Provide All Grades As Per ASTM B622 Standard

Hastelloy Seamless Pipe Grades

  • Hastelloy c22 pipe
  • Hastelloy c276 pipe
  • Hastelloy x pipe
  • Hastelloy b3 pipe
  • Hastelloy b2 pipe
Leading ISO Approved Hastelloy C22 Alloy Welded Pipe Stockist Provide 3 to 600 mm OD

Hastelloy Pipe Size Chart

Supplier of Hastelloy Pipe are available in various Custom Sizes

Hastelloy pipe OD (mm) 33.4 42.16 114.3 42.16 48.26 48.26 60.33 73.03 73.03 88.9 88.9 88.9 101.6 168.28 168.28 219.08 141.3 219.08
Pipe WT(mm) 2.77 2.77 6.02 4.85 2.77 5.08 2.77 3.05 5.16 3.05 5.49 11.132 5.74 3.4 10.97 18.23 15.882 23.012
inches 1 1¼ 4 1¼ 1½ 1½ 2 2½ 2½ 3 3 3 3½ 6 6 8 5 8
kilogram-meter 2.13 2.73 16.32 4.53 3.16 5.49 3.99 5.35 8.77 6.56 11.47 21.67 13.78 14.04 43.21 91.3 49.87 112.97
Sch 10S 10S 40S 80S 10S 80S 10S 10S 40S 10S 40S 160 40S 10S 80S 120 160 160
For Petroleum and High Pressure Boiler Application Buy Hastelloy Round Pipe At Best Price

Check The Latest Price List for Hastelloy Pipe by Clicking Here

UNS N06022 Round Pipe Applications

UNS N06022 Round Pipe Applications

EN 2.4602 Cold Drawn Pipe Testings

  • Flaring Test
  • Mechanical Testing
  • Pitting Resistance Test
  • Chemical Analysis
  • Intergranular Corrosion (IGC) Test
  • Flattening Test
  • Positive Material Identification
  • Hardness Test
  • Micro and MacroTest

Various Types Of Hastelloy Pipe

Hastelloy Pipe Supplier in India, provides a wide range of the most common types

Hastelloy C22 Alloy Welded Pipe

Hastelloy C22 Alloy Welded Pipe

UNS N06022 Cold Finished Pipe

UNS N06022 Cold Finished Pipe

DIN 2.4602 Round Pipe

DIN 2.4602 Round Pipe

Hastelloy Steel Annealed Pipe

Hastelloy Steel Annealed Pipe

Hastelloy Metal Clad Pipe

Hastelloy Metal Clad Pipe

ASTM B622 Hastelloy Exhaust Pipe

ASTM B622 Hastelloy Exhaust Pipe

Hastelloy Alloy Cold Drawn Pipe

Hastelloy Alloy Cold Drawn Pipe

Nickel C22 Hot Finished Pipe

Nickel C22 Hot Finished Pipe

Hastelloy Alloy Square Pipe

Hastelloy Alloy Square Pipe

Hastelloy Rectangular Pipe

Hastelloy Rectangular Pipe

Alloy Hastelloy C22 Bright Annealed Pipe

Alloy Hastelloy C22 Bright Annealed Pipe

Hastelloy Solution Annealed Pipe

Hastelloy Solution Annealed Pipe

Nickel Alloy C22 Pipe HSN Code

Grade HSN Code
Hastelloy pipe 73079990

ASTM B622 Hastelloy Welded Pipe Gauge Chart

U.S.G B.W.G
Gauge No. mm inch mm inch
35 .127 .005 198 127.0078 do
34 .178 .007 .218 .0086
32 .229 .009 .259 .0102
28 .356 .014 .396 .0156
26 .457 .018 .478 .0188
24 .559 .022 .635 .0250
22 .711 .028 .794 .0313
20 .889 .035 .953 .0375
19 1.067 .042 1.11 .0438
18 1.245 .049 1.27 .0500
16 1.651 .065 1.59 .0625
14 2.108 .083 1.98 .0781
12 2.769 .109 2.78 .1094
10 3.404 .134 3.57 .1406
8 4.191 .165 4.37 .1719
6 5.156 .203 5.16 .2031

Hastelloy Pipe Welding

Welding Methods
Submerged Arc Welding Tungsten Inert Gas (TIG) Welding
Shielded Metal Arc Welding Electron Beam Welding
Laser Welding Metal Inert Gas Welding

Supply Hastelloy Metal Pipe in following brand

Supplier of Hastelloy Pipe offers various Brands

Nippon Steel

Nippon Steel

Thyssenkrupp

Thyssenkrupp

Aperam

Aperam

Outokumpo

Outokumpo

Special Metals

Special Metals

Sumitomo Metals

Sumitomo Metals

Hastelloy Alloy Square Pipe Series

Hastelloy Pipe Series
G Series C Series B Series Other
Hastelloy G-3 Hastelloy C Hastelloy B Hastelloy N
Hastelloy G-35 Hastelloy C-22 Hastelloy B-3 Hastelloy W
Hastelloy G-30 Hastelloy C-4 Hastelloy B-2 Hastelloy S
- Hastelloy C-22HS - Hastelloy X
- Hastelloy C-2000 - -
- Hastelloy C-276 - -

Hastelloy Pipe Standards

Hastelloy Pipe Manufacturer in India as per ASTM B622 and ASME B36.19

  • ASTM B622/B619
  • ASME SB 622/B619
  • ASME B36.10
  • ASME B36.19

UNS N06022 Cold Finished Pipe Temperature Range

Alloy Max Temperature (°F) Max Temperature (°C)
Hastelloy 1202 to 2102 650 to 1150

Hastelloy Pipe Designs

  • Spooled sections
  • Jacketed for heat transfer
  • Dual containment designs
  • Large diameter
  • Flanges and gaskets
  • ID polishing
  • Solid wall
  • Explosive clad
  • Individual straight

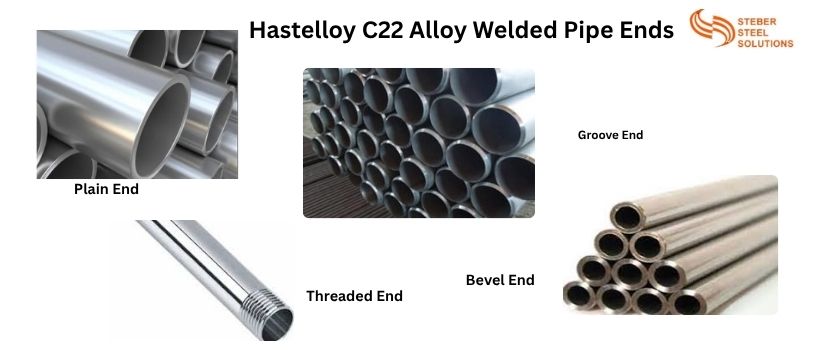

Hastelloy C22 Alloy Welded Pipe Ends

Hastelloy C22 Alloy Welded Pipe Ends

Alloy C22 Rectangular Pipe Key Features

  • High-Temperature Strength
  • Wide Range of Grades
  • Corrosion Resistance:
  • Weldability
  • Resistance to Crevice and Pitting Corrosion
  • Versatility

Hastelloy Pipe Equivalent

Standards Country C22 pipe C276 pipe Hastelloy b3 pipe B2 pipe Hastelloy x
WNR Russia 2.4602 2.4819 2.46 2.4617 2.4665
UNS North America N06022 N10276 N10675 N10665 N06002
JIS Japan NW 6022 NW 0276 – – –
GOST Russia – ХН65МВУ – – –
EN Europe NiCr21Mo14W NiMo16Cr15W – – –

Hastelloy Seamless Pipe Chemical Composition

Alloy Vanadium Chromium Tungsten Molybdenum Cobalt Copper Aluminium Niobium Carbon Iron Titanium Other% Nitrogen
B 0.30max 0.60max – 28.00max 1.25max – – – 0.10max 5.50max – Mn 0.80; Si 0.70 Bal
B2 – 1.00max – 26.0-30.0 1.00max – – – 0.02max 2.00max – Mn 1.0, Si 0.10 Bal
C 0.30max 16.00max 40.0max 17.00max 1.25max – – – 0.07max 5.75max – Mn 1.0; Si 0.70 Bal
C4 – 14.0-18.0 – 14.0-17.0 2.00max – – – 0.015max 3.00max 0.70max Mn 1.0 ; Si 0.08 Bal
C276 0.35max 14.0-16.5 3.0-4.5 15.0-17.0 2.50max – – – 0.02max 4.0-7.0 – Mn 1.0; Si 0.05 Bal
G – 21.0-23.5 1.00max 5.5-7.5 2.50max 1.5-2.5 – 1.7-2.5 0.05max 18.0-21.0 – Mn 1.0-2.0; P0.04; Si 1.0; Bal
N – 7.00max 0.20max 16.50max 0.25max 0.10max – – 0.06max 3.00max – Mn 0.40; Si 0.25; B 0.01 Bal
S 0.60max 15.50max 1.00max 14.50max 2.00max – 0.20max – 0.02max 3.00max – Mn 0.50; Si 0.40; B0.0009; La 0.02 Bal
W – 5.00max – 24.50max 1.25max – – – 0.06max 5.50max – Mn 0.050; Si 0.50 Bal
X – 22.0max 0.60max 9.00max 1.50max – – – 0.10max – 18.50max Mn 0.6; Si 0.60 Bal

Hastelloy Alloy Bright Annealed Pipe Mechanical Properties

Alloy Tensile Strength Yield Strength (0.2%Offset) Density Melting Point Elongation
Alloy C276 Psi 1,15,000 , MPa 790 Psi 52,000 , MPa 355 8.89 g/cm33 1370 °C (2500 °F) 0.4
Alloy C22 Psi 1,00,000 , MPa 690 Psi 45000 , MPa 310 8.69 g/cm3 1399 °C (2550 °F) 0.45
Alloy B3 Psi 1,15,000 , MPa -760 Psi 52,000 , MPa 350 9.2 g/cm3 1370 °C (2550 °F) 0.4
Alloy B2 Psi 1,15,000 , MPa -760 Psi 52,000 , MPa 350 9.2 g/cm3 1370 °C (2550 °F) 0.4
Alloy X 655 MPa 240 MPa 8.22 g/cm³ 1355°C 0.35
Alloy C4 783 365 8.64 g/cm3 1350-1400 °C 0.55
