Stainless Steel 316L Fittings

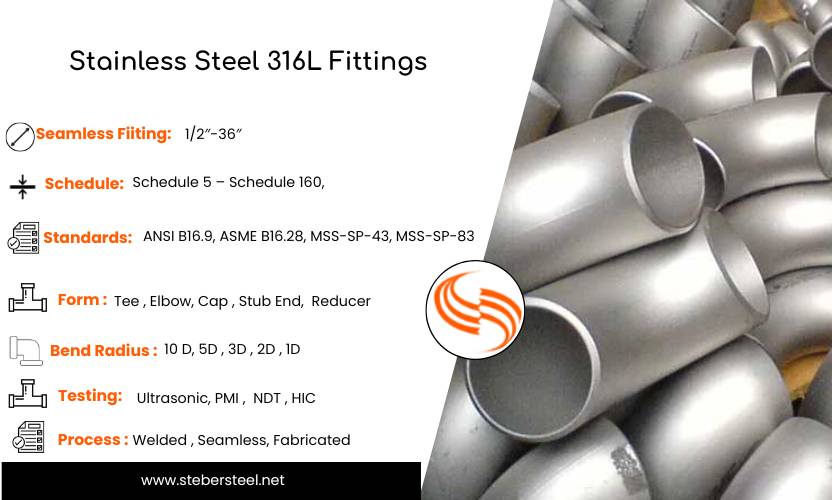

Stainless Steel 316L Fittings Specification

Stainless Steel 316L Fittings Highlights
Size : 1/2″-36″
Connection : Welding
Operating Pressure : 0 ~20MPa ( 200bar )
Work Temperature : High Temperature
Certificate : ISO 9001: 2015 / ISO14001:2015 / Is45001:2018
Transport Package : Inner Box, Outer Carton, Pallet

Manufacturer of ASTM A403 WP316L Elbow in Custom Sizes

Stainless Steel 316L Fittings

Stainless Steel 316L Fittings

ASTM A403 WP316L Elbow

ASTM A403 WP316L Elbow

Stainless Steel 316L Tee

Stainless Steel 316L Tee

Size Chart Of ASTM A403 WP316L Elbow

DN Schedule 40 Schedule 10 Schedule 80
45° Elbow 90 Deg. Elbow Equal Tee 45° Elbow 90 Deg. Elbow Equal Tee 90° Elbow Equal Tee 45 Deg Elbow
10 0.02 0.03 0.03 0.02 0.03 0.05 0.06 0.09 0.04
20 0.04 0.08 0.17 0.03 0.07 0.13 0.11 0.2 0.05
32 0.17 0.26 0.59 0.11 0.23 0.49 0.4 0.68 0.23
50 0.4 0.7 1.28 0.25 0.5 0.85 0.91 1.59 0.59
80 1.08 2.2 3.31 0.63 1.25 1.77 2.97 4.45 1.5
100 2.09 4.47 5.27 1.08 2.1 3.46 6.18 7.71 2.81
200 10.77 21.54 20.91 5.33 10.2 15.65 33.11 28.12 16.56
300 29.71 59.42 62.14 13.62 25.8 39.46 79.38 83.91 39.69
8 0.02 0.03 0.06 0.01 0.02 0.03 0.04 0.07 0.03
15 0.04 0.08 0.1 0.03 0.06 0.09 0.1 0.14 0.05
25 0.11 0.15 0.29 0.08 0.14 0.28 0.22 0.38 0.14
40 0.23 0.4 0.86 0.17 0.3 0.68 0.51 1.02 0.29
65 0.77 1.4 2.19 0.48 0.85 1.41 1.81 3.13 0.99
90 1.42 2.83 4.08 0.75 1.7 2.67 4 5.44 2
150 5.44 10.89 10.99 2.72 5.45 8.07 16.32 13.16 8.16
250 19.27 38.56 35.38 9.75 18.15 26.46 51.71 49.9 25.86

Table Of Contents


Stainless Steel 316L Fittings Specification

Stainless Steel 316L Pipe Fittings Sizes

  • Welded : 24″ - 96"
  • Seamless : 1/2″-24″
  • Buttweld : 1/2" -36"
  • Schedule : SCH 5 to SCH 160, XXS
Sizes

SS 316L Elbow Standards

  • ANSI B16.9
  • ASME B16.28
  • MSS-SP-43
  • MSS-SP-83


Standards

ASTM A403 WP316L Reducer Form

  • Reducer, Stub End
  • Cap
  • Elbow
  • Tee

Form

UNS S31603 Nipple Reducer Origin

  • Janpanese
  • European
  • Korean
  • American




Origin

SUS 316L Coupling Testing

  • Ultrasonic test
  • HIC tested
  • NDT Test
  • PMI Test




Testing

INOX 316L Short Radius Elbow Bend angle

  • 15°
  • 30°
  • 180°
  • 90°
  • 135°
  • 45°
  • 22.5
  • 60°
Process

SUS 316L End Cap Radius

  • 5D
  • 3D
  • 2D
  • 1D

Radius

UNS S31603 Stainless Steel Equal Tee Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Packaging

1.4404 Stainless Steel 90° Elbow Bending Method

  • Roll Bending
  • Mandrel
  • Hot Induction
  • Ram Type

Bending Method

A403 Gr WP316L Hot Induction Bend Marking

  • Heat Treatment
  • Size , Grades
  • Manufacturers Name

Marking

SA 403 WP316L Seamless Pipe Fittings Finish

  • Polish
  • Mill Finish
  • Special Finish

Finish

Stainless Steel 316L Fittings JIS Standards

  • JIS B2313
  • JIS B2312


Standards

Supplier Of 316L Stainless Steel Tee As Per As Per ANSI B16.9 And MSS SP-43/ 79 Standard

Dimension Chart Of Stainless Steel 316L Elbow

DN Schedule 40S Schedule 10S Schedule 80S
90" Elbow 45 Elbow Equal tee 90" Elbow 45 Elbow Equal tee 90" Elbow 45 Elbow Equal tee
10 0.03 0.02 0.03 0.03 0.02 0.05 0.06 0.04 0.09
20 0.08 0.04 0.17 0.07 0.03 0.13 0.11 0.05 0.2
32 0.26 0.17 0.59 0.23 0.11 0.49 0.4 0,23 0.68
50 0.7 0.4 1.28 0.5 0.25 0.85 0.91 0.59 1.59
80 2.2 1.08 3.31 1.25 0.63 1.77 2.97 1.5 4.45
100 4.47 2.09 5.27 2.1 1.08 3.46 6.18 2.81 7.71
200 21.54 10.77 20.91 10.2 5.33 15.65 33.11 16.56 28.12
8 0.03 0.02 0.06 0.02 0.01 0.03 0.04 0.03 0.07
15 0.08 0.04 0.1 0.06 0.03 0.09 0.1 0.05 0.14
25 0.15 0.11 0.29 0.14 0.08 0.28 0.22 0.14 0.38
40 0.4 0.23 0.86 0.3 0.17 0.68 0.51 0,29 1.02
65 1.4 0.77 2.19 0.85 0.48 1.41 1.81 0.99 3.13
90 2.83 1.42 4.08 1.7 0.75 2.67 4 2 5.44
150 10.89 5.44 10.99 5.45 2.72 8.07 16.32 8.16 13.61
250 38.56 19.27 35.38 18.15 9.75 26.46 51.71 25.86 49.9

Get ASTM A403 Grade WP316L Unequal Cross In Odd Sizes For Chemical Industry

SS 316L Tee Applications

SS 316L Tee Applications

Weight Chart Of WNR 1.4404 Reducer

Schedule Sch 40S Sch 160 Sch 10S Sch 80S
1/2 0.04 0.06 0.03 0.05
1 0.107 0.18 0.07 0.14
1 1/2 0.22 0.395 0.16 0.295
2 1/2 0.735 1.27 0.42 0.97
3 1/2 1.51 3.05 0.82 2.05
5 3.46 7.45 2.01 4.69
8 10.3 - 5.15 15.8
12 26.75 - 14.3 35.35
16 60 - 36.1 -
3/4 0.062 0.115 0.05 0.08
1 1/4 0.167 0.27 0.11 0.22
2 0.365 0.75 0.26 0.51
3 1.1 2.09 0.66 1.49
4 2.04 4.08 1.1 2.71
6 5.74 12.3 2.95 7.77
10 18.3 - 8.4 24.6
14 40.2 - 18.3 -

Premier Stainless Steel 316L Fittings Manufacturer in India, crafting flanges with superior resistance to oxidation, ideal for use in industries requiring high-performance materials

ASTM A403 WP316L Cap Thickness Chart

N.P.S. 45 Deg. Elbows Tees Caps 90 Deg. Elbows 180 Deg. Return Bends Lap Joint Stub End
3R LR M C E LR 3R SR LR LR F R G
B B A A A K O O K
½ - 0.62 1 1 1 1.5 - - 1.88 3 - - 3 0.12 1.38
1 - 0.88 1.5 1.5 1.5 1.5 - 1 2.19 3 2 1.62 4 0.12 2
1½ - 1.12 2.25 2.25 1.5 2.25 - 1.5 3.25 4.5 3 2.44 4 0.25 2.88
2½ 3.12 1.75 3 3 1.5 3.75 7.5 2.5 5.19 7.5 5 3.94 6 0.31 4.12
3½ - 2.25 3.75 3.75 2.5 5.25 10.5 3.5 7.25 10.5 7 5.5 6 0.38 5.5
5 - 3.12 4.88 4.88 3 7.5 15 5 10.31 15 10 7.75 8 0.44 7.31
8 9.94 5 7 7 4 12 24 8 16.31 24 16 12.31 8 0.5 10.62
12 14.88 7.5 10 10 6 18 36 12 24.38 36 24 18.38 10 0.5 15
16 19.88 10 12 12 7 24 48 16 32 48 32 24 12 0.5 18.5
20 24.88 12.5 15 15 9 30 60 20 40 60 40 30 12 0.5 23
24 29.81 15 17 17 10.5 36 72 24 48 72 48 36 12 0.5 27.25
28 34.75 17.25 20.5 20.5 10.5 42 84 - - - - - - - -
32 - 19.75 23.5 23.5 10.5 48 - - - - - - - - -
36 44.69 22.25 26.5 26.5 10.5 54 108 - - - - - - - -
40 49.75 24.88 29.5 29.5 12 60 120 - - - - - - - -
44 54.69 27.38 30 32 13.5 66 132 - - - - - - - -
48 59.69 29.88 33 35 13.5 72 144 - - - - - - - -
¾ - 0.75 1.12 1.12 1 1.5 - - 2 3 - - 3 0.12 1.69
1¼ - 1 1.88 1.88 1.5 1.88 - 1.25 2.75 3.75 2.5 2.06 4 0.19 2.5
2 2.5 1.38 2.5 2.5 1.5 3 6 2 4.19 6 4 3.19 6 0.31 3.62
3 3.75 2 3.38 3.38 2 4.5 9 3 6.25 9 6 4.75 6 0.38 5
4 5 2.5 4.12 4.12 2.5 6 12 4 8.25 12 8 6.25 6 0.44 6.19
6 7.44 3.75 5.62 5.62 3.5 9 18 6 12.31 18 12 9.31 8 0.5 8.5
10 12.44 6.25 8.5 8.5 5 15 30 10 20.38 30 20 15.38 10 0.5 12.75
14 17.38 8.75 11 11 6.5 21 42 14 28 42 28 21 12 0.5 16.25
18 22.38 11.25 13.5 13.5 8 27 54 18 36 54 36 27 12 0.5 21
22 27.31 13.5 16.5 16.5 10 33 66 22 44 66 44 33 12 0.5 25.25
26 32.31 16 19.5 19.5 10.5 39 78 - - - - - - - -
30 37.25 18.5 22 22 10.5 45 90 - - - - - - - -
34 42.25 21 25 25 10.5 51 102 - - - - - - - -
38 47.25 23.62 28 28 12 57 114 - - - - - - - -
42 52.19 26 28 30 12 63 126 - - - - - - - -
46 57.19 28.62 31.5 33.5 13.5 69 138 - - - - - - - -
AISI 316L Reducer Available in Hot forming or Extrusion Method

Pressure Rating Of UNS S31603 Stub End

NPT/ISO Pipe Size in. Female Male
psig (bar) psig (bar)
1/16 6 700 (461) 11 000 (757)
1/4 6 600 (454) 8 000 (551)
1/8 6 500 (447) 10 000 (689)
1/2 4 900 (337) 7 700 (530)
3/8 5 300 (365) 7 800 (537)
1 1/4 5 000 (344) 6 000 (413)
2 3 900 (268) 3 900 (268)
1 4 400 (303) 5 300 (365)
1 1/2 4 600 (316L) 5 000 (344)

Dimension Table Of SUS 316L Nipple

DN Schedule 10S Schedule 80S Schedule 40S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
50x25 0.28 0.28 0.73 0.54 0.54 1.37 0.4 0.4 1.1
80x50 0.55 0.55 1.56 1.79 1.79 3.91 1 1 2.91
100x80 0.87 0.87 3.04 2.33 2.33 6.79 1.74 1.74 4.64
150x100 1.96 1.96 7.1 5.96 5.96 11.97 4.07 4.07 11.94
200x150 3.19 3.19 14.08 10.12 10.12 25.31 6.74 6.74 18.82
40x25 0.19 0.19 0.6 0.34 0.34 0.9 0.26 0.26 0.76
50x40 0.31 0.31 0.76 0.59 0.59 1.43 0.45 0.45 1.15
100x50 0.78 0.78 2.94 1.95 1.95 6.55 1.5 1.5 4.48
150x80 1.82 1.82 6.86 5.51 5.51 11.57 3.95 3.95 9.68
200x100 3.01 3.01 13.46 9.23 9.23 24.18 6.55 6.55 17.98

ASTM A403 WP316L Threaded Fittings Size and Dimensions

DN-NPT Tapping Drill Size mm Major Diam. Mm Pitch mm TPI
1/8″ 8.25 10.242 0.941 27
3/8″ 14.1 17.055 1.411 18
3/4″ 22.6 26.568 1.814 14
1¼” 37 41.985 2.209 11.5
2″ 55 60.092 2.209 11.5
3″ 81.5 88.608 3.175 8
4″ 107 113.973 3.175 8
6″ 161.191 168.275 3.175 8
10″ 265.311 273.05 3.175 8
1/16″ 6 7.895 0.941 27
1/4″ 10.7 13.616 1.411 18
1/2″ 17.4 21.223 1.814 14
1″ 28.5 33.228 2.209 11.5
1½” 43.5 48.054 2.209 11.5
2½” 65.5 72.699 3.175 8
3½” 94.3 101.316L 3.175 8
5″ 134.384 141.3 3.175 8
8″ 211.673 219.075 3.175 8
12″ 315.793 323.85 3.175 8

Reputed Stainless Steel 316L Fittings Supplier in India, providing material known for their heat resistance, making them a reliable choice for furnace reactors, and other temperature industrial applications

Stockist Of UNS S31603 90 Degree Elbow Provide UT and NDT Test, Refer Price List

To Know More Information Of Recent Price List Of Stainless Steel 316L Fittings Click Here

Weight Of UNS S31603 Stainless Steel End Caps

Nom. Pipe Size Outside Dia. Sch 10 Sch 5
Nom. Wall T. Weight/FL. Nom. Wall T. Weight/Ft.
3 3.5 0.12 4.6 0.083 3.1
6 6.625 0.134 9.5 0.109 7.8
10 10.75 0.165 19.2 0.134 15.6
14 14 0.188 31 0.156 23.6
18 18 0.188 40 0.165 32.2
24 24 0.25 69.4 0.218 60.5
36 36 0.312 128.3 0.25 104.4
2½ 2.875 0.12 3.8 0.083 2.5
4 4.5 0.12 6 0.083 4
8 8.625 0.148 14.7 0.109 10.1
12 12.75 0.18 26.4 0.156 21.9
16 16 0.188 35.5 0.165 28.6
20 20 0.218 50.3 0.188 44.4
30 30 0.312 106.8 0.25 86.9

Various Types Of Stainless Steel 316L Fittings

Stainless Steel 316L Elbow

Stainless Steel 316L Elbow

SS 316L Tee

SS 316L Tee

WNR 1.4404 Reducer

WNR 1.4404 Reducer

ASTM A403 WP316L Cap

ASTM A403 WP316L Cap

UNS S31603 Stub End

UNS S31603 Stub End

SUS 316L Nipple

SUS 316L Nipple

AISI 316L Cross

AISI 316L Cross

INOX 316L Coupling

INOX 316L Coupling

316L Stainless Steel Collar

316L Stainless Steel Collar

Elbow Types

Stainless Steel 316L 45 Deg Elbow

Stainless Steel 316L 45 Deg Elbow

316L Stainless Steel 90 Deg Elbow

316L Stainless Steel 90 Deg Elbow

Stainless Steel 316L 180 Deg Elbow

Stainless Steel 316L 180 Deg Elbow

316L Stainless Steel Long Radius Elbow

316L Stainless Steel Long Radius Elbow

SS 316L Short Radius Elbow

SS 316L Short Radius Elbow

SUS 316L Reducing Elbow

SUS 316L Reducing Elbow

Tee Types

AISI 316L Equal Tee

AISI 316L Equal Tee

ASTM A403 WP316L Reducing Tee

ASTM A403 WP316L Reducing Tee

A403 Gr WP316L Lateral Tee

A403 Gr WP316L Lateral Tee

SA 403 WP316L Barred Tee

SA 403 WP316L Barred Tee

1.4404 Stainless Steel Y Tee

1.4404 Stainless Steel Y Tee

UNS S31603 Stainless Steel Flanged Tee

UNS S31603 Stainless Steel Flanged Tee

Reducer Types

DIN 1.4404 Concentric Reducer

DIN 1.4404 Concentric Reducer

Stainless Steel 316L Eccentric Reducer

Stainless Steel 316L Eccentric Reducer

End Cap Types

SS 316L Large Diameter End Caps

SS 316L Large Diameter End Caps

WNR 1.4404 Pressure Vessel End Caps

WNR 1.4404 Pressure Vessel End Caps

ASTM A403 WP316L Pressure Tank End Caps

ASTM A403 WP316L Pressure Tank End Caps

Stub End Types

UNS S31603 Long Stub End

UNS S31603 Long Stub End

SUS 316L Short Stub End

SUS 316L Short Stub End

AISI 316L Lap Joint Stub End

AISI 316L Lap Joint Stub End

Pipe Bend Types

INOX 316L 45 Degree Bend

INOX 316L 45 Degree Bend

Stainless Steel 316L 90 Deg Bend

Stainless Steel 316L 90 Deg Bend

316L Stainless Steel 180 Deg Pipe Bend

316L Stainless Steel 180 Deg Pipe Bend

Stainless Steel 316L Long Radius Bend

Stainless Steel 316L Long Radius Bend

316L Stainless Steel Hot Induction Bend

316L Stainless Steel Hot Induction Bend

SS 316L Short Radius Bend

SS 316L Short Radius Bend

316L Stainless Steel 180 Degree Elbow Dimensions

NPS Outside Diam. D 180° SR 180° LR
Center to Center Back to Face Center to Center Back to Face
O K O K
1¼ 42.2 64 52 95 70
2 60.3 102 81 152 106
3 88.9 152 121 229 159
4 114.3 203 159 305 210
6 168.3 305 237 457 313
10 273 508 391 762 518
14 355.6 711 533 1067 711
18 457 914 686 1372 914
22 559 1118 838 1676 1118
1 33.4 51 41 76 56
1½ 48.3 76 62 114 83
2½ 73 127 100 190 132
3½ 101.6 178 140 267 184
5 141.3 254 197 381 262
8 219.1 406 313 610 414
12 323.8 610 467 914 619
16 406.4 813 610 1219 813
20 508 1016 762 1524 1016
24 610 1219 914 1829 1219

Leading Stainless Steel 316L Fittings Supplier in India, offering durable flanges designed for demanding industrial applications in chemical, marine, and other industries

Physical Properties Of UNS S31603 Stainless Steel Cross

Grade Stainless Steel 316L
Specific Heat 500
Thermal Expansion 0-100°C 15.9
0-315°C 16.2
0-538°C 17.5
Elastic Modulus 193
Thermal Conductivity at 100°C 16.3
at 500°C 21.5
Electrical Resistivity 740

DIN 1.4404 Coupling Corrosion Resistance Environment

Environment Corrosion Resistance Temperature Range
Seawater Excellent 15°C - 80°C
Acidic Environments Moderate 0°C - 89°C
Phosphoric Acid Good 10°C-89°C

HS Code Of Stainless Steel 316L Fittings

Property Value
HS Code 72192112

1.4404 Stainless Steel Elbow Bending Radius

Bend Radius Bend Angle
8 D 60°
3 D 15°
5 D 180°
6 D 45°
4 D 135°
10 D 90°

Temperature Range Of ASTM A403 WP316L Collar

Properties Values
Temperature Range in °F 1900 - 2100°F
Temperature Range in °C 1038 - 1149°C

Expert Stainless Steel 316L Fittings Supplier in India, specializing in custom flanges that provide performance in corrosive environments, useful in chemical plants

What Are The Welding Method Of Stainless Steel 316L Fittings ?

Welding Methods Full Form
GMAW Gas metal arc
SMAW Shielded metal arc
TIG Tungsten inert gas
FCAW Flux cored arc

Composition Standard Of A403 Gr WP316L Stub End

Grade SS 316L
Carbon 0.035 max
Manganese 2.0 max
Silicon 1.0 max
Phosphorus 0.045 max
Sulfur 0.030 max
Chromium 16.00 - 18.00
Molybdenum 2.00 - 3.00
Nickel 10.00 - 14.00
Iron 68.89 min

SA 403 WP316L Reducer Mechanical Strength

Properties Values
Density 8.0 g/cm3
Yield Strength (0.2%Offset) Psi - 30000 (MPa - 205)
Melting Point 1399 °C (2550 °F)
Tensile Strength Psi - 75000 (MPa - 515)
Elongation 0.35

Equivalent Material Of Stainless Steel 316L Fittings

STANDARD SS 316L
EN (European) X2CrNiMo17-12-2 / X2CrNiMo18-14-3
UNS (United Nations Standard) S316L03
BS (British) 316LS11 / 316LS13
GOST (Russia) 03Ch17N14M3 / 03Ch17N14M2
JIS (Japanese) SUS 316L
AFNOR (French) Z3CND17-11-02 / Z3CND18-14-03
WERKSTOFF NR. (German) 1.4404 / 1.4435

Supplied Stainless Steel 316L Fittings To Different Countries

Country Name Country Name
Algeria Nigeria
Tunisia South Africa
Kenya Angola
Tanzania Morocco
Egypt UAE
Zambia Ghana
