Inconel Fittings Specification

Inconel Fittings Sizes

  • Buttweld : 1/2" -36"
  • Welded : 24″ - 96"
  • Seamless : 1/2″-24″
  • Schedule : SCH 5 - SCH 160, XXS
Sizes

Inconel Metal Reducer Standards

  • ASTM B366 | ASME B366
  • ASME B16.28
  • MSS-SP-43
  • ANSI B16.9
Standards

Inconel Alloy Fittings Form

  • Reducer, Stub End
  • Cap
  • Elbow
  • Tee
Form

Inconel Alloy End Cap Origin

  • Janpanese
  • European
  • Korean
  • American




Origin

Inconel 718 Pipe Bend Bend angle

  • 15°
  • 30°
  • 180°
  • 90°
  • 135°
  • 45°
  • 22.5

Process

Nickel Alloy 718 Tee Testing

  • Ultrasonic test
  • HIC tested
  • NDT Test
  • PMI Test




Testing

ASME SB 366 Cross Marking

  • Heat Treatment
  • Size , Grades
  • Manufacturers Name

Marking

ASTM B366 Elbow JIS Standards

  • JIS B2313
  • JIS B2312


Standards

Inconel Eccentric Reducer Finish

  • Polish
  • Mill Finish
  • Special Finish

Finish

Inconel Fittings Radius

  • 5D
  • 3D
  • 2D
  • 1D

Radius

Inconel 718 Pressure Tank End Caps Bending Method

  • Roll Bending
  • Mandrel
  • Hot Induction
  • Ram Type
Bending Method

Inconel Pipe Fittings Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Packaging

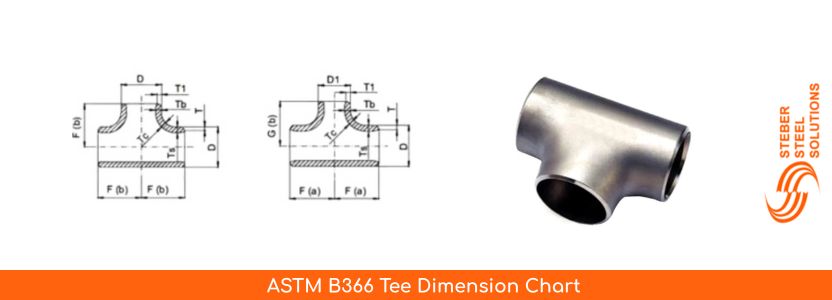

ASTM B366 Tee Dimension Chart

Inconel Fittings Supplier In India Offers Custom Dimensions To Customers

ASTM B366 Tee Dimension Chart
NPS Of Equal Tee 1/2" 1" 1 1/4" 2" 4" 3 1/2" 5"
OD at bevel 21.3 33.4 42.2 60.3 114.3 101.6 141.3
Center-End Outlet (M) 25 38 48 64 105 95 124
Run (C) 25 38 48 64 105 95 124
NPS Of Equal Tee 6" 10" 12" 16" 24" 22"
OD at bevel 168.3 273 323.8 406.4 610 559
Center-End Outlet (M) 143 216 254 305 432 419
Run (C) 143 216 254 305 432 419

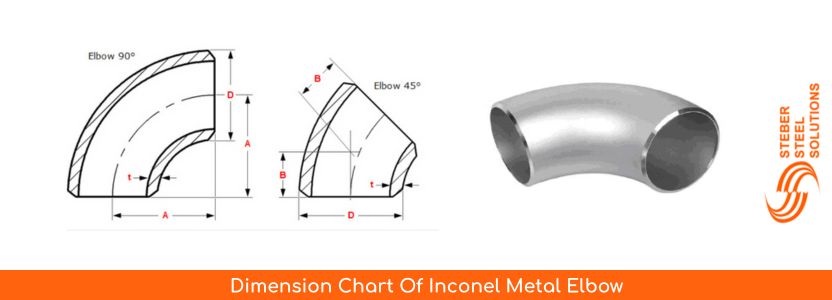

Dimension Chart Of Inconel Metal Elbow

Dimension Chart Of Inconel Metal Elbow
Nominal Size OD End to end
(inch) B A D
1 1/4 x 1/2 21.03 42.02 51
3/4 x 1/2 21.03 26.07 38
1 1/4 x 1 33.04 42.02 51
1 1/2 x 1 33.04 48.03 64
1 1/2 x 3/4 26.07 48.03 64
2 x 1 1/4 42.02 60.03 76
2 1/2 x 1 1/2 48.03 73 89
2 1/2 x 1 1/4 42.02 73 89
3 x 2 1/2 73 88.09 89
5 x 3 1/2 101.06 141.03 127
3 1/2 x 3 88.09 101.06 102
4 x 3 1/2 101.06 114.03 102
3 1/2 x 1 1/2 48.03 101.06 102
4 x 2 60.03 114.03 102
4 x 2 1/2 73 114.03 102
4 x 1 1/2 48.03 114.03 102
5 x 2 60.03 141.03 127
6 x 3 88.09 168.03 140
6 x 3 1/2 101.06 168.03 140

Buy HIC Tested Inconel Pipe Fittings in SCH 20 to SCH 140 At Low Cost

Inconel Pipe Fittings Schedule Chart

Inconel Fittings Manufacturer In India Provide Accurately Tested Flanges For Industrial Applications

NPS O.D. Light Wall SCH 30 SCH 20 SCH 40 SCH 60 SCH 80 SCH 120 SCH 100 SCH 160 SCH 140
1/2 .840 .083 - - .109 - .147 - - .188 -
1 1.315 .109 - - .133 - .179 - - .250 -
1 1/2 1.900 .109 - - .145 - .200 - - .281 -
2 2.375 .109 - - .154 - .218 - - .344 -
3 1/2 4.000 .120 - - .226 - .318 - - .636 -
5 5.563 .134 - - .258 - .375 .500 - .625 -
8 8.625 .148 277 250 .322 .406 .500 .719 .594 .906 .812
12 12.750 .180 330 250 .406 .562 .688 1.000 .844 1.312 1.125
16 16.000 .250 375 312 .500 .656 .844 1.219 1.031 1.594 1.438
18 18.000 .250 438 312 .562 .750 .938 1.375 1.156 1.781 1.562
24 24.000 .250 .562 375 .688 .969 1.219 1.812 1.531 2.344 2.062
30 30.000 .312 .625 .500 - - - - - - -
42 42.000 - - - - - - - - - -

Various Types Of Inconel Fittings

Inconel Fittings Supplier in India, Gives Fitting In Various Forms Such As Elbow, Reducer, Tee

ASTM B366 Elbow

ASTM B366 Elbow

Nickel Alloy 718 Tee

Nickel Alloy 718 Tee

Inconel Metal Reducer

Inconel Metal Reducer

Inconel Alloy End Cap

Inconel Alloy End Cap

Inconel Stub End

Inconel Stub End

Inconel 718 Pipe Bend

Inconel 718 Pipe Bend

ASME SB 366 Cross

ASME SB 366 Cross

Inconel Metal Welded Pipe Fittings

Inconel Metal Welded Pipe Fittings

Inconel Material Hot Induction Bend

Inconel Material Hot Induction Bend

Elbow Types

Inconel 45 Deg Elbow

Inconel 45 Deg Elbow

Inconel Alloy 90 Deg Elbow

Inconel Alloy 90 Deg Elbow

Inconel 718 180 Deg Elbow

Inconel 718 180 Deg Elbow

Inconel Material Long Radius Elbow

Inconel Material Long Radius Elbow

Inconel Alloy Short Radius Elbow

Inconel Alloy Short Radius Elbow

Inconel Metal Reducing Elbow

Inconel Metal Reducing Elbow

Tee Types

Inconel Metal Equal Tee

Inconel Metal Equal Tee

Inconel Material Reducing Tee

Inconel Material Reducing Tee

Nickel Alloy 718 Lateral Tee

Nickel Alloy 718 Lateral Tee

Inconel Alloy Barred Tee

Inconel Alloy Barred Tee

ASME SB 366 Y Tee

ASME SB 366 Y Tee

Inconel Flanged Tee

Inconel Flanged Tee

Reducer Type

Inconel 718 Concentric Reducer

Inconel 718 Concentric Reducer

Inconel Eccentric Reducer

Inconel Eccentric Reducer

End Cap Types

Inconel Alloy Large Diameter End Caps

Inconel Alloy Large Diameter End Caps

Inconel Material Pressure Vessel End Caps

Inconel Material Pressure Vessel End Caps

Inconel 718 Pressure Tank End Caps

Inconel 718 Pressure Tank End Caps

Stub End Types

ASME SB 366 Long Stub End

ASME SB 366 Long Stub End

Inconel Material Short Stub End

Inconel Material Short Stub End

Inconel Metal Lap Joint Stub End

Inconel Metal Lap Joint Stub End

Pipe Bend Types

Inconel 718 45 Degree Bend

Inconel 718 45 Degree Bend

Inconel Alloy 90 Deg Bend

Inconel Alloy 90 Deg Bend

Inconel Metal 180 Deg Pipe Bend

Inconel Metal 180 Deg Pipe Bend

Inconel Material Long Radius Bend

Inconel Material Long Radius Bend

ASME SB 366 Hot Induction Bend

ASME SB 366 Hot Induction Bend

Nickel Alloy 718 Short Radius Bend

Nickel Alloy 718 Short Radius Bend

Dimension Chart Of End Cap

Size OD
(D)		 Length
1/2 21.3 25
1 33.4 38
2 60.3 44
2.1/2 73 51
4 114.3 76
6 168.3 102
10 273 152
14 355.6 191
18 457 229

Inconel Alloy Buttweld Fittings Stocks Common Sizes Upto 24 Inch

Size Chart Of Inconel Alloy Buttweld Fittings

Inconel Fittings Supplier In India Offers Multiple Range Of Sizes

NPS OD (inches) Wall Thick (inches) Threads Sizes (NPT) Len (inches)
1/4 0.540 0.095 1/4 NPT 2.5
3/4 1.050 0.120 3/4 NPT 3.5
1 1.315 0.140 1 NPT 4.0
1-1/2 1.900 0.145 1-1/2 NPT 5.5
2 2.375 0.154 2 NPT 6.0
3 3.500 0.216 3 NPT 8.0
4 4.500 0.237 4 NPT 9.0

End Finishings Types Of Inconel Fittings

  • Squared ends
  • Beveled ends
  • Threaded ends
  • Flanged ends
  • Grooved ends
Check Heat Treatment Amd Temperature Of Inconel Reducer

Inconel Reducer Heat Treatment

Condition Temperature
Solution Annealed 260 – 370°C

Temperature Range Of Inconel Alloy Tee

Temperature 1290-1350°C

What Are The Benefits Using Inconel 718 Fittings In Aerospace Industry?

What Are The Benefits Using Inconel 718 Fittings In Aerospace Industry?

ASTM B366 Seamless Pipe Fittings Manufacturing Process

  • Cutting
  • Forming
  • Sizing
  • Heat treatment
  • Shot blasting&cleaning
  • Beveling
  • Coating
Supplier Of Inconel Tee According To ASTM B366 Standard

Standards Of Inconel Tee

  • ASTM B366 | ASME B366
  • ASME B16.28
  • MSS-SP-43
  • ANSI B16.9

Fatigue Strength Of ASME SB 366 Cross

Conditionb Reduction of Area, % Grain Size, in. Fatigue Strength
106 Cycles 107 Cycles 108 Cycles
Annealed 32c 0.0023c 74.0 67.5 66.5
Annealed and Aged 20 0.0021 77.5 71.0 69.5

Applications Of Inconel Material Elbow

Applications Of Inconel Material Elbow

Inconel Stub End Thermal Conductivity

Temperature °F Specific Heat Btu/lb/°F
70 0.10
200 0.11
400 0.12
600 0.125
800 0.13
1000 0.135
1200 0.14
1400 0.15
1600 0.16
1800 0.17
2000 0.17

Tolerance Chart Of Inconel Metal Equal Tee

NPS Wall Thick (inches) Len Tolerance (inches) OD Tolerance (inches)
1/4 ±0.010 ±0.125 ±0.015
1/2 ±0.012 ±0.125 ±0.020
3/4 ±0.015 ±0.125 ±0.025
1 ±0.020 ±0.125 ±0.030
1-1/4 ±0.025 ±0.125 ±0.035
1-1/2 ±0.030 ±0.125 ±0.040
2 ±0.035 ±0.125 ±0.045
2-1/2 ±0.040 ±0.125 ±0.050
3 ±0.050 ±0.125 ±0.060

Inconel Metal Reducing Elbow Weight Chart

NPS Weight (kg) Weight (lbs)
1/4 0.08 0.18
1/2 0.14 0.32
3/4 0.24 0.52
1 0.34 0.74
1-1/4 0.48 1.06
1-1/2 0.69 1.52
2 0.98 2.15
2-1/2 1.36 3.00
3 1.62 3.58

Inconel Fittings HSN Code

Product HSN Code
Inconel Fittings 75072000

Inconel Elbow Equivalent Standards

Grades UNS WERKSTOFF NR. BS JIS AFNOR GOST AFNOE EN
600 N06600 2.4816 NA 13 NCF 600 NC15FE11M МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe
601 N06601 2.4851 NA 49 NCF 601 NC23FeA XH60BT NC23FeA NiCr23Fe
625 N06625 2.4856 NA 21 NCF 625 NC22DNB4M ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb
617 N06617 2.4663 – NCF 617 – – – –
718 N07718 2.4668 – NCF 718 – – – –
X-750 N07750 2.4660 – NCF X-750 – – – –

Inconel Metal Buttweld Fittings Chemical Compositions

Grade Ni % Cr % C % Co% Mo % Al % Ti %
600 72-76 14-17 0.15 – 0.15 max 0.40 max 0.25-0.40
601 58-63 21-25 0.10 – 0.90-1.50 1.00 max 0.40-0.60
617 50-55 20-23 0.10 max – 8.0-10.0 1.0-1.5 0.15-0.60
625 58-63 20-23 0.10 max – 8.0-10.0 3.15-4.15 0.40-0.60
718 50-55 19-21 0.08 max 1.00-1.50 2.80-3.30 0.90-1.15 0.70-1.15
X-750 70-74 14-22 0.08 max 0.05-2.00 1.00-2.50 0.40-1.00 0.40-1.00

ASME SB 366 Hot Induction Bend Mechanical Properties

Grade Tensile Strength (ksi) Yield Strength (ksi) Elongation (%) Modulus of Elasticity (ksi) Hardness (HB)
600 80-105 30-45 30 28.0 180
601 75-95 30-40 35 30.0 200
617 85-110 40-65 30 28.0 250
625 80-110 35-60 30 30.0 220
718 120-160 70-140 15 29.0 300
X-750 95-130 40-90 30 28.0 240

Physical Properties Of Inconel Pipe Fittings

Grades Density (g/cm3) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Melting Point (°C) Specific Heat (J/kg·K)
600 8.47 1.1 11.4 1370–1410°C 460
601 8.24 1.0 14.9 1320–1370°C 460
617 8.94 1.1 15.4 1300–1350°C 460
625 8.44 1.0 11.9 1290–1340°C 460
718 8.19 1.0 12.5 1260–1315°C 460
X-750 8.24 1.0 14.6 1260–1320°C 460
