Carbon Steel Fittings

Carbon Steel Fittings Manufacturer in India Quick Overview
Seamless Fittings 1/2" To 24"
Welded Fittings 24" To 96"
Rockwell Hardness 60 to 99 HRC
Bending Radius 10D,8D,6D,5D, 3D,2D,1D
Schedule SCH 10 - SCH 160
Forms Elbow, Pipe Bend , Reducer, Cap, Tee
Standards ASME B16.9, ASME B16.28

Supplier of Carbon Steel Elbow In Various Types And Radius

Carbon Steel Fittings

Carbon Steel Fittings

Carbon Steel Elbow

Carbon Steel Elbow

Low Carbon Steel Reducer

Low Carbon Steel Reducer

Table of Contents


Carbon Steel Fittings Specification

Carbon Steel Fittings Sizes

  • Seamless : 1/2" To 24"
  • Welded : 24" To 96"
  • Buttweld : 1/2" -36"
  • Schedule : SCH 5 to SCH 160



Sizes

CS Seamless Pipe Fittings Standards

  • ASME B16.28
  • ANSI B16.9
  • ANSI/ ASME B16.25 (butt welding)
  • MSS-SP-43


Standards

High Carbon Steel Buttweld Fittings Form

  • Reducer
  • Stub End
  • Elbow
  • Cap
  • Tee
  • Pipe Bend
Form

Black Steel Equal Tee Origin

  • Janpanese
  • European
  • Korean
  • American
Origin

Carbon Steel Buttweld Fittings Testing

  • PMI Test
  • HIC tested
  • NDT Test
  • Ultrasonic test
Testing

Medium CS Reducer Ends

  • Plain Bevel
  • Bevelled
  • Compound Bevel


Ends

Carbon Steel Elbow Bend Radius

  • 5D
  • 3D
  • 2D
  • 1D
Radius

Normalized Carbon Steel Pipe Bend Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)

Method

Killed CS Elbow Bending Method

  • Ram Type
  • Mandrel
  • Hot Induction
  • Roll Bending
Bending Method

Quenching Carbon Steel Weldable Pipe Fittings Coating

  • Back painting
  • PE coating (2 & 3 layers)
  • Anti rust light oiling
  • FBE coated
Coating

Plain End Cap Meet the requirements

  • HIC tested
  • NORSOK
  • MTC EN 10204 3.1/ 3.2 certificate
  • NACE MR0103
requirements

NORSOK Approved CS Stub End Packaging

  • Wooden Cases
  • Carton Box
  • Custom as per buyer choice
  • Wooden Pallet

Packaging

Low Carbon Steel Reducer Stockist According To ASTM A234

CS Seamless Pipe Fittings Standards

  • DIN 2605
  • MSS SP-75
  • BS1640
  • ANSI/ ASME B16.9
  • DIN EN 10253
  • MSS SP-43

View Killed CS Seamless Pipe Fittings Weight And Dimensiom

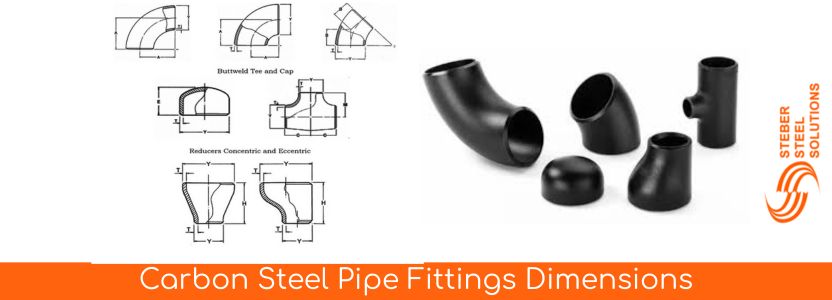

Carbon Steel Pipe Fittings Dimensions

Carbon Steel Pipe Fittings Dimensions
Normal Pipe Size For (NPS) (O.D.) Buttweld 45 Deg Elbow Buttweld 90 Deg Elbow Buttweld Return 180 Deg Elbow
(In Inches) Buttweld LR Elbow Buttweld LR Elbow Buttweld SR Elbow Buttweld LR Elbow
(MM/ millimeter) (Inches/ inch.) Center to Face
(In Inch)		 Radius
(In Inch)		 Center to Face
(In Inch)		 Center to Face
(In Inch)		 Center to Center
(In Inch)		 Back to face
(In Inch)
12 323.9 12.750 7 1/2 18 18 12 36 24 3/8
10 273.1 10.750 6 1/4 15 15 10 30 20 3/8
8 219.1 8.625 5 12 12 8 24 16 5/16
6 168.3 6.625 3 3/4 12 9 6 18 12 5/16
4 114.3 4.500 2 1/2 8 6 4 12 8 1/4
3 1/2 101.6 4.000 2 1/4 7 5 1/4 3 1/2 10 1/2 7 1/4
3 88.9 3.500 2 6 4 1/2 3 9 6 1/4
2 1/2 73.0 2.875 1 3/4 5 3 3/4 2 1/2 7 1/2 5 3/16
2 60.3 2.375 1 3/8 4 3 2 6 4 3/16
1 1/2 48.3 1.900 1 1/8 3 2 1/4 1 1/2 4 1/2 3 1/4
1 33.4 1.315 7/8 1 1/2 1 3 2 3/16
3/4 26.7 1.050 7/16 1 1/8 – 2 1/4 1 11/16
1/2 21.3 0.840 5/8 1 1/2 – 2 1 7/8

Black Steel Weld Fittings Weight Chart

SIZE A B WEIGHT QTY
¼ 0.81 0.88 0.20 160
¾ 1.31 1.5 0.71 75
1 1.5 1.81 1.08 40
1 ¼ 1.75 2.19 1.68 25
2 2.38 2.97 3.55 10
3 3.38 4.31 10.36 2
4 4.19 5.75 23.91 1
Refer High Carbon Steel Buttweld Fittings HSN Code And Grades

CS BW Fittings HS Code

HS Code Product
7307 Carbon Steel Pipe Fitting (Elbow, End Cap, Tee, Reducer)

Grades Carbon Steel Pipe Fittings

Material Fitting
CS
Alloy
High-Temp		 A234 Gr WP1
A234 Gr WP11
A234 Gr WP12
A234 Gr WP22
A234 Gr WP5
A234 Gr WP9
CS A234 Gr WPA
A234 Gr WPB
A234 Gr WPC
CS
Alloy
Low-Temp		 A420 Gr WPL6
A420 Gr WPL3
NORSOK Approved Normalized Carbon Steel Stub End Stockist in Mumbai

Dimensions Of CS Stub End

Dimensions Of CS Stub End
RCD Reiso Code SMALL Ø BIG Ø Theoretical Weight In KG (Kilogram) Hight (H) MM
(DN) (D) MM Thickness Of (S) MM (DN) (D) MM Thickness Of (S) In MM.
27 21 1/2 21.3 2.0 3/4 26.9 2.3 0.08 38
42 21 1/2 21.3 1"1/4 42.4 2.6 0.12 50
60 27 3/4 26.9 2.3 2 60.3 2.9 0.30 76
89 42 1"1/4 42.4 2.6 3 88.9 3.2 0.55 90
114 48 1"1/2 48.3 4 114.3 3.6 0.85 100
*168 76 2"1/2 76.1 2.9 6 168.3 4.5 2.60 140
*273 114 4 114.3 3.6 10 273.0 6.3 7.00 178
273 168 6 168.3 4.5       7.40

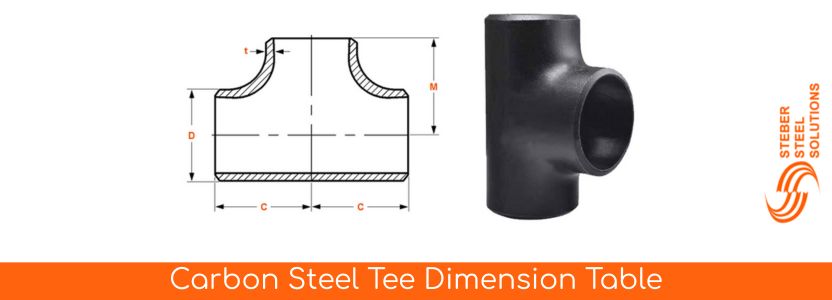

Carbon Steel Tee Dimension Table

Carbon Steel Tee Dimension Table
NPS Of Equal Tee Center-to-End Outside Daimeter (O.D.)
at bevel
(C) Run (M) Outlet
1" 38 38 33.4
1 1/2" 57 57 48.3
2" 64 64 60.3
3 1/2" 95 95 101.6
5" 124 124 141.3
8" 178 178 219.1
12" 254 254 323.8
14" 279 279 355.6
18" 343 343 457.0
20" 381 381 508.0
24" 432 432 610.0

ANSI B16.9 Carbon Steel Pipe Cap Dimensions

ANSI B16.9 Carbon Steel Pipe Cap Dimensions
NPS Of Pipe Cap O.D. (Outside Daimeter) Of
D		 Length Of
(H1)		 Length Of
(H)
1/2 21.3 25 25
1 33.4 38 38
1.1/2 48.3 38 38
2 60.3 44 38
3 88.9 64 51
4 114.3 76 64
6 168.3 102 89
8 219.1 127 102
10 273 152 127
14 355.6 191 165
18 457 229 203
22 559 254 254

CS Reducer Welding

  • GMAW (Gas metal arc welding)
  • FCAW (Flux cored arc welding)
  • TIG (Tungsten inert gas welding)
  • SMAW (Shielded metal arc welding)

Various Types Of Carbon Steel Fittings

Carbon Steel Fittings Manufacturer in India offers the most common types with high strength

Black Steel Elbow

Black Steel Elbow

CS Tee

CS Tee

High Carbon Steel Reducer

High Carbon Steel Reducer

Plain CS Cap

Plain CS Cap

Quenching Carbon Steel Stub End

Quenching Carbon Steel Stub End

Normalized CS Cross

Normalized CS Cross

Carbon Steel Buttweld Fittings

Carbon Steel Buttweld Fittings

ANSI B16.9 Carbon Steel Seamless Pipe Fittings

ANSI B16.9 Carbon Steel Seamless Pipe Fittings

Low Carbon Steel Weldable Pipe Fittings

Low Carbon Steel Weldable Pipe Fittings

Types Of CS Elbow

Carbon Steel 45 Deg Elbow

Carbon Steel 45 Deg Elbow

CS 90 Deg Elbow

CS 90 Deg Elbow

Medium Carbon Steel 180 Deg Elbow

Medium Carbon Steel 180 Deg Elbow

Low CS Long Radius Elbow

Low CS Long Radius Elbow

Normalized Carbon Steel Short Radius Elbow

Normalized Carbon Steel Short Radius Elbow

Quenching CS Reducing Elbow

Quenching CS Reducing Elbow

Types Of High Carbon Steel Tee

Normalized CS Equal Tee

Normalized CS Equal Tee

Quenching Carbon Steel Reducing Tee

Quenching Carbon Steel Reducing Tee

Carbon Steel Lateral Tee

Carbon Steel Lateral Tee

CS Barred Tee

CS Barred Tee

High Carbon Steel Y Tee

High Carbon Steel Y Tee

Black Steel CS Flanged Tee

Black Steel CS Flanged Tee

Various Types Of CS Reducer

Carbon Steel Concentric Reducer

Carbon Steel Concentric Reducer

CS Eccentric Reducer

CS Eccentric Reducer

Most Common Types Of Low Carbon Steel Caps

High Carbon Steel Large Diameter End Caps

High Carbon Steel Large Diameter End Caps

Killed CS Pressure Vessel End Caps

Killed CS Pressure Vessel End Caps

Quenching Carbon Steel Pressure Tank End Caps

Quenching Carbon Steel Pressure Tank End Caps

Various Types Of CS Stub End

Low Carbon Steel Long Stub End

Low Carbon Steel Long Stub End

CS Short Stub End

CS Short Stub End

Carbon Steel Lap Joint Stub End

Carbon Steel Lap Joint Stub End

Types Of Carbon Steel Pipe Bend

Carbon Steel 45 Degree Bend

Carbon Steel 45 Degree Bend

Killed CS 90 Deg Bend

Killed CS 90 Deg Bend

Plain Carbon Steel 180 Deg Pipe Bend

Plain Carbon Steel 180 Deg Pipe Bend

Quenching CS End Cap Testings

  • Impact Test
  • PMI Testing
  • Hardness Test
  • Hydrostatic Testing

Carbon Steel Fittings Size Chart

Carbon Steel Fittings Supplier in India provides various Sizes at Reasonable rate

Products Sizes
CS Stub Ends 1/2" NB to 14" NB
CS Socket Weld Upto 2" NB
CS Cups 1/2" NB to 14" NB
CS Nipples Upto 4"
CS Tees 1" NB to 14" NB
CS Reducers 1" NB to 14" NB
CS Couplings Upto 4"NB
CS Elbow 1/2" NB to 14" NB

SCH 80 CS Pipe Fittings Coating Temperature

Coating Types Temperature
PTFE coating +260°C
Anti rust coating 10°C – 30°C
Zinc coating 420°C to 650°C
FBE coating 225° to 245°C
PE coating Up to 80 °C

High Carbon Steel Buttweld Fittings Applications

High Carbon Steel Buttweld Fittings Applications

Carbon Steel Pipe Elbow Dimensions

Carbon Steel Pipe Elbow Dimensions
Normal Size Of Pipe Outside Dai Of (D) 90 degree
(Long Radius)
Center-to-End
(A)		 90 degree
(3D)
Center-to-End
(A)		 45 degree
(Long Radius)
Center-to-End
(B)
1/2 21.3 38 – 16
1 33.4 38 76 22
1½ 48.3 57 114 29
1¼ 42.2 48 95 25
2 60.3 76 152 35
3½ 101.6 133 267 57
6 168.3 229 457 95
8 219.1 305 610 127
12 323.8 457 914 190
16 406.4 610 1219 254
18 457 686 1372 286
22 559 838 1676 343
26 660 991 1981 406
30 762 1143 2286 470
34 864 1295 2591 533
36 914 1372 2743 565
40 1016 1524 3048 632
44 1118 1676 3353 695
48 1219 1829 3658 759

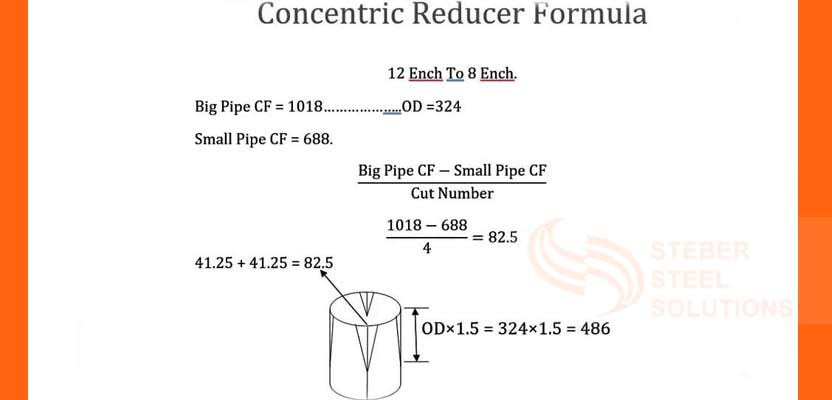

How to find the Center Of A Black Steel Concentric Reducer?

Black Steel Concentric Reducer formula

Working Pressure Of High Temp CS Seamless Fittings

Service Limits Of Temperature Limits Of Pressure
condensate And Steam (max.) 366 deg F (186degC),
(min.) 0oF (-18degC)		 150 psig (1000 kPa)
Nonflammable Liquids (max.) 250degF (121degC),
(min.) 0oF (-18oC)		 350 psig (2300 kPa)
gases & vapors, Air (max.) 200degF (93degC),
(min.) 0oF (-18degC)		 150 psig (1000 kPa)

How To Calculate Surface Area Of High Carbon Steel Tee?

Surface Area Of High Carbon Steel Tee

Carbon Steel Fittings Chemical Composition

Carbon Steel Fittings Manufacturer in India provides accurate chemical composition of Fittings

Element Content (%)
Iron, Fe Balance
Chromium, Cr 18-20
Carbon, C 0.03
Manganese, Mn 2
Nickel, Ni 11-15
Phosphorous, P 0.045
Molybdenum, Mo 3-4
Sulfur, S 0.03
Silicon, Si 1

High Yield Carbon Steel Fittings Mechanical Properties

Properties Imperial Metric
Tensile strength 86300 psi 595 MPa
Yield strength 37700 psi 260 MPa
Modulus of elasticity 29000 ksi 200 GPa
Hardness, Rockwell B 85 85
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break (in 50 mm) 55% 55%

Export Carbon Steel Seamless Fittings to the various Countries

Countries
Zambia Dubai
Tunisia South Africa
Algeria Nigeria
Kenya Angola
UAE Morocco
Egypt Ethiopia
