Mild Steel Fittings
| Mild Steel Fittings Quick Information | |
|---|---|
| Seamless Fittings | 1/2" -24" |
| Welded Fittings | 24" - 96" |
| Technique | Hot Or Cold Pressed |
| Bending Radius | 1D, 3D, 2D, 10D,5D, 6D, 8D |
| Schedule | SCH 10 To SCH 160 |
| Forms | Elbow, Reducer, Tee, Cap, |
| Heat Treatment | Quenched, Annealed, Tempered |
Mild Steel Fittings
Black Mild Steel Seamless Fittings
MS Buttweld Fittings
Table of Contents
- Mild Steel Fittings Specification
- Dimension Chart Of MS Elbow
- Dimension Of Mild Steel Tee
- Black Mild Steel Elbow Standards
- Weight Chart Of Black MS Fittings
- Certifications of Mild Steel Elbow
- Various Types Of Mild Steel Fittings
- DIN Standards Of MS Stub End
- Tolerance Chart Of MS Fittings
- Testing Method of Black MS Tee
- Applications Of IS 1018 Mild Steel End Cap
- Chemical Compositions Of Black Mild Steel Cross
- Mild Steel Pipe Bend Mechanical Properties
- Schedule Chart Of Mild Steel Eccentric Reducer
- Welding Methods Of IS 2062 Mild Steel Reducer
- MS Cross Hardness
- Mild Steel Fittings Equivalent Grades
- Physical Properties Of Black Mild Steel Elbow
- Installation Process Of Mild Steel Pipe Fittings
- HSN Code Of Mild Steel Fittings
- Coatings Of Black Mild Steel Seamless Fittings
- Welding Consumables Of IS 2062 Mild Steel Reducer
Mild Steel Fittings Specification
Mild Steel Fittings Sizes
- Welded : 24″ - 96"
- Seamless : 1/2″-24″
- Buttweld : 1/2" -28"
- Schedule : SCH 5 to SCH 160, XXS
Mild Steel Elbow Standards
- MSS SP-83
- ASME B16.28
- MSS-SP-43
- ANSI B16.9
Black Mild Steel Seamless Fittings Form
- Reducer, Stub End
- Cap
- Elbow
- Tee
MS Buttweld Fittings Origin
- Janpanese
- European
- Korean
- American
MS Stub End Testing
- Ultrasonic test
- HIC tested
- NDT Test
- PMI Test
Black Mild Steel Cross Bend angle
- 15°
- 30°
- 180°
- 90°
- 135°
- 45°
- 22.5
Mild Steel Pipe Bend Radius
- 5D
- 3D
- 2D
- 1D
MS 180 Deg Elbow Packaging
- Bubble Wraps
- Bundled
- Wooden Box
S275 Grade steel Long Radius Elbow Bending Method
- Roll Bending
- Mandrel
- Hot Induction
- Ram Type
Mild Steel Eccentric Reducer Marking
- Heat Treatment
- Size , Grades
- Manufacturers Name
S275 Steel Lateral Tee Finish
- Polish
- Mill Finish
- Special Finish
Black MS Long Stub End JIS Standards
- JIS B2313
- JIS B2312
Mild Steel Elbow Supplier in India As Per ANSI B16.9, Check Dimension

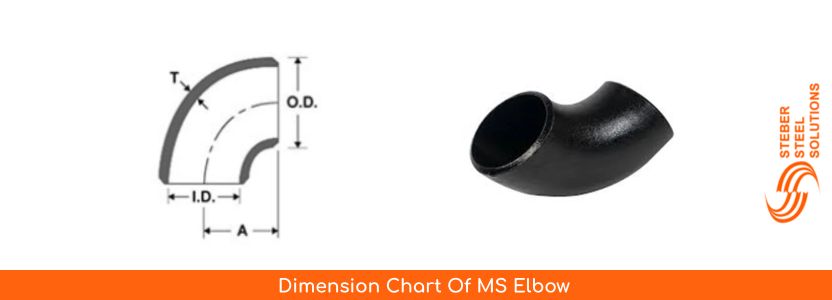

Dimension Chart Of MS Elbow
| NPS mm | D mm | A mm |
|---|---|---|
| 15 | 30 | 34 |
| 20 | 36 | 39 |
| 25 | 41 | 43 |
| 32 | 50 | 46 |
| 40 | 58 | 52 |
| 50 | 71 | 60 |
| 65 | 88 | 70 |
| 80 | 100 | 79 |
| 100 | 126 | 98 |
| 150 | 180 | 134 |

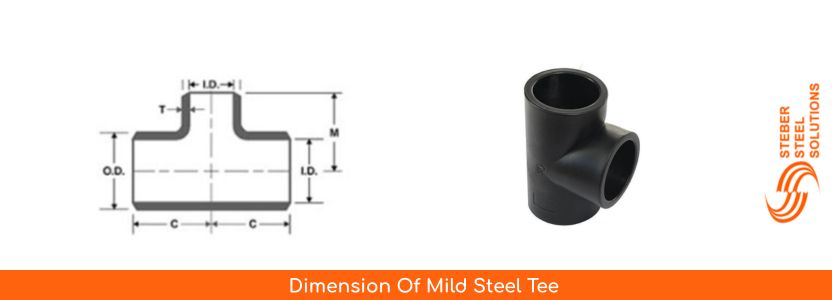

Dimension Of Mild Steel Tee
Mild Steel Fittings Supplier In India Provides Custom Sizes Of Fitting Upon Request
| NPS mm | D mm | A mm |
|---|---|---|
| 15 | 30 | 64 |
| 20 | 36 | 70 |
| 25 | 41 | 79 |
| 32 | 51 | 92 |
| 40 | 58 | 100 |
| 50 | 71 | 117 |
| 65 | 88 | 140 |
| 80 | 100 | 157 |
| 100 | 126 | 195 |
| 150 | 180 | 264 |
Black Mild Steel Elbow Standards
Mild Steel Fittings Manufacturer In India Provides Fittings That Are Manufactured As per Standards
| Standard | Schedule |
|---|---|
| ASME B16.9 | Schedule 10/ 40/ 80 |
| ASME B16.25 | Schedule 40 and 80 |
| DIN | Schedule 20/ 40/ 80/ 120 |
| EN | Schedule 40/ 80 |
| JIS | Schedule 80 |
Weight Chart Of Black MS Fittings
| NPS | LBS | KG |
|---|---|---|
| 1 | 0.5 | 0.23 |
| 1½ | 1.15 | 0.52 |
| 2 | 2.2 | 1 |
| 2½ | 4 | 1.81 |
| 3 | 6.5 | 2.95 |
| 3½ | 8.35 | 3.79 |
| 5 | 22 | 9.98 |
| 6 | 35 | 15.88 |
| 18 | 340 | 154.22 |
| 10 | 107 | 48.53 |
| 14 | 205 | 92.99 |
| 16 | 276 | 125.19 |
| 20 | 420 | 190.51 |
| 24 | 600 | 272.16 |
| 30 | 975 | 442.25 |
| 36 | 1412 | 640.47 |
Manufacturer Of Black MS Buttweld Fittings in Mumbai With MTC As Per EN 10204 3.1/3.2
Certifications of Mild Steel Elbow
- 100% Radiography Test Report
- MTC EN 10204 3.1/3.2
- Third Party Inspection Report
- Material Traceability Records
- Fumigation Certificates
- NACE MR0175
- Fumigation Certificates
Ready Stock Of IS 2062 Mild Steel Equal And Reducing Tee Available in Polished And Pickled Finish
Various Types Of Mild Steel Fittings
Mild Steel Fittings Supplier in India, Offers various Form Of Fitting Such As Tee, Cap, Reducer At Factory prices
Mild Steel Elbow
Black MS Tee
IS 2062 Mild Steel Reducer
IS 1018 Mild Steel End Cap
MS Stub End
Mild Steel Pipe Bend
Black Mild Steel Cross
IS 1018 Mild Steel Welded Pipe Fittings
Black Mild Steel Hot Induction Bend
Elbow Types
IS 1018 Mild Steel 45 Deg Elbow
Black MS 90 Deg Elbow
MS 180 Deg Elbow
S275 Grade steel Long Radius Elbow
Q345 MS Short Radius Elbow
Mild Steel Reducing Elbow
Tee Types
Black Mild Steel Equal Tee
IS 1018 Mild Steel Reducing Tee
S275 Steel Lateral Tee
Q345 MS Barred Tee
Mild Steel Y Tee
Q345 MS Flanged Tee
Reducer Types
S275 Steel Concentric Reducer
Mild Steel Eccentric Reducer
End Cap Types
Mild Steel Large Diameter End Caps
IS 2062 Mild Steel Pressure Vessel End Caps
MS Pressure Tank End Caps
Stub Types
Black MS Long Stub End
IS 1018 Mild Steel Short Stub End
MS Lap Joint Stub End
Pipe Bend Types
S275 Grade Steel 45 Degree Bend
Q235b Steel 90 Deg Bend
Black Mild Steel 180 Deg Pipe Bend
Black MS Long Radius Bend
Mild Steel Hot Induction Bend
Q345 MS Short Radius Bend
DIN Standards Of MS Stub End
| Standard | Type |
|---|---|
| DIN 2617 | Caps |
| DIN 2605-1 | Elbow |
| DIN 2616-1 | Eccentric Reducer |
| DIN 2615-1 | Tee |
| DIN 2616-2 | Concentric Reducer |
Tolerance Chart Of MS Fittings
| Description | Deviations |
|---|---|
| [T] Wall Thick | -12,5% / +15% |
| [X] Squareness, Axiality | 1% of the outside -0 or 1 mm |
| [D] Dia | -12,5%* / +15% |
| [R] Radius | 0 mm / D 762 mm + 5D 219,1 mm 2,,0 mm |
Buy HIC Tested IS 1018 Mild Steel Reducer In Cold And Hot Formed
Testing Method of Black MS Tee
Mild Steel Fittings Supplier In India Has Ready Stock Of Fittings Tested Accurately
- Cryogenic Testing
- Weldability Test
- Hardness Testing
- Ultrasonic Testing (UT)
- Low-Temperature Bend Test
- Ductility Test
- Tensile Test
Applications Of IS 1018 Mild Steel End Cap
Chemical Compositions Of Black Mild Steel Cross
| Element | Content |
|---|---|
| Sulfur | 0.050 % |
| Carbon | 0.25 – 0.290 % |
| Iron | 98.0 % |
| Phosphorous | 0.040 % |
| Manganese | 1.03 % |
| Copper | 0.20 % |
| Silicon | 0.280 % |
Mild Steel Pipe Bend Mechanical Properties
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Modulus of Elasticity | 29000 KSI | 200 GPa |
| Shear Modulus | 11500 KSI | 79.3 GPa |
| Tensile Strength, Yield | 36300 PSI | 250 MPa |
| Elongation at Break | 23.0 % | 23.0 % |
Get Mild Steel Pipe Fittings in Schedule 10 to 160 At Affordable Price
Schedule Chart Of Mild Steel Eccentric Reducer
| Size (in) | OD (in) | ID (in) | Schedule | WT (in) | Temperature (oF) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 | 100 | 400 | 300 | 600 | 500 | 700 | 650 | |||||
| 1 1/2 | 1.900 | 1.61 | 40 | 0.145 | 2822 | 2822 | 2822 | 2822 | 2441 | 2667 | 2328 | 2399 |
| 1.900 | 1.338 | 160 | 0.281 | 5774 | 5774 | 5774 | 5774 | 4995 | 5457 | 4764 | 4908 | |
| 3/4 | 1.050 | 0.824 | 40 | 0.113 | 4074 | 4074 | 4074 | 4074 | 3524 | 3849 | 3361 | 3463 |
| 1.050 | 0.612 | 160 | 0.219 | 8548 | 8548 | 8548 | 8548 | 7394 | 8078 | 7052 | 7266 | |
| 1/2 | 0.840 | 0.622 | 40 | 0.109 | 4995 | 4995 | 4995 | 4995 | 4321 | 4721 | 4121 | 4246 |
| 0.840 | 0.464 | 160 | 0.188 | 9289 | 9289 | 9289 | 9289 | 8035 | 8778 | 7663 | 7895 | |
| 1 1/4 | 1.660 | 1.38 | 40 | 0.14 | 3137 | 3137 | 3137 | 3137 | 2714 | 2964 | 2588 | 2666 |
| 1.660 | 1.16 | 160 | 0.25 | 5892 | 5892 | 5892 | 5892 | 5097 | 5568 | 4861 | 5008 | |
| 1 | 1.315 | 1.049 | 40 | 0.133 | 3810 | 3810 | 3810 | 3810 | 3295 | 3600 | 3143 | 3238 |
| 1.315 | 0.815 | 160 | 0.25 | 7675 | 7675 | 7675 | 7675 | 6639 | 7253 | 6332 | 6524 | |
Welding Methods Of IS 2062 Mild Steel Reducer
- Shielded Metal Arc Welding
- Tungsten Inert Gas Welding
- Flux Cored Arc Welding
- Gas Metal Arc Welding
MS Cross Hardness
| Hardness | 95 to 126 BHN |
|---|
Mild Steel Fittings Equivalent Grades
| EN Grades | ISO | ASTM | JIS |
|---|---|---|---|
| EN1A | ISO 1181 C10 | ASTM A106 | JIS G4051 S10C |
| EN3B | ISO 630 S235 | ASTM A36 | JIS G3101 SS400 |
| EN8 | ISO 683-2 C45 | ASTM A29 | JIS G4051 S45C |
Physical Properties Of Black Mild Steel Elbow
| Grades | Modulus of Elasticity (GPa) | Melting Point (°C) | Electrical Resistivity (μΩ·cm) | Density (g/cm³) | Thermal Conductivity (W/m·K) |
|---|---|---|---|---|---|
| EN8 | 210 | 1450 – 1530 | 0.80 | 7.85 | 45 |
| EN1A | 210 | 1450 – 1530 | 0.72 | 7.85 | 45 |
| EN3B | 210 | 1450 – 1530 | 0.75 | 7.85 | 45 |
Installation Process Of Mild Steel Pipe Fittings
HSN Code Of Mild Steel Fittings
| Product | HSN Code |
|---|---|
| Mild Steel Fittings | 7307 |
Coatings Of Black Mild Steel Seamless Fittings
- Teflon (PTFE) Coating
- Galvanized Coating
- Epoxy Coating
- FBE Coating
- 3LPE Coating
Welding Consumables Of IS 2062 Mild Steel Reducer
| techniques | Suitable electrodes & filler metal |
|---|---|
| Electrode | 6013 |
| TIG | 7018 |
| Welding wire | 6013 |
| Filler metal | 7018 |
| MIG | 7018 |
