Stainless Steel 304L Fittings and ASTM A403 WP304L Elbow Dimensions

Stainless Steel 304L Fittings Specification

Stainless Steel 304L Fittings At a Glance
Size :	1/2″ - 24″
Connection :	Welding
Outside diameter :	1/2"-72" DN150-DN1800.
Wall thickness :	2mm - 120mm.
Surface :	Black, Coating, Gal
Transport Package :	Wooden Box

ASTM A403 WP304L Elbow Sizes And Chemical Composition

Stainless Steel 304L Fittings

ASTM A403 WP304L Elbow

UNS S30403 Tee

Sizes Chart Of Stainless Steel 304L Fittings

DN	Sch 80S			Sch 40S			Sch 10S
DN	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee	90° Elbow	45° Elbow	Equal tee
10	0.06	0.04	0.09	0.03	0.02	0.03	0.03	0.02	0.05
20	0.11	0.05	0.2	0.08	0.04	0.17	0.07	0.03	0.13
32	0.4	0.23	0.68	0.26	0.17	0.59	0.23	0.11	0.49
50	0.91	0.59	1.59	0.7	0.4	1.28	0.5	0.25	0.85
80	2.97	1.5	4.45	2.2	1.08	3.31	1.25	0.63	1.77
100	6.18	2.81	7.71	4.47	2.09	5.27	2.1	1.08	3.46
200	33.11	16.56	28.12	21.54	10.77	20.91	10.2	5.33	15.65
300	79.38	39.69	83.91	59.42	29.71	62.14	25.8	13.62	39.46
8	0.04	0.03	0.07	0.03	0.02	0.06	0.02	0.01	0.03
15	0.1	0.05	0.14	0.08	0.04	0.1	0.06	0.03	0.09
25	0.22	0.14	0.38	0.15	0.11	0.29	0.14	0.08	0.28
40	0.51	0.29	1.02	0.4	0.23	0.86	0.3	0.17	0.68
65	1.81	0.99	3.13	1.4	0.77	2.19	0.85	0.48	1.41
90	4	2	5.44	2.83	1.42	4.08	1.7	0.75	2.67
150	16.32	8.16	13.61	10.89	5.44	10.99	5.45	2.72	8.07
250	51.71	25.86	49.9	38.56	19.27	35.38	18.15	9.75	26.46

Chemical Composition Of ASTM A403 WP304L Elbow

Grade	SS 304L
P	0.045 max
S	0.030 max
C	0.035 max
Mn	2 max
Si	1.0 max
Cr	18 – 20
Ni	8 – 13

Table Of Contents

Stainless Steel 304L Fittings Specification
Dimension Chart Of Werkstoff No 1.4307 Pipe Fittings
Stainless Steel 304L Pipe Fittings Working Pressure
Angularity Tolerance Of SS 304L Buttweld Fittings
WNR 1.4306 Elbow Pressure Ratings
Thickness Chart Of UNS S30403 Tee
SUS 304L Reducer Gasket Table
Weight Chart Of AISI 304L Cap
Applications Of ASTM A403 WP304L Stub End
Various Types Of Stainless Steel 304L Fittings
INOX 304L 90 Degree Elbow Angularity Tolerances
Manufacturing Process Of 304L Stainless Steel 90 Degree Elbow
Value Added Services ASTM A403 Gr WP304L Pipe Fittings
HS Code Of Stainless Steel 304L Fittings
SA 403 WP 304L Weld Fittings Melting Point
Heat Treatment Of SS 304L Seamless Pipe Fittings
What Are The Cutting Formula Of ASTM A403 WP304L Reducer ?
Mechanical Properties Of WP304L Weldable Pipe Fittings
Stainless Steel 304L Fittings Equivalent Standard
Physical Behaviour 304L Stainless Steel Stub End
Supplied Stainless Steel 304L Fittings To Different Countries

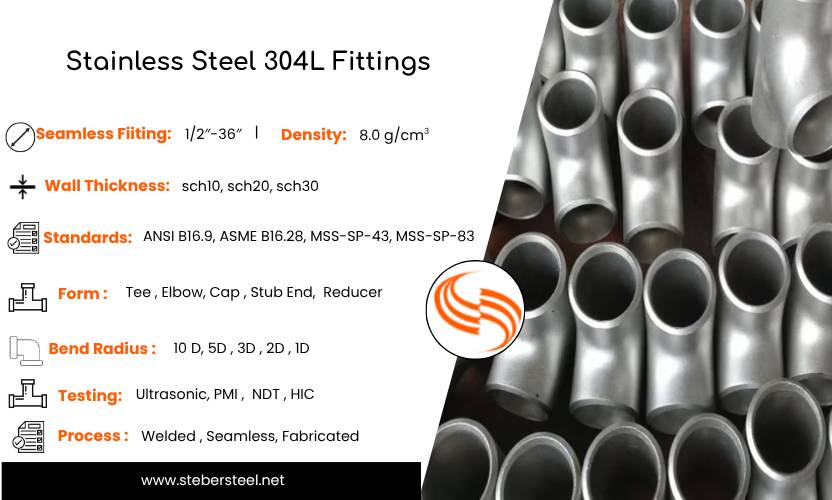

Stainless Steel 304L Fittings Specification

Stainless Steel 304L Fittings Sizes

SA 403 Gr 304L Fittings : 24 – 96″
SCH: Sch 5 - SCH XXS
Class : 5NB – 1500NB

SS 304L Quality inspection

Annealing Before machining And After Welding
Liquid penetrant
ASTM A403 WP304L -W & WX
Ultrasonic Test

Stainless Steel 304l Pipe Fittings Standards

ANSI/ ASME B16.28
ANSI/ ASME B16.9
ANSI/ ASME B16.25 (Butt Welding Ends)
MSS-SP-83

SA 403 Grade 304L Weldable Pipe Fittings Origin

Korean
Indian
Janpanese
European

ASTM A403 WP304L Fittings Form

Cap
Reducer, Stub End
Elbow
Tee

Stainless Steel 304L Fittings Bend Angle

15°
180°
135°
60°

ASTM A403 Gr WP 304L End Cap Radius

AISI 304L 90 Degree Elbow Packaging

Bubble Wraps
Bundled
Wooden Box

SUS 304L Elbow Bending Method

Roll Bending
Mandrel
Hot Induction
Ram Type

AISI 304L Pipe Fittings Marking

Size
Heat Treatment
Manufacturers Name
Grades

SA 403 WP 304L Finish

Polish
Mill Finish
Special Finish

Stainless Steel 304l Pipe Fittings Approx Delivery Time In UAE

3-7 Days (From Other Countries)
1-3 Days (From UAE Suppliers)

IBR Certified 304L Stainless Steel End Cap Manufacturer In India

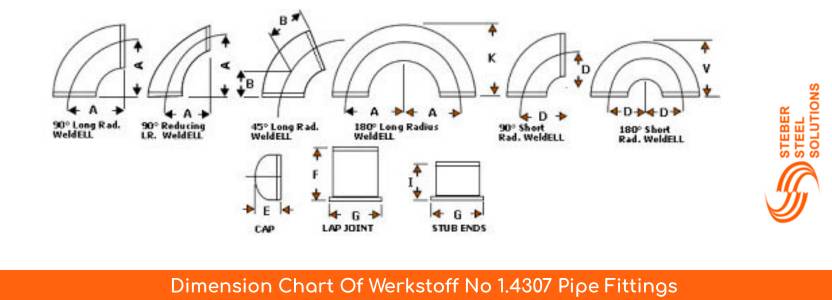

Dimension Chart Of Werkstoff No 1.4307 Pipe Fittings

Nominal Pipe Size	OD		45° Elbows		180° Returns		90° Elbows
	OD		LR		LR		LR	SR
	mm	inch	Center to Face inch	Radius inch	Center to Center inch	Back to face inch	Center to Face inch	Center to Face inch
1	33.4	1.315	7/8	-	3	2 3/16	1 1/2	1
2	60.3	2.375	1 3/8	4	6	4 3/16	3	2
3 1/2	101.6	4	2 1/4	7	10 1/2	7 1/4	5 1/4	3 1/2
5	141.3	5.563	3 1/8	10	15	10 5/16	7 1/2	5
8	219.1	8.625	5	12	24	16 5/16	12	8
12	323.9	12.75	7 1/2	18	36	24 3/8	18	12
1 1/2	48.3	1.9	1 1/8	3	4 1/2	3 1/4	2 1/4	1 1/2
2 1/2	73	2.875	1 3/4	5	7 1/2	5 3/16	3 3/4	2 1/2
1 1/4	42.2	1.66	1	-	3 3/4	2 3/4	1 7/8	1 1/4
3	88.9	3.5	2	6	9	6 1/4	4 1/2	3
4	114.3	4.5	2 1/2	8	12	8 1/4	6	4
6	168.3	6.625	3 3/4	12	18	12 5/16	9	6
10	273.1	10.75	6 1/4	15	30	20 3/8	15	10

Stainless Steel 304L Pipe Fittings Working Pressure

NPS In Inch	Wall Thickness	Outer Diameter	Working Pressure Max
3/8	0.126	0.675	920
3/4	0.154	1.05	690
1 1/4	0.191	1.66	520
2	0.218	2.375	400
3	0.3	3.5	370
4	0.337	4.5	320
6	0.432	6.625	280
10	0.593	10.75	230
14	0.75	14	220
1/4	0.119	0.54	1130
1/2	0.147	0.84	850
1	0.179	1.315	630
1 1/2	0.2	1.9	470
2 1/2	0.276	2.875	420
3 1/2	0.318	4	350
5	0.375	5.563	290
8	0.5	8.625	250
12	0.687	12.75	230
16	0.843	16	220

Reputed Stainless Steel 304L Fittings Supplier in India, providing material known for their heat resistance, making them a reliable choice for furnace reactors, and other temperature industrial applications

Angularity Tolerance Of SS 304L Buttweld Fittings

Nominal Size		Angularity Tolerance
DN	NPS	Off Angle	Off Plain
DN	NPS	Q	P
250-300	10-12	3	5
15-100	1/2 4	1	2
450-600	18-24	4	10
125-200	5/8	2	4
350-400	14-16	3	6
800-1050	32-42	5	13
650-750	26-30	5	10
1300-1500	52-60	6.4	20
1100-1200	44-48	5	19

ASTM A403 Grade WP304L Seamless Reducer Available In Class 150 To 9000#

WNR 1.4306 Elbow Pressure Ratings

Temperature Ratings		Pressure Class
Temperature Ratings		150	300
oC	oF	150	1 1/4 - 2 inch.	2 1/2 - 3 inch.	1/4 - 1 inch.
-29 to 66	-20 to 150	300	1500	1000	2000
93	200	265	1350	910	1785
177	350	150	900	650	1150
232	450	-	600	475	725
149	300	185	1050	735	1360
121	250	225	1200	825	1575
204	400	-	750	560	935
260	500	-	450	385	510
288	550	-	300	300	300

Thickness Chart Of UNS S30403 Tee

Normal Size Of Pipe	45 Deg Elbows		Tee		Caps	90 Deg Elbows			180 Deg Return Bends				Lap Joint Stub Ends
	LR	3R	C	M	E	LR	SR	3R	LR		SR		F	G	R
	B	B	C	M	E	A	A	A	O	K	O	K	F	G	R
¾	0.75	-	1.12	1.12	1	1.5	-	-	3	2	-	-	3	1.69	0.12
1¼	1	-	1.88	1.88	1.5	1.88	1.25	-	3.75	2.75	2.5	2.06	4	2.5	0.19
2	1.38	2.5	2.5	2.5	1.5	3	2	6	6	4.19	4	3.19	6	3.62	0.31
3	2	3.75	3.38	3.38	2	4.5	3	9	9	6.25	6	4.75	6	5	0.38
4	2.5	5	4.12	4.12	2.5	6	4	12	12	8.25	8	6.25	6	6.19	0.44
6	3.75	7.44	5.62	5.62	3.5	9	6	18	18	12.31	12	9.31	8	8.5	0.5
10	6.25	12.44	8.5	8.5	5	15	10	30	30	20.38	20	15.38	10	12.75	0.5
14	8.75	17.38	11	11	6.5	21	14	42	42	28	28	21	12	16.25	0.5
18	11.25	22.38	13.5	13.5	8	27	18	54	54	36	36	27	12	21	0.5
22	13.5	27.31	16.5	16.5	10	33	22	66	66	44	44	33	12	25.25	0.5
26	16	32.31	19.5	19.5	10.5	39	-	78	-	-	-	-	-	-	-
30	18.5	37.25	22	22	10.5	45	-	90	-	-	-	-	-	-	-
34	21	42.25	25	25	10.5	51	-	102	-	-	-	-	-	-	-
38	23.62	47.25	28	28	12	57	-	114	-	-	-	-	-	-	-
42	26	52.19	30	28	12	63	-	126	-	-	-	-	-	-	-
46	28.62	57.19	33.5	31.5	13.5	69	-	138	-	-	-	-	-	-	-
½	0.62	-	1	1	1	1.5	-	-	3	1.88	-	-	3	1.38	0.12
1	0.88	-	1.5	1.5	1.5	1.5	1	-	3	2.19	2	1.62	4	2	0.12
1½	1.12	-	2.25	2.25	1.5	2.25	1.5	-	4.5	3.25	3	2.44	4	2.88	0.25
2½	1.75	3.12	3	3	1.5	3.75	2.5	7.5	7.5	5.19	5	3.94	6	4.12	0.31
3½	2.25	-	3.75	3.75	2.5	5.25	3.5	10.5	10.5	7.25	7	5.5	6	5.5	0.38
5	3.12	-	4.88	4.88	3	7.5	5	15	15	10.31	10	7.75	8	7.31	0.44
8	5	9.94	7	7	4	12	8	24	24	16.31	16	12.31	8	10.62	0.5
12	7.5	14.88	10	10	6	18	12	36	36	24.38	24	18.38	10	15	0.5
16	10	19.88	12	12	7	24	16	48	48	32	32	24	12	18.5	0.5
20	12.5	24.88	15	15	9	30	20	60	60	40	40	30	12	23	0.5
24	15	29.81	17	17	10.5	36	24	72	72	48	48	36	12	27.25	0.5
28	17.25	34.75	20.5	20.5	10.5	42	-	84	-	-	-	-	-	-	-
32	19.75	-	23.5	23.5	10.5	48	-	-	-	-	-	-	-	-	-
36	22.25	44.69	26.5	26.5	10.5	54	-	108	-	-	-	-	-	-	-
40	24.88	49.75	29.5	29.5	12	60	-	120	-	-	-	-	-	-	-
44	27.38	54.69	32	30	13.5	66	-	132	-	-	-	-	-	-	-
48	29.88	59.69	-	-	-	72	-	144	-	-	-	-	-	-	-

SUS 304L Reducer Gasket Table

O.D. or I.D.	Equivalent Decimal	Nominal Diam	Typical Threads In Inch
13/32	0.405	1/8	27
5/16	0.313	1/16	27
43/64	0.675	3/8	18
35/64	0.540	1/4	18
1-3/64	1.050	3/4	14
27/32	0.840	1/2	14
1-21/32	1.660	1-1/4	11-1/2
1-5/16	1.315	1	11-1/2
2-3/8	2.375	2	11-1/2
1-29/32	1.900	1-1/2	11-1/2
3-1/2	3.500	3	8
2-7/8	2.875	2-1/2	8
4-1/2	4.500	4	8
4	4.000	3-1/2	8

Leading Stainless Steel 304L Fittings Manufacturer in India, offering durable flanges designed for demanding industrial applications in chemical, marine, and other industries

Stockist Of PED Approved INOX 304L Equal Tee Offers Indian And European Mills

Weight Chart Of AISI 304L Cap

Normal Pipe Size	Kg	LBS
3/4	0.11	0.25
1/2	0.11	0.25
1¼	0.41	0.9
1	0.23	0.5
2	1	2.2
1½	0.52	1.15
3	2.95	6.5
2½	1.81	4
4	6.12	13.5
3½	3.79	8.35
6	15.88	35
5	9.98	22
10	48.53	107
8	32.21	71
14	92.99	205
12	72.57	160
18	154.22	340
16	125.19	276
22	235.87	520
20	190.51	420
26	330.67	729
24	272.16	600
36	640.47	1412
30	442.25	975

Supplier Of SS 304L Long Radius Elbow Provide Zero Defects, Long Life And Quality Finishing

Applications Of ASTM A403 WP304L Stub End

Various Types Of Stainless Steel 304L Fittings

Stainless Steel 304L Elbow

SS 304L Tee

WNR 1.4306 Reducer

UNS S30403 Cap

SUS 304L Stub End

AISI 304L Bend

INOX 304L Cross

304L Stainless Steel Welded Pipe Fittings

A403 WP304L Hot Induction Bend

Elbow Types

ASTM A403 WP304L 45 Deg Elbow

ASTM A403 Gr WP304L 90 Deg Elbow

ASTM A403 Grade WP304L 180 Deg Elbow

ASTM A403 WP304L Long Radius Elbow

SA 403 WP 304L Short Radius Elbow

WP304L Reducing Elbow

Tee Types

Stainless Steel 304L Equal Tee

SS 304L Reducing Tee

WNR 1.4306 Lateral Tee

UNS S30403 Barred Tee

SUS 304L Y Tee

AISI 304L Flanged Tee

Reducer Types

INOX 304L Concentric Reducer

304L Stainless Steel Eccentric Reducer

End Cap Types

A403 WP304L End Caps

ASTM A403 WP304L Pressure Vessel End Caps

ASTM A403 Gr WP304L Pressure Tank End Caps

Stub End Types

ASTM A403 Grade WP304L Long Stub End

ASTM A403 WP304L Short Stub End

SA 403 WP 304L Lap Joint Stub End

Pipe Bend Types

WP304L 45 Degree Bend

Stainless Steel 304L 90 Deg Bend

SS 304L 180 Deg Pipe Bend

WNR 1.4306 Long Radius Bend

UNS S30403 Hot Induction Bend

SUS 304L Short Radius Bend

INOX 304L 90 Degree Elbow Angularity Tolerances

NPS	P inch mm	Q inch mm
5~8	±0.12	±0.06
14~16	±0.25	±0.09
26~30	±0.38	±0.19
44~48	±0.75	±0.19
1/2~4	±0.06	±0.03
10~12	±0.19	±0.09
18~24	±0.38	±0.12
32~42	±0.50	±0.19

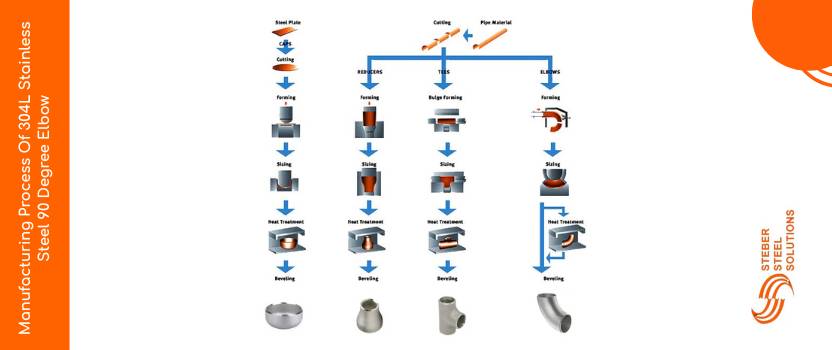

Manufacturing Process Of 304L Stainless Steel 90 Degree Elbow

Value Added Services ASTM A403 Gr WP304L Pipe Fittings

Rolling
Heat Treatment
Polish
Forging
Annealed
Bending
Pickling

HS Code Of Stainless Steel 304L Fittings

Description	Hs Code
Stainless Steel 304L Pipe Fittings	73072300

SA 403 WP 304L Weld Fittings Melting Point

Melting Point	2550 °F	1400 °C

Heat Treatment Of SS 304L Seamless Pipe Fittings

Heat Treatment	1010- 1120°C

Expert Stainless Steel 304L Fittings Supplier in India, specializing in custom flanges that provide performance in corrosive environments, useful in chemical plants

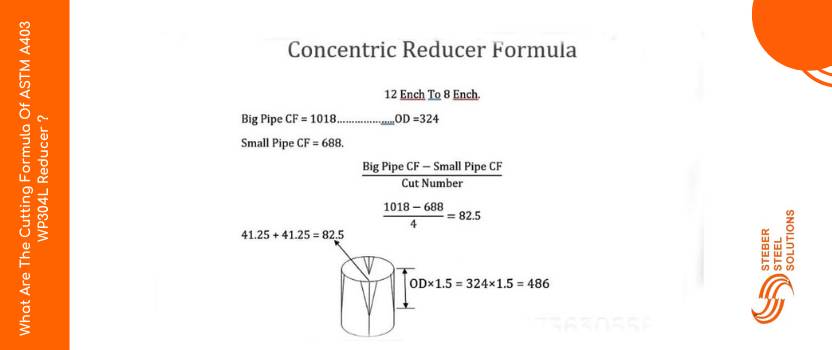

What Are The Cutting Formula Of ASTM A403 WP304L Reducer ?

Mechanical Properties Of WP304L Weldable Pipe Fittings

Properties	Values
Density	8.0 g/cm³
Melting Point	1400 °C (2550 °F)
Elongation	0.35
Tensile Strength	Psi – 75000 (MPa – 515)
Yield Strength	Psi – 30000 (MPa – 205)

Stainless Steel 304L Fittings Equivalent Standard

STANDARD	A403 WP304L Fittings
WERKSTOFF NR.	1.4306 / 1.4307
UNS	S30403
JIS	SUS 304L
BS	3304S11
GOST	03Х18Н11
AFNOR	Z3CN18‐10
EN	X2CrNi18-9 / X2CrNi19-11

Top Stainless Steel 304L Fittings Supplier in India, delivering heat-resistant flanges that perform well in high-temperature applications, including power plants, heat exchangers, etc

Physical Behaviour 304L Stainless Steel Stub End

Grade		304L
Elastic Modulus		193
Thermal Conductivity	at 5000C	21.5
Thermal Conductivity	at 1000C	16.2
Specific Heat 0-1000C		500
Thermal Expansion	0-3150C	17.8
	0-1000C	17.2
	0-5380C	18.4
Electrical Resistivity		720

Supplied Stainless Steel 304L Fittings To Different Countries

Country Name	Flag	Country Name	Flag
Algeria		Nigeria
Tunisia		South Africa
Kenya		Angola
Tanzania		Morocco
Egypt		Ethiopia
Zambia		UAE
