Hastelloy C276 Fittings

Hastelloy C276 Fittings

Hastelloy C276 Fittings Quick Overview
Seamless Fittings 1/2" - 10″
Welded Fittings 1/2" - 48"
Technique Hot Or Cold Pressed
Bending Radius 1D, 3D, 2D, 10D,5D, 6D, 8D
Bending Angle 60°, 30°, 22.5°, 90°, 45°
Method Fabricated, Welded, Seamless
Heat Treatment Tempered, Annealed, Quenched

ASTM B366 UNS N10276 Elbow Manufacturer Produce Exact Dimensions As Per Need

Nominal Pipe Sizes All Fittings 180 Deg Return Bends Tees & Elbow All Fittings Caps 180 Deg Return Bends Reducers
Outside Diameter (O.D) at Bevel (1), (2) Alignment of Ends U Centre - to - End Dimension A, B, C, M ID at End (1), (3), (4) Overall Length E Centre - to - Centre O Overall Length H
3 - 3 ½ 0.006 0.003 0.006 0.006 0.012 0.025 0.006
26 - 30 0.025 - 0.019 … 0.012 0.019 0.038 … 0.019
4 0.006 0.003 0.006 0.006 0.012 0.025 0.006
10 - 18 0.016 - 0.012 0.006 0.009 0.012 0.025 0.038 0.009
½ - 2½ 0.006 - 0.003 0.003 0.006 0.003 0.012 0.025 0.006
5 - 8 0.009 - 0.006 0.003 0.006 0.006 0.025 0.025 0.006
20 - 24 0.025 - 0.019 0.006 0.009 0.019 0.025 0.038 0.009
32 - 48 0.025 - 0.019 - 0.019 0.019 - - 0.019
Hastelloy C276 Fitting

Hastelloy C276 Fitting

Alloy C276 Tee

Alloy C276 Tee

ASTM B366 WPHC276 Long Radius Elbow

ASTM B366 WPHC276 Long Radius Elbow

Table of Contents


Hastelloy C276 Fittings Specification

Sizes for Hastelloy C276 Fittings

  • Welded Fittings: 1/2" - 48"
  • Seamless Fittings: 1/2" - 10″
  • Schedule : SCH 10 - SCH 160, XXS
  • Custom
Sizes

Nickel Alloy C276 Elbow Standards

  • ASTM B366 | ASME SB366
  • UNS: N10276
  • WNR: 2.4819


Standards

Form of UNS N10276 Pipe Fitting

  • Reducer
  • Cap
  • Elbow
  • Stub End
  • Tee
Form

Hastelloy Alloy C276 Reducer Origin

  • Janpanese
  • European
  • Korean
  • American



Origin

Testing of Alloy C276 Cap

  • Ultrasonic test
  • HIC tested
  • NDT Test
  • PMI Test




Testing

Nickel C276 Stub End Bend Angle

  • 15°
  • 30°
  • 180°
  • 90°
  • 135°
  • 45°
  • 22.5
  • 60°
Process

Radius Nicrofer 5716 Nipple

  • 5D
  • 3D
  • 2D
  • 1D
Radius

Nickelvac HC276 Cross Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Packaging

Bending Method of WNR 2.4819 Coupling

  • Roll Bending
  • Mandrel
  • Hot Induction
  • Ram Type
Bending Method

Werkstoff NR. 2.4819 Collar Marking

  • Heat Treatment
  • Grades, Size
  • Manufacturers Name
Marking

Finish of Alloy C276 Tee

  • Polish
  • Mill Finish
  • Special Finish

Finish

ASTM B366 WPHC276 Long Radius Elbow JIS Standards

  • NW 0276

Standards


Supplier of Alloy C276 Tee Stock Schedule 10 to 80 In Mumbai

Schedule Chart for Alloy C276 Tee

Diameter Nominal SCH 10S SCH 40S SCH 80S
Con Reducer Reducing tee Ecc Reducer Con Reducer Reducing tee Ecc Reducer Ecc Reducer Reducing tee Con Reducer
40 x .25 0.60 0.19 0.19 0.76 0.26 0.26 0.34 0.34 0.90
100 x 50 2.94 0.78 0.78 4.48 1.50 1.50 1.95 1.95 6.55
50 x 25 0.73 0.28 0.28 1.10 0.40 0.40 0.54 0.54 1.37
200 x 100 13.46 3.01 3.01 17.98 6.55 6.55 9.23 9.23 24.18
150 x 100 7.10 1.96 1.96 11.94 4.07 4.07 5.96 5.96 11.97
80 x .50 1.56 0.55 0.55 2.91 1.00 1.00 1.79 1.79 3.91
100 x 80 3.04 0.87 0.87 4.64 1.74 1.74 2.33 2.33 6.79
50 x 40 0.76 0.31 0.31 1.15 0.45 0.45 0.59 0.59 1.43
150 x 80 6.86 1.82 1.82 9.68 3.95 3.95 5.51 5.51 11.57
200 x 150 14.08 3.19 3.19 18.82 6.74 6.74 10.12 10.12 25.31

ASTM B366 WPHC276 Long Radius Elbow Allowable Stress

Temperature In °F 400 -20 - 100 1100 700 900 200 600 800 1000 1200
Max. Allowable Stress In Ksi 27.3 27.3 15 24 22.6 27.3 25.2 23.1 22.3 9.8

Weight Chart for Hastelloy C276 Buttweld Fittings

Hastelloy C276 Fittings Supplier in India, offers an Good Weights for Pipe Fittings

Diameter Nominal SCH 10S SCH 80S SCH 40S
Equal tee 450° Elbow 90° Elbow Equal tee 450° Elbow 90° Elbow Equal tee 450° Elbow 90° Elbow
8 0.03 0.01 0.02 0.07 0.03 0.04 0.06 0.02 0.03
25 0.28 0.08 0.14 0.38 0.14 0.22 0.29 0.11 0.15
40 0.68 0.17 0.30 1.02 0.29 0.51 0.86 0.23 0.40
15 0.09 0.03 0.06 0.14 0.05 0.10 0.10 0.04 0.08
90 2.67 0.75 1.70 5.44 2.00 4.00 4.08 1.42 2.83
250 26.46 9.75 18.15 49.90 25.86 51.71 35.38 19.27 38.56
80 1.77 0.63 1.25 4.45 1.50 2.97 3.31 1.08 2.20
150 8.07 2.72 5.45 13.61 8.16 16.32 10.99 5.44 10.89
20 0.13 0.03 0.07 0.20 0.05 0.11 0.17 0.04 0.08
32 0.49 0.11 0.23 0.68 0.23 0.40 0.59 0.17 0.26
10 0.05 0.02 0.03 0.09 0.04 0.06 0.03 0.02 0.03
50 0.85 0.25 0.50 1.59 0.59 0.91 1.28 0.4 0.70
100 3.46 1.08 2.10 7.71 2.81 6.18 5.27 2.09 4.47
300 39.46 13.62 25.80 83.91 39.69 79.38 62.14 29.71 59.42
65 1.41 0.48 0.85 3.13 0.99 1.81 2.19 0.77 1.40
200 15.65 5.33 10.20 28.12 16.56 33.11 20.91 10.77 21.54

Which Are The Precautions During Welding for Hastelloy C276 Buttweld Fittings ?

Which Are The Precautions During Welding for Hastelloy C276 Buttweld Fittings

UNS N10276 Tee Ranges in Weights

Approximates Weights
Nominal Pipe Fittings Size (Inch) 90° SR Elbow 45° LR Elbow 90° LR Elbow
5S 10S 80S 40S 5S 10S 80S 40S 5S 10S 80S 40S
3/4 – – – – 0.031 0.030 0.090 0.037 0.062 0.060 0.110 0.075
1 0.077 0.094 0.180 0.118 0.039 0.100 0.140 0.120 0.078 0.140 0.230 0.160
12 14.80 16.70 47.17 37.50 11.10 12.50 38.00 28.10 22.30 25.90 72.00 56.20
31/2 0.719 1.020 2.700 1.880 0.540 0.760 2.000 1.410 1.080 1.530 3.800 2.820
21/2 0.383 0.541 1.300 0.909 0.288 0.450 0.960 0.700 0.576 0.800 1.800 1.300
8 4.710 6.680 21.55 13.40 3.530 5.010 15.80 10.10 7.060 10.00 32.00 20.10
10 8.830 10.40 31.75 23.60 6.620 7.770 23.90 17.70 13.20 15.50 48.00 35.40
2 0.191 0.318 0.680 0.434 0.143 0.310 0.540 0.400 0.286 0.460 1.000 0.660
1/2 – – – – 0.024 0.030 0.090 0.038 0.049 0.060 0.110 0.075
11/2 0.114 0.189 0.340 0.245 0.085 0.180 0.310 0.200 0.170 0.280 0.500 0.350
11/4 0.101 0.152 0.280 0.204 0.063 0.140 0.230 0.170 0.125 0.240 0.400 0.260
3 0.540 0.761 1.900 1.360 0.405 0.650 1.600 1.100 0.810 1.200 3.000 2.150
4 0.928 1.310 3.800 2.560 0.696 1.050 2.800 1.950 1.390 2.000 6.100 4.000
5 1.890 2.280 6.300 4.320 1.420 1.710 4.800 3.240 2.830 3.420 10.00 6.480
6 2.680 3.240 10.40 6.630 2.010 2.430 7.900 4.970 4.030 5.250 15.80 9.940

ASTM B366 WPHC276 Long Radius Elbow Available In 150# to 3000#

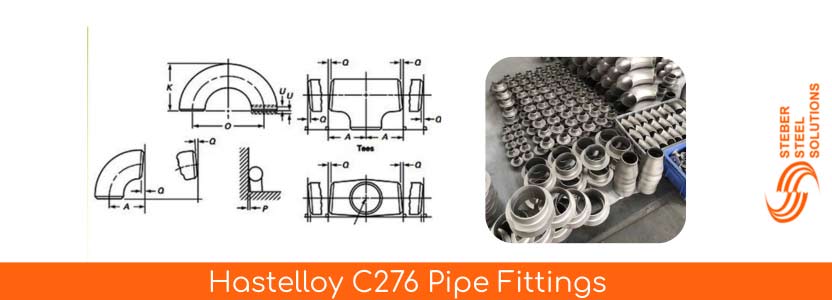

Hastelloy C276 Fittings Dimension Chart

Hastelloy C276 Fittings Dimension Chart
Nominal Fittings Sizes (Inch) Outside Diameter (O.D.) Elbow 45 Deg Return Elbow 180 Deg Elbow 90 Deg
Long Radius Elbow Long Radius Elbow Long Radius Elbow Short Radius
(Inch) (mm) Radius (Inch) Center to Face (Inch) Back to face (Inch) Center to Center (Inch) Center to Face (Inch) Center to Face (Inch)
1/2 0.840 21.3 5/8 1 7/8 2 – 1 1/2
1 1.315 33.4 7/8 2 3/16 3 1 1 1/2
1 1/2 1.900 48.3 3 1 1/8 3 1/4 4 1/2 1 1/2 2 1/4
3 1/2 4.000 101.6 7 2 1/4 7 1/4 10 1/2 3 1/2 5 1/4
5 5.563 141.3 10 3 1/8 10 5/16 15 5 7 1/2
8 8.625 219.1 12 5 16 5/16 24 8 12
12 12.750 323.9 18 7 1/2 24 3/8 36 12 18
2 1/2 2.875 73.0 5 1 3/4 5 3/16 7 1/2 2 1/2 3 3/4
3/4 1.050 26.7 7/16 1 11/16 2 1/4 – 1 1/8
1 1/4 1.660 42.2 1 2 3/4 3 3/4 1 1/4 1 7/8
2 2.375 60.3 4 1 3/8 4 3/16 6 2 3
3 3.500 88.9 6 2 6 1/4 9 3 4 1/2
4 4.500 114.3 8 2 1/2 8 1/4 12 4 6
6 6.625 168.3 12 3 3/4 12 5/16 18 6 9
10 10.750 273.1 15 6 1/4 20 3/8 30 10 15

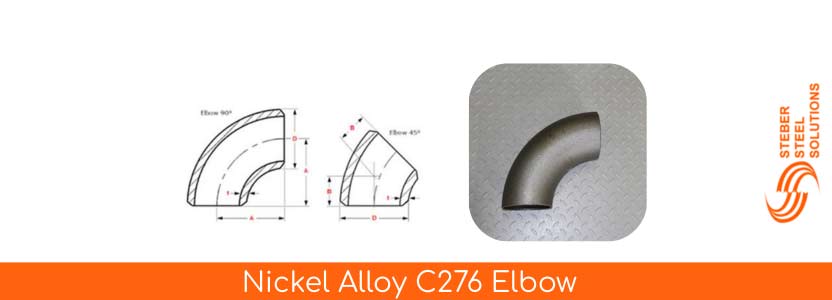

Dimensions of Nickel Alloy C276 Elbow

Dimensions of Nickel Alloy C276 Elbow
Nominal Fitings Sizes (Inch) 45 deg (LR) Center-End Of (B) Outer Daimeter Of (D) 90 deg (LR) Center-End Of (A)
1¼ 25 42.2 48
2 35 60.3 76
1/2 16 21.3 38
1 22 33.4 38
5 79 141.3 190
8 127 219.1 305
12 190 323.8 457
16 254 406.4 610
3½ 57 101.6 133
1½ 29 48.3 57
2½ 44 73 95
3/4 19 26.7 38
3 51 88.9 114
4 64 114.3 152
6 95 168.3 229
10 159 273 381
14 222 355.6 533

Hastelloy Alloy C276 Reducer Temperature Ratings

Temperature Ratings Pressure Class
150 300
2 1/2 - 3" 1 1/4 - 2" 1/4 - 1"
(°C) (°F)
-29 to 66 -20 to 150 300 1000 1500 2000
204 400 - 560 750 935
93 200 265 910 1350 1785
232 450 - 475 600 725
288 550 - 300 300 300
177 350 150 650 900 1150
121 250 225 825 1200 1575
260 500 - 385 450 510
149 300 185 735 1050 1360

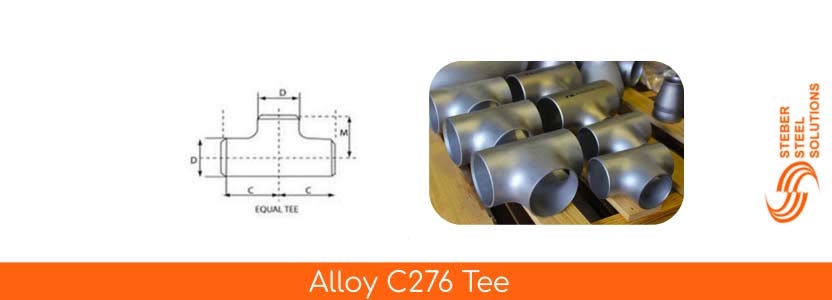

Size Chart for Alloy C276 Tee

Size Chart for Alloy C276 Tee
Nominal Fittings Sizes Outer Daimeter (O.D.) at bevel Center-End
Outlet (M) Run (C)
1 1/4" 42.2 48 48
3/4" 26.7 29 29
2" 60.3 64 64
3 1/2" 101.6 95 95
5" 141.3 124 124
8" 219.1 178 178
12" 323.8 254 254
16" 406.4 305 305
3" 88.9 86 86
1 1/2" 48.3 57 57
2 1/2" 73.0 76 76
1/2" 21.3 25 25
1" 33.4 38 38
4" 114.3 105 105
6" 168.3 143 143
10" 273.0 216 216
14" 355.6 279 279

Various Types Of Hastelloy C276 Fittings

Hastelloy C276 Fittings Supplier in India, Offering Various of Most Popular Pipe Fittings Types.

Hastelloy C276 Buttweld Fittings

Hastelloy C276 Buttweld Fittings

Nickel Alloy C276 Elbow

Nickel Alloy C276 Elbow

UNS N10276 Tee

UNS N10276 Tee

Hastelloy Alloy C276 Reducer

Hastelloy Alloy C276 Reducer

Alloy C276 Cap

Alloy C276 Cap

Nickel C276 Stub End

Nickel C276 Stub End

Nicrofer 5716 Nipple

Nicrofer 5716 Nipple

Nickelvac HC276 Cross

Nickelvac HC276 Cross

WNR 2.4819 Coupling

WNR 2.4819 Coupling

Werkstoff NR. 2.4819 Collar

Werkstoff NR. 2.4819 Collar

Buy 100% Ultrasonic and X-ray Testing For Nickel Alloy C276 Buttweld Fittings

What Are The Testings Methods for Nicrofer 5716 Nipple ?

What Are The Testings Methods for Nicrofer 5716 Nipple

Alloy C276 Cap Resistance Chart

Media Temperature Mean Corrosion rate, mills per year Content Weight
ºC ºF Hastelloy C276
Hydrochloric acid Boiling boiling 10 1%
Nitric Acid + 6% HF 60ºC 140 ºF 207 5%
Ferric Chloride Boiling boiling 2 10%
Formic Acid Boiling boiling 2 88%
Sulfuric Acid 66ºC 150ºF 4 50%
Acetic Acid Boiling boiling Below 1 99%

Pressure Rating for Nickel C276 Stub End

Nominal Fittings Size (Inch) Outside Diameter (O.D.) (Inch) Wall Thick.(in) Sch Temp.
500 Fitting 200 Fitting 400 Fitting 100 Fitting 300 Fitting
Allowable Stress (Pressure Rating)
14400 16700 15500 16700 16700
2" 2.0375 0.0154 40 1182 1371 1272 1371 1371
2.0375 0.0218 80 1712 1985 1843 1985 1985
2.0375 0.0344 160 2831 3283 3047 3283 3283
1 1/2" 1.0900 0.0145 40 1404 1629 1512 1629 1629
1.0900 0.0200 80 1986 2303 2138 2303 2303
1.0900 0.0281 160 2899 3362 3120 3362 3362
5" 5.0563 0.0258 40 832 965 896 965 965
5.0563 0.0375 80 1231 1428 1325 1428 1428
5.0563 0.0625 160 2133 2474 2296 2474 2474
3" 3.0500 0.0216 40 1122 1301 1208 1301 1301
3.0500 0.0300 80 1590 1844 1712 1844 1844
3.0500 0.0438 160 2403 2787 2587 2787 2787
6" 6.0625 0.0280 40 756 877 814 877 877
6.0625 0.0432 80 1189 1379 1280 1379 1379
6.0625 0.0719 160 2054 2382 2211 2382 2382
10" 10.0750 0.0365 40 603 699 649 699 699
10.0750 0.0594 80 999 1159 1075 1159 1159
10.0750 1.0125 160 1974 2289 2124 2289 2289

Nicrofer 5716 Nipple Gasket Chart

I.D. or O.D. Diameter (Inch) Nominal Diameter Typical Threads In Inch Equivalent Decimal
5/16 1/16 27 0.313
35/64 1/4 18

0.540
27/32 1/2 14 0.840
1-5/16 1 11-1/2 1.315
1-29/32 1-1/2 11-1/2 1.900
4 3-1/2 8 4.000
2-7/8 2-1/2 8 2.875
13/32 1/8 27 0.405
43/64 3/8 18 0.675
1-3/64 3/4 14 1.050

1-21/32

 1-1/4 11-1/2 1.660
2-3/8 2 11-1/2 2.375
3-1/2 3 8 3.500
4-1/2 4 8 4.500

Tolerances Chart for Nickelvac HC276 Cross

Outside Diameter (O.D.) at Bevel (D) + 6.04 - 4.08 + 6.04 - 4.08 + 4 - 3.02 + 6.04 - 4.08
NP Size 4 3 to 3½ 1/2 to 2½ 5 to 8
Outside Diameter (O.D.) at Bevel (D) 1.06 1.06 + 1.06 - 0.08 + 2.04 - 1.06
NP Size 26 to 30 20 to 24 10 to 18 32 to 48
Center - End LR (A/B) 2 2 2 2
ID at End 1.06 1.06 0.08 1.06
ID at End + 6.04 - 4.08 4.08 3.02 + 6.04 - 4.08
Center - End 3D (A/B) 6 3 3 6
Center to End LR (A/B) 3 2 2 5
Center - End 3D (A/B) 3 3 3 3
Wall Thickness (t) Not less than 87.05% of Nominal WT
Get Corrosion Resistant WNR 2.4819 Concentric Reducers As Per MSS SP-43 Standard

5 Major Characteristics for Hastelloy C276 Pipe Fittings ?

  • Excellent Resistant to Corrosion
  • Resistance is Exceptional
  • Lower Carbon Content
  • Stress Cracking Corrosive
  • Corrosive Effects

Hastelloy C276 Fittings Equivalent Standard

Standard Werkstoff NR. UNS OR JIS EN GOST
Hastelloy C276 2.4819 N10276 ЭП760 NW 0276 NiMo16Cr15W ХН65МВУ

In Which Major Industries Hastelloy C276 Fittings Are Used ?

In Which Major Industries Hastelloy C276 Fittings Are Used

Chemical Composition for Werkstoff NR. 2.4819 Collar

Hastelloy C276 Fittings Manufacturers in India, Provides Accurate Chemical Compositions of Fittings.

Grade Co Mo Ni Si P C Mn Fe S Cr
Hastelloy C276 Fittings 2.5 max 15 - 17 Balance 0.08 max 0.04 max 0.01 max 1.0 max 45111 0.03 max 14.5 - 16.5

Alloy C276 Tee Mechanical Properties

Hastelloy C276 Fittings Supplier in India, Providing Fittings with Exceptional Mechanical Properties

Grade Density Tensile Strength Yield Strength (0.2%Offset) Melting Point Elongation
Hastelloy C276 Fittings 8.89 g/cm3 MPa - 790, Psi - 1,15,000 MPa - 355, Psi - 52,000 2500°F (1370°C) 0.4%

Physical Properties for Hastelloy C276 Fitting

Density Young's Modulus Specific Heat Shear Modulus Melting Range Thermal Conductivity Poisson's Ratio Permeability
8.89 0.321 205 29.8 427 0.102 79 11.4 1325-1370 2415-2500 427 67.9 0.307 1.0002
g/cm³ lb/in³ GPa 103 ksi J/kg•°C Btu/lb•°F GPa 103 ksi °C °F W/m•°C Btu•in/ft²•h•°F   200 oersted (15.9 kA/m)

ASTM B366 WPHC276 Long Radius Elbow HSN Code

Grade HSN Code
Hastelloy C276 Fittings 75072000

Thermal Properties for Hastelloy C276 Buttweld Fittings

Properties   Values
Electrical resistivity μΩm 1.23
Thermal conductivity W/(mºC) 10.5
Specific heat J/kg ºC 427

Offer Hastelloy C276 Fitting to the various Countries

Country Name Flag Country Name Flag
Algeria Algeria Nigeria Nigeria
Zambia Zambia Ghana Ghana
Tunisia Tunisia South Africa South Africa
Kenya Kenya Angola Angola
Tanzania Tanzania Morocco Morocco
Egypt Egypt Ethiopia Ethiopia
