Monel Fittings
| Monel Fittings Highlights | |
|---|---|
| Seamless Fittings | 1/2 -10" |
| Welded Fittings | 1/2" - 48" |
| Custom Size | Yes |
| HSN Code | 75072000 |
| Schedule | SCH 10 To SCH 160 |
| Forms | Elbow, Reducer, Tee, Cap, |
| Max Temperature Range | 480°C (896°F) |
ASTM B366 WPNC Elbow Manufacturer in India With MTC
Monel Fittings
Monel Alloy Elbow
Monel Metal Tee
Table of Contents
- Monel Fittings Specification
- Monel Metal Tee Dimensions Chart
- Documentation Provided With UNS N05500 Cross
- Size Chart Short Radius Bend
- Various Types Of Monel Fittings
- K-monel Reducer Standards
- Allowable Stress Of WPNC Elbow
- Which Industries Typically Use Monel Metal Elbow?
- Nickel Alloy 400 Buttweld Fittings Weight Chart
- Phyweld 400 Cap Welding Consumables
- What Are The Factor That Affects Performance Of Monel Alloy Pipe Fittings?
- Nicorros® 400 Tee Dimensional Tolerances
- UNS N04400 Fitting Temperature Range
- DIN 2.4360 fittings Heat Treatment
- Thermal Conductivity Of Nickel 400 Tee
- UNS N04400 Reducing Elbow Hardness
- Schedule Chart Of WNR 2.4360 End Cap
- Characteristics Of Monel Alloy Fittings
- Equivalent Standards Of Monel Fittings
- Chemical Compositions Of Monel Metal Pipe Bend
- Alloy K500 Elbow Mechanical properties
- Monel 400 Reducer Physical Properties
Monel Fittings Specification
Monel Fittings Sizes
- Buttweld: 1/2" -36"
- Welded: 1/2" - 48"
- Seamless: 1/2″-10″
- Schedule: SCH 5 to SCH 160
Alloy 400 Coupling Form
- Reducer, Stub End
- Tee
- Elbow
- Cap
Monel Metal Tee Standards
- ASTM B366
- MSS-SP-43
- ANSI B16.9
- ASME B16.28
K-monel Stub End Origin
- Janpanese
- European
- Korean
- American
Monel Alloy K500 Cross Bend angle
- 15°
- 180°
- 30°
- 135°
- 90°
- 22.5
Nicorros LC Elbow Testing
- Ultrasonic test
- HIC tested
- NDT Test
- PMI Test
DIN 2.4375 Cap Radius
- 2D
- 5D
- 3D
- 1D
WNR 2.4360 Reducing Tee Bending Method
- Mandrel
- Roll Bending
- Ram Type
- Hot Induction
ASME SB366 K500 End Cap Packaging
- Bubble Wraps
- Bundled
- Wooden Box
Phyweld 400 Cap End
- Buttweld Bevelled
- Plain Bevelled
Monel Fittings Finish
- Sandblasting
- Polished
- Pickled
Monel Steel Elbow Marking
- Heat Treatment
- Size , Grades
- Manufacturers Name
Monel Metal Tee Dimensions Chart
Monel Fittings Supplier In India Provides Fitting In Custom Sizes
| NPS | OD | Center-End | |
|---|---|---|---|
| (M) Outlet | (C) Run | ||
| 1/2" | 21.3 | 25 | 25 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 4" | 114.3 | 105 | 105 |
| 6" | 168.3 | 143 | 143 |
| 10" | 273.0 | 216 | 216 |
| 14" | 355.6 | 279 | 279 |
| 18" | 457.0 | 343 | 343 |
| 22" | 559.0 | 419 | 419 |
Monel 400 Tee Supplier in Mumbai Provide Custom Third Party Inspection As Per Need
Documentation Provided With UNS N05500 Cross
Monel Fittings Manufacturer In India Provides Proper Documention Along With Fittings
- Third Party Inspection Report
- 100% Radiography Test Report
- Raw Materials Certificate
- MTC EN 10204 3.1/ EN 10204 3.2
Size Chart Short Radius Bend
| Pipe WT | OD mm | SCH (mm) | |
|---|---|---|---|
| in. | mm | - | - |
| 1/4 | 2.24 | 13.72 | 40S |
| 1 | 3.38 | 33.40 | 40S |
| 1/4 | 1.65 | 13.72 | 10S |
| 3/4 | 2.11 | 21.34 | 10S |
| 1¼ | 2.77 | 42.16 | 160 |
| 2½ | 3.05 | 73.03 | 10S |
| 3½ | 5.74 | 101.60 | 40S |
| 2½ | 5.16 | 73.03 | 40S |
| 6 | 18.262 | 168.28 | 160 |
| 8 | 18.23 | 219.08 | 120 |
Ask For Free Sample Before Byuing Monel K500 Reducer In Bulk Stock
Various Types Of Monel Fittings
Monel Fittings Supplier in India Has Large Ready To Dispatch Stock Of Fittings In Various Forms Such As Tee, Reducer, Elbow
Alloy K500 Elbow
Nickel Alloy 400 Tee
Monel 400 Reducer
WNR 2.4360 End Cap
K-monel Stub End
Monel Metal Pipe Bend
Monel Alloy K500 Cross
UNS N05500 Welded Pipe Fittings
Monel Hot Induction Bend
Elbow Types
Monel Metal 45 Deg Elbow
Nicorros LC 90 Deg Elbow
Monel Metal 180 Deg Elbow
DIN 2.4375 Long Radius Elbow
Alloy K500 Short Radius Elbow
k-monel Reducing Elbow
Tee Types
Alloy 400 Equal Tee
Monel Reducing Tee
Nicorros® 400 Lateral Tee
Monel Steel Barred Tee
Monel Steel Y Tee
ASME SB366 K500 Flanged Tee
Reducer Type
K500 Monel Concentric Reducer
Monel alloy 400 Eccentric Reducer
End Cap Types
WNR 2.4360 Large Diameter End Caps
UNS N05500 Pressure Vessel End Caps
Monel Pressure Tank End Caps
Stub End Types
ASME SB366 K500 Long Stub End
Monel Steel Short Stub End
Phyweld 400 Lap Joint Stub End
Pipe Bend Types
Nicorros LC 45 Degree Bend
ASME SB366 K500 90 Deg Bend
Monel 180 Deg Pipe Bend
Nickel Alloy 400 Long Radius Bend
ASTM B366 UNS N04400 Hot Induction Bend
Monel Steel Short Radius Bend
Buy Ready Stock Of ASTM B366 UNS N05500 Stub End As Per ASME B16.9 Standard
K-monel Redcuer Standards
- ASME B16.9
- ASME B16.28
- MSS-SP-43
- ASTM B366
- MSS SP-95
Allowable Stress Of WPNC Elbow
| Temp In °F | Max Allowable Stress (KSI) |
|---|---|
| -20~100 | 16.7 |
| 200 | 14.6 |
| 400 | 13.2 |
| 500 | 13.1 |
| 700 | 13.0 |
| 900 | 8.0 |
Nickel Alloy 400 End Cap Used For High-stress Industrial Applications
Which Industries Typically Use Monel Metal Elbow?
Nickel Alloy 400 Buttweld Fittings Weight Chart
Monel Fittings Supplier In India Provides Best Quality Fittings In ranges Of 1/2" -48"
| NPS (Inch) | OD | Schedule | Weight | |
|---|---|---|---|---|
| - | in | mm | - | kg/Mtr |
| 1 | 1.315 | 33 | 40 STD | 2.501 |
| 1/2 | 0.84 | 21 | 40 STD | 1.268 |
| 1 1/4 | 1.66 | 42 | 40 STD | 3.385 |
| 1 1/2 | 1.9 | 48 | 40 STD | 4.048 |
| 3/4 | 1.05 | 27 | 40 STD | 1.684 |
| 6 | 6.625 | 168 | - | 19.252 |
| 8 | 8.625 | 219 | - | 25.233 |
| 10 | 10.75 | 273 | - | 31.588 |
Phyweld 400 Cap Welding Consumables
| Material | Filler |
|---|---|
| Monel 400 Fittings | ERNiCu-7 |
What Are The Factor That Affects Performance Of Monel Alloy Pipe Fittings?
- High Pressure Ratings
- Temperature Ratings
Nicorros® 400 Tee Dimensional Tolerances
| Propertiea | Values |
|---|---|
| 180° Returns | ±1/4 |
| ±1/4 | |
| ±1/32 | |
| Caps | ±1/8 |
| 90°& 45° Ells & Tees | ±1/16 |
| Reducers & Lap Joint Stub | ±1/16 |
UNS N04400 Fitting Temperature Range
| Conditions | Temprature Range |
|---|---|
| Melting Point | 1300-1350°C |
| Temperature | 538°C |
DIN 2.4360 fittings Heat Treatment
| Method | Temprature Range |
|---|---|
| Annealing | 1200 to 1340°F |
Thermal Conductivity Of Nickel 400 Tee
| Temperature | Thermal Conductivity | Specific Heat | Electrical Resistivity |
|---|---|---|---|
| °C | W/m•°C | J/kg•°C | ohm m |
| -200 | - | - | 360 |
| -180 | 16.5 | 223 | - |
| -130 | 18.2 | 320 | - |
| -70 | 19.8 | 378 | - |
| 21 | 22 | 427 | 0.511 |
| 100 | 24 | 445 | 0.537 |
| 200 | 26.9 | 459 | 0.559 |
| 300 | 30.1 | 470 | 0.574 |
UNS N04400 Reducing Elbow Hardness
| Rockwell B hardness | Brinell hardness |
|---|---|
| 70-96 | 125-215 |
Schedule Chart Of WNR 2.4360 End Cap
| Nominal | O.D. In. | 40s & Std | 80s & E.H. | 10s - 10 | 80 | 40 | 160 |
|---|---|---|---|---|---|---|---|
| 1/2 | .840 | .109 | .147 | .083 | .147 | .109 | .187 |
| 1 | 1.315 | .133 | .179 | .109. | .179 | .133 | .250 |
| 1 1/4 | 1.660 | .140 | .191 | .191 | .140 | .250 | |
| 2 | 2.375 | .154 | .218 | .218 | .154 | .343 | |
| 3 | 3.500 | .216 | .300 | .120 | .300 | .216 | .437 |
| 4 | 4.500 | .237 | .337 | .337 | .237 | .531 | |
| 1/8 | .405 | .068 | .095 | .049 | .095 | .068 | |
| 10 | 10.750 | .365 | .500 | .065 | .593 | .365 | 1.125 |
| 7 | 7.625 | .301 | .500 | ||||
| 8 | 8.625 | .322 | .500 | .148 | .500 | .322 | .906 |
| 9 | 9.625 | .342 | .500 |

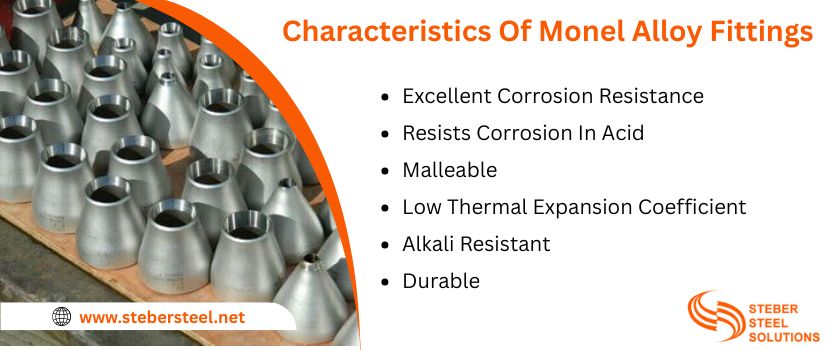

Characteristics Of Monel Alloy Fittings
Equivalent Standards Of Monel Fittings
| Standard | Alloy K500 | Monel 400 |
|---|---|---|
| UNS | N05500 | N04400 |
| WERKSTOFF NR. | 2.4375 | 2.4360 |
| EN | – | NiCu30Fe |
| BS | – | NA 13 |
| JIS | – | NW 4400 |
| GOST | – | МНЖМц 28-2,5-1,5 |
| AFNOR | – | NU-30M |
Chemical Compositions Of Monel Metal Pipe Bend
| Element | Monel K500 | Monel 400 |
|---|---|---|
| Si | 0.5 | 0.50 |
| Cu | 27.00 – 33.00 | 28.00 – 34.00 |
| S | 0.010 | 0.024 |
| C | 0.25 | 0.30 |
| Mn | 1.5 | 2.00 |
| Fe | 0.5 – 2 | 2.50 |
| Ni | 63.00 | 63.00 |
Alloy K500 Elbow Mechanical properties
| Element | Monel K500 | Monel 400 |
|---|---|---|
| Density | 8.44 g/cm3 | 8.8 g/cm3 |
| Tensile Strength | MPa – 1100 | MPa – 550 |
| Melting Point | 2460 °F | 2460 °F |
| Elongation | 20% | 40% |
| Yield Strength | MPa – 790 | MPa – 240 |
Monel 400 Reducer Physical Properties
| Density | Themal Conductivity | Electrical Conductivity | Modulus of Rigidity (tersion) | Hardness (HRB) | Thermal Capacity (Specific Heat) | Melting Point | Elongation | Yield Strength |
|---|---|---|---|---|---|---|---|---|
| 8.8 gram/ cm3 | 21.8 W/m. °C at 20°C | 32 % IACS | 65.5 GPa at 20°C | 60-76 | 427 J/kg. °C at 20°C | 1350 °C (2460 °F) | 40% | Megapascals–240 |
