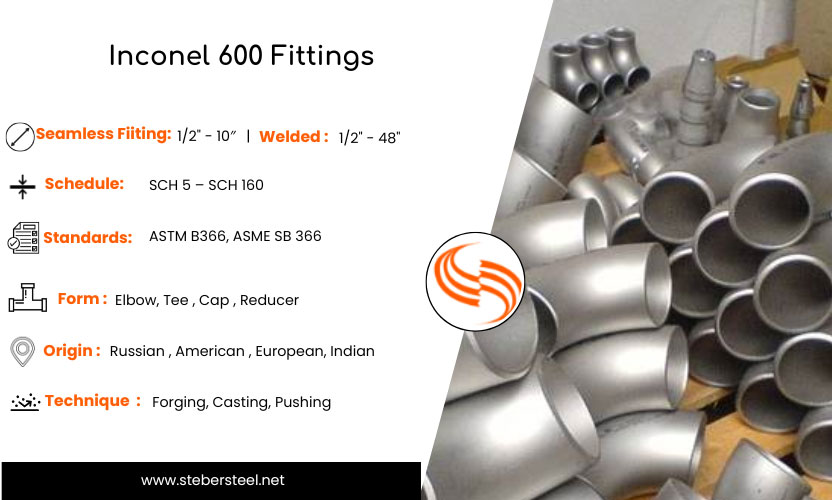

Inconel 600 Fittings

Inconel 600 Fittings

Inconel 600 Fittings Quick Information
Seamless Fittings 1/2" - 10″
Welded Fittings 1/2" - 48"
Technique Hot Or Cold Pressed
Bending Radius 1D, 3D, 2D, 10D,5D, 6D, 8D
Schedule SCH 10 To SCH 160
Forms Elbow, Reducer, Tee, Cap,
Heat Treatment Quenched, Annealed, Tempered

ASTM B366 WPNCl Elbow Manufacturer in India As Per ANSI B16.9

Inconel 600 Fittings

Inconel 600 Fittings

Inconel 600 Buttweld Fittings

Inconel 600 Buttweld Fittings

Alloy 600 Elbow

Alloy 600 Elbow

Table of Contents


Inconel 600 Fittings Specification

Inconel 600 Fittings Sizes

  • Welded : 1/2" - 48""
  • Seamless : 1/2" - 10″
  • Schedule : SCH 10 To SCH 160

Sizes

Inconel 600 Buttweld Fittings Standards

  • ASTM B366, ASME SB 366
  • ASME B16.28
  • MSS-SP-43
  • ANSI B16.9
Standards

Alloy 600 Elbow Form

  • Reducer, Stub End
  • Cap
  • Elbow
  • Tee

Form

ASTM B366 WPNCl Tee Origin

  • Janpanese
  • European
  • Korean
  • American



Origin

UNS N06600 Reducer Testing

  • Ultrasonic test
  • HIC tested
  • NDT Test
  • PMI Test



Testing

WNR 2.4816 Cap Bend angle

  • 15°
  • 30°
  • 180°
  • 90°
  • 135°
  • 45°
  • 22.5
Process

Nickel Alloy 600 Stub End Radius

  • 5D
  • 3D
  • 2D
  • 1D
Radius

Inconel Alloy 600 Nipple Packaging

  • Bubble Wraps
  • Bundled
  • Wooden Box

Packaging

Nickel 600 Cross Bending Method

  • Roll Bending
  • Mandrel
  • Hot Induction
  • Ram Type
Bending Method

Werkstoff NR. 2.4816 Coupling Marking

  • Heat Treatment
  • Size , Grades
  • Manufacturers Name
Marking

600 Inconel Collar Finish

  • Polish
  • Mill Finish
  • Special Finish

Finish

Sanicro® 70 Buttweld Fittings JIS Standards

  • NCF 600


Standards

Alloy 600 Elbow Thread Sizes

NPS BSP Threads NPT Threads
1/2 14 14
1/4 19 18
3/8 19 18
3/4 14 14
1/8 28 27

Supplier Of Inconel Alloy 600 Equal Tee Provide Non Standard Sizes For Petroleum Industry

600 Inconel Fittings Size Chart

Inconel 600 Fittings Manufacturer in India supplying various grades and custom sizes.

O.D.&I.D. Threads Size In In. Dia.Of Nominal Pipe Equivalent List
5/16 27 1/16 0.313
13/32 27 1/8 0.405
1-3/64 14 3/4 1.050
35/64 18 1/4 0.540
2-7/8 8 2-1/2 2.875
2-3/8 11-1/2 2 2.375
43/64 18 3/8 0.675
27/32 14 1/2 0.840
3-1/2 8 3 3.500
1-5/16 11-1/2 1 1.315
4 8 3-1/2 4.000
1-29/32 11-1/2 1-1/2 1.900
1-21/32 11-1/2 1-1/4 1.660
4-1/2 8 4 4.500

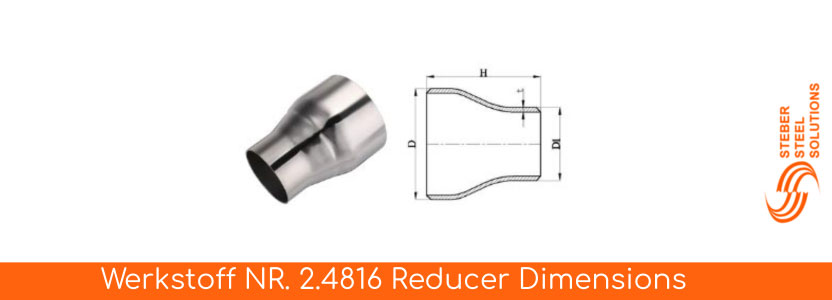

Werkstoff NR. 2.4816 Reducer Dimensions

Inconel 600 Fittings Supplier in India offers an Excellent Dimensions.

Werkstoff NR. 2.4816 Reducer Dimensions
Nominal
Pipe Size		 OD Reducers
Reduced from(inches) (mm) (inches) Reduced to(inches) Concentric & Eccentric Length(inches)
1/2 21.3 0.840 1/4 1 1/2
3/8 1 1/2
3/4 26.7 1.050 3/8 2
1/2
1 33.4 1.315 3/8
1/2
3/4
1 1/4 42.2 1.660 1/2
3/4
1
1 1/2 48.3 1.900 1/2 2 1/2
3/4
1
1 1/4
2 60.3 2.375 3/4 3
1
1 1/4
1 1/2
2 1/2 73.0 2.875 1 3 1/2
1 1/4
1 1/2
2
3 88.9 3.500 1
1 1/2
2
2 1/2
3 1/2 101.6 4.000 1 1/4 4
1 1/2
2
2 1/2
3
5 141.3 5.563 2 5
2 1/2
3
3 1/2
4

ASTM B366 UNS N06600 End Cap In Seamless And Welded Form

Various Types Of Inconel 600 Fittings

Inconel 600 Fittings Supplier in India Offers a Variety of the Most Popular Types

ASTM B366 WPNCl Tee

ASTM B366 WPNCl Tee

UNS N06600 Reducer

UNS N06600 Reducer

WNR 2.4816 Cap

WNR 2.4816 Cap

Nickel Alloy 600 Stub End

Nickel Alloy 600 Stub End

Inconel Alloy 600 Nipple

Inconel Alloy 600 Nipple

Nickel 600 Cross

Nickel 600 Cross

Werkstoff NR. 2.4816 Coupling

Werkstoff NR. 2.4816 Coupling

600 Inconel Collar

600 Inconel Collar

Sanicro® 70 Buttweld Fittings

Sanicro® 70 Buttweld Fittings

ASTM B366 UNS N06600 End Cap Weight Chart

Inconel 600 Fittings Supplier in India provide accurate Weight.

NPS Weight In LBS Weight In Kg
3.1/2 3.5 1.59
30 367 166.47
5 7.5 3.4
6 12 5.44
24 238 107.95
26 275 124.74
8 23 10.43
2 0.81 0.37
2.1/2 1.75 0.79
1 0.25 0.11
16 100 45.36
10 43 19.5
12 62 28.12
14 80 36.29
20 160 72.57
1/2 0.09 0.04
1.1/2 0.4 0.18
18 126 57.15
1.1/4 0.38 0.17
3/4 0.09 0.04
3 2.63 1.19
4 4.5 2.04
36 531 240.86
22 197 89.36

Alloy 600 Fittings Dimensions

Nominal Outside 180° Returns 90° Elbows 45° Elbows
Pipe Diameter
Size
(inches) Long Radius Short Radius Long Radius Long Radius
(mm) (inches) Center to Center Back to face Center to Face Center to Face Center to Face Radius
(inches) (inches) (inches) (inches) (inches) (inches)
3/4 26.7 1.05 2 1/4 1 11/16 – 1 1/8 7/16
1 33.4 1.315 3 2  3/16 1 1 1/2 7/8
1 1/4 42.2 1.66 3 3/4 2 3/4 1 1/4 1 7/8 1
1 1/2 48.3 1.9 4 1/2 3 1/4 1 1/2 2 1/4 3 1 1/8
1/2 21.3 0.84 2 1 7/8 – 1 1/2 5/8
2 60.3 2.375 6 4  3/16 2 3 4 1 3/8
2 1/2 73 2.875 7 1/2 5  3/16 2 1/2 3 3/4 5 1 3/4
3 88.9 3.5 9 6 1/4 3 4 1/2 6 2
4 114.3 4.5 12 8 1/4 4 6 8 2 1/2
5 141.3 5.563 15 10 5/16 5 7 1/2 10 3 1/8
6 168.3 6.625 18 12 5/16 6 9 12 3 3/4
8 219.1 8.625 24 16 5/16 8 12 12 5
10 273.1 10.75 30 20 3/8 10 15 15 6 1/4
3 1/2 101.6 4 10 1/2 7 1/4 3 1/2 5 1/4 7 2 1/4
12 323.9 12.75 36 24 3/8 12 18 18 7 1/2

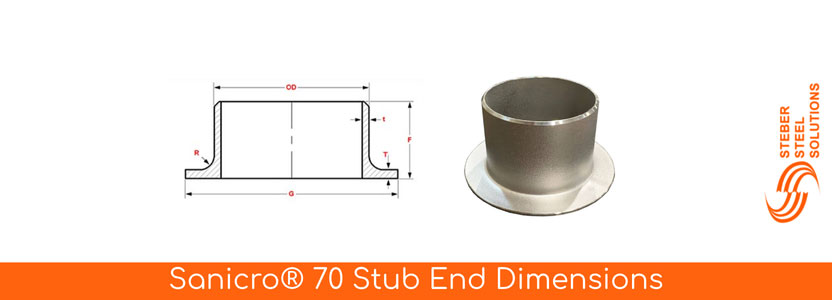

Sanicro® 70 Stub End Dimensions

Sanicro® 70 Stub End Dimensions
NPS Outer D. Radius  (R)
(Min.) (Max.)
5 140.5 144.3 11
1 1/2 47.5 49.9 6
2 59.5 62.4 8
2 1/2 72.2 75.3 8
18 456.0 462.0 13
10 272.3 277.2 13
16 405.6 411.0 13
8 218.3 222.1 13
3 88.1 91.3 10
24 609.0 616.0 13
3 1/2 100.8 104.0 10
14 354.8 359.9 13
22 558.0 565.0 13
4 113.5 116.7 11
12 323.1 328.0 13
6 167.5 171.3 13
1/2 20.5 22.8 3
3/4 25.9 28.1 3
1 1/4 41.4 43.6 5
20 507.0 514.0 13
1 32.6 35.0 3

Nickel 600 Cross Pressure Rating

Temperature Pressure Class
150 300
1/4 – 1 (in.). 2 1/2 – 3 (in.) 1 1/4 – 2 (in.)
(°C) (°F)
260 500 – 510 385 450
232 450 – 725 475 600
204 400 – 935 560 750
93 200 265 1785 910 1350
177 350 150 1150 650 900
149 300 185 1360 735 1050
288 550 – 300 300 300
121 250 225 1575 825 1200
-29 – 66 -20 – 150 300 2000 1000 1500

Inconel 600 Buttweld Fittings Applications

  • Power Generation
  • Marine Applications
  • Chemical Processing
  • Automotive Engines
  • Nuclear Reactors
  • Petrochemical Industry
  • Heat Exchangers

ASTM B366 WPNCl Tee Thickness Chart

NPS (inches) OD Nickel Alloy 600 Cross Fittings (Straight) Inconel 600 Cap Inconel 600 Tee Fittings (Straight) Alloy 600 Stub End Fittings
(inches) (mm) Center to End (inch) Length (inch) Center to End (inch) Short Length (inch) Lap Diameter (inch) Long Length (inch)
4 4.500 114.3 4 1/8 2 1/2 4 1/8 3 6 3/16 6
1 1.315 33.4 1 1/2 1 1/2 1 1/2 2 2 4
1 1/4 1.660 42.2 1 7/8 1 1/2 1 7/8 2 2 1/2 4
3/4 1.050 26.7 – 1 1 1/8 2 1 11/16 3
2 1/2 2.875 73.0 3 1 1/2 3 2 1/2 4 1/8 6
2 2.375 60.3 2 1/2 1 1/2 2 1/2 2 1/2 3 5/8 6
10 10.750 273.1 8 1/2 5 8 1/2 5 12 3/4 10
12 12.750 323.9 10 6 10 6 15 10
1 1/2 1.900 48.3 2 1/4 1 1/2 2 1/4 2 2 7/8 4
1/2 0.840 21.3 – 1 1 2 1 3/8 3
6 6.625 168.3 5 5/8 3 1/2 5 5/8 3 1/2 8 1/2 8
8 8.625 219.1 7 4 7 4 10 5/8 8
3 3.500 88.9 3 3/8 2 3 3/8 2 1/2 5 6
5 5.563 141.3 4 7/8 3 4 7/8 3 7 5/16 8
3 1/2 4.000 101.6 3 3/4 2 1/2 3 3/4 3 5 1/2 6

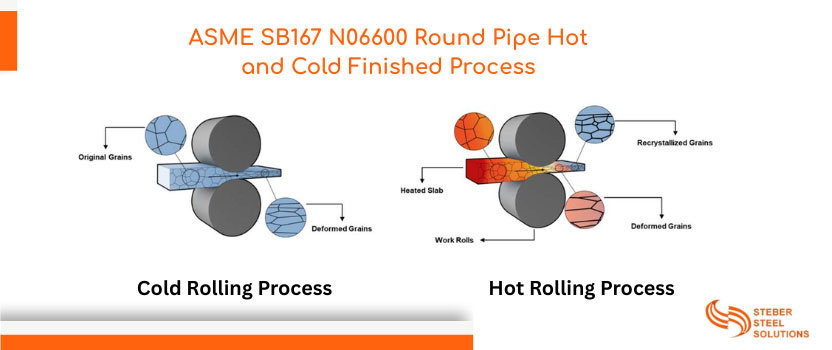

Nickel Alloy 600 Buttweld Fittings Available in Hot and Cold Formed Process

Nickel Alloy 600 Buttweld Fittings Hot and Cold Formed Process

Nickel Alloy 600 Buttweld Fittings Hot and Cold Formed Process

Inconel 600 Fittings HSN Code

Grade HSN Code
Inconel 600 Fittings 75071200

ASTM B366 WPNCl Elbow Heat Treatment

Time Cooling Temperature Condition Type
0.5hr – 1hr Air 500°F To 700°F Annealed Stress Relieve

WNR 2.4816 Tee Temperature Range

Temperature
above 2000°F (1095°C)

Nickel Alloy 600 Stub End Tolerances Chart

NPS 5 - 8 3 - 3.1/2 1/2 - 2.1/2 4
Center - End LR (A/B) 2
OD at Bevel (D) + 2.4 - 1.6 1.6 + 1.6 - 0.8 1.6
NPS 32 - 48 20 - 24 10 - 18 26 - 30
Center - End LR (A/B) 5 2 3
ID at End 1.6 0.8 1.6
ID at End + 6.4 - 4.8 4.8 3.2 + 6.4 - 4.8
OD at Bevel (D) + 6.4 - 4.8 + 4 - 3.2
Center - End 3D (A/B) 3
Center - End 3D (A/B) 6 3 6
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Sanicro® 70 Buttweld Fittings Schedule Chart

Size SCH 30
DN100 EXT Hvy
DN20 Schedule 10
DN15 SCH 100
DN50 SCH 40
DN40 SCH 140
DN25 SCH 180

ASTM B366 WPNCl Elbow Working Temperature

Properties Values
Max Service Temperature Up - 1200°C
Min Service Temperature Down to Cryogenic levels -196°C

Which Treatments Done on Inconel 600 Elbow to Improve Its Performance?

  • Pickling
  • Polishing
  • Sand Blasting
Stockist Of Werkstoff NR. 2.4816 Stub End In Schedule 10 to 160 At Lowest Price

Inconel 600 Welded Pipe Fittings Chemical Composition

Grade Si Cr Ni C Fe S Cu Mn
Inconel 600 0.50 max 14.00 – 17.00 72.00 min 0.15 max 6.00 – 10.00 0.015max 0.50 max 1.00 max

Alloy 600 Cap Mechanical Properties

Element Density Yield Strength (0.2%Offset) Tensile Strength Melting Point Elongation
Inconel 600 8.47 g/cm3 Psi – 45,000 , MPa – 310 Psi – 95,000 , MPa – 655 1413 °C (2580 °F) 40 %

UNS N06600 Reducer Physical properties

Density Specific Heat Permeability Melting Range Electrical Resistivity Curie Temperature
lb/in³ Mg/m³ Btu/lb°F (J/kg°C) J/kg-°C 200 oersted (15.9 kA/m) °F °C μΩ-m ohm-circ mil/ft °C °F
0.305 8.44 0.106 444 1.01 2470-2575 1354-1413 1.03 620 -124 -192

Inconel 600 Pipe Fittings Equivalent

GRADE OLD BRITISH UNS OR GOST JIS AFNOR
Inconel 600 EN BS N0600 ЭИ868 XH60BT NCF 600 NC15FE11M
NiCr15Fe NA 14

Inconel Alloy 600 Nipple Gasket Chart

O.D. or I.D. Diameter N.D Equivalent Decimal Typical Threads In Inch
1-5/16 1 1.315 11-1/2
1-21/32 1-1/4 1.660 11-1/2
27/32 1/2 0.840 14
43/64 3/8 0.675 18
2-3/8 2 2.375 11-1/2
1-3/64 3/4 1.050 14
1-29/32 1-1/2 1.900 11-1/2
3-1/2 3 3.500 8
4 3-1/2 4.000 8
5/16 1/16 0.313 27
13/32 1/8 0.405 27
35/64 1/4 0.540 18
2-7/8 2-1/2 2.875 8
4-1/2 4 4.500 8
