Nickel Alloy Fittings
| Nickel Alloy Fittings Quick Information | |
|---|---|
| Seamless Fittings | 1/2″-24″ |
| Welded Fittings | 24″ - 96" |
| Schedule | SCH 10 To SCH 160 |
| Standards | ASTM B366 |
| Bending Radius | 1D, 3D, 2D, 10D,5D, 6D, 8D |
| Forms | Elbow, Reducer, Tee, Cap |
| Ends | Plain Bevel, Compound Bevel, Bevelled |
High Nickel Alloy Elbow Manufacturer Provide Cut To Size in India
Nickel Alloy Fittings
High Nickel Alloy Elbow
Pure Nickel 200 Tee
Table of Contents
- Nickel Alloy Fittings Specification
- Dimension Of Pure Nickel 201 End Cap
- Nickel Alloy Tee Dimensions
- Testing Methods Of Pure Nickel 200 Reducer
- High Nickel Alloy Fittings Weight Chart
- Standards Of High Temperature Nickel 201 Elbow
- Various Types Of Nickel Alloy Fittings
- UNS N02200 Reducers Bending Methods
- How To Confirm The Quality Of The High Nickel Alloy Steel Elbow Before Purchasing?
- Schedule Chart Of High Nickel Steel Pipe Fittings
- Heat Treatment Of UNS N02201 Pipe Bend
- Pure Nickel 200 End Cap Temperature Range
- Nickel Alloy Fittings HSN Code
- Applications Of High Nickel Alloy Reducers
- Nickel Alloy Fittings Equivalent Standards
- Chemical Properties Of Nickel Alloy Reducing Elbow
- Mechanical Properties Of ASME SB366 N02201 Welded Pipe Fittings
- High Nickel Alloy Steel Elbow Physical Properties

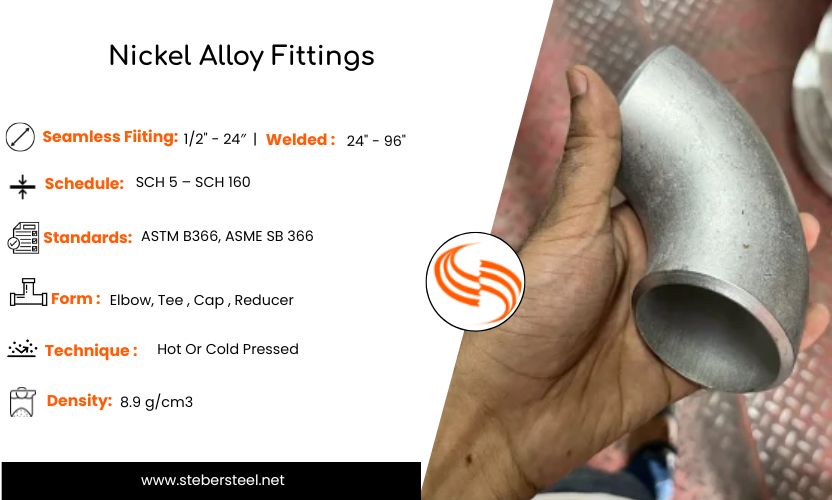

Nickel Alloy Fittings Specification
Nickel Alloy Fittings Sizes
- Seamless Fittings: 1/2″-24″
- Welded Fittings: 24″ - 96"
- Buttweld Fitting : 1/2" -36"
- Schedule : SCH 5 to SCH 160, XXS
Nickel 200 Elbow Standards
- ASTM B366
- ANSI B16.9
- ASME B16.28
- MSS-SP-43
Nickel Alloy Fittings Form
- Reducer, Stub End
- Cap
- Elbow
- Tee
UNS N02200 Pipe Bend Origin
- Janpanese
- European
- Korean
- American
High Nickel Steel Welded Pipe Fittings Testing
- Ultrasonic test
- HIC tested
- NDT Test
- PMI Test
ASME SB366 N02201 Reducing Tee Bend angle
- 15°
- 30°
- 180°
- 90°
- 135°
- 45°
- 22.5
Pure Nickel 201 Long Stub End Radius
- 5D
- 3D
- 2D
- 1D
Ni 201 Cross Packaging
- Bubble Wraps
- Bundled
- Wooden Box
aUNS N02201 Tee Bending Method
- Roll Bending
- Mandrel
- Hot Induction
- Ram Type
ASME SB366 N02201 Reducer Marking
- Heat Treatment
- Size , Grades
- Manufacturers Name
Pure Nickel 201 Elbow Finish
- Polish
- Mill Finish
- Special Finish
Pure Nickel 200 Tee Density
- 8.90 g/cm3

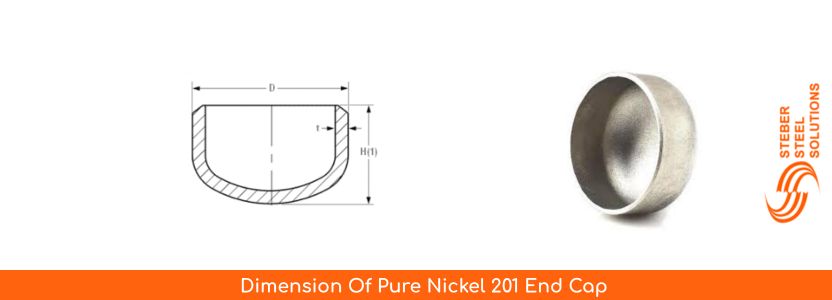

Dimension Of Pure Nickel 201 End Cap
Nickel Alloy Fittings Supplier In India Offers Fittings Sizes As Per Customers Request
| NPS | O.D. D | Length H(1) | Length H |
|---|---|---|---|
| 1/2 | 21.3 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1 1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 44 | 38 |
| 3 | 88.9 | 64 | 51 |
| 4 | 114.3 | 76 | 64 |
| 6 | 168.3 | 102 | 89 |
| 8 | 219.1 | 127 | 102 |
| 12 | 323.8 | 178 | 152 |
| 16 | 406.4 | 203 | 178 |
| 18 | 457 | 229 | 203 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 305 | 267 |
| 28 | 711 | - | 267 |
| 32 | 813 | - | 267 |
| 36 | 914 | - | 267 |
Nickel Alloy Tee Dimensions
| NPS | OD |
Center-End | |
|---|---|---|---|
| Run (C) | Outlet (M) | ||
| 1/2 | 21.3 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 2 | 60.3 | 64 | 64 |
| 3 | 88.9 | 86 | 86 |
| 5 | 141.3 | 124 | 124 |
| 10 | 273.0 | 216 | 216 |
| 16 | 406.4 | 305 | 305 |
Supplier Of Pure Nickel 200 Reducer Offers UT, X-Ray And Dye Penetrant Testing
Testing Methods Of Pure Nickel 200 Reducer
- Pitting Resistance Test
- Micro and MacroTest
- Hardness Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- PMI Testing
- Flattening Test
High Nickel Alloy Fittings Weight Chart
| Nominal Size | Weight (KG) |
|---|---|
| 1/2 | 0.04 |
| 1 | 0.11 |
| 1.1/2 | 0.18 |
| 2 | 0.37 |
| 3 | 1.19 |
| 4 | 2.04 |
| 6 | 5.44 |
| 10 | 19.5 |
| 14 | 36.29 |
| 18 | 57.15 |
| 22 | 89.36 |
Stockist Of High Temperature Nickel 201 As Per ASTM B366 Standard
Standards Of High Temperature Nickel 201 Elbow
- ASTM B366 | ASME SB366
- ASME B16.9
- ASME B16.25
- MSS SP-43
- MSS Sp-95
- MSS SP-83
- ASME B16.28
Ready Stock Of ASTM B366 UNS N02200 U Bends In Size Range Up To 48 Inch
Various Types Of Nickel Alloy Fittings
Nickel Alloy Fittings Supplier in India, Provides Extensive Range Of Fittings For Selection
Nickel 200 Elbow
High Temperature Nickel 201 Tee
Nickel Alloy Reducer
Pure Nickel 200 End Cap
ASME SB366 N02201 Stub End
UNS N02200 Pipe Bend
Ni 201 Cross
High Nickel Steel Welded Pipe Fittings
High Strength Nickel Alloy Hot Induction Bend
Elbow Types
ASME SB366 N02201 45 Deg Elbow
High Nickel Alloy Steel 90 Deg Elbow
Pure Nickel 200 180 Deg Elbow
UNS N02201 Long Radius Elbow
Ni-201 Short Radius Elbow
Nickel Alloy Reducing Elbow
Tee Types
Pure Nickel 200 Equal Tee
ASME SB366 N02201 Reducing Tee
UNS N0220 Lateral Tee
High Nickel Alloy Steel Barred Tee
Nickel Alloy Y Tee
High Nickel Alloy Steel Flanged Tee
Reducer Type
Ni 201 Concentric Reducer
Pure Nickel 200 Eccentric Reducer
End Cap Types
Nickel Alloy Large Diameter End Caps
High Nickel Steel Pressure Vessel End Caps
Werkstoff NR. 2.4068 Pressure Tank End Caps
Stub End Types
Pure Nickel 201 Long Stub End
Werkstoff NR. 2.4066 Short Stub End
ASTM B366 UNS N02200 Lap Joint Stub End
Pipe Bend Types
ASME SB366 N02201 45 Degree Bend
High Temperature Nickel 201 90 Deg Bend
High Nickel Steel 180 Deg Pipe Bend
High Temperature Nickel Alloy Long Radius Bend
UNS N02201 Hot Induction Bend
Nickel 200Short Radius Bend
UNS N02200 Reducers Bending Methods
- Roll Bending
- Ram-Type Bending
- Rotary Draw Bending
- Mandrel Bending
- Hot Induction Bending
How To Confirm The Quality Of The High Nickel Alloy Steel Elbow Before Purchasing?
ASME SB366 N02201 End Cap Available From Sch 5 to Sch XXS At Lowest Price
Schedule Chart Of High Nickel Steel Pipe Fittings
Nickel Alloy Fittings Manufacturer In India Large Ready to Dispatch Stock Of Fittings
| Nominal Size | O.D. | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 120 | SCH 80 | SCH 100 | SCH 140 | SCH 160 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | .840 | - | - | .109 | - | - | .147 | - | - | .188 |
| 1 | 1.315 | - | - | .133 | - | - | .179 | - | - | .250 |
| 1 1/2 | 1.900 | - | - | .145 | - | - | .200 | - | - | .281 |
| 2 | 2.375 | - | - | .154 | - | - | .218 | - | - | .344 |
| 3 1/2 | 4.000 | - | - | .226 | - | - | .318 | - | - | .636 |
| 5 | 5.563 | - | - | .258 | - | .500 | .375 | - | - | .625 |
| 8 | 8.625 | 250 | 277 | .322 | .406 | .719 | .500 | .594 | .812 | .906 |
| 12 | 12.750 | 250 | 330 | .406 | .562 | 1.000 | .688 | .844 | 1.125 | 1.312 |
| 16 | 16.000 | 312 | 375 | .500 | .656 | 1.219 | .844 | 1.031 | 1.438 | 1.594 |
| 18 | 18.000 | 312 | 438 | .562 | .750 | 1.375 | .938 | 1.156 | 1.562 | 1.781 |
| 24 | 24.000 | 375 | .562 | .688 | .969 | 1.812 | 1.219 | 1.531 | 2.062 | 2.344 |
| 30 | 30.000 | .500 | .625 | - | - | - | - | - | - | - |
| 42 | 42.000 | - | - | - | - | - | - | - | - | - |
Heat Treatment Of UNS N02201 Pipe Bend
| Heat Treatment | Temperature Range |
|---|---|
| Tempering | 400°C - 600°C |
| Solution Annealing | 900°C - 1100°C |
| Stress Relieving | 300°C - 400°C |
Pure Nickel 200 End Cap Temperature Range
- 315°C (599°F)
Nickel Alloy Fittings HSN Code
| Item Description | HS Code |
|---|---|
| Nickel Alloy Fitting | 7507 |

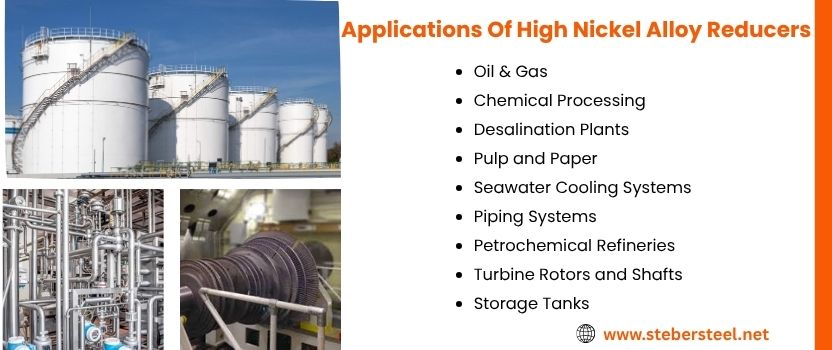

Applications Of High Nickel Alloy Reducers
Nickel Alloy Fittings Supplier In India Provides Excellent Quality Fittings For Industries
Nickel Alloy Fittings Equivalent Standards
| Standard | Werkstoff Nr. | UNS | BS | EN | AFNOR | GOST | JIS |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 2.4066 | N02200 | NA 11 | Ni 99.2 | N-100M | НП-2 | NW 2200 |
| Nickel 201 | 2.4068 | N02201 | NA 12 | LC-Ni 99 | – | НП-2 | NW 2201 |
Chemical Properties Of Nickel Alloy Reducing Elbow
| Grades | Si | Ni | Mn | C | S | Cu | Fe |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 0.1 max | 99.0 min | 0.35 max | 0.15 max | 0.01 max | 0.25 max | 0.4 max |
| Nickel 201 | 0.35 max | Balance | 0.35 max | 0.15 max | 0.01 max | 0.25 max | 0.40 max |
Mechanical Properties Of ASME SB366 N02201 Welded Pipe Fittings
| Grade | Yield Strength (0.2%Offset) | Elongation | Tensile Strength |
|---|---|---|---|
| Nickel 200 | MPa – 148 | 45 % | MPa – 462 |
| Nickel 201 | MPa – 148 | 45 % | MPa – 462 |
High Nickel Alloy Steel Elbow Physical Properties
| Grade | Density | Melting Point |
|---|---|---|
| Nickel 200 | 8.9 g/cm3 | 1446 °C |
| Nickel 201 | 8.9 g/cm3 | 1446 °C |
