Stainless Steel 316 Fittings

Stainless Steel 316 Fittings Specification

Stainless Steel 316 Fittings At a Glance
Size : 1/2 to 48"
Angle : 45degree, 90 Degree, 180degree
Technics : Casting
Customized : Yes
Machining : By CNC or Lathe Machine
Transport Package : Wooden Package

A403 WP316 Elbows Manufacturer in India

Stainless Steel 316 Fittings

Stainless Steel 316 Fittings

A403 WP316 Elbows

A403 WP316 Elbows

ASTM A403 Grade 316 Reducing Tee

ASTM A403 Grade 316 Reducing Tee


Table Of Contents


Stainless Steel 316 Fittings Specification

Stainless Steel 316 Pipe Fittings Sizes

  • SAE 316 Welded Fittings : 24 – 96″
  • ASTM A403 WP 316 SS Fabricated Fittings : Custom
  • SA 403 WP 316 Seamless Fittings : 1/2″ – 24″




Sizes

316 Stainless Steel Fittings Quality inspection

  • Liquid penetrant
  • Ultrasonic test
  • Annealing
  • Radiographic test






Threads

316 SS Pipe Fittings Standards (Germany)

  • DIN 2617 (Caps)
  • DIN 2618 (Saddle)
  • DIN 2615-2 (Tee)
  • DIN 2605-2 (Elbow)
  • DIN 2616-1 (Eccentric Reducer)
  • DIN 28011 (Torispherical Heads)
  • DIN 2616-2 (Concentric Reducer)

Standards

316 Stainless Fittings Origin

  • Korean
  • Indian
  • Janpanese
  • European






Origin

SS 316 Fittings Bend Radius

  • 3 D
  • 5 D
  • 6 D
  • 8 D
  • 10 D
  • 4 D
  • 3D
  • 3D


Face Types

SS 316 Fittings Bend Angle

  • 15°
  • 45°
  • 60°
  • 90°
  • 135°
  • 22.5
  • 30°
  • 180°


Testing

A403 WP316 Seamless Pipe Fittings Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
  • Custom As Per Buyer Choice









Types

A403 WP316 Buttweld Fittings Bending Method

  • Roll Bending
  • Rotary Draw Bending
  • Ram-Type Bending
  • Mandrel Bending
  • Hot Induction Bending









Process

SS 316 Weldable Pipe Fittings Requirements

  • MTC EN 10204 3.1/ 3.2 Certificate
  • ISO 15156
  • HIC tested
  • NORSOK
  • NACE MR0103
  • Sour service
  • NACE TM-0284
  • IBR
  • NACE MR0175




Finish

316 Plumbing Fitting Schedule Chart

  • SCH 10
  • SCH 60
  • SCH 80
  • SCH 160
  • SCH 20
  • SCH 40


Pressure Class

SS 316 Pipe Fittings Markings

  • Manufacturers logo
  • Dimensional standard – ASME B16.9
  • Grade
  • Pressure class
  • Sizes
  • Heat number

Markings

Stainless Steel 316 Pipe Fittings Approx Delivery Time In UAE

  • 3-7 Days (From Other Countries)
  • 1-3 Days (From UAE Suppliers)



Delivery

Supplier Of ASTM A403 Grade 316 Reducing Tee Stock 400X250NB With 100% X-ray Test

Size Chart Of ASTM A403 WP 316 Pipe Elbow

Sizes inch Caps inch Straight Crosses inch Straight Tees inch
12 6 10 10
5 3 4 7/8 4 7/8
2 1 1/2 2 1/2 2 1/2
3 2 3 3/8 3 3/8
1 1 1/2 1 1/2 1 1/2
10 5 8 1/2 8 1/2
4 2 1/2 4 1/8 4 1/8
1/2 1 – 1
3/4 1 – 1 1/8
1 1/2 1 1/2 2 1/4 2 1/4
6 3 1/2 5 5/8 5 5/8
2 1/2 1 1/2 3 3
8 4 7 7
1 1/4 1 1/2 1 7/8 1 7/8
3 1/2 2 1/2 3 3/4 3 3/4

UNS S31600 Steel Reducer Dimensions Chart

Nominal Pipe Size Outside Diam Straight Tees Stub Ends Caps Straight Crosses
inch mm inch Center to End inch Lap Diameter inch Long Length inch Short Length inch Length inch Center to End inch
1/2 21.3 0.84 1 1 3/8 3 2 1 –
1 33.4 1.315 1 1/2 2 4 2 1 1/2 1 1/2
1 1/2 48.3 1.9 2 1/4 2 7/8 4 2 1 1/2 2 1/4
2 1/2 73 2.875 3 4 1/8 6 2 1/2 1 1/2 3
3 1/2 101.6 4 3 3/4 5 1/2 6 3 2 1/2 3 3/4
5 141.3 5.563 4 7/8 7  5/16 8 3 3 4 7/8
8 219.1 8.625 7 10 5/8 8 4 4 7
12 323.9 12.75 10 15 10 6 6 10
3/4 26.7 1.05 1 1/8 1 11/16 3 2 1 –
1 1/4 42.2 1.66 1 7/8 2 1/2 4 2 1 1/2 1 7/8
2 60.3 2.375 2 1/2 3 5/8 6 2 1/2 1 1/2 2 1/2
3 88.9 3.5 3 3/8 5 6 2 1/2 2 3 3/8
4 114.3 4.5 4 1/8 6  3/16 6 3 2 1/2 4 1/8
6 168.3 6.625 5 5/8 8 1/2 8 3 1/2 3 1/2 5 5/8
10 273.1 10.75 8 1/2 12 3/4 10 5 5 8 1/2

Refer SS 316 Elbow Weight Chart and HSN Code

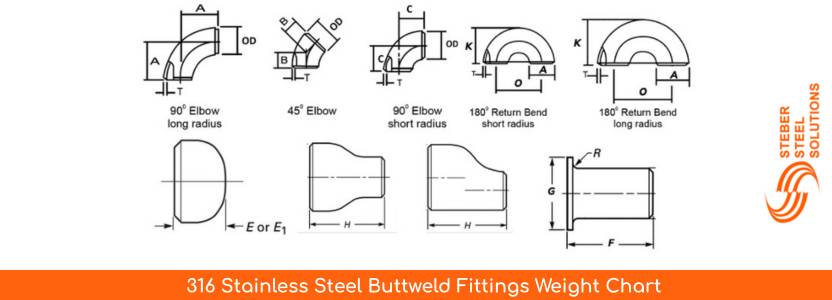

316 Stainless Steel Buttweld Fittings Weight Chart

316 Stainless Steel Buttweld Fittings Weight Chart
Nominal Size OD Returns Reducers Note 1 Stub Ends Elbows Caps
Long Short Radius of Fillet Long Diam of Lap Short Long Short
NPS DN D K O K O H R F G F 45 deg 90 deg 90 deg E
B A A
3/4 20 26.7 51 76 - - 38 3 76 43 51 19 38 - 25
1 1/4 32 42.2 70 95 52 64 51 5 102 64 51 25 48 32 38
2 50 60.3 106 152 81 102 76 8 152 92 64 35 76 51 38
3 80 88.9 159 229 121 152 89 10 152 127 64 51 114 76 51
4 100 114.3 210 305 159 203 102 11 152 157 76 64 152 102 64
5 125 141.3 262 381 197 254 127 11 203 185 76 79 190 127 76
1/2 15 21.3 48 76 - - - 3 76 35 51 16 38 - 25
1 25 33.4 56 76 41 51 51 3 102 51 51 22 38 25 38
1 1/2 40 48.3 83 114 62 76 64 6 102 73 51 29 57 38 38
2 1/2 65 73 132 190 100 127 89 8 152 106 64 44 95 64 38
31/2 90 101.6 184 267 140 178 102 10 152 140 76 57 133 89 64
6 150 168.3 313 457 237 305 140 13 203 218 89 95 229 152 89

HS Code Of Stainless Steel 316 Fittings

Property Value
HS Code 7307

Reputable Stainless Steel 316 Fittings Supplier in India, providing flanges that offer resistance to seawater corrosion, ideal for marine applications

Stainless Steel 316 Pipe Fittings Schedule Chart

Properties Sch 80S Sch 10S Sch 40S
DN 900 Elbow 450 Elbow Equal tee 900 Elbow 450 Elbow Equal tee 900 Elbow 450 Elbow Equal tee
10 0.06 0.04 0.09 0.03 0.02 0.05 0.03 0.02 0.03
20 0.11 0.05 0.2 0.07 0.03 0.13 0.08 0.04 0.17
32 0.4 0.23 0.68 0.23 0.11 0.49 0.26 0.17 0.59
50 0.91 0.59 1.59 0.5 0.25 0.85 0.7 0.4 1.28
80 2.97 1.5 4.45 1.25 0.63 1.77 2.2 1.08 3.31
100 6.18 2.81 7.71 2.1 1.08 3.46 4.47 2.09 5.27
200 33.11 16.56 28.12 10.2 5.33 15.65 21.54 10.77 20.91
300 79.38 39.69 83.91 25.8 13.62 39.46 59.42 29.71 62.14
8 0.04 0.03 0.07 0.02 0.01 0.03 0.03 0.02 0.06
15 0.1 0.05 0.14 0.06 0.03 0.09 0.08 0.04 0.1
25 0.22 0.14 0.38 0.14 0.08 0.28 0.15 0.11 0.29
40 0.51 0.29 1.02 0.3 0.17 0.68 0.4 0.23 0.86
65 1.81 0.99 3.13 0.85 0.48 1.41 1.4 0.77 2.19
90 4 2 5.44 1.7 0.75 2.67 2.83 1.42 4.08
150 16.32 8.16 13.61 5.45 2.72 8.07 10.89 5.44 10.99
250 51.71 25.86 49.9 18.15 9.75 26.46 38.56 19.27 35.38
Check 316 Stainless Steel Reducer Pressure Rating

Pressure Rating Table Of SS 316 Tee

Temperature Ratings Pressure Class
150 300
oC oF 1 1/4 - 2 inch. 1/4 - 1 inch. 2 1/2 - 3 inch.
93 200 265 1350 1785 910
149 300 185 1050 1360 735
204 400 - 750 935 560
260 500 - 450 510 385
-29 to 66 -20 to 150 300 1500 2000 1000
121 250 225 1200 1575 825
177 350 150 900 1150 650
232 450 - 600 725 475
288 550 - 300 300 300

WNR 1.4401 Reducer Gasket Chart

NPS Gasket I.D. Gasket O.D.
Class 150 Class 400 Class 900 Class 300 Class 600
3/4 1.06 2.25 2.625 2.75 2.625 2.625
1 1/4 1.66 3 3.25 3.5 3.25 3.25
2 2.38 4.125 4.375 5.625 4.375 4.375
3 3.5 5.375 5.875 6.625 5.875 5.875
5 5.56 7.75 8.375 9.75 8.5 9.5
8 8.62 11 12 14.125 12.125 12.625
12 12.75 16.125 16.5 19.625 16.625 18
1/2 0.84 1.875 2.125 2.5 2.125 2.125
1 1.31 2.625 2.875 3.125 2.875 2.875
1 1/2 1.91 3.375 3.75 3.875 3.75 3.75
2 1/2 2.88 4.875 5.125 6.5 5.125 5.125
4 4.5 6.875 7 8.125 7.125 7.625
6 6.62 8.75 9.75 11.375 9.875 10.5
10 10.75 13.375 14.125 17.125 14.25 15.75
Buy Large Stock Of UNS S31600 End Cap In Schedule 5 To XXS At Factory Price

Application Industries Of UNS S31600 End Cap

Application Industries Of UNS S31600 End Cap

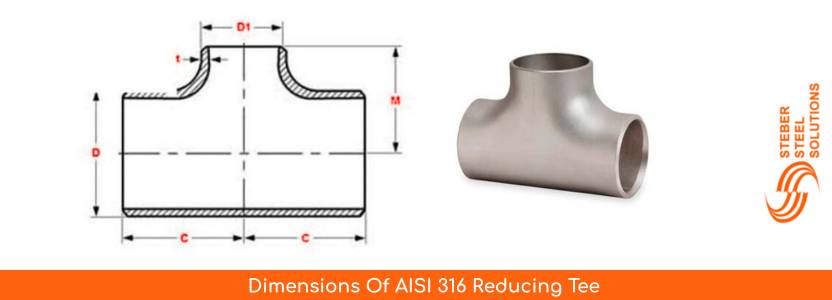

Dimensions Of AISI 316 Reducing Tee

Dimensions Of AISI 316 Reducing Tee
NPS Inch O.D Center-End
Outlet Run Run C Outlet M
20 219.1 508 381 324
273 333
323.8 346
355.6 356
406.4 356
457 368
24 273 610 432 384
323.8 397
355.6 406
406.4 406
457 419
508 432
559 432
3 1/2 48.3 101.6 95 79
60.3 83
73 89
88.9 92
4 48.3 114.3 105 86
60.3 89
73 95
88.9 98
101.6 102
1 1/2 21.3 48.3 57 57
26.7
33.4
42.2
14 168.3 355.6 279 238
219.1 248
273 257
323.8 270
16 168.3 406.4 305 264
219.1 273
273 283
323.8 295
355.6 305
6 73 168.3 143 121
88.9 124
101.6 127
114.3 130
141.3 137
8 101.6 219.1 178 152
114.3 156
141.3 162
168.3 168
1 21.3 33.4 38 38
26.7
2 1/2 33.4 73 76 57
42.2 64
48.3 67
60.3 70
3 42.2 88.9 86 70
48.3 73
60.3 76
73 83
1 1/4 21.3 42.2 48 48
26.7
33.4
5 60.3 141.3 124 105
73 108
88.9 111
101.6 114
114.3 117
2 26.7 60.3 64 44
33.4 51
42.2 57
48.3 60
10 114.3 273 216 184
141.3 191
168.3 194
219.1 203
22 273 559 419 359
323.8 371
355.6 381
406.4 381
457 394
508 406
18 219.1 457 343 298
273 308
323.8 321
355.6 330
406.4 330
12 141.3 323.8 254 216
168.3 219
219.1 229
273 241

Trusted Stainless Steel 316 Fittings Manufacturer in India, offering robust and high-performance flanges that are designed to meet the challenges of demanding industrial environments

Various Types Of Stainless Steel 316 Fittings

Stainless Steel 316 Elbow

Stainless Steel 316 Elbow

SS 316 Tee

SS 316 Tee

WNR 1.4401 Reducer

WNR 1.4401 Reducer

UNS S31600 End Cap

UNS S31600 End Cap

SUS 316 Stub End

SUS 316 Stub End

AISI 316 Bend

AISI 316 Bend

INOX 316 Cross

INOX 316 Cross

316 Stainless Steel Welded Pipe Fittings

316 Stainless Steel Welded Pipe Fittings

ASTM A403 WP316 Hot Induction Bend

ASTM A403 WP316 Hot Induction Bend

Elbow Types

ASTM A403 Gr WP316 45 Deg Elbow

ASTM A403 Gr WP316 45 Deg Elbow

ASTM A403 Grade WP316 90 Deg Elbow

ASTM A403 Grade WP316 90 Deg Elbow

Stainless Steel 316 180 Deg Elbow

Stainless Steel 316 180 Deg Elbow

SS 316 Long Radius Elbow

SS 316 Long Radius Elbow

WNR 1.4401 Short Radius Elbow

WNR 1.4401 Short Radius Elbow

UNS S31600 Reducing Elbow

UNS S31600 Reducing Elbow

Tee Types

SUS 316 Equal Tee

SUS 316 Equal Tee

AISI 316 Reducing Tee

AISI 316 Reducing Tee

INOX 316 Lateral Tee

INOX 316 Lateral Tee

316 Stainless Steel Barred Tee

316 Stainless Steel Barred Tee

ASTM A403 WP316 Y Tee

ASTM A403 WP316 Y Tee

ASTM A403 Gr WP316 Flanged Tee

ASTM A403 Gr WP316 Flanged Tee

Reducer Types

ASTM A403 Grade WP316 Concentric Reducer

ASTM A403 Grade WP316 Concentric Reducer

Stainless Steel 316 Eccentric Reducer

Stainless Steel 316 Eccentric Reducer

End Cap Types

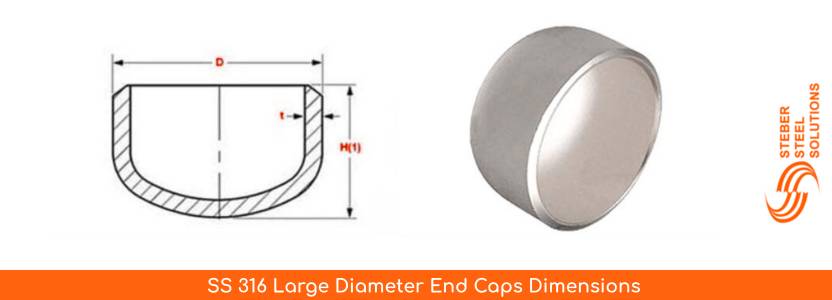

SS 316 Large Diameter End Caps

SS 316 Large Diameter End Caps

WNR 1.4401 Pressure Vessel End Caps

WNR 1.4401 Pressure Vessel End Caps

UNS S31600 Pressure Tank End Caps

UNS S31600 Pressure Tank End Caps

Stub End Types

SUS 316 Long Stub End

SUS 316 Long Stub End

AISI 316 Short Stub End

AISI 316 Short Stub End

INOX 316 Lap Joint Stub End

INOX 316 Lap Joint Stub End

Pipe Bend Types

316 Stainless Steel 45 Degree Bend

316 Stainless Steel 45 Degree Bend

ASTM A403 WP316 90 Deg Bend

ASTM A403 WP316 90 Deg Bend

ASTM A403 Gr WP316 180 Deg Pipe Bend

ASTM A403 Gr WP316 180 Deg Pipe Bend

ASTM A403 Grade WP316 Long Radius Bend

ASTM A403 Grade WP316 Long Radius Bend

Stainless Steel 316 Hot Induction Bend

Stainless Steel 316 Hot Induction Bend

SS 316 Short Radius Bend

SS 316 Short Radius Bend

Stainless Steel 316 Pipe Fittings Tolerances

NPS R inch G inch LT inch
3~3-1/2 +0, -0.03 +0, -0.03 +0.06, -0
5~8 +0, -0.06 +0, -0.03 +0.06, -0
20~24 +0, -0.06 +0, -0.06 +0.12, -0
1/2~2-1/2 +0, -0.03 +0, -0.03 +0.06, -0
4 +0, -0.06 +0, -0.03 +0.06, -0
10~18 +0, -0.06 +0, -0.06 +0.12, -0

Heat Treatment Of INOX 316 Lateral Tee

  • Annealing
  • Quench Annealing
  • Stabilizing Anneal
  • Process Annealing
  • Controlled Atmospheres

316 Stainless Steel Barred Tee Features

  • Have a long service life
  • Good tensile strength
  • Rather cheap to purchase and deploy
  • Leak-proof piping connections
  • High yield strength
  • Wear-fatigue resistance
  • Minimize the pressure drops inside the pipeline

Premium Stainless Steel 316 Fittings Supplier in India, delivering flanges that provide resistance to oxidation and corrosion, making them suitable for chemical processing

What Are The Manufacturing Equipment's Stainless Steel 316 Pipe Fittings ?

  • Hot Forming Machines
  • CNC Lath
  • Hydraulic Press 300 Tons Capacity
  • Pipe Elbow Cutting Machine
  • Cold Forming Machines
  • Cold Forming Machines
  • Elbows Beveling Machine
  • Hydraulic Press 150 Tons Capacity

Stainless Steel 316 Elbow Bending Radius

Bend Radius Bend Angle
4 D 135°
5 D 180°
8 D 60°
10 D 90°
3 D 15°
6 D 45°

SS 316 Large Diameter End Caps Dimensions

SS 316 Large Diameter End Caps Dimensions
Sizes O.D Length Length f
28 711 - 267
2 60.3 44 38
3 88.9 64 51
6 168.3 102 89
30 762 - 267
8 219.1 127 102
5 141.3 89 76
4 114.3 76 64
14 355.6 191 165
24 610 305 267
12 323.8 178 152
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2.1/2 73 51 38
3.1/2 101.6 76 64
16 406.4 203 178
1 33.4 38 38
10 273 152 127
18 457 229 203
20 508 254 229
22 559 254 254
26 660 - 267

Corrosion Environment Of ASTM A403 Grade WP316 90 Deg Elbow

Temperature Corrosion Environment
122 Sulfuric Acid
203 Phosphoric Acid
>140 Nitric Acid + Hydrochloric Acid
>Boiling Hydrochloric Acid
194 Sodium Hydroxide
<54 Sulfuric Acid
212 Nitric Acid

What Precautions Should We Take For Stainless Steel 316 Fittings ?

What Precautions Should We Take For Stainless Steel 316 Fittings ?

SS 316 Pipe Fittings Working Pressure

NPS Inch I.D O.D Working Pressure Max W.T Min Fittings Weight Kg
2-1/2 2.445 2.875 300 .203 1.136
2 2.047 2.375 280 .154 .720
1-1/4 1.360 1.660 370 .140 .450
3 3.042 3.500 260 .216 1.488
14 13.073 14.000 130 .437 12.462
10 9.976 10.750 140 .365 7.966
3-1/2 3.521 4.000 240 .226 1.789
8 7.942 8.625 160 .322 5.619
1-1/2 1.590 1.900 330 .145 .537
16 14.940 16.000 130 .500 16.286
3/8 .473 .675 620 .091 .115
1/4 .344 .540 780 .088 .086
6 6.031 6.625 180 .280 3.733
4 3.998 4.500 220 .237 2.118
12 11.889 12.750 130 .406 10.534
5 5.016 5.563 190 .258 2.874
3/4 .804 1.050 480 .113 .226
1/2 .602 .840 590 .109 .170
1 1.029 1.315 450 .133 .333

Reliable Stainless Steel 316 Fittings Supplier in India, providing high-strength, corrosion-resistant flanges used in demanding applications such as oil and gas exploration and offshore platforms

Chemical Composition Of ASTM A403 Gr WP316 Flanged Tee

C 0.08 max
Si 1.0 max
Mn 2.0 max
Ni 11.00 – 14.00
Mo 2.00 – 3.00
P 0.045 max
S 0.030 max
Cr 16.00 – 18.00
Fe 67.845 min

Stainless Steel 316 Eccentric Reducer Mechanical Properties

Properties Values
Melting Point 1400°C (2550°F)
Elongation 0.35
Density 8.0 g/cm3
Yield Strength Psi – 30000 (MPa – 205)
Tensile Strength Psi – 75000 (MPa – 515)

Physical Properties Of ASTM A403 Grade WP316 Long Radius Bend

Grade 316
Elastic Modulus 193
Thermal Expansion 0-100°C 15.9
0-315°C 16.2
0-538°C 17.5
Thermal Conductivity at 100°C 16.3
at 500°C 21.5
Specific Heat 500
Electrical Resistivity 740

Stainless Steel 316 Fittings Equivalent Standard

UNS (United Nations Standard) S31600
WERKSTOFF NR. (German) 1.4401 / 1.4436
JIS (Japanese) SUS 316
EN (European) X5CrNiMo17-12-2 / X3CrNiMo17-13-3
BS (British) 316S31 / 316S33
AFNOR (French) Z7CND17‐11‐02

Supplied ASTM A403 Grade WP316 To Different Countries

Country Name Country Name
Algeria Nigeria
Tunisia South Africa
Kenya Angola
Tanzania United Arab Emirates
Egypt UAE
Zambia Ghana
