Hastelloy Fittings
| Hastelloy Fittings Quick Overview | |
|---|---|
| Seamless Fittings | 1/2" - 10″ |
| Welded Fittings | 1/2" - 48" |
| Methods | Seamless, Welded, Fabricated |
| Bending Radius | 1D, 3D, 2D, 10D,5D, 6D, 8D |
| Schedule | SCH 10 To SCH 160 |
| Forms | Elbow, Reducer, Tee, Cap, |
| Bending Angle | 90°, 22.5°, 60°, 30°, 45°, or Custom |
Hastelloy Elbow Manufacturer in India As Per ASME B16.9 Standard
Hastelloy Fittings
Hastelloy Alloy Elbow
Hastelloy Material Reducer
Table of Contents
- Hastelloy Fittings Specification
- Various Types Of Hastelloy Fittings
- Hastelloy Alloy Elbow Size Chart
- Size Chart Of DIN 2.4602 Equal Tee
- Nickel Alloy C22 End Cap Size Chart
- Weight Chart of Hastelloy Material Pipe Fittings
- Applications Of UNS N06022 Fittings
- End Types Of Hastelloy Alloy Fittings
- Hastelloy Pipe Fittings Thickness Chart
- Hastelloy Metal Pipe Fittings Testing
- Hastelloy Metal Reducing Elbow Temperature Range
- Hastelloy Material Cross Dimensions
- Hastelloy Alloy C22 Reducer Dimensions Chart
- Why Hastelloy Fittings Used In High-Temperature Applications?
- Corrosion Resistance Of Hastelloy Eccentric Reducer
- Bending Method Hastelloy Alloy Tee
- Heat Treatment Of Hastelloy Alloy Concentric Reducer
- Grades Of Hastelloy Fittings
- Hastelloy Alloy Fittings Allowable Stress
- Equivalent Standards Of Hastelloy Fittings
- Chemical Composition Of Hastelloy C22 Elbow
- UNS 6022 Large Diameter End Caps Mechanical Properties
- Physical Properties of Hastelloy Metal Long Stub End
Hastelloy Fittings Specification
Hastelloy Fittings Sizes
- Seamless: 1/2" - 48"
- Welded : 1/2" - 10″
- Buttweld : 1/2" -36"
- Schedule : SCH 5 to SCH 160
ASTM B366 WPHC22 Reducing Tee Standards
- ASTM B366
- MSS-SP-43
- ASME B16.28
- ANSI B16.9
Hastelloy Eccentric Reducer Form
- Reducer, Stub End
- Cap
- Elbow
- Tee
Hastelloy Alloy Tee Packaging
- Bubble Wraps
- Bundled
- Wooden Box
UNS N06022 Cross Radius
- 5D
- 3D
- 1D
- 2D
UNS N06022 Hot Induction Bend Bending Method
- Roll Bending
- Mandrel
- Hot Induction
- Ram Type
DIN 2.4602 Elbow Testing
- Ultrasonic test
- HIC tested
- NDT Test
- PMI Test
Hastelloy Alloy Short Stub End Origin
- Janpanese
- European
- Korean
- American
Hastelloy Flanged Tee Bend angle
- 15°
- 30°
- 180°
- 90°
- 135°
- 45°
- 22.5
Hastelloy Material Tee Russian Standards
- GOST 17379
- GOST 17375
Hastelloy Pipe Bend Marking
- Heat Treatment
- Size , Grades
- Manufacturers Name
ASME SB366 Alloy C22 End Cap Finish
- Polish
- Mill Finish
- Special Finish
Supplier Of Hastelloy Alloy Reducing Tee in Seamless and Welded Form
Various Types Of Hastelloy Fittings
Hastelloy Fittings Supplier in India Provides Best Quality Tee, Elbow, Reducers
DIN 2.4602 Elbow
Hastelloy Alloy Tee
Nickel C22 Reducer
ASME SB366 Alloy C22 End Cap
Hastelloy Material Stub End
Hastelloy Pipe Bend
UNS N06022 Cross
DIN 2.4602 Welded Pipe Fittings
UNS N06022 Hot Induction Bend
Elbow Types
Alloy C22 45 Deg Elbow
Hastelloy 90 Deg Elbow
Hastelloy Metal 180 Deg Elbow
Hastelloy Material Long Radius Elbow
EN 2.4602 Short Radius Elbow
Hastelloy Metal Reducing Elbow
Tee Types
ASTM B366 Hastelloy B2 Equal Tee
ASTM B366 WPHC22 Reducing Tee
Alloy C22 Lateral Tee
Hastelloy 2.4602 Barred Tee
Hastelloy Material Y Tee
Hastelloy Flanged Tee
Reducer Type
Hastelloy 2.4602 Concentric Reducer
Hastelloy Eccentric Reducer
End Cap types
UNS 6022 Large Diameter End Caps
Hastelloy Material Pressure Vessel End Caps
Hastelloy 2.4602 Pressure Tank End Caps
Stub End Types
Hastelloy Metal Long Stub End
Hastelloy Alloy Short Stub End
ANSI B16.9 Alloy C22 Lap Joint Stub End
Pipe Bend Types
Hastelloy Alloy 45 Degree Bend
Hastelloy 90 Deg Bend
UNS 6022 180 Deg Pipe Bend
Hastelloy Alloy Long Radius Bend
Hastelloy Metal Hot Induction Bend
Hastelloy Short Radius Bend

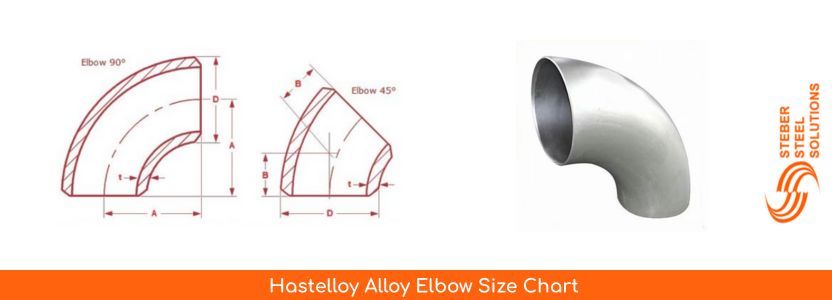

Hastelloy Alloy Elbow Size Chart
| NPS | 90 deg 3D Center-End A | OD | 90 deg Long Radius Center-End A | 45 deg 3D Center-End B | 45 deg Long Radius Center-End B |
|---|---|---|---|---|---|
| 3/4 | 57 | 26.7 | 38 | 24 | 19 |
| 1¼ | 95 | 42.2 | 48 | 39 | 25 |
| 1 | 76 | 33.4 | 38 | 31 | 22 |
| 2 | 152 | 60.3 | 76 | 63 | 35 |
| 3 | 229 | 88.9 | 114 | 95 | 51 |
| 4 | 305 | 114.3 | 152 | 127 | 64 |
| 5 | 381 | 141.3 | 190 | 157 | 79 |
| 6 | 457 | 168.3 | 229 | 189 | 95 |
| 8 | 610 | 219.1 | 305 | 252 | 127 |
| 12 | 914 | 323.8 | 457 | 378 | 190 |
| 14 | 1067 | 355.6 | 533 | 441 | 222 |
| 20 | 1524 | 508 | 762 | 632 | 318 |
| 22 | 1676 | 559 | 838 | 694 | 343 |
| 26 | 1981 | 660 | 991 | 821 | 406 |
| 30 | 2286 | 762 | 1143 | 964 | 470 |

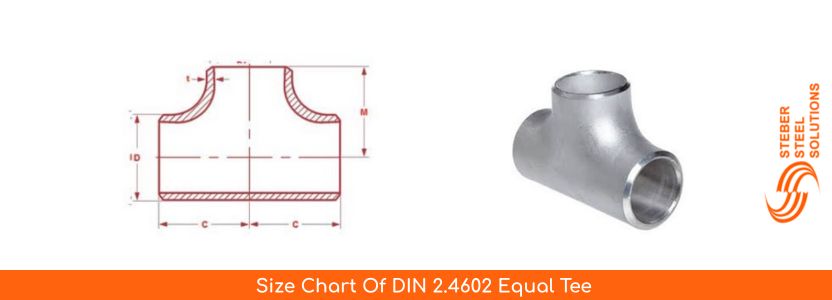

Size Chart Of DIN 2.4602 Equal Tee
Hastelloy Fittings Suppplier In India Offers Custom Sizes Of Fittings As Per Customers Requirement
| Nominal Size | Center-to-End | ODia bevel | |
|---|---|---|---|
| Outlet(M) | Run (C) | ||
| 1/2″ | 25 | 25 | 21.3 |
| 3/4″ | 29 | 29 | 26.7 |
| 1 1/4″ | 48 | 48 | 42.2 |
| 4″ | 105 | 105 | 114.3 |
| 6″ | 143 | 143 | 168.3 |
| 8″ | 178 | 178 | 219.1 |
| 10″ | 216 | 216 | 273.0 |
| 14″ | 279 | 279 | 355.6 |
| 16″ | 305 | 305 | 406.4 |
| 18″ | 343 | 343 | 457.0 |
| 20″ | 381 | 381 | 508.0 |

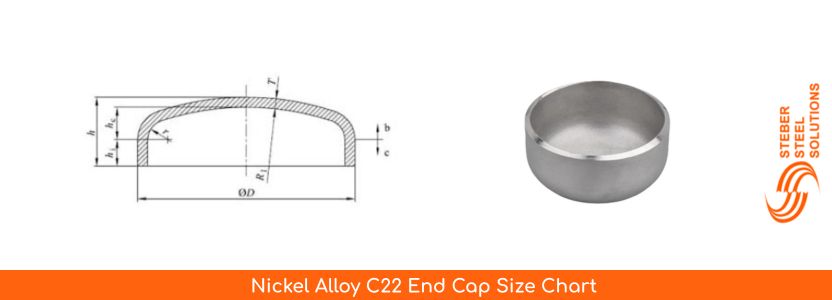

Nickel Alloy C22 End Cap Size Chart
| OD (D) | Size | Len Of (Height 1) | Len Of (Height) |
|---|---|---|---|
| 33.4 | 1 | 38 | 38 |
| 60.3 | 2 | 44 | 38 |
| 73 | 2.1/2 | 51 | 38 |
| 88.9 | 3 | 64 | 51 |
| 101.6 | 3.1/2 | 76 | 64 |
| 114.3 | 4 | 76 | 64 |
| 141.3 | 5 | 89 | 76 |
| 168.3 | 6 | 102 | 89 |
| 219.1 | 8 | 127 | 102 |
| 273 | 10 | 152 | 127 |
| 323.8 | 12 | 178 | 152 |
| 355.6 | 14 | 191 | 165 |
| 406.4 | 16 | 203 | 178 |
| 457 | 18 | 229 | 203 |
| 508 | 20 | 254 | 229 |
Weight Chart of Hastelloy Material Pipe Fittings
Hastelloy Fittings Supplier In India Provides Exceptional Corrosion Resistant Fittings
| SCH XS | SCH STD | |||
|---|---|---|---|---|
| NPS | KG | LBS | KG | LBS |
| 1 | 0.4 | 0.88 | 0.34 | 0.75 |
| 1.1/4 | 0.73 | 1.6 | 0.59 | 1.3 |
| 1.1/2 | 1.02 | 2.25 | 0.91 | 2 |
| 2 | 1.81 | 4 | 1.59 | 3.5 |
| 3 | 3.86 | 8.5 | 3.18 | 7 |
| 3.1/2 | 5.44 | 12 | 4.08 | 9 |
| 5 | 11.79 | 26 | 9.53 | 21 |
| 6 | 18.14 | 40 | 15.42 | 34 |
| 4 | 7.17 | 15.8 | 5.44 | 12 |
| 8 | 34.02 | 75 | 24.95 | 55 |
| 10 | 47.63 | 105 | 38.56 | 85 |
| 12 | 72.57 | 160 | 54.43 | 120 |
| 16 | 127.01 | 280 | 88.45 | 195 |
| 18 | 150.59 | 332 | 112.94 | 249 |
| 20 | 217.72 | 480 | 155.13 | 342 |
Buy ASTM B366 Hastelloy Concentric Reducer For Power And Process Industry
Applications Of UNS N06022 Fittings
End Types Of Hastelloy Alloy Fittings
- PSE – Plain small end
- BBE – Beveled Both Ends
- PBE – Plain Both Ends
- TSE – Treaded small end
- BLE – Beveled large end
Check Odd Sizes Hastelloy Short Radius Elbow Price List
Get Recent Hastelloy Fittings Price List In 2 Hrs Click here
Hastelloy Pipe Fittings Thickness Chart
| Sizes | Weight (Kg) | Weight (Lbs) |
|---|---|---|
| 3-1.1/2 | 0.77 | 1.7 |
| 6-5 | 3.86 | 8.5 |
| 10-5 | 9.53 | 21 |
| 24-18 | 67.13 | 148 |
| 20-12 | 54.43 | 120 |
| 3-2 | 0.82 | 1.8 |
| 30-20 | 99.79 | 220 |
| 12-5 | 13.61 | 30 |
| 14-12 | 27.22 | 60 |
| 28-26 | 101.6 | 224 |
| 1-1/2 | 0.18 | 0.4 |
| 2.1/2-1 | 0.57 | 1.25 |
| 3-2.1/2 | 0.91 | 2 |
Stockist Of Hastelloy Buttweld Fittings Provide Hardness, PMT and Ultrasonic Test
Hastelloy Metal Pipe Fittings Testing
Hastelloy Metal Reducing Elbow Temperature Range
| Grade | Temperature |
|---|---|
| Hastelloy B2 | 1204°C |
| Hastelloy X | 1204°C |
| Hastelloy C22 | 1038°C |
| Hastelloy C276 | 1038°C |
| Hastelloy B3 | 1093°C |

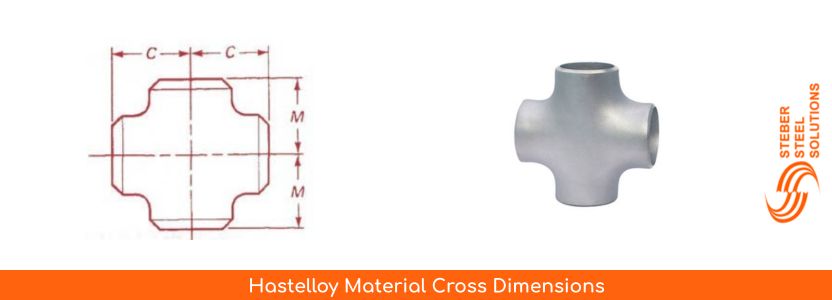

Hastelloy Material Cross Dimensions
Hastelloy Fittings Manufacturer In India Provides Best Quality Fittings As Per International Standards
| NPS | OD at Bevel | DN | Center- to-End | |
|---|---|---|---|---|
| Outlet | Run.C | |||
| 1-1/4 | 42.2 | 32 | 48 | 48 |
| 1 | 33.4 | 25 | 38 | 38 |
| 2 | 60.3 | 50 | 64 | 64 |
| 2-1/2 | 73.0 | 65 | 76 | 76 |
| 3/4 | 26.7 | 20 | 29 | 29 |
| 4 | 114.3 | 100 | 105 | 105 |
| 5 | 141.3 | 125 | 124 | 124 |
| 6 | 168.3 | 150 | 143 | 143 |
| 8 | 219.1 | 200 | 178 | 178 |
| 10 | 273.0 | 250 | 216 | 216 |
| 12 | 323.8 | 300 | 254 | 254 |
| 16 | 406.4 | 400 | 305 | 305 |
| 18 | 457 | 450 | 343 | 343 |
| 20 | 508 | 500 | 381 | 381 |
| 22 | 559 | 550 | 419 | 419 |
| 24 | 610 | 600 | 432 | 432 |
Hastelloy Alloy C22 Reducer Dimensions Chart
| NPS | END TO END | OD | |
|---|---|---|---|
| Inch | H | P | D |
| 3/4 x 1/2 | 38 | 21.3 | 26.7 |
| 1 x 3/4 | 51 | 26.7 | 33.4 |
| 1 1/2 x 3/4 | 64 | 26.7 | 48.3 |
| 1 1/2 x 1/2 | 64 | 21.3 | 48.3 |
| 2 x 1 1/2 | 76 | 48.2 | 60.3 |
| 2 1/2 x 1 1/2 | 89 | 48.3 | 73 |
| 2 1/2 x 1 1/4 | 89 | 42.2 | 73 |
| 3 1/2 x 3 | 102 | 88.9 | 101.6 |
| 3 1/2 x 21/2 | 102 | 73 | 101.6 |
| 4 x 2 | 102 | 60.3 | 114.3 |
| 4 x 1 1/2 | 102 | 48.3 | 114.3 |
| 5 x 3 | 127 | 88.9 | 141.3 |
| 5 x 2 1/2 | 127 | 73 | 141.3 |
| 5 x 2 | 127 | 60.3 | 141.3 |
| 6 x 5 | 140 | 141.3 | 168.3 |
| 8 x 6 | 152 | 168.3 | 219.1 |
| 10 x 6 | 178 | 168.1 | 273.1 |
| 10 x 5 | 178 | 141.3 | 273.1 |
| 10 x 4 | 178 | 114.3 | 273.1 |
| 12 x 10 | 203 | 273.1 | 323.9 |
| 14 x 8 | 330 | 219.1 | 355.6 |
| 16 x 6 | 356 | 168.3 | 406.4 |
| 20 x 18 | 508 | 457 | 508 |
| 22 x 18 | 508 | 457 | 559 |
| 24 x 20 | 508 | 508 | 610 |
Why Hastelloy Fittings Used In High-Temperature Applications?
- Exceptional Corrosion Resistance
- Strength And Durability
- Resistant To Cracking
- High Thermal Stability
Corrosion Resistance Of Hastelloy Eccentric Reducer
| Media | Content Weight % | Mean Corrosion rate, mills per year |
|---|---|---|
| Hastelloy C22 | ||
| Ferric Chloride | 10% | 1 |
| Acetic Acid | 99% | None |
| Sulfuric Acid | 50% | 1 |
| Hydrochloric acid | 1% | 3 |
| Formic Acid | 88% | Below 1 |
| Nitric Acid + 6% HF | 5% | 67 |
Bending Method Hastelloy Alloy Tee
- Rotary Draw Bending
- Mandrel Bending
- Roll Bending
- Ram-Type Bending
- Hot Induction Bending
Heat Treatment Of Hastelloy Alloy Concentric Reducer
| Material | Heat Treatment In °C | Heat Treatment In °F |
|---|---|---|
| Hastelloy C22 | 1000°C | 1810°F |
| Hastelloy C276 | 1121°C | 2050°F |
Grades Of Hastelloy Fittings
| Trade Name | Buttweld Fittings* |
| Hastelloy B UNS N10001 |
B/SB366 WPHB |
| Hastelloy B-2 UNS N10665 |
B/SB366 WPHB-2 |
| Hastelloy B-3 UNS N10675 |
B/SB366 WPHB-3 |
| Hastelloy C-276 UNS N10276 |
B/SB366 WPHC276 |
| Hastelloy C-4 UNS N06455 |
B/SB366 WPHC4 |
| Hastelloy C-22 UNS N06022 |
B/SB366 WPHC22 |
| Hastelloy G UNS N06007 |
B/SB366 WPHG |
| Hastelloy G-2 UNS N06975 |
------ |
| Hastelloy G-3 UNS N06985 |
B/SB366 WPHG-3 |
| Hastelloy X UNS N06002 |
B/SB366 WPHX |
Hastelloy Alloy Fittings Allowable Stress
| Tempe In °F | Max Allowable Stress ( KSI) |
|---|---|
| -20~100 | 27.3 |
| 200 | 27.3 |
| 600 | 25.2 |
| 700 | 24.0 |
| 900 | 22.6 |
| 1000 | 22.3 |
| 1200 | 9.8 |
Equivalent Standards Of Hastelloy Fittings
| Grades | WERKSTOFF NR. | UNS | EN | JIS |
| Hastelloy C22 | 2.4602 | N06022 | NiCr21Mo14W | NW 6022 |
| Hastelloy C | 2.4816 | N06001 | – | – |
| Hastelloy B2 | 2.4617 | N10665 | – | – |
Chemical Composition Of Hastelloy C22 Elbow
| Grades | Element | Hastelloy B2 | Hastelloy C22 | Hastelloy C |
|---|---|---|---|---|
| Ni | Minimum % | 57.0% | 56.0% | 52.0% |
| Maximum % | 60.0% | 60.0% | 58.0% | |
| C | Maximum % | 0.03% | 0.015% | 0.05% |
| Cr | Minimum % | 0.0% | 20.0% | 14.0% |
| Maximum % | 0.0% | 22.0% | 17.0% | |
| Mo | Minimum % | 28.0% | 13.0% | 0.0% |
| Maximum % | 30.0% | 15.0% | 3.0% | |
| Mn | Minimum % | 0.0% | 0.0% | 0.5% |
| Maximum % | 1.0% | 1.0% | 1.0% | |
| Si | Minimum % | 0.0% | 0.0% | 0.2% |
| Maximum % | 0.5% | 0.5% | 0.5% | |
| Cu | Minimum % | 0.0% | 0.0% | 0.0% |
| Maximum % | 0.5% | 3.0% | 2.0% |
UNS 6022 Large Diameter End Caps Mechanical Properties
| Property | Hastelloy B2 | Hastelloy C22 | Hastelloy C |
|---|---|---|---|
| Tensile Strength (MPa) | 550-760 MPa | 655-965 MPa | 690-1035 MPa |
| Yield Strength (MPa) | 240-550 MPa | 290-450 MPa | 275-510 MPa |
| Hardness (HRB) | 85 HRB max | 90 HRB max | 95 HRB max |
| Modulus of Elasticity (GPa) | 160 GPa | 180 GPa | 200 GPa |
| Elongation (% in 50 mm) | 30% min | 40% min | 30% min |
| Poisson's Ratio | 0.33 | 0.31 | 0.30 |
Physical Properties of Hastelloy Metal Long Stub End
| Property | Hastelloy B2 | Hastelloy C22 | Hastelloy C |
|---|---|---|---|
| Melting Point (°C) | 1370-1410°C | 1370-1410°C | 1370-1410°C |
| Density (g/cm³) | 8.80 g/cm³ | 8.89 g/cm³ | 8.90 g/cm³ |
| Specific Heat (J/g·K) | 0.46 J/g·K | 0.44 J/g·K | 0.46 J/g·K |
| Electrical Resistivity (μΩ·cm) | 110 μΩ·cm | 85 μΩ·cm | 80 μΩ·cm |
| Thermal Conductivity (W/m·K) | 8.8 W/m·K | 9.6 W/m·K | 13.2 W/m·K |
| Young’s Modulus (GPa) | 160 GPa | 180 GPa | 200 GPa |
Frequent Deliveries Of Hastelloy Fittings In Following Countries
| Country Name | Flag | Country Name | Flag |
|---|---|---|---|
| Algeria |  |
Nigeria |  |
| Zambia |  |
Ghana |  |
| Tunisia |  |
South Africa |  |
| Kenya |  |
Angola |  |
| Tanzania |  |
Morocco |  |
| Egypt |  |
Ethiopia |  |
